Kent JHC-18S - Centerless Grinders

Share Machine
Specifications Print Specs

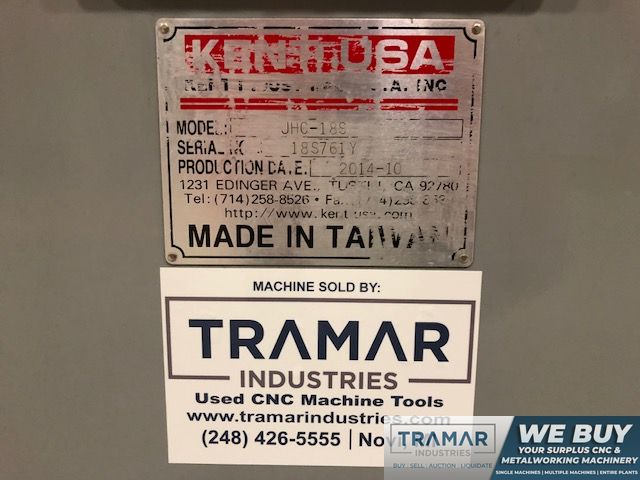

Model: JHC-18S
Year: 2014
Stock #: 12851 Sold
Highlights:

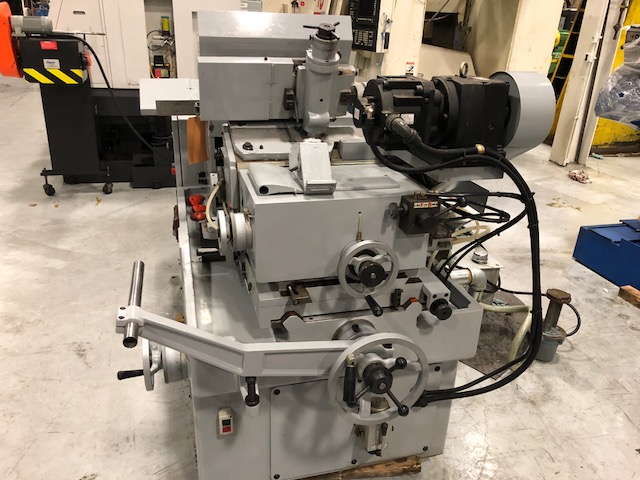

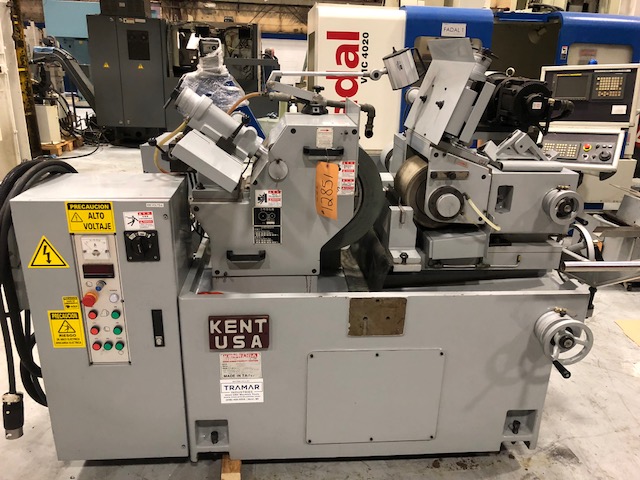

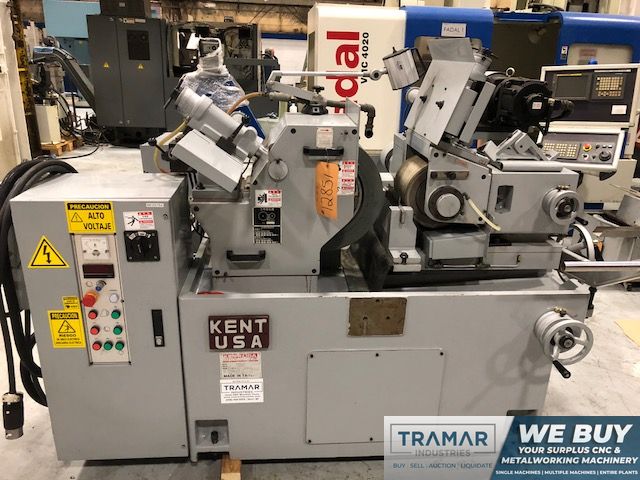

2014 KENT JHC-18S
Machine Videos
Machine Specifications
GW RPM
1,200
RW Power
2 horsepower
RW RPM
250
CNC Control
yes

Equipped With:

Machine Specifications:

Grinding Range (Standard Work Rest) Ø 0.04″ – 2″
Grinding Range (Special Work Rest) Ø 1.5″ – 4″

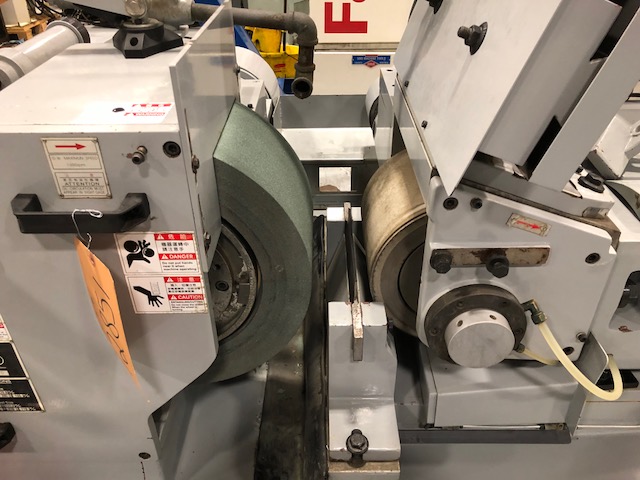

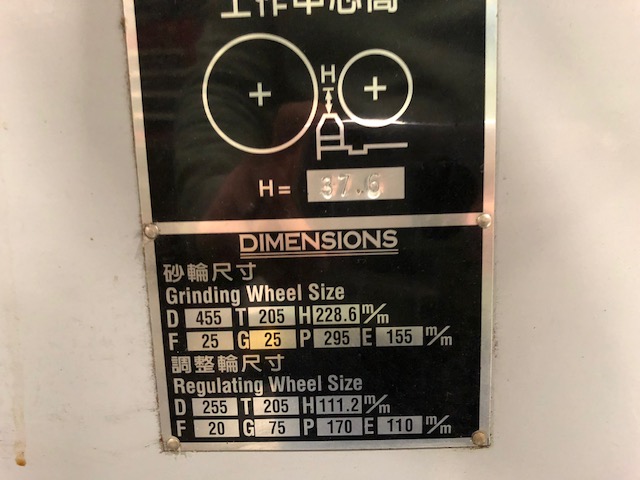

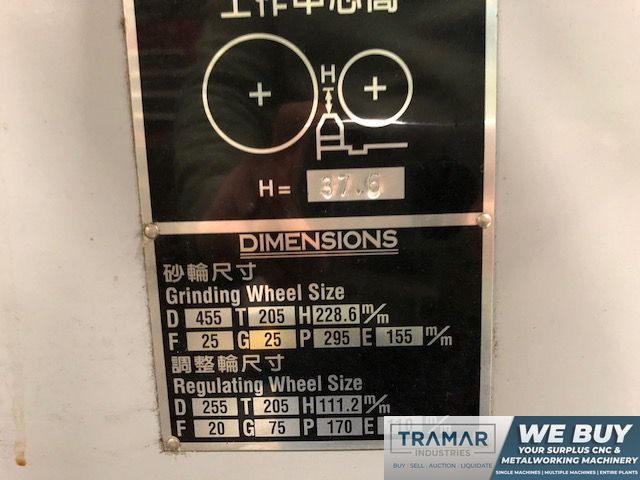

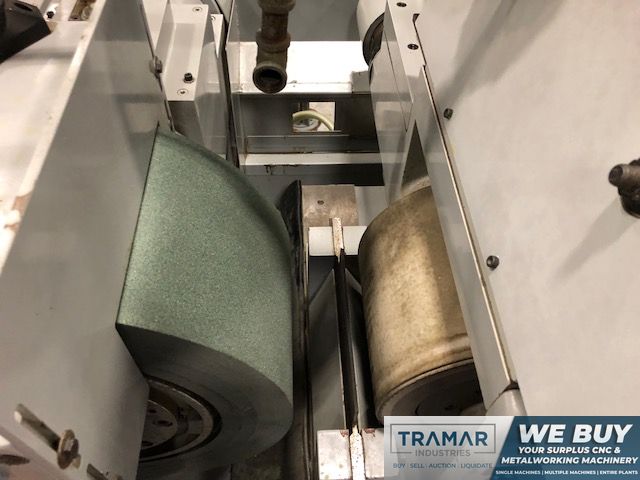

Grinding Wheel Size 18″ x 8″ x 9″
Regulating Wheel Size 10″ x 8″ x 4.38
Grinding Wheel Speed 1200 RPM
Regulating Wheel Speed 10 Steps 13-316 RPM, Infinitely Variable 10-250 RPM (S Model)
Grinding Wheel Motor 15 HP
Regulating Wheel Motor 2 HP (1200 RPM)

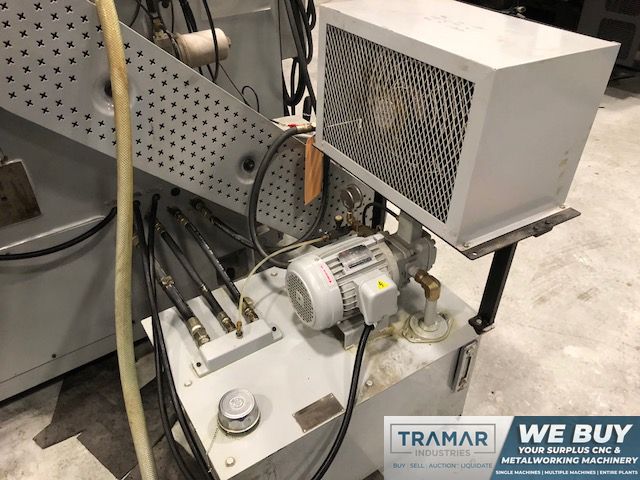

Hydraulic Pump Motor 1 HP (1800 RPM)
Coolant Pump Motor 1/4 (3600 RPM)
Upper Slide Feed Graduation 0.0001″ (0.200″ Per Rev)
Lower Slide Feed Graduation 0.0002″ (0.400″ Per Rev)
Lower Slide Micro Feed 0.000050″ (Grad), 0.010″ (Rev)
Dressing Device Graduation 0.0005″ (Grad), 0.050″ (Rev)
Regulating Wheel Tile Angle +5 ~ -3°
Regulating Wheel Swivel Angle ± 5°
Net Weight 6160 LBS
Gross Weight 6820 LBS


The Kent JHC-18S is an exclusive part of our Centerless Grinders inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
