Makino A61NX - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: A61NX
Year: 2014
Stock #: 13555 Sold
Highlights:
- Professional 5 Control
- Full B Axis Indexing
- Coolant Thru Spindle
- Table Size: 19.7" x 19.7"
- Travels (X/Y/Z): 28.7"/25.6"/31.5"

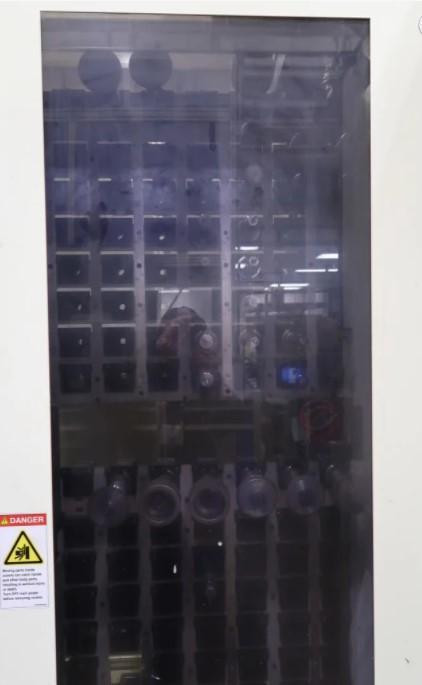

- 14,000 RPM | CAT 40 | 133 Station ATC

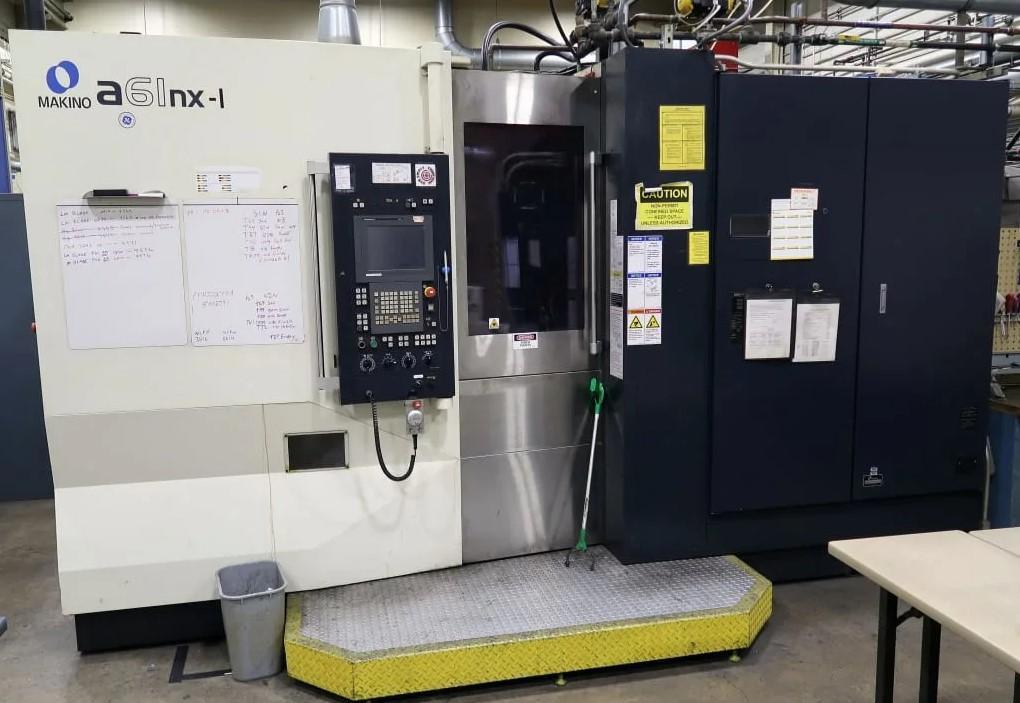

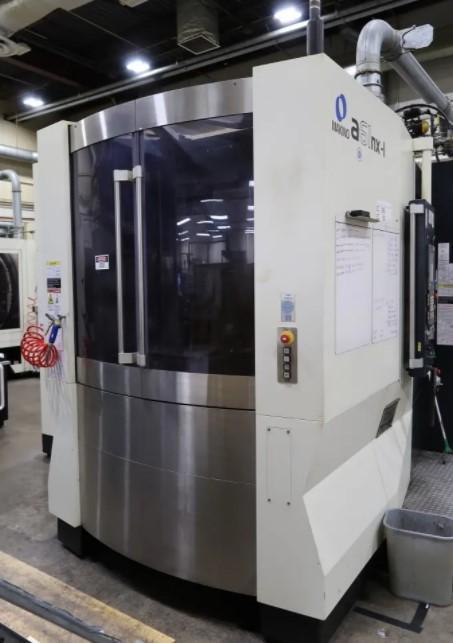

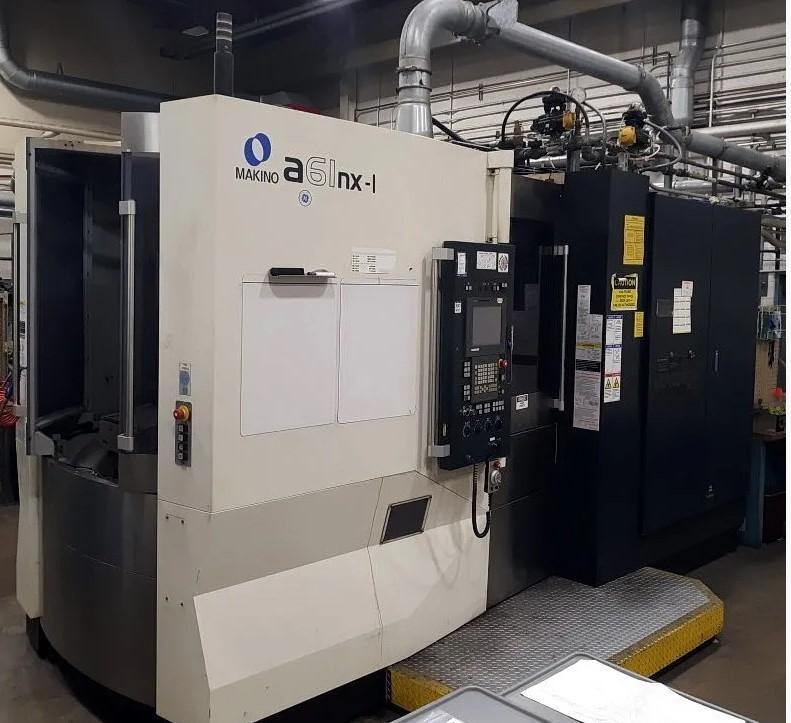

2014 Makino A61NX CNC Horizontal Machining Center
Machine Specifications
CNC Control
yes
Control Type
Professional 5
# Axis
4
Pallet Length
19.7"
Pallet Width
19.7"
Pallet Capacity
1,100 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
28.7"
Y-Axis Travel
25.6"
Z-Axis Travel
31.5"
Spindle Taper
CAT 40
Spindle Speed
14,000 rpm
Spindle Motor (HP)
30 hp
Tool Changer Capacity
133
Coolant Through Spindle
yes
Dimensions
190" x 115" x 115"
Weight
27,000 pounds

Equipped With:

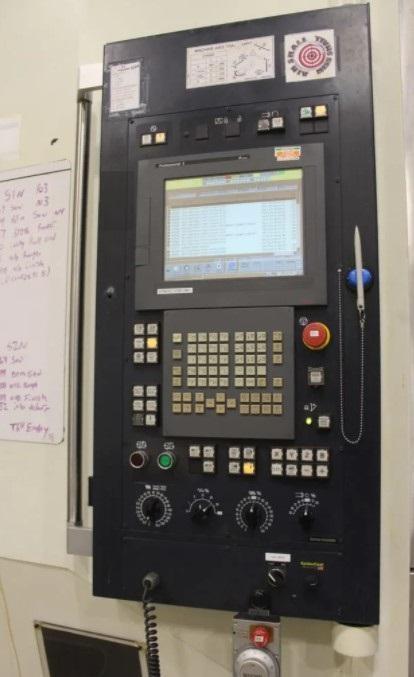

- Professional 5 Control (Fanuc)
- Full B Axis Indexing

- Helical Interpolation
- Ethernet
- Coolant Thru Spindle
- Tool Length Measurement

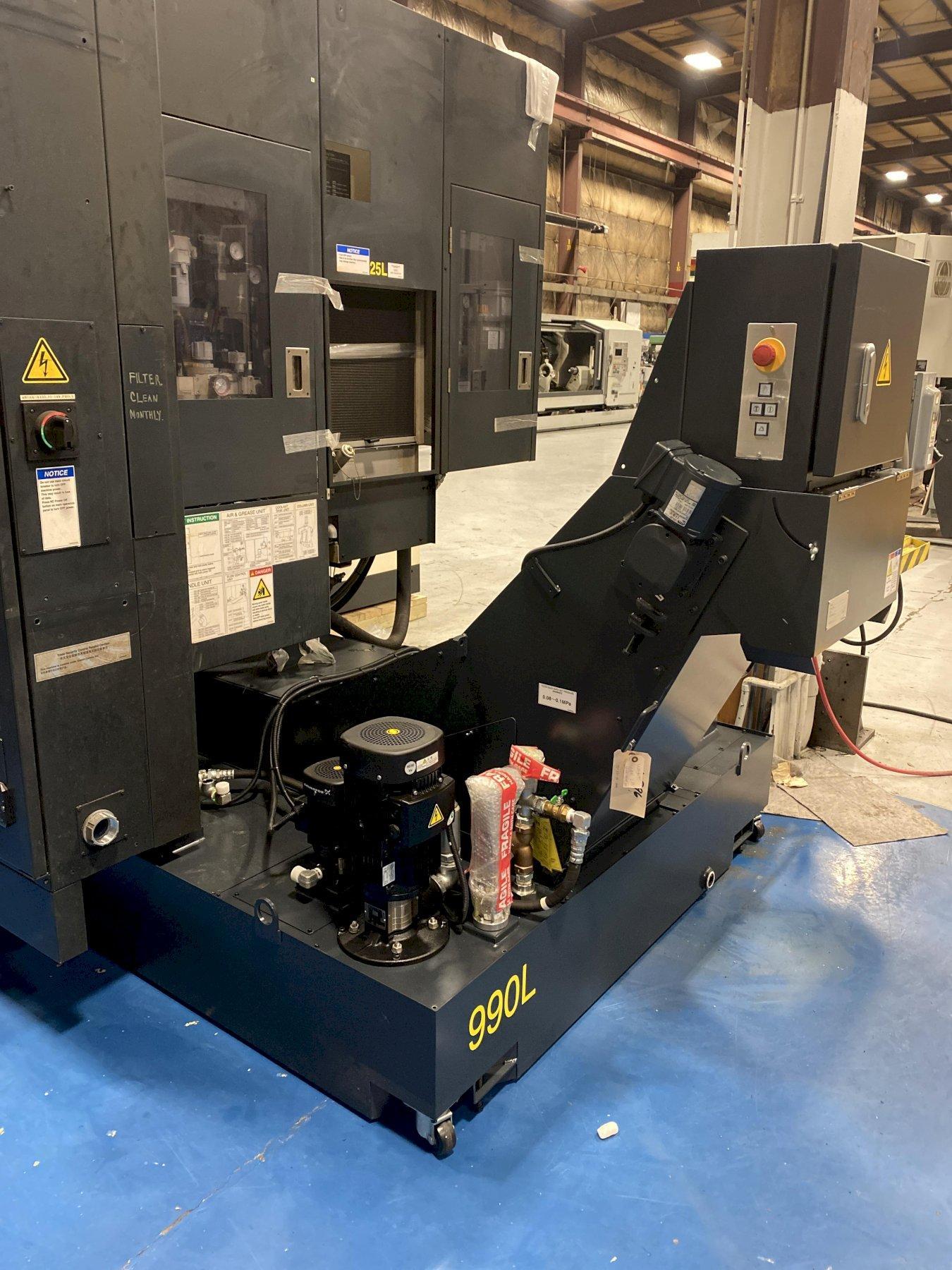

- Chip Conveyor


The Makino A61NX is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
