Samsung PL-45L - Horizontal Lathes

Share Machine

Specifications Print Specs

Model: PL-45L

Year: 2014

Stock #: 13112 Sold

Type: Horizontal Lathes

Manufacturer: Used Samsung Machines

Highlights:
Fanuc 0i-TD Control
Manual Steady Rest
Programmable Hydraulic Tailstock
21" Samchully HCH-21 Chuck
30.5” Swing
88.7” Center Distance

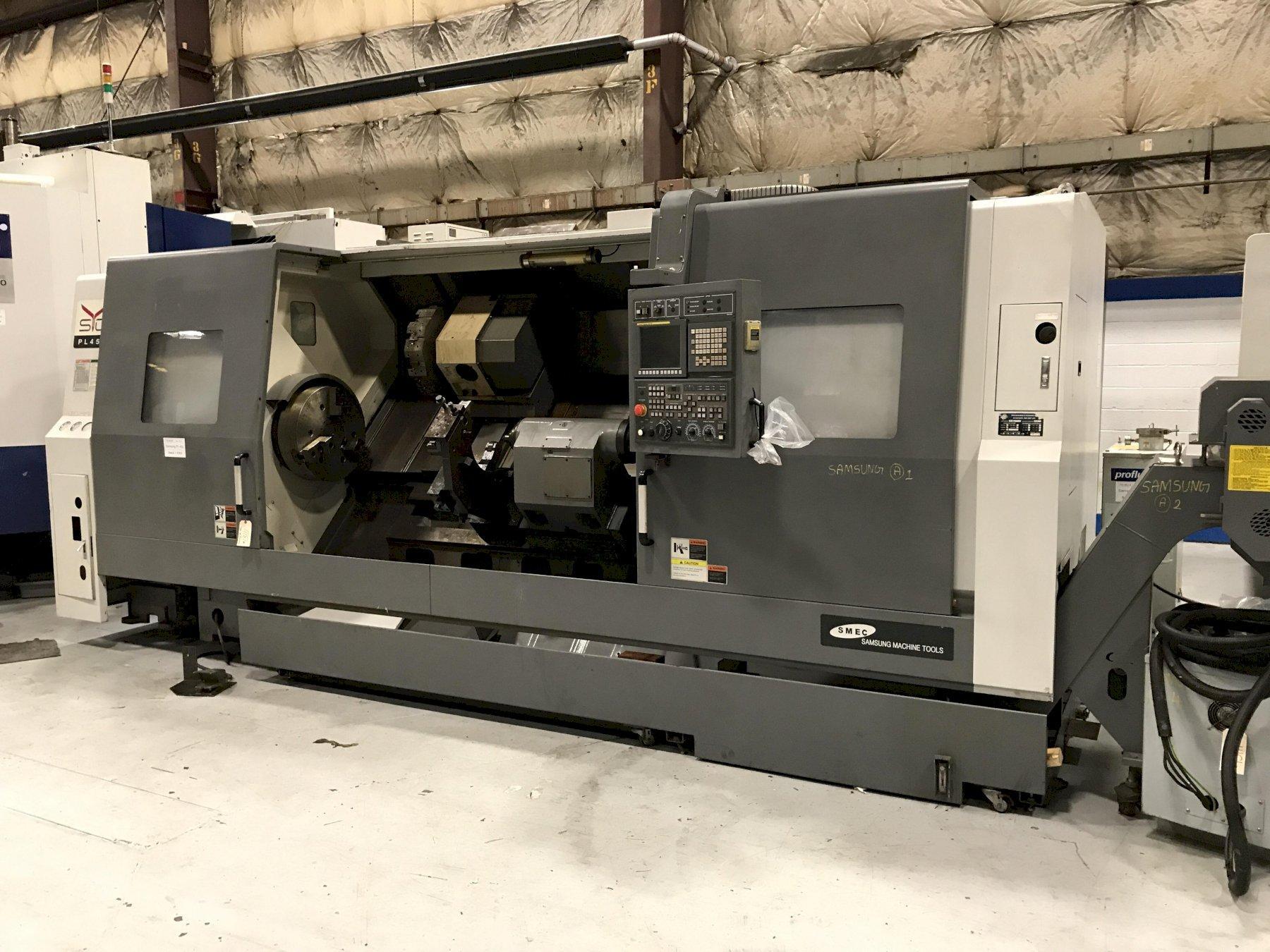

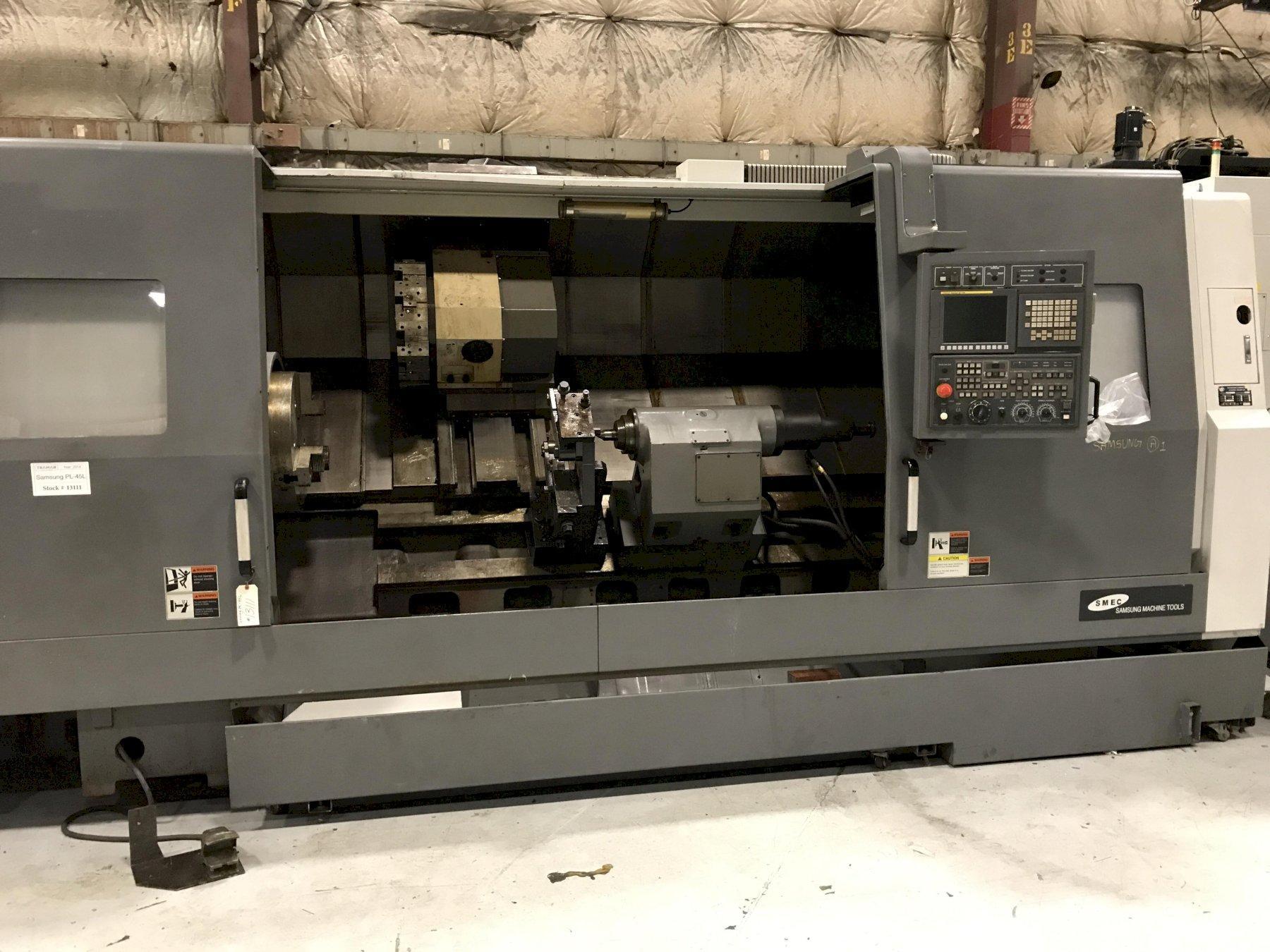

2014 SAMSUNG PL-45L - CNC Horizontal Lathe

Equipped With:

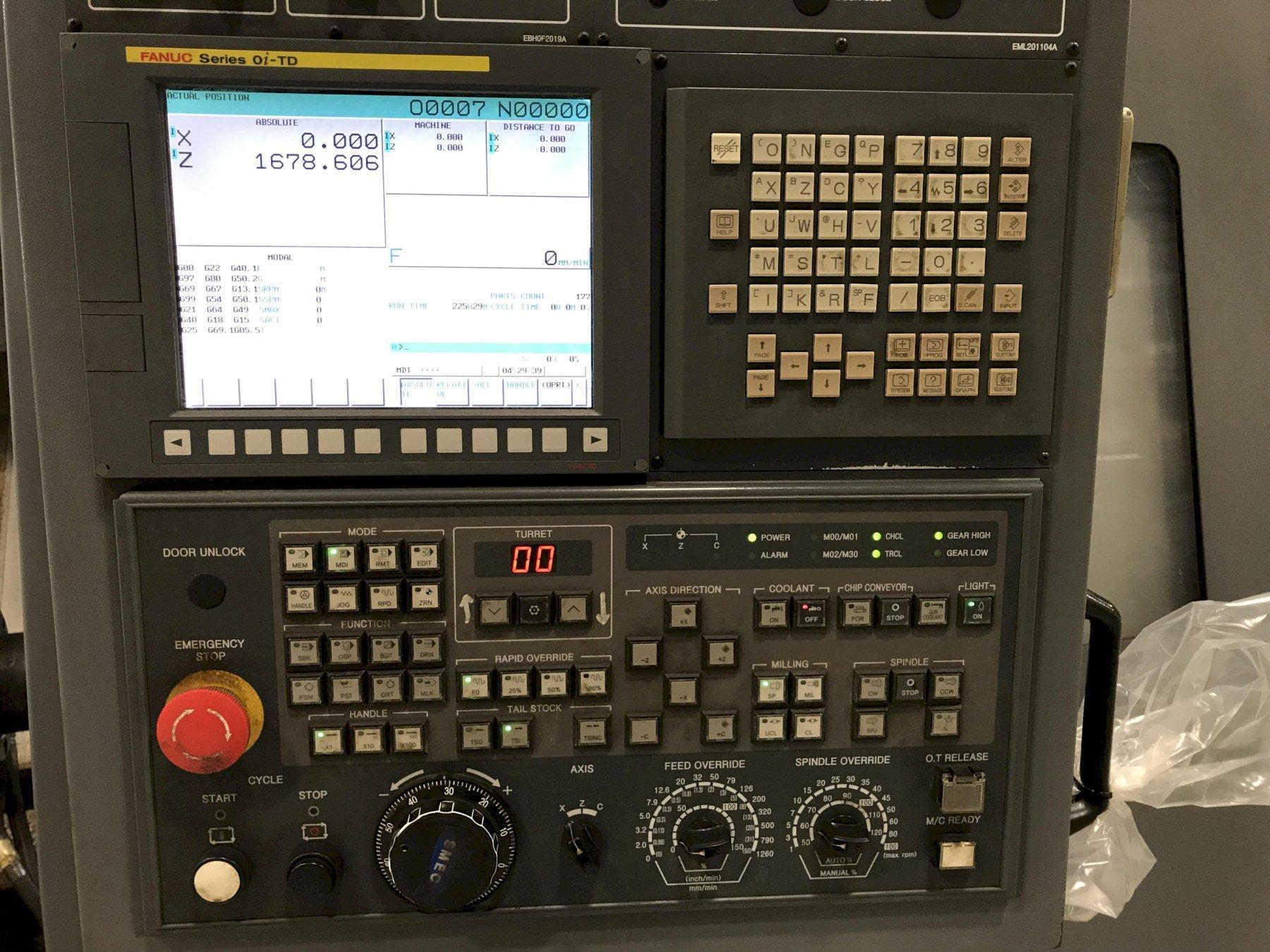

- Fanuc 0i-TD Control

- Chip Conveyor

- Coolant Tank

- 21" Hydraulic 3 Jaw Chuck (Model HCH-21)

- Manual Steady Rest

- Programmable Hydraulic Tailstock

- Misc. Tooling Available

- Available Manuals

- Samsung Machine Tools

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

CNC Control

Fanuc 0i-TD

# Axis

Swing

30.5"

Turning Diameter

27.16"

Center Distance

88.7"

Chuck Size

21"

Bar Capacity

X Axis Travel

12.9"

Z Axis Travel

91.7"

Rapid Traverse (X/Z)

787/708 ipm

Spindle Nose

A2-11

Spindle Speed (RPM)

1,800

Main Motor

50 hp

Live Tooling

Tailstock

yes

Y Axis

yes

Sub Spindle

Turret Capacity

Machine Dimensions

218" x 85"

Machine Weight

29,000 pounds

Equipped With:

- Fanuc 0i-TD Control

- Chip Conveyor

- Coolant Tank

- 21" Hydraulic 3 Jaw Chuck (Model HCH-21)

- Manual Steady Rest

- Programmable Hydraulic Tailstock

- Misc. Tooling Available

- Available Manuals

- Samsung Machine Tools

The Samsung PL-45L is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
