Doosan DNM 650 - Vertical Machining Centers

Request Quote
Specifications Print Specs
Model: DNM 650
Year: 2016
Stock #: 02067
Highlights:
- Fanuc i Series Control
- Table Size: 51" x 26.4"
- Travels (X/Y/Z): 50"/26.4"/24.6"
- 12,000 RPM | 25/20HP | CAT 40

2016 Doosan DNM 650II - CNC Vertical Machining Center
Machine Specifications
Year
2016
# Axis
3
Control Type

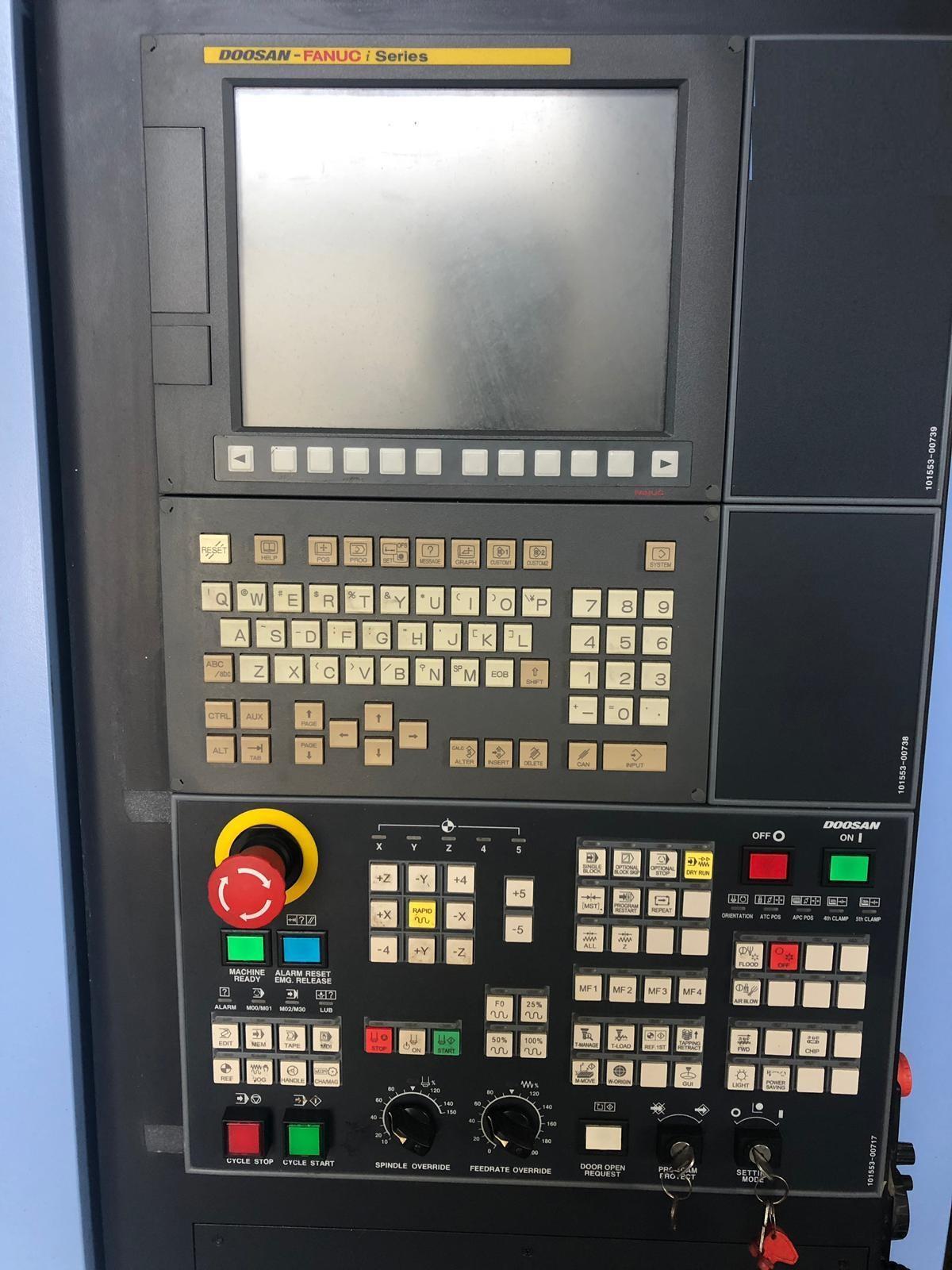

Fanuc i Series

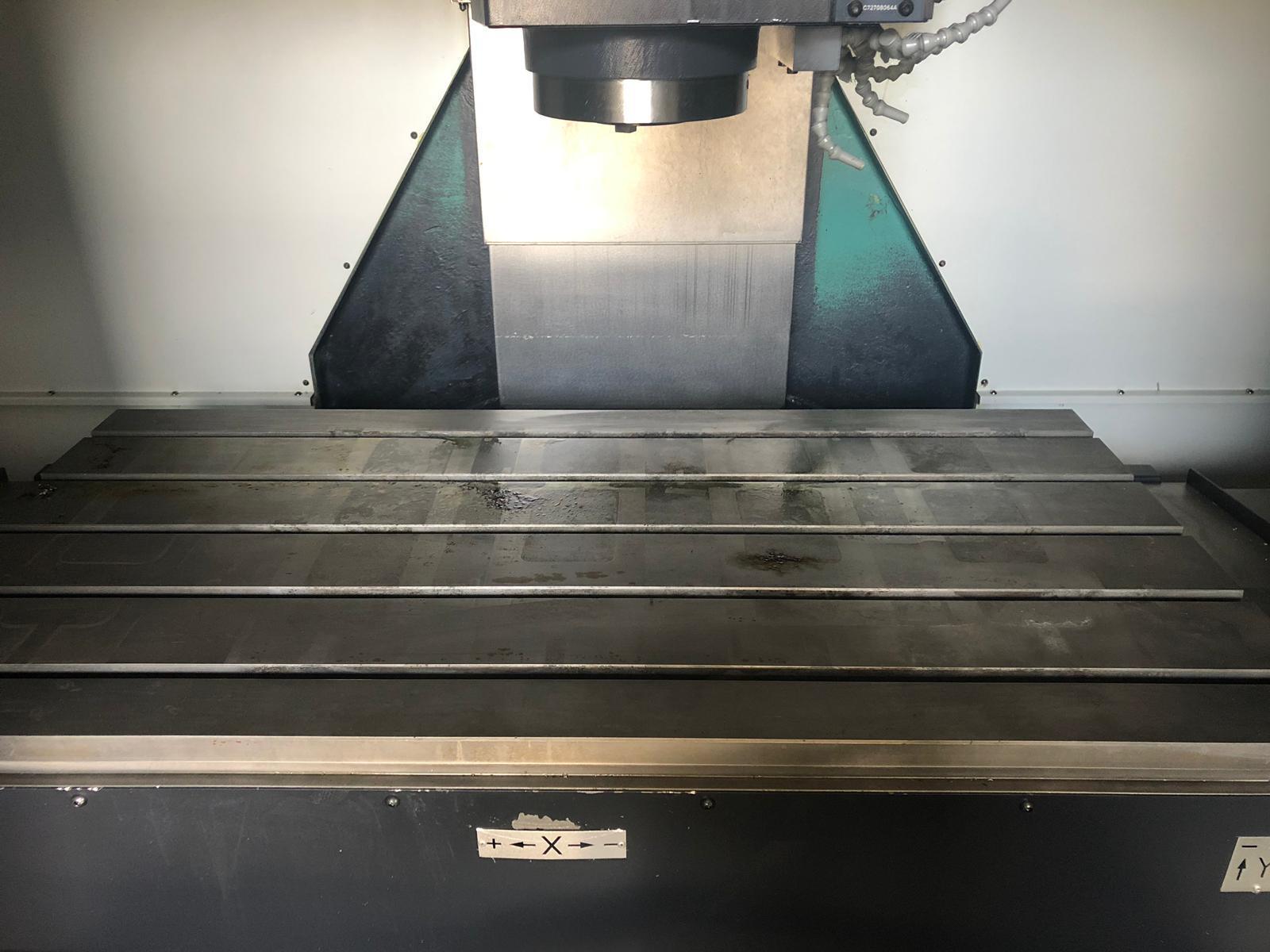

Table Size
51.2" x 26.4
Table Capacity
2,204 pounds
X-Axis Travel
50"
Y-Axis Travel
26.4"
Z-Axis Travel
24.6"
Spindle Taper
CAT 40
Spindle Speed
12,000 RPM
Spindle Motor
25 HP
Tool Changer Capacity
30
Coolant Thru Spindle
No specs attached
Machine Hours
No specs attached
Dimensions
133" x 102" x 107"
Weight
16,600 pounds

Equipped With:

- Fanuc i Series Control
- Chip Conveyor
- Coolant Tank

The Doosan DNM 650 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
