Muratec MW-180 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: MW-180
Year: 2016
Stock #: 13716 Sold
Highlights:
Muratec Fanuc CNC Control
--- 2 Machines Available ---

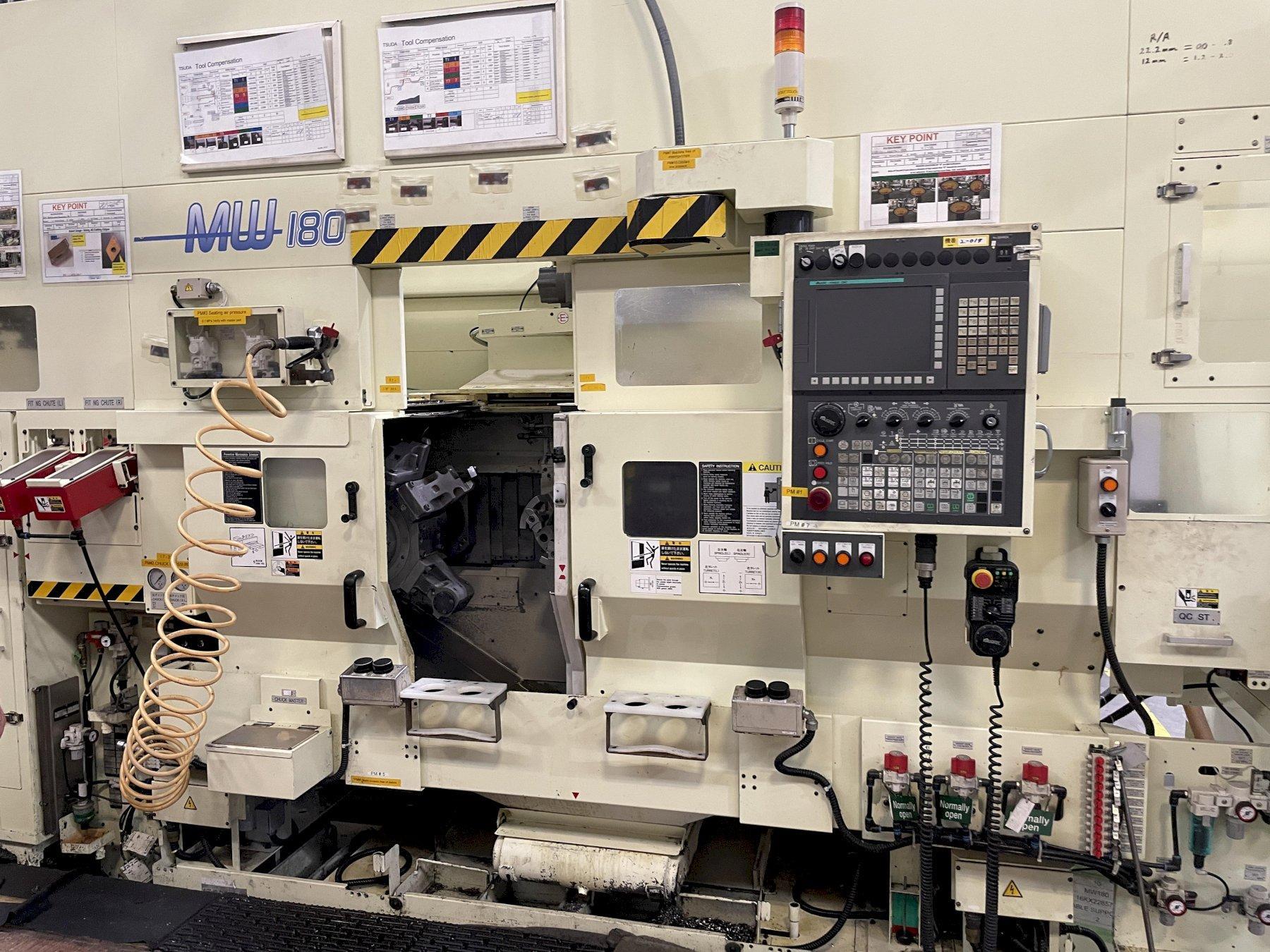

2016 Muratec MW-180  Twin Spindle CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
Control Type
Fanuc 32i-Model A
Swing
11.6"
Distance Between The Spindles
17.4
Max Workpiece Size
7.87" with Loader
Max Turning Length
4.7"
X Axis Travel
7.4"
Z Axis Travel
6.7"
Spindle Nose
A2-6
Spindle Speed
3,500 rpm
Spindle Motor (HP)
30 hp
Turret Capacity
(2) x 10 Positions
Machine Dimensions
92" x 86"- machine alone
Machine Weight
15,500 pounds

Equipped With:

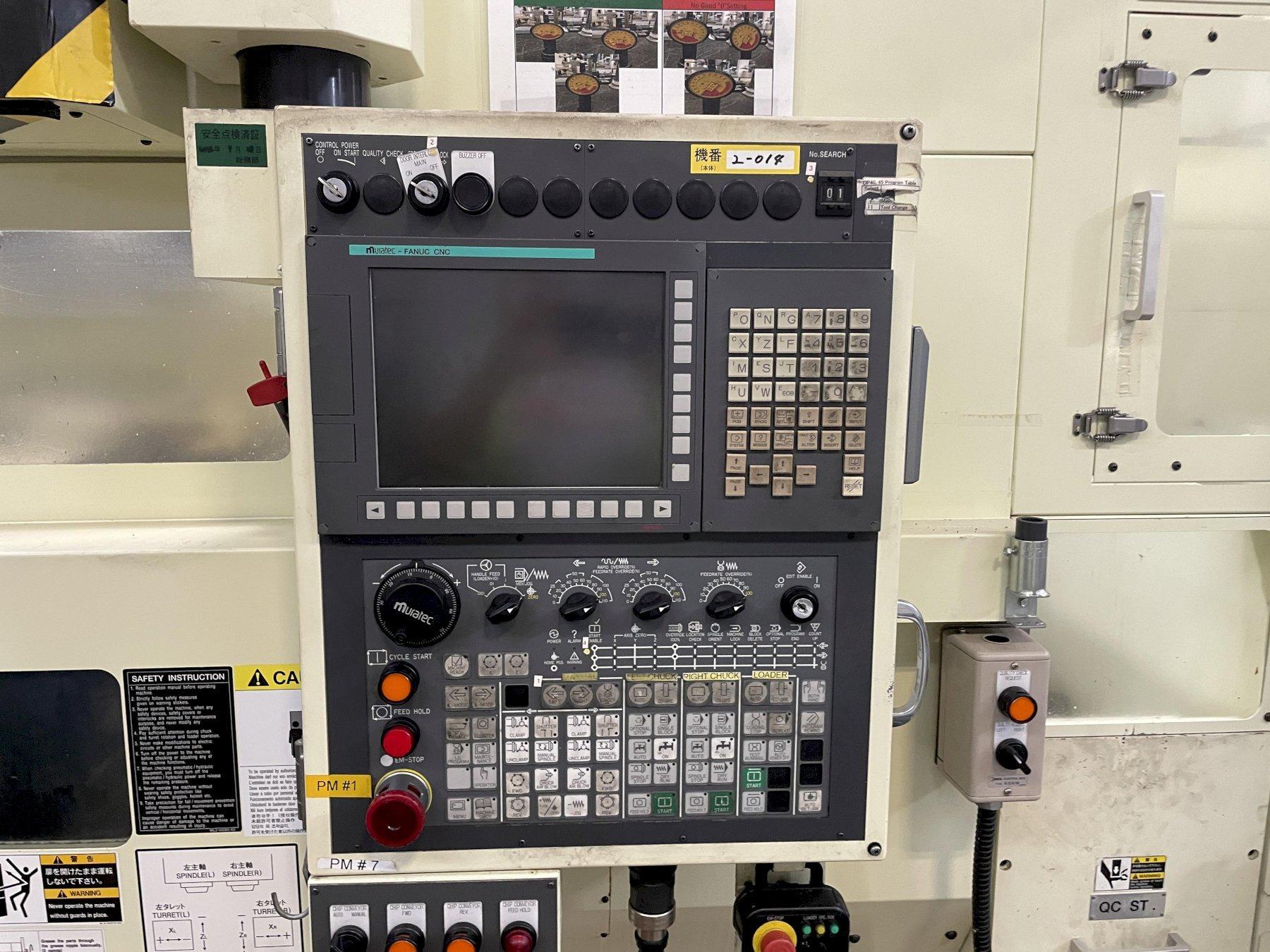

- Fanuc 32i-Model A Control
- 2-8" CHUCKS
- HIGH SPEED GANTRY LOADER
- REAR DISCHARGE CHIP CONVEYOR
- CNC TWIN SPINDLE LATHE WITH GANTRY LOADER





The Muratec MW-180 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
