DMG Mori NLX 2500SY/1250 - Horizontal Lathes

Share Machine

Specifications Print Specs

Model: NLX 2500SY/1250

Year: 2017

Stock #: NLX2017 Sold

Type: Horizontal Lathes

Manufacturer: Used DMG Mori Machines

Highlights:

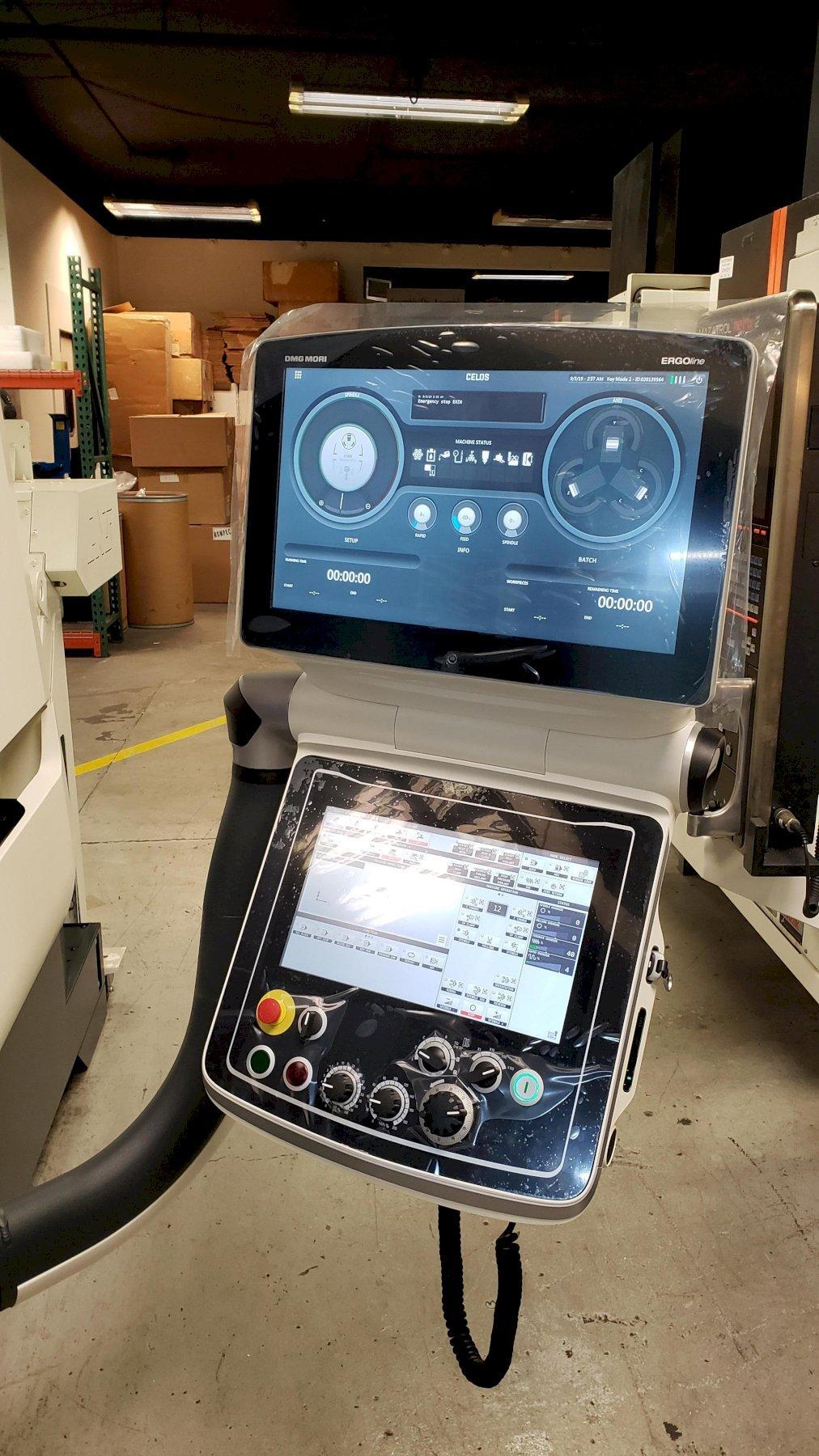

Celos ERGOline Touchscreen CNC Control
Live Tooling | Y Axis | Sub Spindle
Tool Presetter
SMW Hydraulic Steady Rest SLU-B3.2Z
LIKE NEW - Less Than 50 Hours

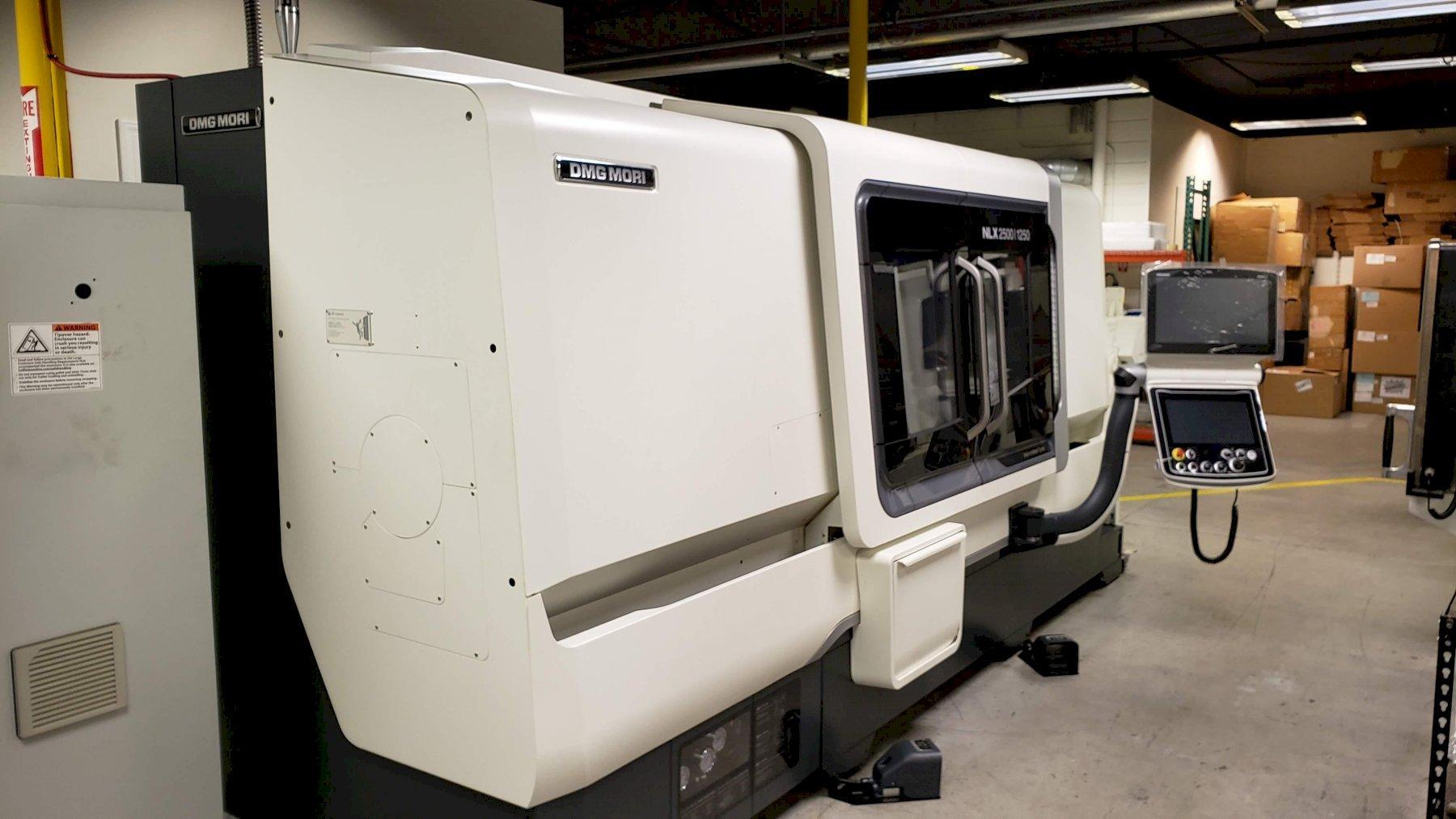

2017 DMG MORI NLX 2500SY/1250 - CNC Horizontal Lathe

Equipped With:

Celos ERGOline Touchscreen Control (M730UM)

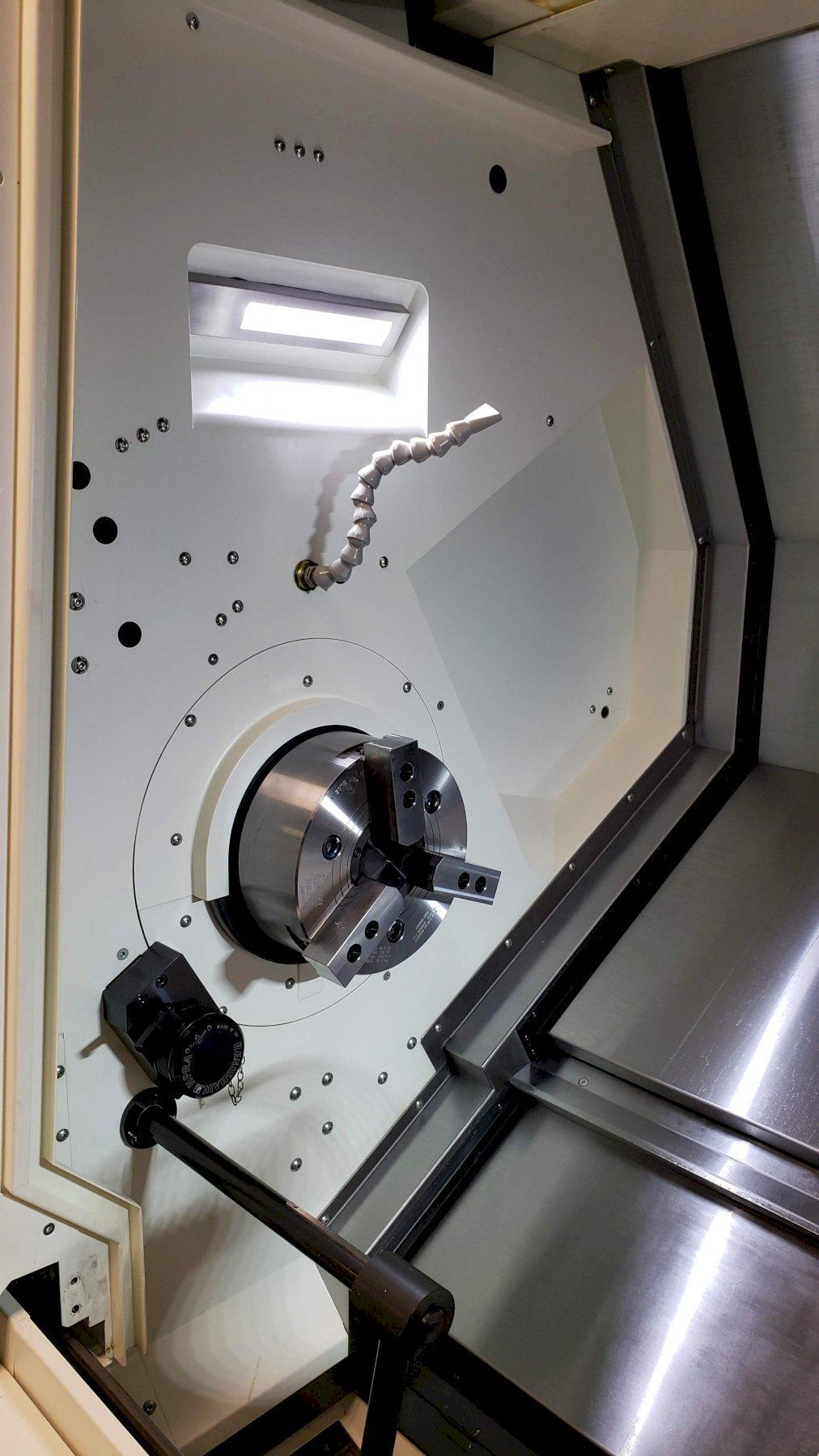

For spindle 1 – KITAGAWA 10” hollow chuck # BB210

For spindle 2 – KITAGAWA 6” hollow chuck #B206

Chip conveyor interface (right discharge)

Bar feed Interface

Mist collector Interface

Manual in-machine tool presetter (removeable type)

10 external M-codes
MAPPS System (conversational programming)

Manual pulse generator (separate type)

Remote Manual pulse generator

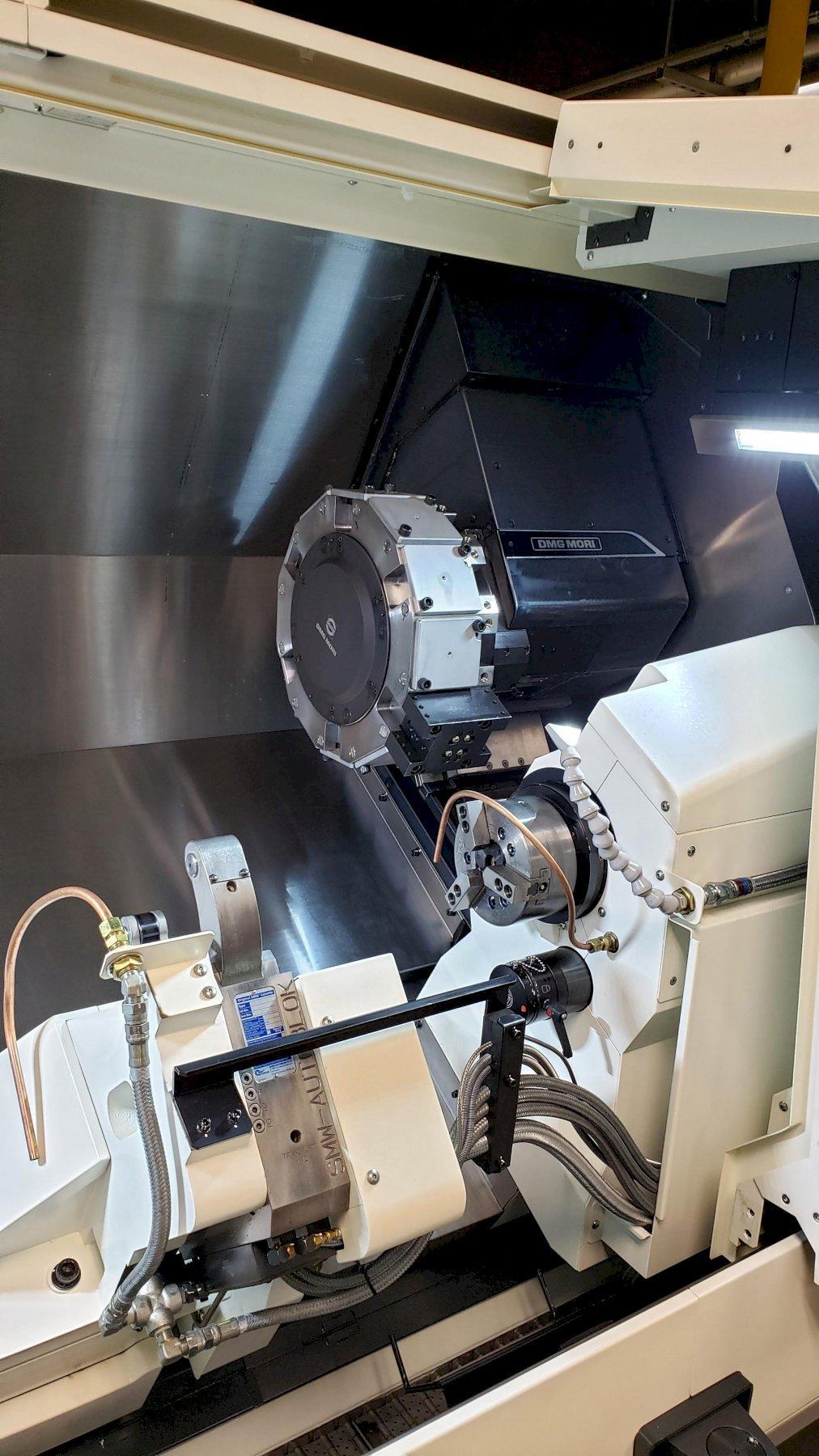

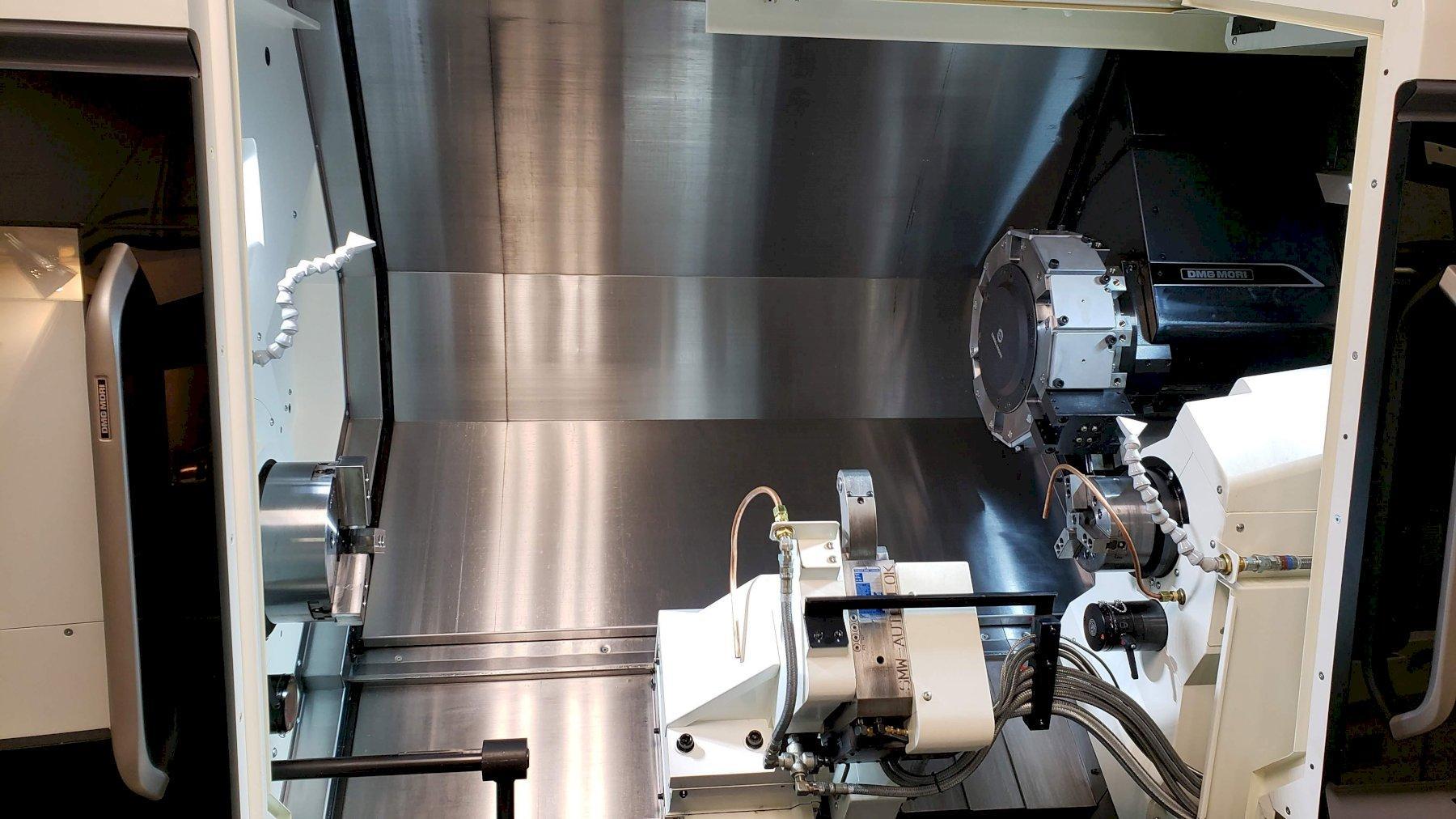

Hydraulic steady rest SLU-B3.2Z (dia. 50 – 200 mm)

Steady rest coolant (for chip removal)

Front door modification, cover and duct (to install hydraulic steady rest.)
Chip Blaster – High Pressure Coolant Unit JV40-60 Hz-380L with mounted chip chiller 34K BTU Oil skimmer

*** Machine New as Equipped - $390k ***

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Celos ERGOline Touch

# Axis

Swing

36.2"

Turning Diameter

14"

Center Distance

59.4"

Chuck Size

10"

Bar Capacity

3.1"

X Axis Travel

10.2"

Y Axis Travel

Z Axis Travel

53"

B Axis Travel (Sub Spindle)

50.6"

C Axis Index

0.001°

Rapid Traverse (X/Z/B)

1,181 ipm

Rapid Traverse Y-Axis

394 ipm

Spindle Nose

A2-8

Spindle Speed (RPM)

4,000

Main Motor

25 HP

Live Tooling

yes

Live Tooling Speed

10,000 RPM

Live Tooling Motor

7.5 hp

Sub Spindle

yes

Sub Spindle Chuck

Sub Spindle Bar Capacity

1.7"

Sub Spindle Nose

A2-5

Sub Spindle Speed

6,000 RPM

Sub Spindle Motor (HP)

15 hp

Turret Capacity

Tailstock

Y Axis

yes

Dimensions

174" x 93" x 87"

Weight

17,100 pounds

Equipped With:

Celos ERGOline Touchscreen Control (M730UM)
For spindle 1 – KITAGAWA 10” hollow chuck # BB210
For spindle 2 – KITAGAWA 6” hollow chuck #B206
Chip conveyor interface (right discharge)
Bar feed Interface
Mist collector Interface
Manual in-machine tool presetter (removeable type)
10 external M-codes
MAPPS System (conversational programming)
Manual pulse generator (separate type)

Remote Manual pulse generator

Hydraulic steady rest SLU-B3.2Z (dia. 50 – 200 mm)

Steady rest coolant (for chip removal)

Front door modification, cover and duct (to install hydraulic steady rest.)
Chip Blaster – High Pressure Coolant Unit JV40-60 Hz-380L with mounted chip chiller 34K BTU Oil skimmer

*** Machine New as Equipped - $390k ***

The DMG Mori NLX 2500SY/1250 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
