Milltronics VM25 - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: VM25
Year: 2017
Stock #: K43525
Highlights:
Milltronics 8200-B Series CNC Control
Coolant Thru Spindle Ready
CAT 40 | 8,000 rpm | 24 hp

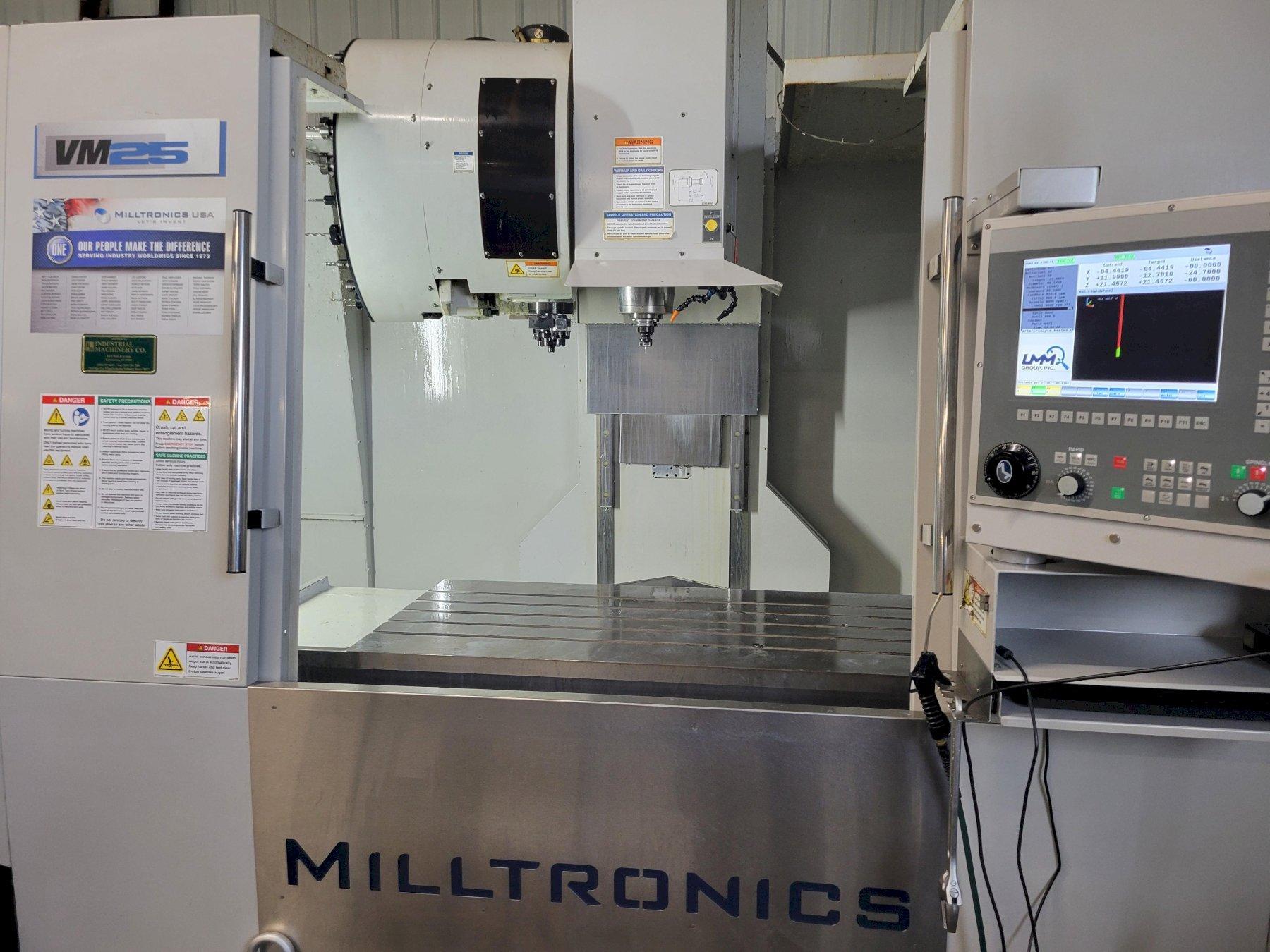

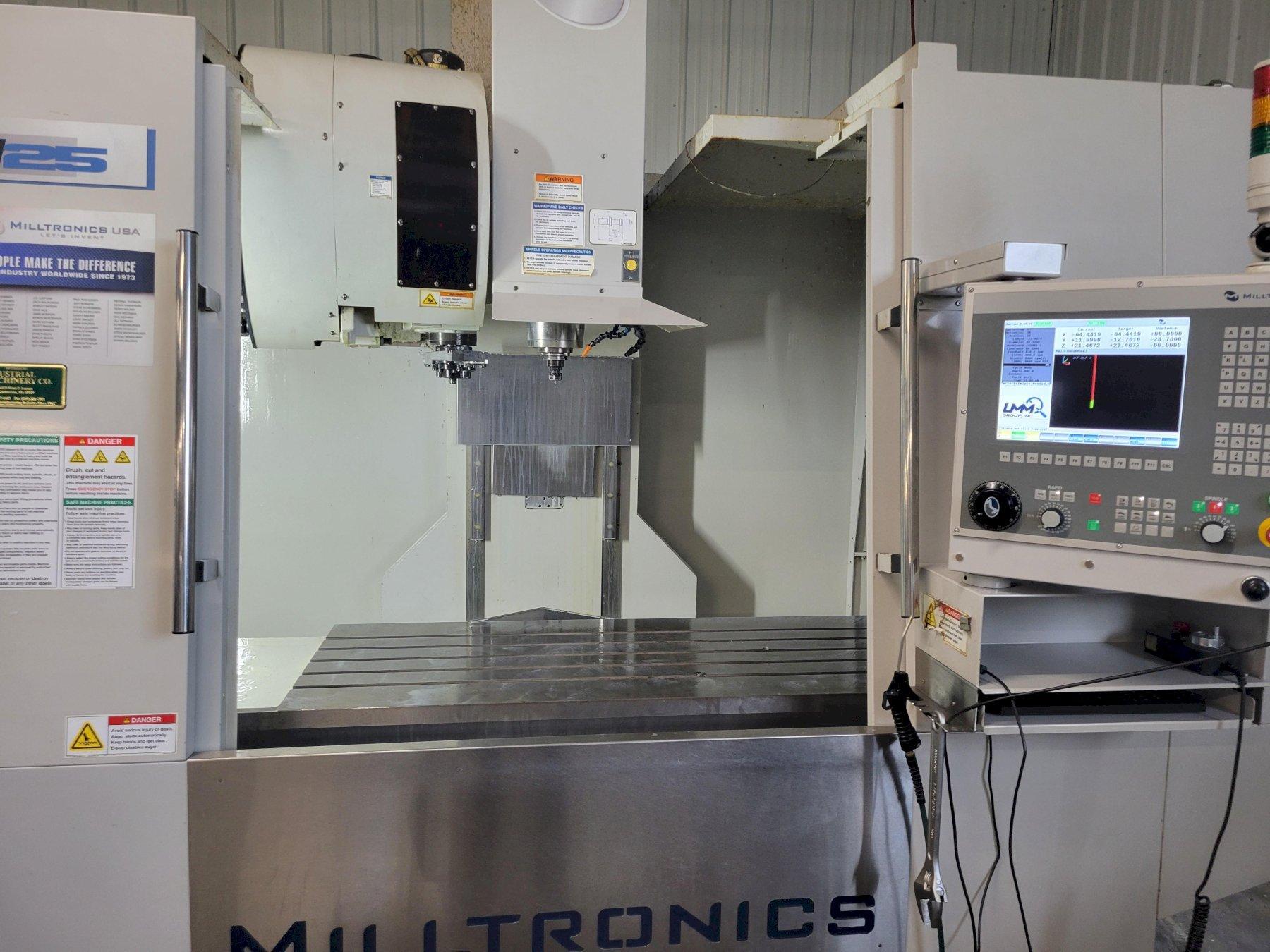

2017 Milltronics VM25 CNC Vertical Machining Center For Sale
Machine Specifications
CNC Control
yes
Control Type
Milltronics 8,200-B
# Axis
3
Table Size
56" x 24"
Table Capacity
3,500 ounces
X-Axis Travel
50"
Y-Axis Travel
25"
Z-Axis Travel
24"
Spindle Taper
CAT 40
Spindle Speed
8,000 rpm
Main Motor
24 hp
Tool Changer Capacity
24
Dimensions
144" x 112" x 120"
Weight
19,000 pounds

Equipped With:

- 30 KVA/80 AMPS, 208-235 Volts, 3 Phase
- Milltronics 8200-B Series CNC Control
- Spindle Air Purge
- Coolant Through Spindle Ready
- Auto Lubrication
- Rigid Tapping
- LCD Hour Meter
- 1 GB Program Storage Memory
- DXF File Import


The Milltronics VM25 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
