Miyano BNE-51MSY - Lathes (3-Axis or More)

Share Machine
Specifications Print Specs
Model: BNE-51MSY
Year: 2018
Stock #: 25459 Sold
Highlights:
9 Axis CNC Lathe

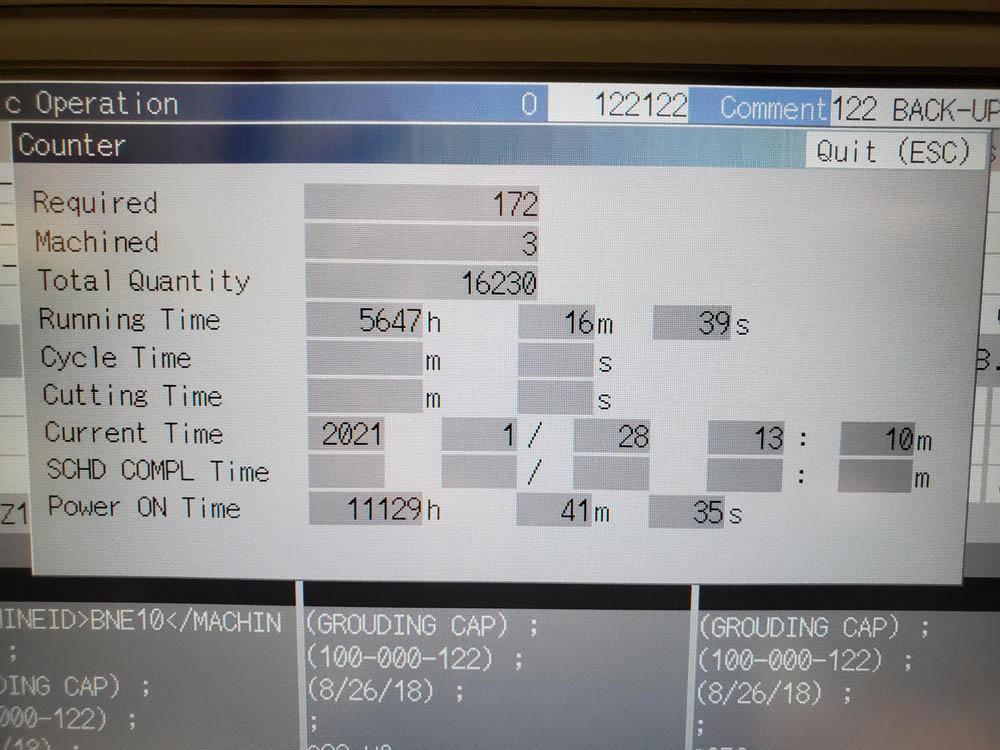

Mitsubishi M730VS Control

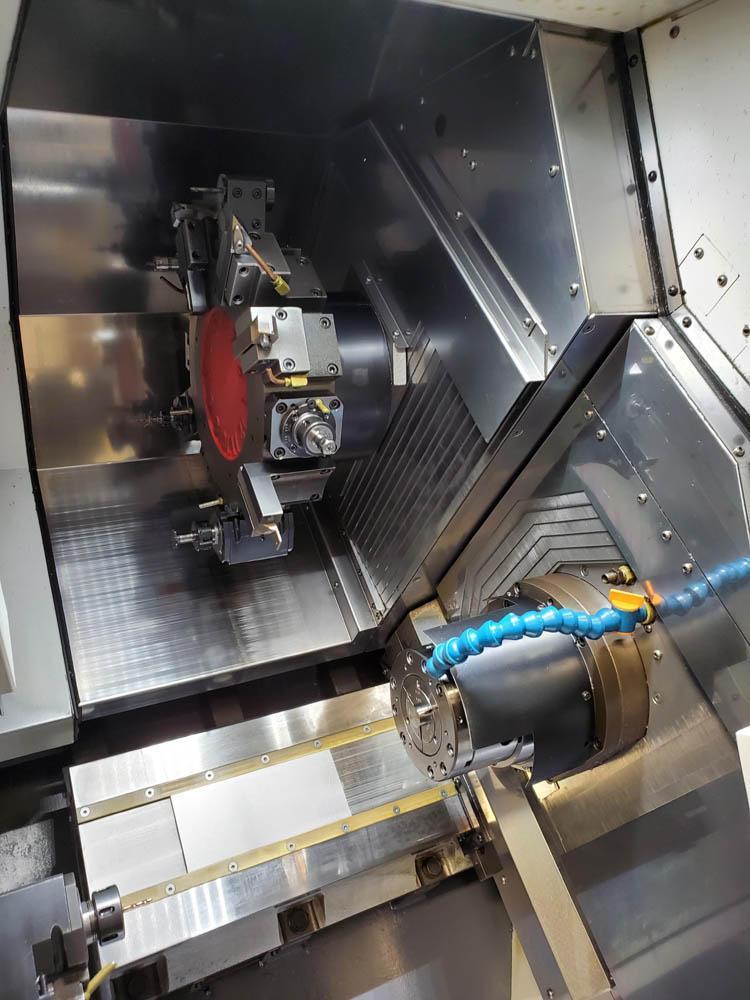

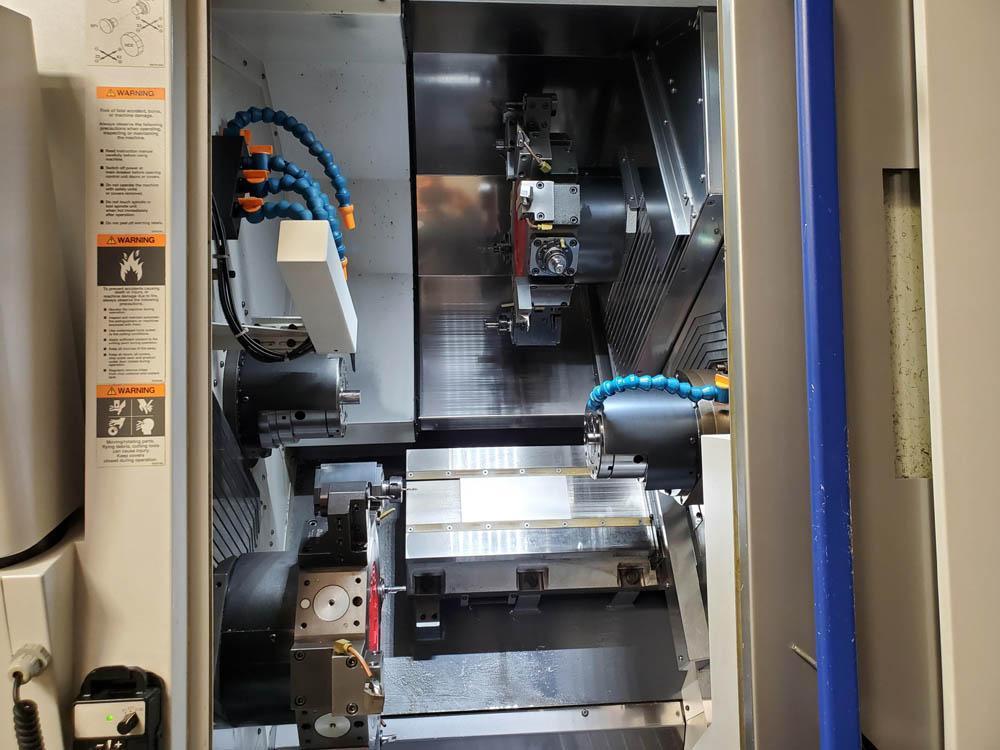

Twin Spindle, Twin Turret, Y Axis, Live Tooling
Patriot 551 - 12 ft Bar Feeder (144")
Like New - Excellent Condition
Mfg Date 2018

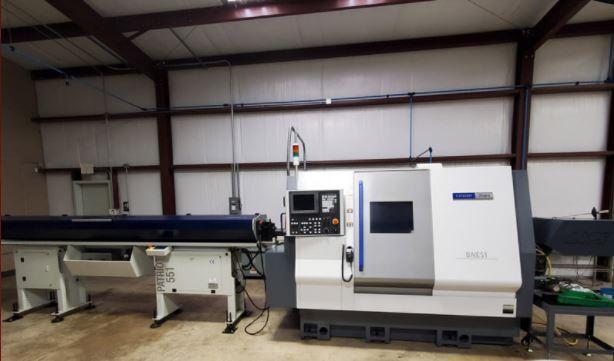

2018 Miyano BNE-51MSY CNC Horizontal Lathe
Machine Specifications
Year
2018
Control Type
Mitsubishi M730vs
# Axis
9
Chuck Size
6"
Turning Diameter
2"
Max Turning Length
3.54"
Center Distance
17.72"
X Axis Travel
7.48"
X2 Travel
7.48"
Z Axis Travel
14.96"
Z2 Travel
6.89"
Y Axis Travel
3.15"
B Axis Travel (Sub Spindle)
17.72"
C1/C2 Axis Index
0.001°
X3 Travel
Sub Spindle X Axis Travel - 5.9"
Spindle Speed (RPM)
5,000
Main Motor
20/15 hp
Sub Spindle
yes
Sub Spindle Chuck Size
6"
Sub Spindle Motor
10/7.5 hp
Live Milling (Yes / No)
yes
Live Tooling Speed
6,000 rpm
Live Milling Motor
5 hp
Y Axis (Yes / No)
yes
Tailstock (Yes/No)
no
Turret Capacity
12+12
Weight
17,640 pounds
Dimensions
173" x 112" x 91"

Equipped With:

- Mitsubishi M730VS Control
- Hydraulic Brake on both spindles
- High Pressure Coolant System 140 psi x2
- Flushing of Chucks (air & coolant) way covers
- Parts Ejector
- Hinge Type Chip Conveyor
- Collet Chucks H-S22
- Workpiece Unloader
- Workpiece Conveyor

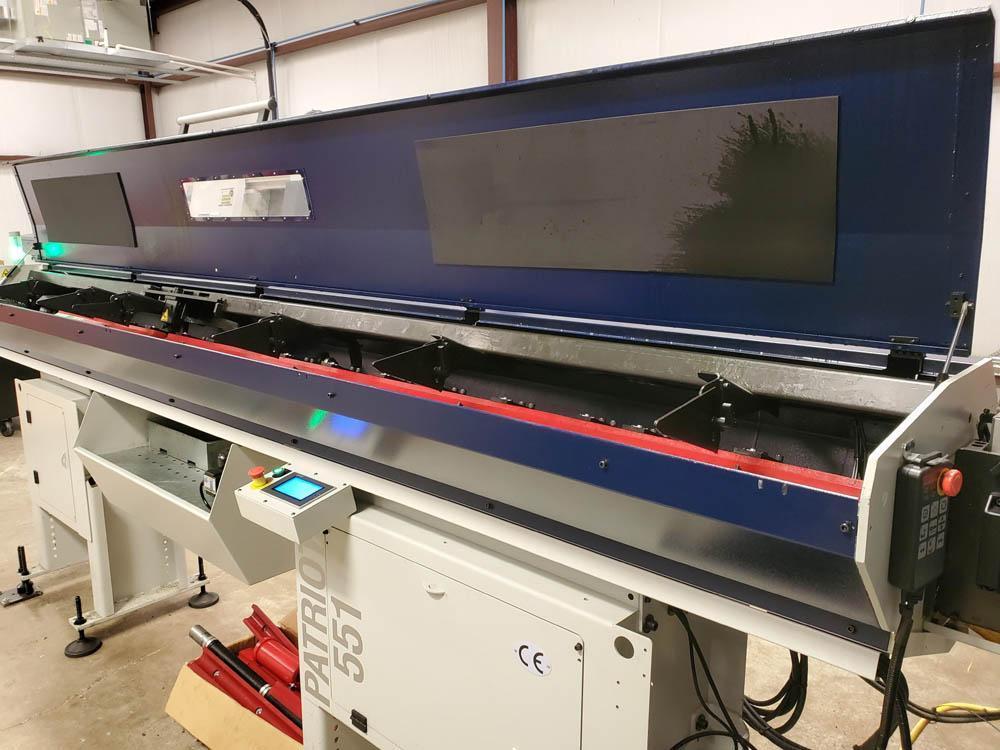

- Patriot 551 Bar Feeder (144")
- Misc. Tooling Available
- Machine is LIKE NEW - Excellent Condition
- Mfg Date 2018

The Miyano BNE-51MSY is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
