Samsung SL45MC/3000 - Lathes (3-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: SL45MC/3000
Year: 2018
Stock #: 01445
Highlights:
Fanuc 0i-TD Control
SMW Hydraulic Steady Rest SLU-X-4-ZS
Live Tooling
Tailstock
Tool Presetter
Geared Spindle

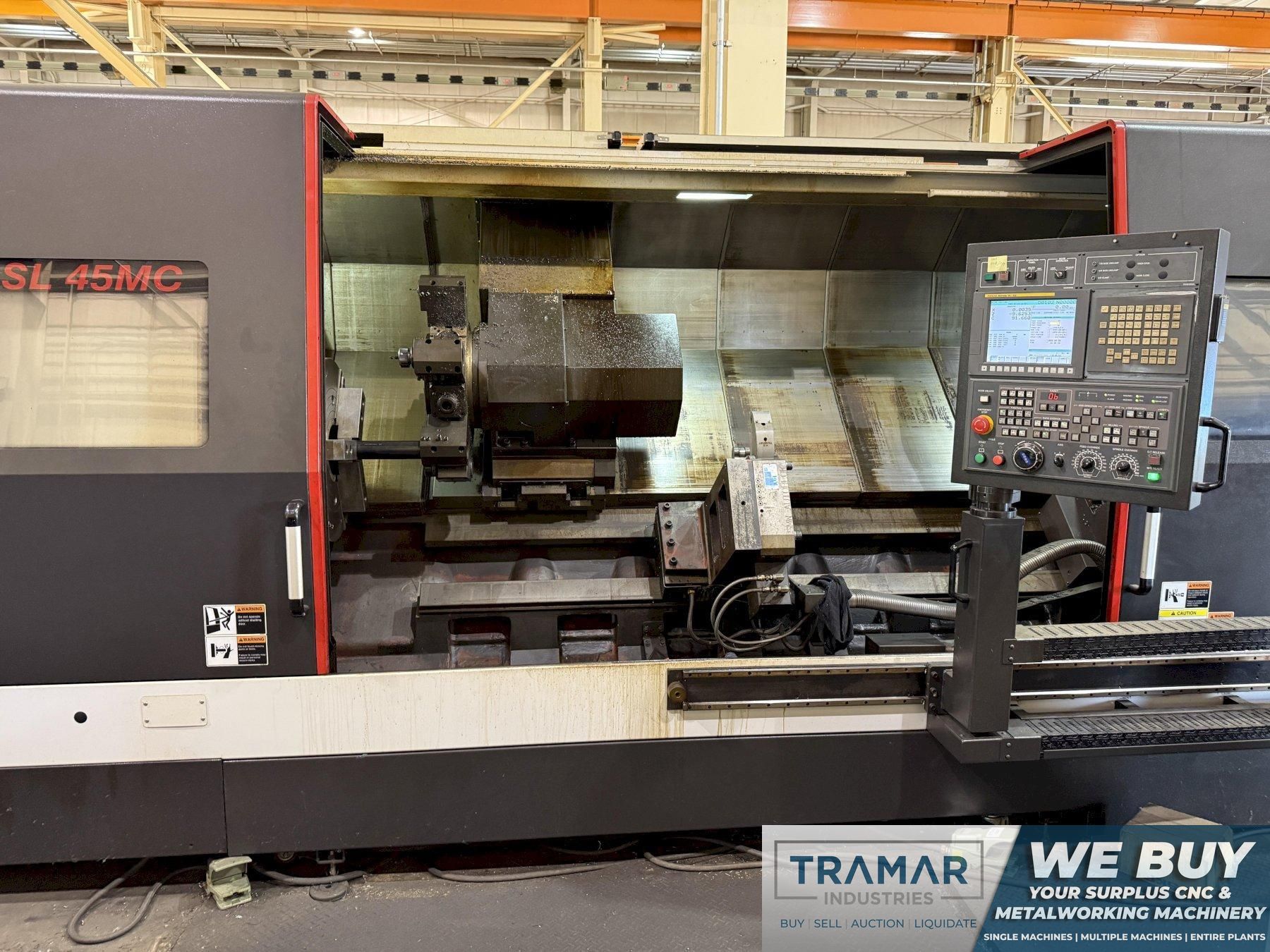

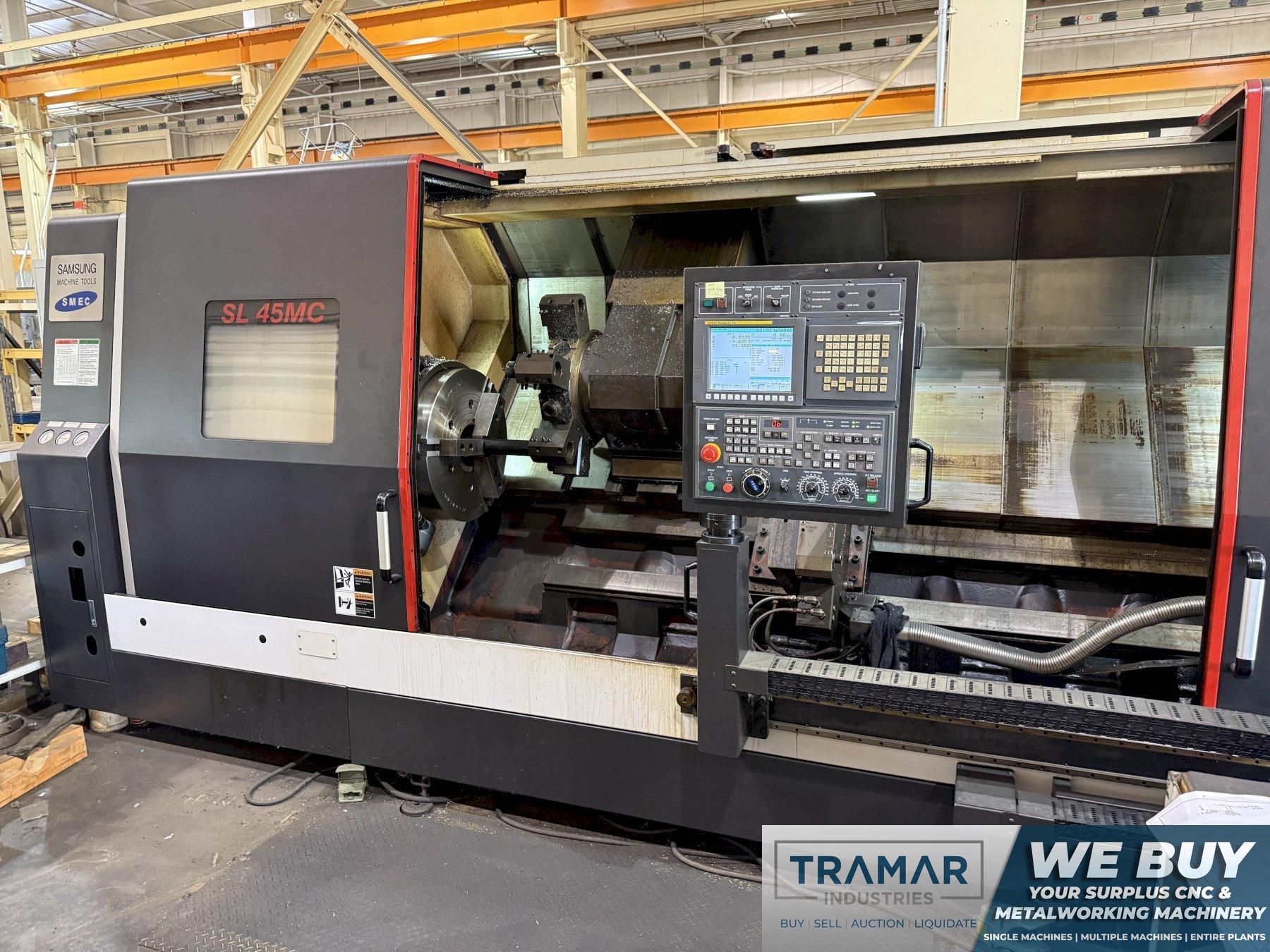

2018 Samsung SMEC SL45MC/3000 Used CNC Lathe For Sale
Machine Specifications
CNC Control
yes
Control Type
Fanuc 0i-TD
# Axis
3
Swing
30.5"
Turning Diameter
24.4"
Center Distance
118"
Chuck Size
24"
Bar Capacity
4.6"
X Axis Travel
13.78"
Z Axis Travel
123.23"
C Axis Index
0.001°
Y Axis
no
Spindle Speed
1,800 rpm
Main Motor
50 hp
Live Tooling
yes
Live Tooling Speed
4,000 rpm
Live Milling Motor
7.5 hp
Tailstock (Yes/No)
yes
Sub Spindle
no
Turret Capacity
12
Dimensions
288" x 90" x H
Weight
44,100 pounds

Equipped With:

- Fanuc 0i-TD Control
SMW Hydraulic Steady Rest SLU-X-4-ZS
    * Capacity: 1.18" - 9.65"

- Tool Presetter
- Samchully HCH-24B Hydraulic Chuck
- Chip Conveyor
- Live Tooling
- Tailstock
- Manual Guide i
- Misc. Tooling Available

The Samsung SL45MC/3000 is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
