Makino A61NX - Horizontal Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: A61NX
Year: 2019
Stock #: 013555
Highlights:
- Professional 6 Control
- Full 4th B Axis Indexing
- Coolant Thru Spindle 1,000 psi
- Table Size: 19.7" x 19.7"
- Travels (X/Y/Z): 28.7"/25.6"/31.5"
- 14,000 RPM | CAT 40 | 60 Station ATC

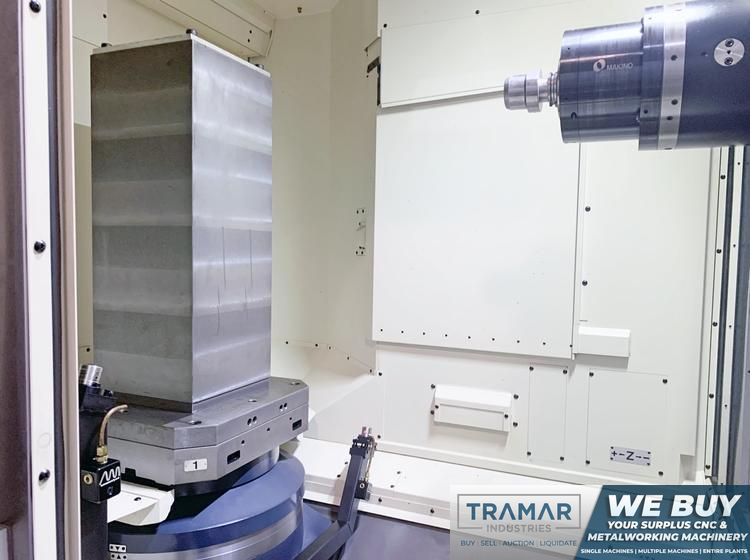

2019 Makino A61NX Horizontal Machining Center
Machine Specifications
Year
2019
Control Type
Professional 6
# Axis
4
Pallet Length
19.7"
Pallet Width
19.7"
Pallet Capacity
1,100 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
28.7"
Y-Axis Travel
25.6"
Z-Axis Travel
31.5"
Spindle Taper
CAT 40
Spindle Speed
14,000 rpm
Spindle Motor (HP)
30 hp
Tool Changer Capacity
60
Coolant Through Spindle
yes
Dimensions
190" x 115" x 115"
Weight
27,000 pounds

Equipped With:

- Professional 6 Control (Fanuc)
- Full B Axis Indexing

- Helical Interpolation
- Ethernet
- Coolant Thru Spindle 1,000 psi
- Chip Blaster HV-40
- Renishaw Probing
- Vision Broken Tool Sensor BTS

- Chip Conveyor
- Adaptive Control Function
- High Speed Skip Function
- 1GB Data Server
- 2GB Memory
- Macro Variables

** Machine Never Used **


The Makino A61NX is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
