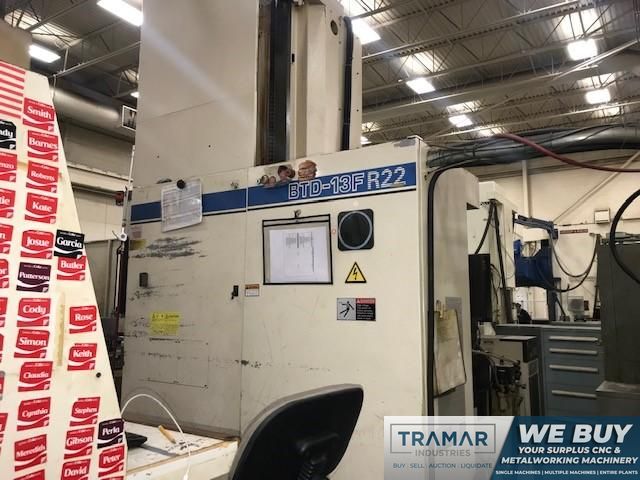

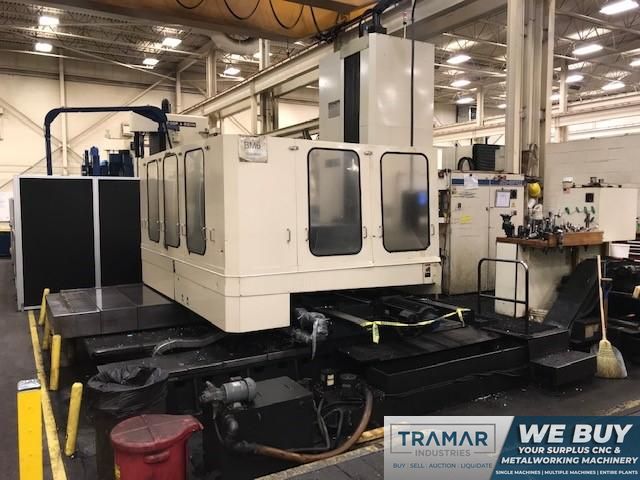

Toshiba Machine BTD-13FR22 - Horizontal Boring Mills (Table)

Share Machine

Specifications Print Specs

Model: BTD-13FR22

Year: 1998

Stock #: m1118 Sold

Type: Horizontal Boring Mills (Table)

Manufacturer: Used Toshiba Machine Machines

Highlights:

Equipped With:

FULL 4TH AXIS (.001 DEG)
SHAPE CONTROL
REMOTE BUFFER

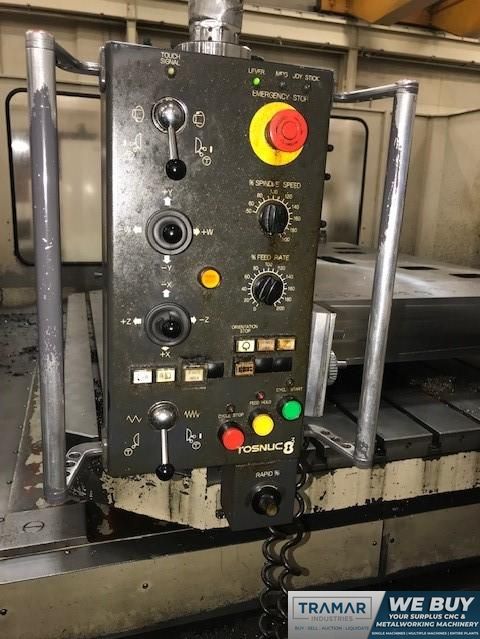

PENDANT CONTROL
CHIP CONVEYOR

Files

TERMS AND CONDITIONS.PDF

Machine Specifications

Inch

Metric

Machine Specifications:

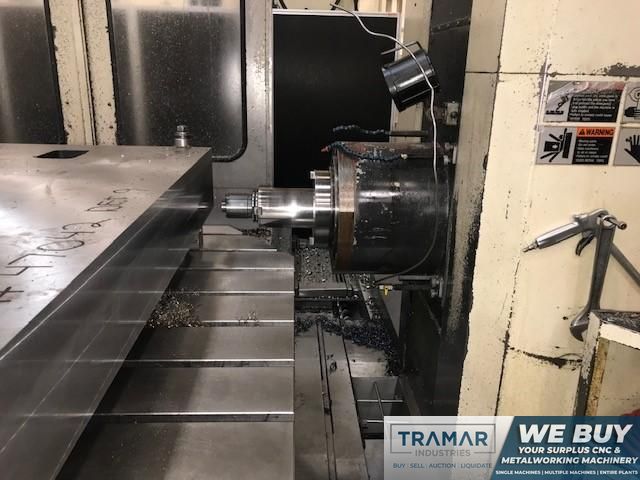

Spindle Size

5.12"

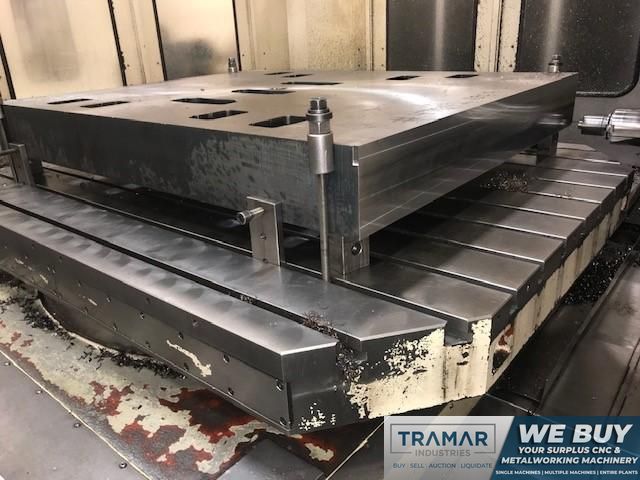

Table Size

71" X 87"

Max Weight On Table

22,000 pounds

X-Horiz Tvl of Table

118"

Y-Vert Tvl of Head

90.6"

Z-Axis Travel

63"

W-Axis Travel (Quill)

27.5"

B-Axis (Pallet Indexing)

Rapid Traverse Rate (X/Y/Z)

394

Spindle Speed

2,500 RPM

Spindle Motor

40 HP

Spindle Taper

Coolant Thru Spindle

yes

CNC Control

yes

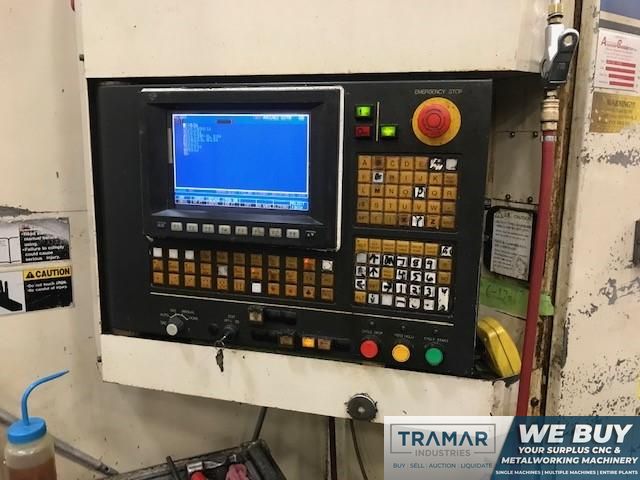

Control Type

TOSNUC 888

Weight

81,400 pounds

Equipped With:

FULL 4TH AXIS (.001 DEG) SHAPE CONTROL REMOTE BUFFER PENDANT CONTROL CHIP CONVEYOR

The Toshiba Machine BTD-13FR22 is an exclusive part of our Horizontal Boring Mills (Table) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
