Citizen A20VIIPL - Lathes, CNC, Automatic, Swiss Type

Request Quote
Share Machine
Specifications Print Specs
Model: A20VIIPL
Year: 2010
Stock #: 14241
Highlights:

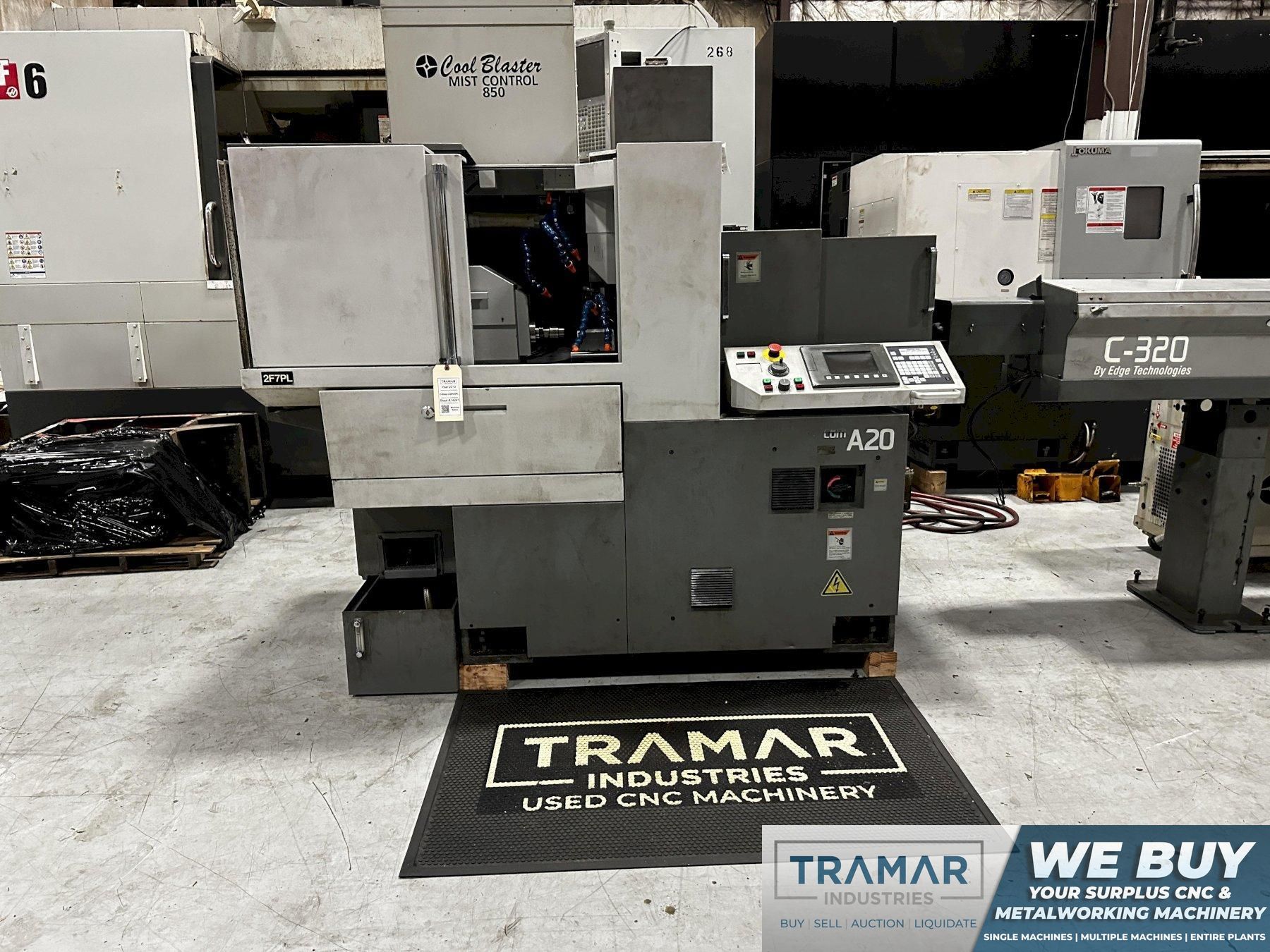

Citizen A20VIIPL Used CNC Swiss Lathe For Sale - 2010
Machine Specifications
CNC Control
yes
CNC Control
Fanuc
# Axis
5
Turning Diameter
0.78"
Max Turning Length
6.49"
Maximum Front Drilling Diameter
0.394"
Maximum Drilling Diameter - Gang Rotary Tool
0.276"
Bar Capacity
1.22"
Spindle Speed
8,000 rpm - Main Spindle
Main Motor
5 hp
Live Tooling
yes
Live Tooling Motor
1 hp
Tailstock
no
Y Axis
yes
Bar Feeder
yes
Sub Spindle
yes
Sub Spindle Speed
8,000 rpm (Back Spindle)
Sub Spindle Motor (HP)
2 hp (Back Spindle)
Number of Tools to be Mounted
21
Turning Tools on Gang Tool Post
5
Cross Rotary Tools
4
Front Drilling Tools
4
Back Drilling Tools
8 (4+4)

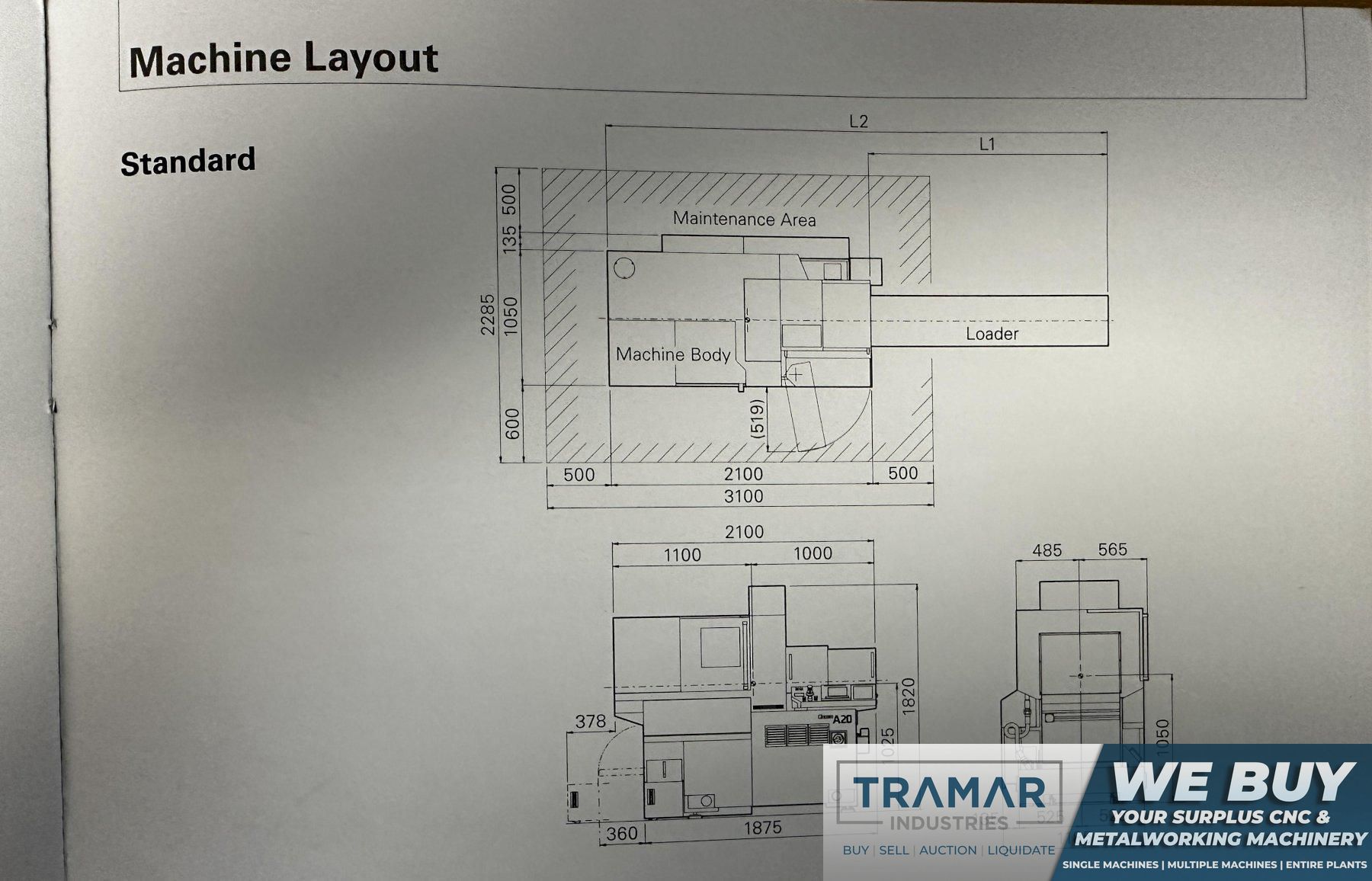

Machine Dimensions
84" x 51" x 87"
Machine Weight
5,700 pounds

Equipped With:

- Fanuc CNC Control

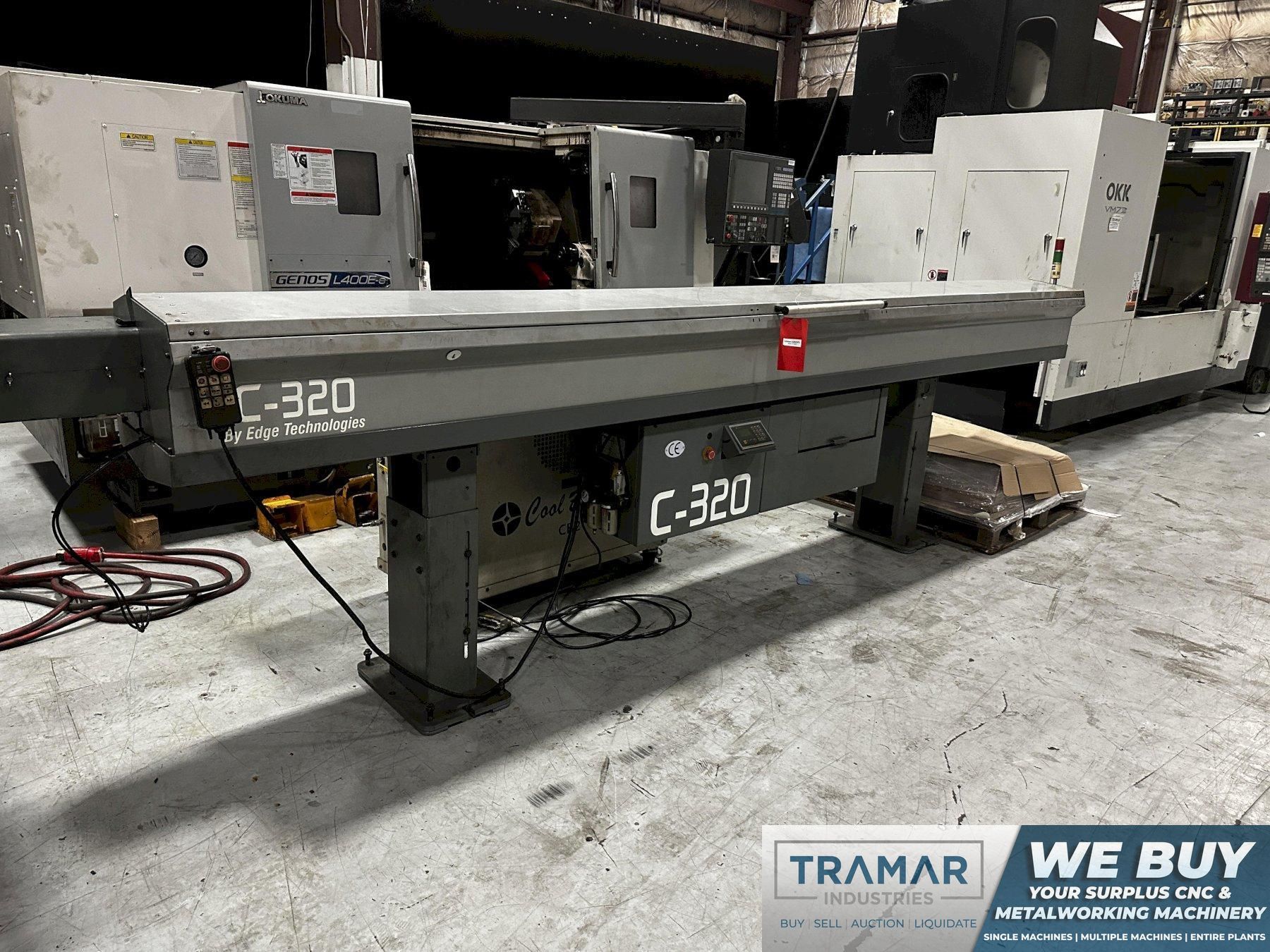

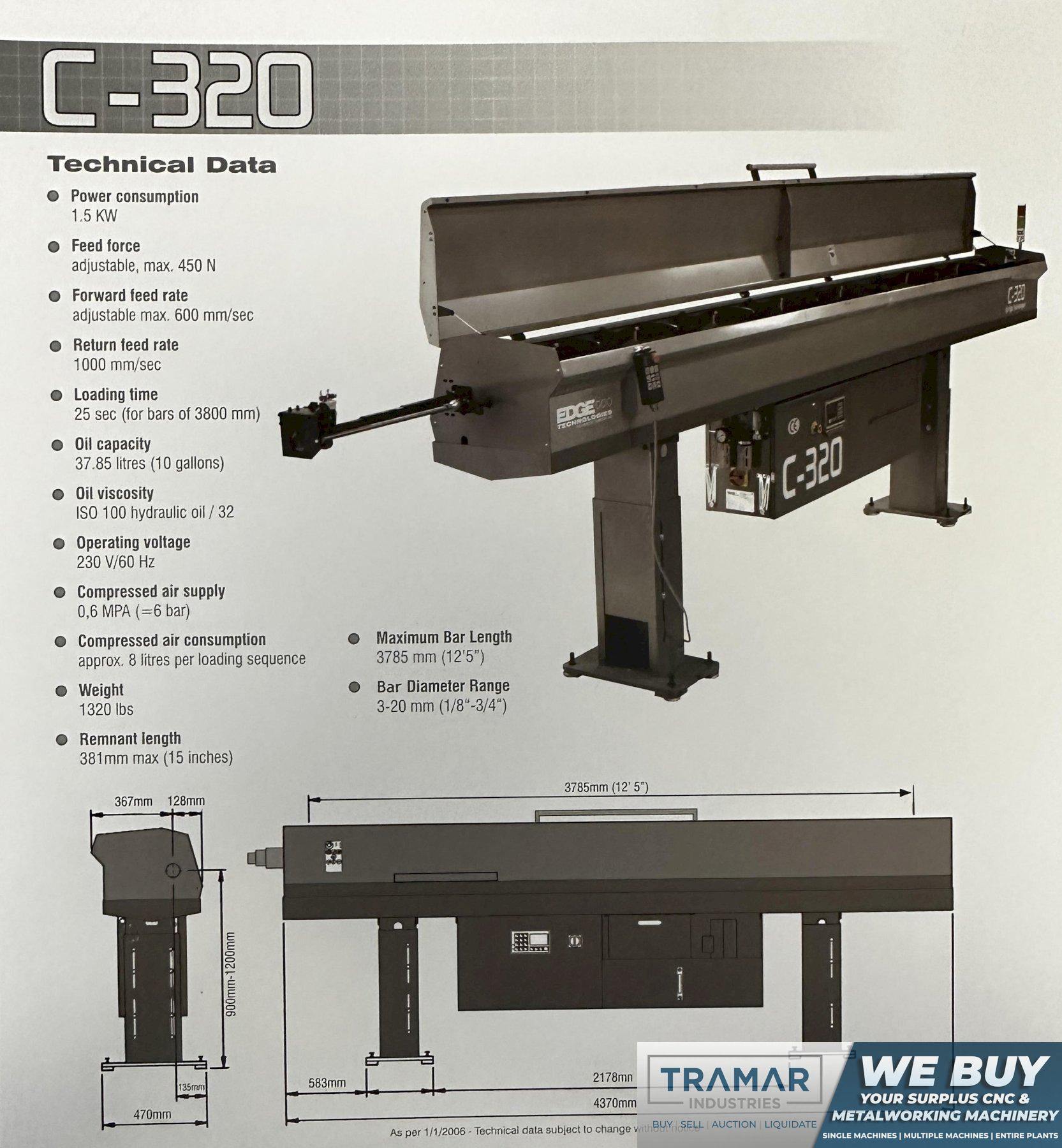

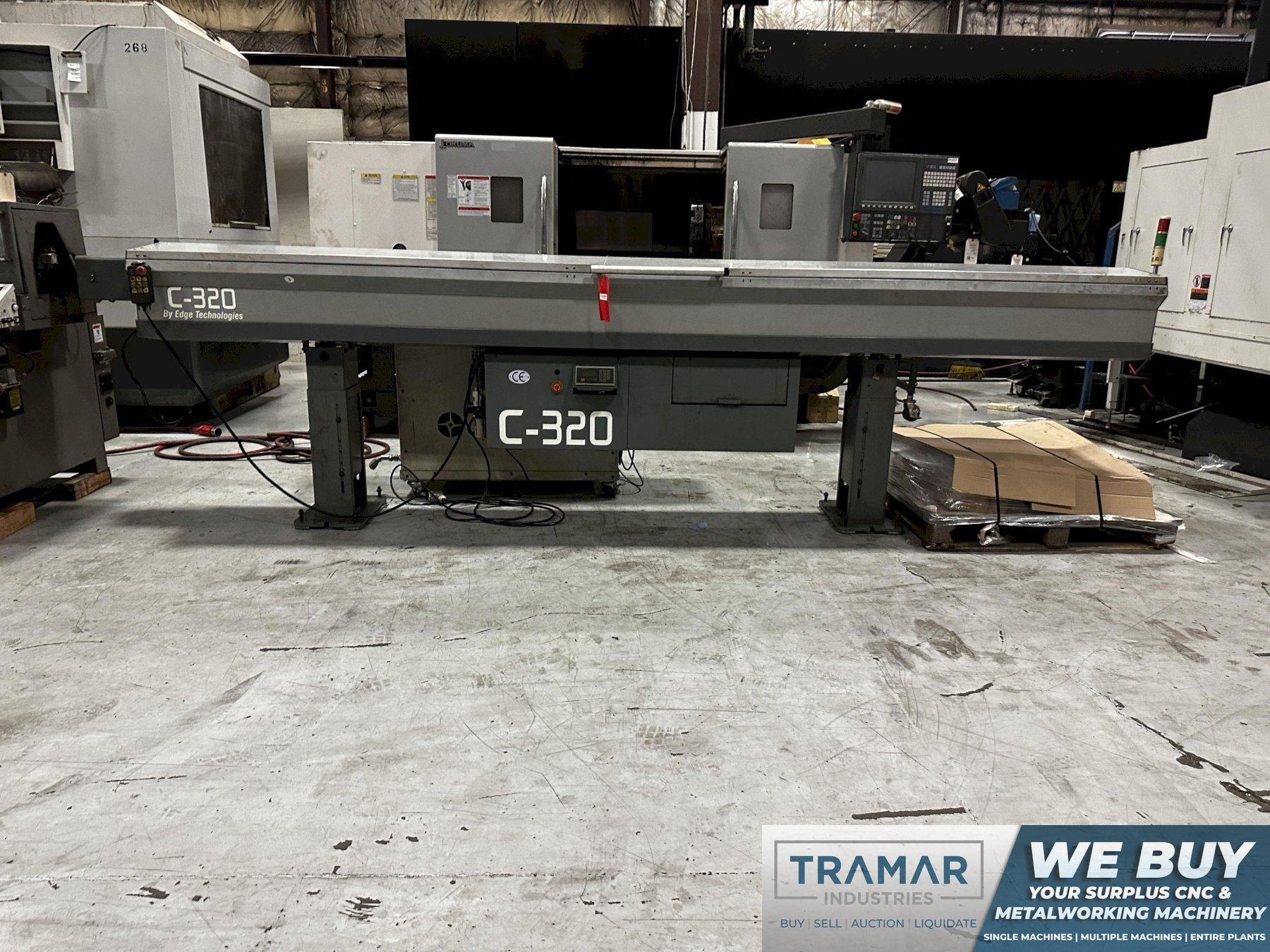

- Edge Technologies C320 12ft Barfeeder
- Coolant Tank & Pump
- Mist Collector

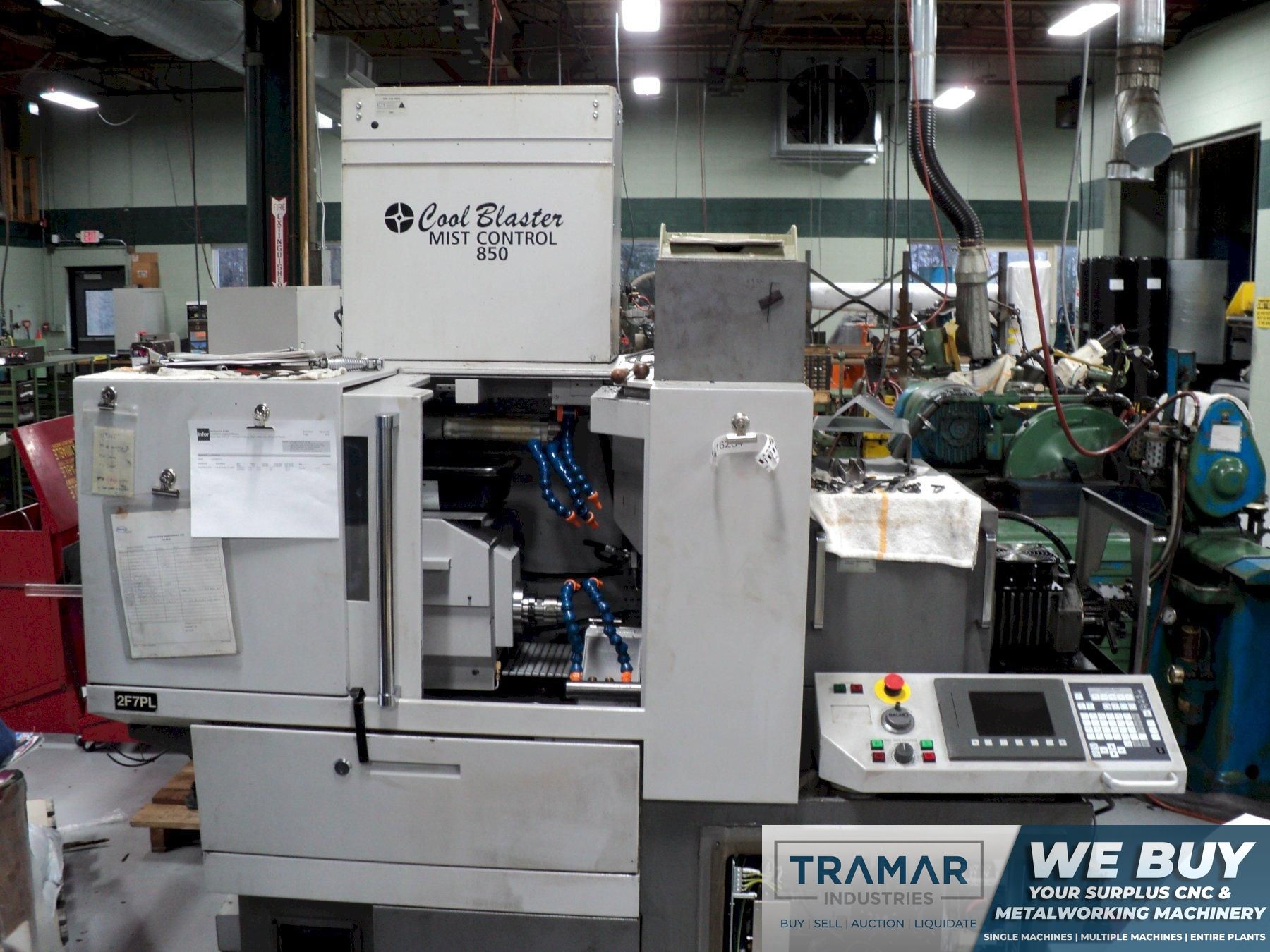

- CB2 Cool Blaster
- Parts Collection Box
- Chip Receiver Box


The Citizen A20VIIPL is an exclusive part of our Lathes, CNC, Automatic, Swiss Type inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
