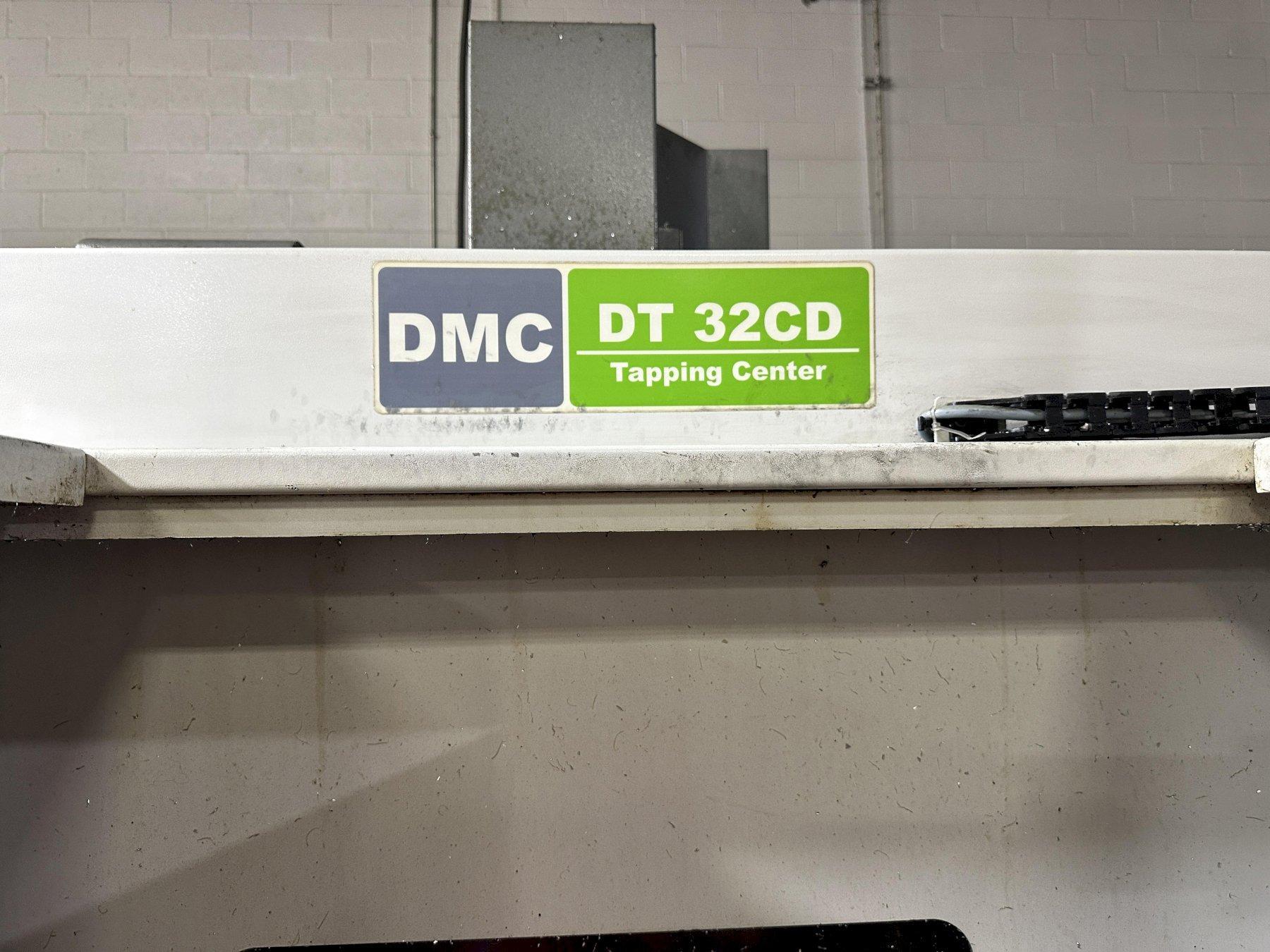

Model: DT32CD
Year: 2013
Stock #: K37754
Fanuc 0i-MD CNC Control
BT 30 Spindle Taper
Drill & Tapping Center
Chip Blaster - CTS
Chip Conveyor/Coolant Tank

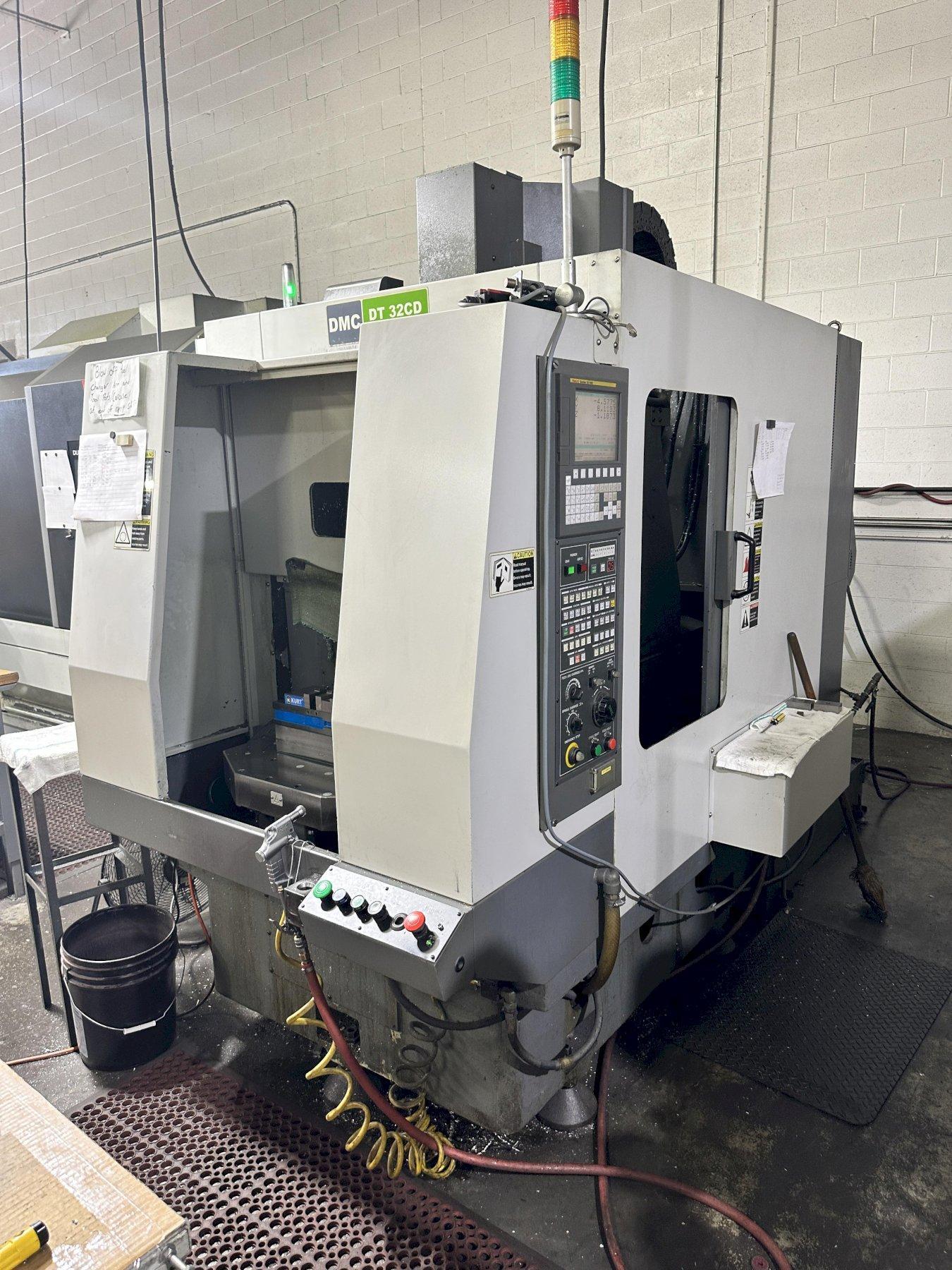

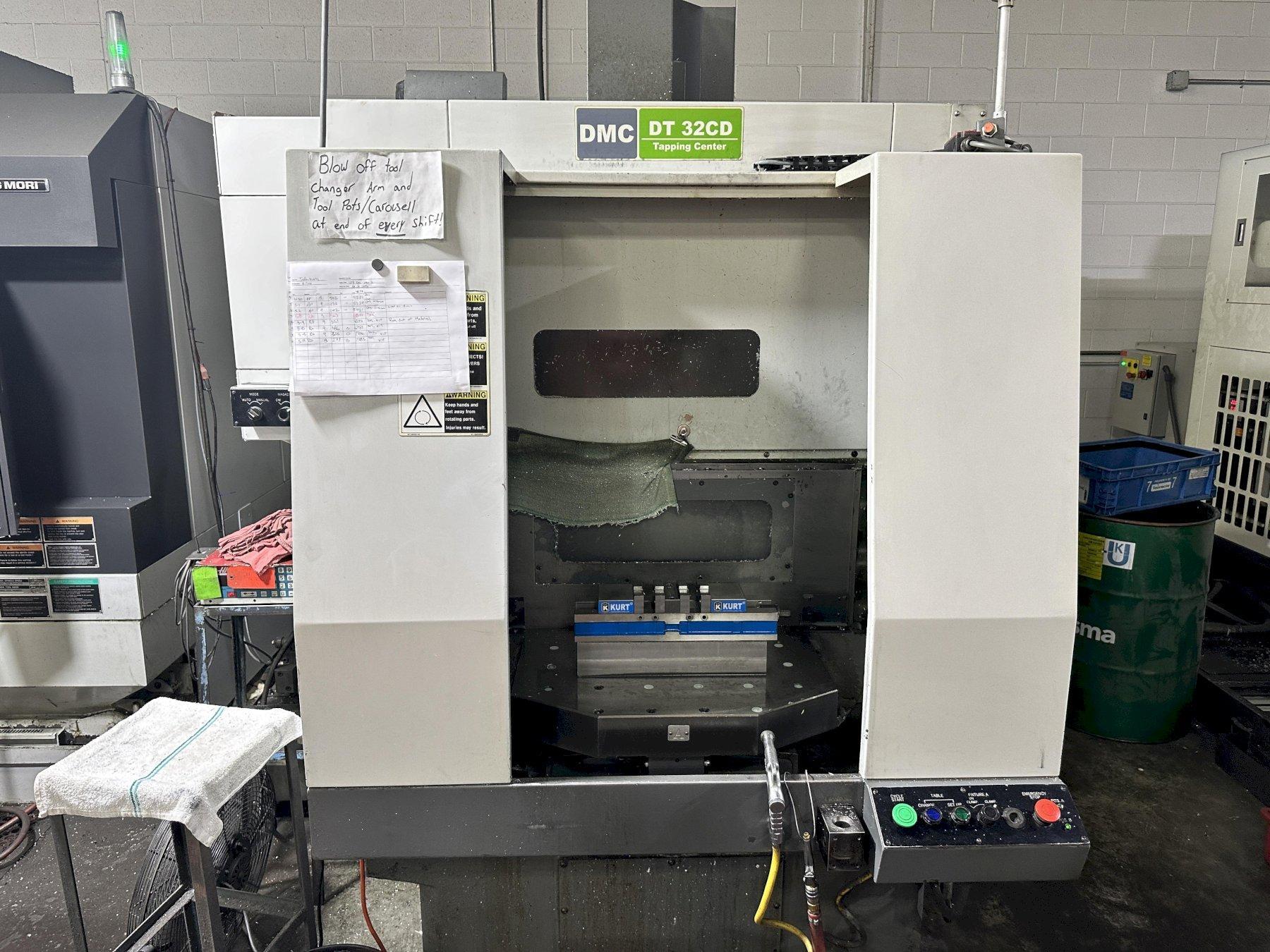

DMC DT32CD Used CNC Vertical Machining Center For Sale - 2013
Machine Specifications
CNC Control
Control Type
Fanuc 0i-MD
# Axis

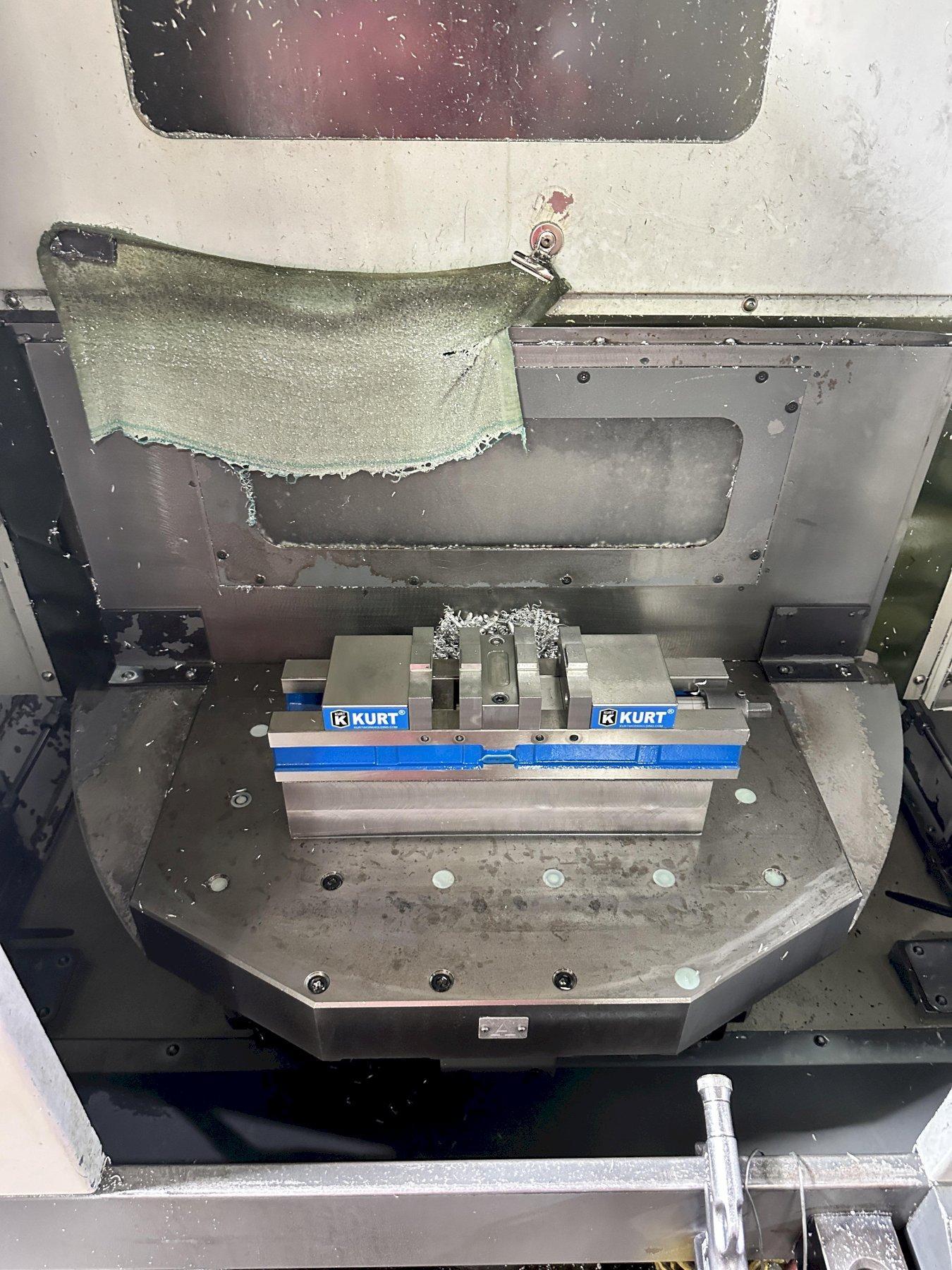

Table Size
23.62" x 14.76"
Table Capacity
881 pounds
X-Axis Travel
Y-Axis Travel
Z-Axis Travel
Rapid Traverse Rate (X/Y/Z)
1,890 ipm
Spindle Taper
BT 30
Spindle Speed
12,000 rpm
Main Motor
7.5 hp

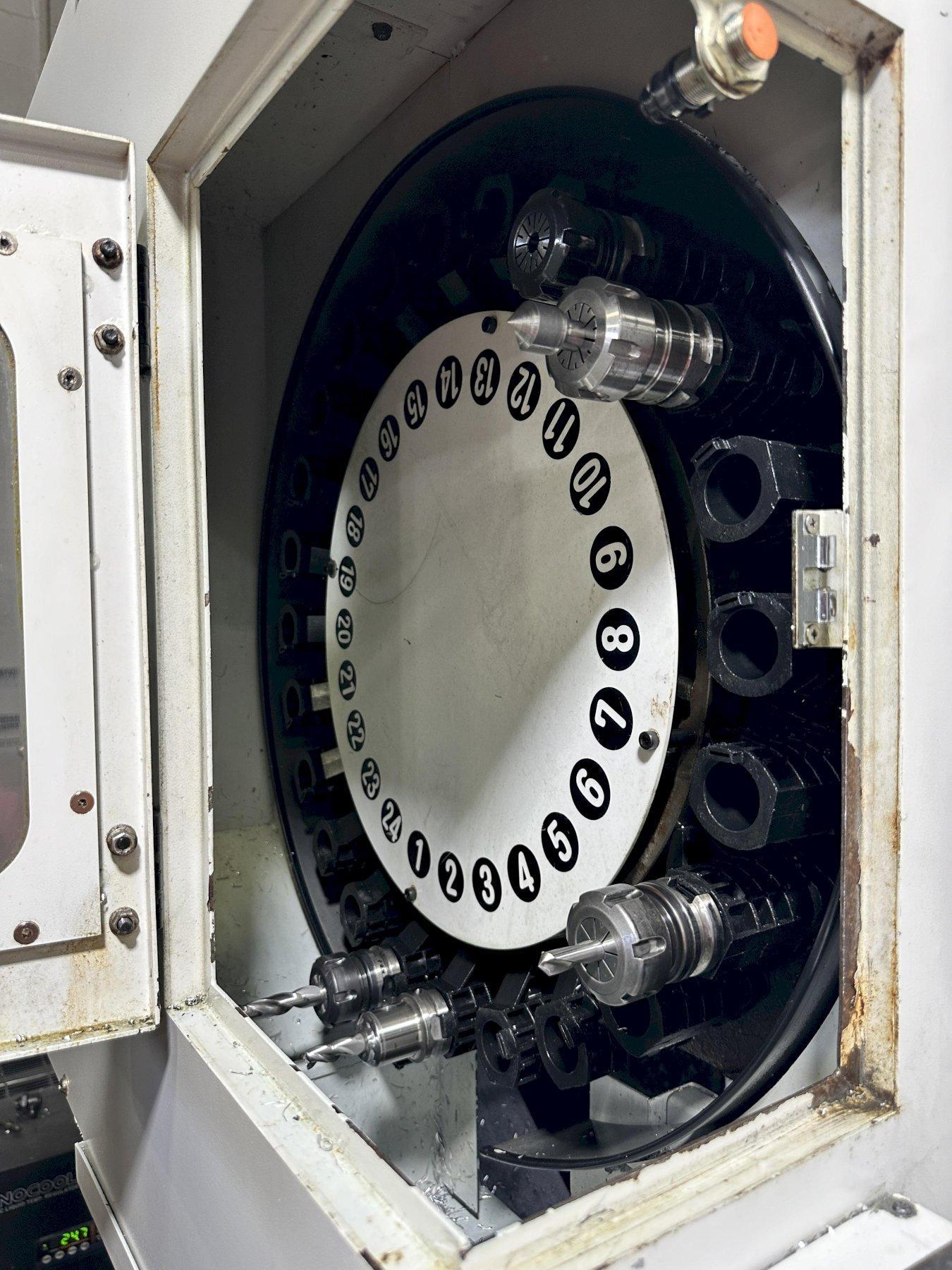

Tool Changer Capacity
Coolant Thru Spindle
Machine Dimensions
75" (L-R) x 110" (F-B) x 96" (H)
Machine Weight
8,200 pounds

Equipped With:

- Fanuc 0i-MD CNC Control
- Chip Blaster D30-35

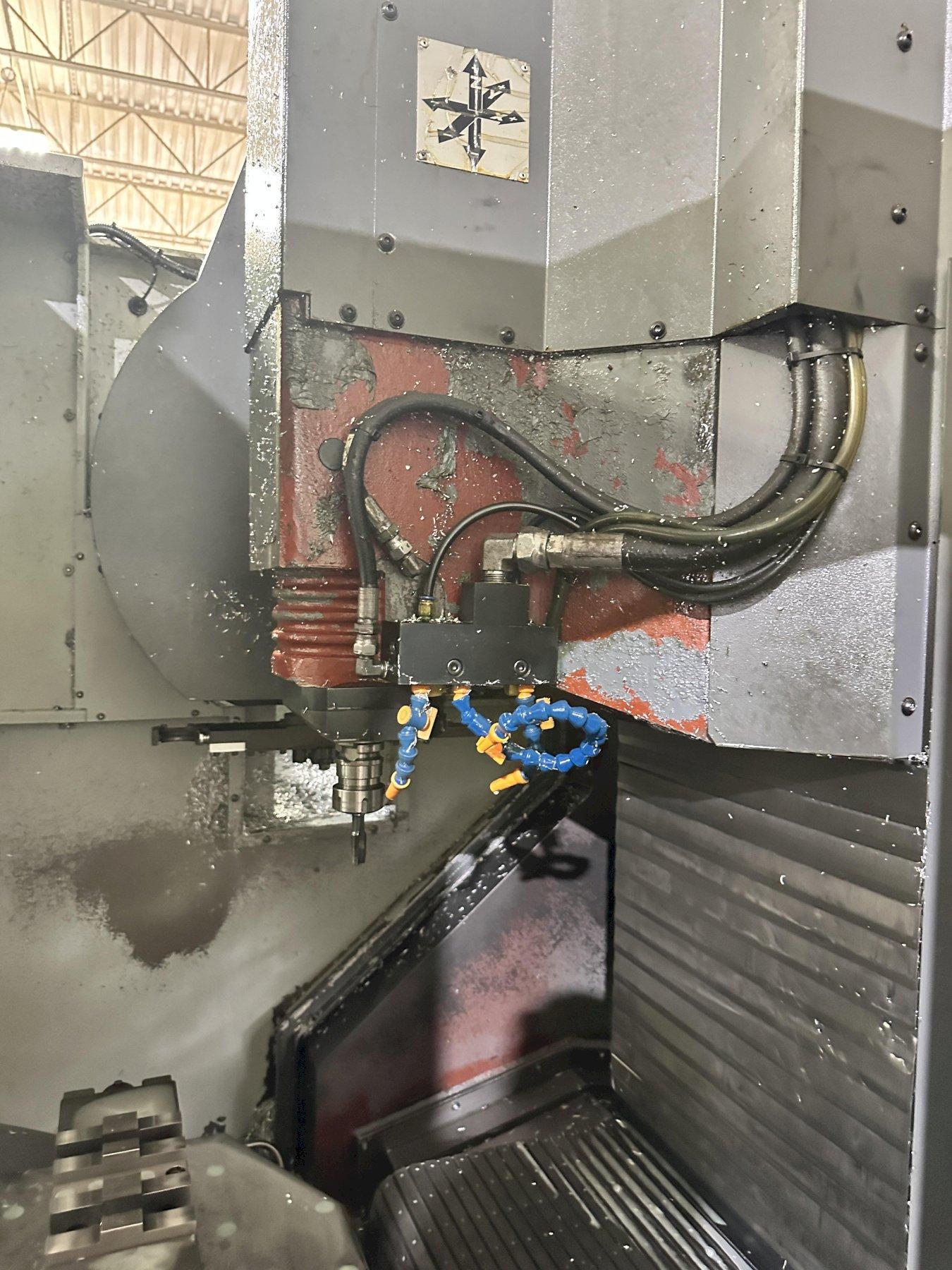

- High Pressure Coolant Thru Spindle

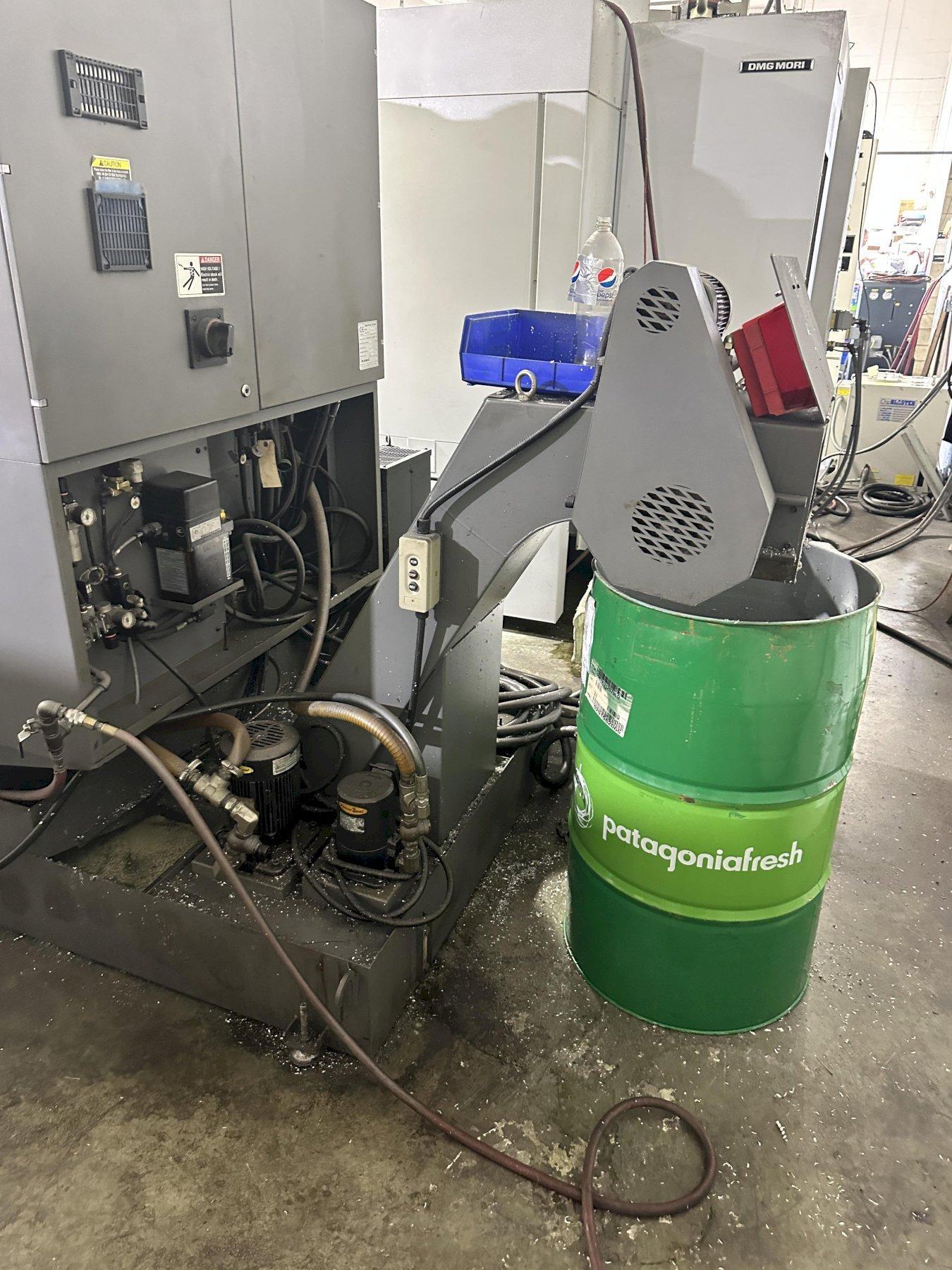

- Chip Conveyor
- Coolant Tank & Pump
- Spindle Chiller
- Drill & Tapping

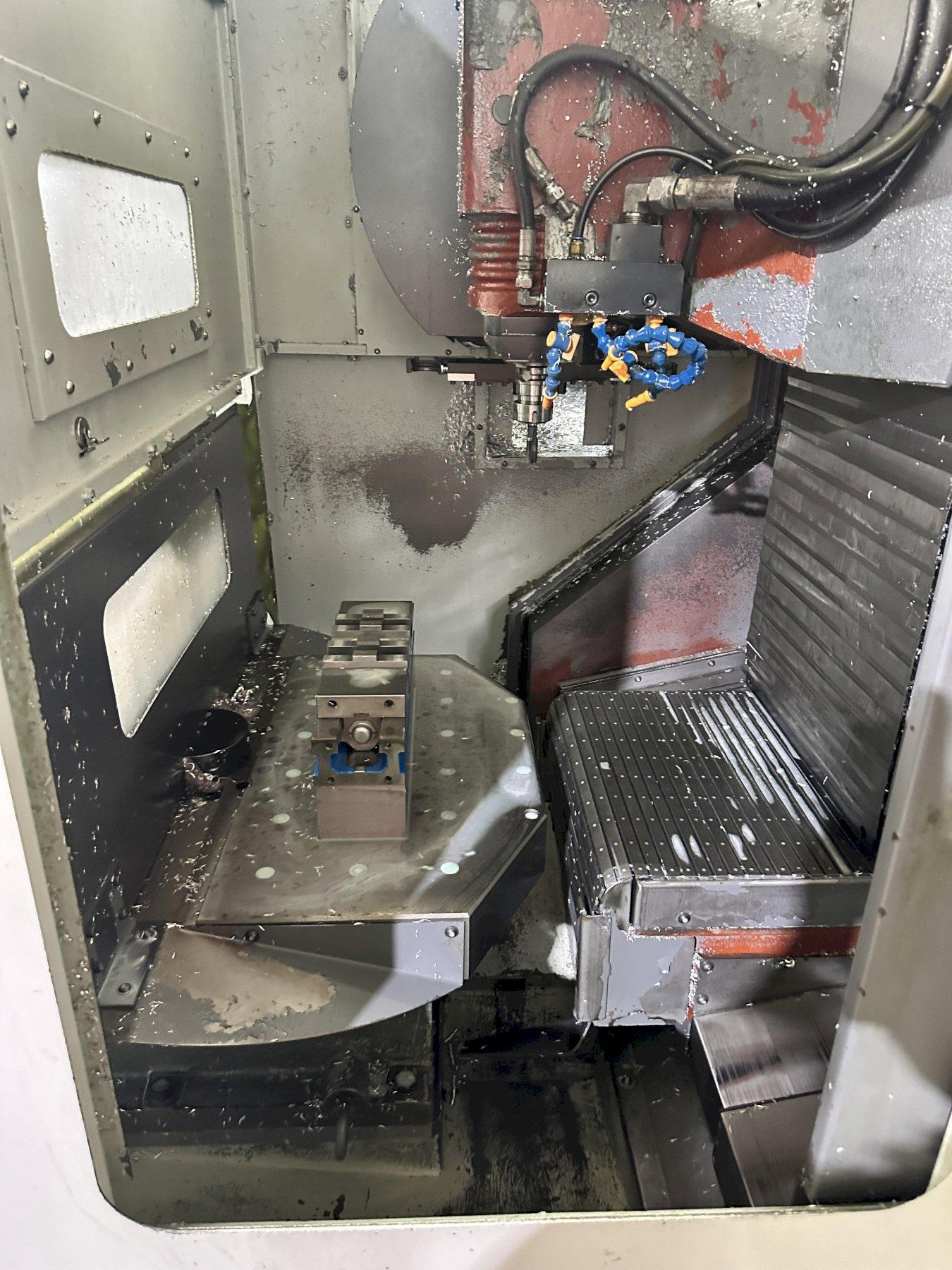

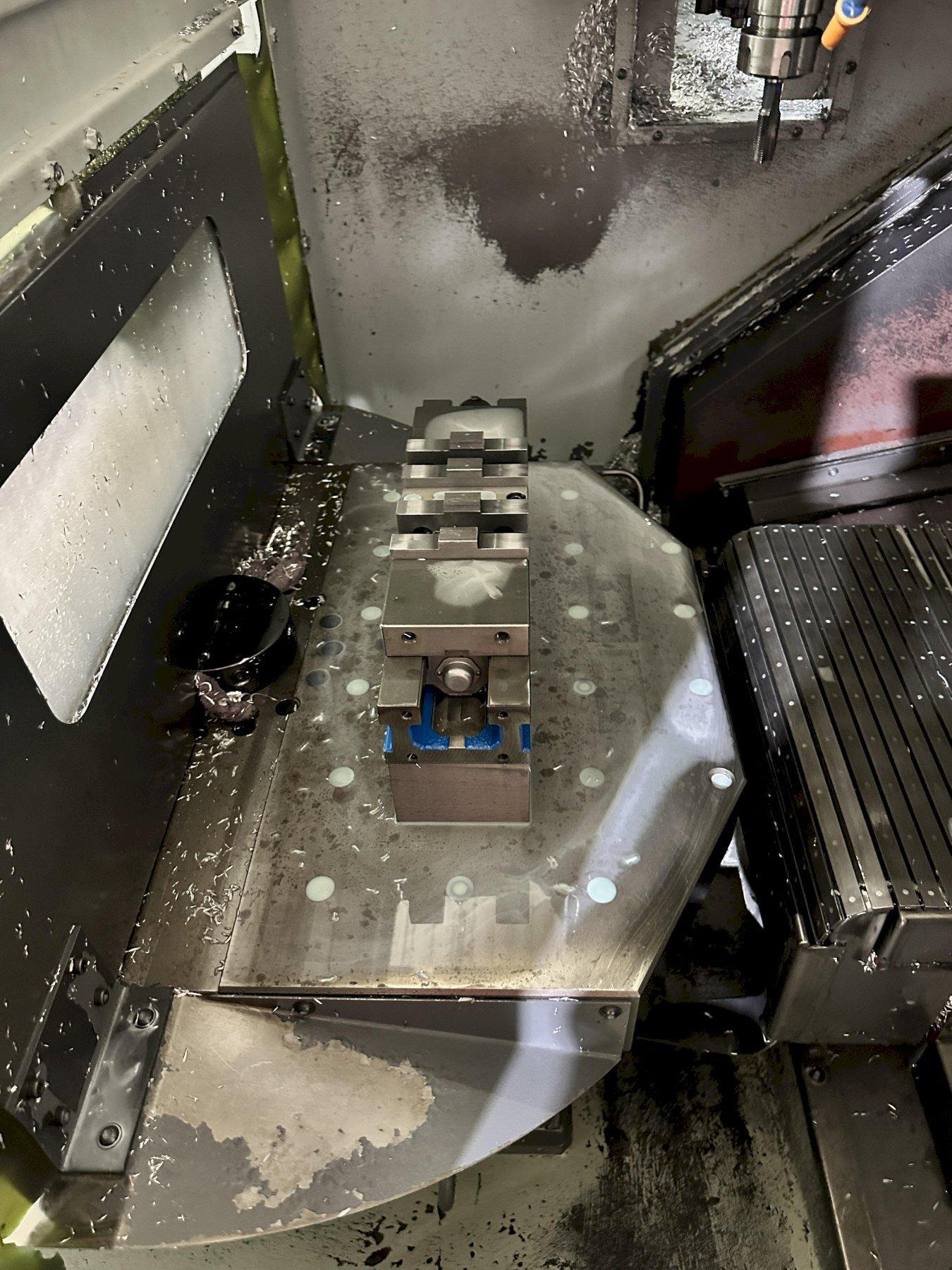

- Dual Table Pallet Changer

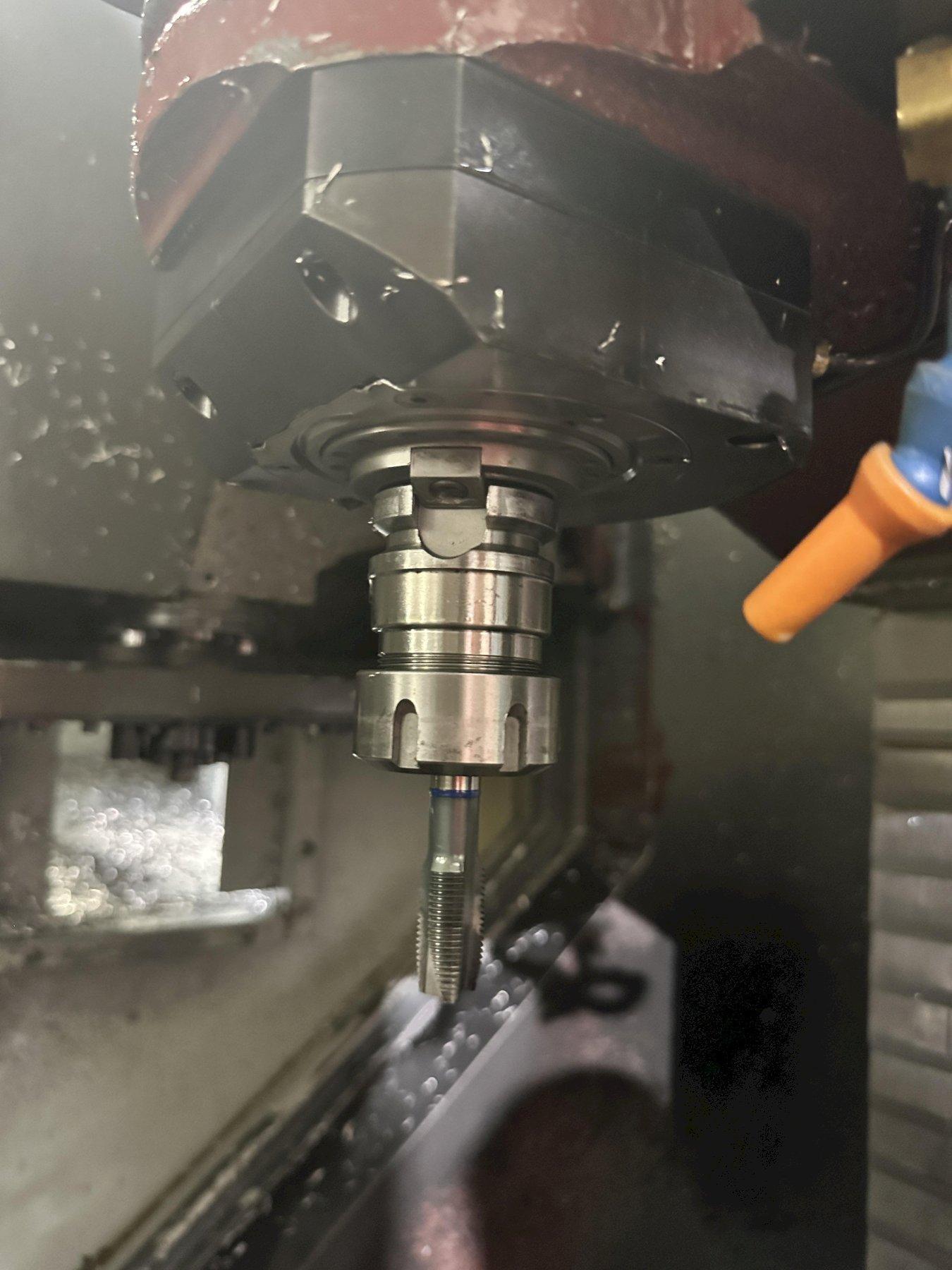

- Rigid Tapping
- Hydraulic Power Package

The DMC DT32CD is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
