Model: CTX beta 1250TC
Year: 2013
Stock #: 14128
Yes
Highlights:
Siemens Sinumerik 840D CNC Contro
5-Axis Simultaneous Machining
LNS Quickload Servo S3 Bar Feeder
CAPTO C6 Milling Spindle

DMG Mori CTX beta 1250TC Used CNC 5th Axis Lathe For Sale - 2013
Machine Specifications
Year
2013
Control Type
Siemens Sinumerik 840D
# Axis
7
Swing
19.7"
Turning Diameter
19.7"
Center Distance
57.9"
Chuck Size
12"
Bar Capacity
4.09"
X Axis Travel
19.3"
Y-Axis Travel
± 4.9"
Z Axis Travel
51.2"
B Axis Head Tilt
+/- 110°
C1/C2 Axis Index
0.001°
Rapid Traverse Rate (X/Y/Z)
1,574/1,574/1,968 ipm
Spindle Taper
Capto C6
Spindle Speed
5,000 rpm
Main Motor
60 hp
Tailstock
no
Y Axis
yes
Live Tooling
yes
Live Milling Speed (RPM)
12,000 rpm - Milling Spindle
Live Milling Motor
30 hp
Sub Spindle
yes
Sub Spindle Chuck
8"
Sub Spindle Bar Capacity
2.63"
Sub Spindle Speed
6,000 rpm
Sub Spindle Motor (HP)
43 hp

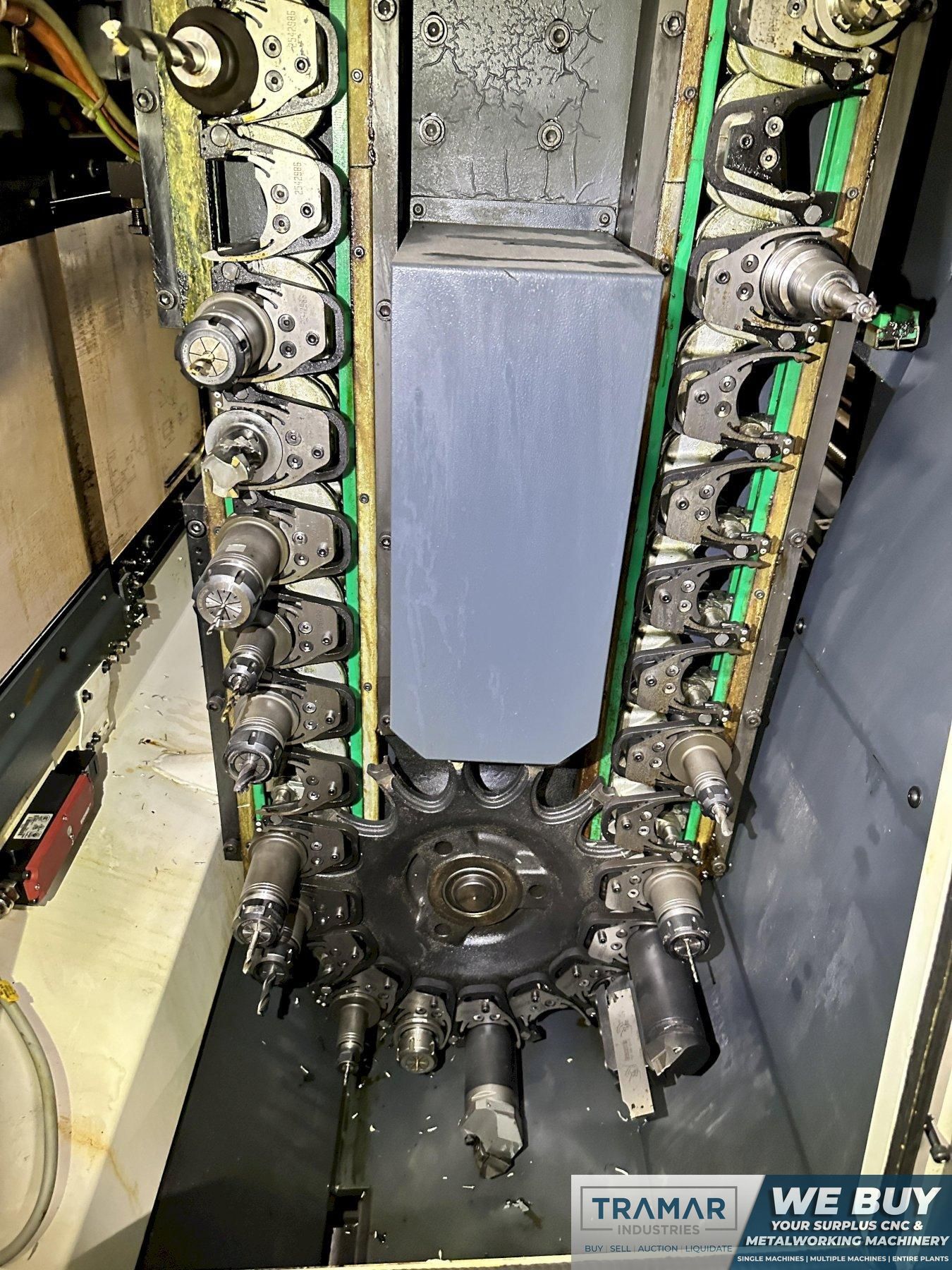

Tool Changer Capacity
48
Dimensions
193" x 88" x 90"
Weight
26,500 pounds

Equipped With:

- Siemens Sinumerik 840D CNC Control w/ ERGOline
- Tool Breakage Monitoring
- 5-Axis Simultaneous Machining
- LNS Quickload Servo S3 Bar Feeder
- USB & Ethernet Interface
- CAPTO C6 Milling Spindle

The DMG Mori CTX beta 1250TC is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
