DMG Mori DMU 125 monoBLOCK - Machining Centers, Vertical, (5-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: DMU 125 monoBLOCK
Year: 2015
Stock #: P13215
Highlights:
- Spindle Probing
- Tool Length Measurment (Blum Laser)
- High Pressure Coolant Thru Spindle

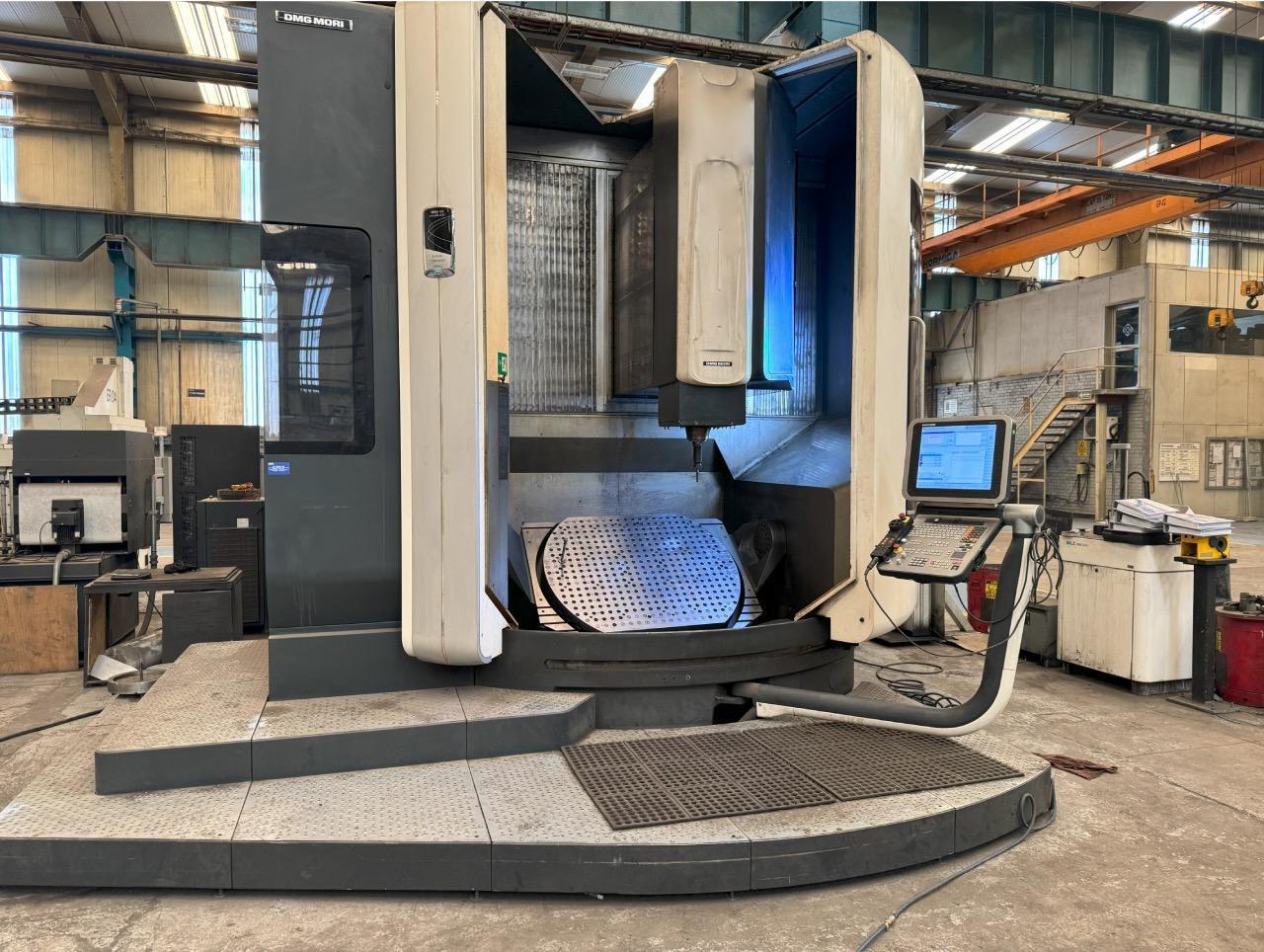

DMG Mori DMU 125 monoBLOCK 5-Axis CNC Vertical Machining Center For Sale - 2015
Machine Videos
Machine Specifications
CNC Control
yes

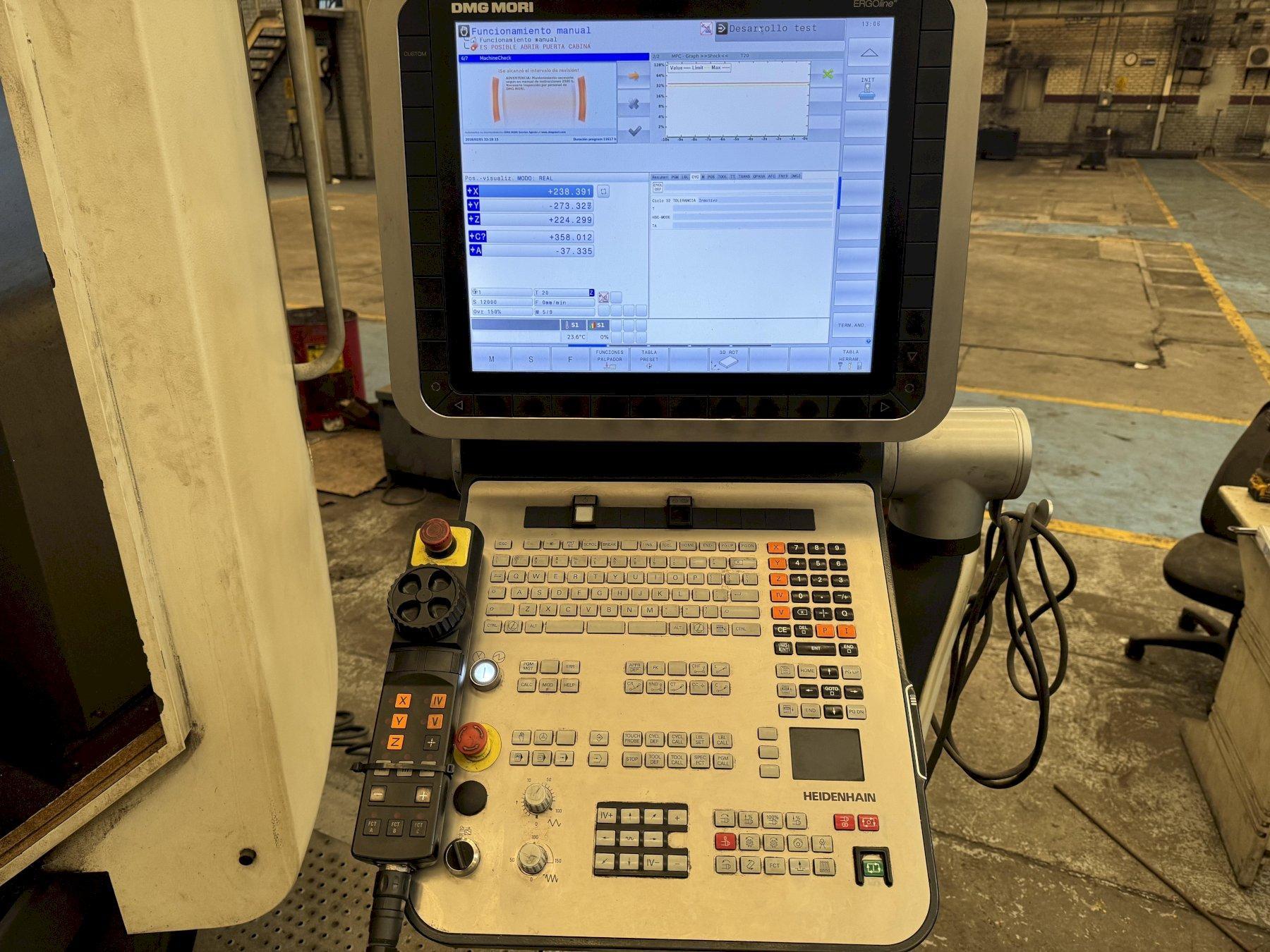

Control Type
Heidenhain iTNC 530
# Axis
5
Table Size
49.2" x 39.37"
Max Table Load
5,732 pounds
X-Axis Travel
52.56"
Y-Axis Travel
49.2"
Z-Axis Travel
35.4"
C Axis Index
0.001°
Rapid Traverse Rate (X/Y/Z)
1,600 ipm

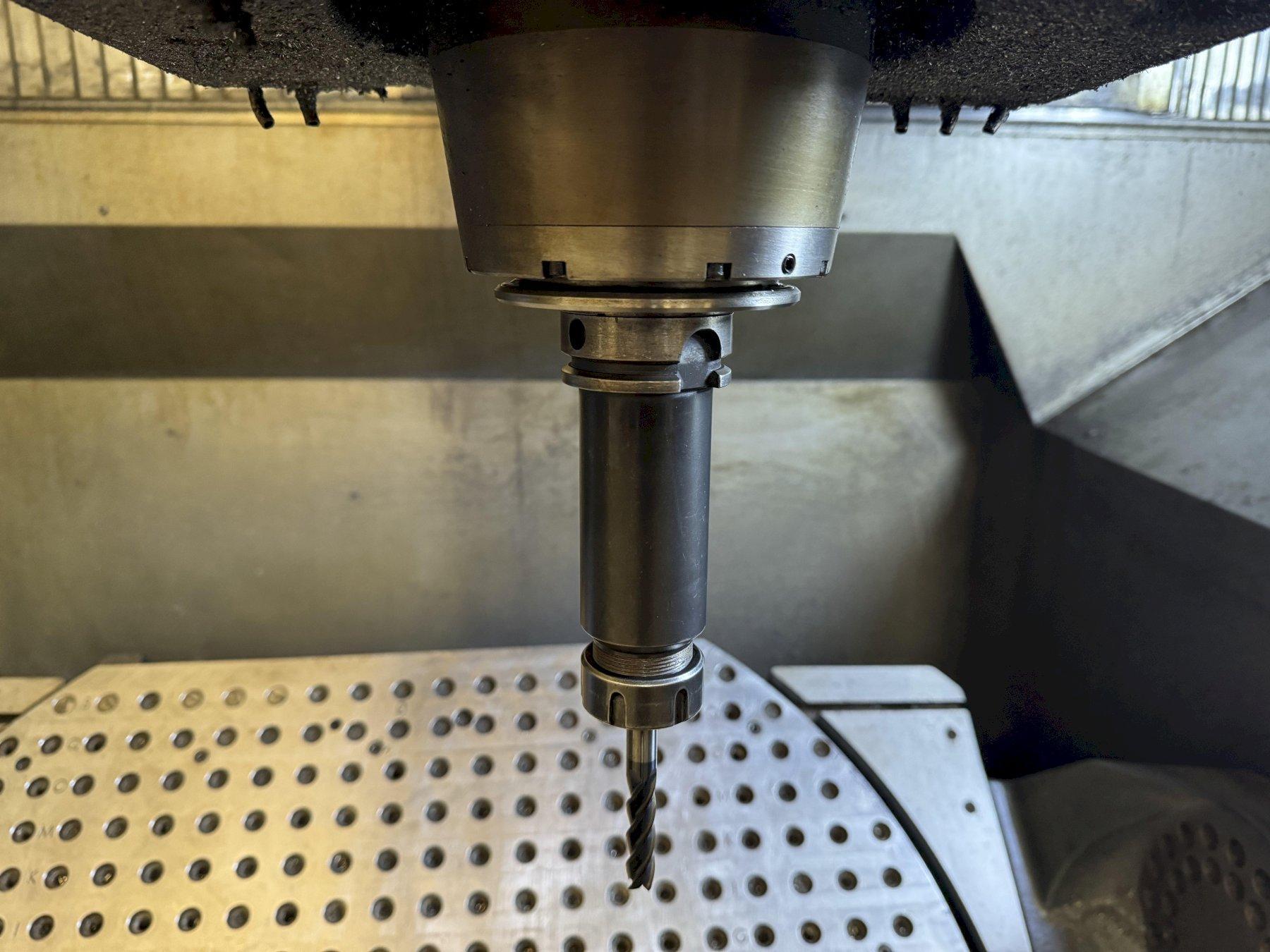

Spindle Taper
HSK-63
Spindle Speed
18,000 rpm
Main Motor
47 hp

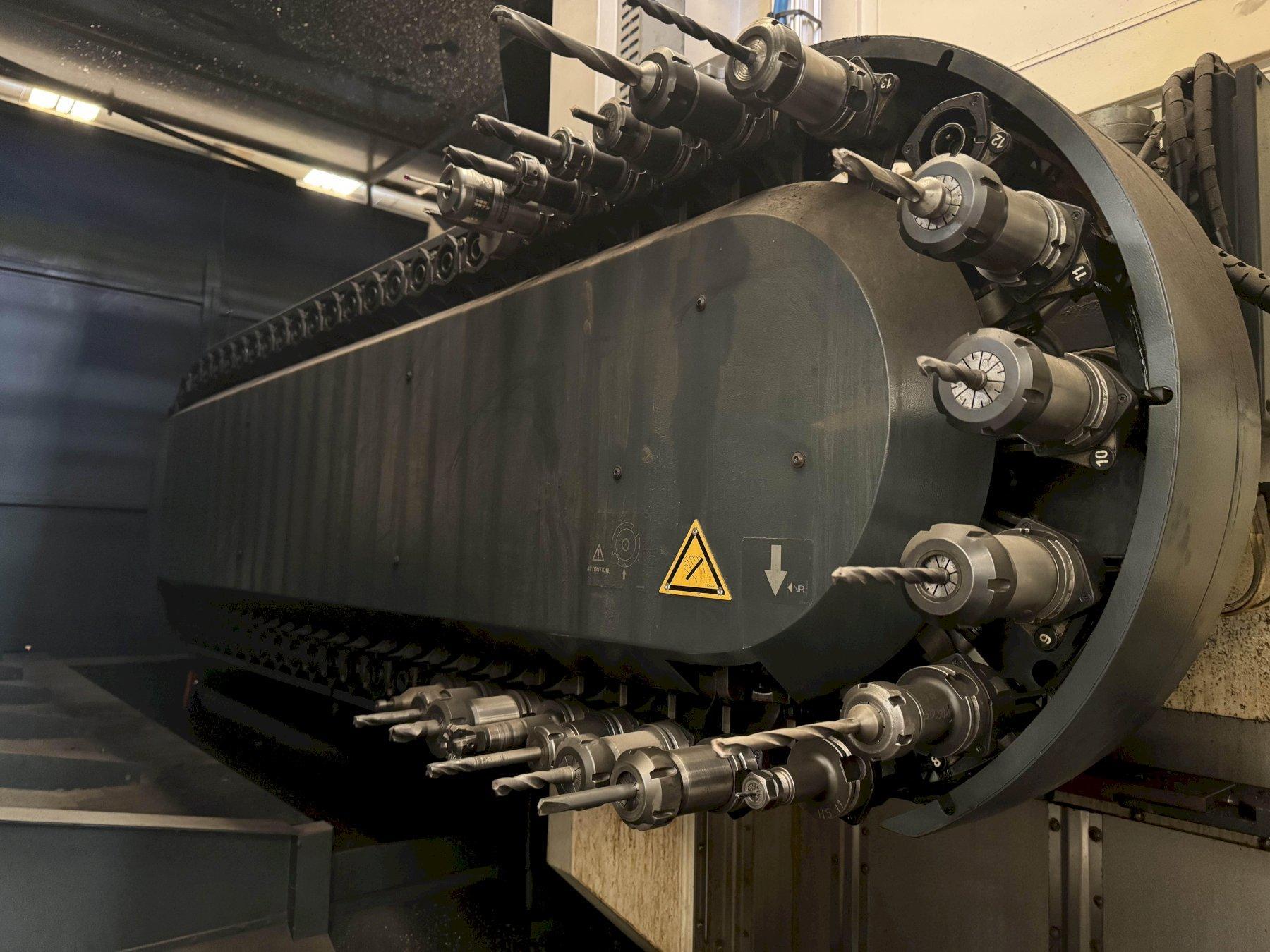

ATC Capacity
60
Coolant Thru Spindle
yes
Machine Dimensions
148" x 183" x 154"
Machine Weight
52,500 pounds

Equipped With:

- Heidenhain iTNC 530
- Chip Conveyor
- Coolant Tank & Pump
- HP Coolant Thru Spindle

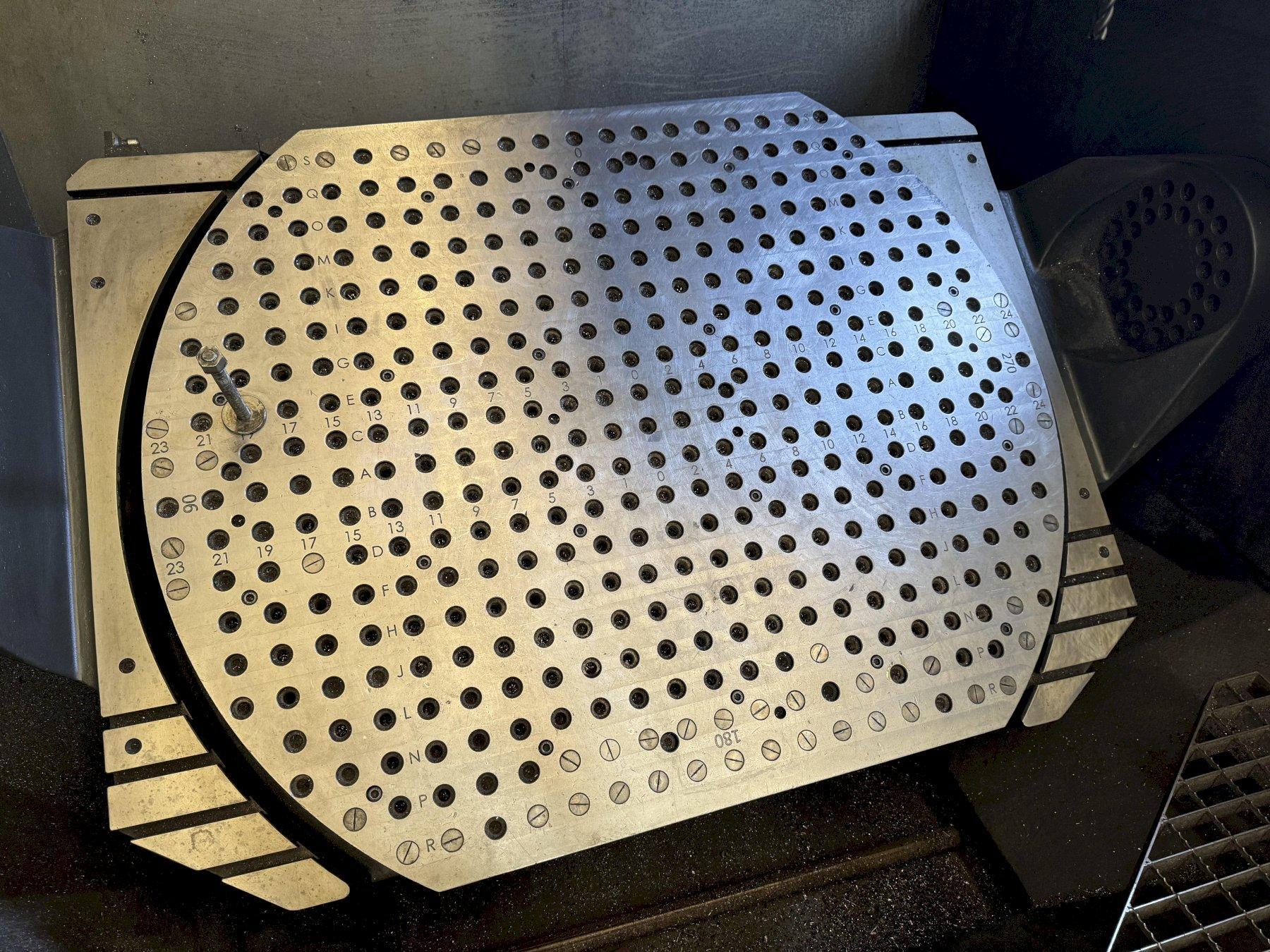

- NC Swivel Rotary Table
- Spindle Probing
- Tool Length Measurment (Blum Laser)



The DMG Mori DMU 125 monoBLOCK is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
