DMG Mori DMU 85 monoBLOCK - Vertical Machining Centers

Request Quote
Specifications Print Specs
Model: DMU 85 monoBLOCK
Year: 2016
Stock #:
Highlights:
- Heidenhain TNC 640 Control
- Coolant Thru Spindle (591 psi)
- Renishaw Probing | BLum Laser
- 20,000 RPM | 47HP | HSK-A63
- Travels (X/Y/Z): 36.8"/33.5"/25.6"
- Rotary Table: 33.5" x 29.5"

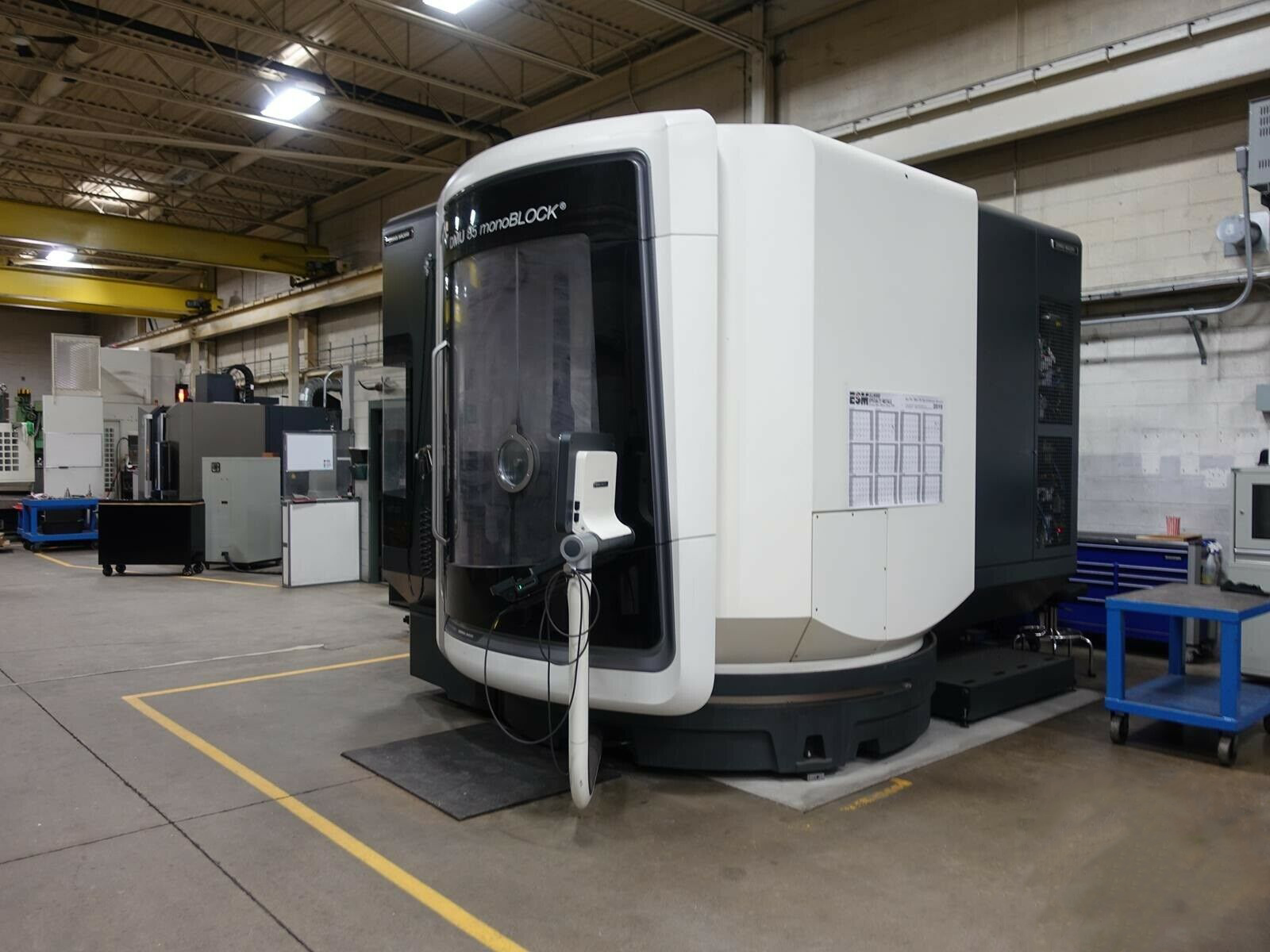

DMG Mori DMU 85 monoBLOCK - CNC Vertical Machining Center
Machine Specifications
Year
2016
Control Type
Heidenhain iTNC 640
# Axis
5
Table Size
33.5" x 29.5
Table Capacity
2,204 pounds
X-Axis Travel
36.8"
Y-Axis Travel
33.5"
Z-Axis Travel
25.6"
Spindle Speed
20,000
Spindle Taper
HSK-A63
Main Motor
47
Tool Changer Capacity
60
Coolant Thru Spindle
yes

Equipped With:

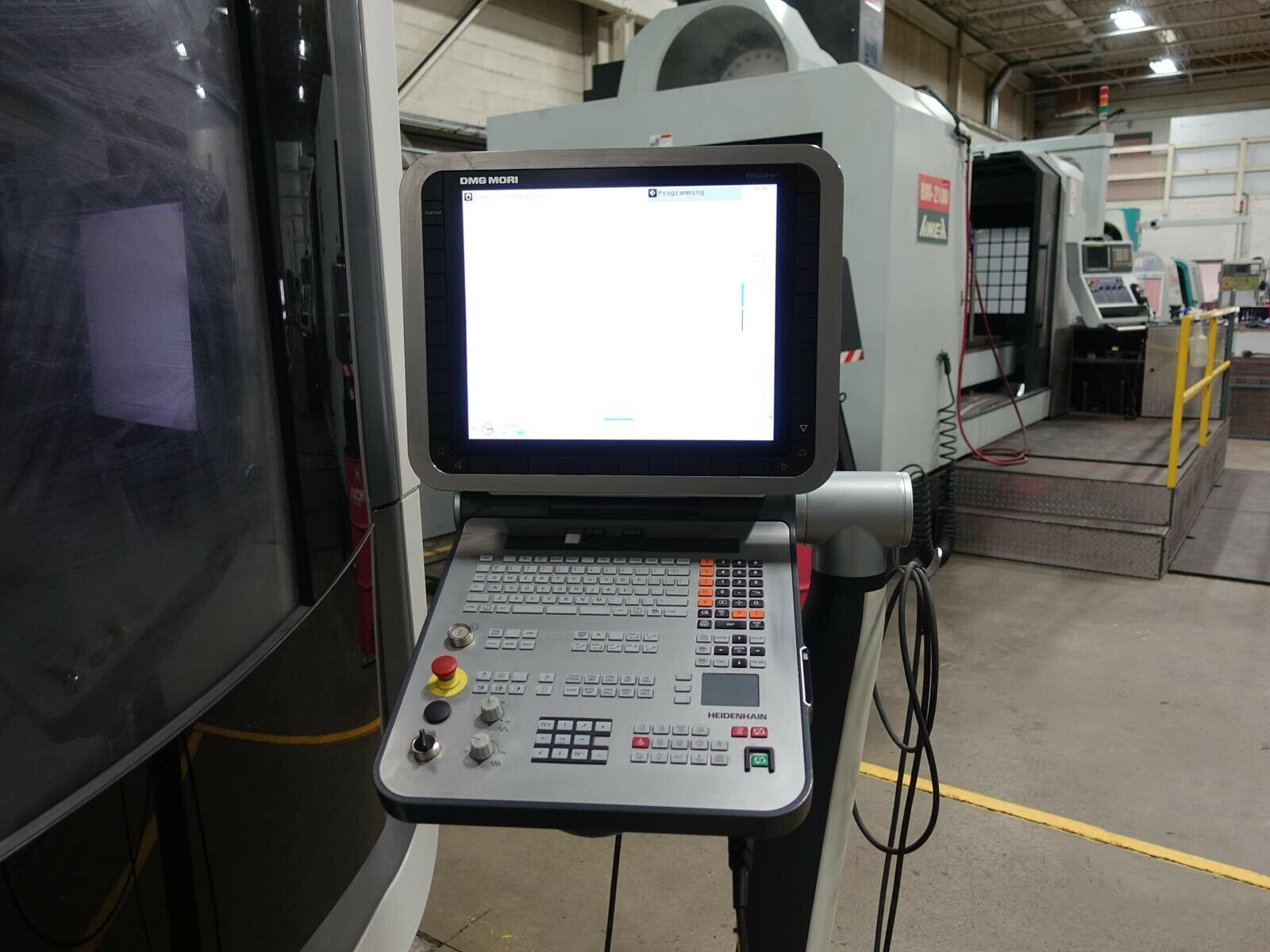

- Heidenhain Tnc 640 CNC Control
- Through Spindle Coolant: 591 psi

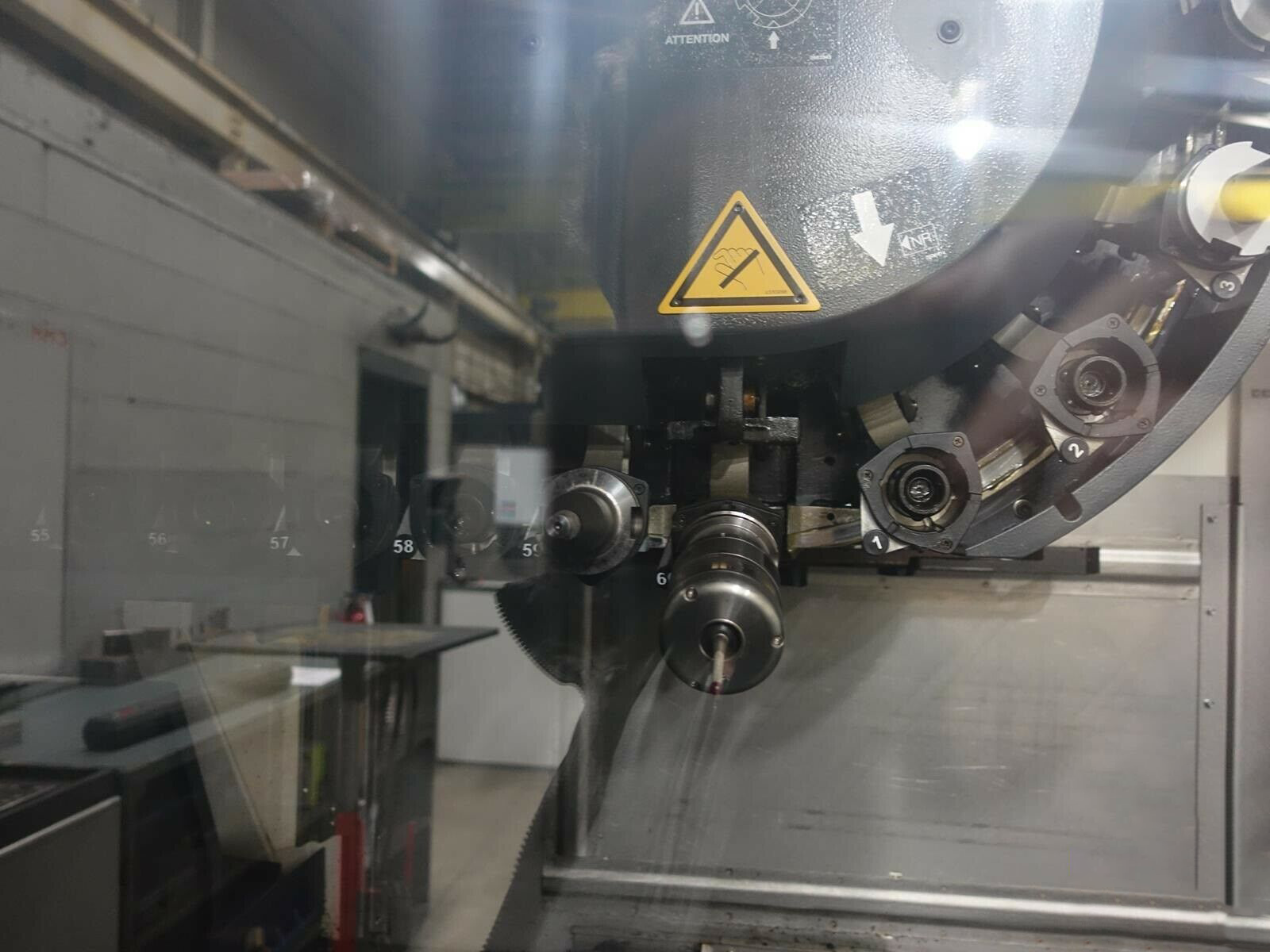

- NC Swivel Rotary Table
- ATC: 60+1 Positions Tool Changer Double Gripper
- Infrared Measuring Probe Type Renishaw PP60 Optical (OMP 60)
- Tool Measuring in Machining Area Type Blum Laser, Tool Length and Tool Diameter Measuring
- Scraper Flight Conveyor - HSK A63 Spindle Taper
- 3D Quickset (Tool Kit for Control and Compensation)
- Machine Protection Control - Handwheel Control
- Oil and Emulsion Separator

The DMG Mori DMU 85 monoBLOCK is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
