DMG Mori NZX2000/800SY - Lathes (3-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: NZX2000/800SY
Year: 2015
Stock #: 15459
Highlights:
Fanuc 31i-B Control
Kitagawa BB208 & Quick Change Collet Chucks

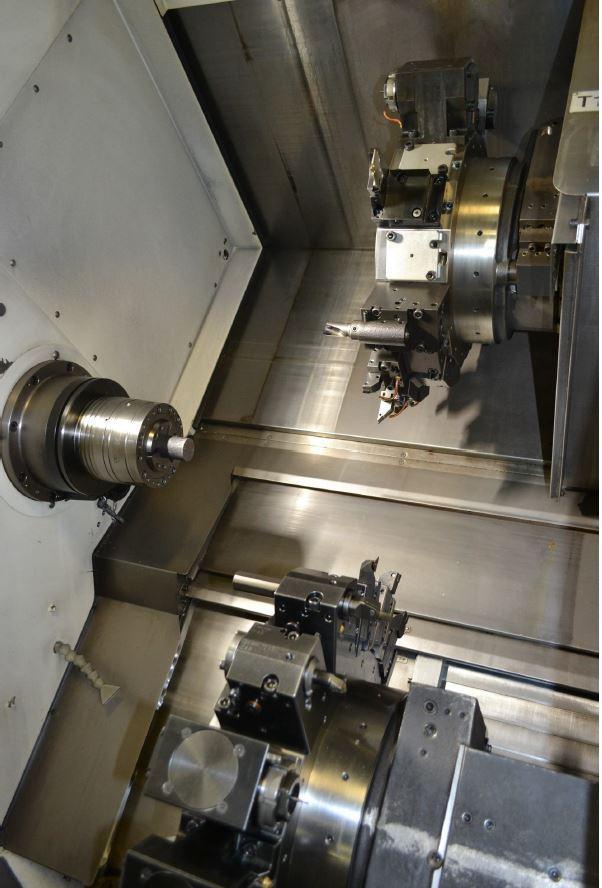

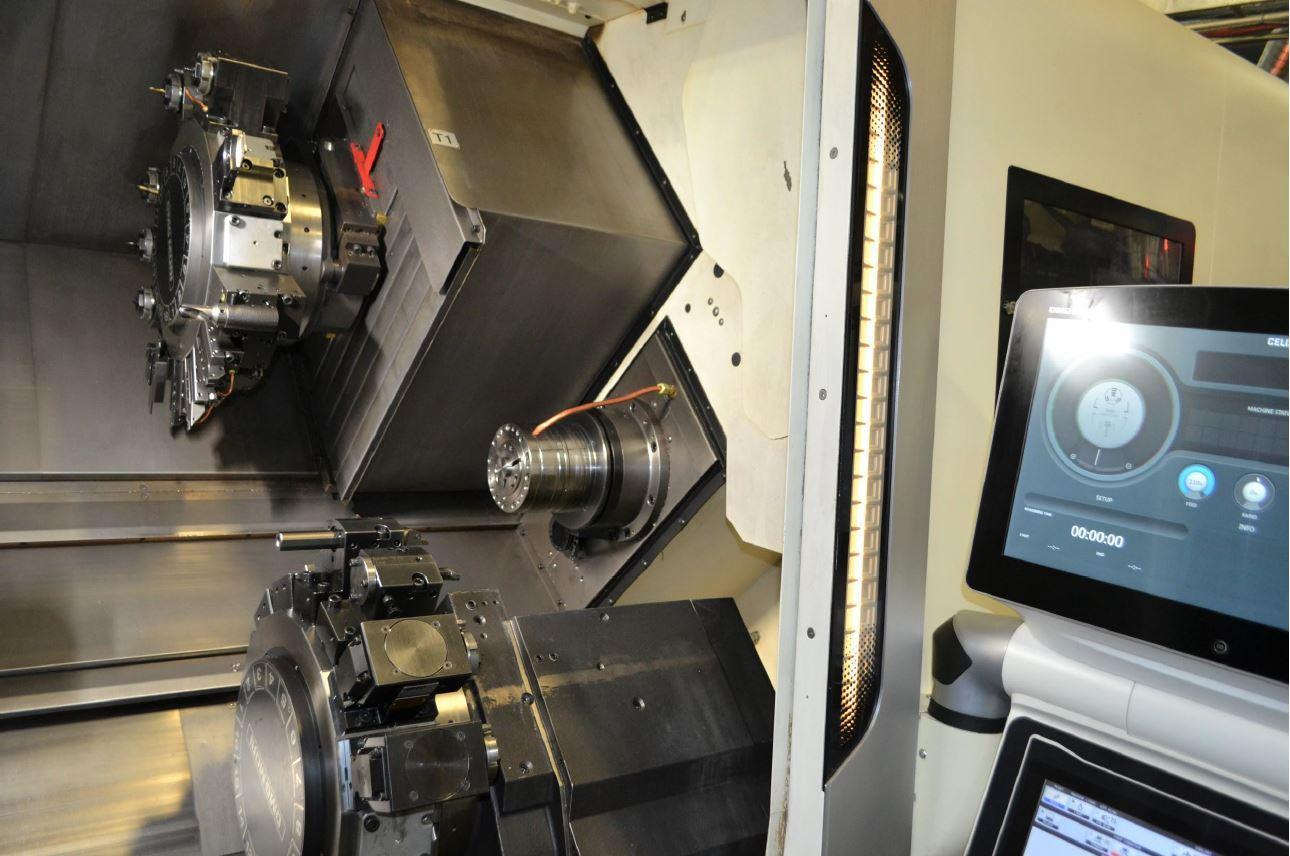

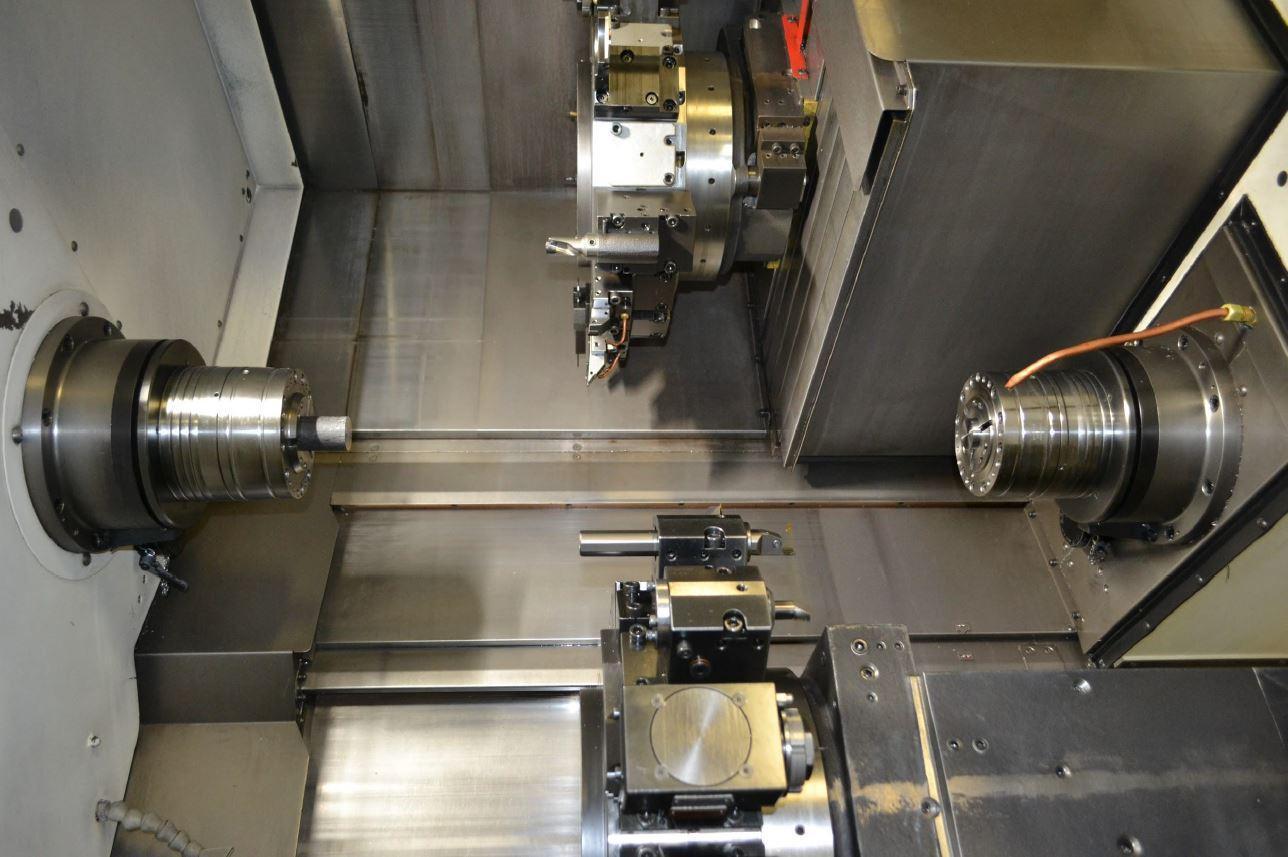

Twin Spindle, Twin Turret, Y Axis, Live Tooling
Parts Conveyor | IEMCA Kid 80 Bar Feeder
Hobbing Software on Main Spindle
Like New - Excellent Condition

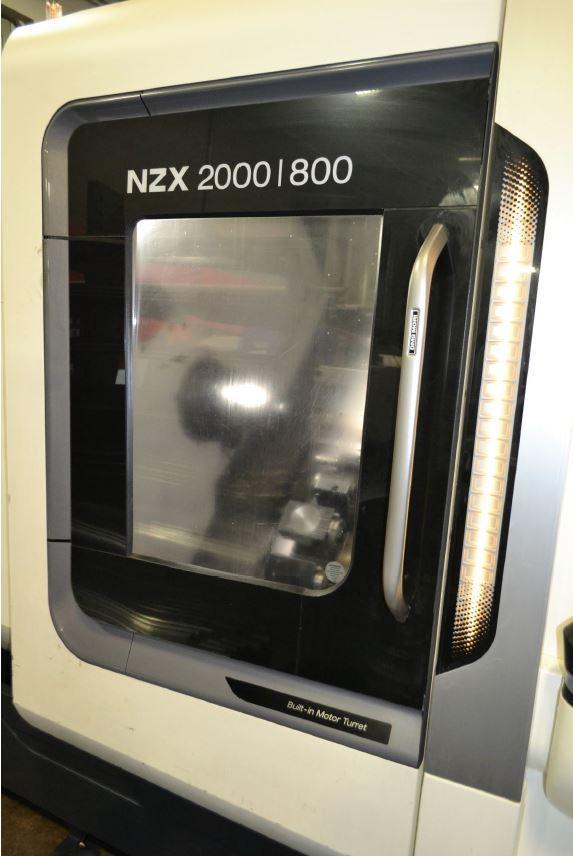

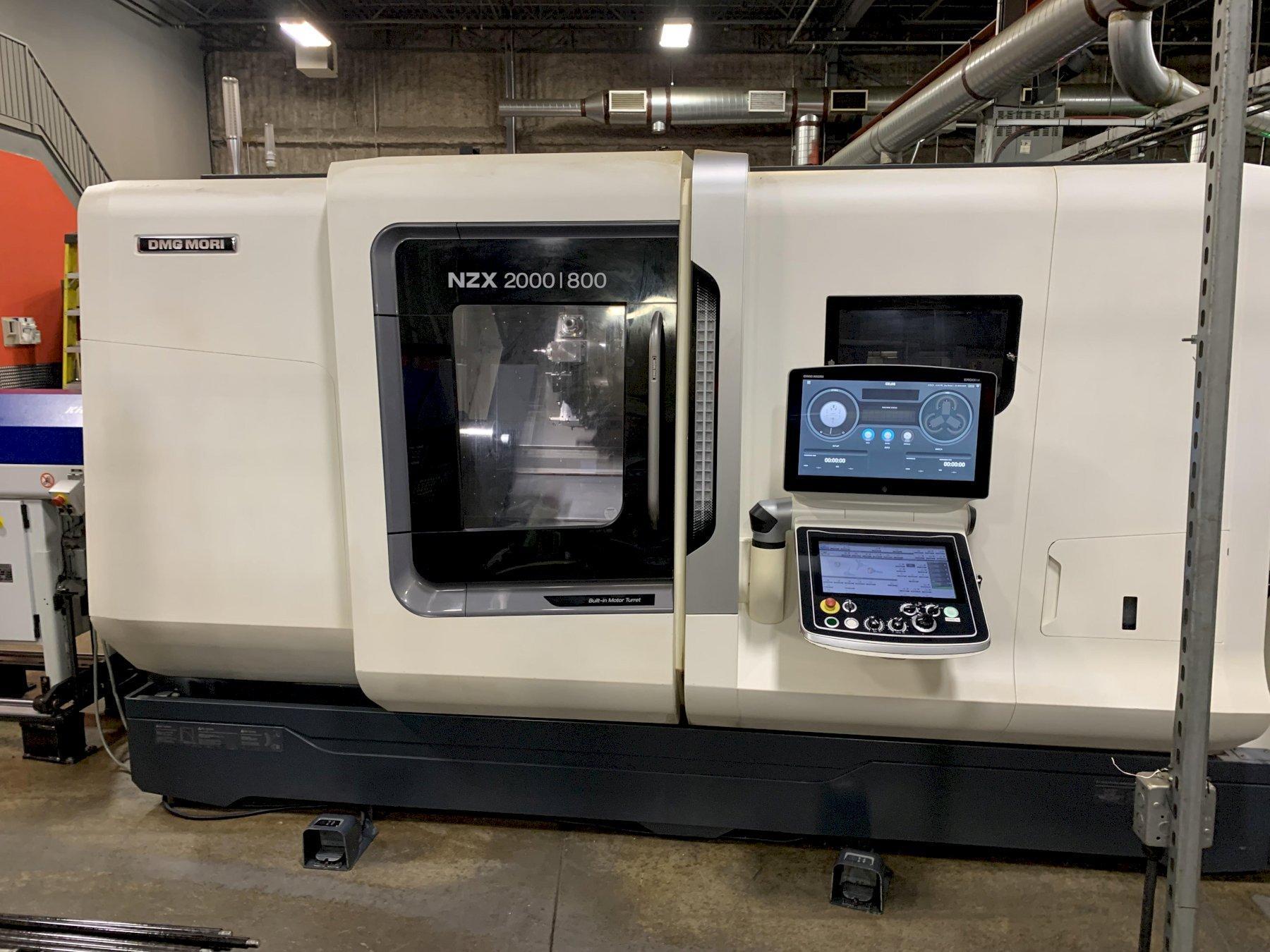

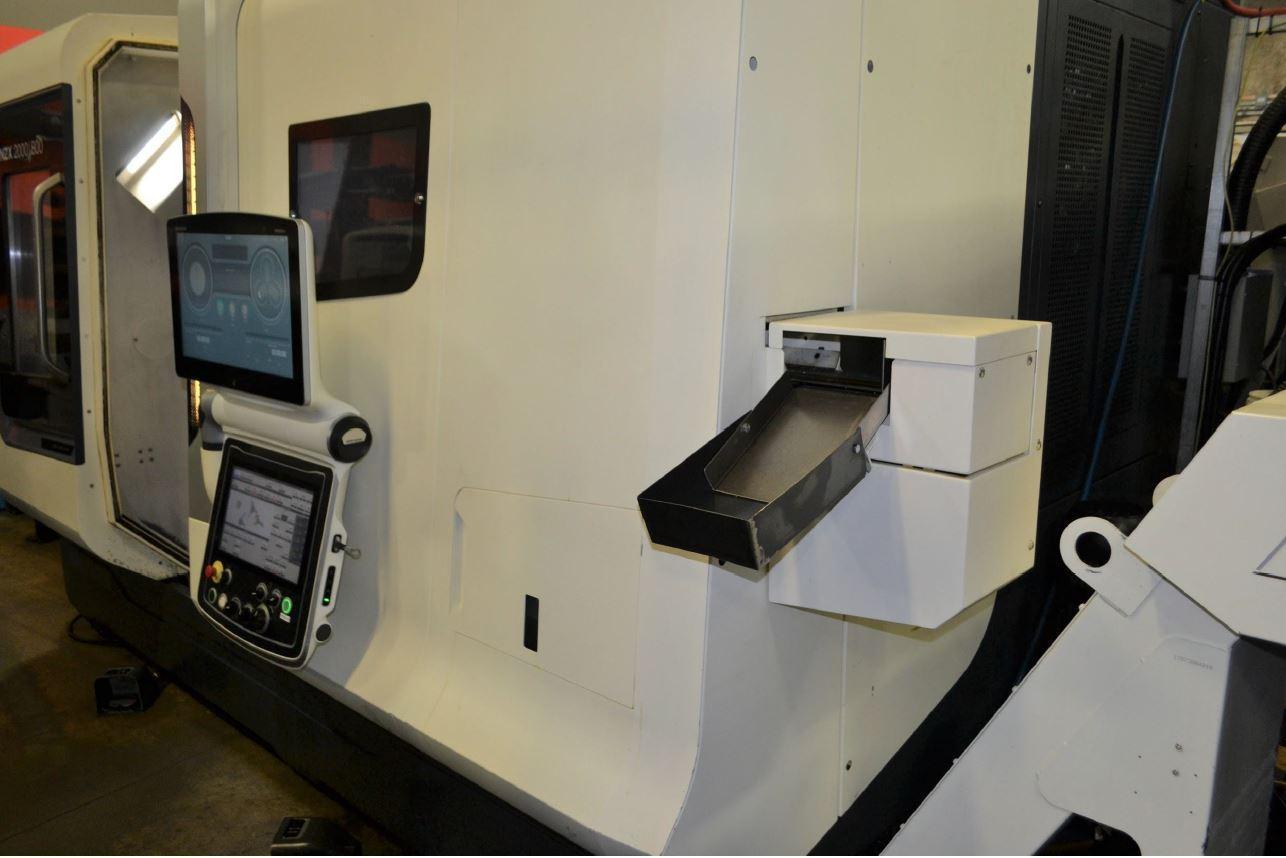

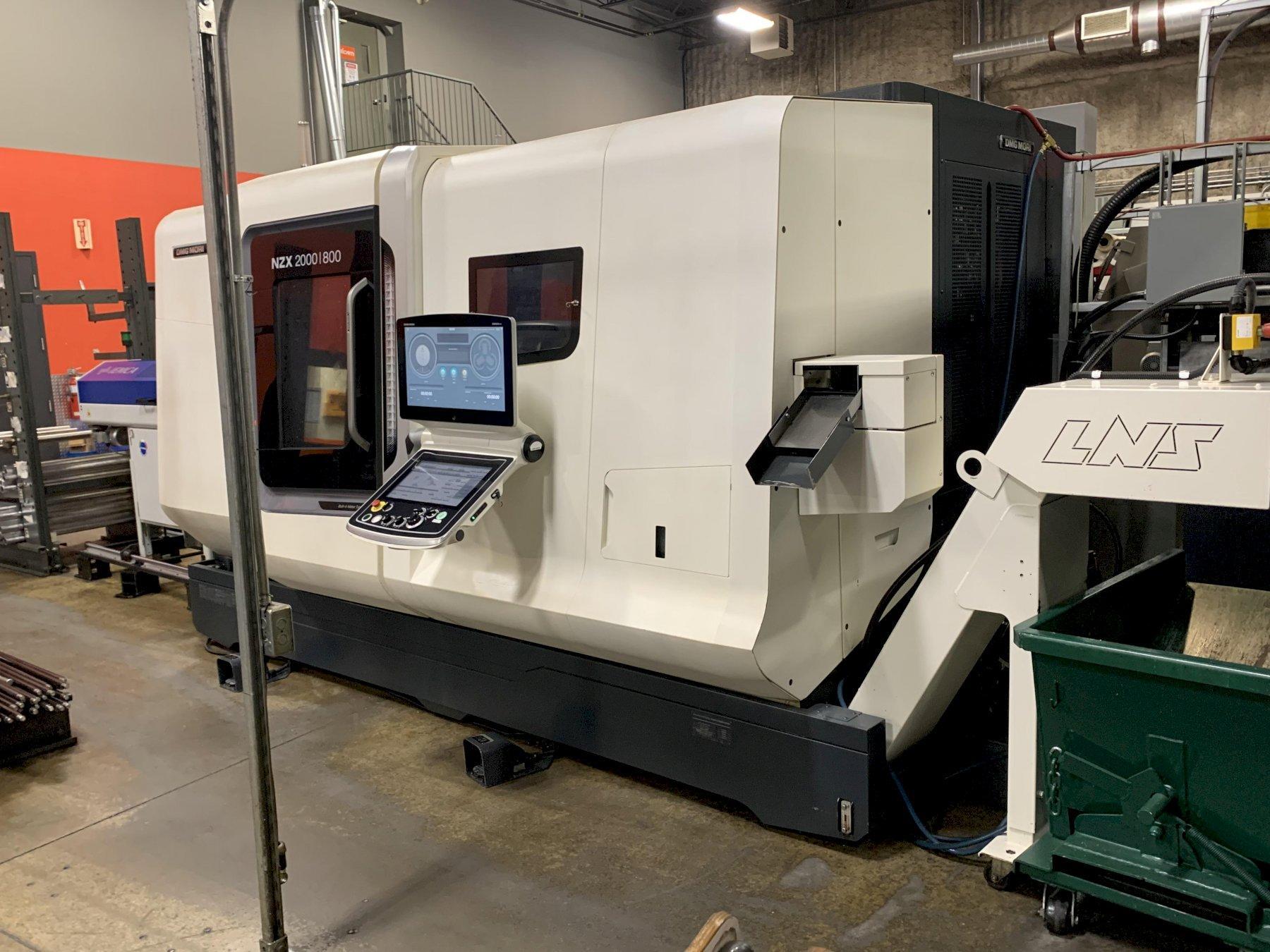

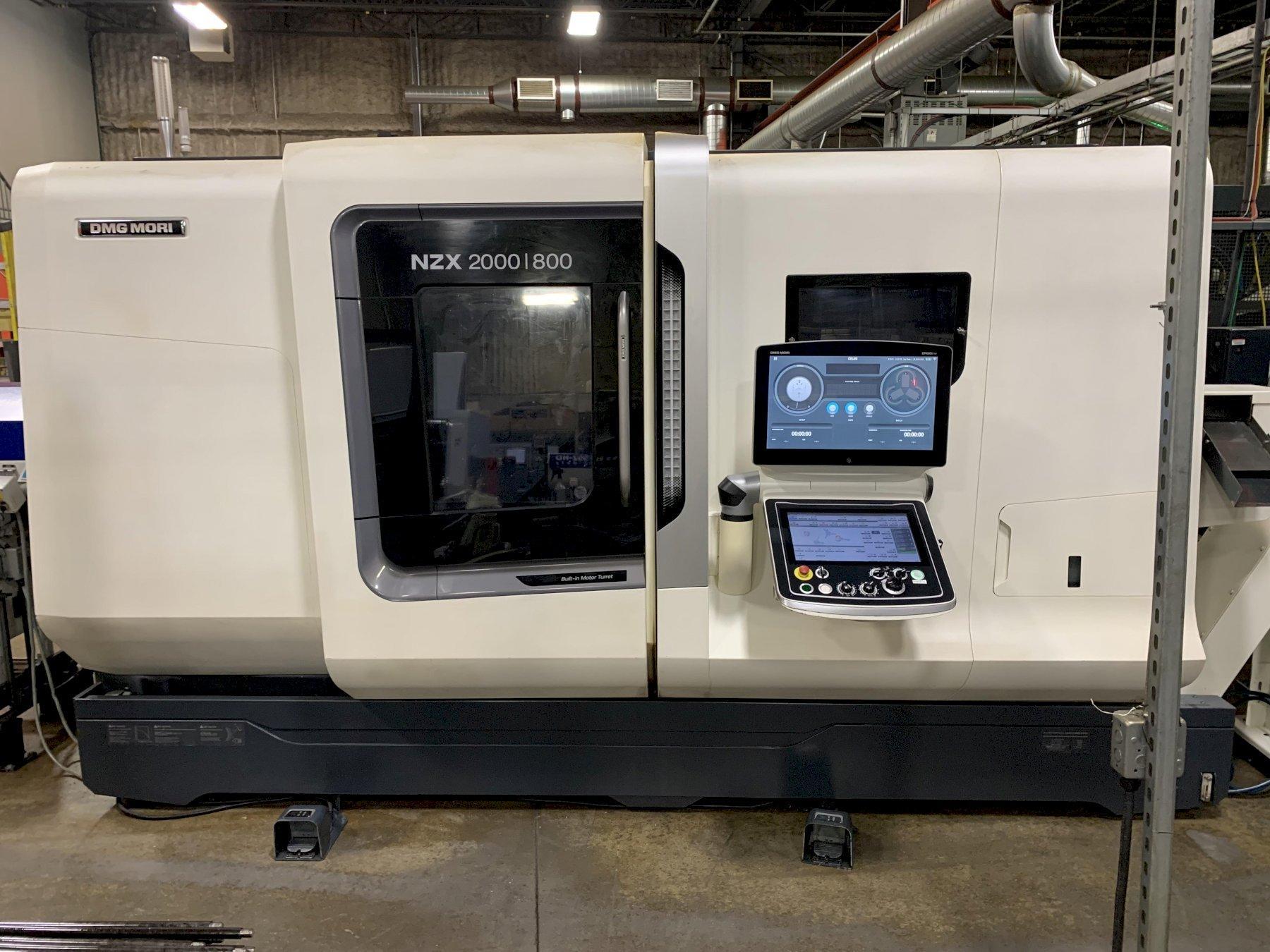

DMG Mori NZX2000/800SY CNC Horizontal Lathe
Machine Specifications
Year
2015
Control Type
Fanuc 31iB
# Axis
8
Chuck Size
8"
Swing
31.5"
Turning Diameter
12.5"
Center Distance
34.2"
Bar Capacity
2.5"
X Axis Travel
8.2"
X2 Travel
8.2"
Y-Axis Travel
4.3" (+2.5" to -1.7")
Z Axis Travel
11.8"
Z2 Travel
31.8"
B Axis Travel (Sub Spindle)
34.2"
C1/C2 Axis Index
0.001°
Y Axis (Yes / No)
yes
Spindle Nose
A2-8
Spindle Speed (RPM)
6,000
Main Motor
34 hp (High Torque Option)
Sub Spindle Chuck Size
8"
Sub Spindle Nose
A2-6
Sub Spindle Speed (RPM)
5,000
Sub Spindle Motor
34 hp (High Torque Option)
Live Milling (Yes / No)
yes
Live Milling Speed (RPM)
12,000
Live Milling Motor
10 hp
Turret Capacity
16/16
Tailstock (Yes/No)
no
Dimensions
173" x 112" x 92"
Weight
18,500 pounds

Equipped With:

- Machine Installed 7/2016

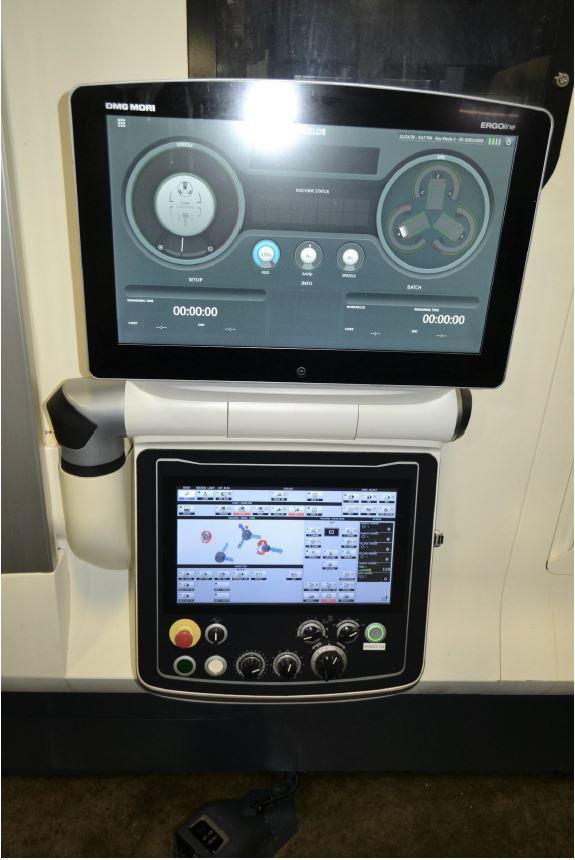

- Fanuc 31i-B Control

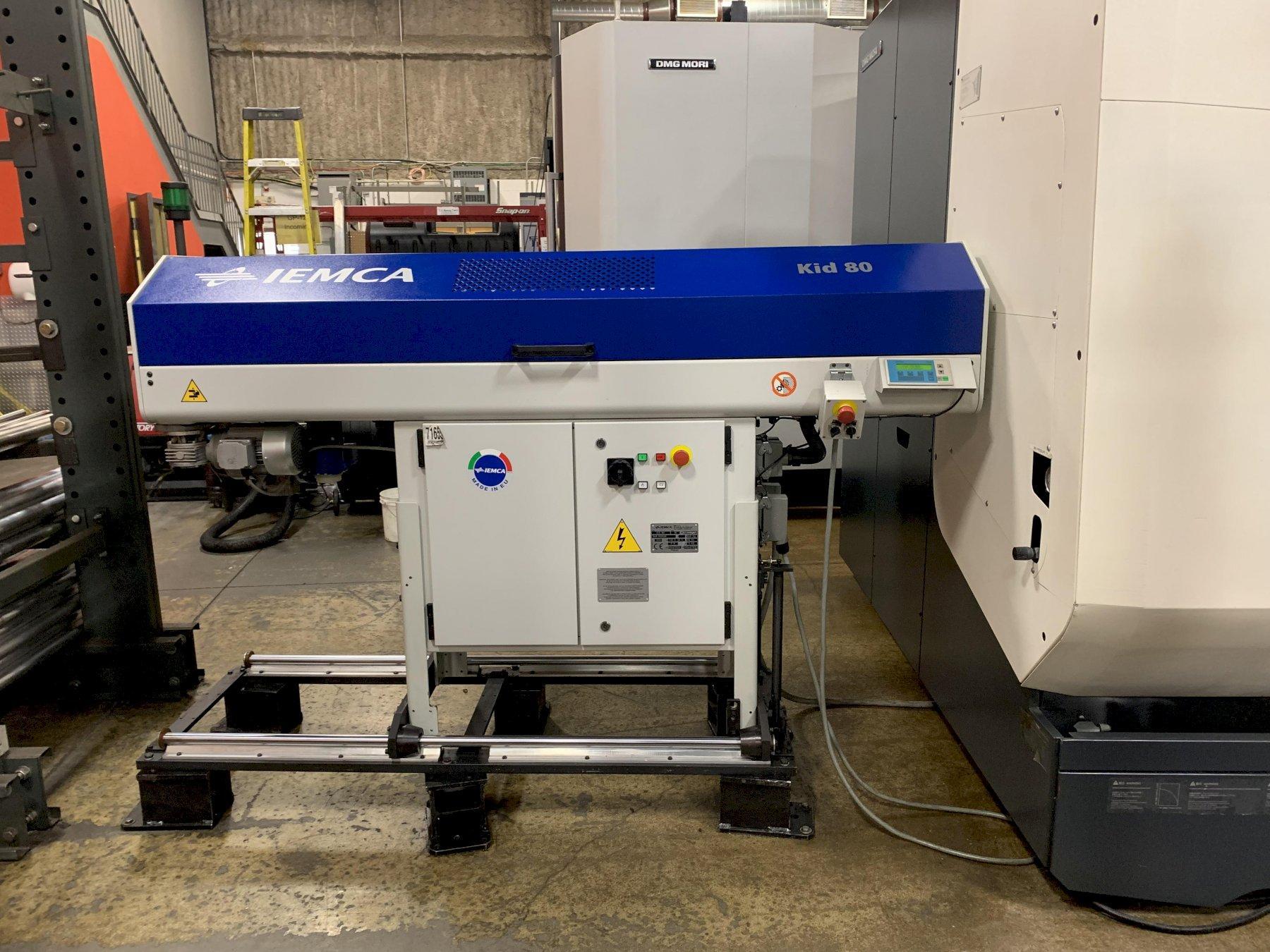

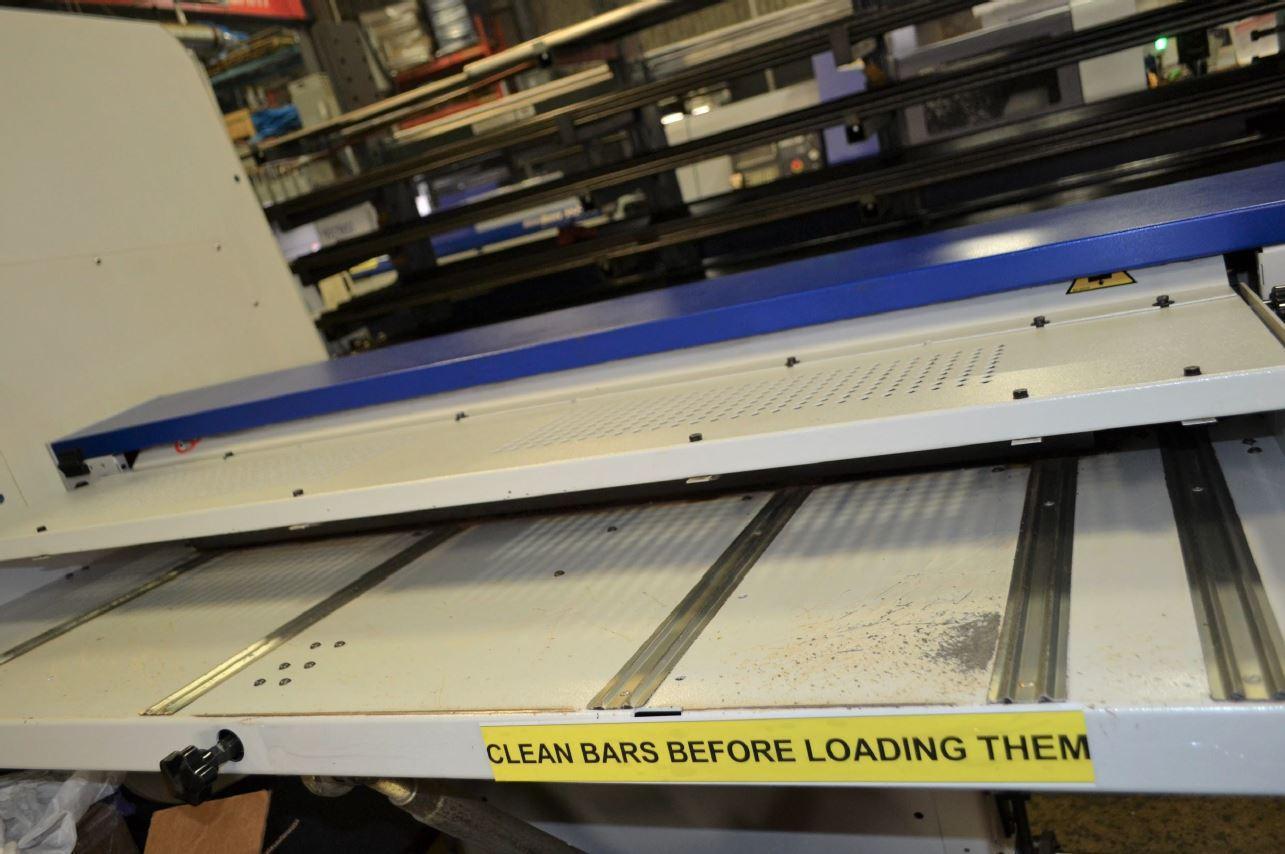

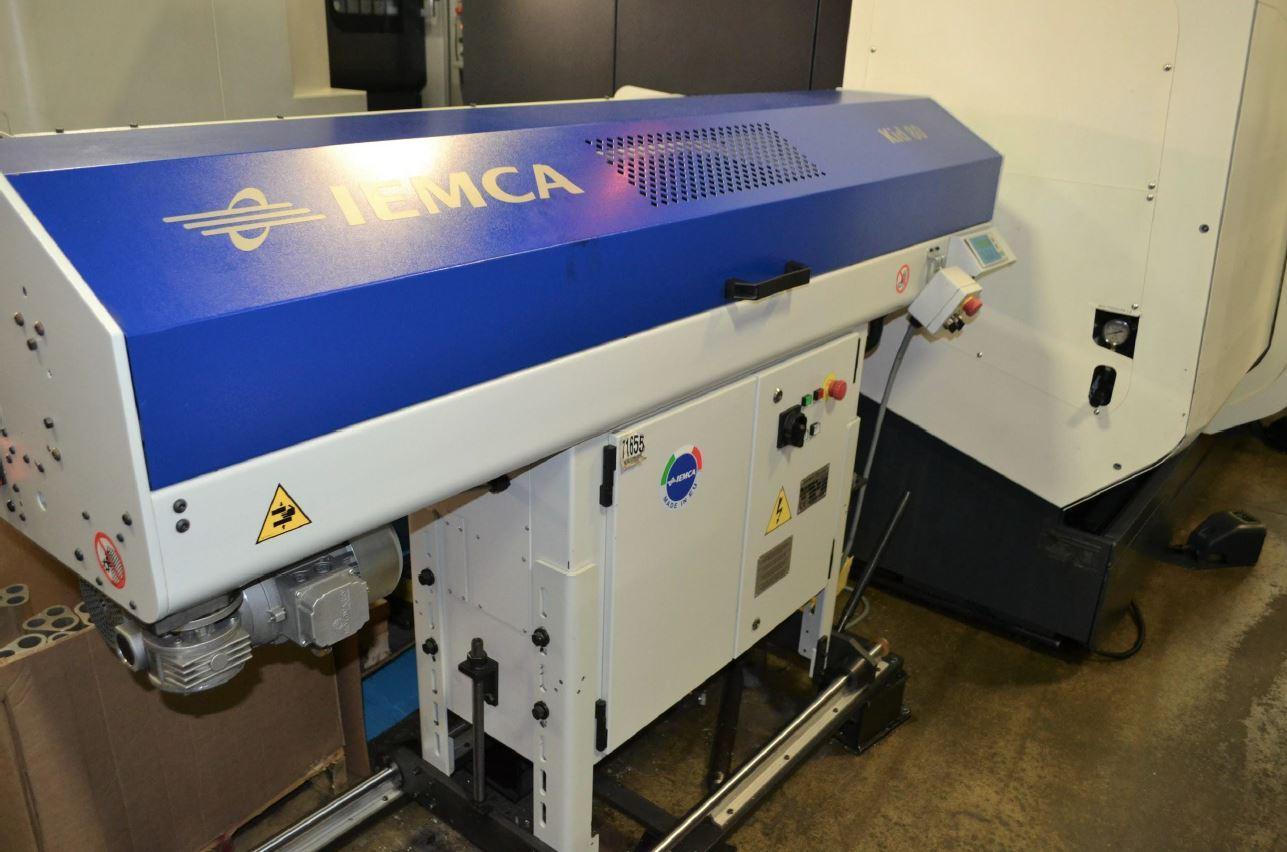

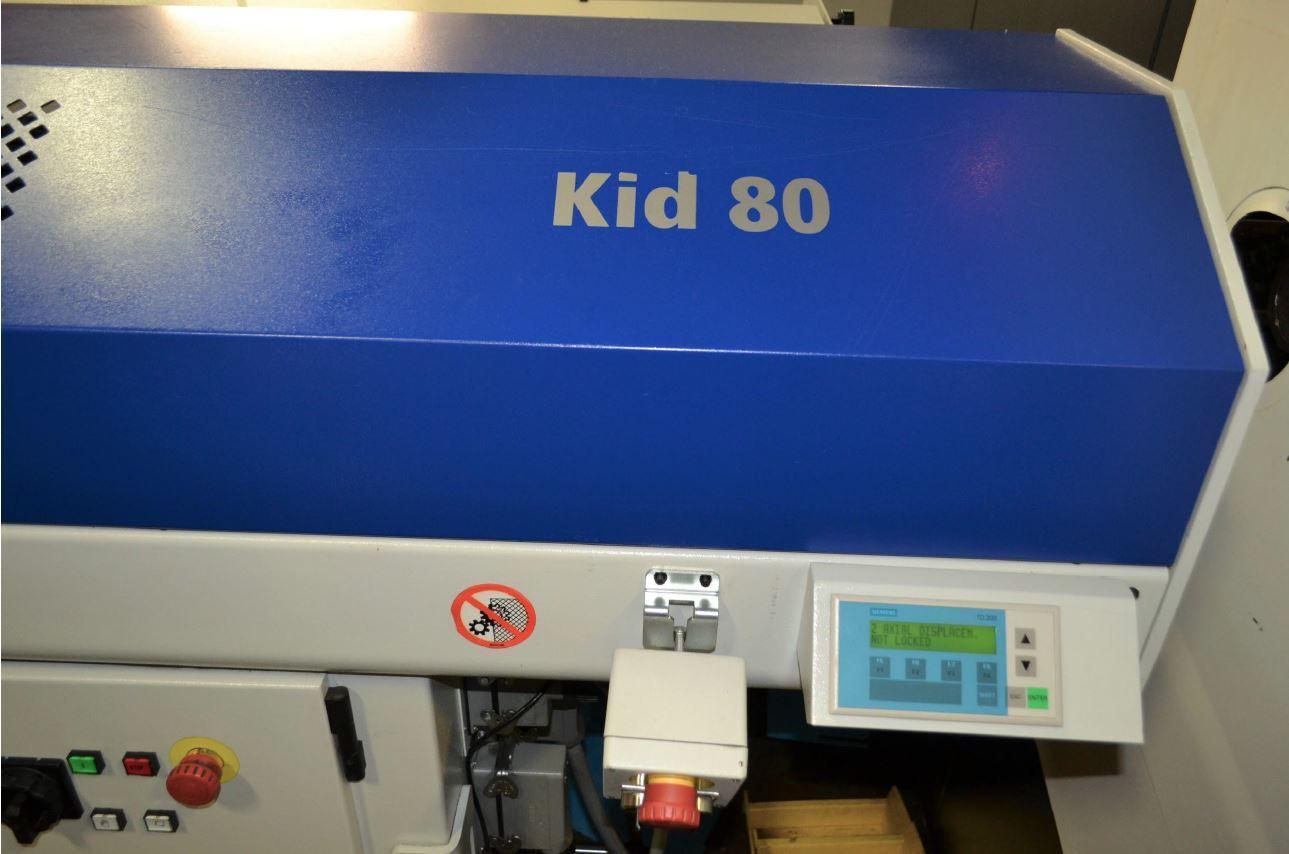

- IEMCA KID 80 Bar Feeder
- High Pressure Coolant System 300 psi x2
- Flushing of Chucks & Way Covers
- Hinge Type Chip Conveyor
- Hobbing Software Option on Main Spindle

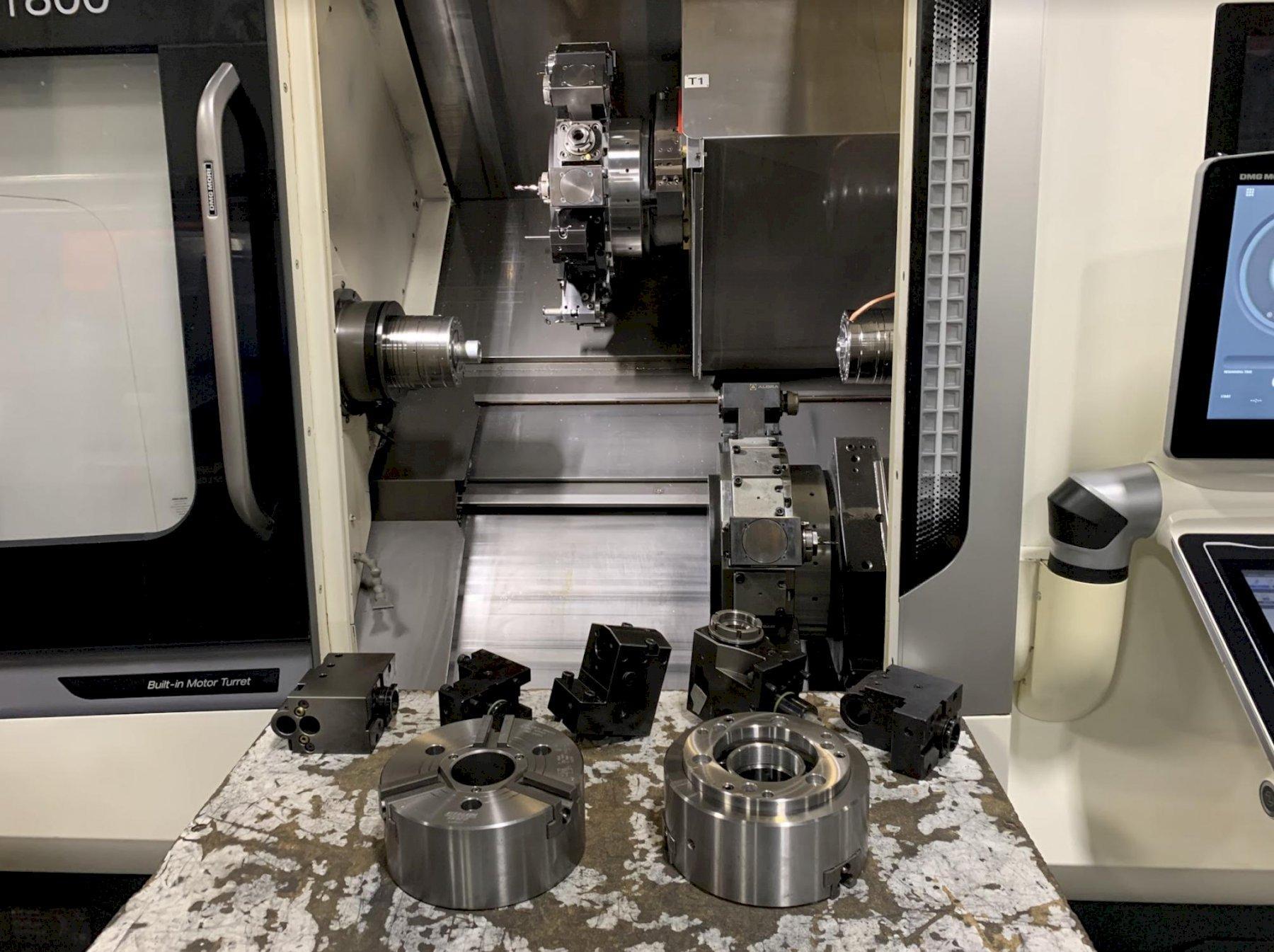

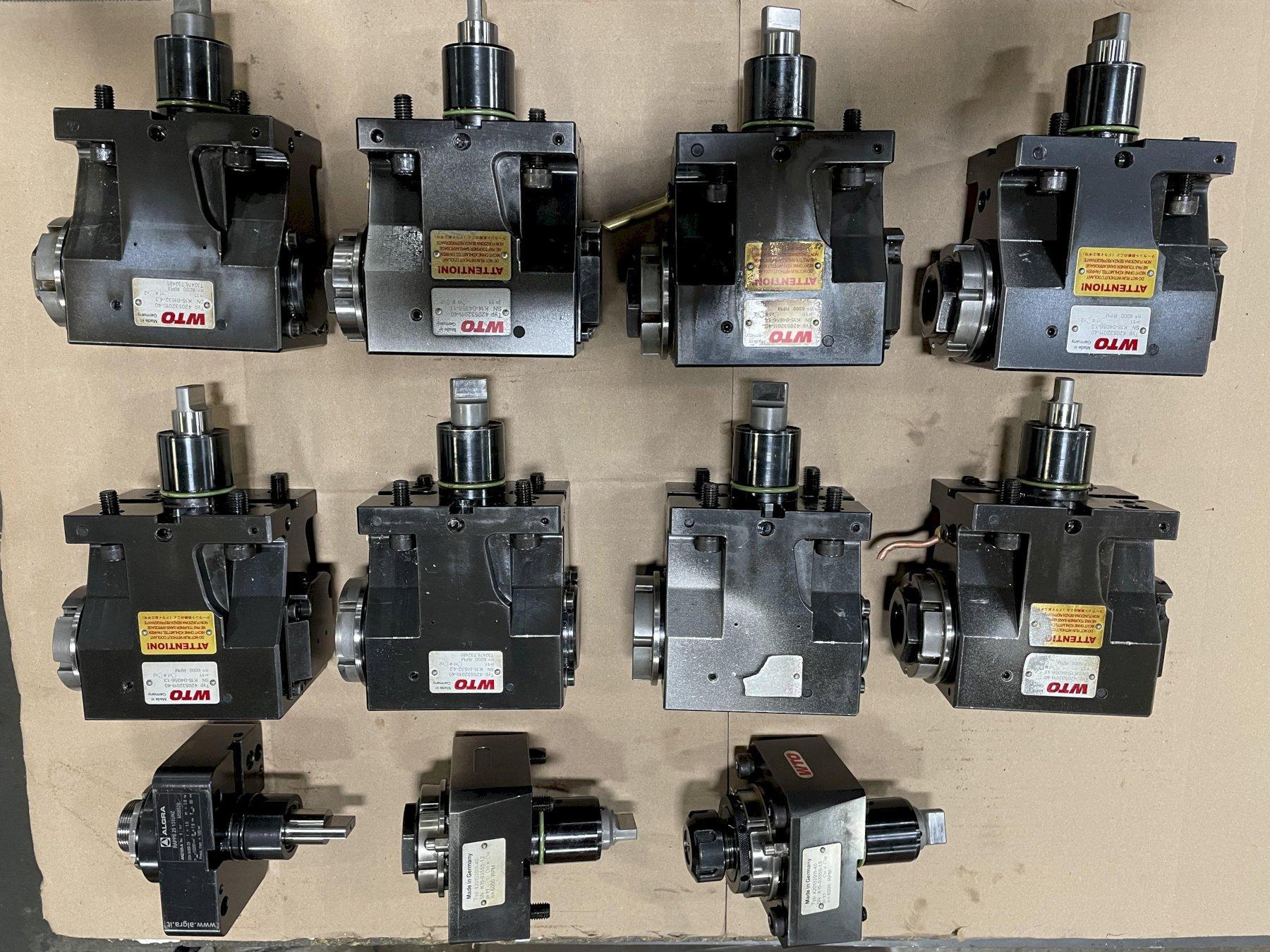

- Misc. Tooling Available
- Renishaw Tool Probes
- High Torque Spindle Option
- Kitagawa BB208 3-Jaw Hydraulic Chucks (Main & Sub)
- Hainbuch Spanntop Nova 65 Collet Chucks (Main & Sub)

The DMG Mori NZX2000/800SY is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
