Doosan LYNX 2100LSYB - Lathes (3-Axis or More)

Share Machine
Specifications Print Specs
Model: LYNX 2100LSYB
Year: 2022
Stock #: K36695 Sold
Highlights:

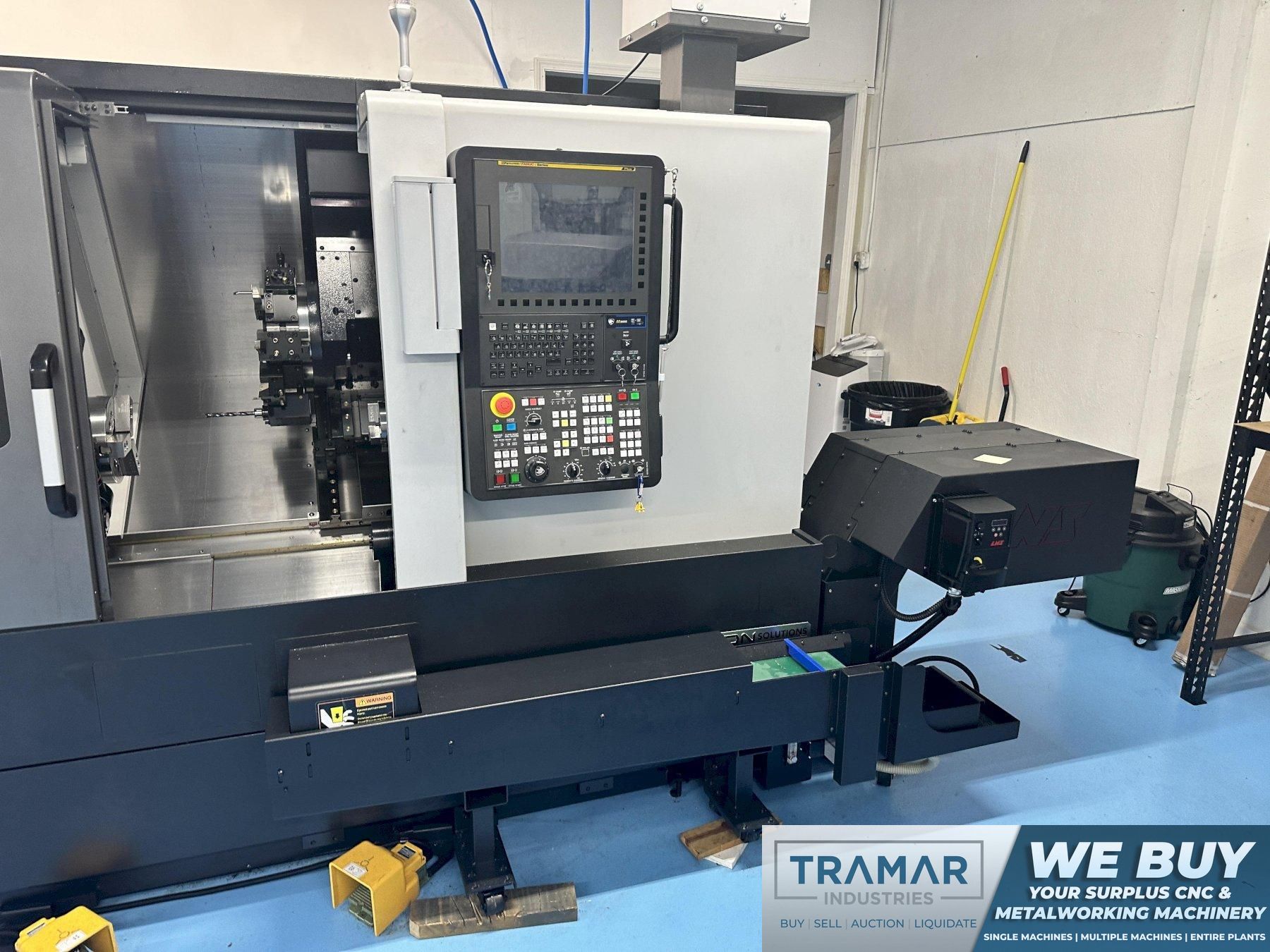

Fanuc 0i-TF Plus CNC Touchscreen Control

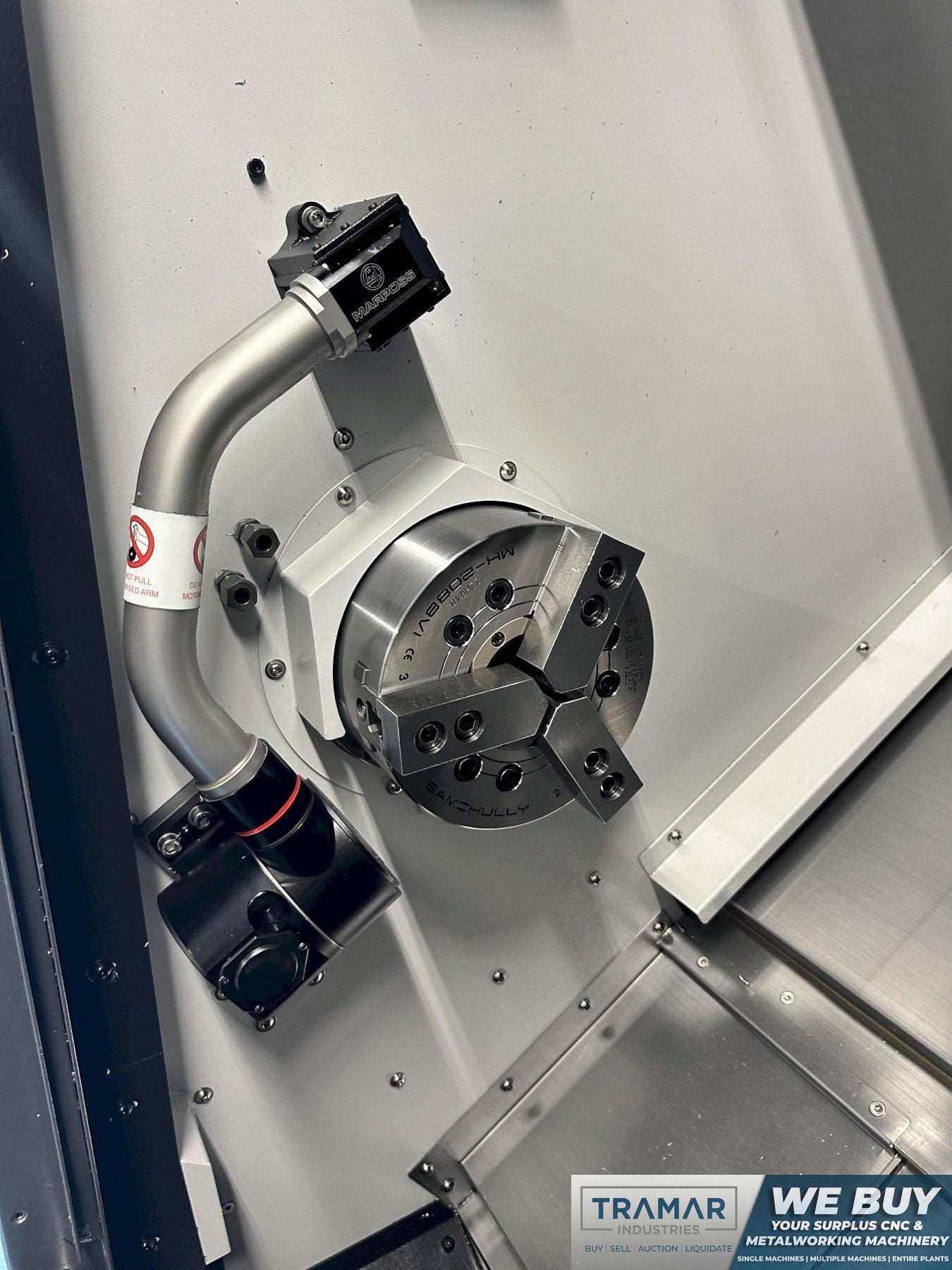

Samchully MH-208 Hydraulic Chuck Main Spindle
Samchully HS-05 Hydraulic Chuck Sub Spindle
Programmable Parts Catcher
Parts Conveyor | Automatic Tool Presetter

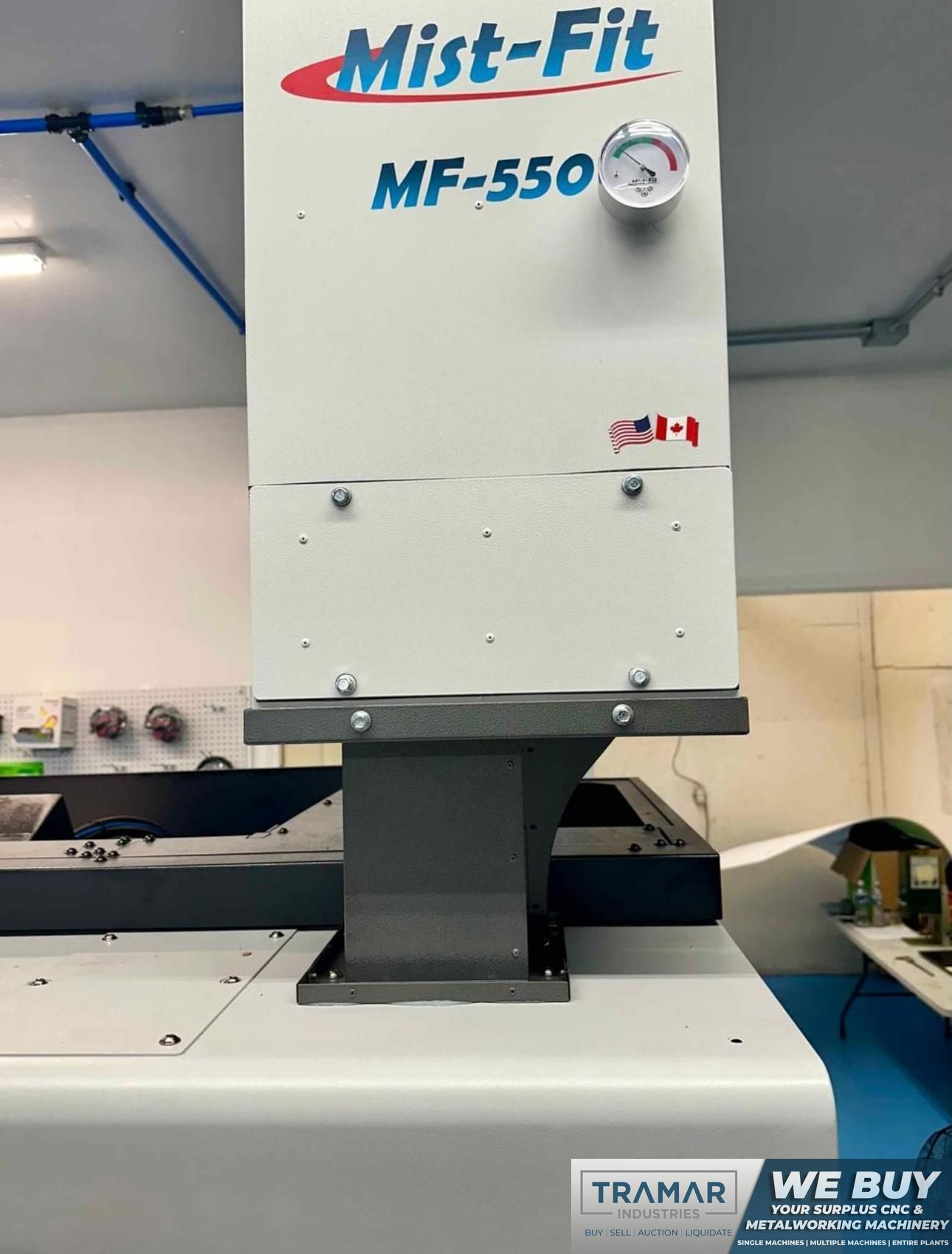

MistFit MF550 Mist Collector
Hennig Chip Conveyor

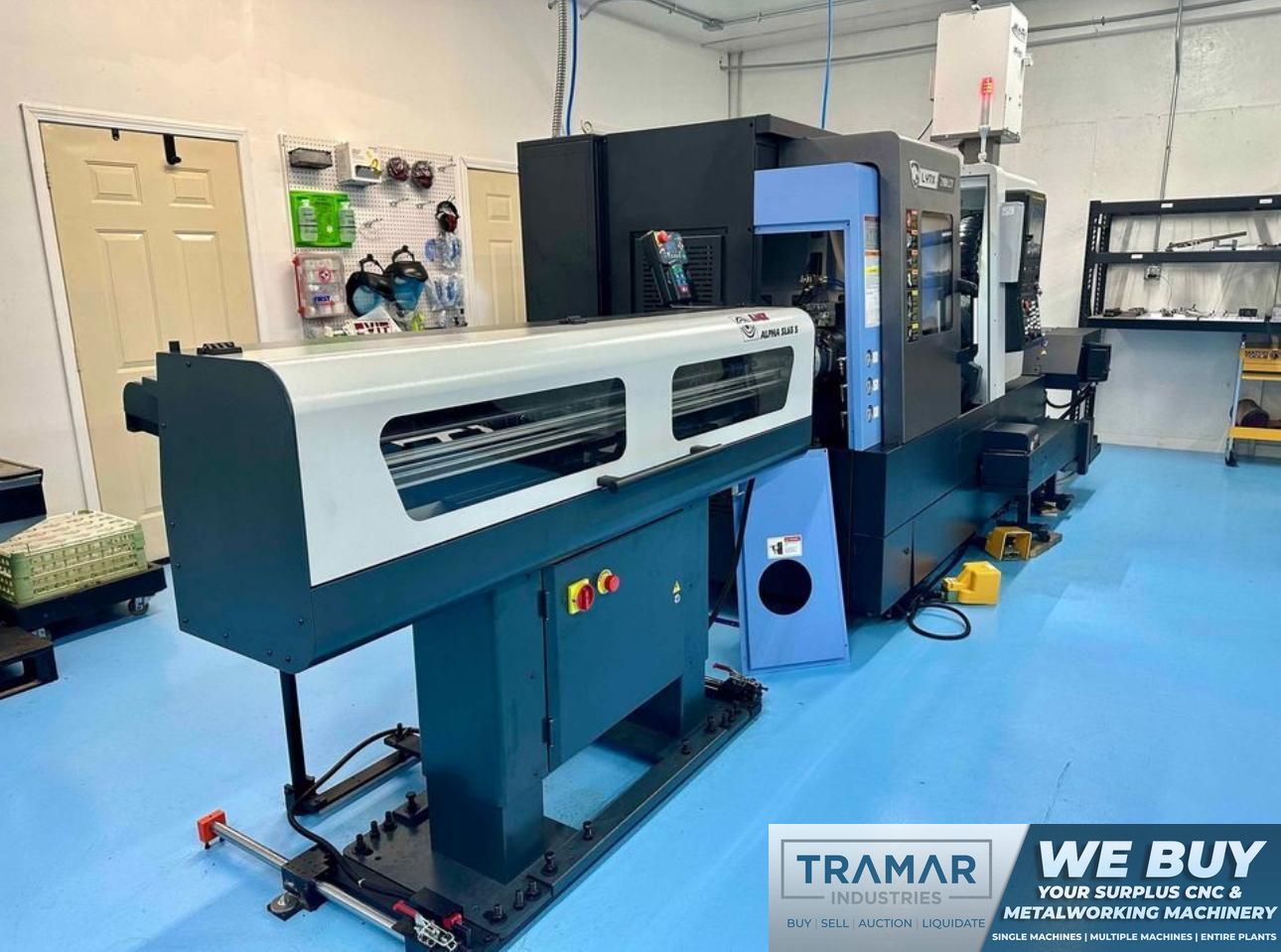

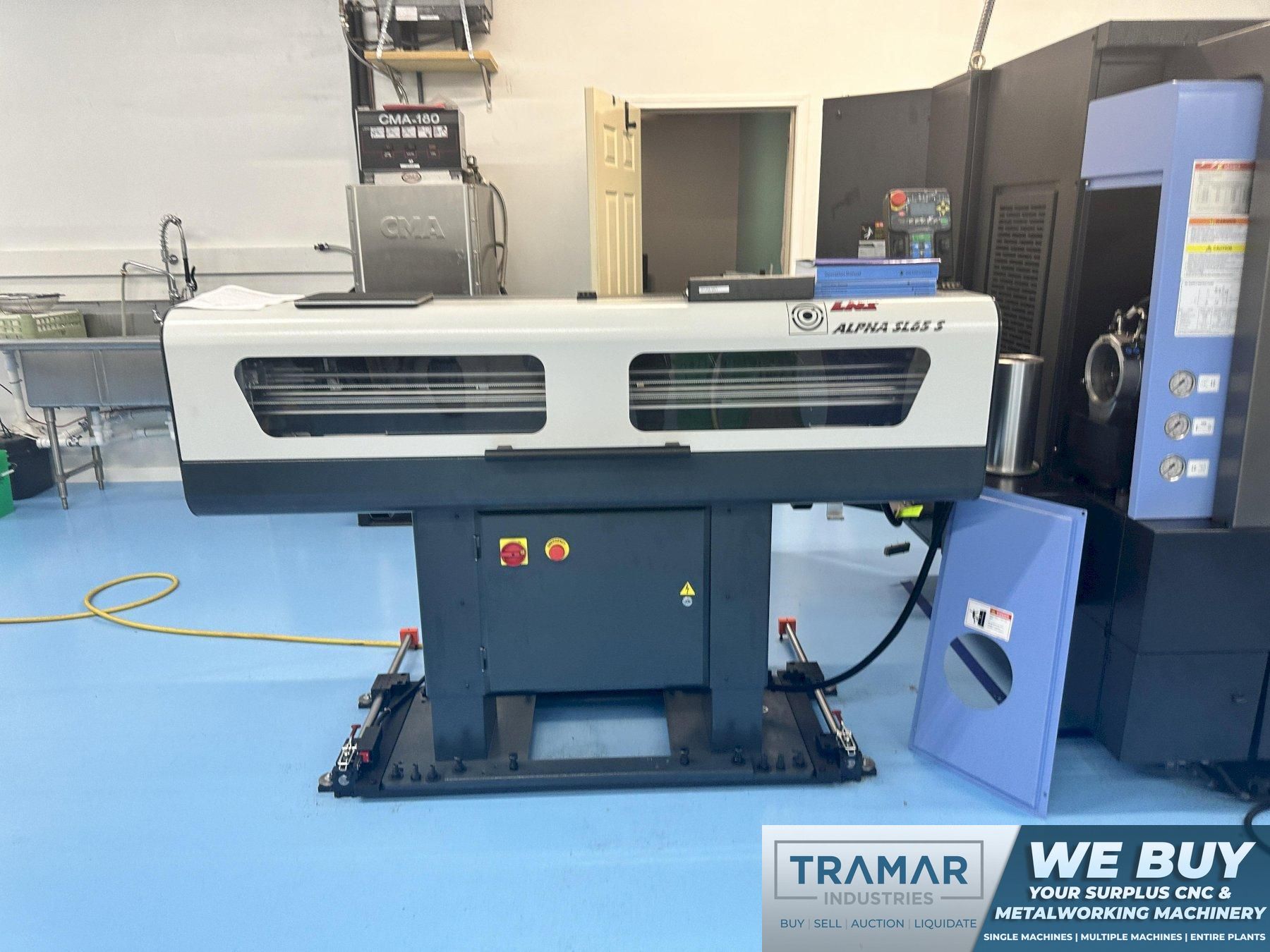

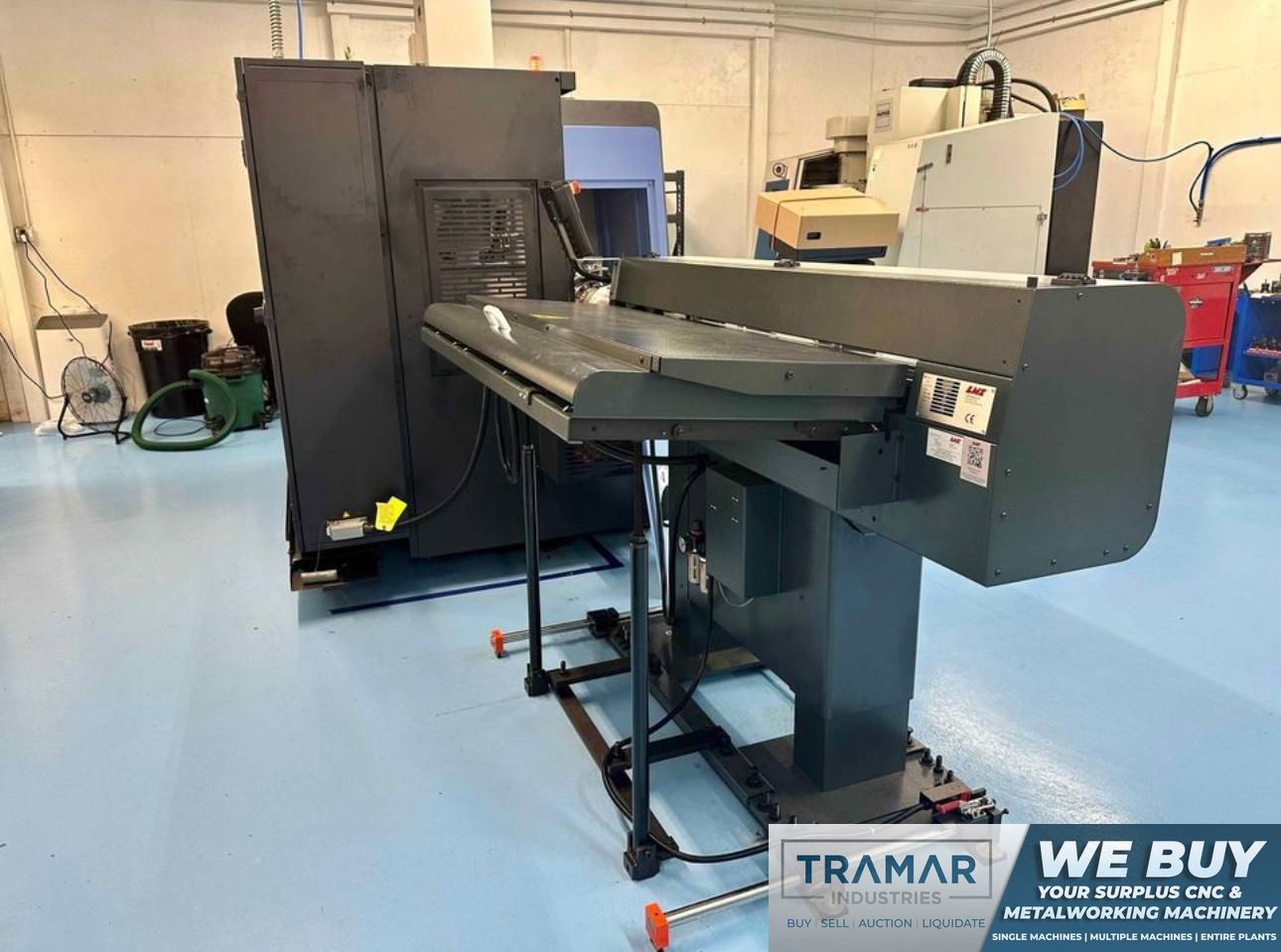

LNS Alpha SL65-S Bar Feeder

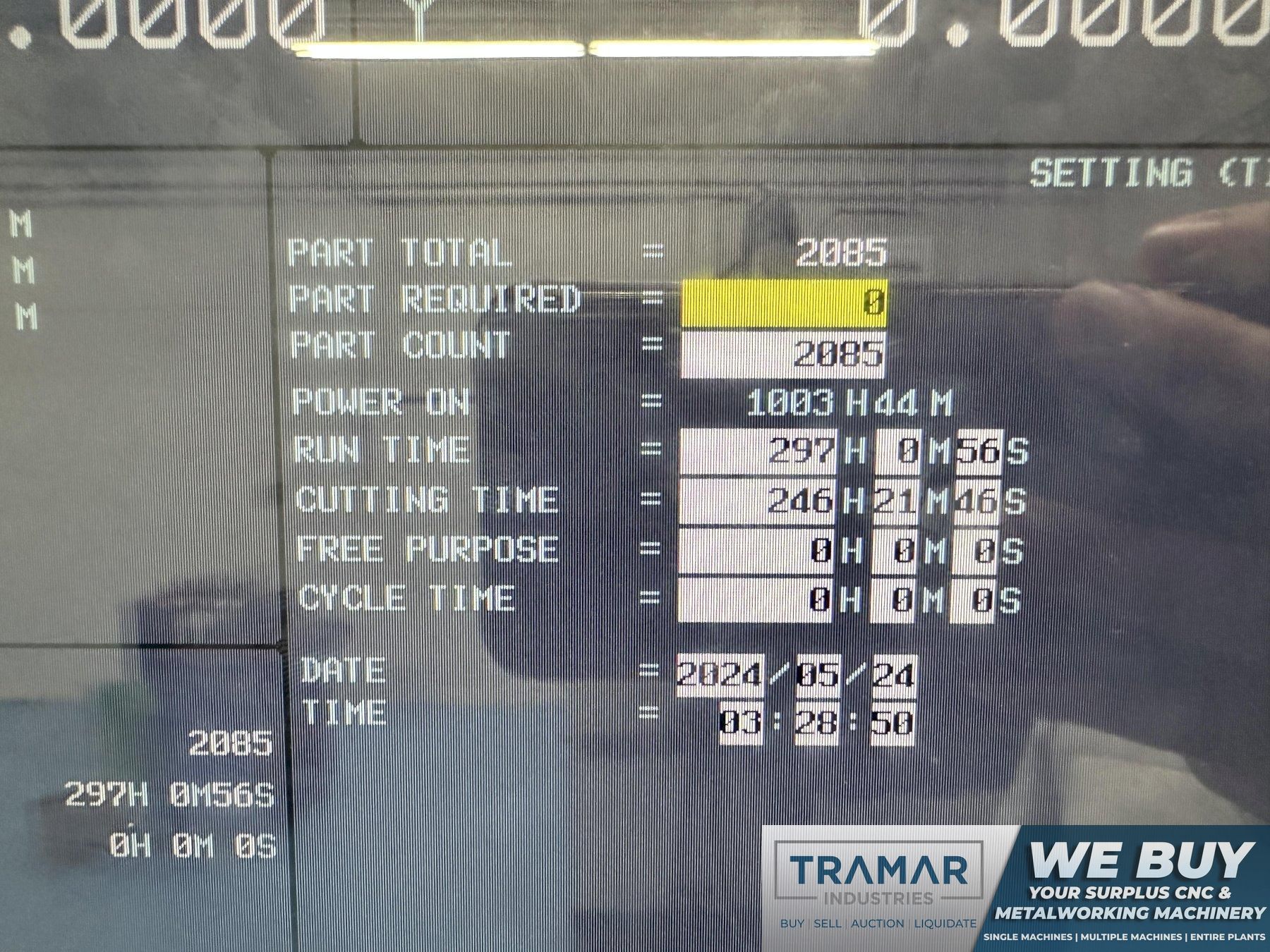

LIKE NEW, Only 297 Cutting Hours

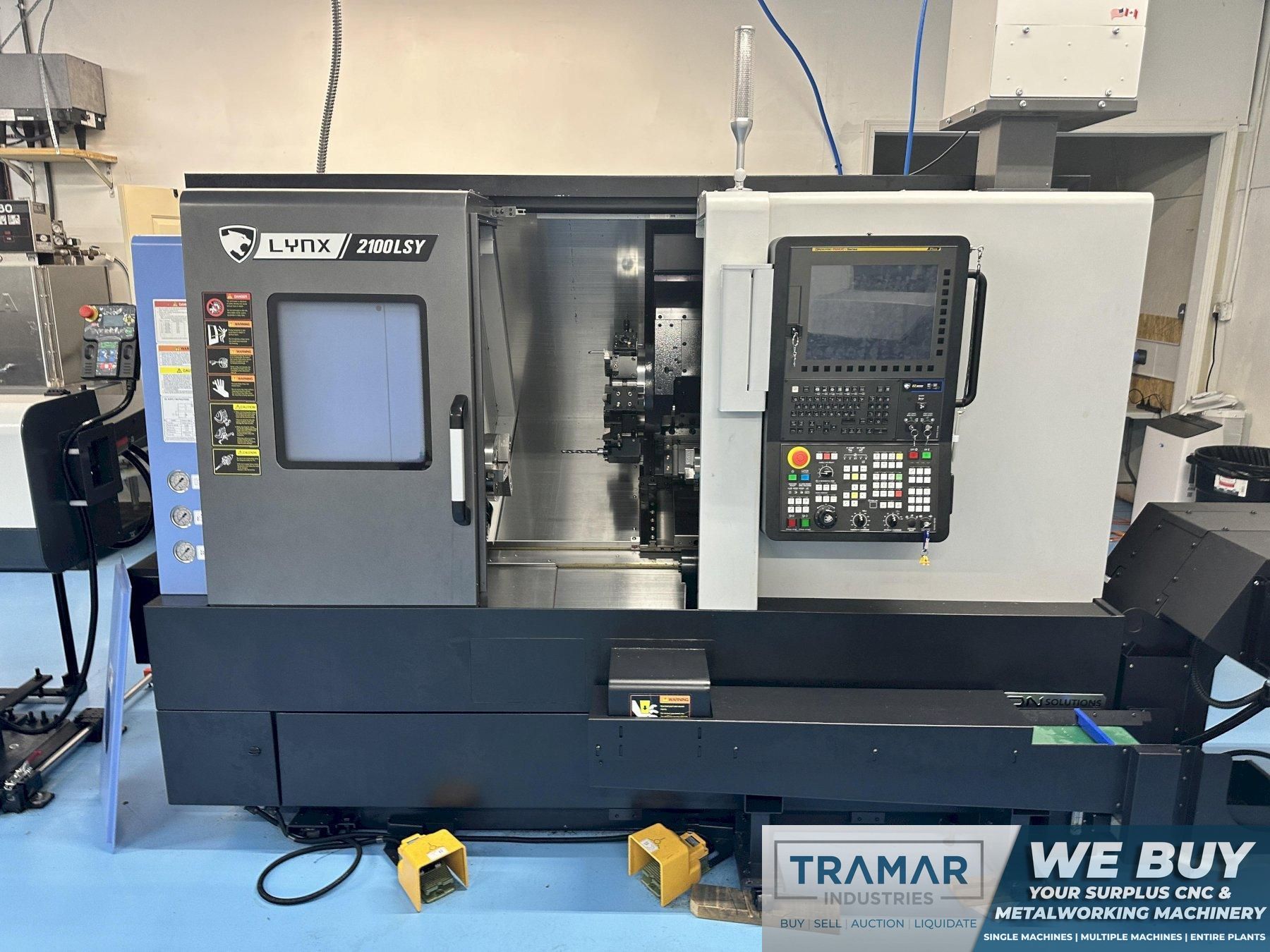

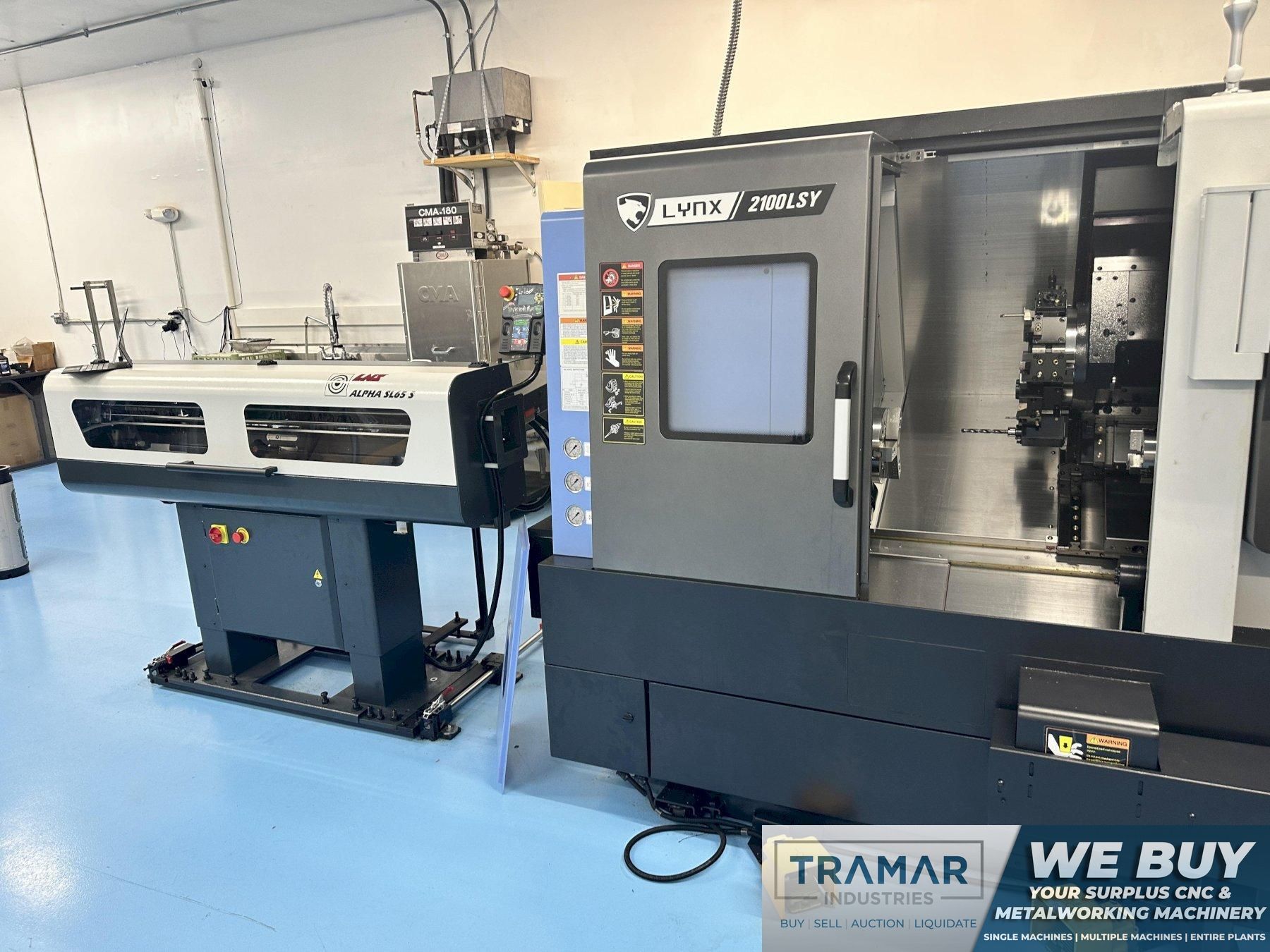

DN Solutions Doosan Lynx 2100LSYB CNC Lathe with Bar Feeder For Sale - 2022
Machine Specifications
CNC Control
yes
Control Type
Fanuc 0i-TF Plus
# Axis
6
Swing
23.6"
Turning Diameter
11.8"
Center Distance
20.1"
Bar Capacity
2.6"
X Axis Travel
8.1"
Y Axis Travel
4.1"
Z Axis Travel
22"
C Axis Index
0.001°
Rapid Traverse (X/Y/Z)
1,181/394/1,417 ipm
Spindle Nose
A2-6
Spindle Speed
4,500 rpm
Main Motor
20 hp
Tailstock
no
Y Axis
yes
Live Tooling
yes
Live Tooling Speed
6,000 rpm
Live Tooling Motor
5 hp
Sub Spindle
yes
Sub Spindle Chuck
5"
Sub Spindle Nose
Flat
Sub Spindle Speed
6,000 rpm
Sub Spindle Motor (HP)
7.5 hp

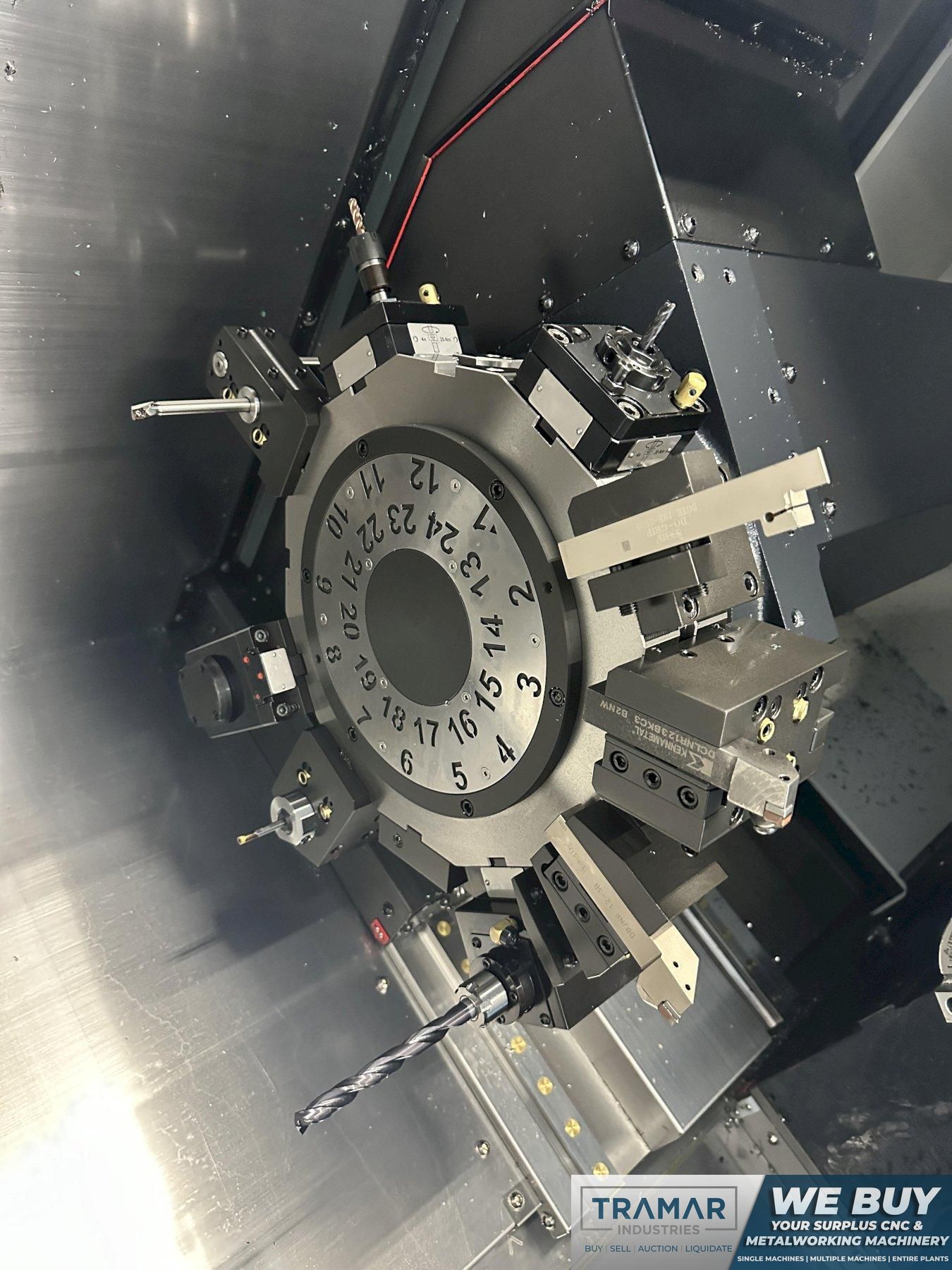

Turret Capacity
12 Station (24 Position Index)
Machine Dimensions
114" x 68" x 76"
Machine Weight
9,500 pounds

Equipped With:

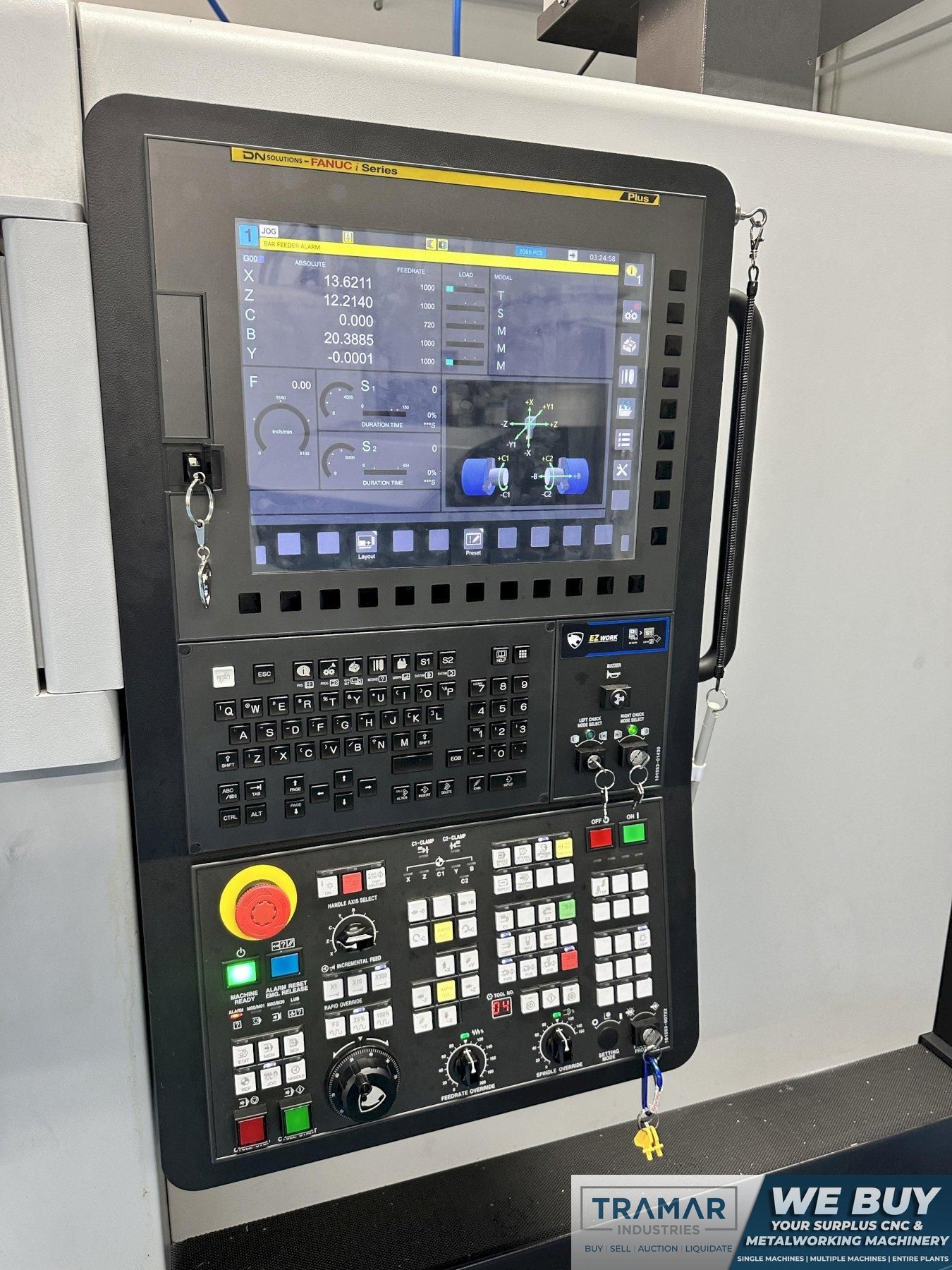

- Fanuc 0i-TF Plus CNC Touchscreen Control

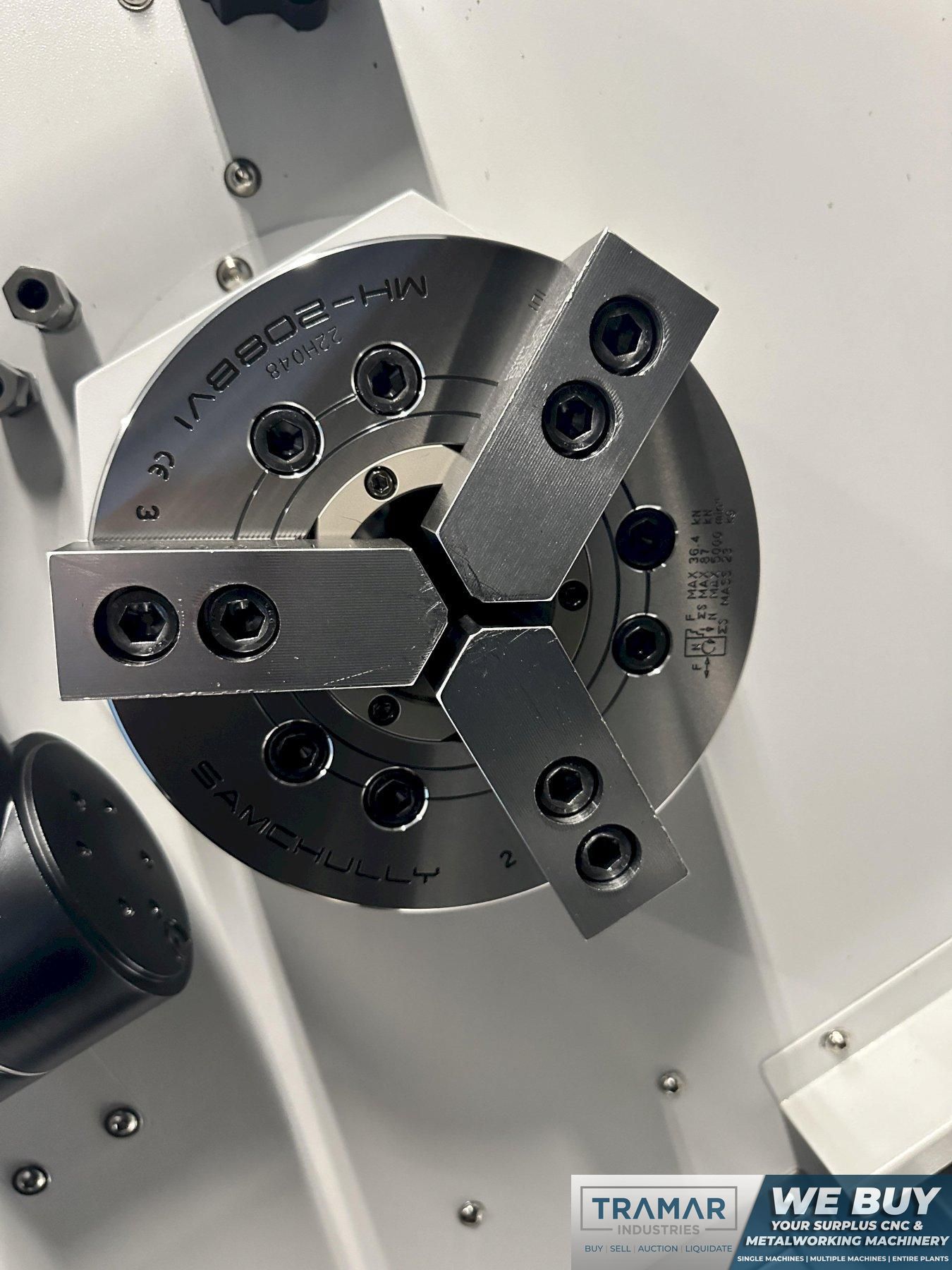

- Samchully MH-208 Hydraulic Chuck Main Spindle

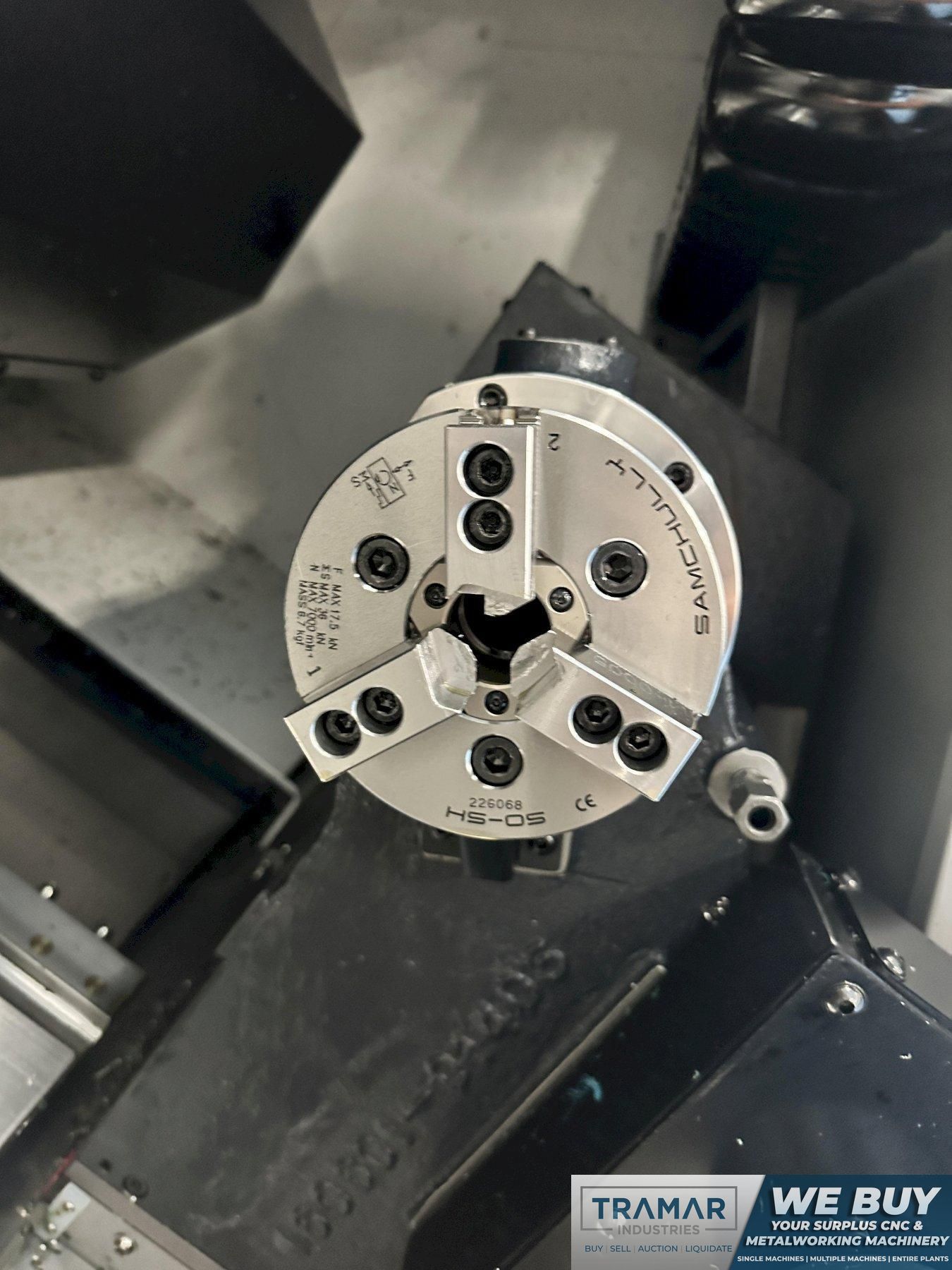

- Samchully HS-05 Hydraulic Chuck Sub Spindle
- Programmable Parts Catcher

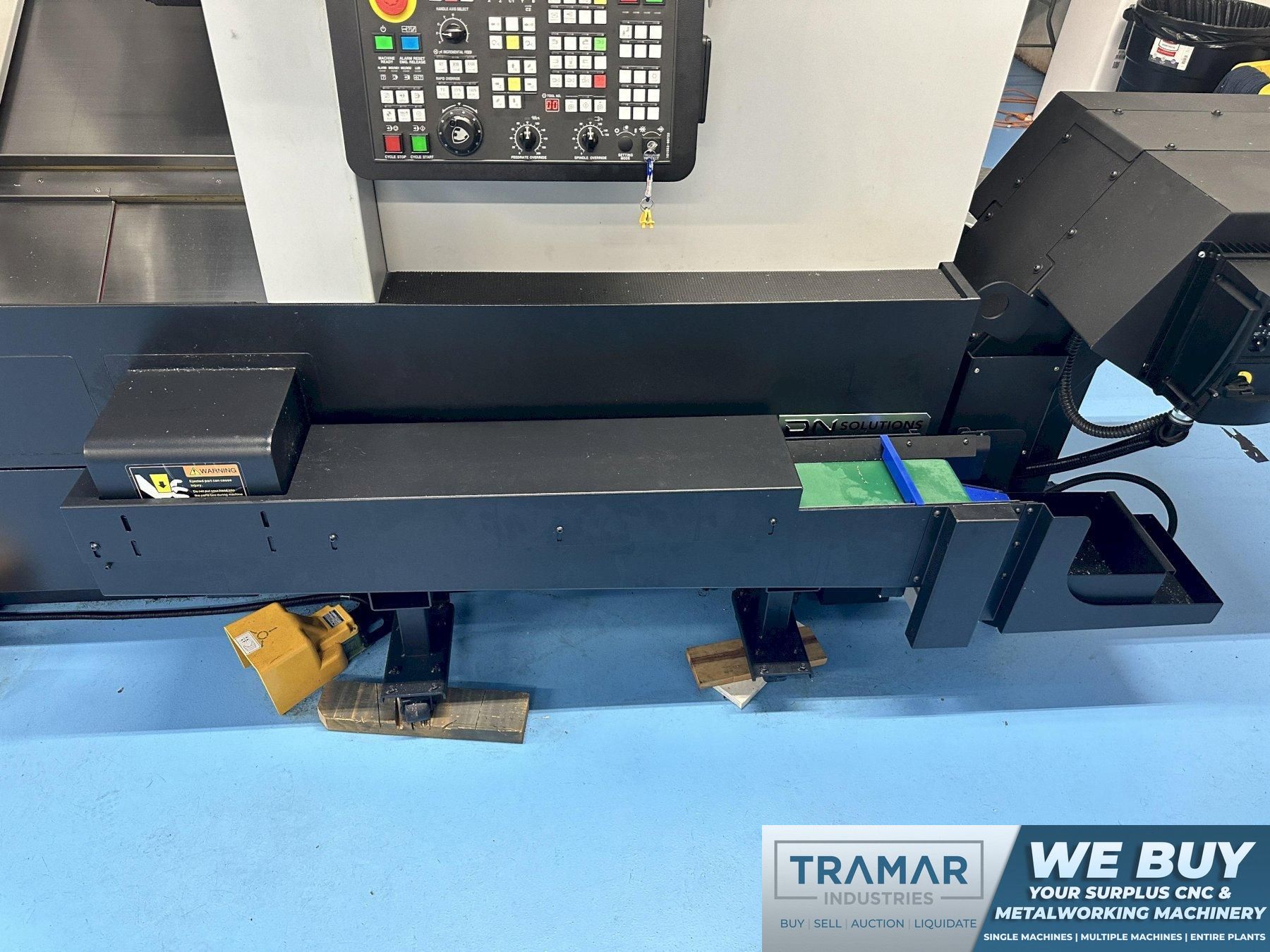

- Parts Conveyor
- Sub Spindle Ejector with Coolant Flush
- Automatic Tool Presetter
- MistFit MF550 Mist Collector

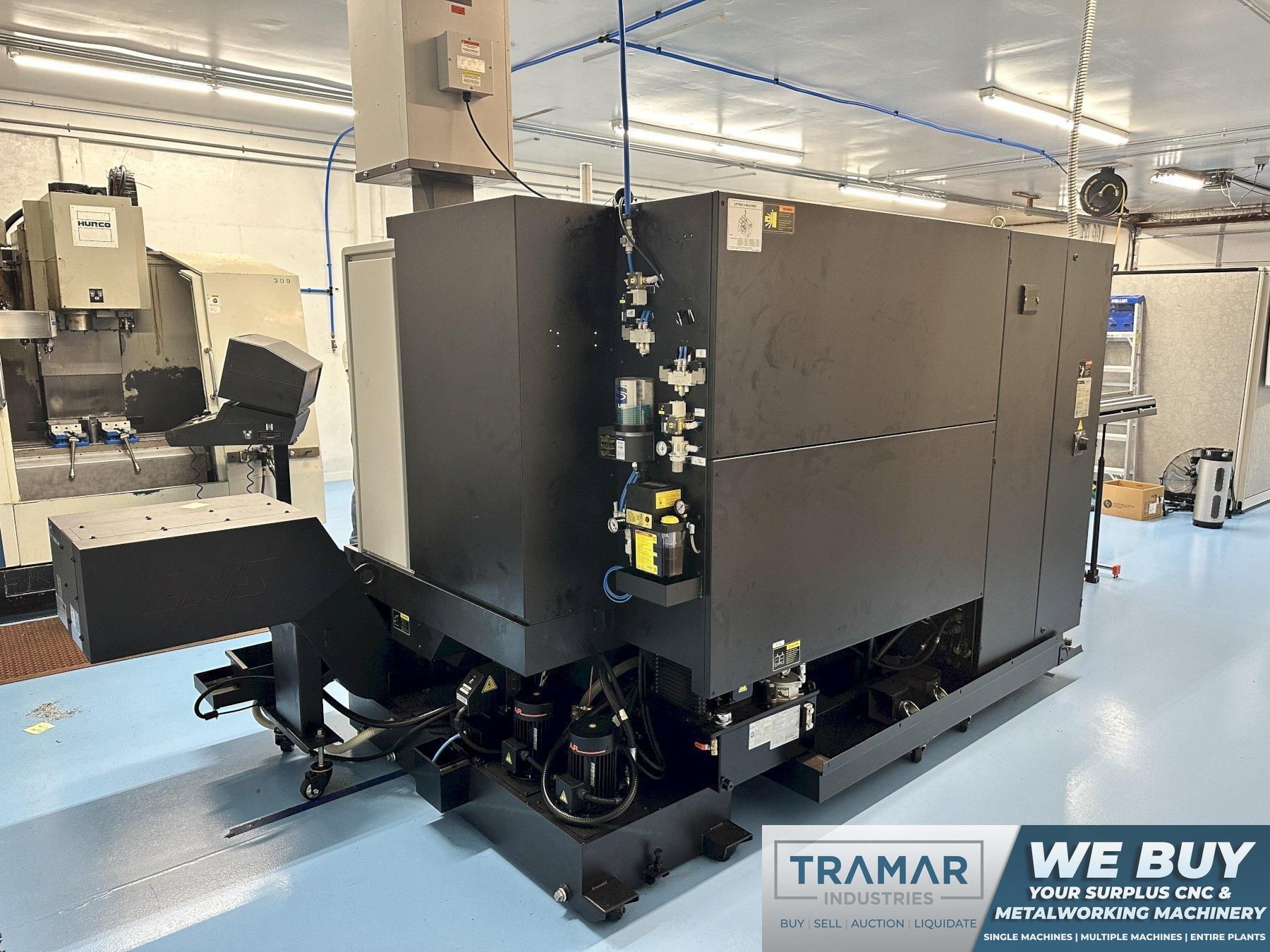

- Coolant Tank & Pumps
- Hennig Chip Conveyor

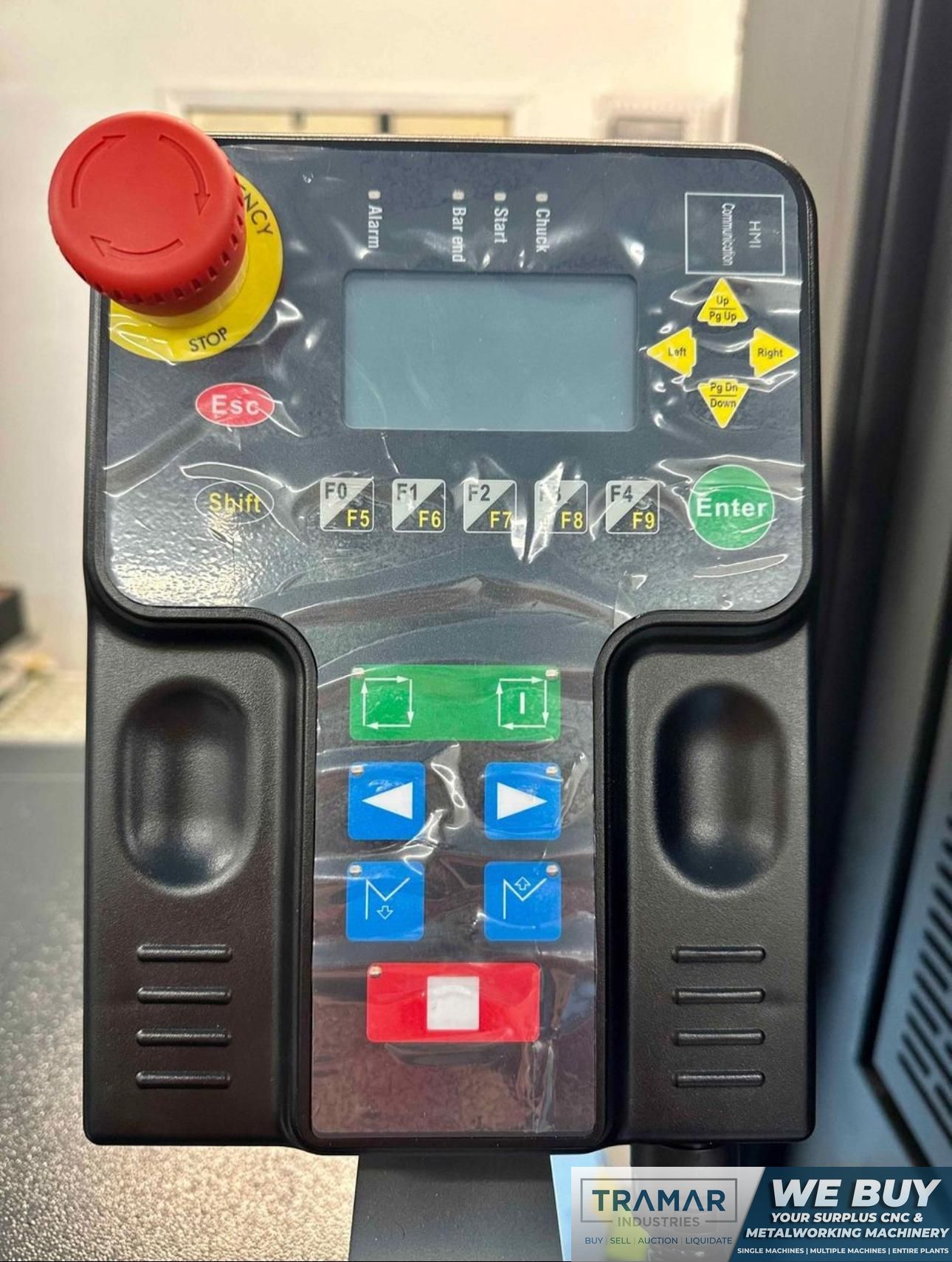

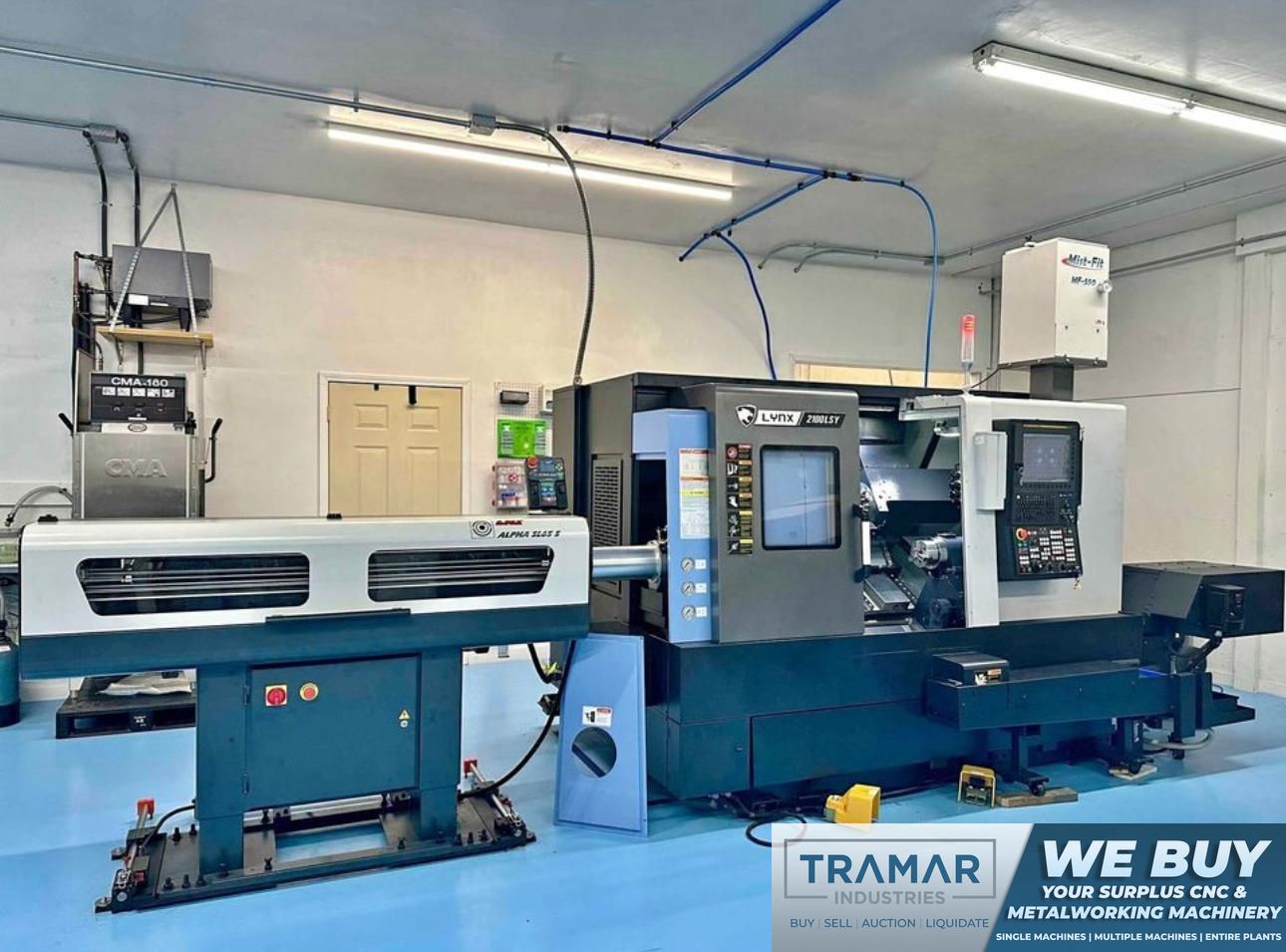

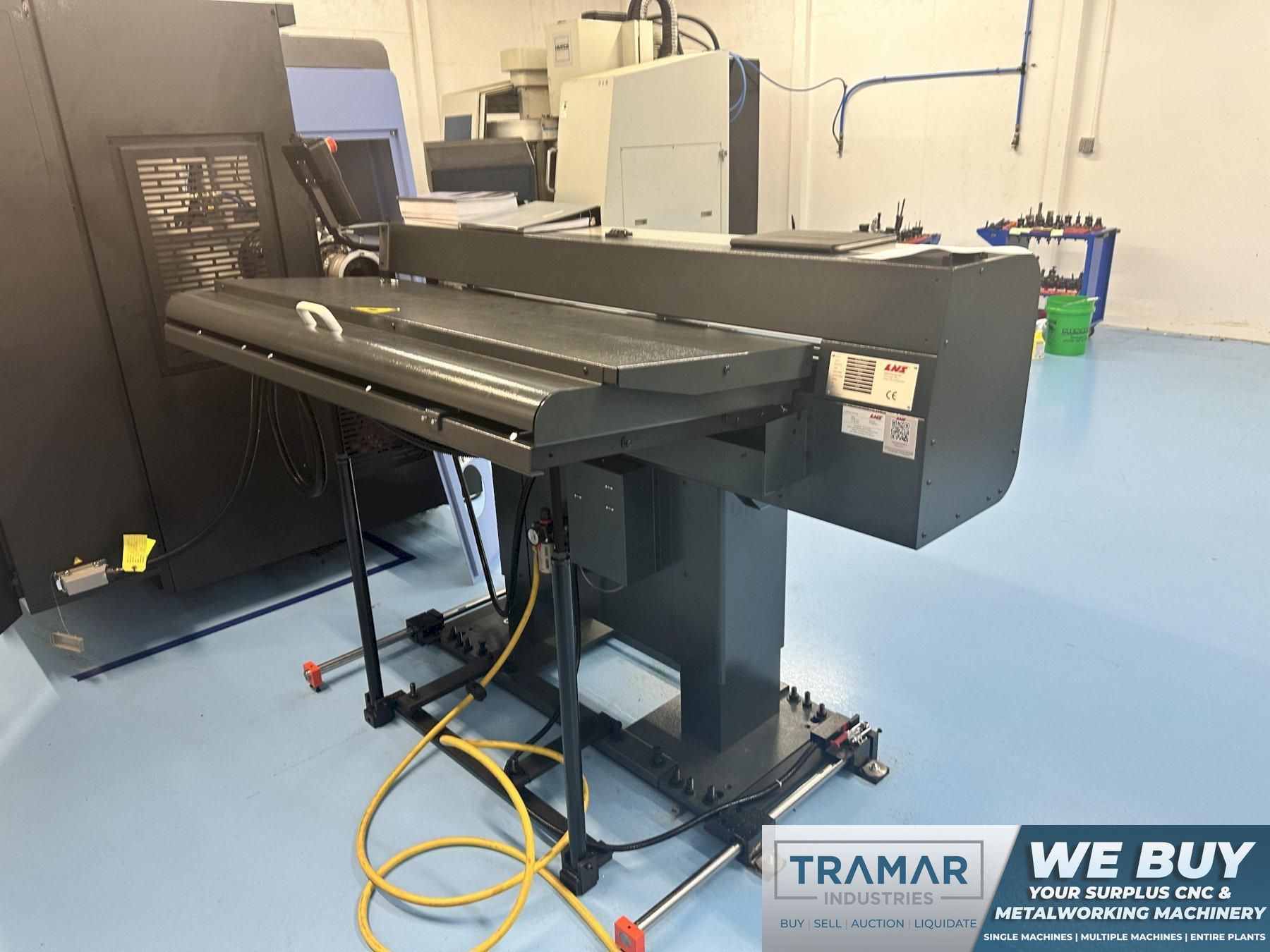

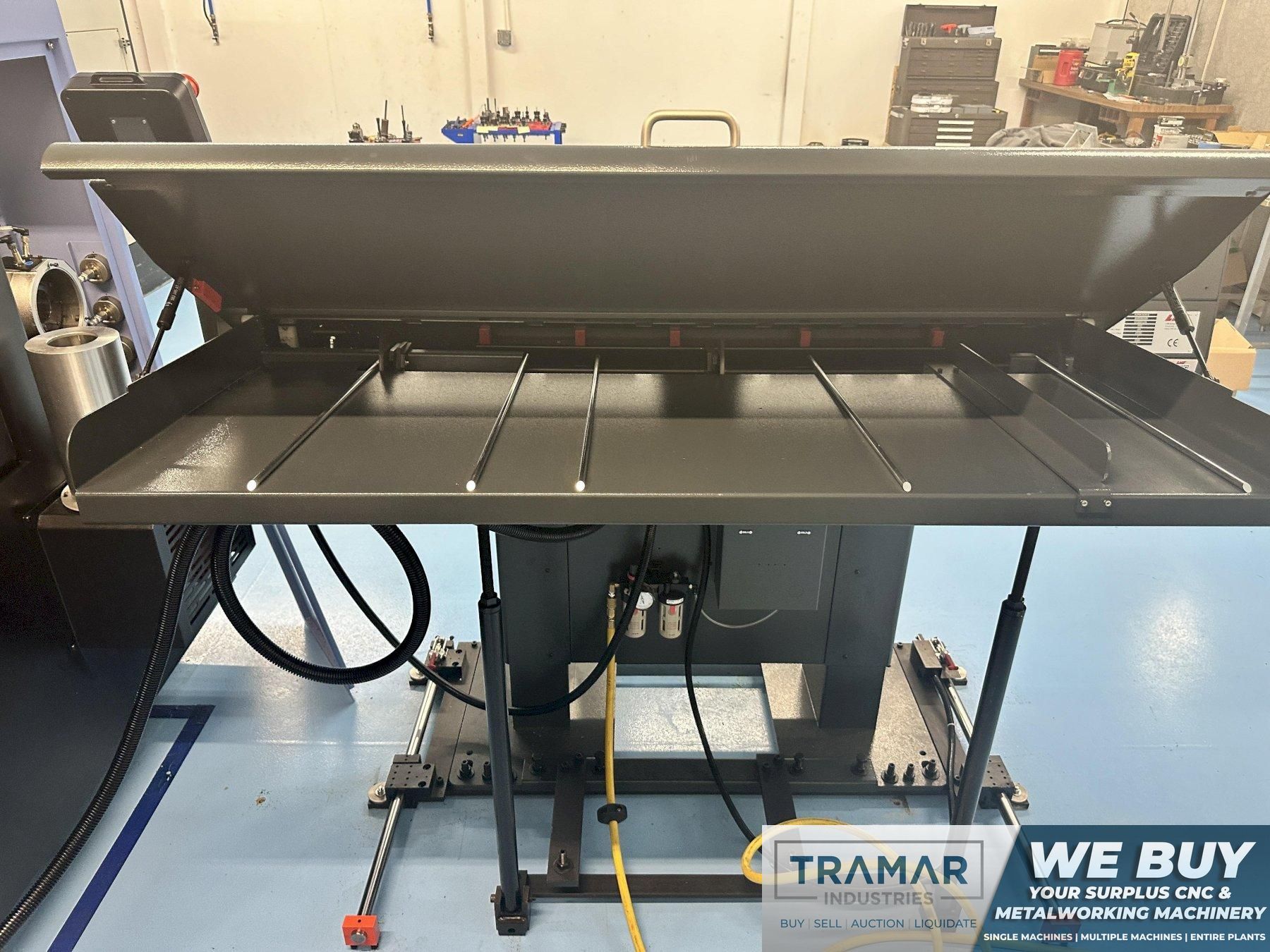

- LNS Alpha SL65-S Bar Feeder
- Misc. Tooling Available (as seen in photo on turret)
- LIKE NEW, Only 297 Cutting Hours

The Doosan LYNX 2100LSYB is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
