Doosan DCM 2740 - Machining Centers, Gantry (incld. Bridge & Double Column)

Share Machine
Specifications Print Specs
Model: DCM 2740
Year: 2009
Stock #: K71121 Sold
Yes
Highlights:

Doosan DCM 2740 Heavy Duty CNC Bridge Mill For Sale - 2009
Machine Specifications
CNC Control
yes
Control Type
Fanuc 18i-MB
Table Size
161.42" x 86.61"
Max Table Load
39,683lbs
X-Axis Travel
167.32"
Y-Axis Travel
125.98"
Z-Axis Travel
27.56"
W-Axis Cross Rail Travel
43.31"
Distance Between Columns
106.3"
Spindle Taper
BT 50
Spindle Speed
6,000 rpm
Spindle Motor (HP)
33.5 hp
ATC Capacity
40
Machine Dimensions
440.9" x 304.3" x 266.75
Machine Weight
150,000 pounds

Equipped With:

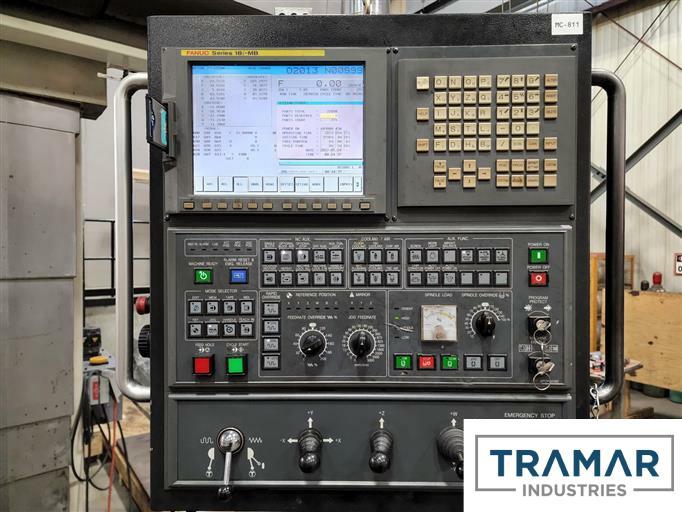

- Fanuc 18i-MB CNC Control
- Elevating Rail
- 90 Degree Manual Rotating Head
- Automatic Head Changer
- Heidenhain Scales On X, Y & Z Axis

The Doosan DCM 2740 is an exclusive part of our Machining Centers, Gantry (incld. Bridge & Double Column) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
