Doosan DNM 750L/50 II - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: DNM 750L/50 II
Year: 2017
Stock #: 0033
Highlights:

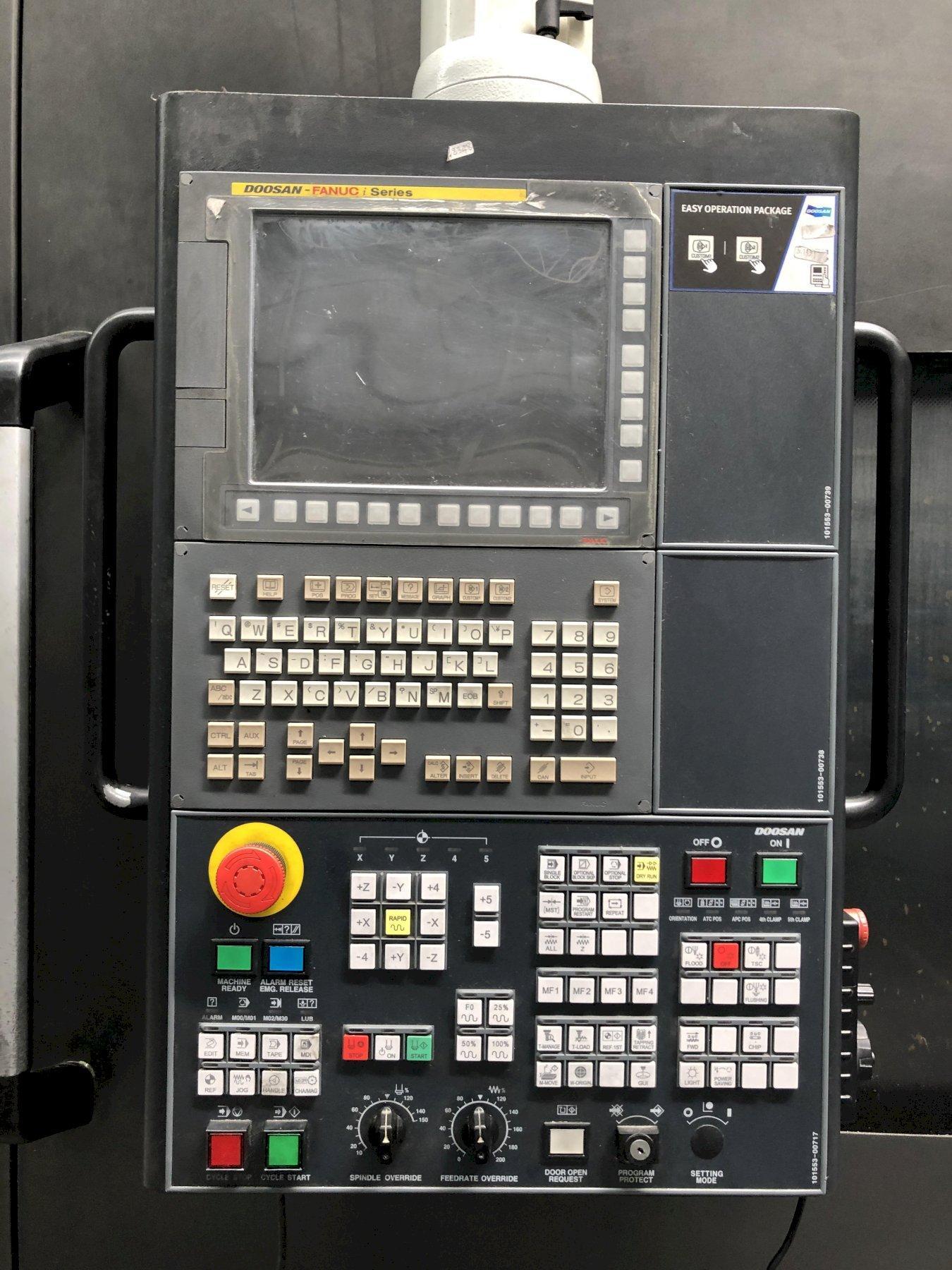

Fanuc i Series Control
Table Size: 85" x 30"
Max Table Load: 3,968 lbs
Travels (X/Y/Z): 85"/30"/25.6"

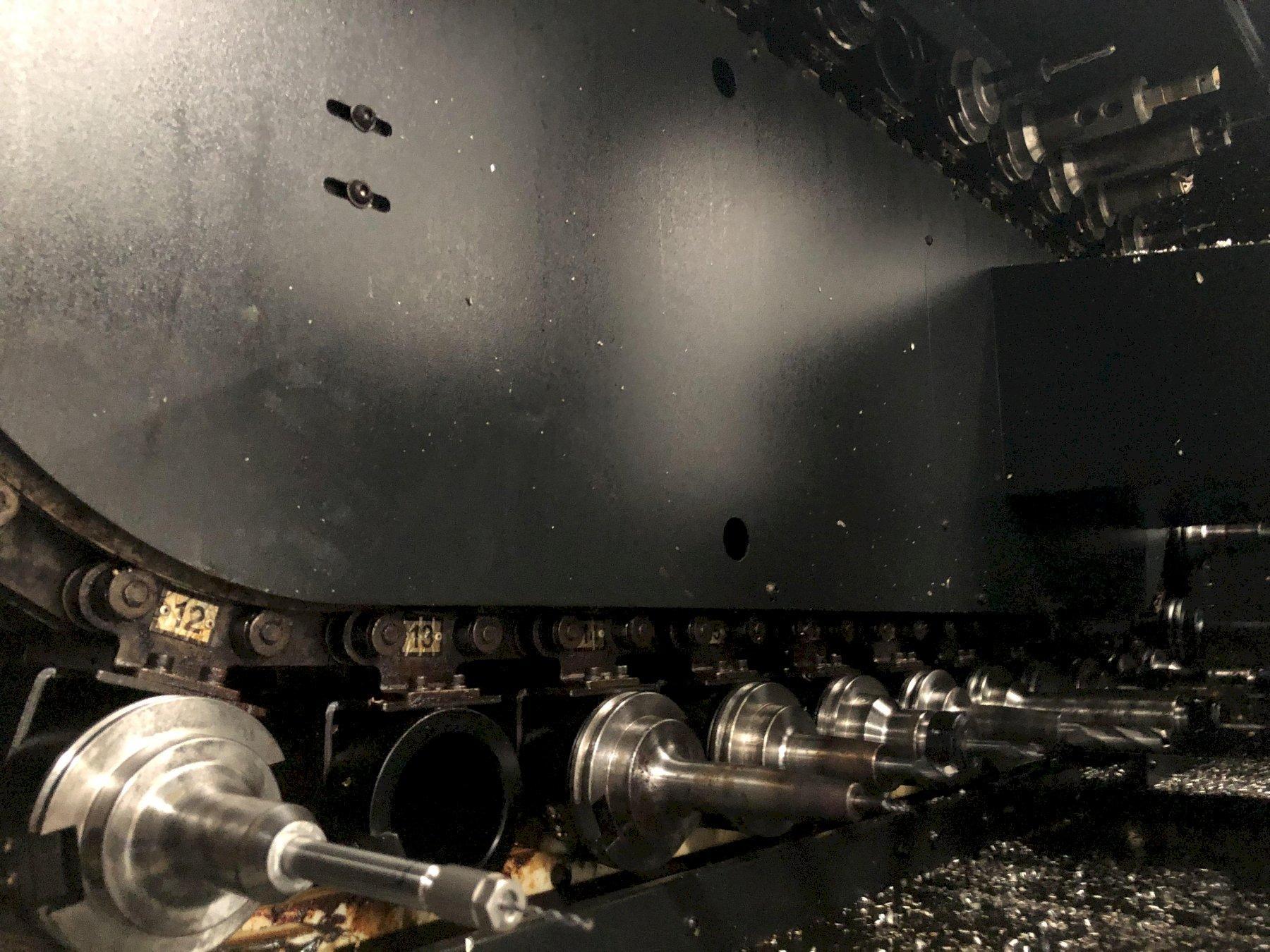

CAT 50 | 8,000 rpm | 20 hp | 30 Station ATC

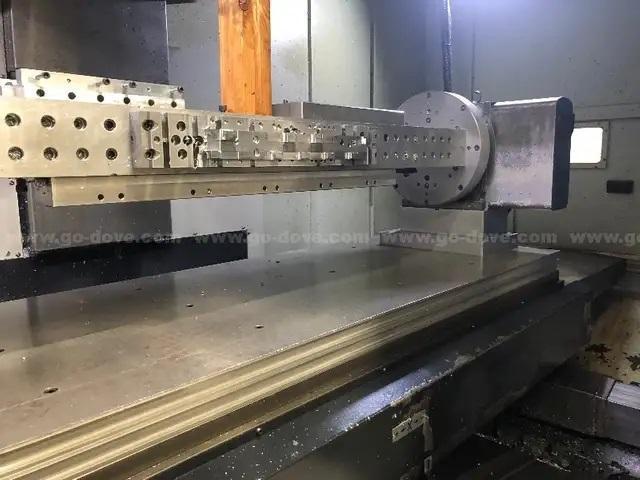

4th Axis Rotary Table

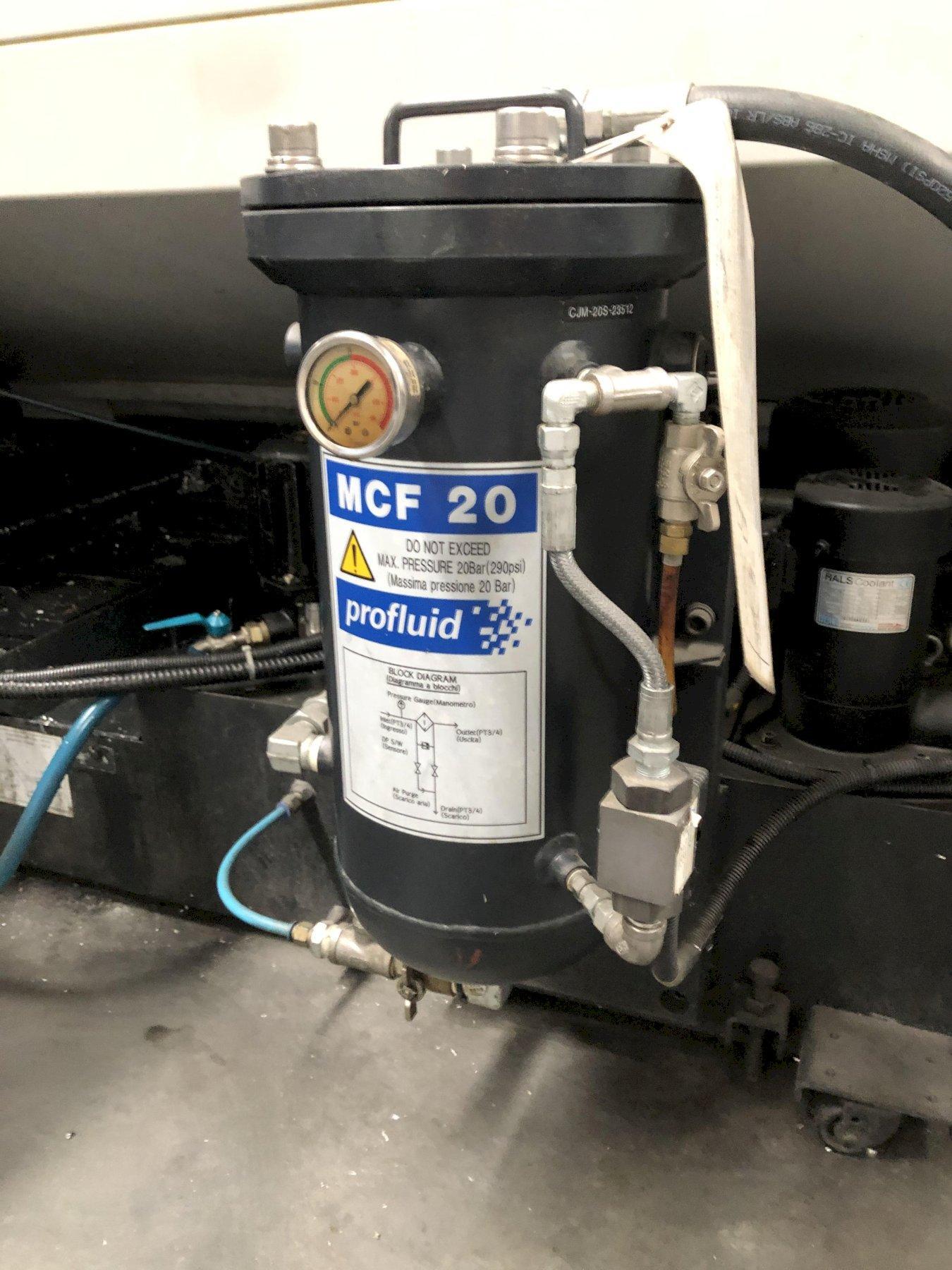

Coolant Thru Spindle (290 psi)

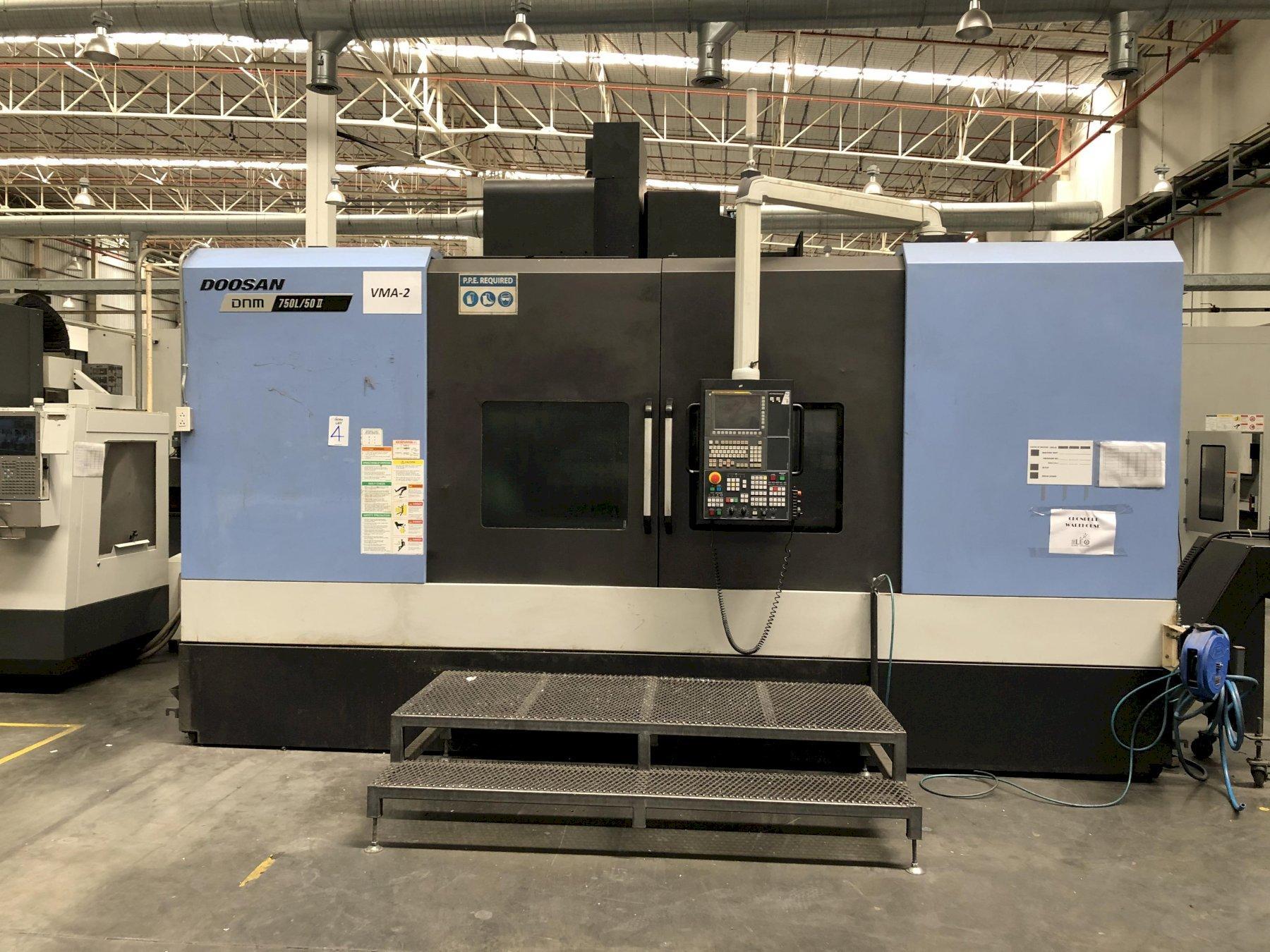

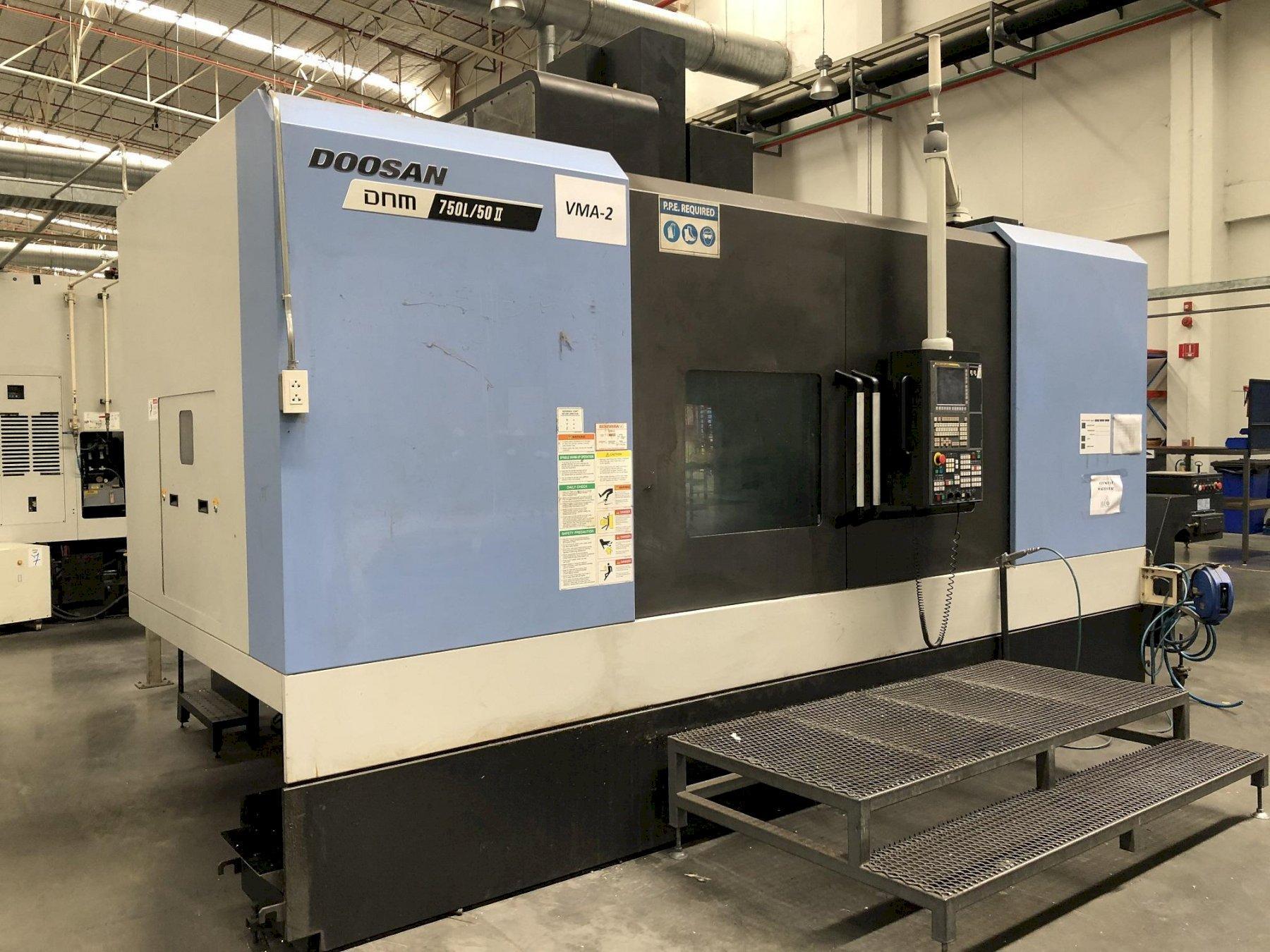

Doosan DNM-750L/50 II CNC Vertical Machining Center
Machine Specifications
Year
2017
Control Type
Fanuc i Series
# Axis
4
Table Size
85" x 29.9"
Table Capacity
3,968 pounds
X-Axis Travel
85"
Y-Axis Travel
30"
Z-Axis Travel
25.6"
Rapid Traverse Rate (X/Y/Z)
945 ipm
Spindle Taper
CAT 50
Spindle Speed
8,000 rpm
Main Motor
20 hp
Tool Changer Capacity
30
Coolant Thru Spindle
yes
Machine Dimensions
137" x 193" x 125"
Machine Weight
26,000 pounds

Equipped With:

- Fanuc i Series Control
- Chip Conveyor
- Coolant Tank & Pump

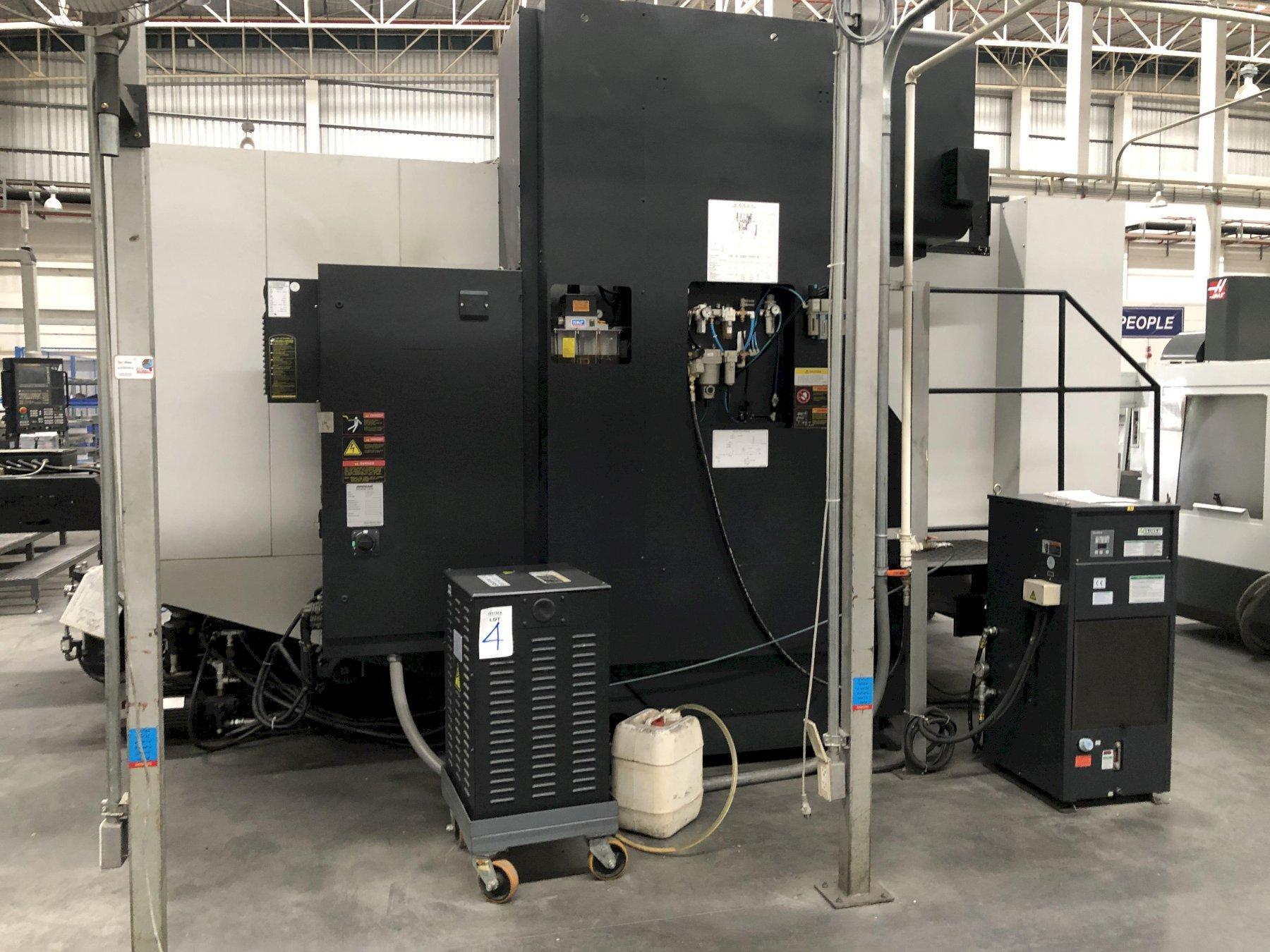

- Chiller
- Coolant Thru Spindle (290 psi)
- 4th Axis Rotary Table

The Doosan DNM 750L/50 II is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
