Doosan HP 5100 - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: HP 5100
Year: 2012
Stock #: 13440 Sold
Highlights:
Fanuc 31i-MB Control
Hydraulic Clamping
High Pressure Coolant Thru Spindle
CAT 40| 14,000 rpm | 30 hp | 60 ATC
Pallet Size: 19.7" x 19.7"
Travels: 33.5" / 27.6"/ 29.5"

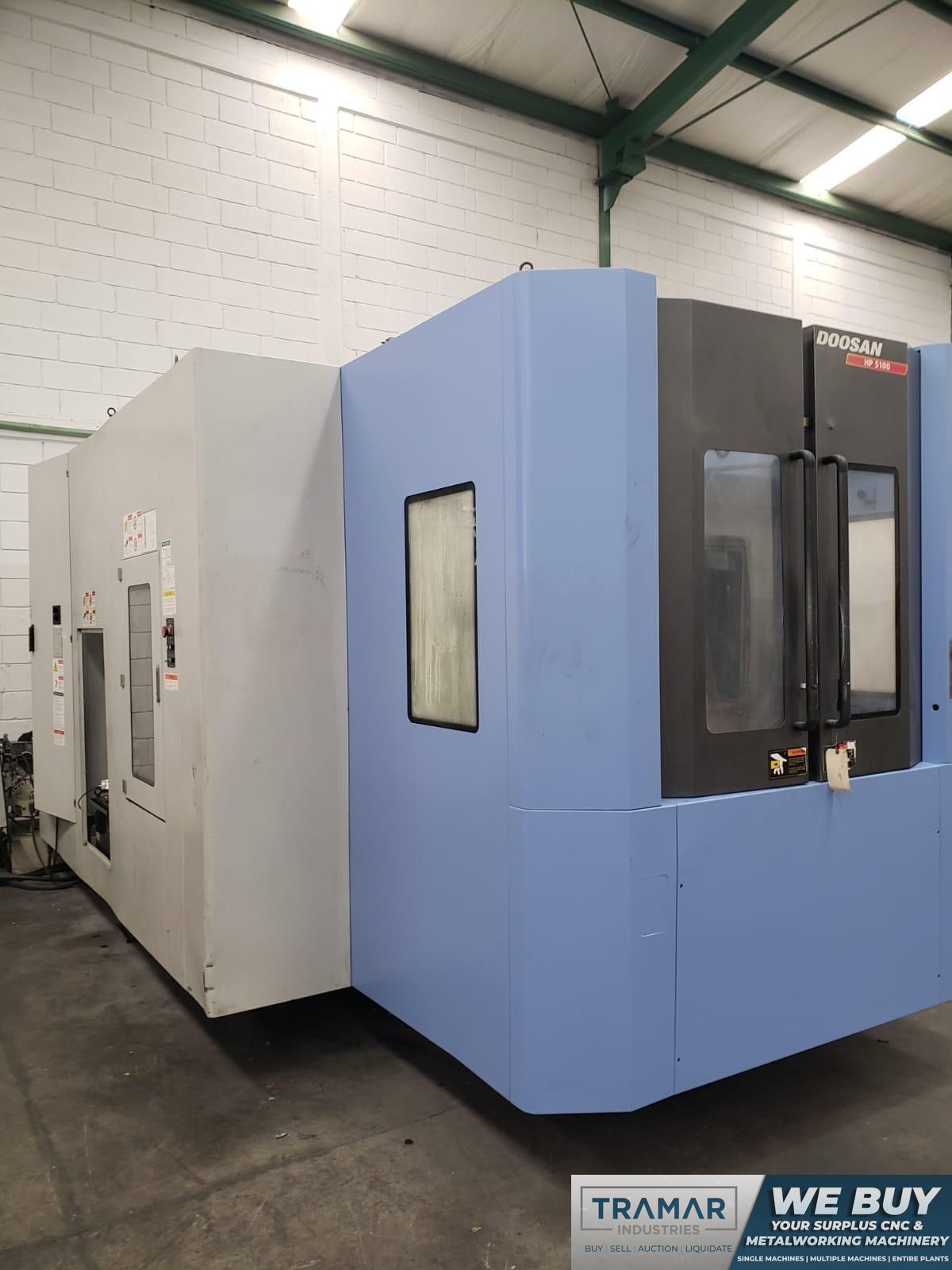

Doosan HP 5100 CNC Horizontal Machining Center
Machine Specifications
Year
2012
Control Type
Fanuc 31i-MB
# Axis
4
Pallet Length
19.7"
Pallet Width
19.7"
Pallet Capacity
1,100 pounds

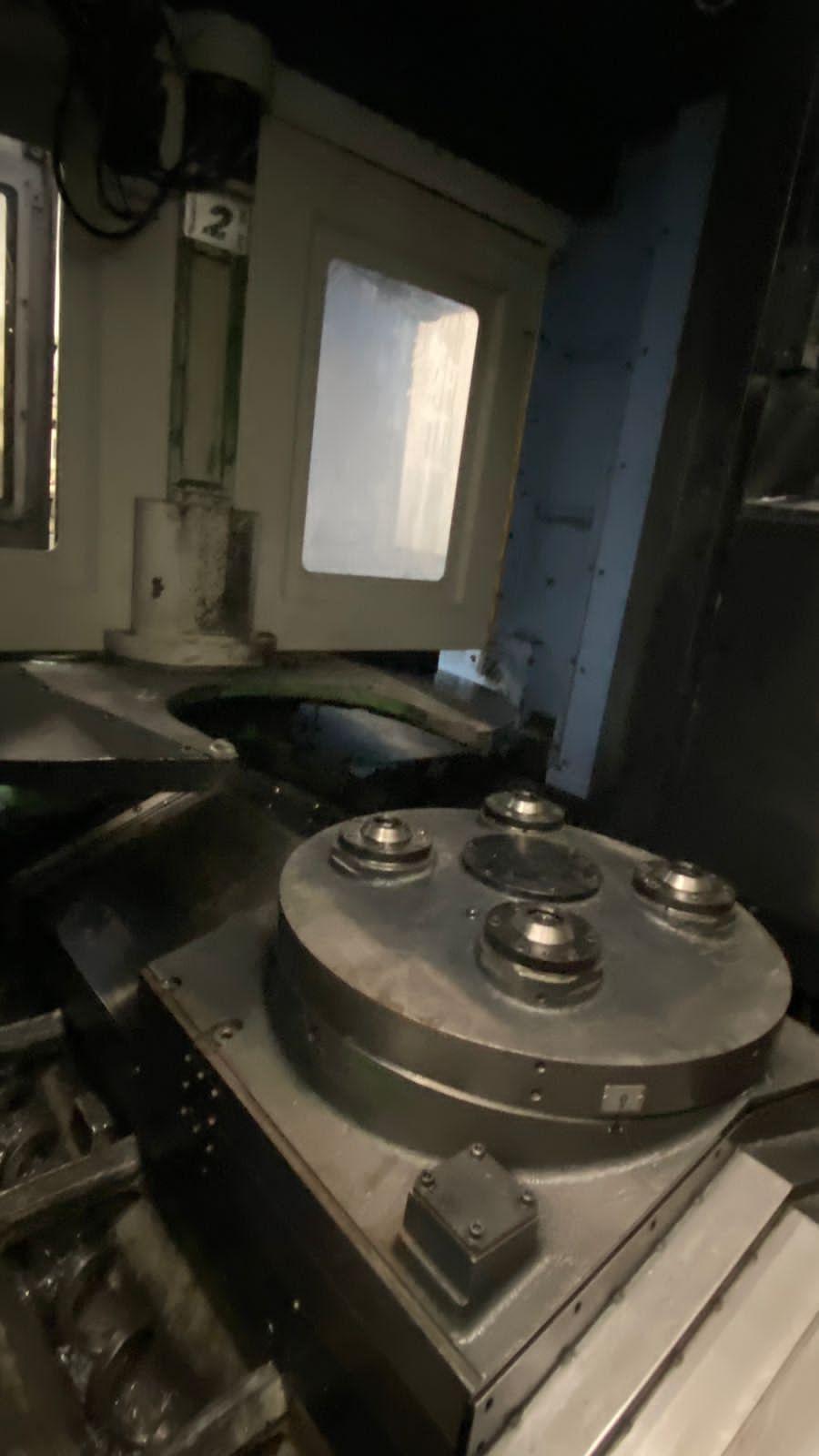

Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
33.5"
Y-Axis Travel
27.6"
Z-Axis Travel
29.5"
Rapid Traverse Rate (X/Y/Z)
2,362 ipm

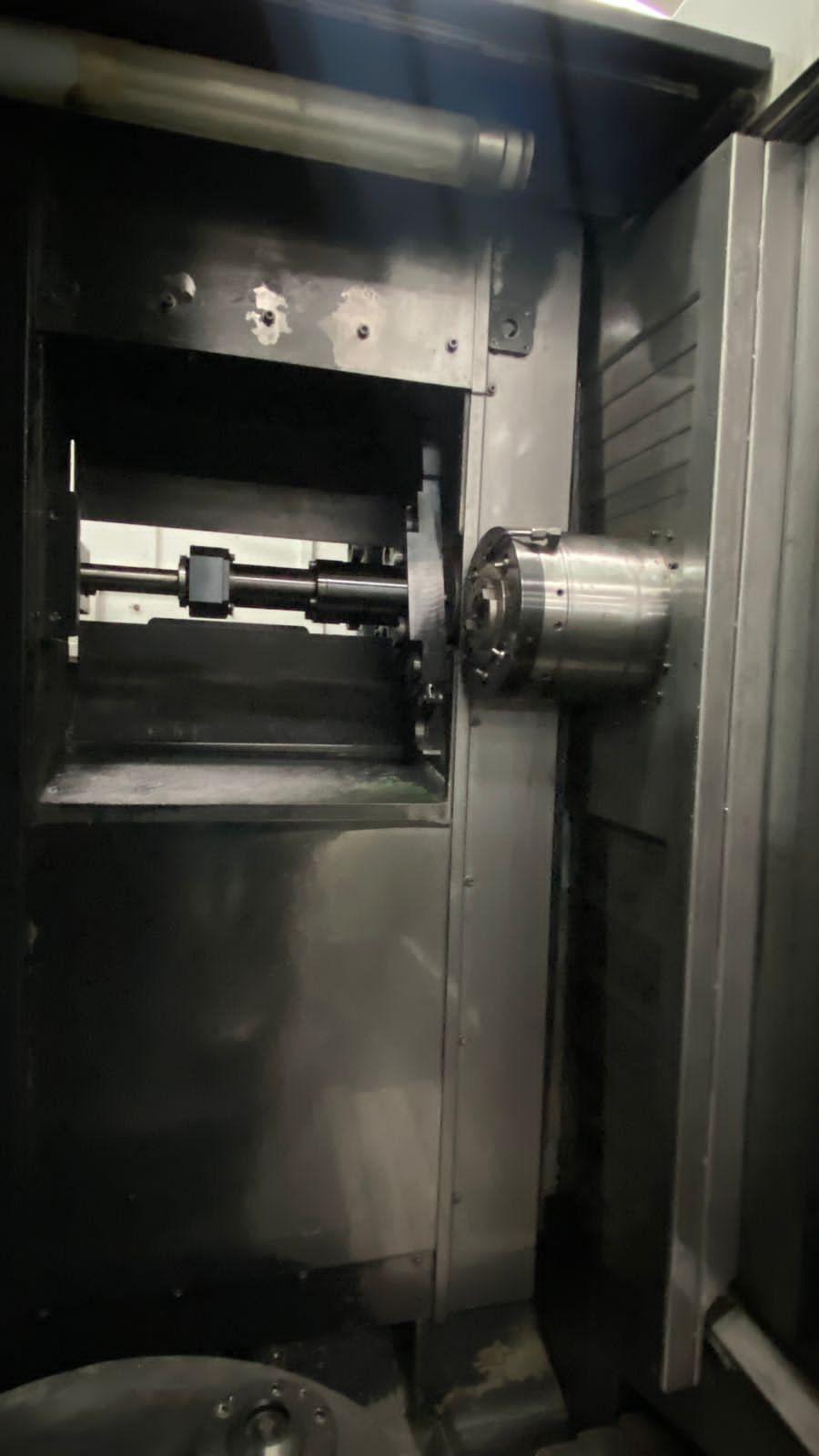

Spindle Taper
CAT 40
Spindle Speed
14,000 rpm
Spindle Motor (HP)
30 hp
Tool Changer Capacity
60
Coolant Through Spindle
yes
Machine Dimensions
212" x 110" x 119"
Machine Weight
33,100 pounds

Equipped With:

- Fanuc 31i-MB Control
- Hydraulic Clamping
- Chip Blaster (model JV-40) Hi-Pressure CTS
- Chiller Unit
- Coolant Tank & Pumps
- Chip Conveyor
- Embedded Ethernet | RS232 Port | USB Port
- Tool Load Monitoring
- Manual Guide i (conversational programming)
- Handheld Remote Manual Pulse Generator (MPG)
- Custom Macro B
- Rigid Tapping
- Embedded Ethernet
- USB
- 200 Tool Offset Pairs
- Tool Life Management
- Tool Offset Memory C
- Graphic Function
- AI Contour Control II
- Machining Condition Selecting Function

The Doosan HP 5100 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
