Doosan Lynx 2100LB - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Lynx 2100LB
Year: 2018
Stock #: 13530 Sold
Highlights:
- Fanuc i Series CNC Control
- Tool Presetter | Tailstock
- Parts Catcher

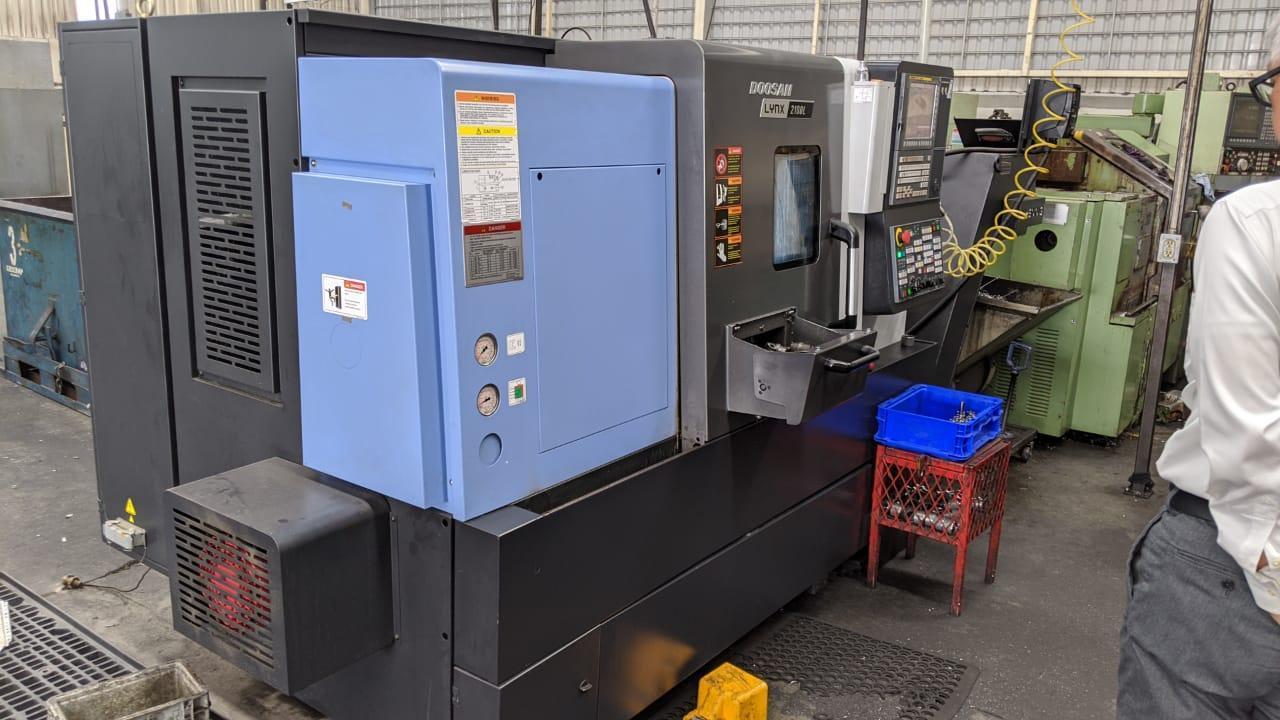

Doosan Lynx 2100LB - CNC Horizontal Lathe 2018
Machine Videos
Machine Specifications

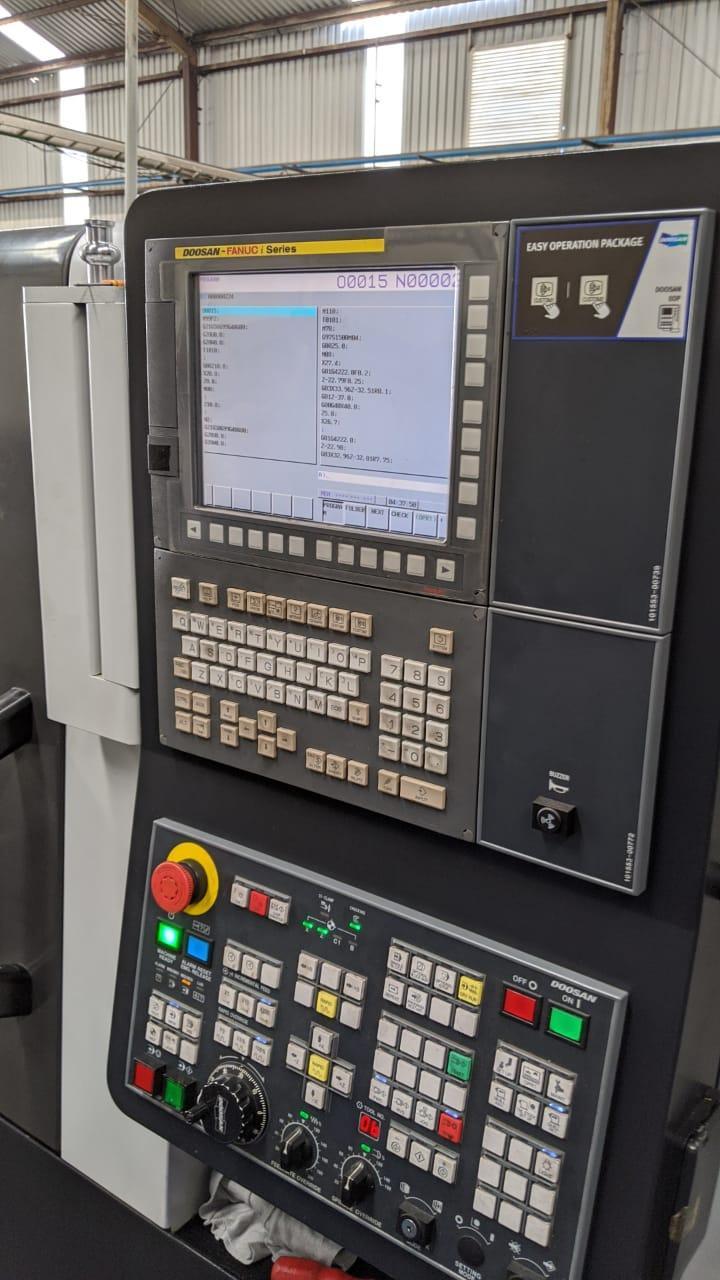

CNC Control
yes
Control Type
Fanuc i Series
# Axis
2
Chuck Size
8"
Swing
23.6"
Turning Diameter
13.8"
Center Distance
21.7"
Bar Capacity
2.6"
X Axis Travel
8.1"
Z Axis Travel
22"
Spindle Speed (RPM)
4,500
Main Motor
20 HP

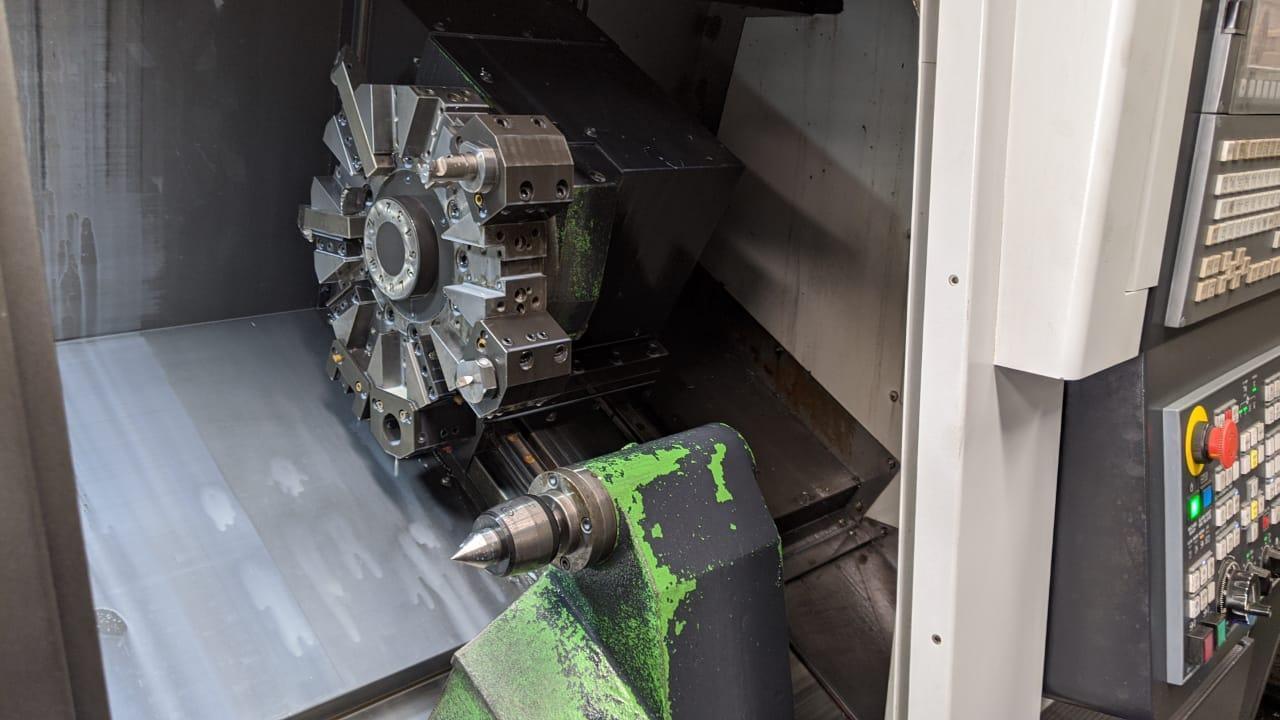

Turret Capacity
12
Tailstock
yes
Y Axis
no
Live Tooling
no
Sub Spindle
no
Dimensions
102" x 63" x 66"
Weight
7,500 pounds

Equipped With:

- Fanuc i Series Control
- Coolant Tank & Pump
- Tailstock
- Doosan Tool Load Monitoring
- Embedded Ethernet
- Parts Catcher
- Tool Presetter
- Manual Guide i (Conversational Programming)
- Available Manuals

** Video - Click Here **




The Doosan Lynx 2100LB is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
