Doosan Lynx - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Lynx
Year: 2016
Stock #: 3907 Sold
Highlights:

Doosan Lynx 2100LMB CNC Lathe, Fanuc i, 8
Machine Videos
Machine Specifications
# Axis
3

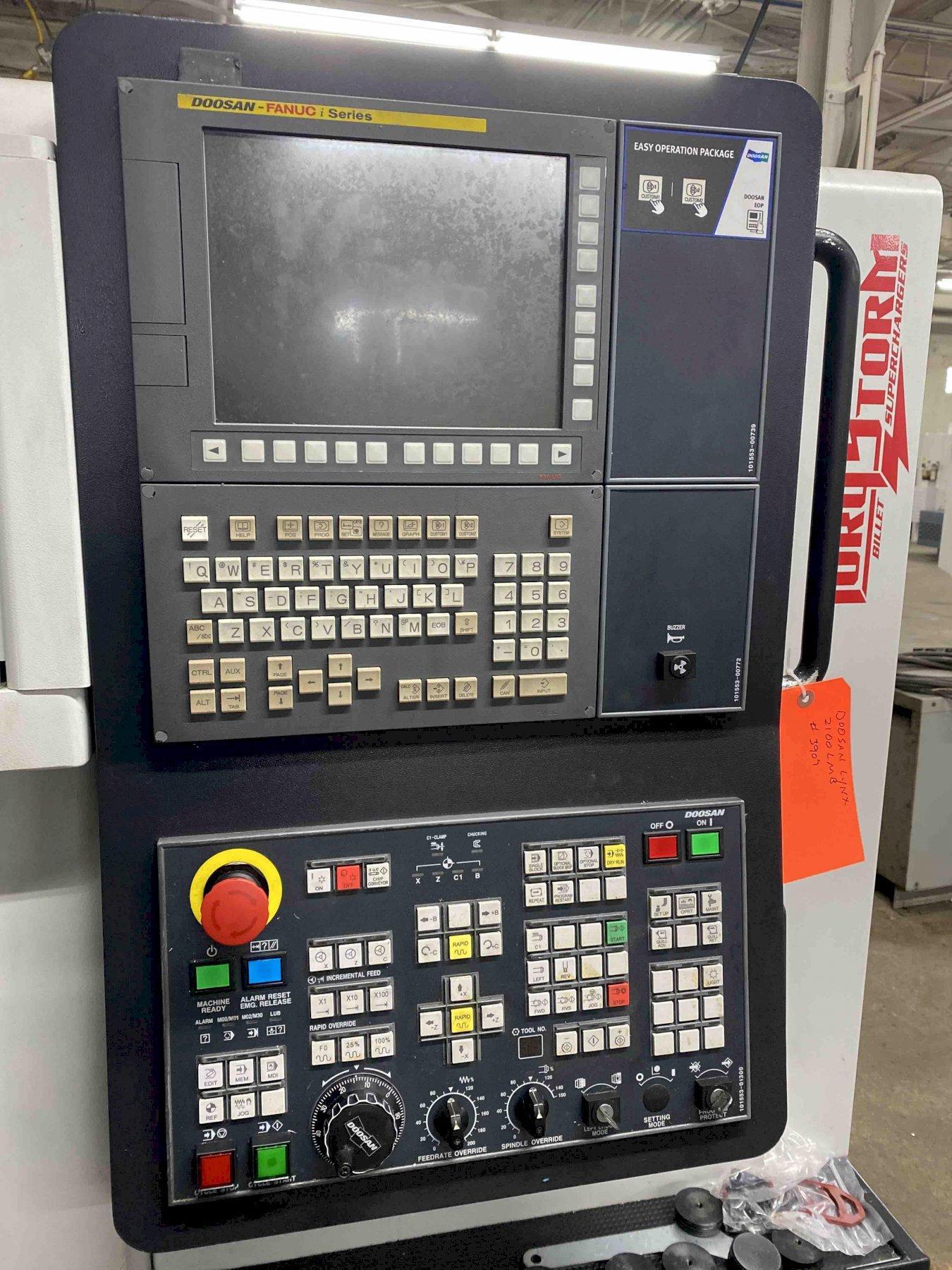

Control Type
fanuc i
Chuck Size
8"
Swing
23.6"
Max Turning Length
21.7
Turning Diameter
11.8"
Center Distance
26.1"
Bar Capacity
2.64"
X-Axis Rapid Traverse Rate
1,181 ipm
Z-Axis Rapid Traverse Rate
1,417 ipm
X Axis Travel
8.1"
Z Axis Travel
22"
Main Motor
20 Horsepower
Spindle Speed (RPM)
4,500
Turret Capacity
24
Tailstock
yes
Cutting Hours
2,689
Dimensions
101" x 66.6" x 63"
Weight
7,670 pounds

Equipped With:

  • 8" Hydraulic Chuck
  • Conversational Programming with Manual Guide i
  • Bar Feed Interface
  • Tool Probe
  • Parts Catcher

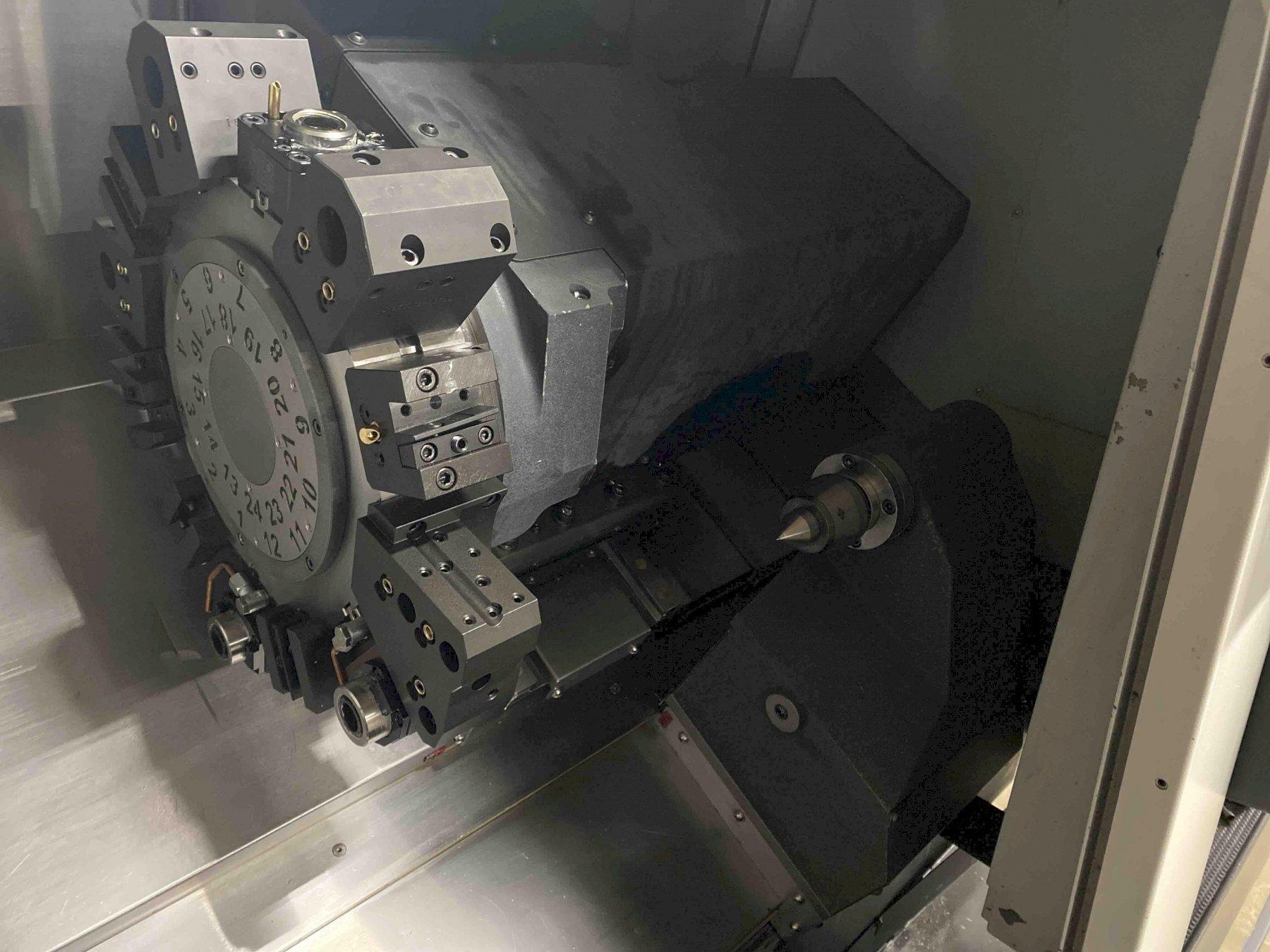

  • Live Holders (Radial and Axial)
  • Misc ID and OD Holders
  • Programmable Tailstock
  • USB Port
  • Ethernet Port
  • Memory Card Slot
  • RS-232

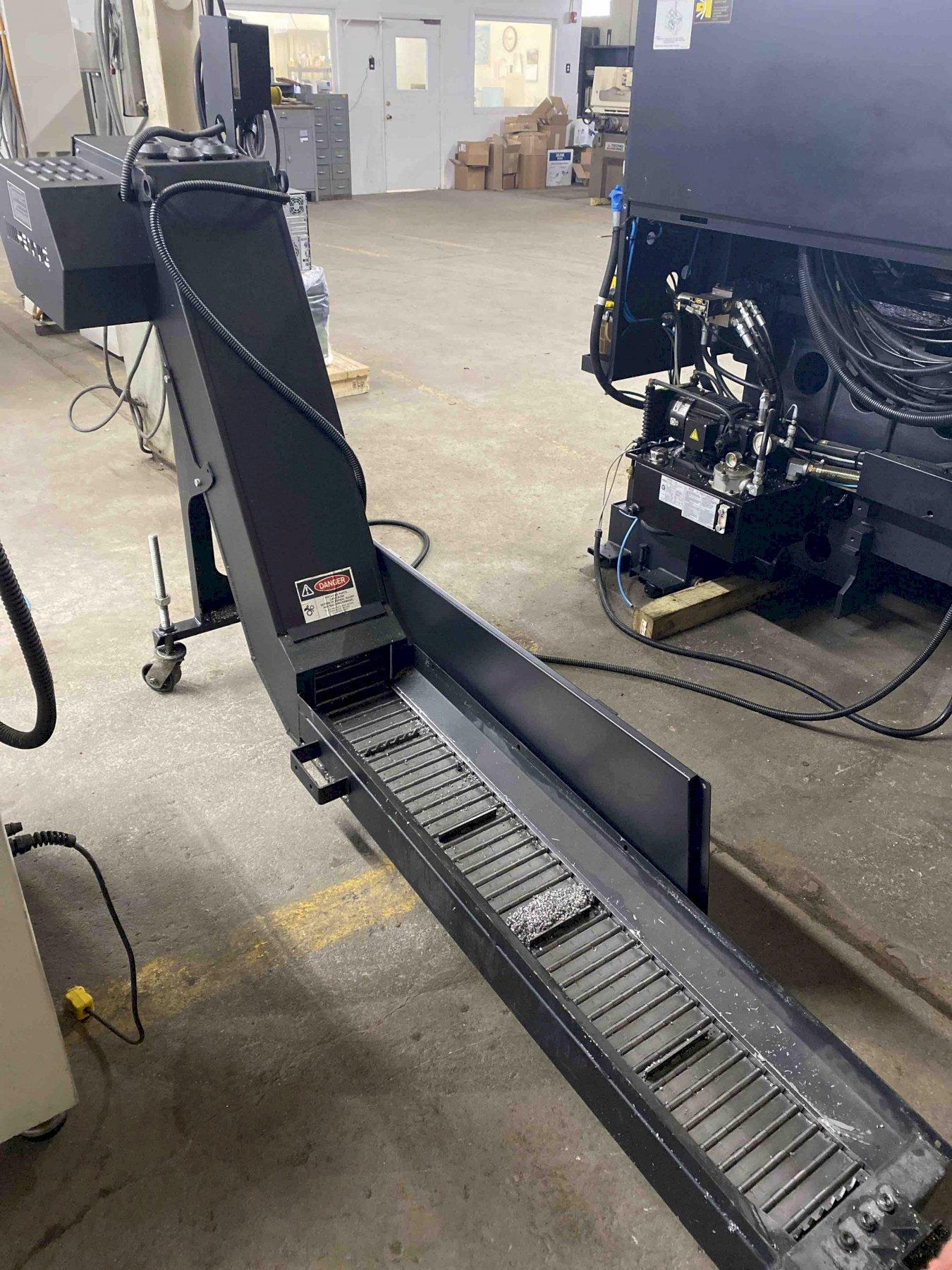

  • Chip Conveyor

The Doosan Lynx is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
