Model: Lynx 220LC
Year: 2007
Stock #: 14276
Highlights:

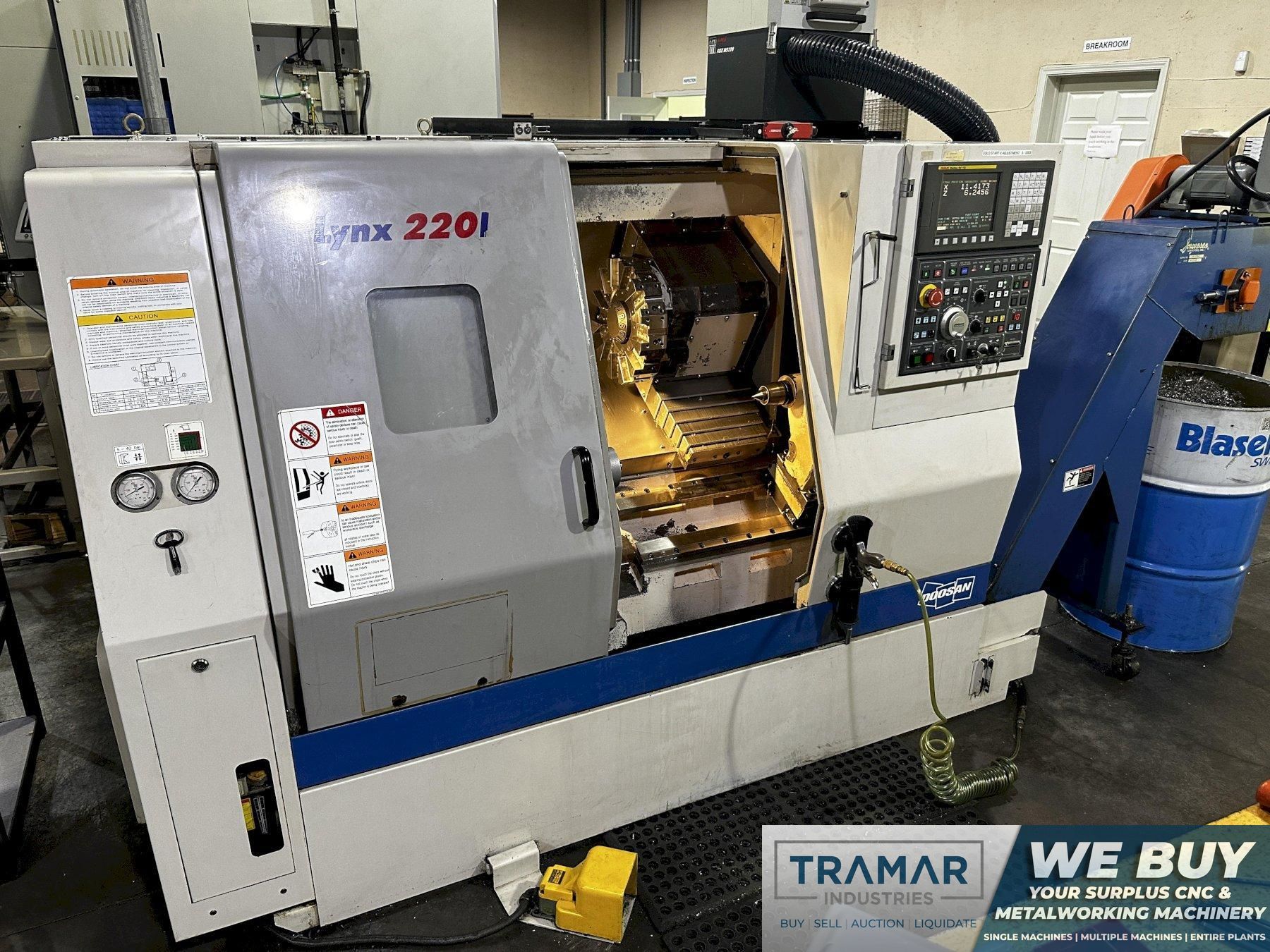

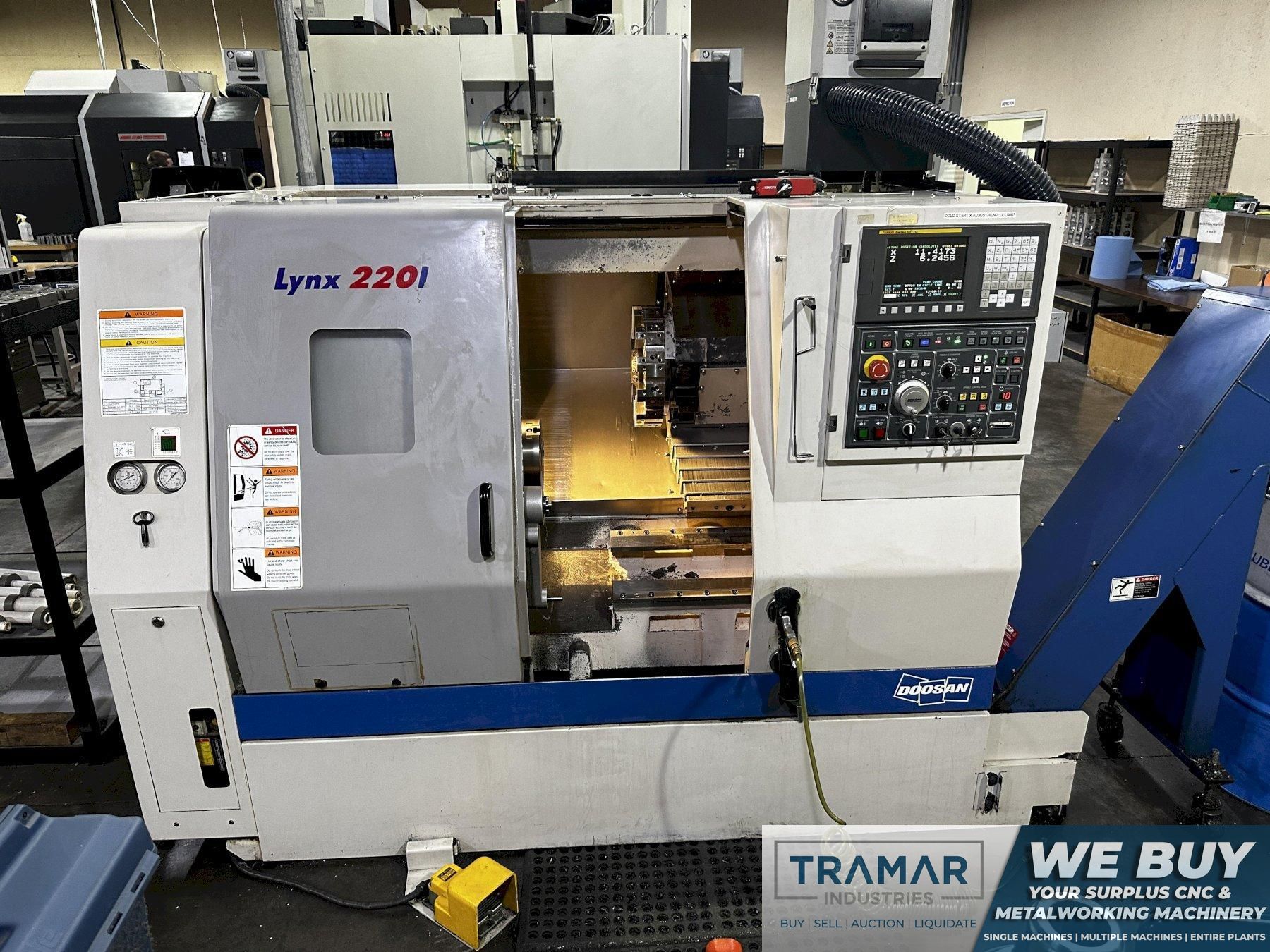

Doosan Lynx 220LC Used CNC Lathe For Sale - 2007
Machine Videos
Machine Specifications
CNC Control
yes
CNC Control
Fanuc 0i-TC
# Axis
2
Swing
20.1"
Turning Diameter
12.6"
Center Distance
20.7"

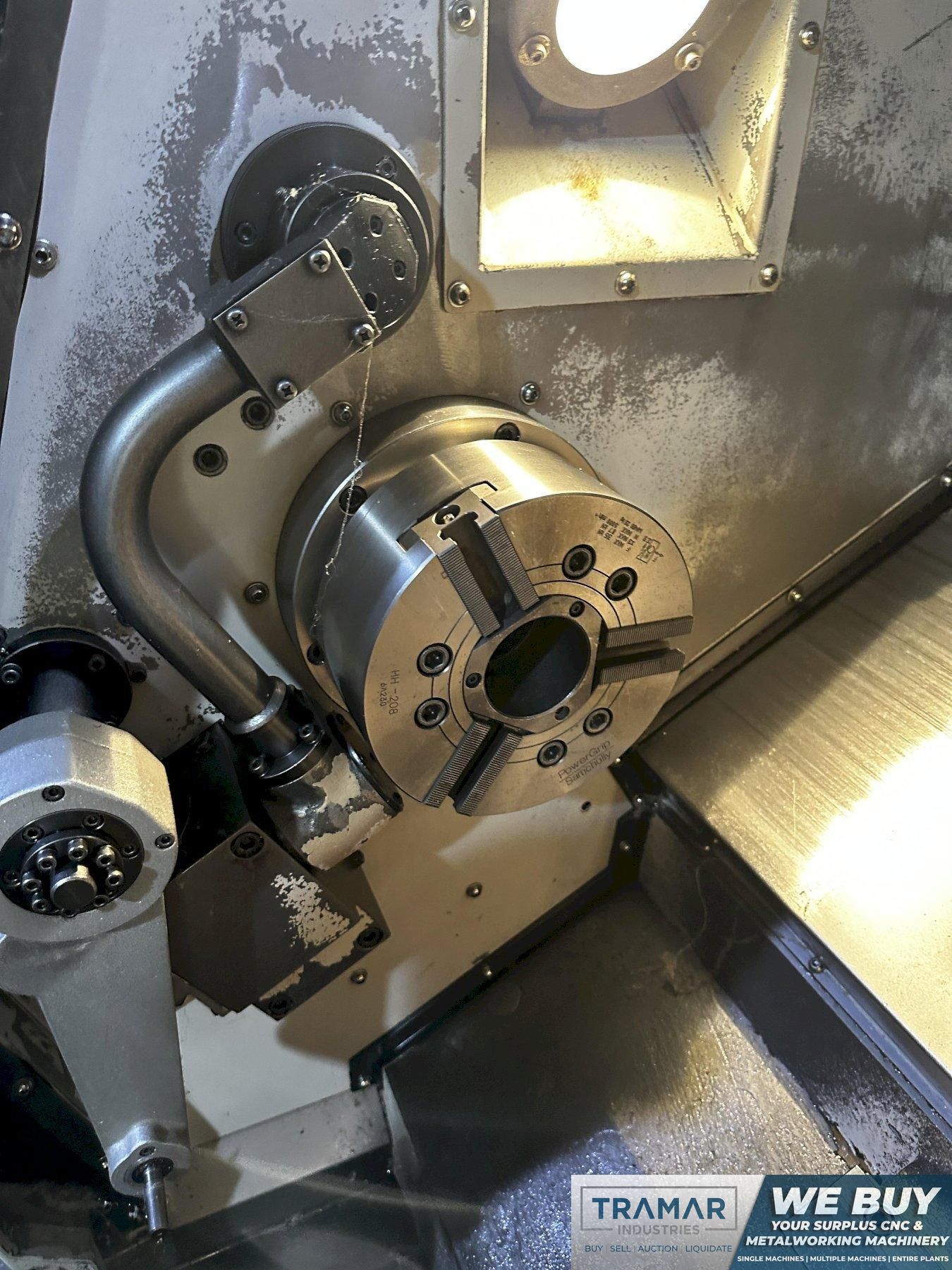

Chuck Size
8"
Bar Capacity
2.6"
X Axis Travel
6.9"
Z Axis Travel
21.7"
Rapid Traverse (X/Z)
1,417 ipm
Spindle Nose
A2-6
Spindle Speed
4,000 rpm
Main Motor
20 hp
Live Tooling
no
Tailstock
yes
Y Axis
no
Sub Spindle
no

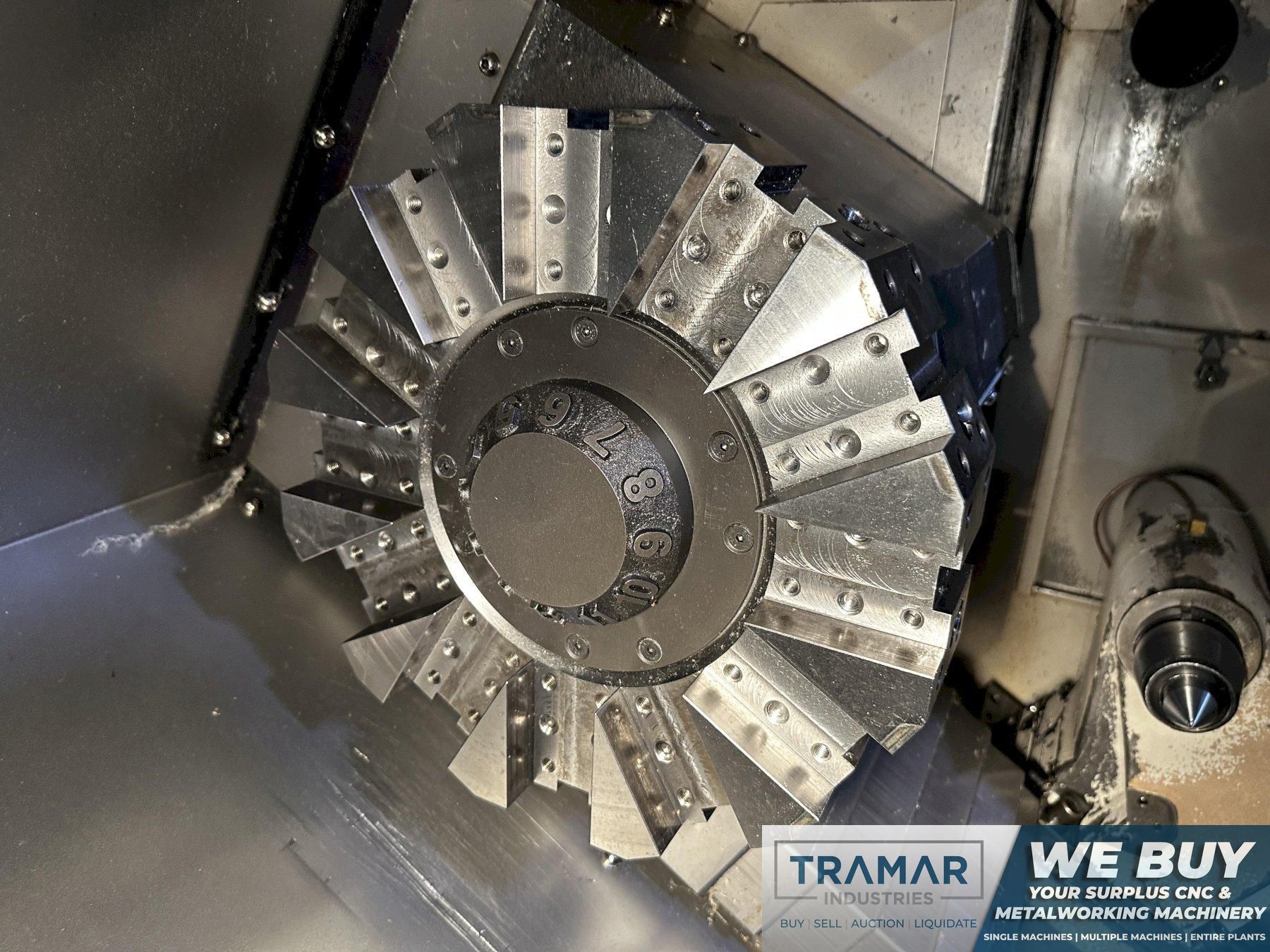

Turret Capacity
12
Machine Dimensions
101" x 63" x 66"
Machine Weight
7,000 pounds

Equipped With:

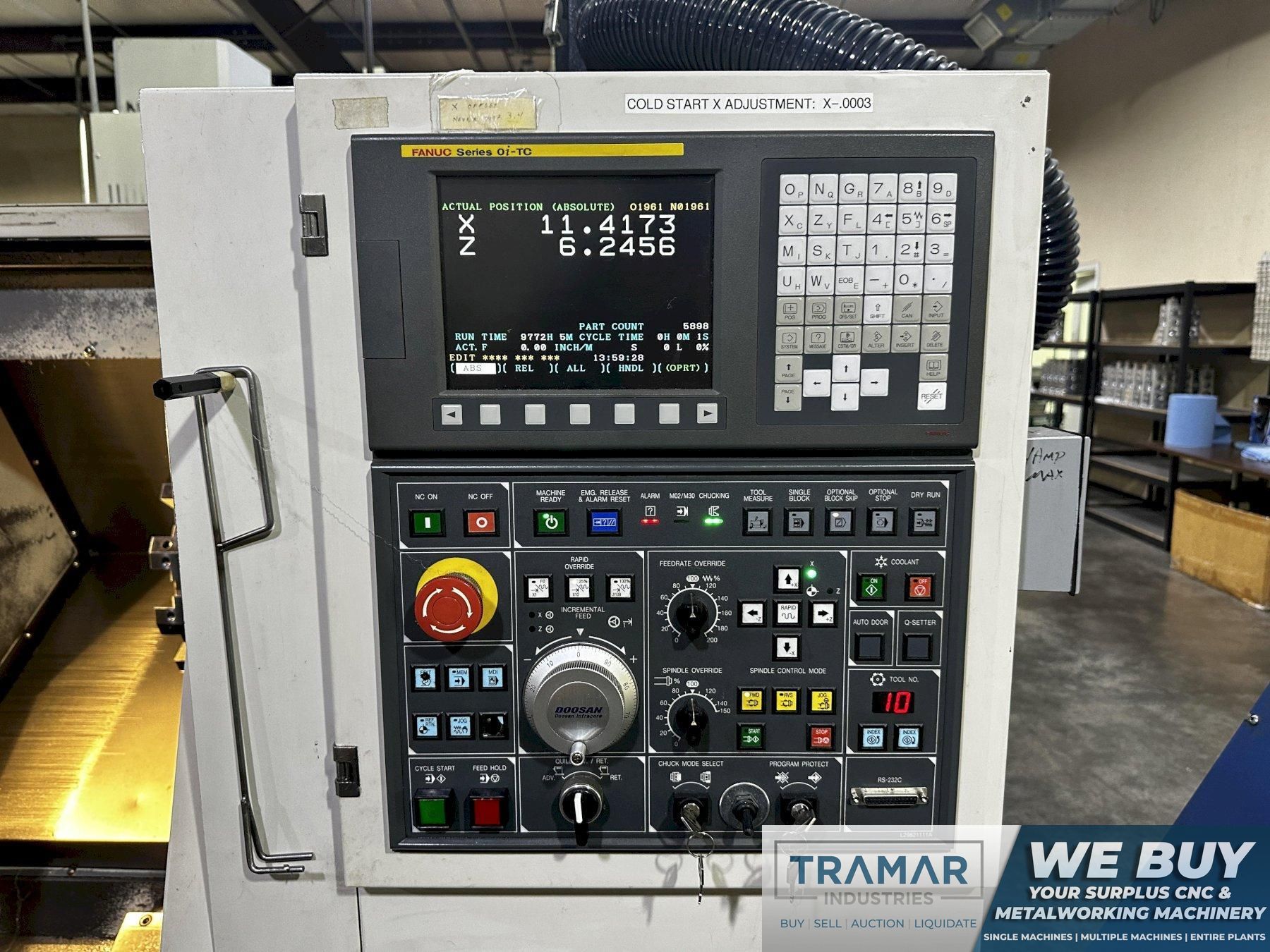

- Fanuc 0i-TC CNC Control

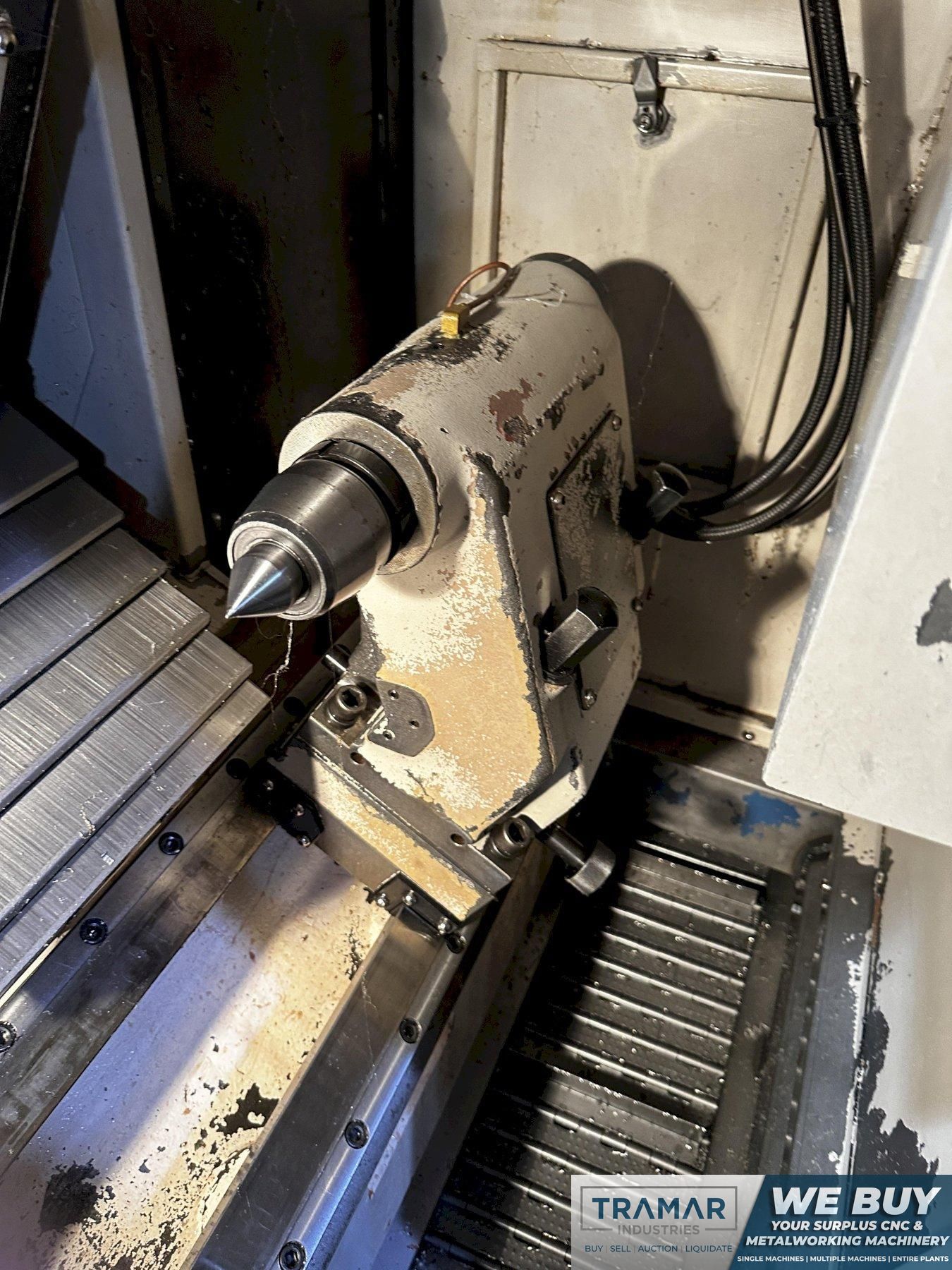

- Tailstock

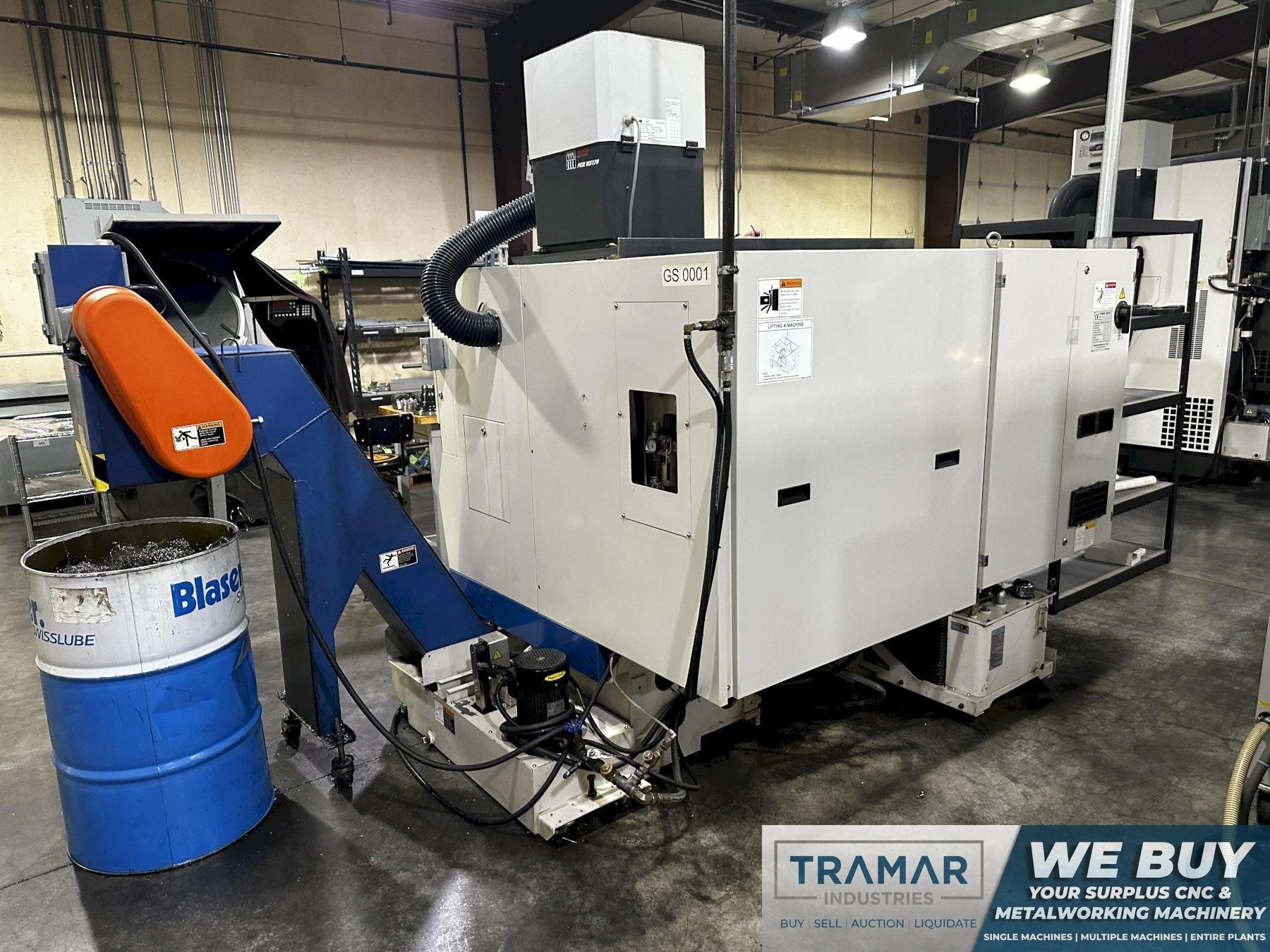

- Chip Conveyor
- Coolant Tank

The Doosan Lynx 220LC is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
