Doosan Mynx 5400/50 - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: Mynx 5400/50
Year: 2010
Stock #: 14142 Sold
Highlights:
Fanuc 0i-MD CNC Control
2-Step Gearbox
Renishaw Laser Tool Setter
Midaco A40SD Pallet Changer
CAT 50 Big Plus Spindle
6,000 rpm | 30hp | 24 Station ATC

Doosan Mynx 5400/50 Used CNC Vertical Machining Center For Sale - 2010
Machine Videos
Machine Specifications
CNC Control
yes
Control Type
Fanuc 0i-MD
# Axis
3
Table Size
47.2" x 21.3"
Table Capacity
1,763 pounds
X-Axis Travel
40.2"
Y-Axis Travel
21.3"
Z-Axis Travel
20.9"
Rapid Traverse Rate (X/Y/Z)
1,181/1,181/945 ipm
Spindle Taper
CAT 50
Spindle Speed
6,000 rpm
Main Motor
30 hp
Tool Changer Capacity
24
Machine Dimensions
132" x 97" x 114"
Machine Weight
16,000 pounds

Equipped With:

** Video - Click Here **

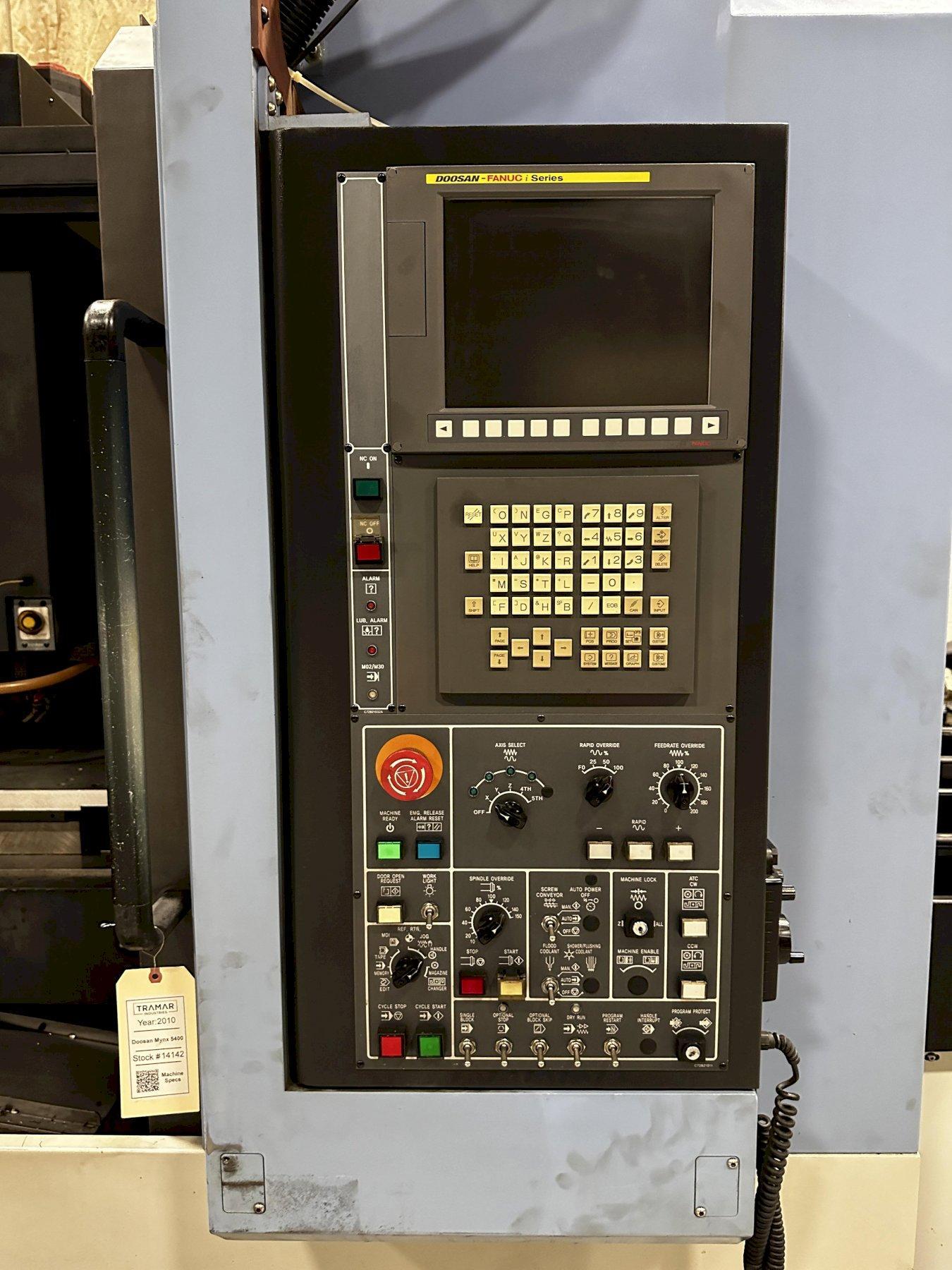

- Fanuc 0i-MD Control
- Manual Guide i (Conversational Programming)
- 2-Speed Gearbox
- Plumbed for Coolant Thru Spindle
- Spider Cool Programmable Coolant

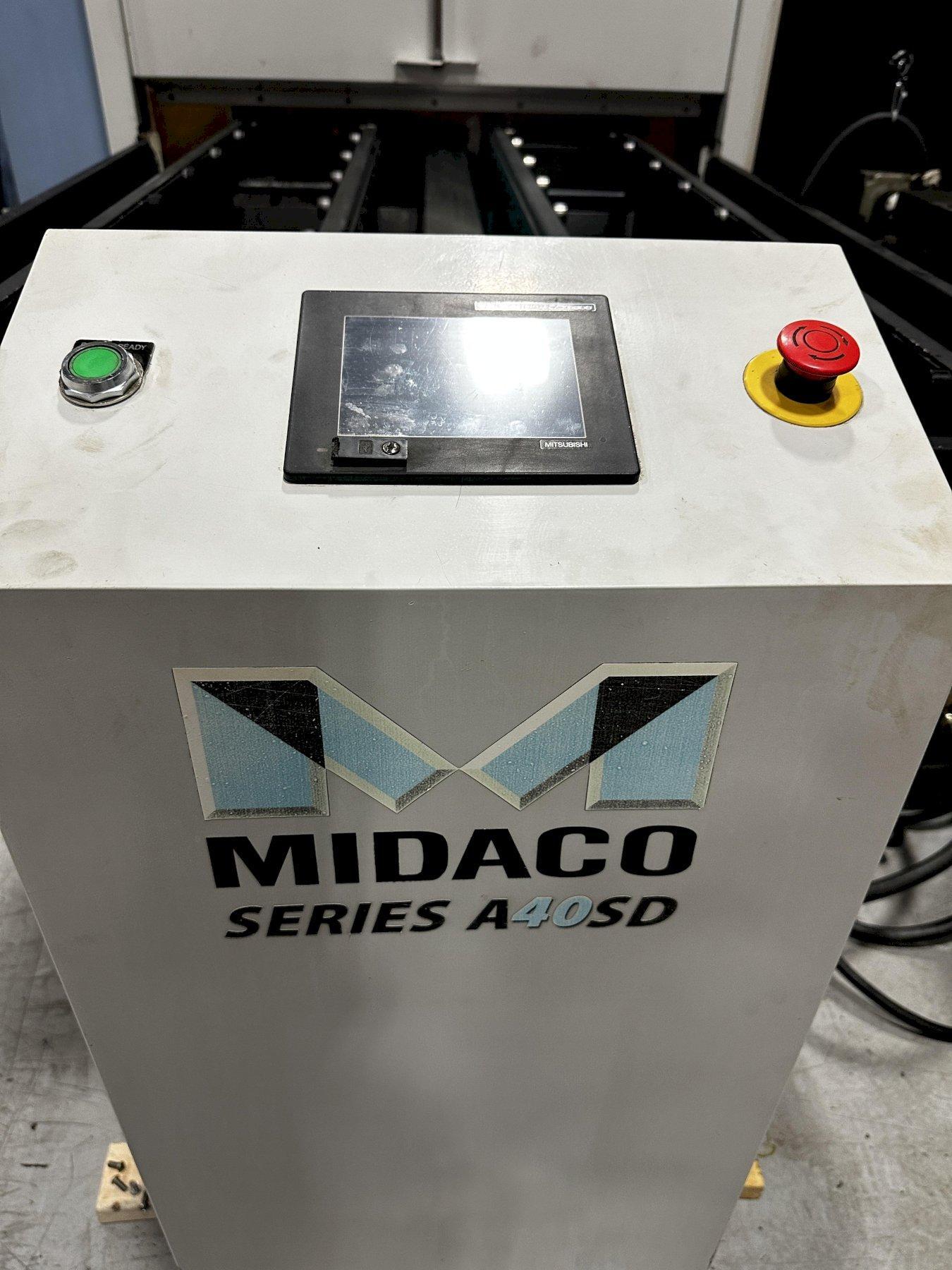

- Midaco A40SD Programmable Pallet Changing System
- (2) 40" x 19" x 1.5" Aluminum Pallets
- Spindle Replaced in 2019 Due to Clogged Chiller Oil Supply

Machine was used for 2 years, then lost the job to China, used a few times a month after that.

The Doosan Mynx 5400/50 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
