Doosan Mynx 6500 - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: Mynx 6500
Year: 2011
Stock #: 3826 Sold
Highlights:

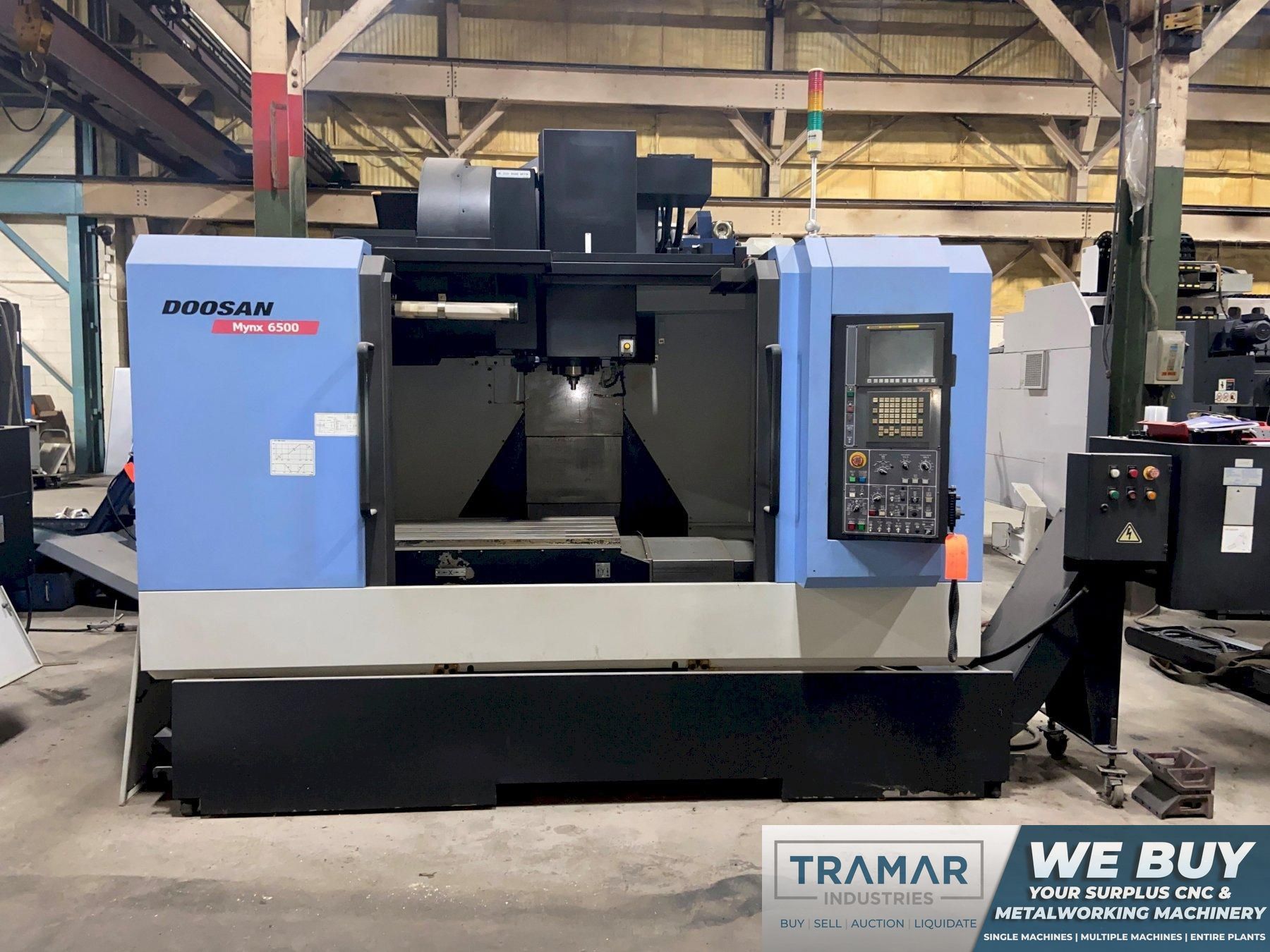

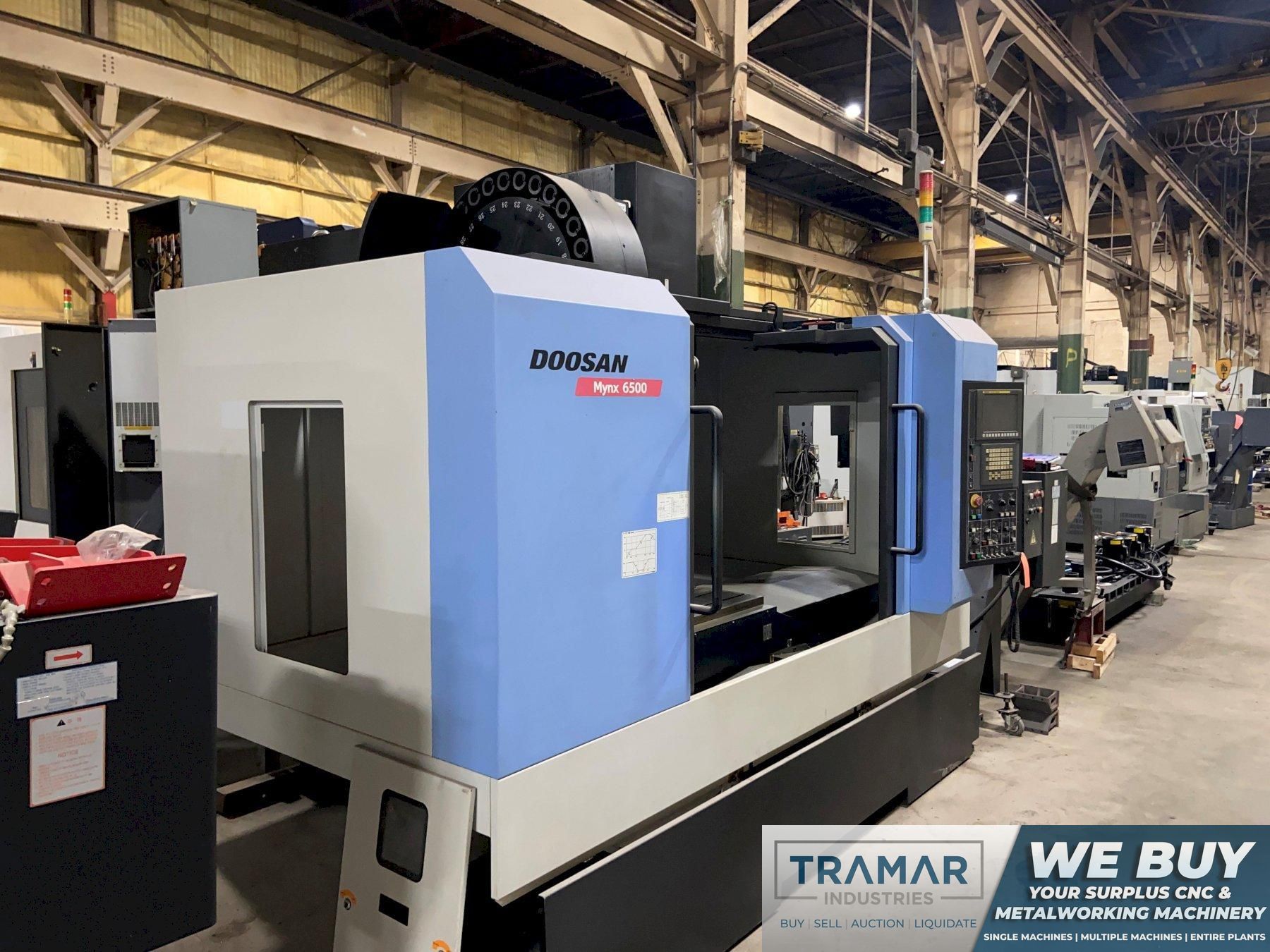

Doosan Mynx 6500 CNC Vertical Machining Center, Fanuc Series i, 50
Machine Videos
Machine Specifications

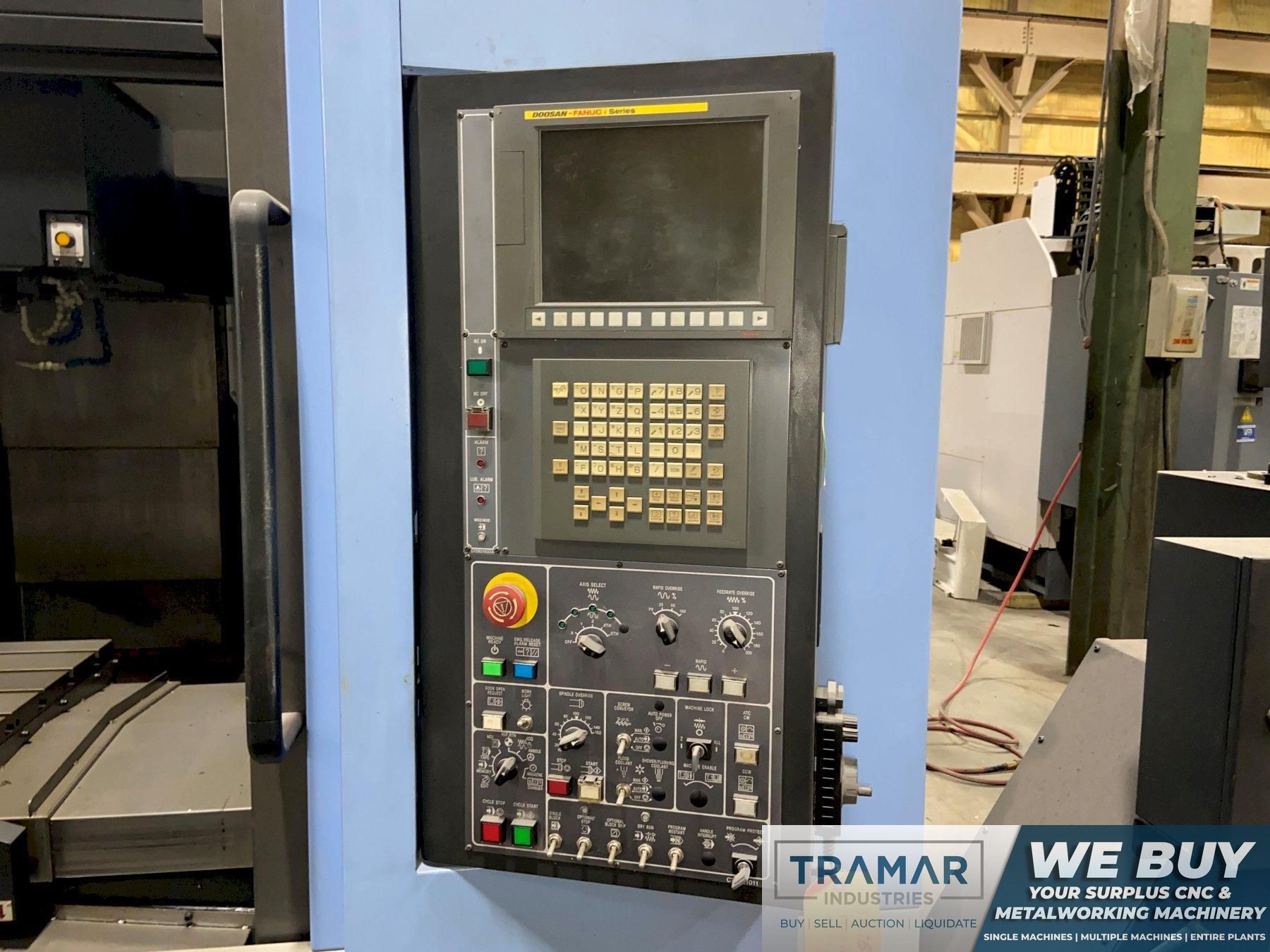

CNC Control
yes
Control Type
Fanuc i Series
# Axis
3
Table Size
55" x 26.4"
Table Capacity
2,200 pounds
X-Axis Travel
50"
Y-Axis Travel
26.4"
Z-Axis Travel
24.6"
Spindle Speed
8,000
Spindle Taper
CAT 40
Main Motor
20 Horsepower
Tool Changer Capacity
30
X-Axis Feedrate
1,181
Y-Axis Feedrate
1,181
Z-Axis Feedrate
945
Coolant Thru Spindle
no

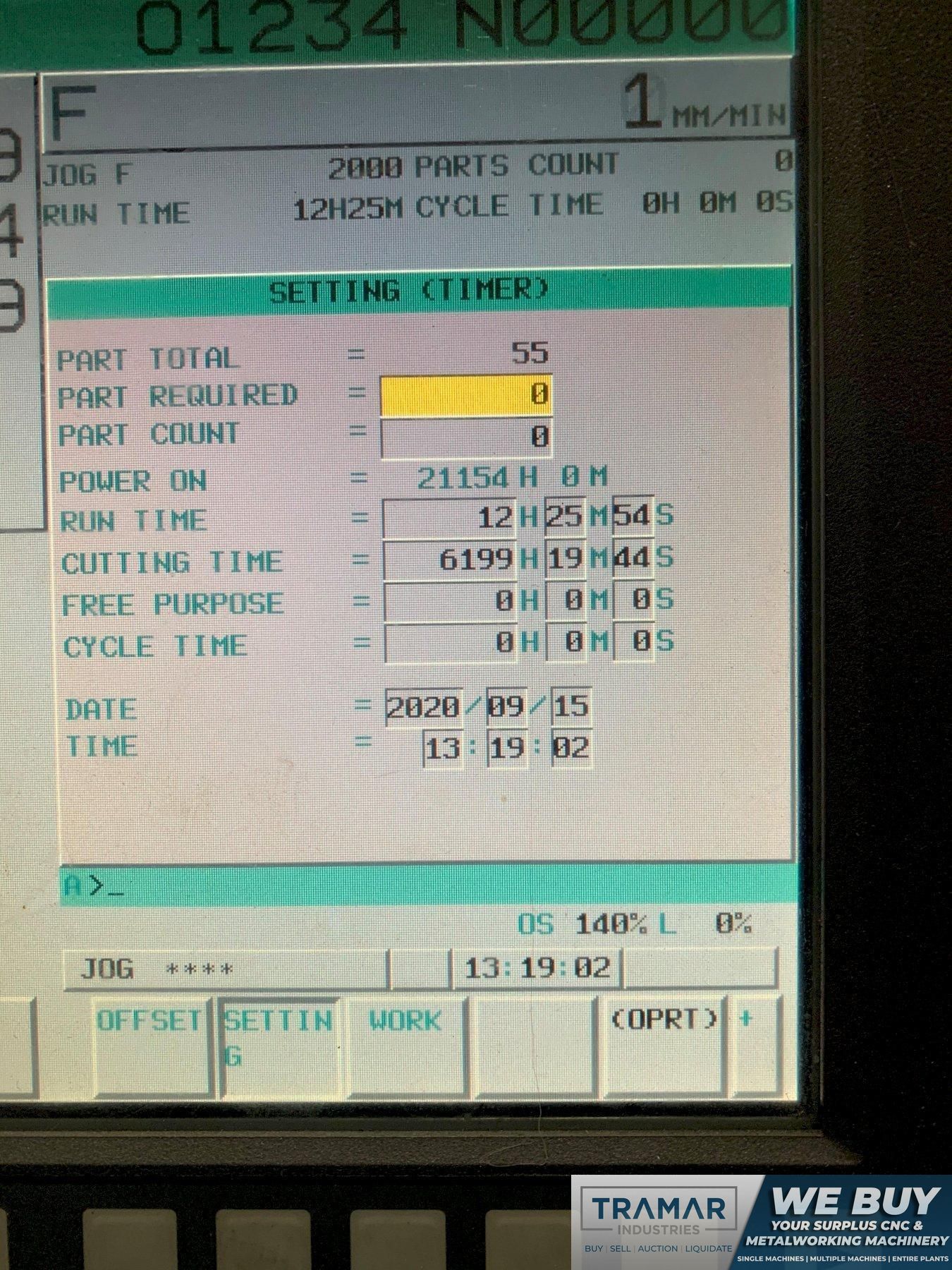

Machine Hours
6,199
Weight
20,000 pounds

Equipped With:


Chip Conveyor
(2) Chip Augers
30 Station Side Mounted Tool Changer
Doosan Conversational Machining Software
Embeded Ethernet
Remote Pulse Generator
400 Pairs tool Offsets
Spindle Chiller
Box Ways
6,199 Cutting Hours

The Doosan Mynx 6500 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
