Doosan NHM 8000 - Horizontal Machining Centers

Request Quote
Specifications Print Specs
Model: NHM 8000
Year: 2015
Stock #: nhm8000
Highlights:

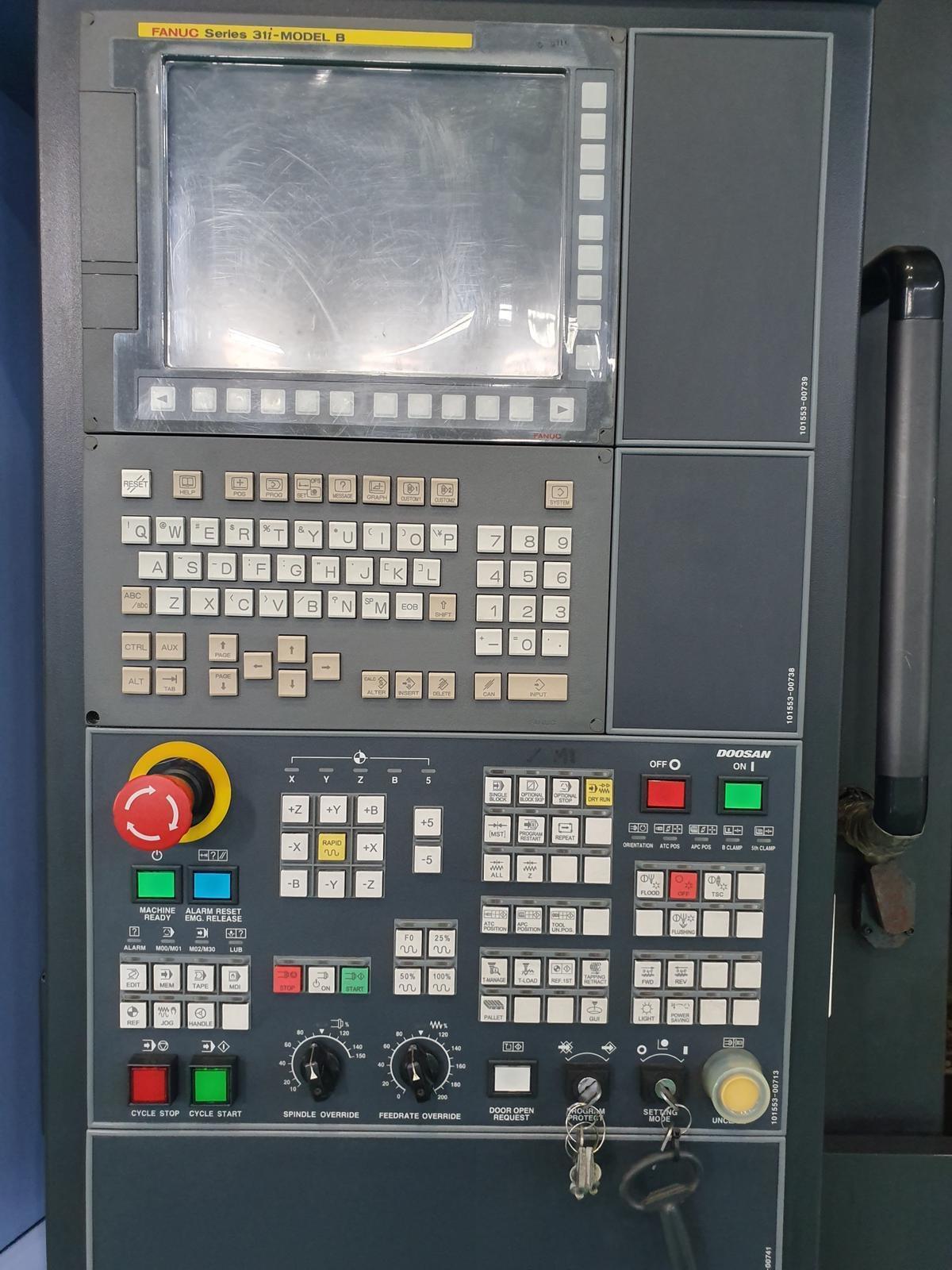

Fanuc 31i-MB Control

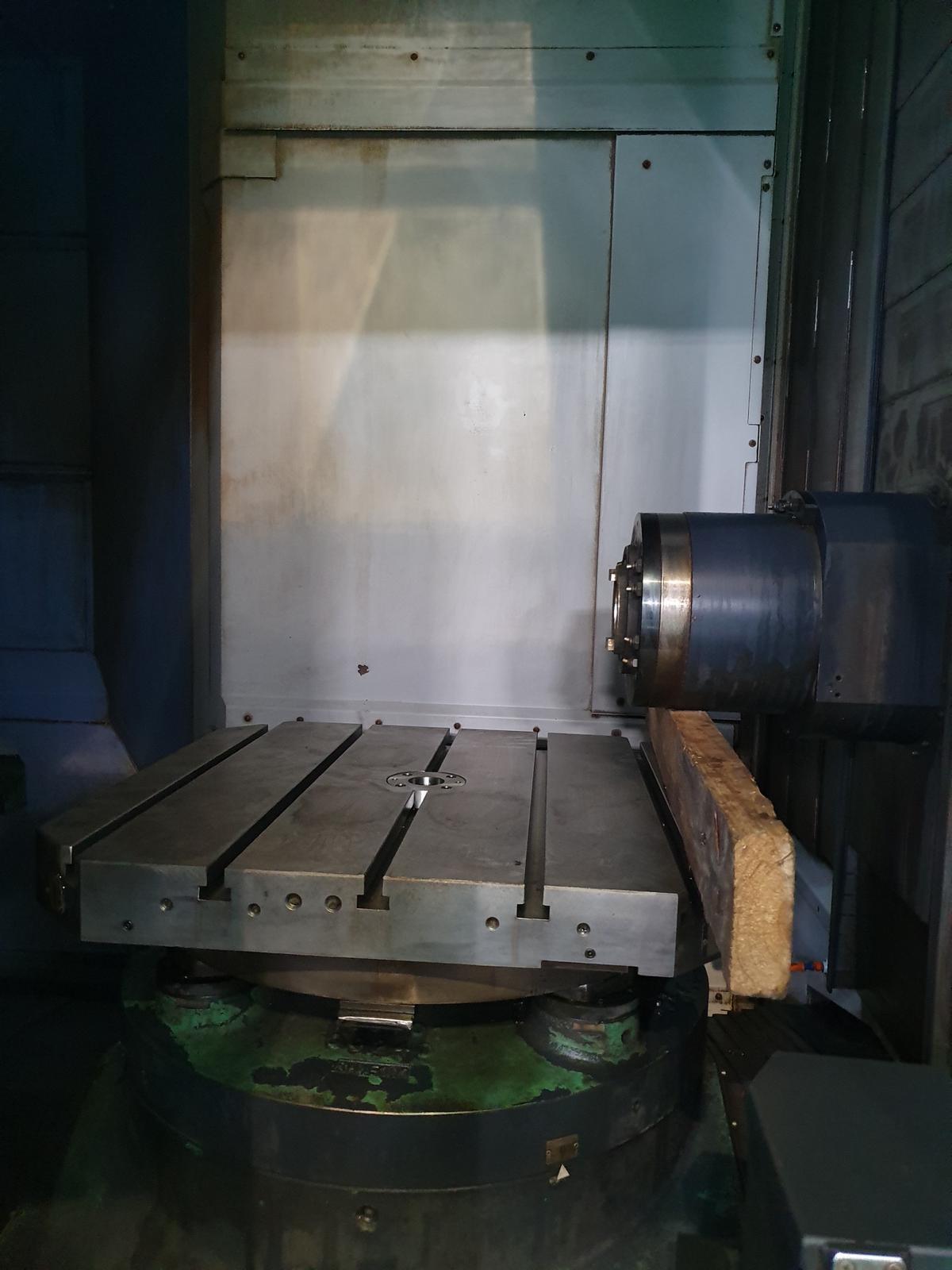

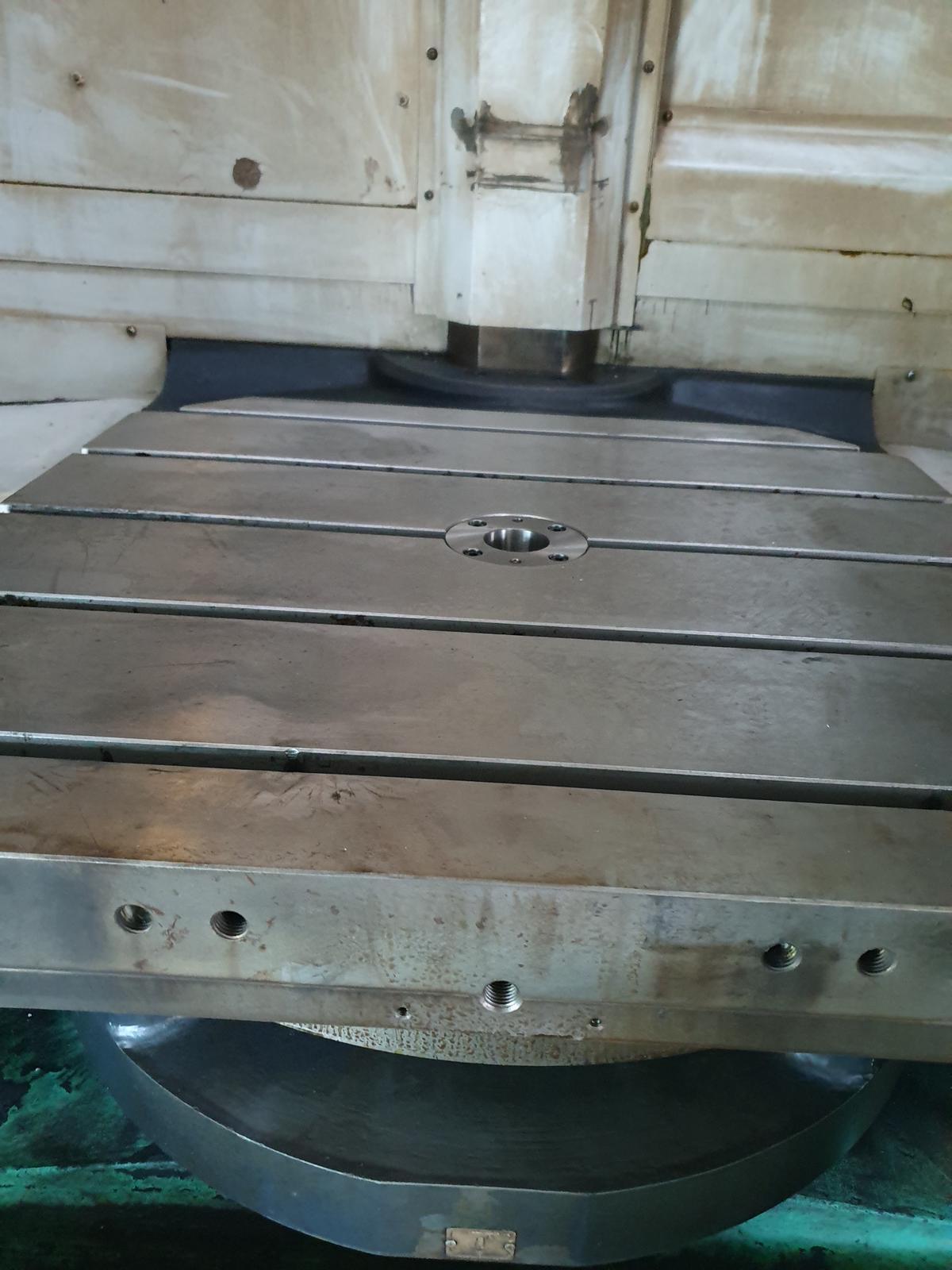

Pallet Size: 39.4" x 39.4" | 1° B-Axis
Travels: X/Y/Z: 55.1"/41.3"/47.2"

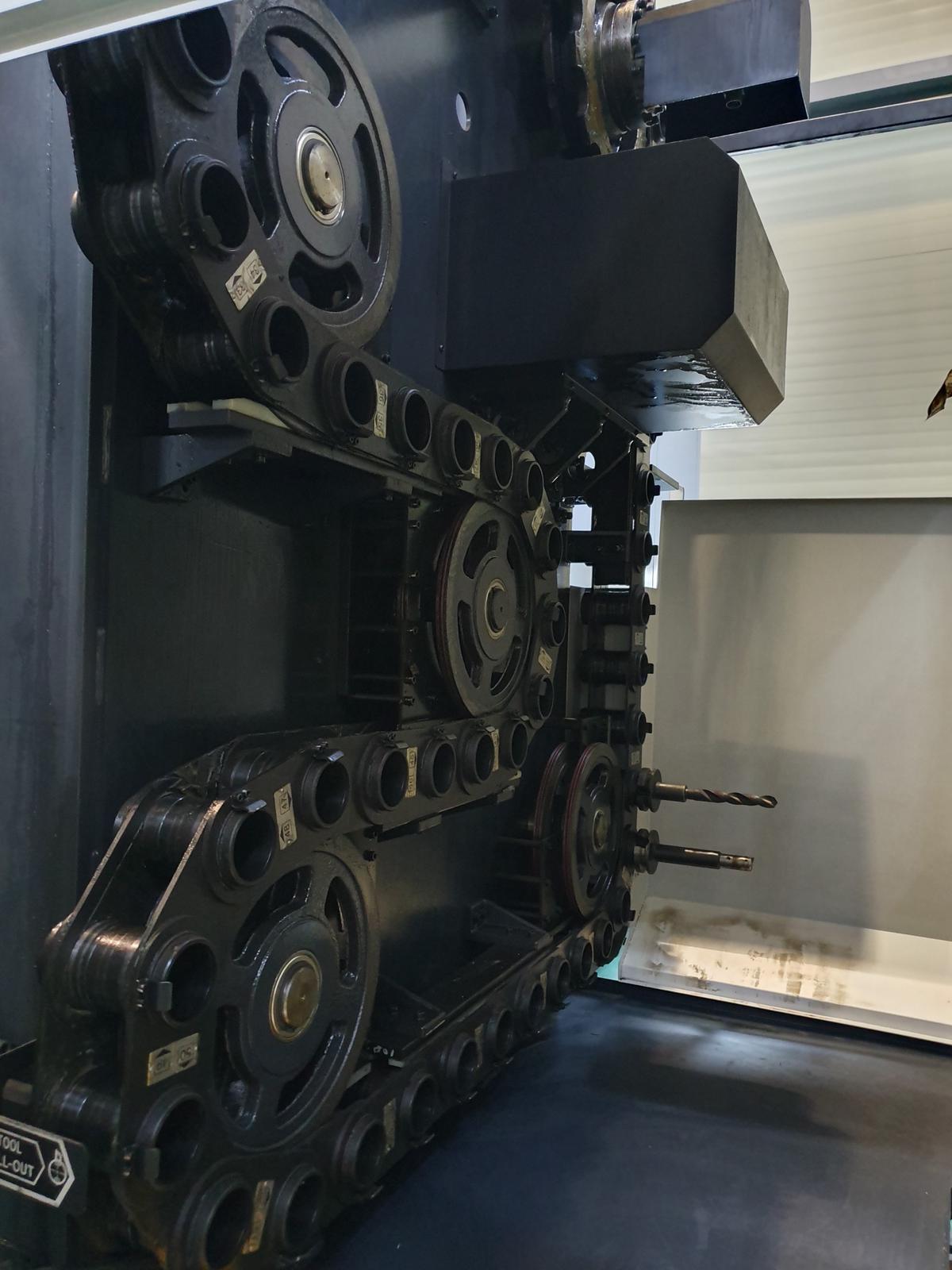

CAT 50 | 6,000 RPM | 40 hp | 60 Station ATC

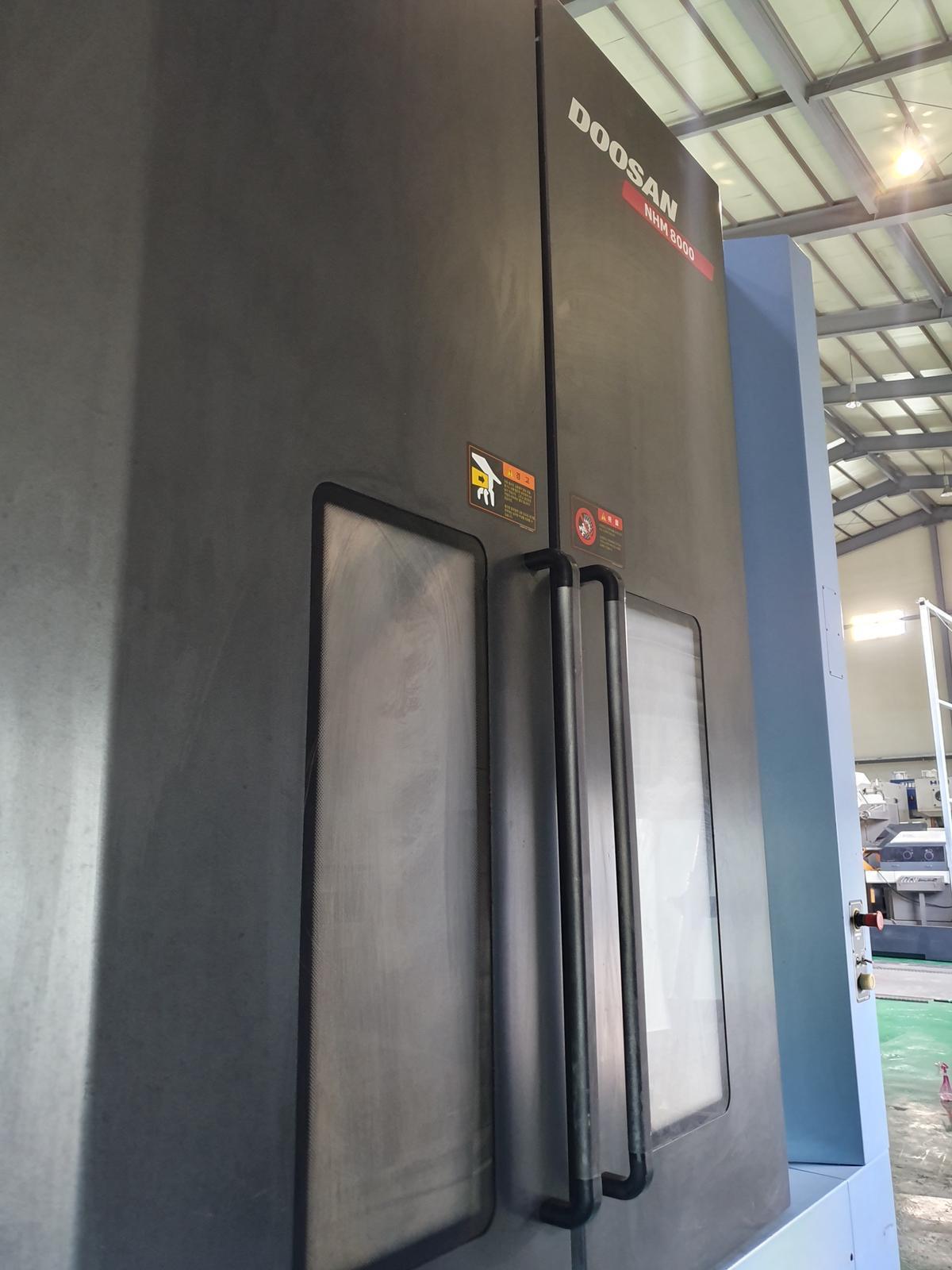

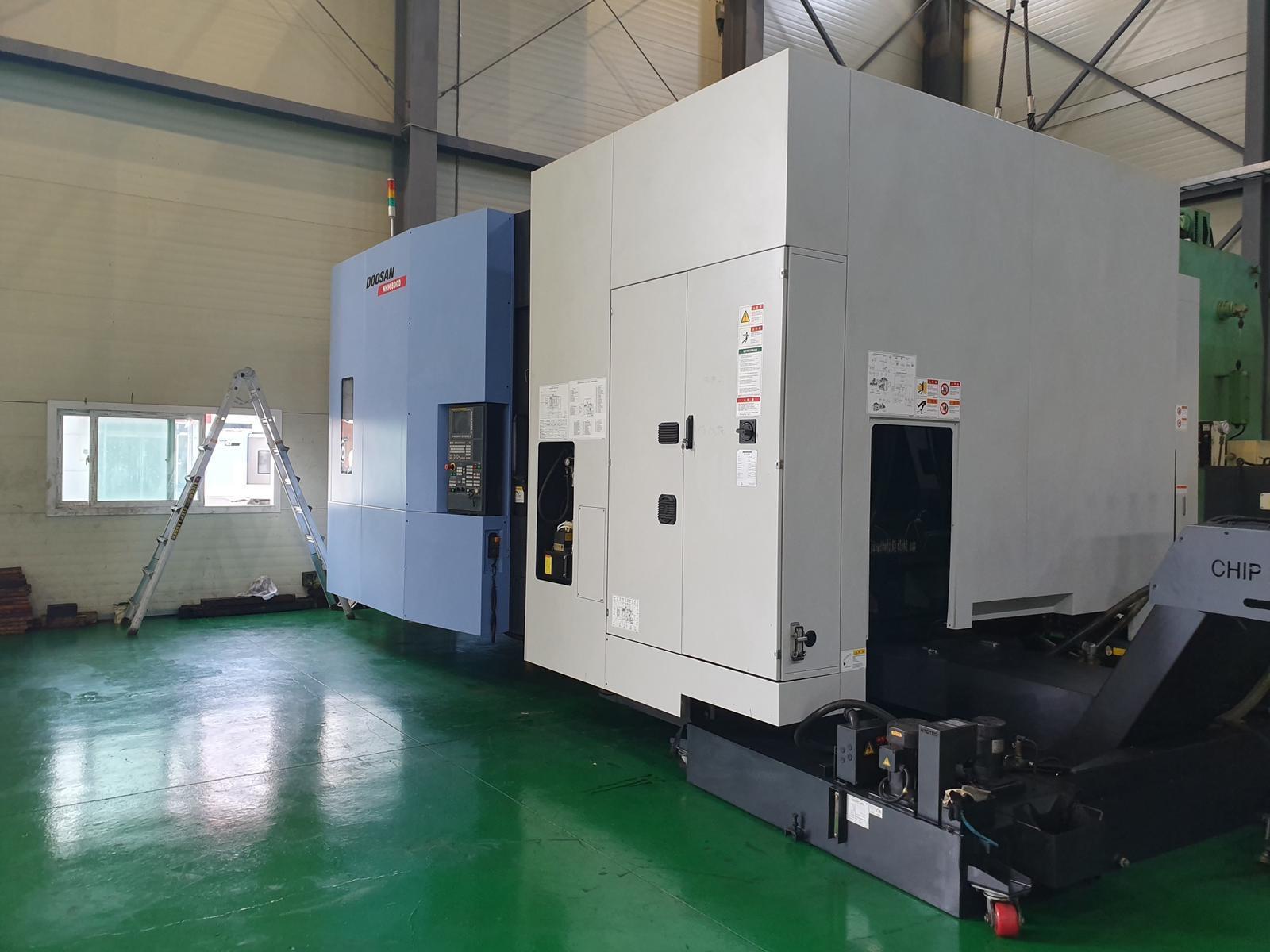

Doosan NHM 8000 CNC Horizontal Machining Center
Machine Specifications
Year
2015
Control Type
Fanuc 31i-MB
# Axis
4
Pallet Length
31.5"
Pallet Width
31.5"
Pallet Capacity
4,409 pounds
Pallet Indexing (B-Axis)
X-Axis Travel
55.1"
Y-Axis Travel
41.3"
Z-Axis Travel
47.2"
Rapid Traverse Rate (X/Y/Z)
945 ipm
Spindle Taper
CAT 50
Spindle Speed
6,000 rpm
Spindle Motor (HP)
40 hp
Tool Changer Capacity
60
Coolant Through Spindle
yes
Machine Dimensions
326" x 171" x 148"
Machine Weight
56,250 pounds

Equipped With:

- Fanuc 31i-MB Control
- 1° B Axis Indexing
- 200 Tool Offset Pairs
- Embedded Ethernet
- AICC 200 Blocks
- Work Coordinate System (48 Pairs)
- Part Program Storage 2MB
- Doosan Tool Load Monitoring
- Chip Conveyor
- Coolant Tank & Pump

The Doosan NHM 8000 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
