Doosan Puma 240B - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Puma 240B
Year: 2007
Stock #: 13659 Sold
Highlights:
EQUIPPED WITH

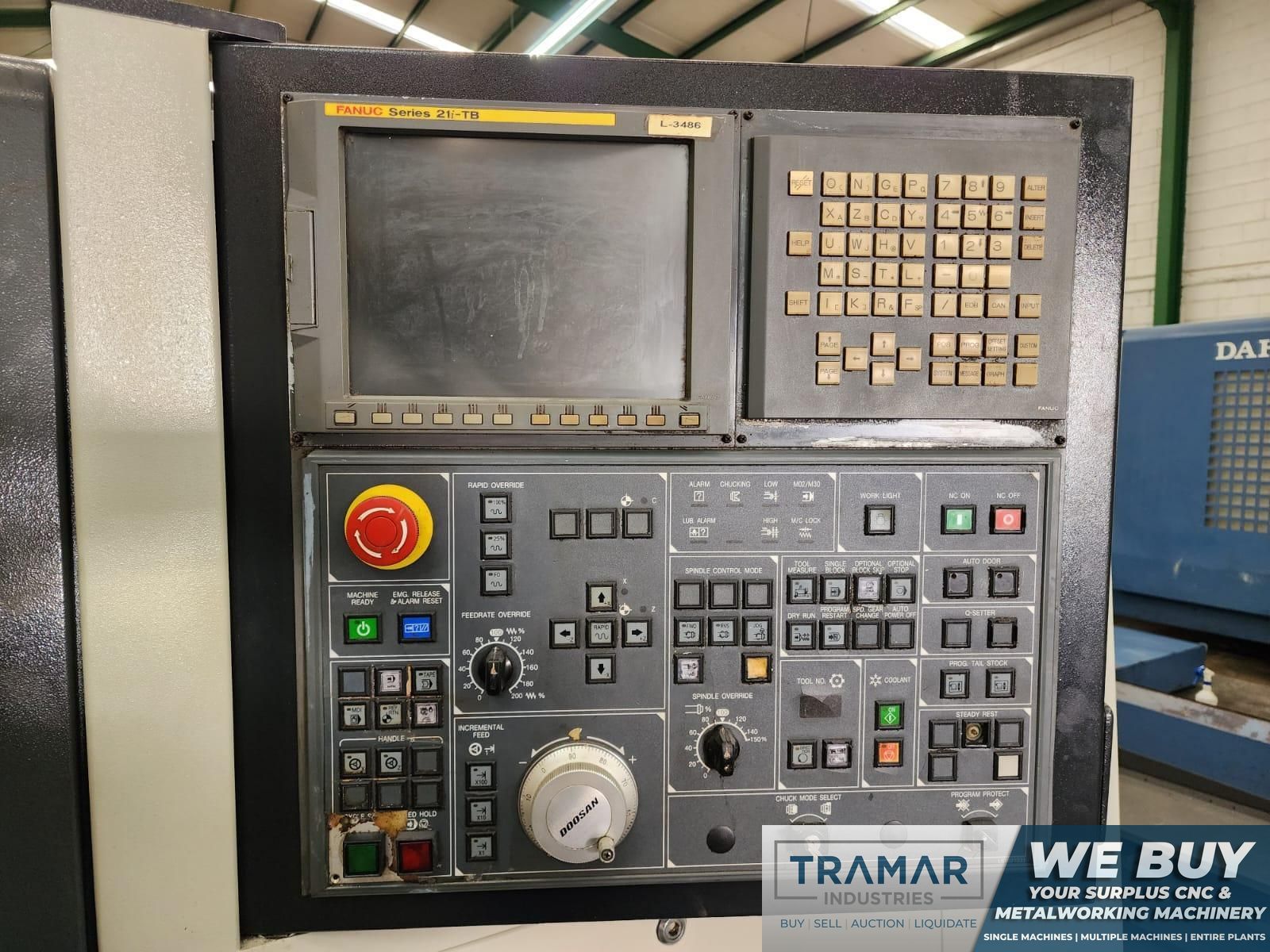

- Fanuc 21i-TB
- Chip Conveyor
- Coolant Tank
- Tool Presetter
- Parts Catcher
- Manual Guide I
- Custom Macro B
- Embedded Ethernet
- Graphic Function
- Tool Geometry/Wear Offset
- Tool Offset Pairs (64 pairs)

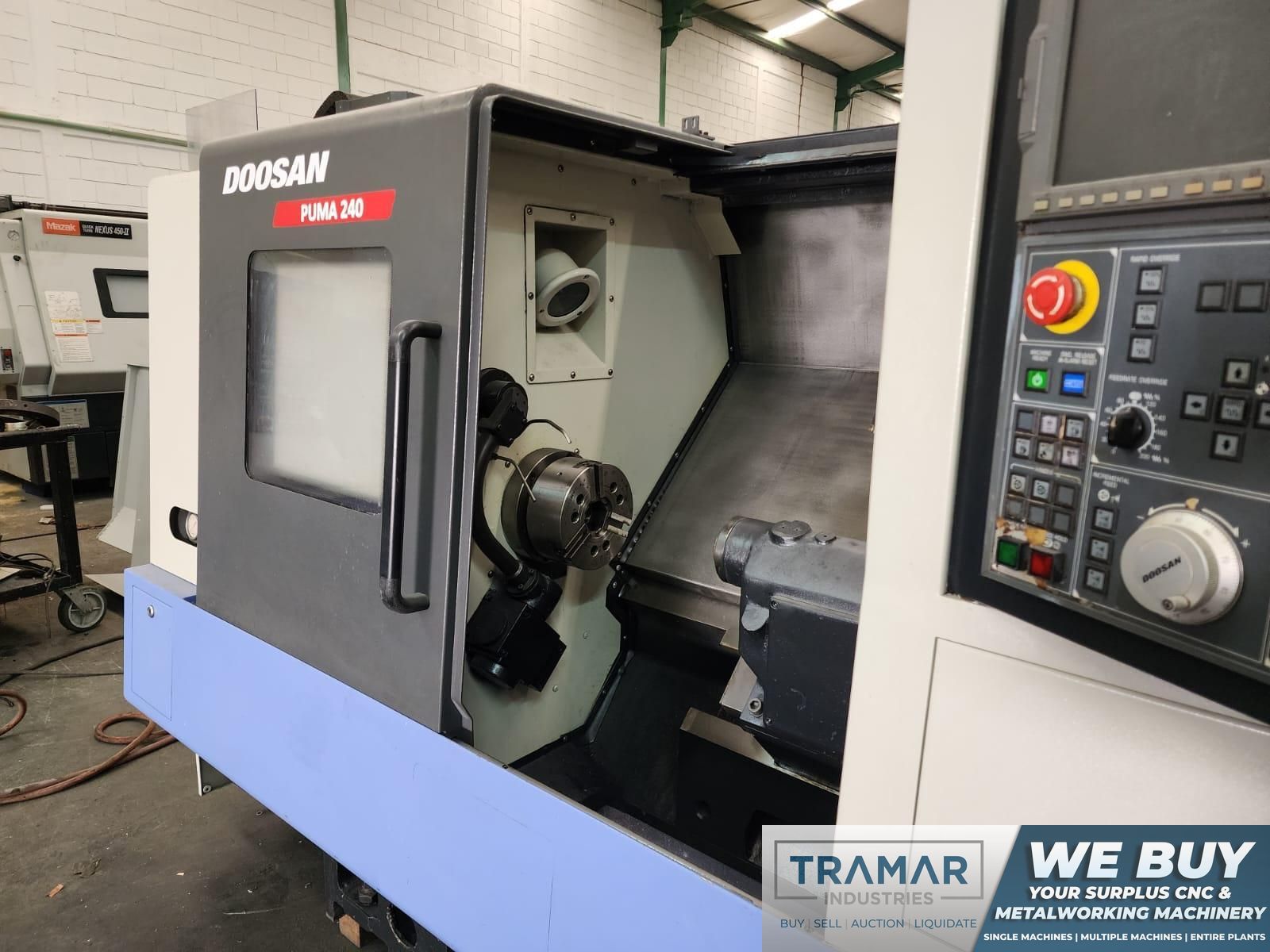

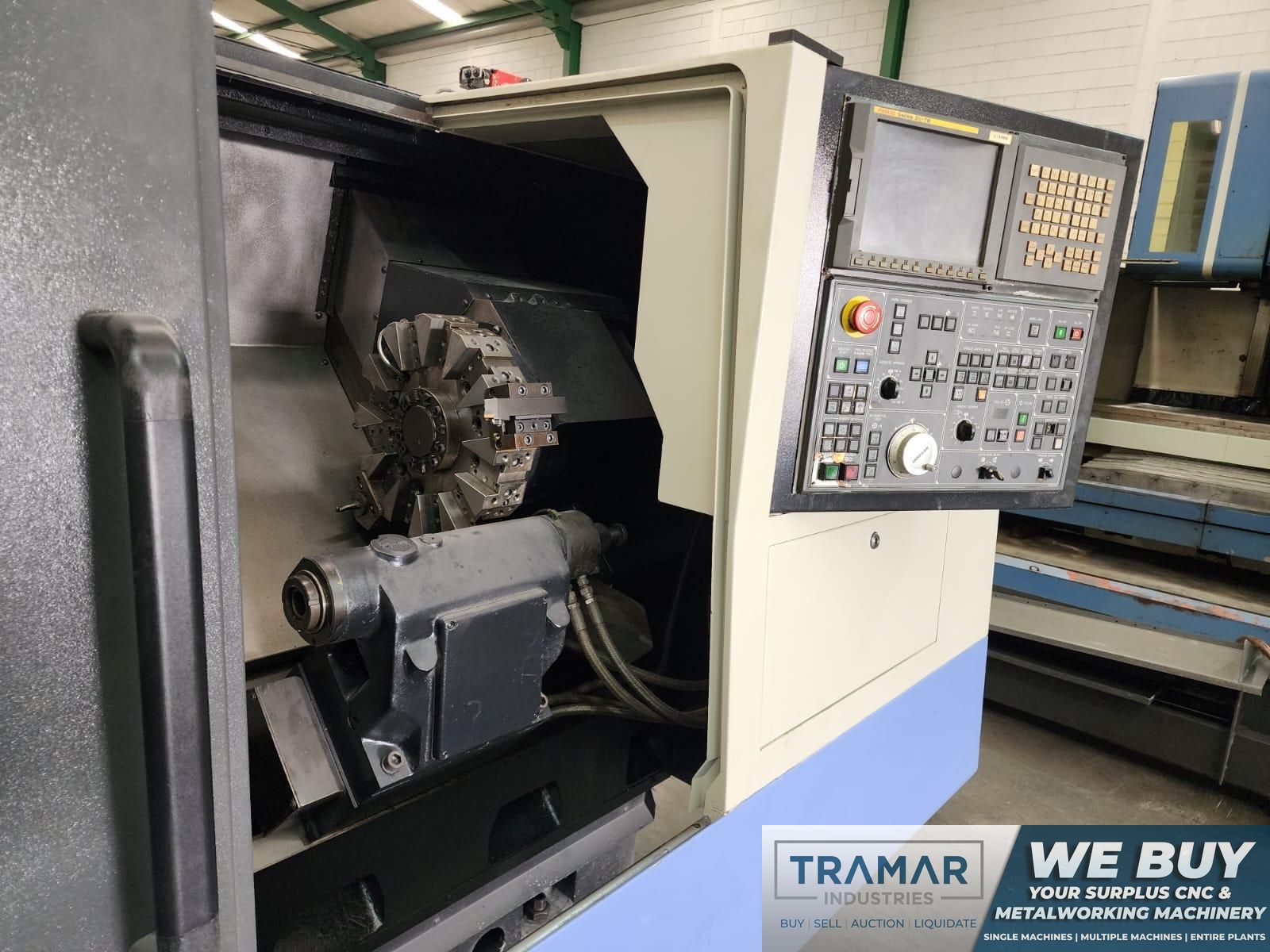

Doosan Puma 240B CNC Horizontal Lathe for sale 2007
Machine Specifications
CNC Control
yes
CNC Control
Fanuc 21i-TB
# Axis
2
Swing
22.4"
Turning Diameter
16.5"
Center Distance
25.5"
Chuck Size
8"
Bar Capacity
2.5"
X Axis Travel
9.5"
Z Axis Travel
26.77"
Spindle Nose
A2-8
Spindle Speed
3,500 rpm
Main Motor
25 HP
Live Tooling
no
Tailstock
yes
Y Axis
no
Sub Spindle
no
Turret Capacity
12
Machine Weight
10,000 pounds
