Doosan Puma 240LB - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Puma 240LB
Year: 2003
Stock #: 14050 Sold
Highlights:
Fanuc CNC Control
Tool Presetter
Parts Catcher
Tailstock

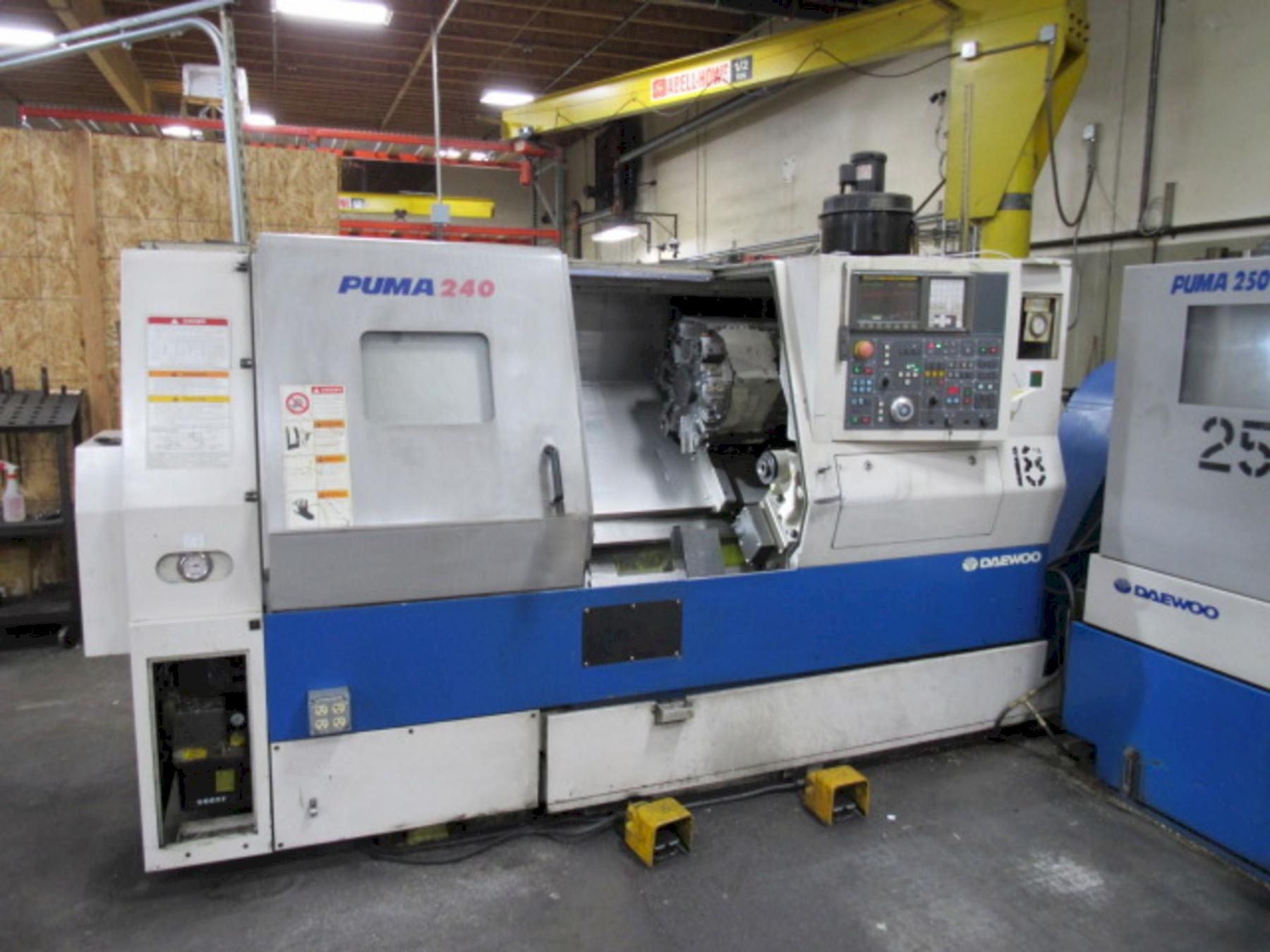

Doosan Puma 240LB Used CNC Lathe For Sale - 2003
Machine Videos
Machine Specifications
CNC Control
yes
CNC Control
Fanuc i-Series
# Axis
2
Swing
21.8"
Turning Diameter
13.8"
Center Distance
26.8"
Chuck Size
10"
Bar Capacity
2.54"
X Axis Travel
9.53"
Z Axis Travel
22.8"
Rapid Traverse (X/Z)
787/945 ipm
Spindle Nose
A2-6
Spindle Speed
4,500 rpm
Main Motor
25 hp
Tailstock
yes
Live Tooling
no
Y Axis
no
Sub Spindle
no
Turret Capacity
12
Machine Dimensions
131" x 77" x 80"
Machine Weight
10,500 pounds

Equipped With:

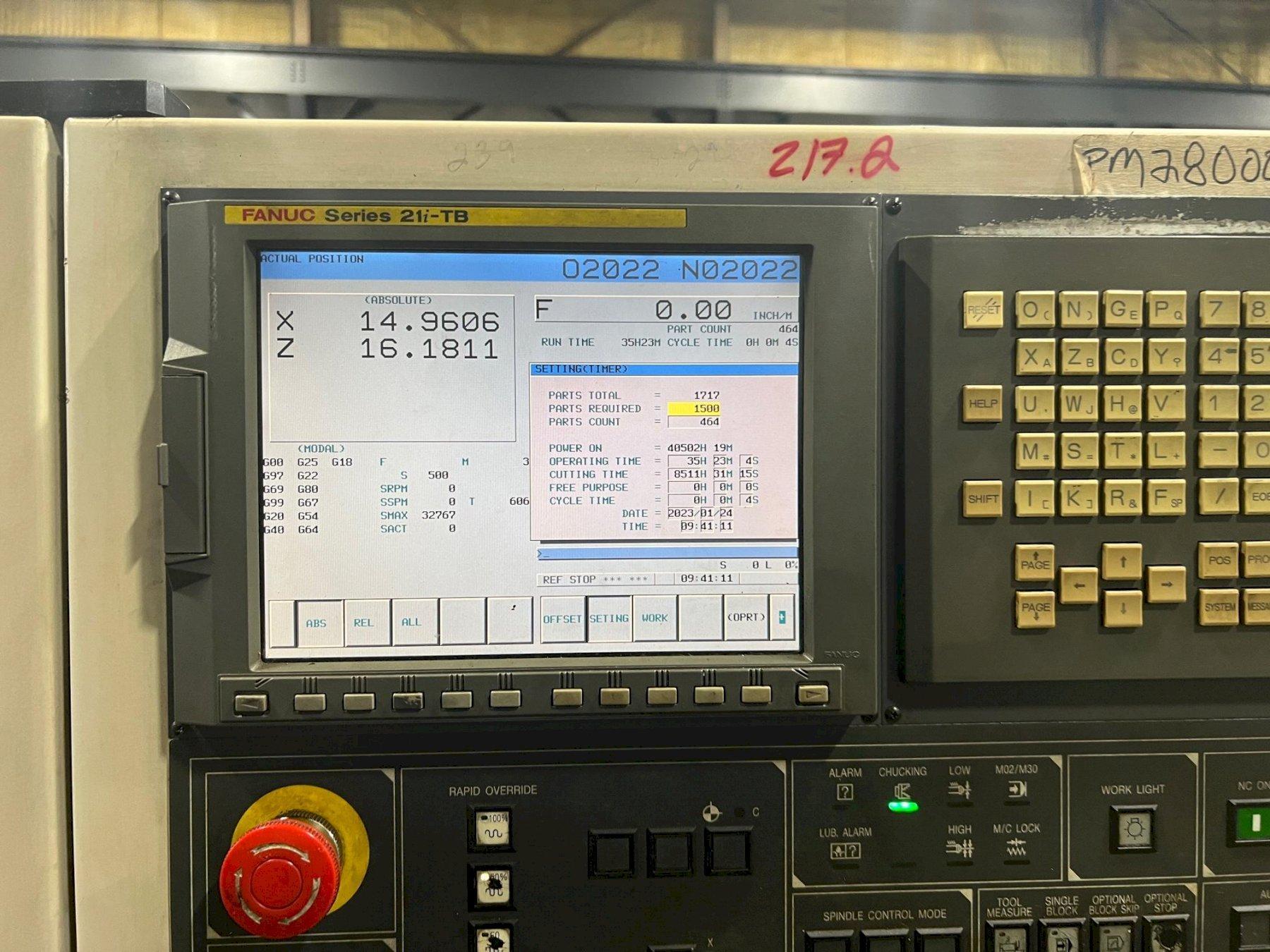

- Fanuc i-Series CNC Control
- Chip Conveyor
- Coolant Tank
- Tailstock
- Parts Catcher

The Doosan Puma 240LB is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
