Doosan PUMA 2600LY - Lathes (3-Axis or More)

Share Machine
Specifications Print Specs
Model: PUMA 2600LY
Year: 2012
Stock #: B1544 Sold
Highlights:

Doosan Puma 2600LY CNC Lathe,  Fanuc 0iTD, 12
Machine Specifications
CNC Control
yes

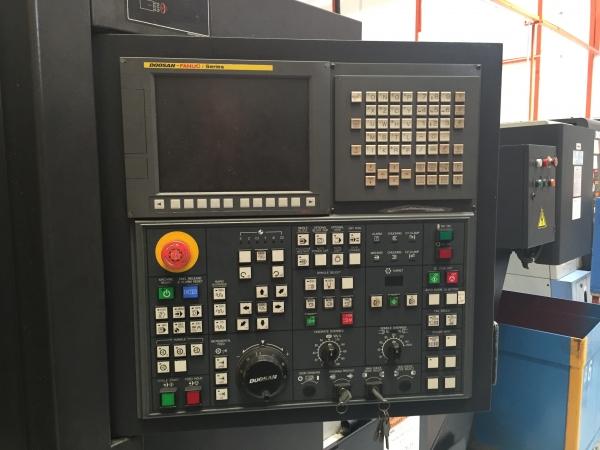

Control Type
Fanuc OiTD
# Axis
4

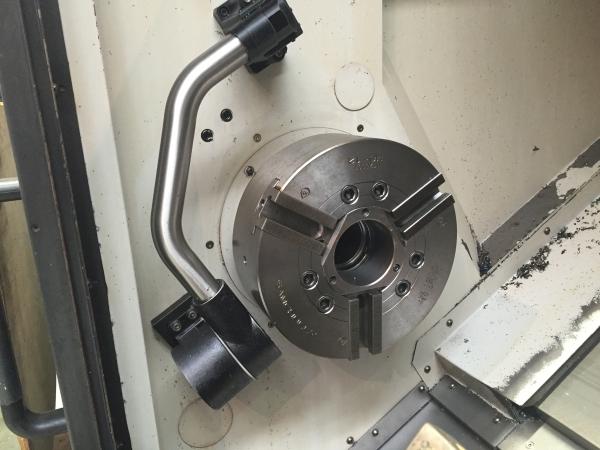

Chuck Size
12"
Swing
30.7"
Turning Diameter
14.8"
Center Distance
50.4"
Bar Capacity
3.0"
X Axis Travel
10.2"
Z Axis Travel
53.1"
Y Axis (Yes / No)
yes
Spindle Speed (RPM)
2,800
Main Motor
25/30 Horsepower
Live Milling (Yes / No)
yes
Live Milling Speed (RPM)
5,000
Live Milling Motor
7.5 Horsepower

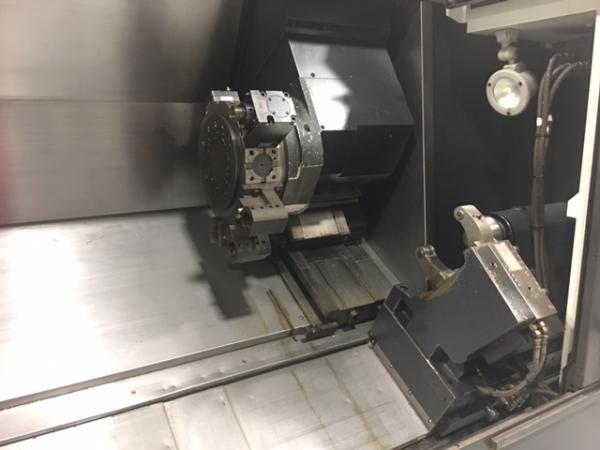

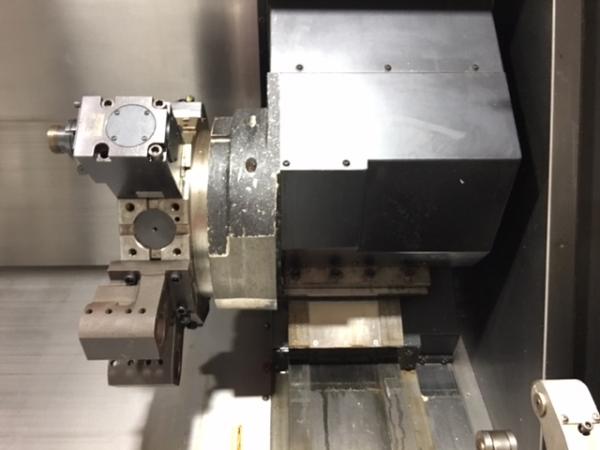

Turret Capacity
12
Tailstock (Yes/No)
yes

Equipped With:

C Axis
Y Axis
SMW Hydraulic Steady Rest
Tool Pre-setter
Ethernet
Programmable Tailstock
(1) Axial (1) Radial Live Tool Holder
(3) Boring Bar Holders, Misc Wedge style Toolholders

The Doosan PUMA 2600LY is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
