Doosan Puma 300C - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: Puma 300C
Year: 2011
Stock #: 15127
Highlights:
Fanuc i Series CNC Control
Tool Presetter
Chip Conveyor
Tailstock

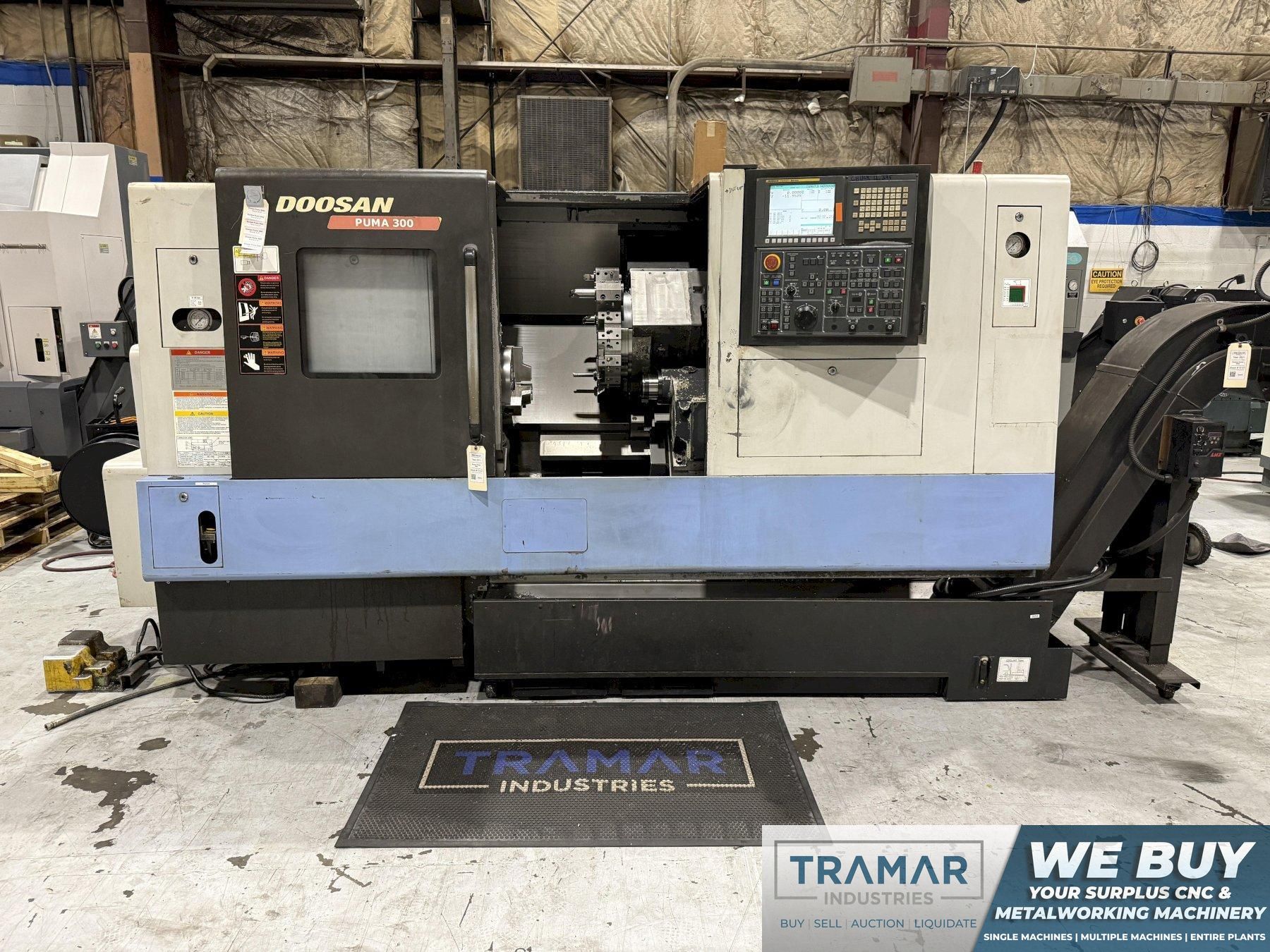

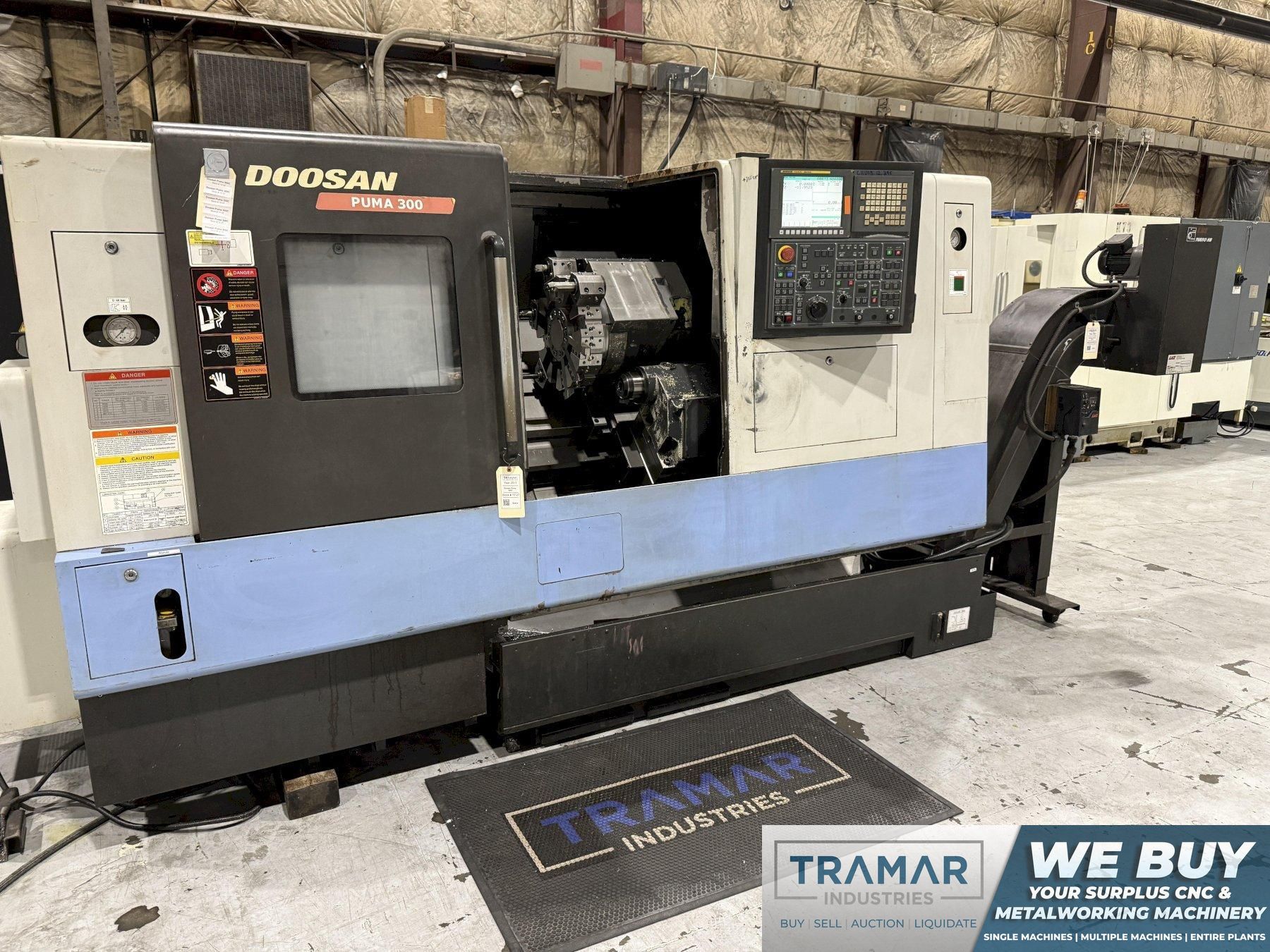

Doosan Puma 300C CNC Lathe 2011 For Sale
Machine Specifications
CNC Control
yes

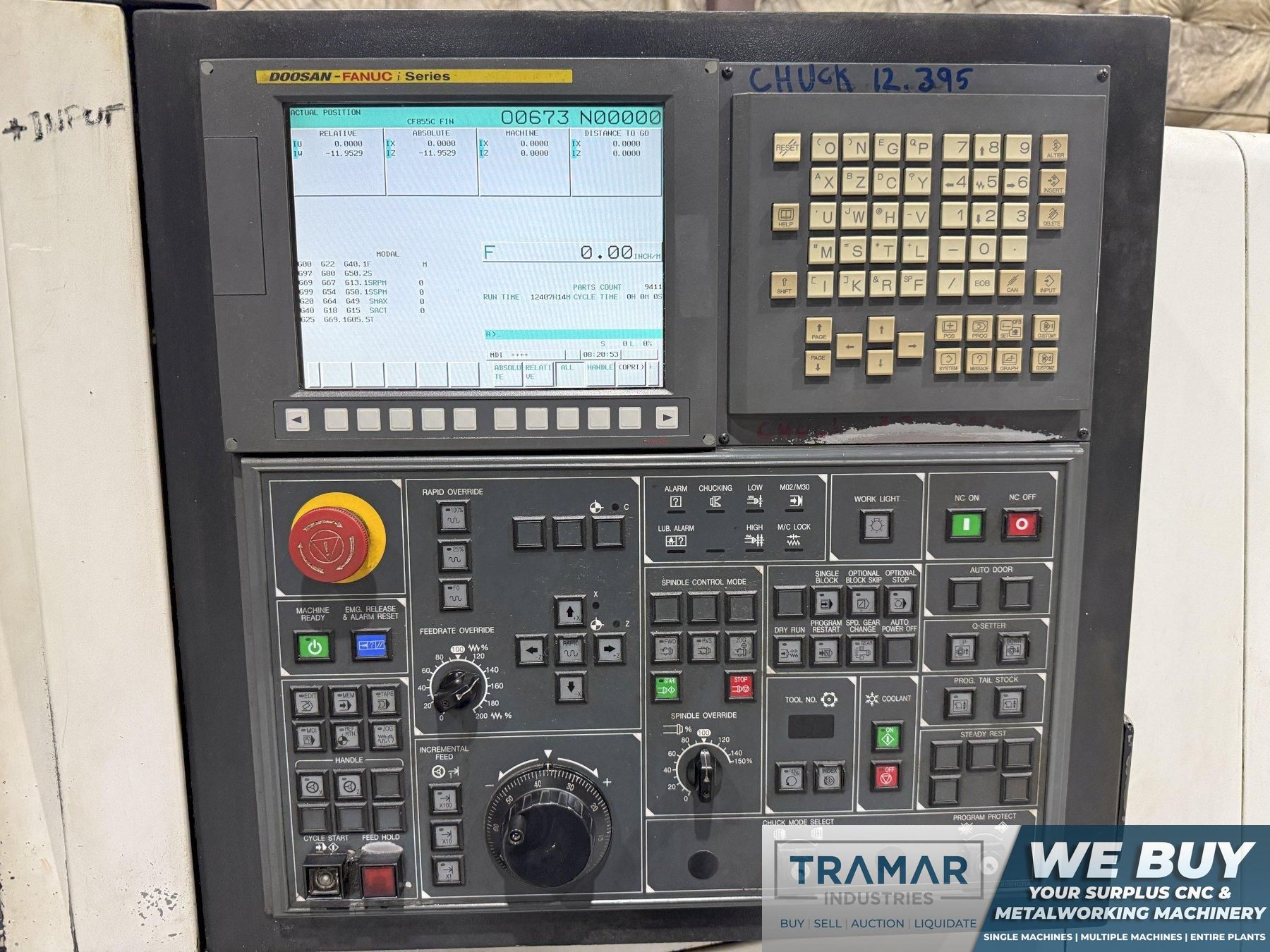

Control Type
Fanuc 0i-TD
# Axis
2
Swing
23.23"
Turning Diameter
17.72"
Center Distance
24.8"

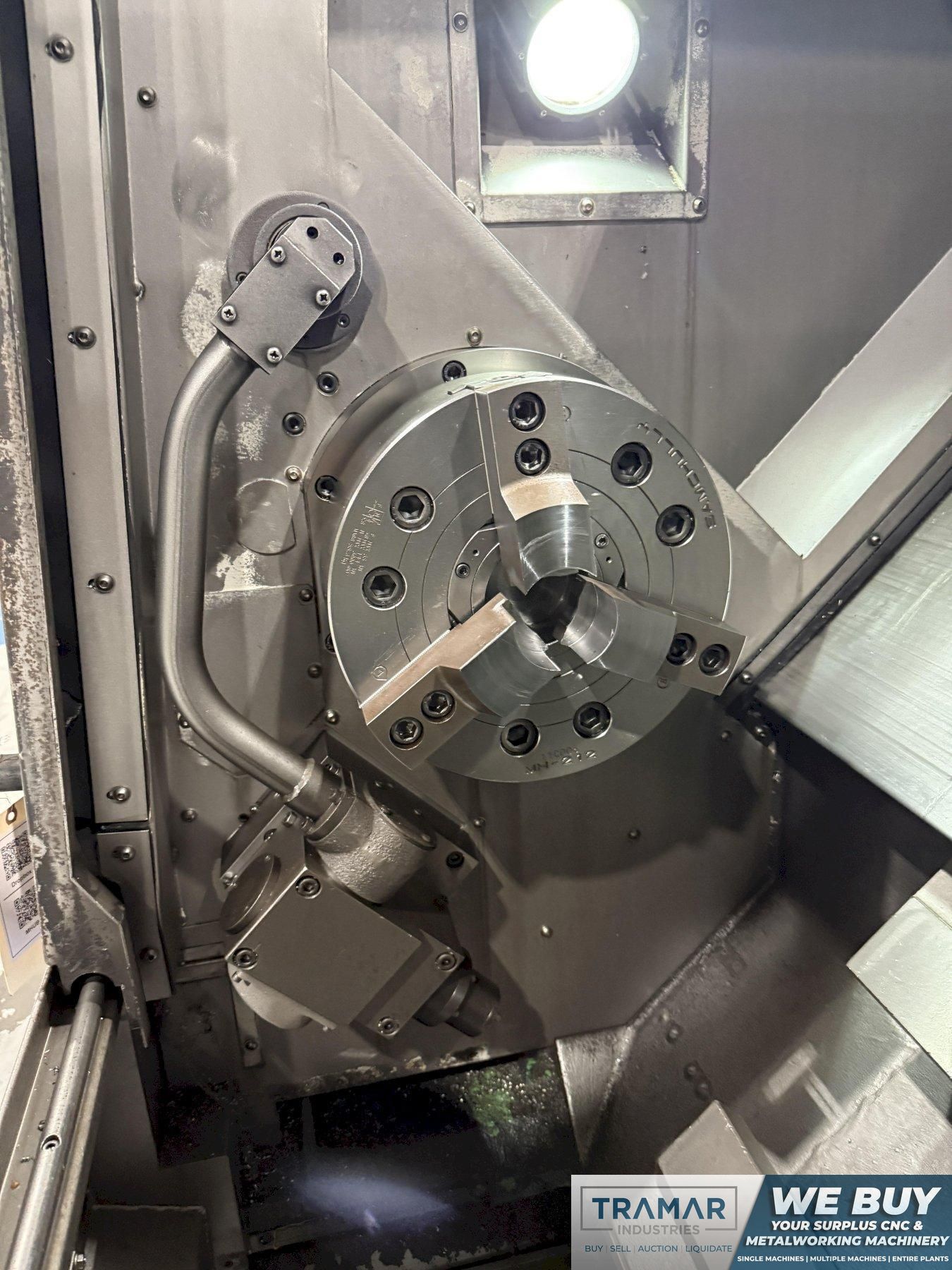

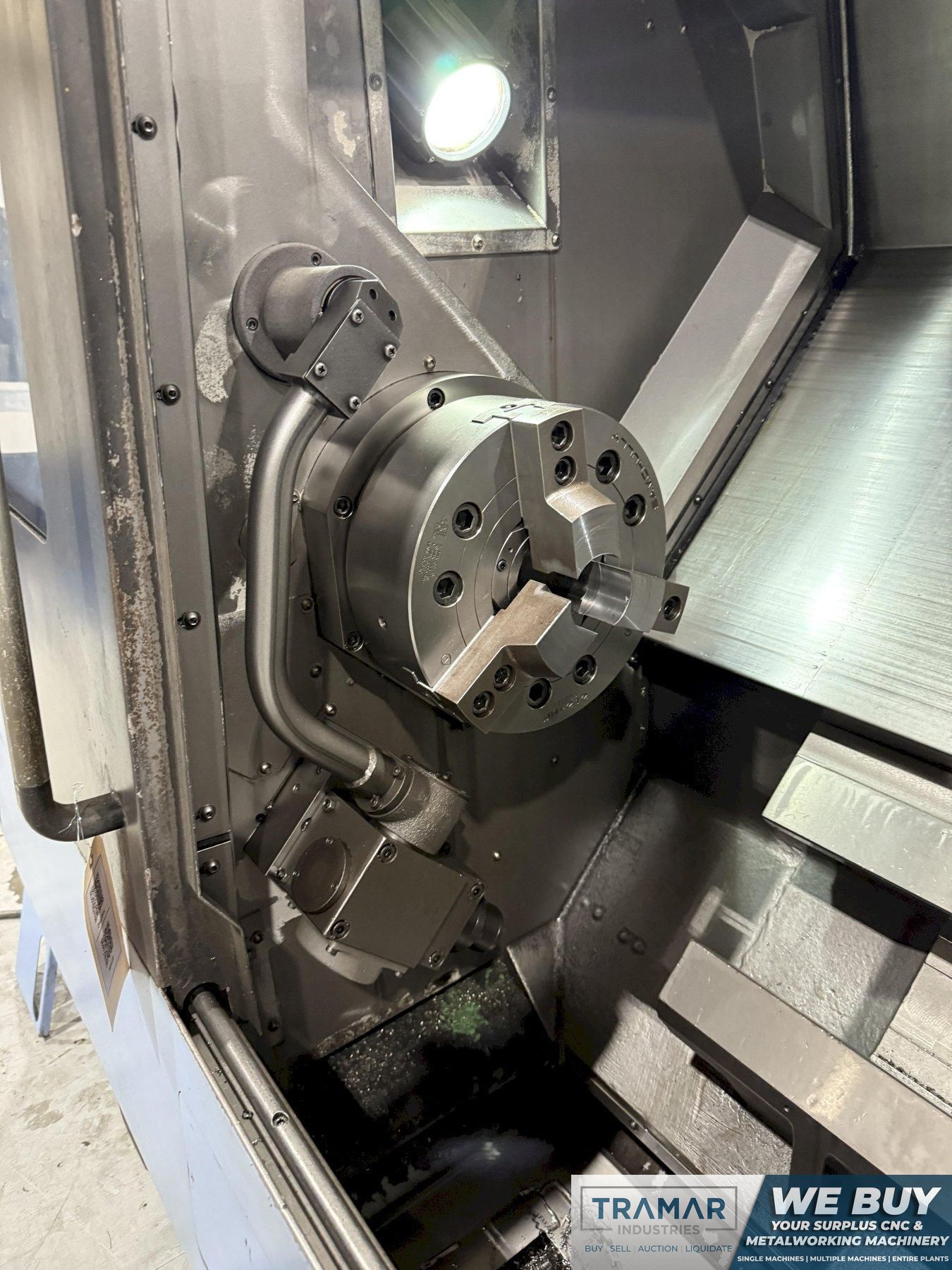

Chuck Size
12"
Bar Capacity
4"
X-Axis Travel
14.17"
Z-Axis Travel
28.34"
Rapid Traverse (X/Z)
630/787 ipm
Spindle Nose
A2-11
Spindle Speed
2,800 rpm
Main Motor
30 hp

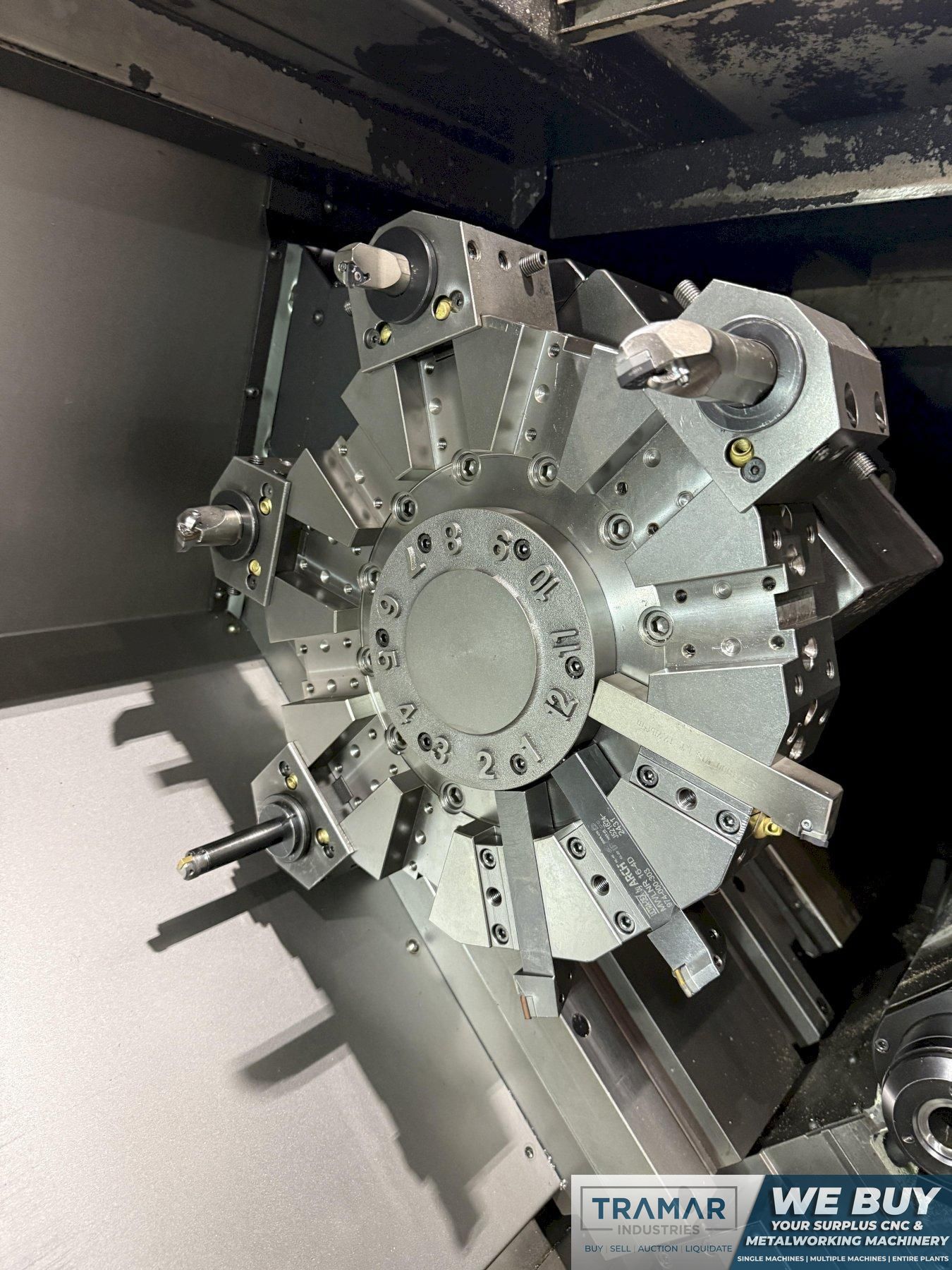

Turret Capacity
12

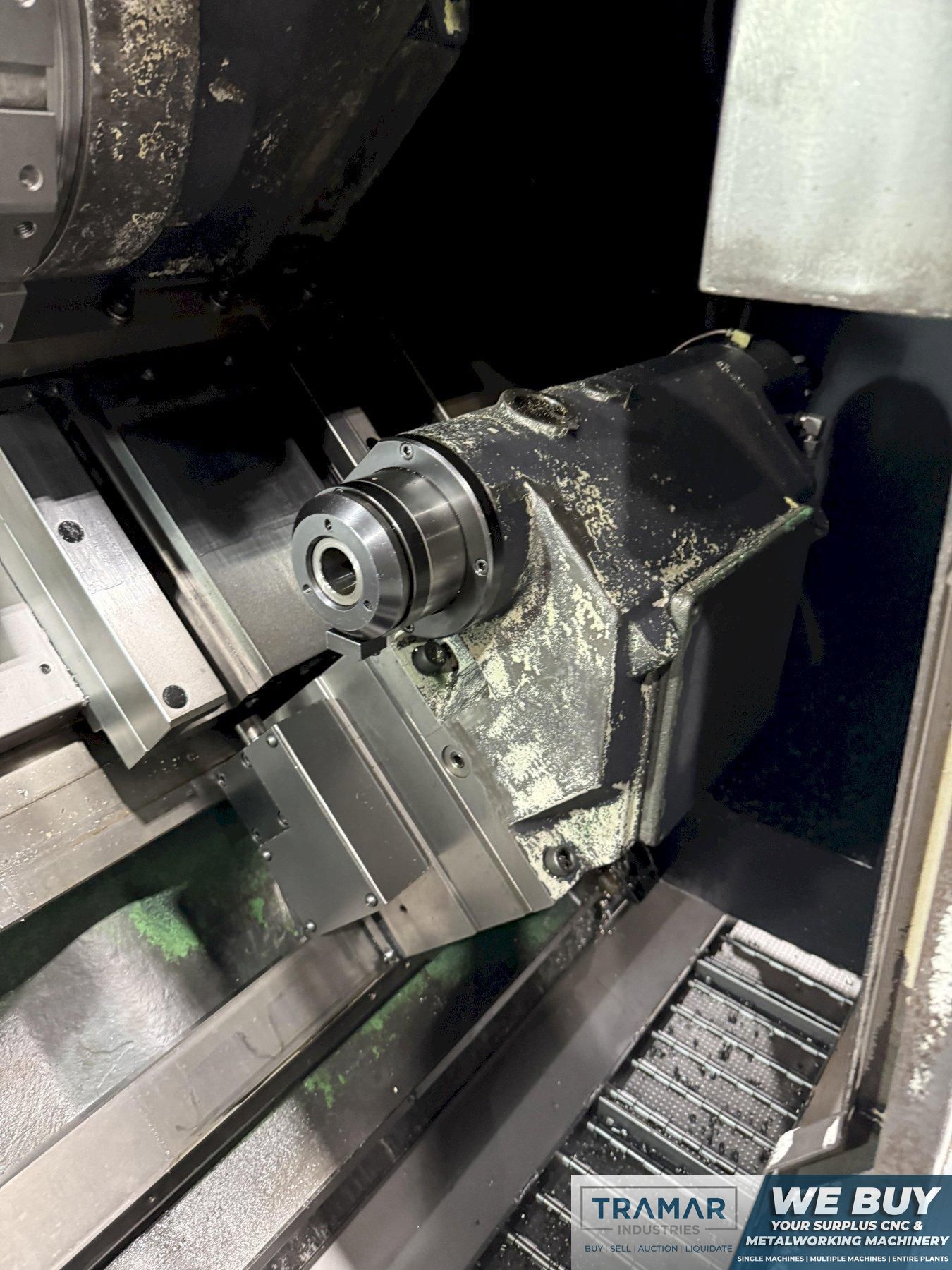

Tailstock (Yes/No)
yes
Live Tooling
no
Y Axis (Yes / No)
no
Sub Spindle
no
Machine Dimensions
148" x 70" x 75"
Machine Weight
12,700 pounds

Equipped With:

- Fanuc 0i-TD CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Automatic Hydraulic Tool Presetter
- Programmable Tailstock

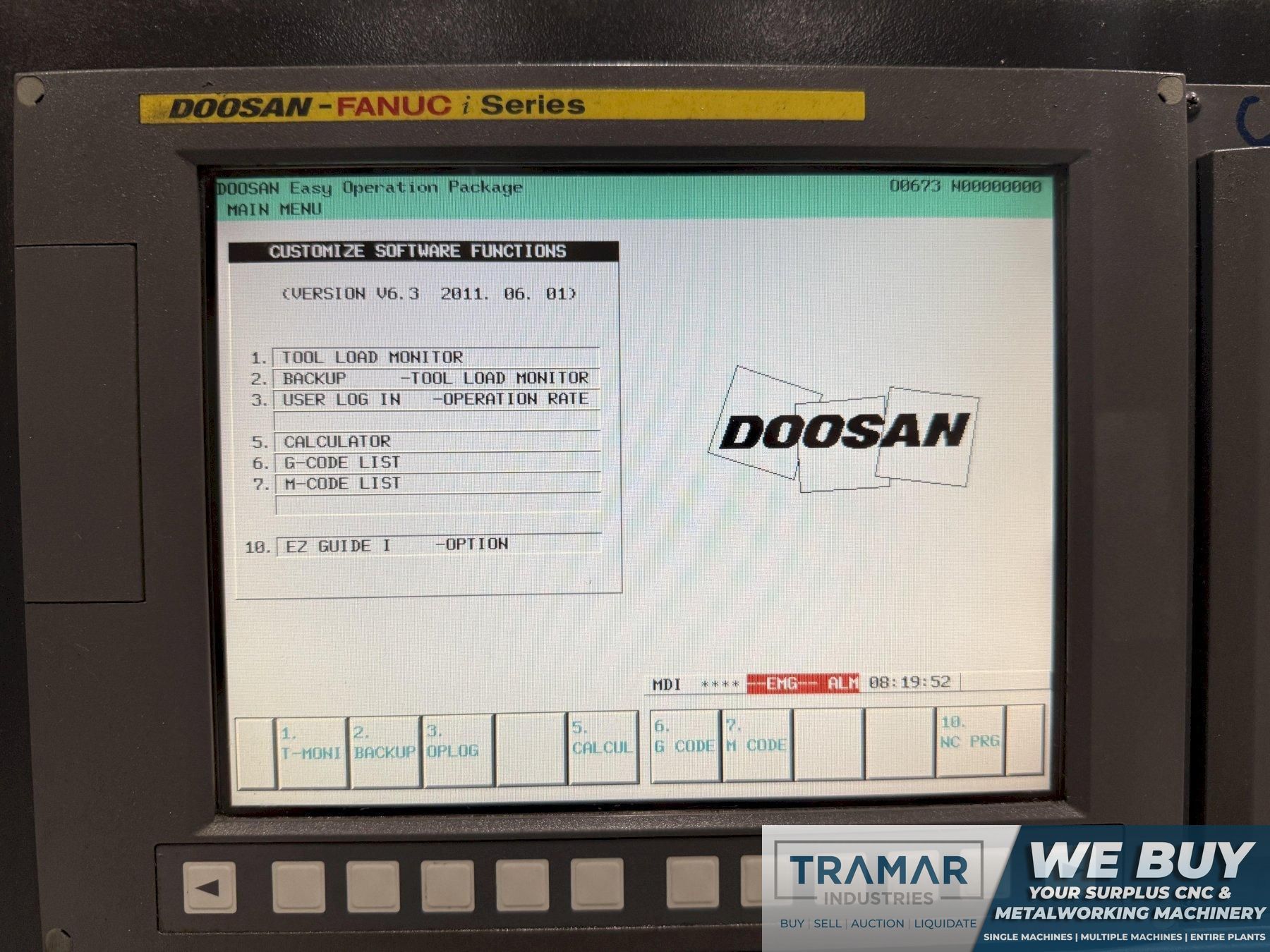

- EZ Guide i (Manual Guide i)
- Bar Feeder Interface
- 64 Tool Offset Pairs
- Parts Program Storage 400/ea
- 8 Pairs Work Coordinate System
- Doosan Tool Load Monitoring
- Cooljet Interface
- Embedded Ethernet

The Doosan Puma 300C is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
