Home
Buy Used Machinery
Horizontal Lathes

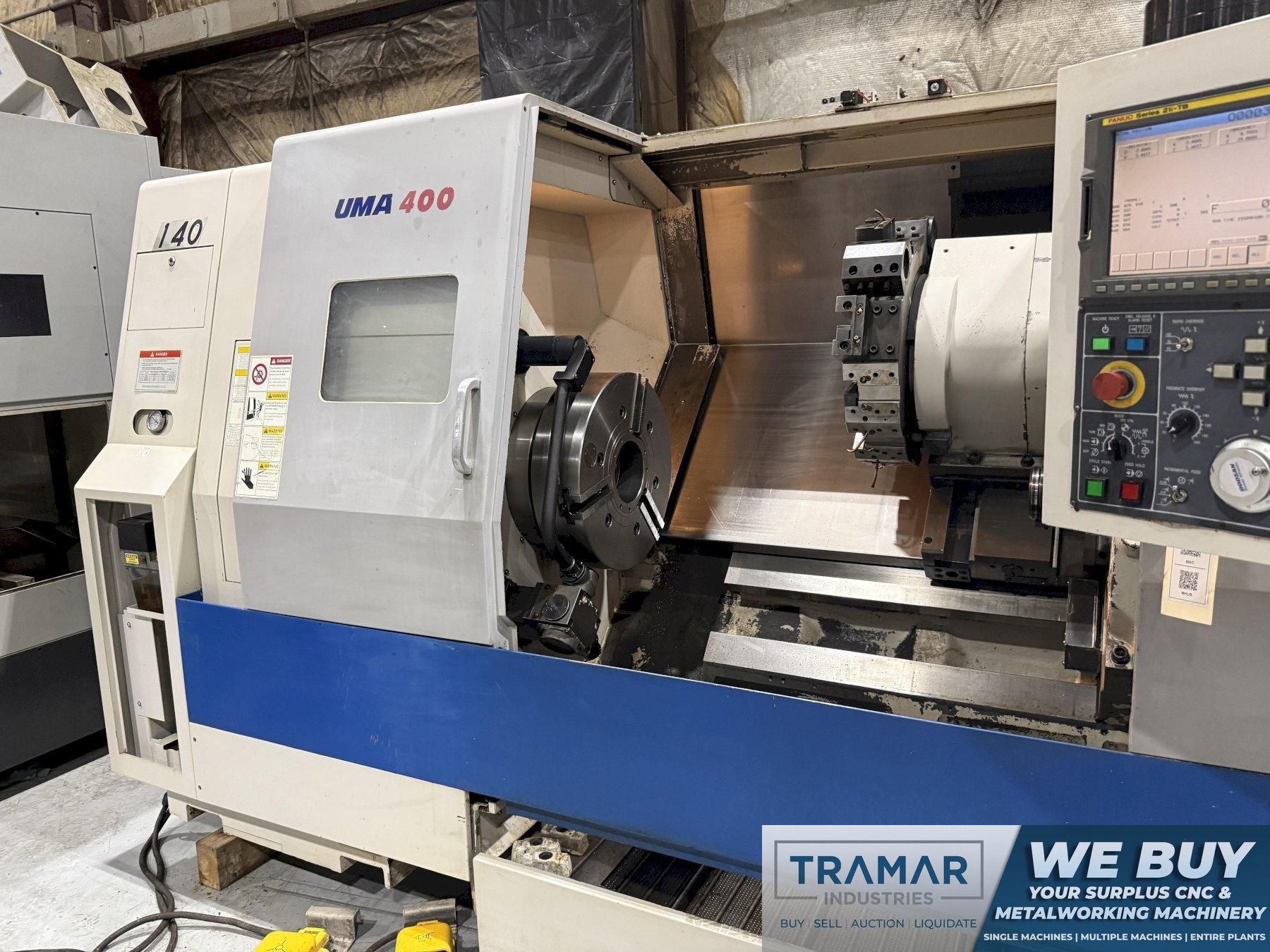

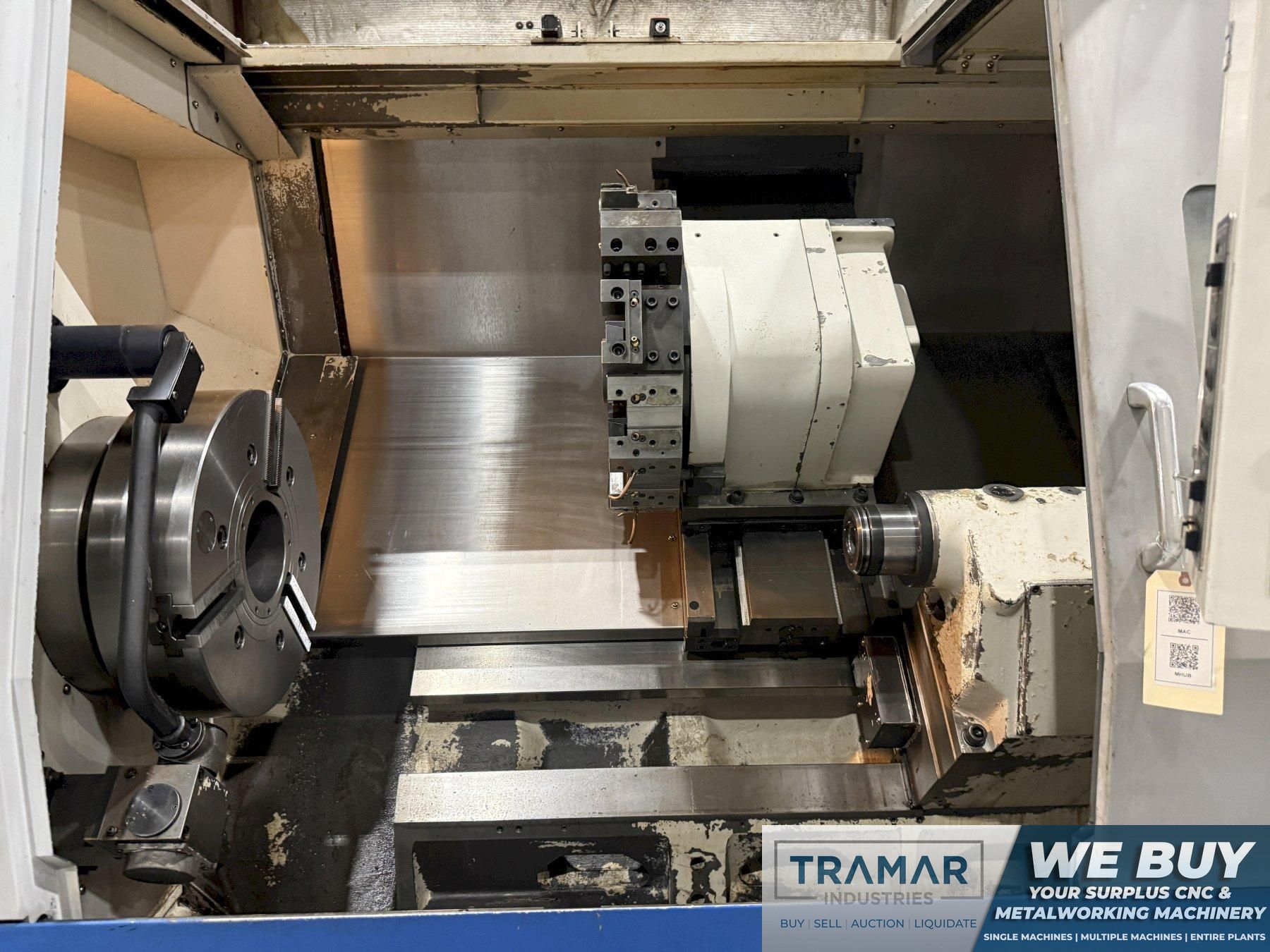

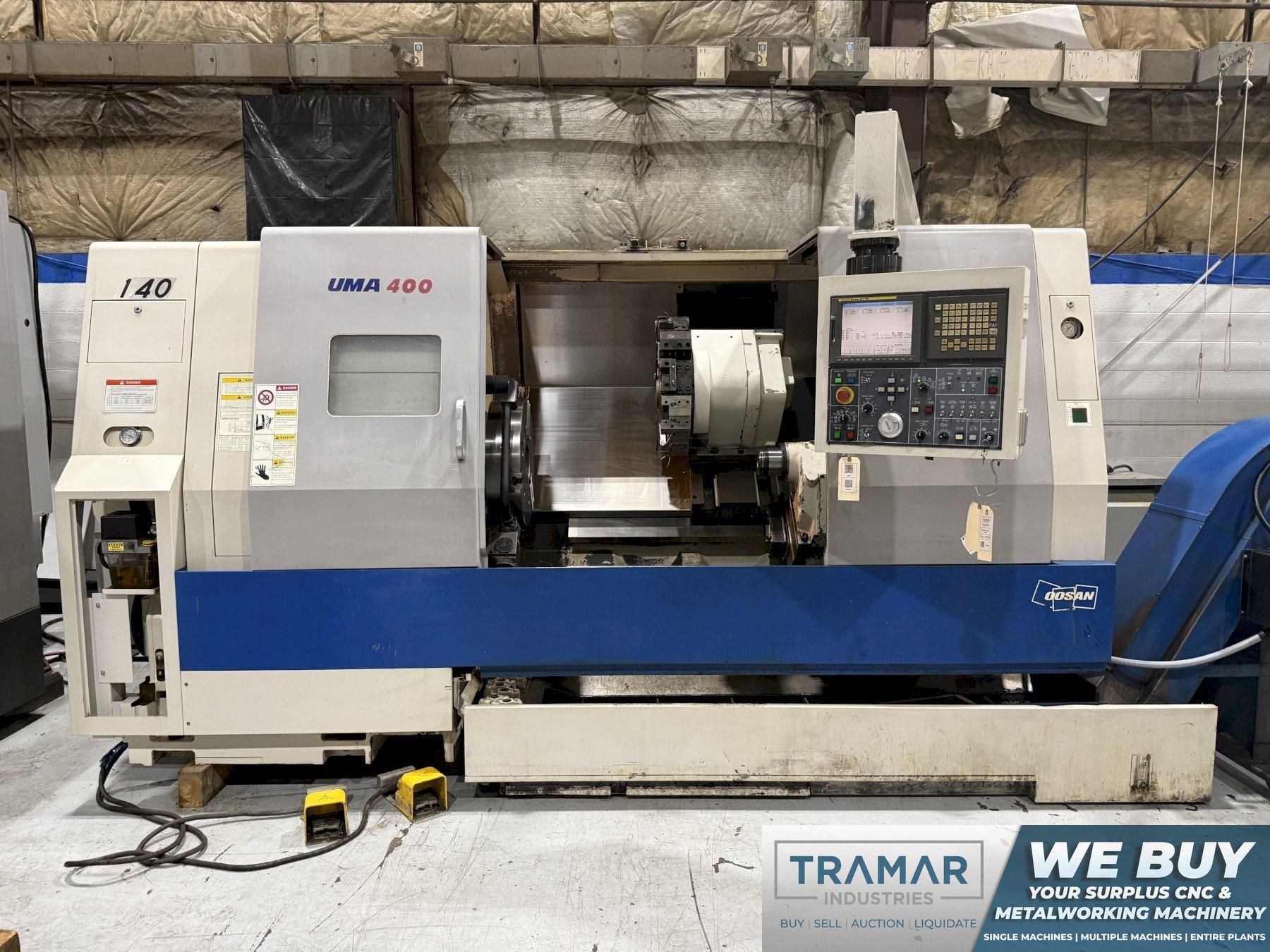

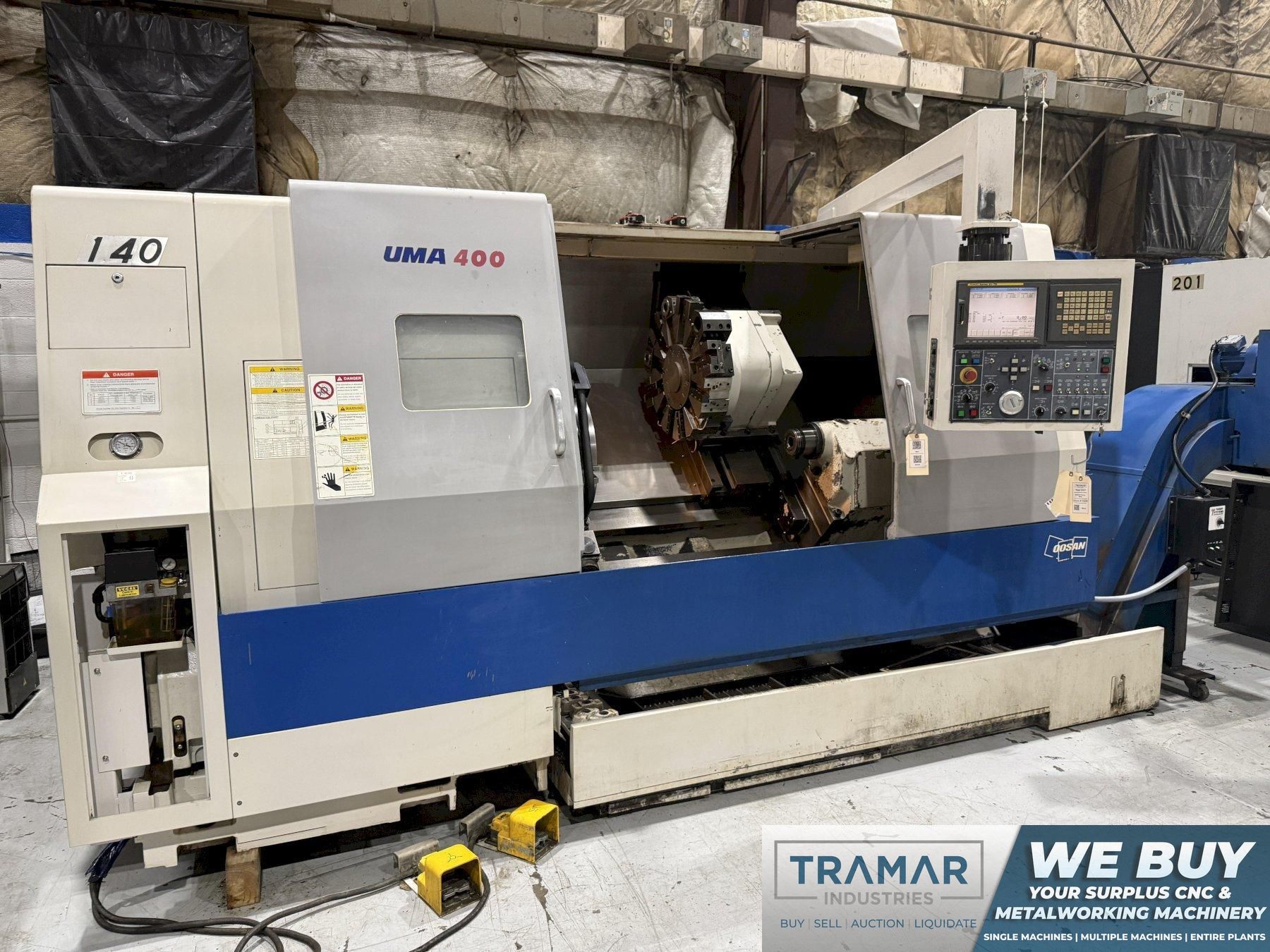

Doosan Puma 400C
Doosan Puma 400C - Horizontal Lathes
Request Quote
Share Machine
Specifications
Print Specs
Model:
Puma 400C
Year:
2007
Stock #:
15028
Type:
Horizontal Lathes
Manufacturer:
Used Doosan Machines
Highlights:
Fanuc 21i-TB CNC Control

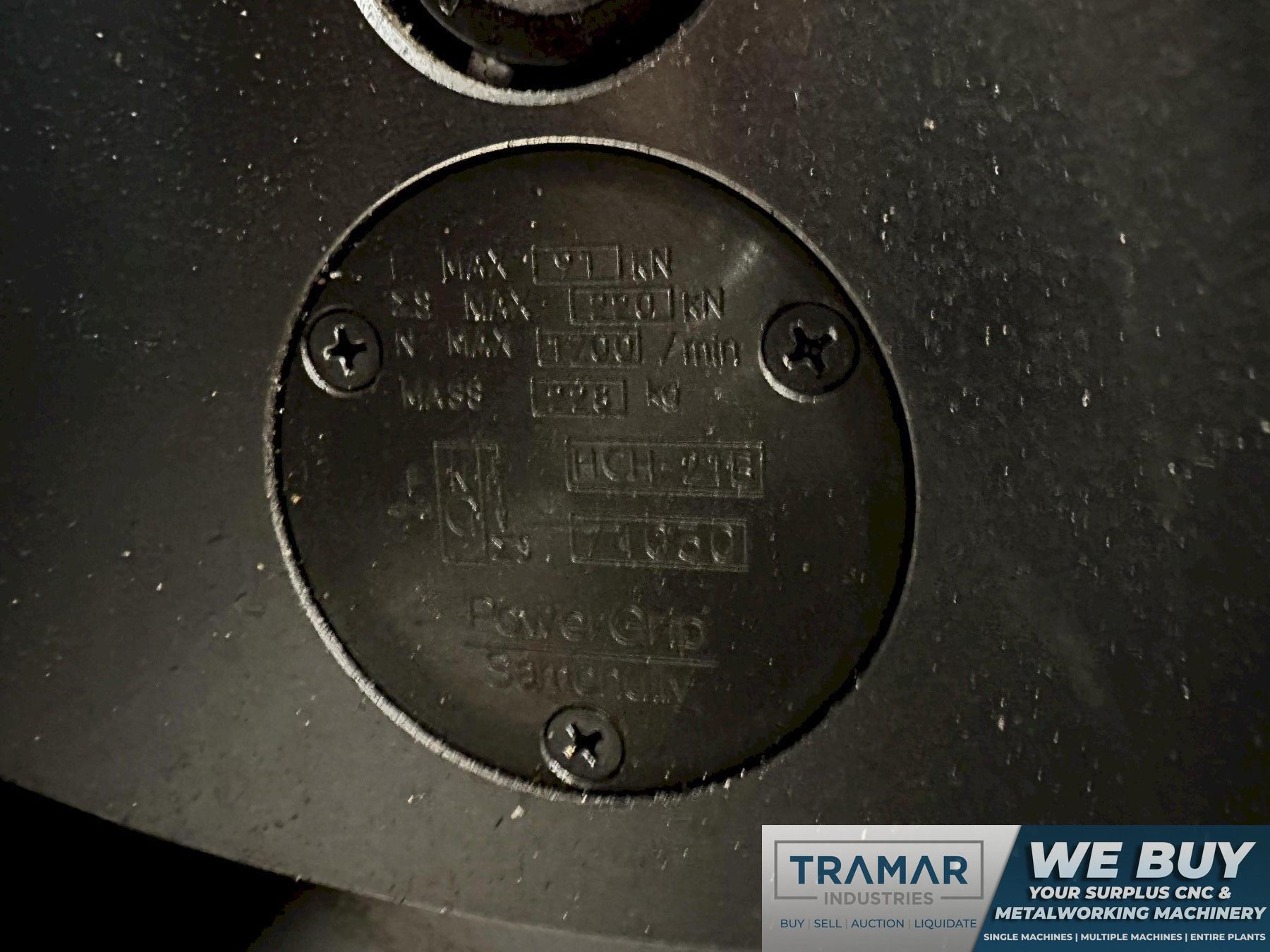

21" Chuck
Geared Spindle
Tailstock
Tool Presetter
6.5" Bar Capacity
Equipped With:
- Fanuc 21i-TB CNC Control
- Chip Conveyor
- Coolant Tank
- Tool Presetter
- Tailstock
*** VIDEO CLICK HERE ***
Machine
Videos
Machine
Specifications
Inch
Metric
Machine Specifications:
CNC Control
yes

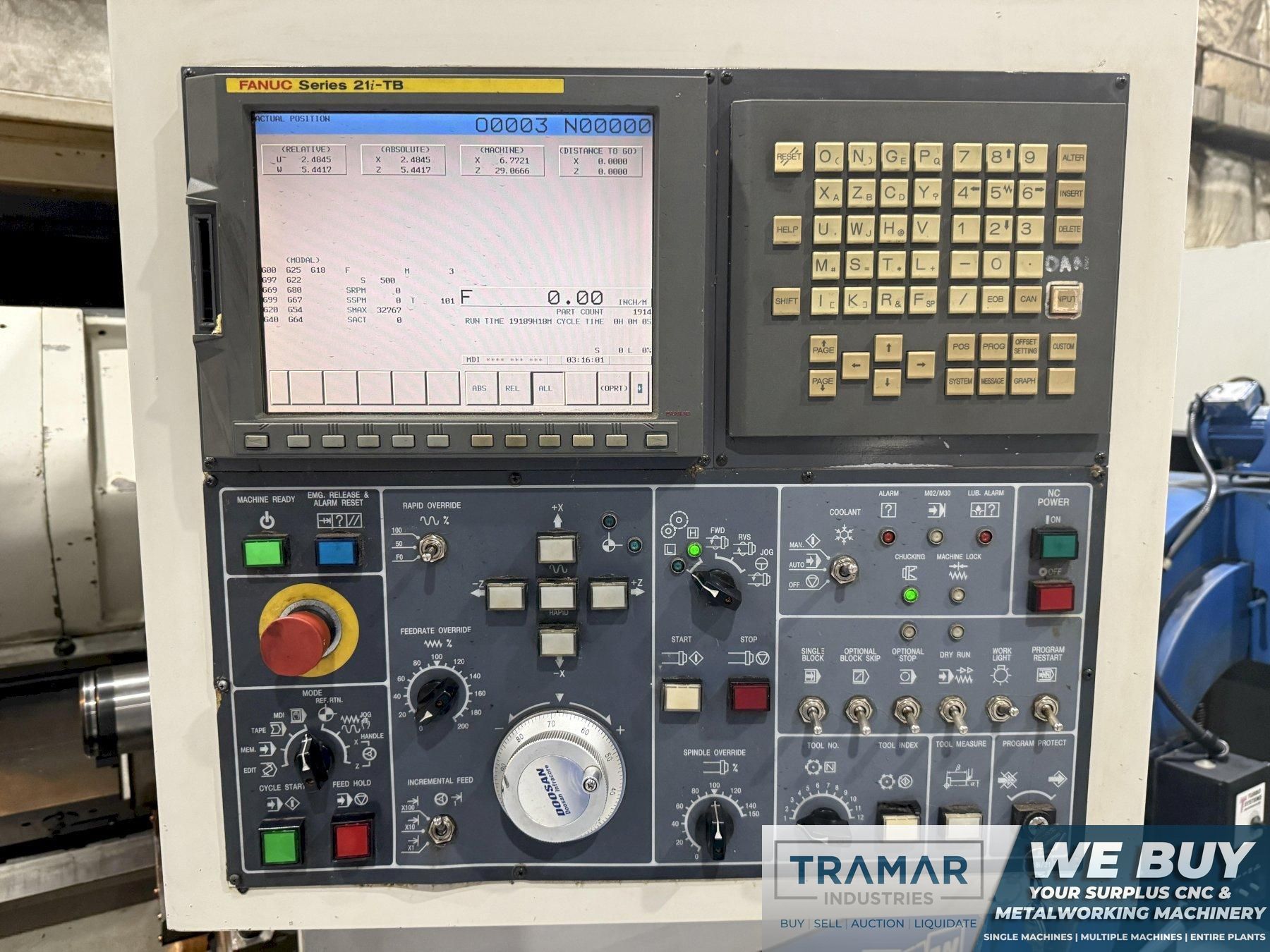

Control Type
Fanuc 21i-TB
# Axis
2
Swing
30.3"
Turning Diameter
21.7"
Center Distance
40.3"

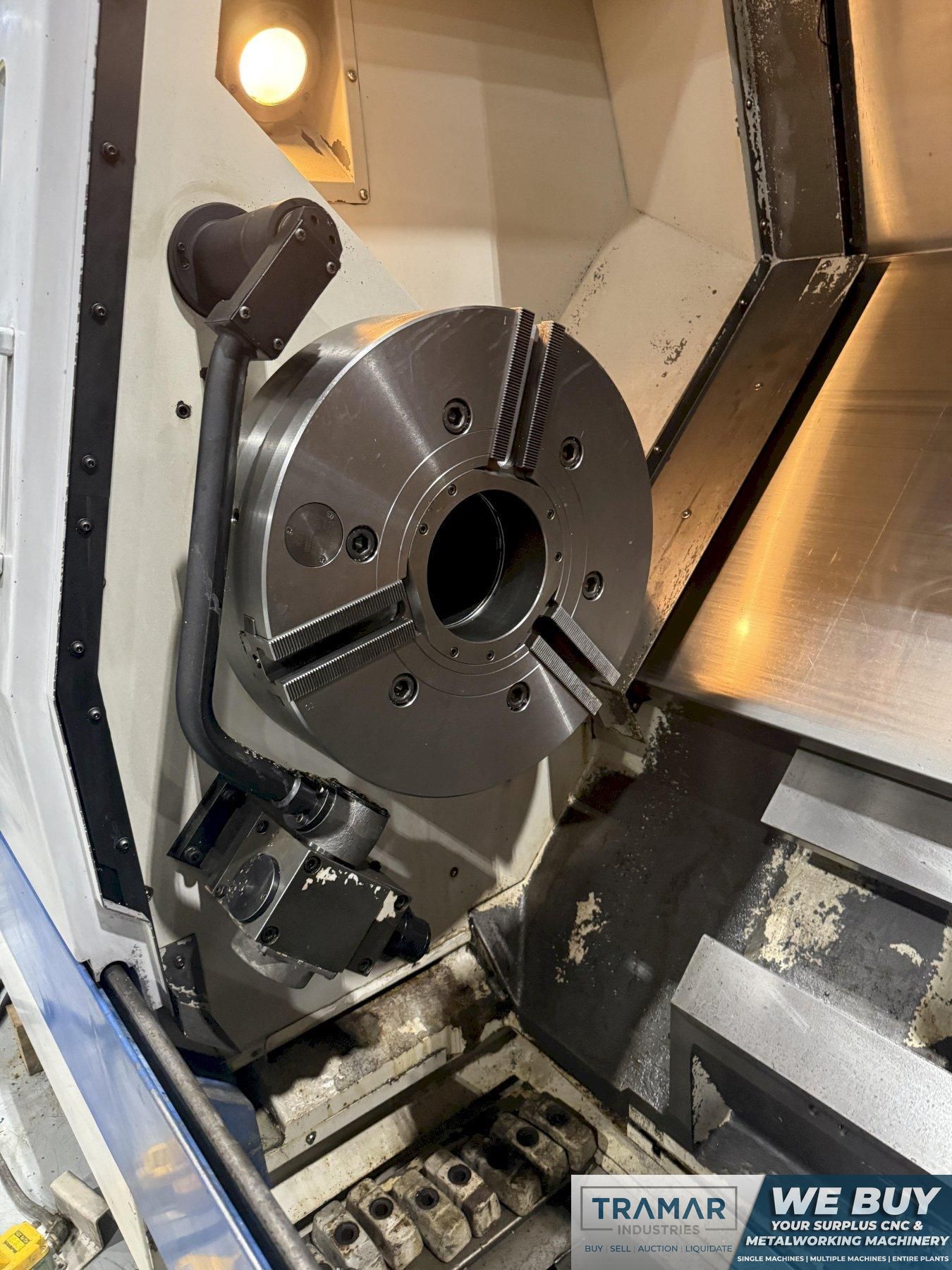

Chuck Size
21"
Bar Capacity
6.5"
X-Axis Travel
14.3"
Z-Axis Travel
43.5"
Rapid Traverse (X/Z)
630/787 ipm
Spindle Nose
A1-15
Spindle Speed
1,500 rpm
Main Motor
40 hp

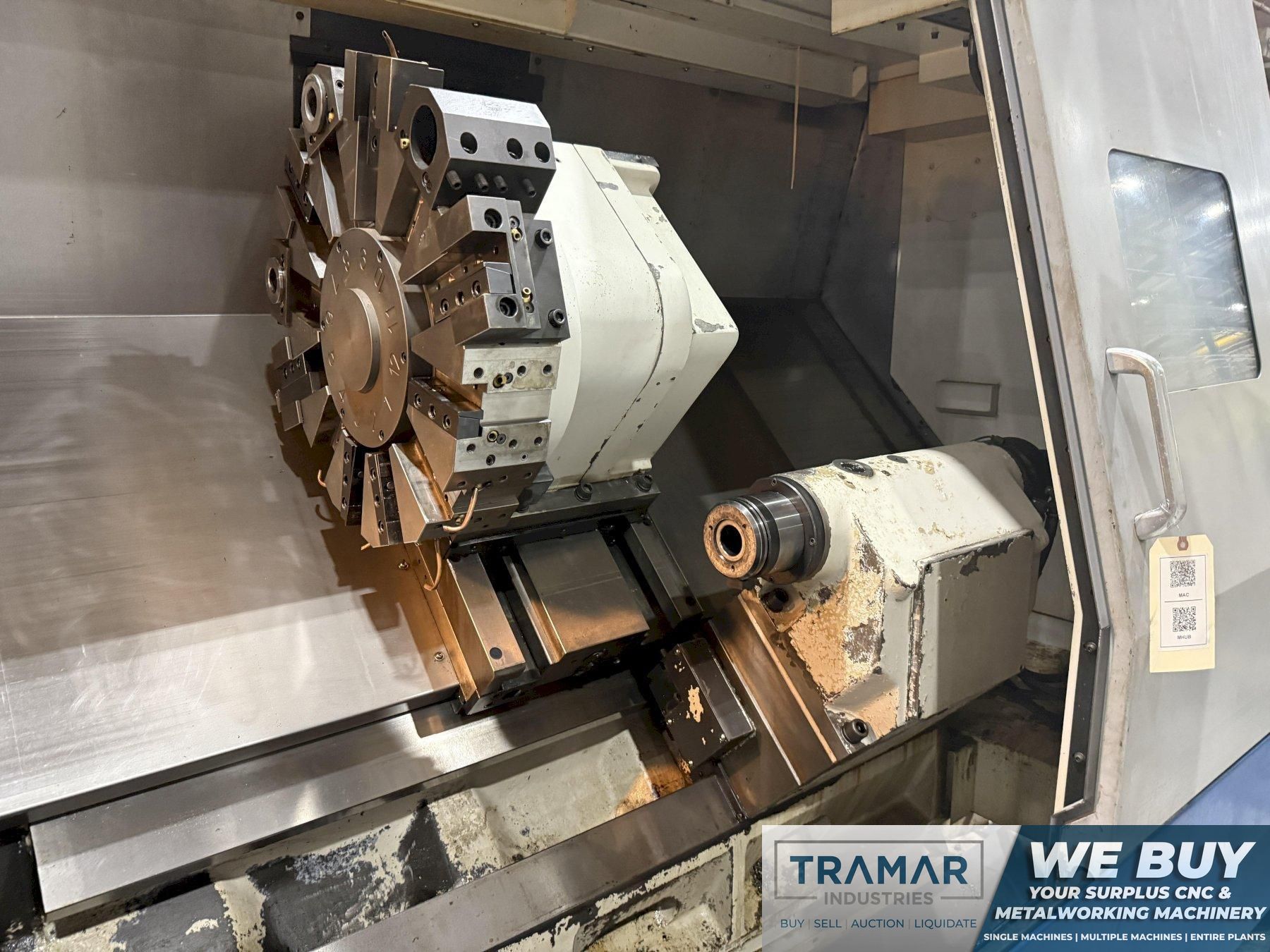

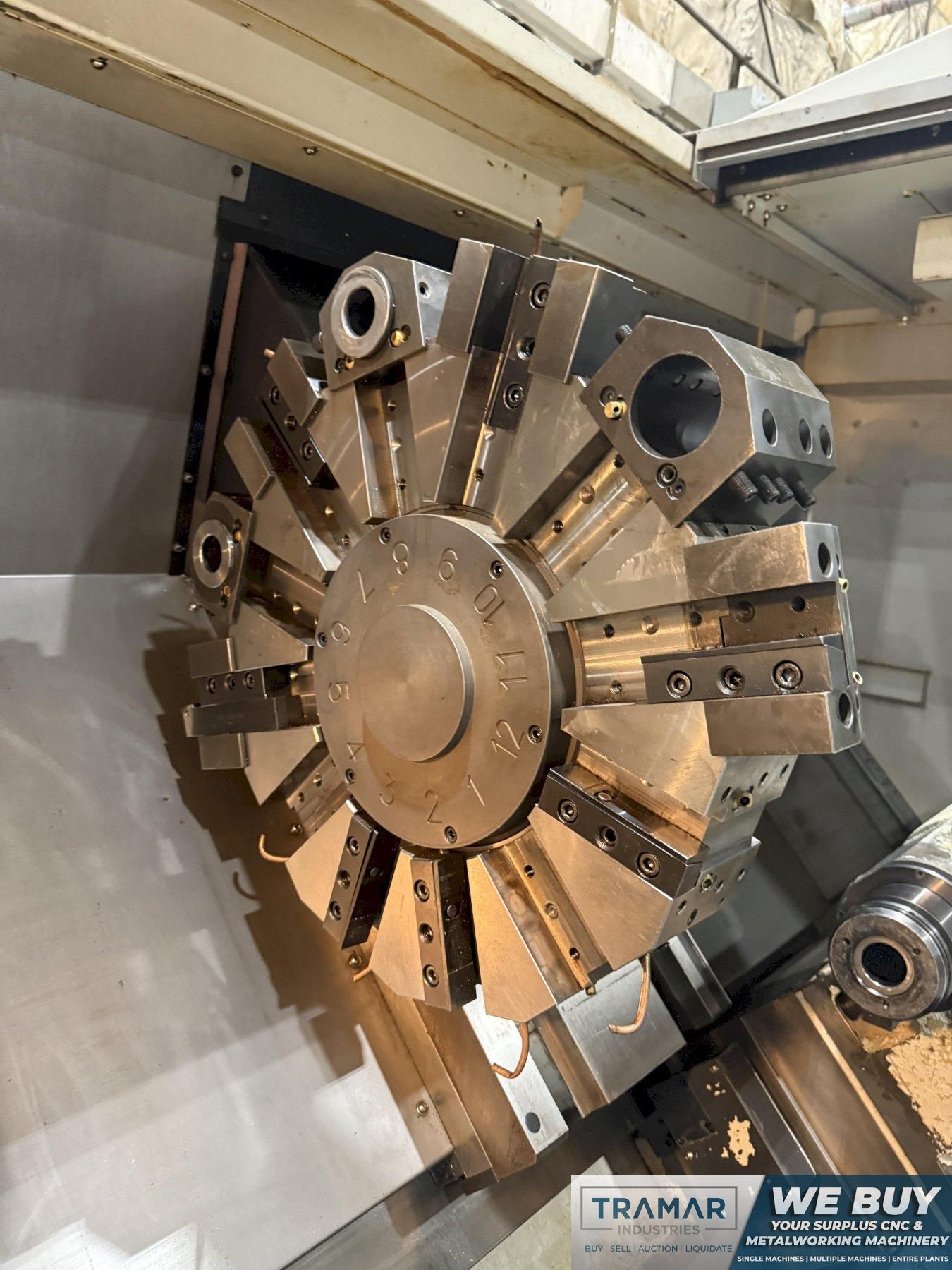

Turret Capacity
12

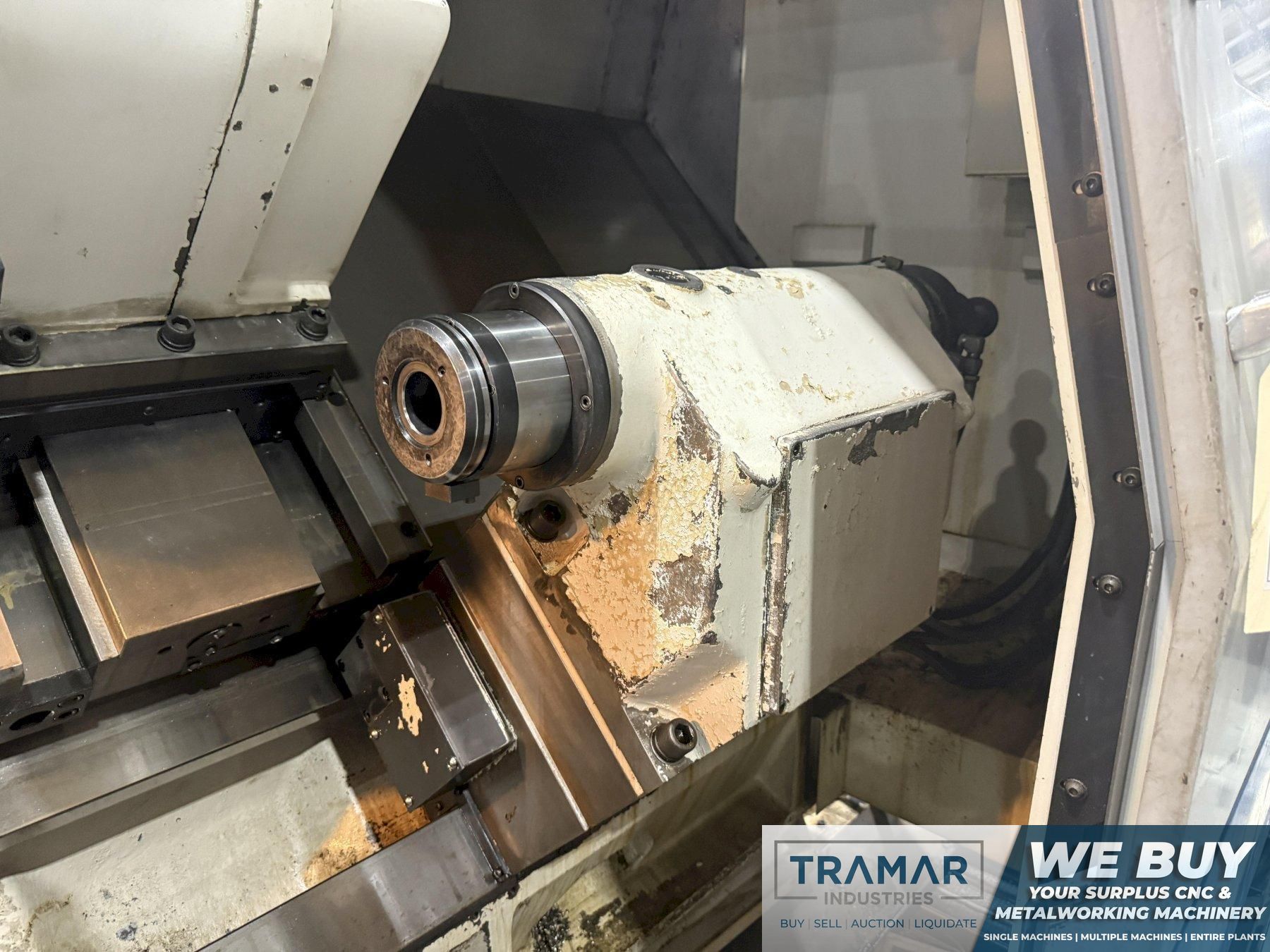

Tailstock (Yes/No)
yes
Live Tooling
no
Y Axis (Yes / No)
no
Sub Spindle
no
Machine Dimensions
154" x 88" x 95"
Machine Weight
18,100 pounds
Equipped With:
- Fanuc 21i-TB CNC Control
- Chip Conveyor
- Coolant Tank
- Tool Presetter
- Tailstock
*** VIDEO CLICK HERE ***
The Doosan Puma 400C is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
