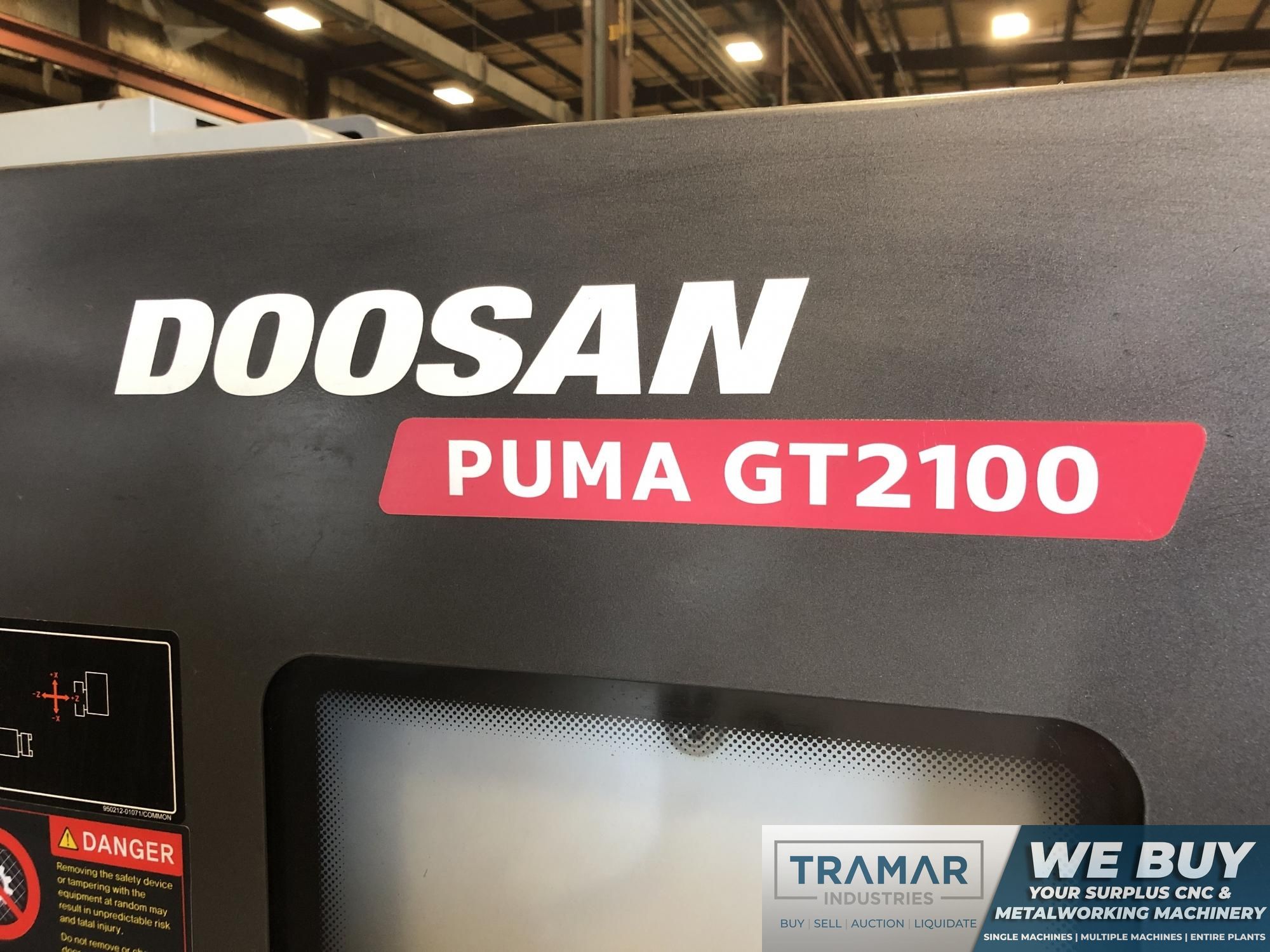

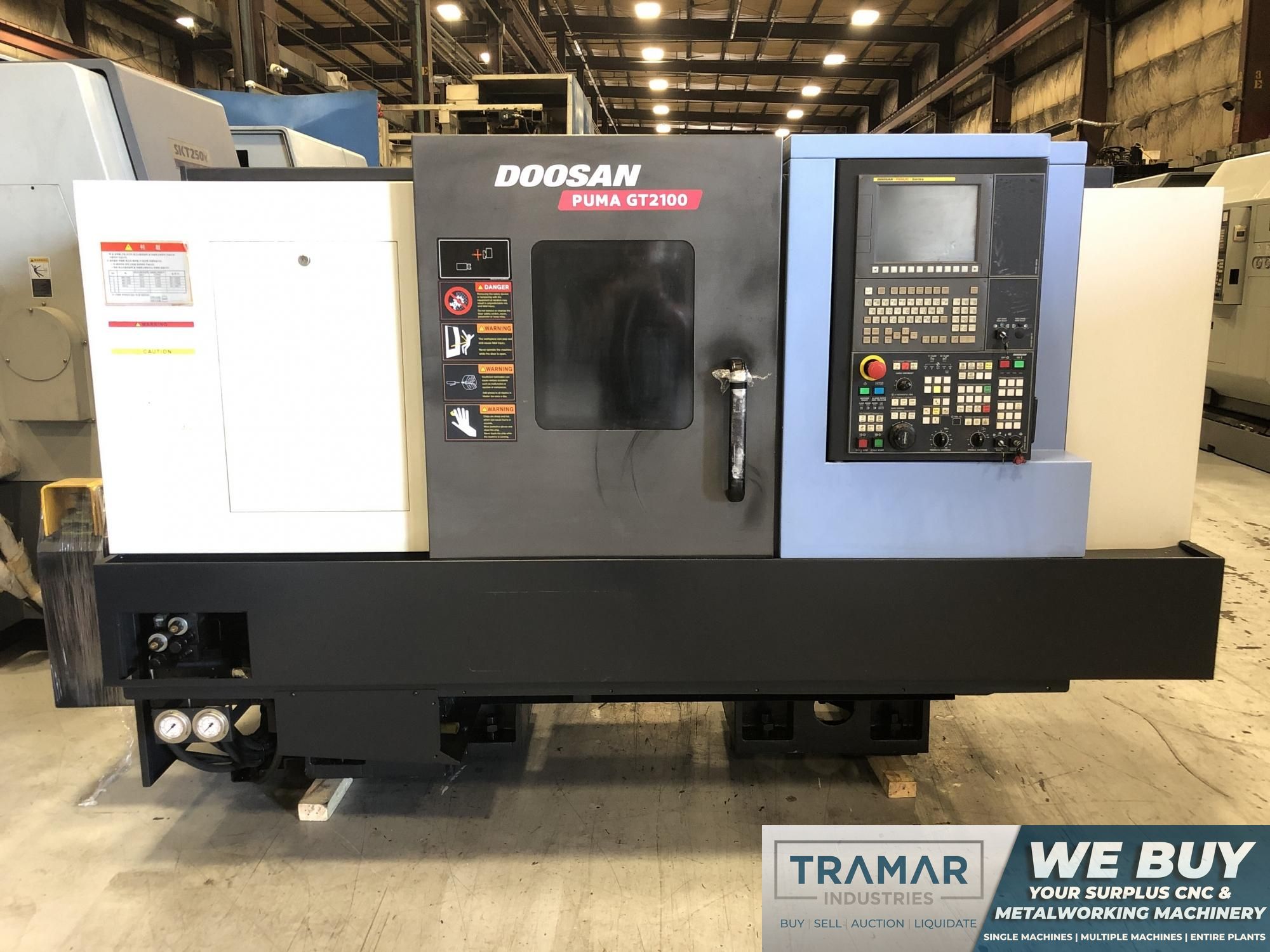

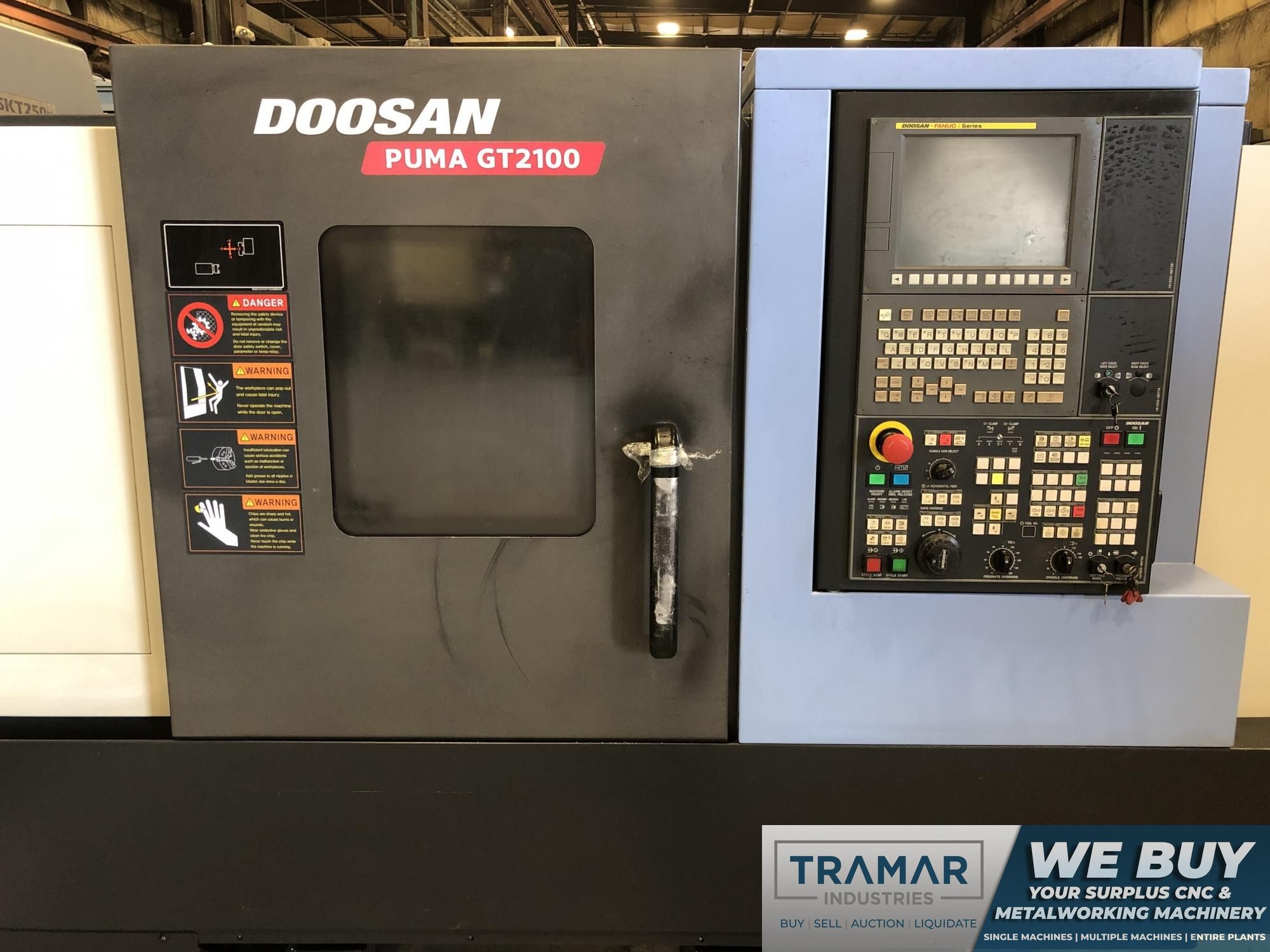

Doosan PUMA GT-2100 - Horizontal Lathes

Share Machine

Specifications Print Specs

Model: PUMA GT-2100

Year: 2014

Stock #: B1546 Sold

Type: Horizontal Lathes

Manufacturer: Used Doosan Machines

Highlights:

Doosan Puma GT-2100 CNC Lathe, Fanuc Series i Control, 8

Equipped With:

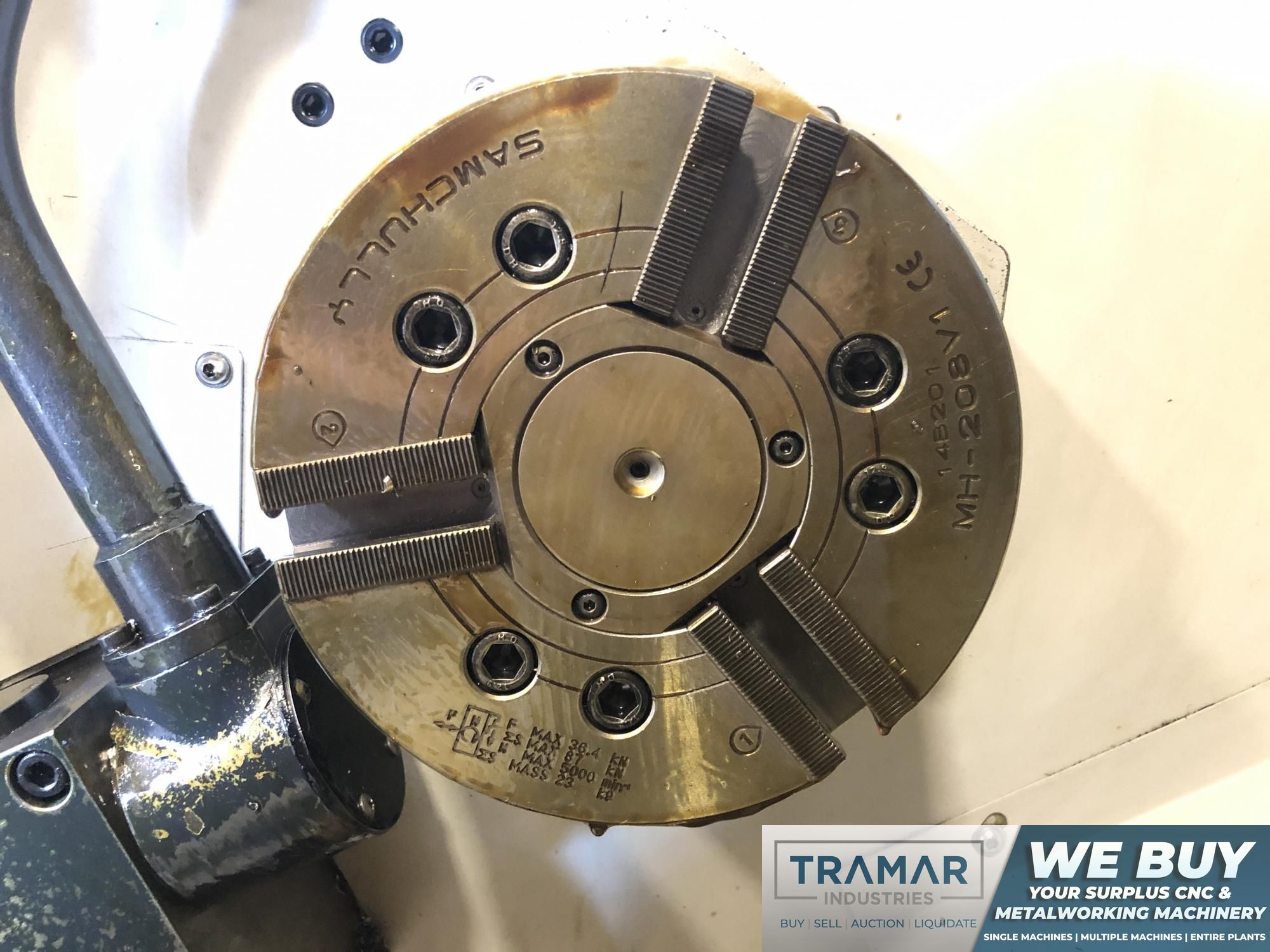

Samchully 8" Hydraulic Chuck (HH-208)
Tool Presetter
Chip Conveyor
Coolant Tank & Pump
Available Manuals
Box Way Construction

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

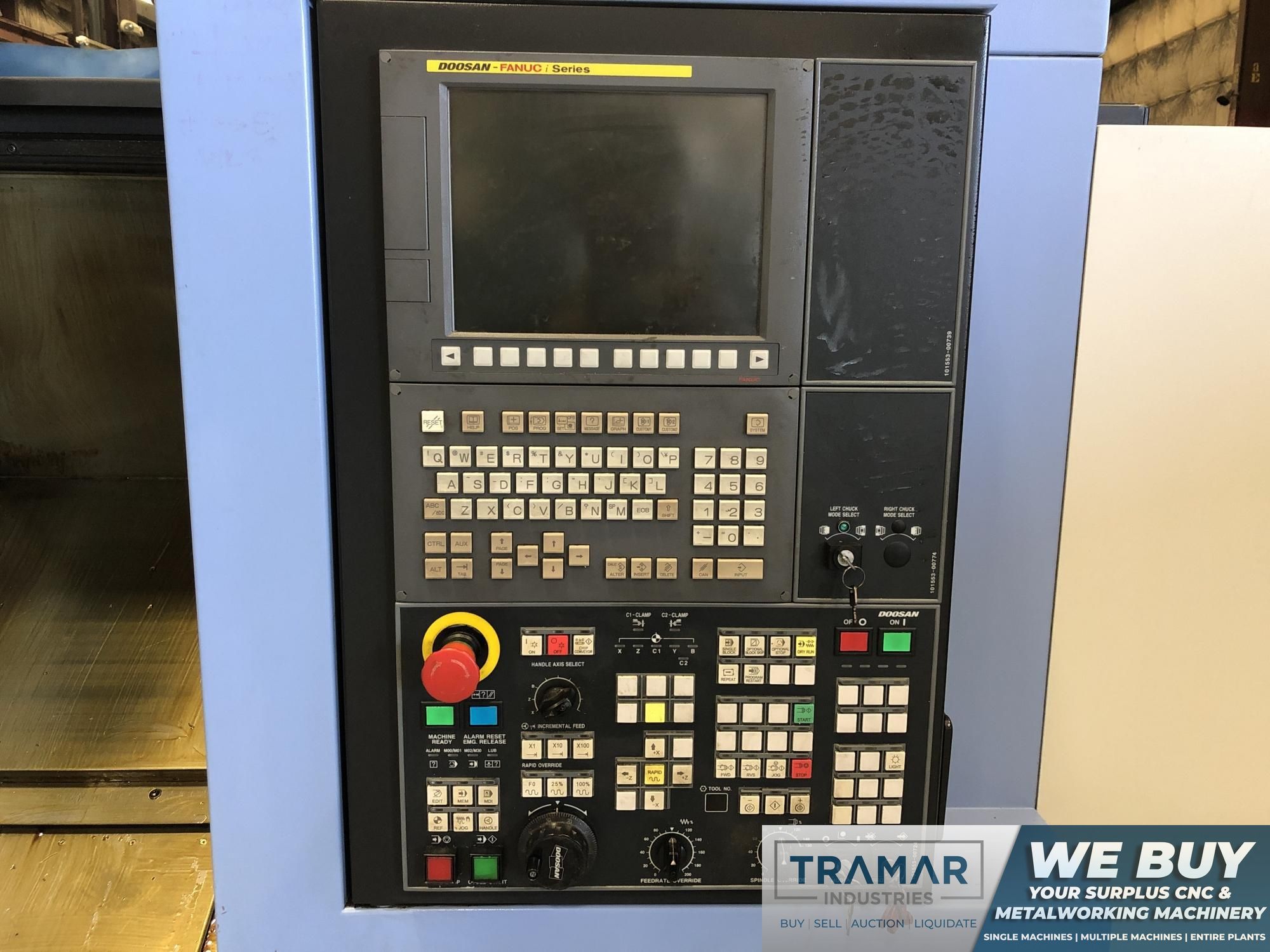

Fanuc Series i

Chuck Size

Swing

23.6"

Turning Diameter

15.35"

Center Distance

22"

Bar Capacity

2.6"

X Axis Travel

9.1"

Z Axis Travel

22.8"

Rapid Traverse (X/Z)

945 IPM/1,181 IPM

Spindle Speed (RPM)

4,500

Main Motor

20 Horsepower

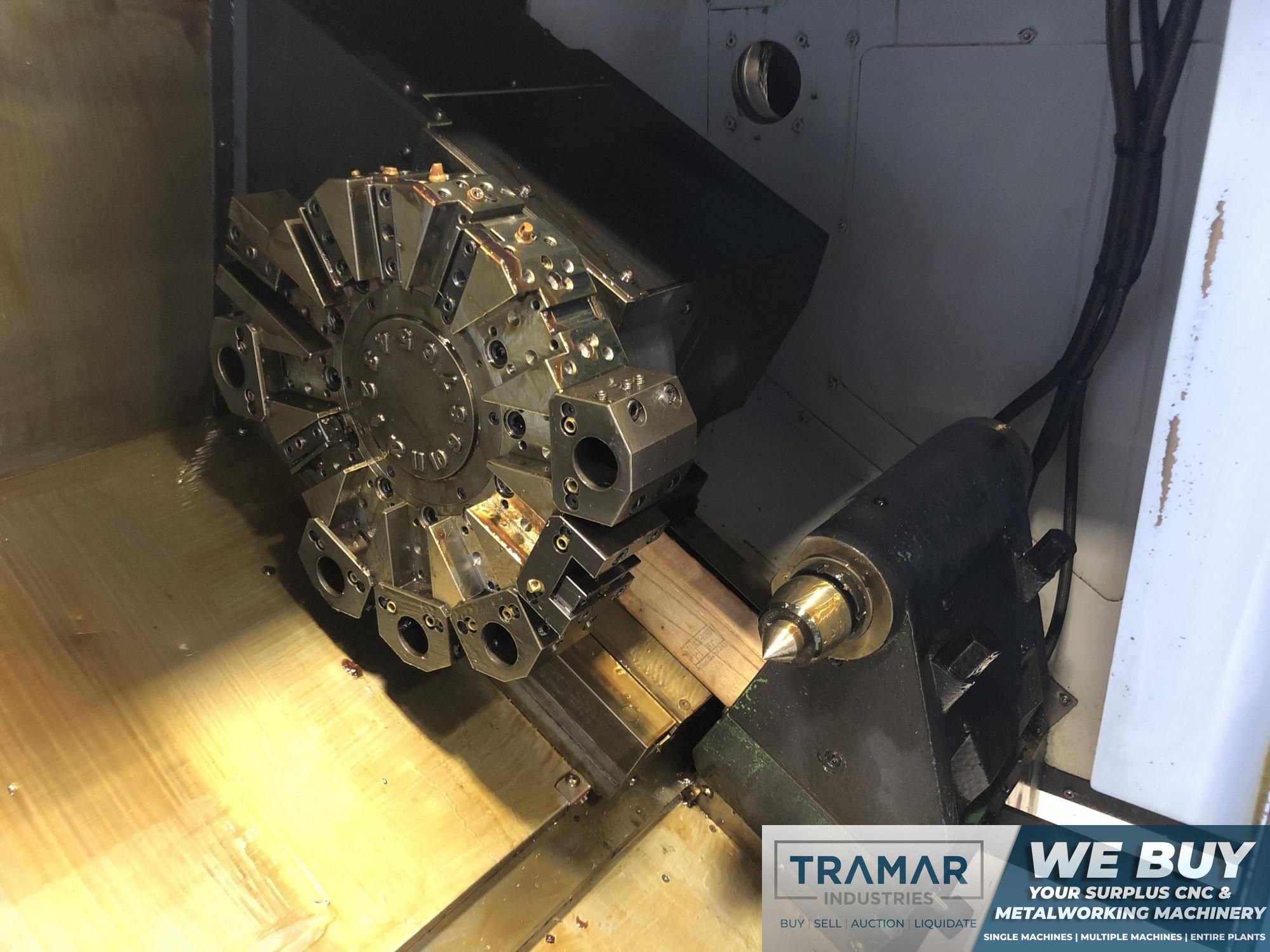

Turret Capacity

Tailstock

yes

Y Axis

Dimensions

90" x 97" x 67"

Weight

7,500 pounds

Live Tooling

Sub Spindle

# Axis

Equipped With:

Samchully 8" Hydraulic Chuck (HH-208)
Tool Presetter
Chip Conveyor
Coolant Tank & Pump
Available Manuals
Box Way Construction

The Doosan PUMA GT-2100 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
