Doosan Puma GT3100L - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: Puma GT3100L
Year: 2018
Stock #: 13654-1
Highlights:
Fanuc i Series Control
15" Hydraulic Chuck
50 " Center Distance
Tool Presetter | Tailstock

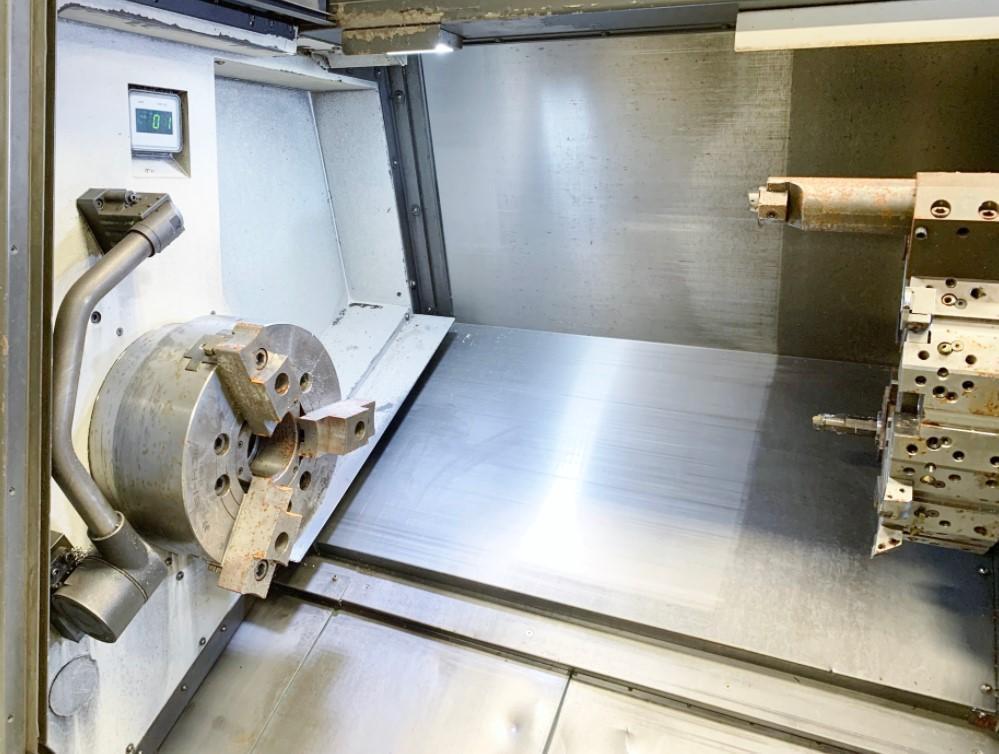

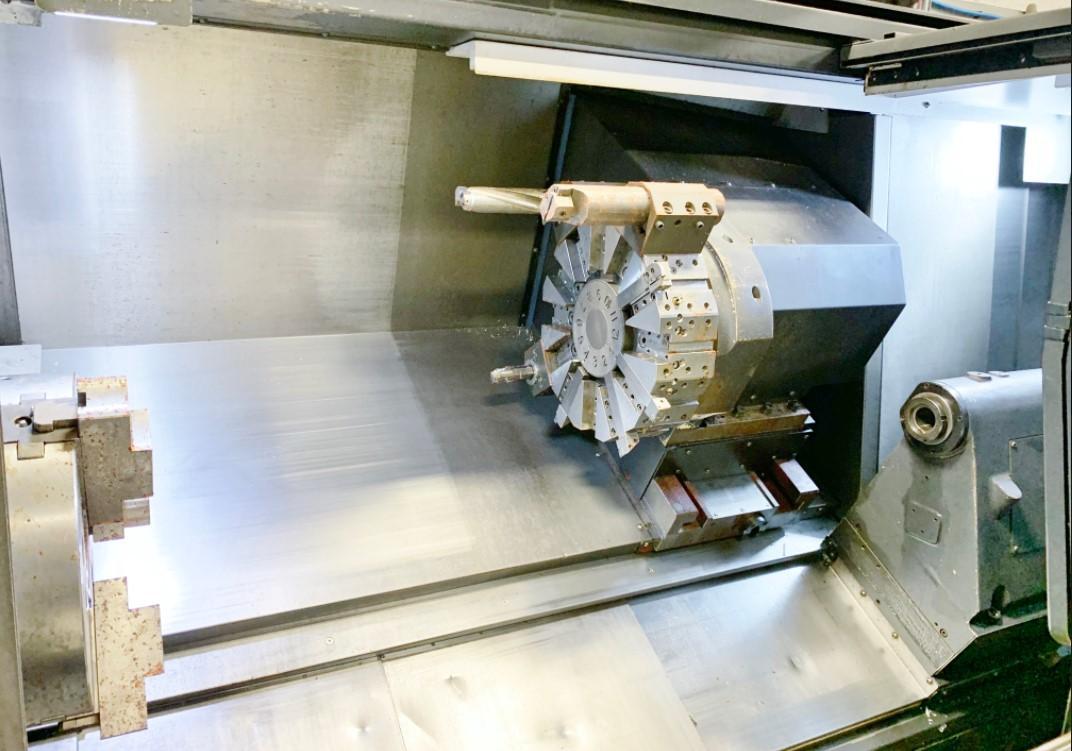

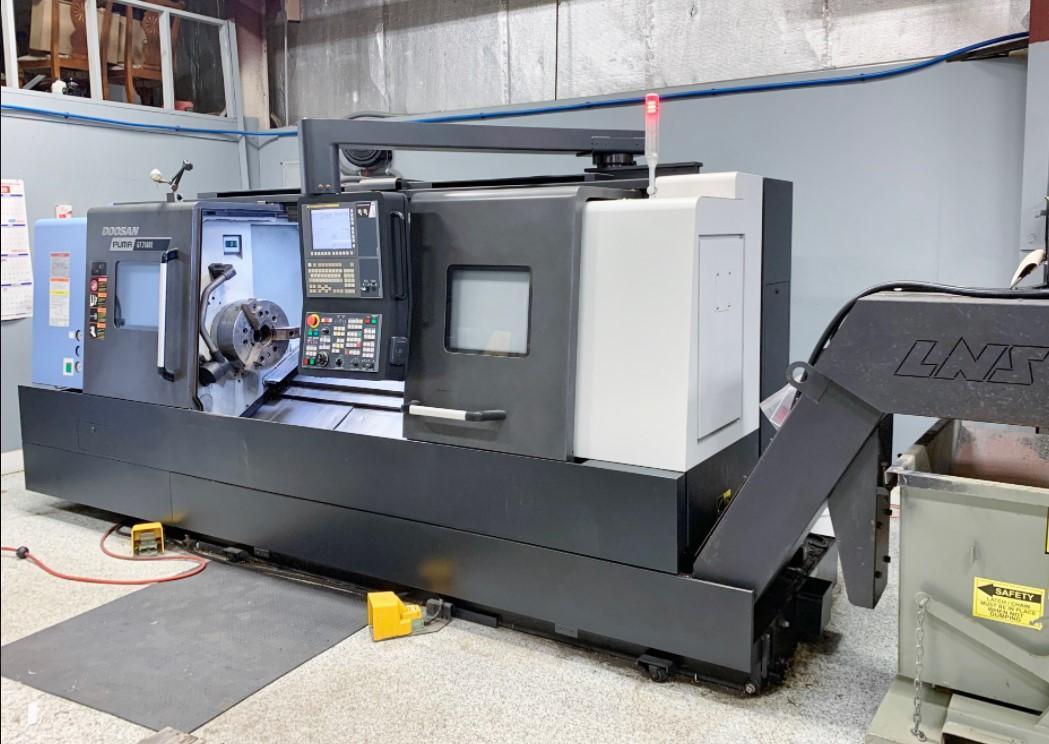

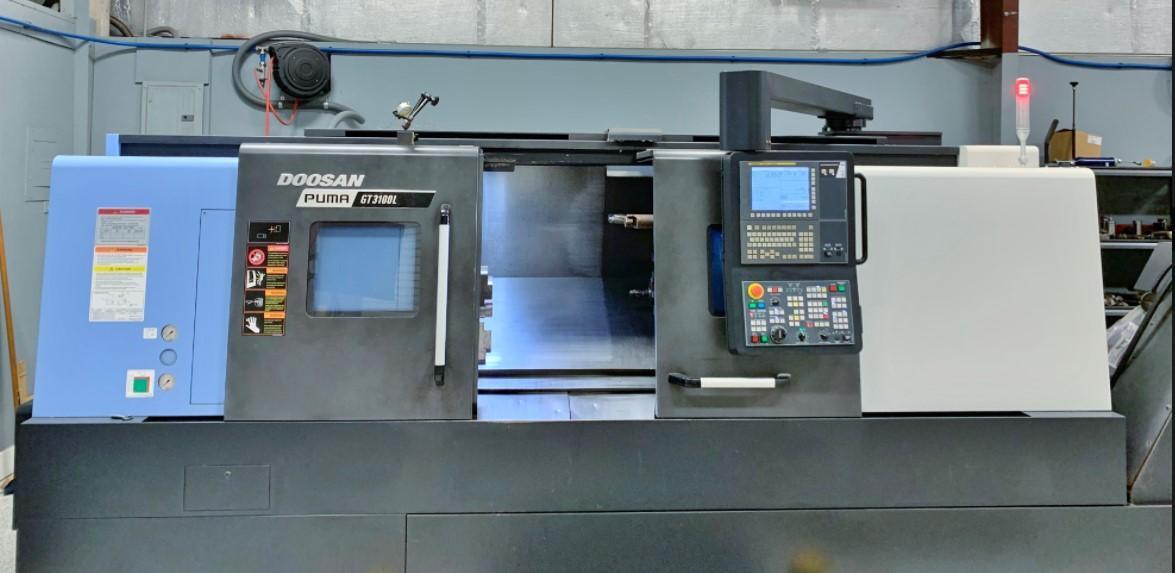

Doosan Puma GT3100L CNC Horizontal Lathe
Machine Specifications
Year
2018
# Axis
2
Swing
28.3"
Turning Diameter
18.9"
Center Distance
50.2"
Chuck Size
12"
Bar Capacity
4"
X Axis Travel
10.2"
Z Axis Travel
53.1"
Rapid Traverse (X/Z)
945/1,181 ipm
Spindle Nose
A2-11
Spindle Speed
2,800 rpm
Main Motor
45 hp
Live Tooling
no
Tailstock
yes
Y Axis
no
Sub Spindle
no
Turret Capacity
12
Machine Dimensions
183" x 92" x 84"

Equipped With:

- Fanuc i Series Control
- Long Bed option (50" Centers)
- Tailstock
- Tool Presetter
- Chip Conveyor
- 15" Samchully Hydraulic Chuck (HCH-15)
- Gear Box
- Box Ways
- Misc. Tooling Available

The Doosan Puma GT3100L is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
