Fadal 3016 - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: 3016
Year: 1998
Stock #: 13840 Sold
Highlights:

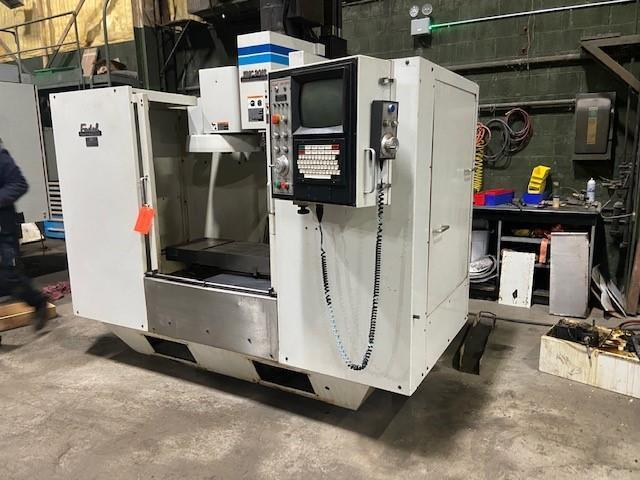

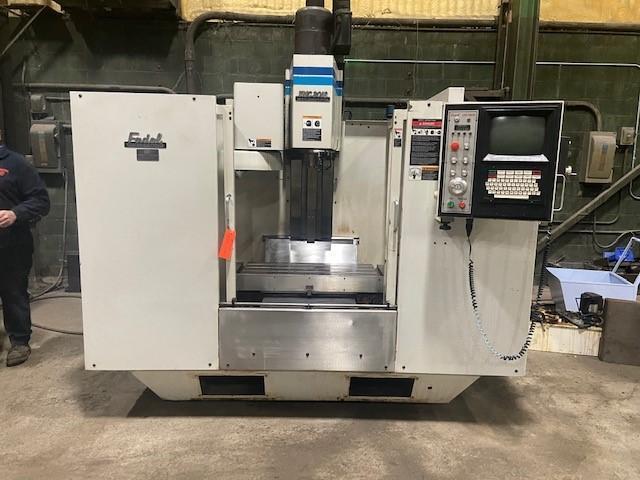

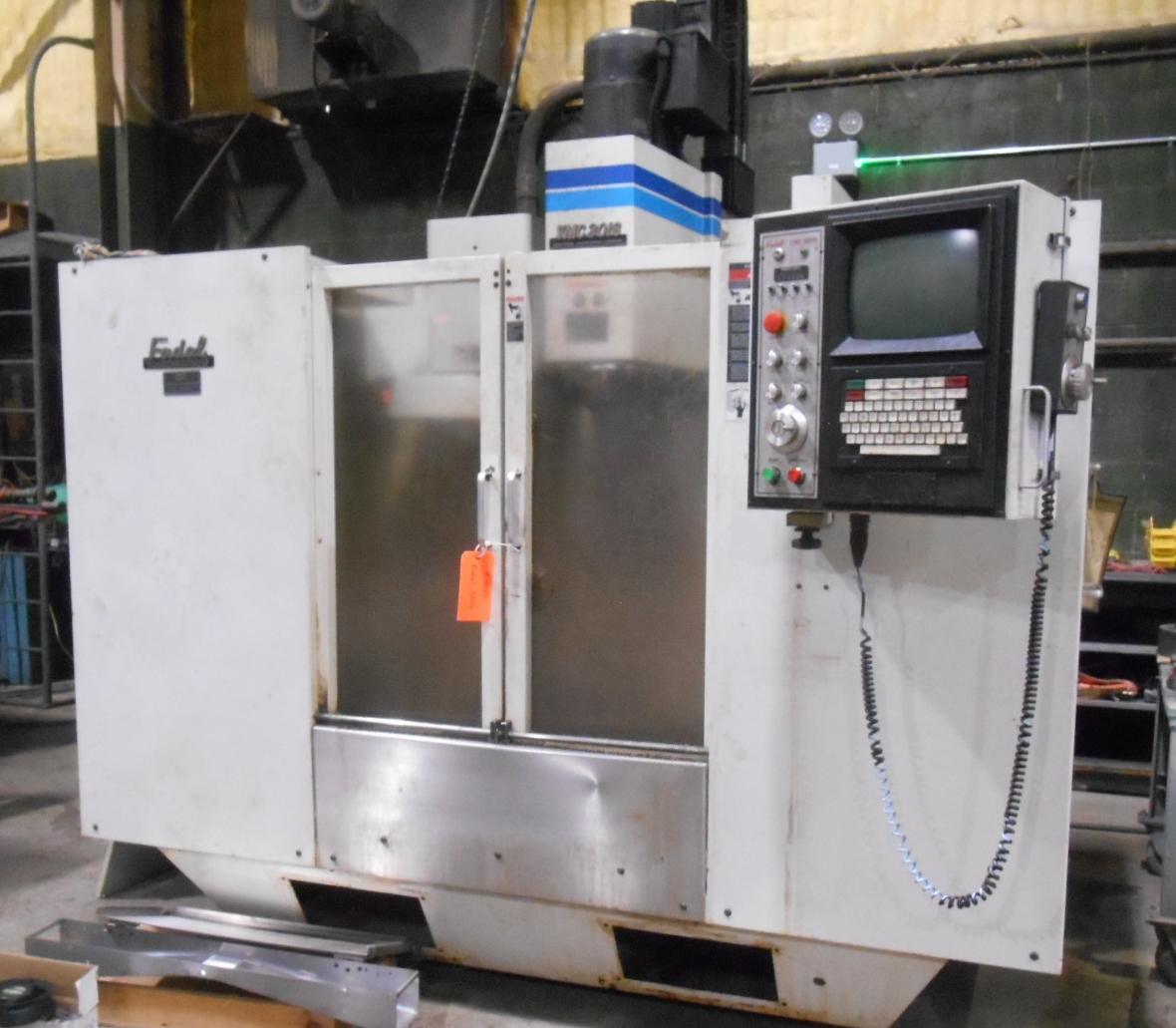

Fadal 3016 CNC Vertical Machining Center, CNC88HS Control, 30
Machine Specifications

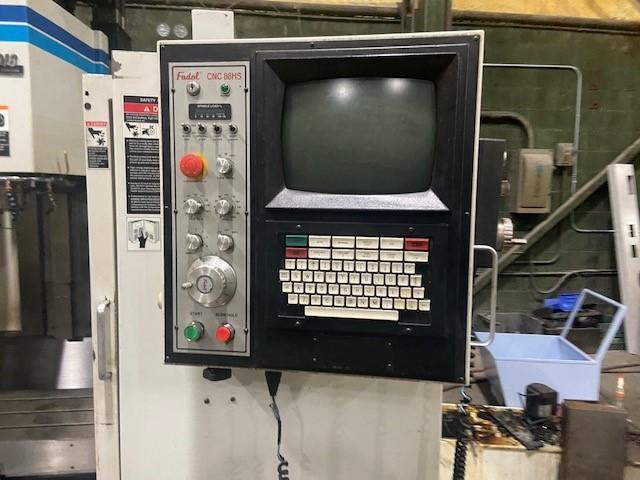

Control Type
Fadal 88HS
# Axis
4

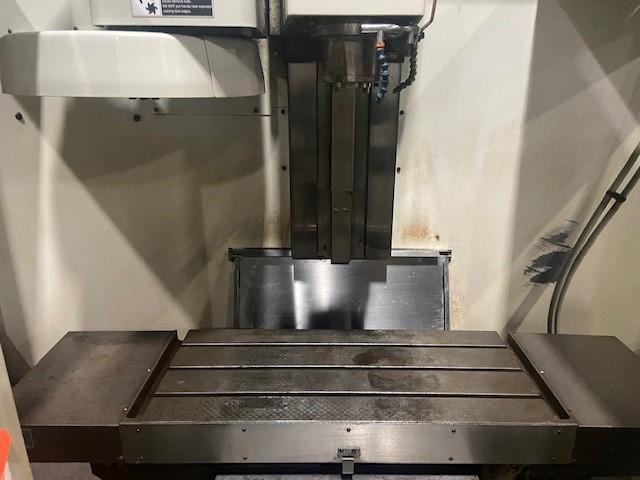

Table Size
39" x 16"
Table Capacity
2,736 pounds
Coolant Thru Spindle
no
X-Axis Travel
30"
Y-Axis Travel
16"
Z-Axis Travel
28"
Spindle Speed
10,000
Spindle Taper
40
Main Motor
15
Tool Changer Capacity
21
Cutting Hours
5,379
Dimensions
98" x 77" x 103"H
Weight
8,550 pounds

Equipped With:

  • Extended Z-Axis Travel
  • Hi-Torque Spindle Motor
  • 422k Memeory Expansion
  • 4th Axis Pre-Wire
  • Graphics
  • Tool Load Compensation

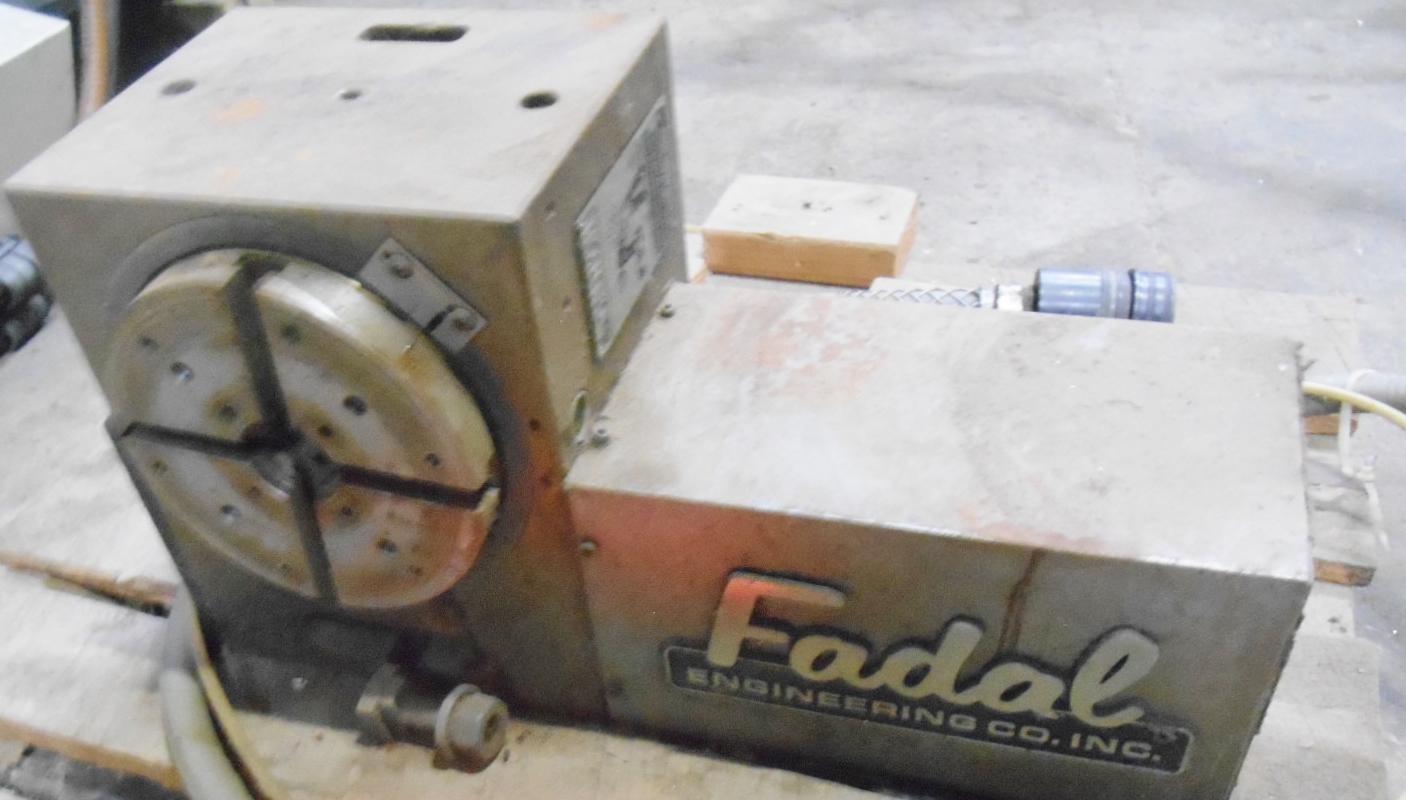

  • 4th Axis Rotary Table
  • Rigid Tapping
  • High-Speed CPU
  • Remote MPG
  • 4 MB Memory Upgrade

The Fadal 3016 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
