Fadal VMC 4020HT - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: VMC 4020HT
Stock #: BR15927 Sold
Highlights:

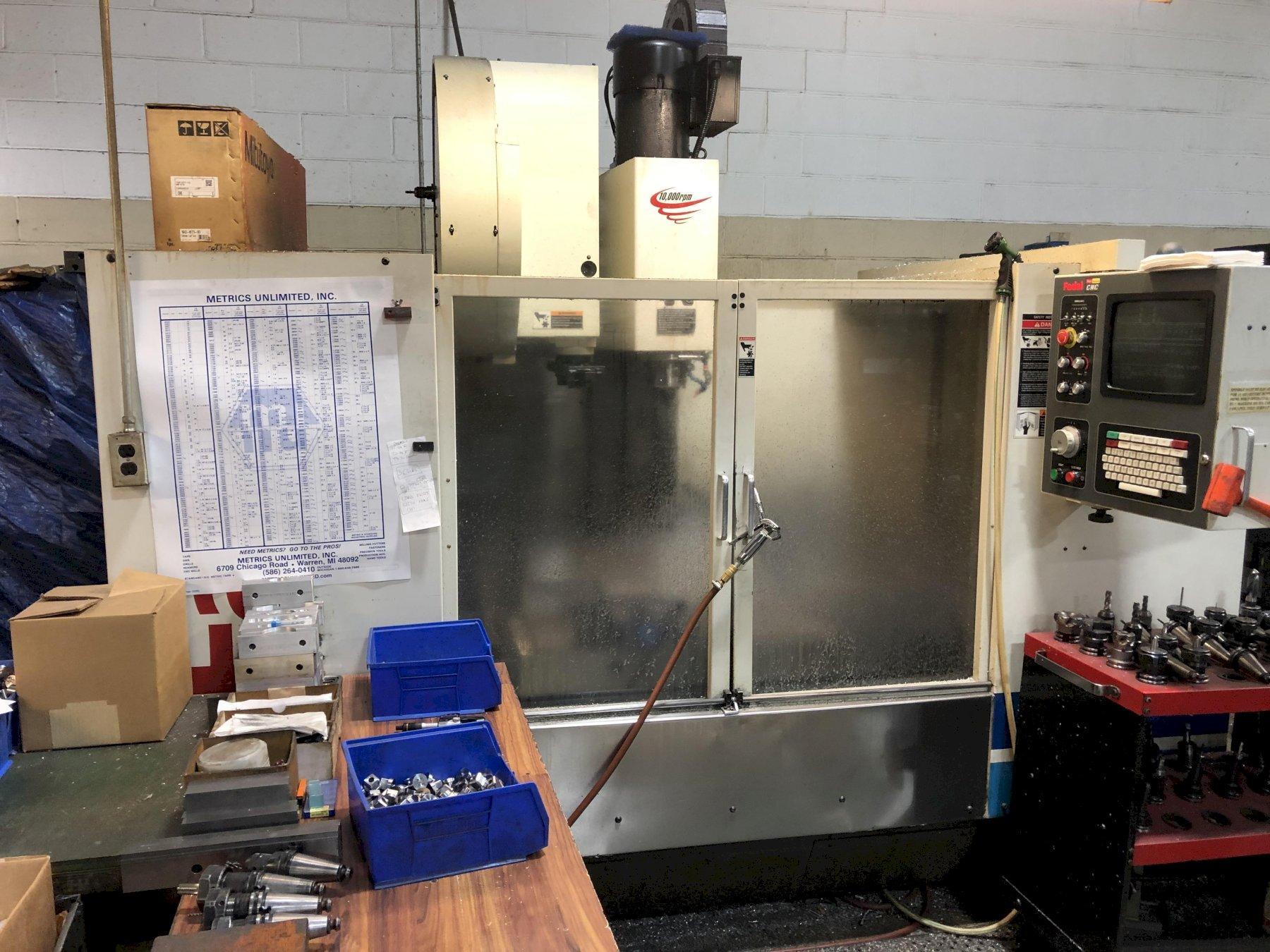

Fadal VMC 4020HT CNC Vertical Machining Center
Machine Specifications
# Axis
4
Table Size
48" x 20"
X-Axis Travel
40"
Y-Axis Travel
20"
Z-Axis Travel
28"
Spindle Speed
10,000 RPM
Spindle Taper
Cat 40
Main Motor
15 HP
Tool Changer Capacity
24
X-Axis Rapid Traverse Rate
900 ipm
Y-Axis Rapid Traverse Rate
900 ipm
Z-Axis Rapid Traverse Rate
700 ipm
Coolant Thru Spindle
yes
Cutting Hours
13,500
Weight
11,000 pounds

Equipped With:

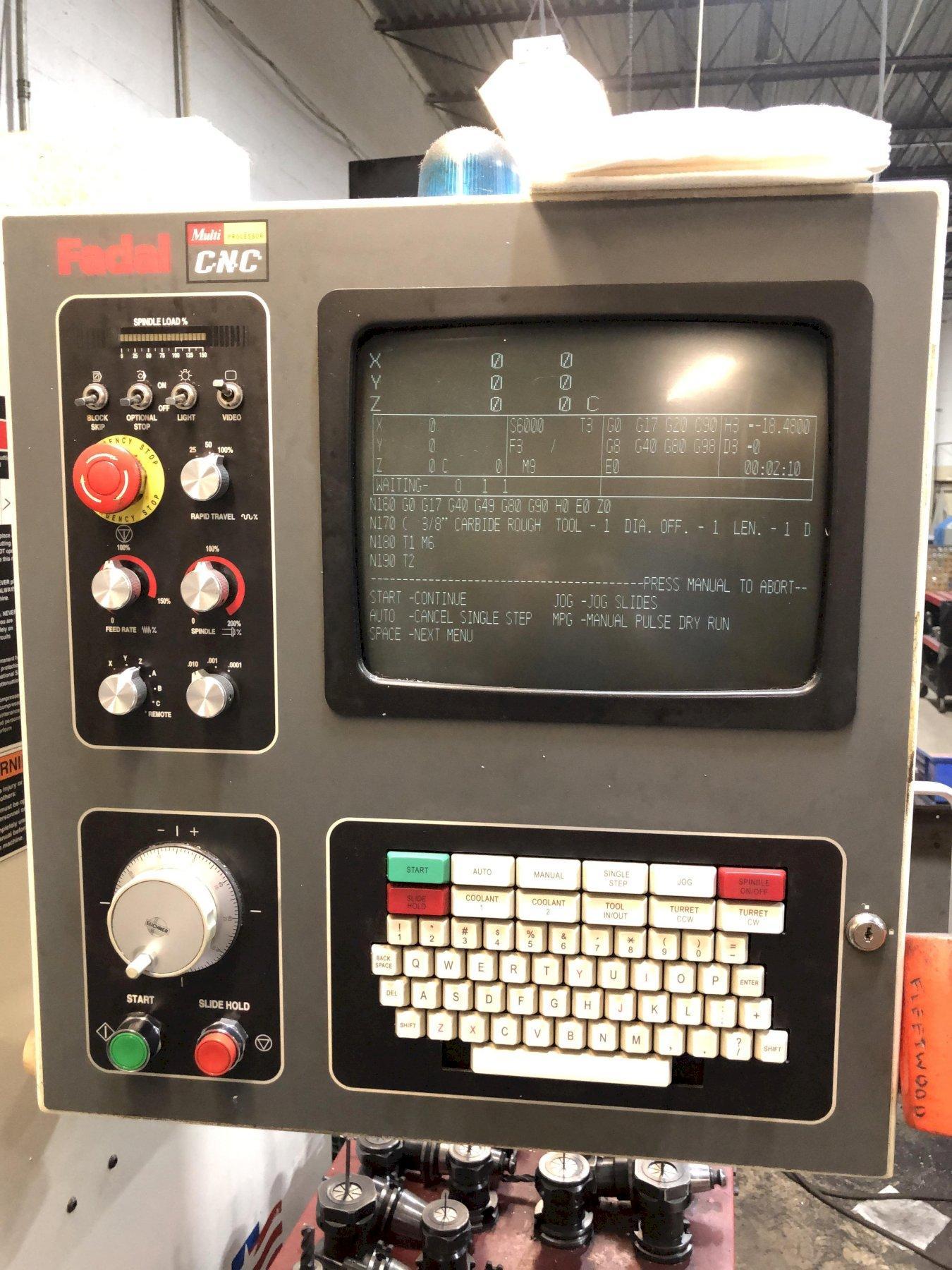

Fadal 32 MP CNC Control
Rigid Tapping
Side Mounted Tool Changer
Coolant Thru Spindle
Extended Z axis (8" extra)
4 mb Memory Expansion
4th Axis Drive
VH65 Rotary Table with Chuck and Tailstock (table rebuilt 2,020)
Rebuilt Spindle and Spindle Motor

The Fadal VMC 4020HT is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
