Giddings & Lewis HMC-1250 - Horizontal Machining Centers

Request Quote
Specifications Print Specs
Model: HMC-1250
Year: 2008
Stock #: 15599
Highlights:
Siemens 840D Control
Pallet Size: 49.2" x 49.2" | 11,000 lbs Max Load
Travels: 106.3" / 70.9" / 68.9" / Full B Axis 0.001°
CAT 50 | 10,000 rpm | 61.6 hp | 90 Station ATC

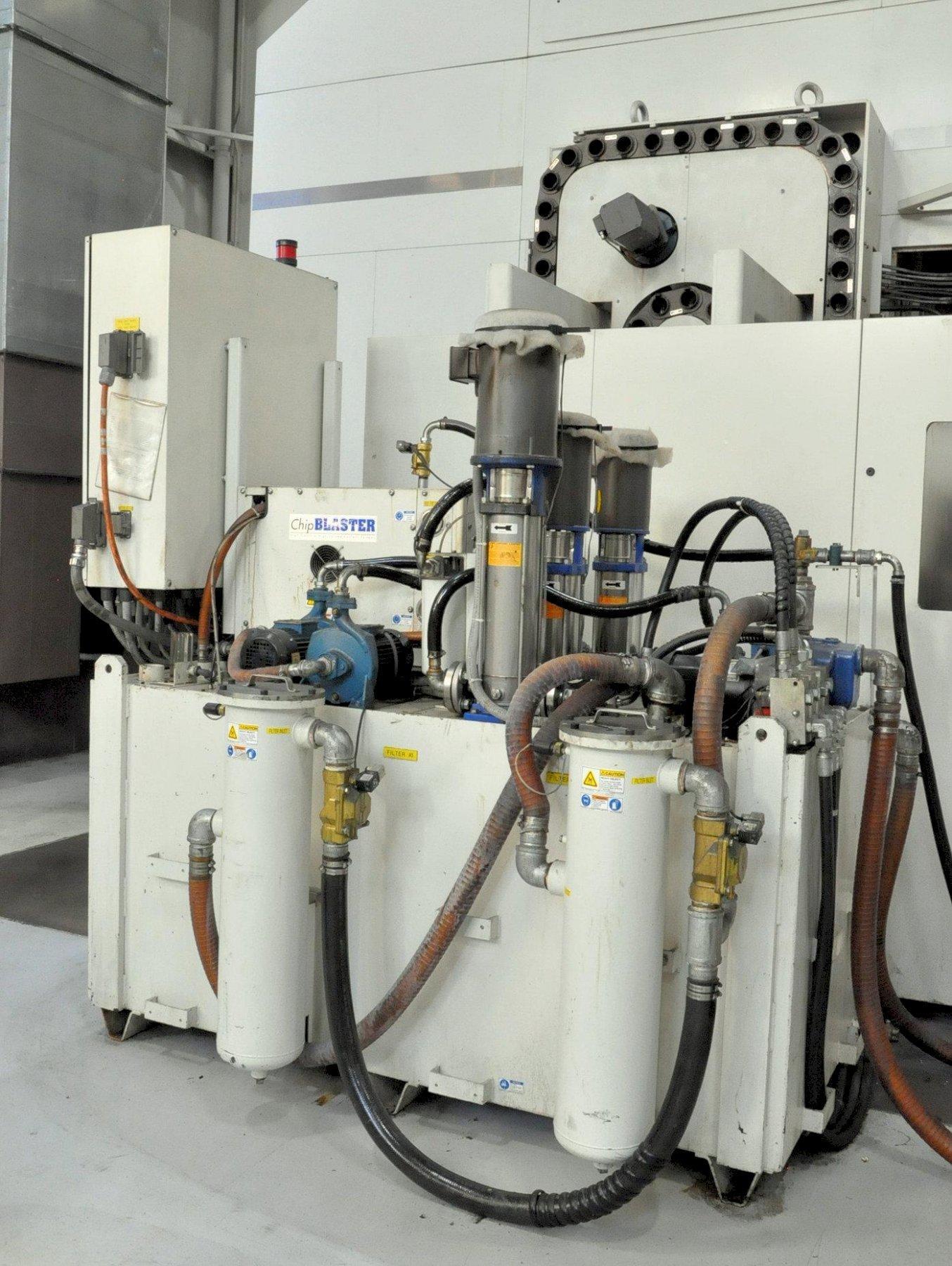

High Pressure Coolant Thru Spindle

Giddings & Lewis HMC-1250 CNC Horizontal Machining Center
Machine Specifications
Year
2008
Control Type
Siemens 840D
# Axis
4
Pallet Length
49.21"
Pallet Width
49.21"
Pallet Capacity
11,000 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
106.3"
Y-Axis Travel
70.9"
Z-Axis Travel
68.9"
Spindle Taper
CAT 50
Spindle Speed
10,000 rpm
Spindle Motor (HP)
61.6 hp
Tool Changer Capacity
90
Coolant Through Spindle
yes

Equipped With:

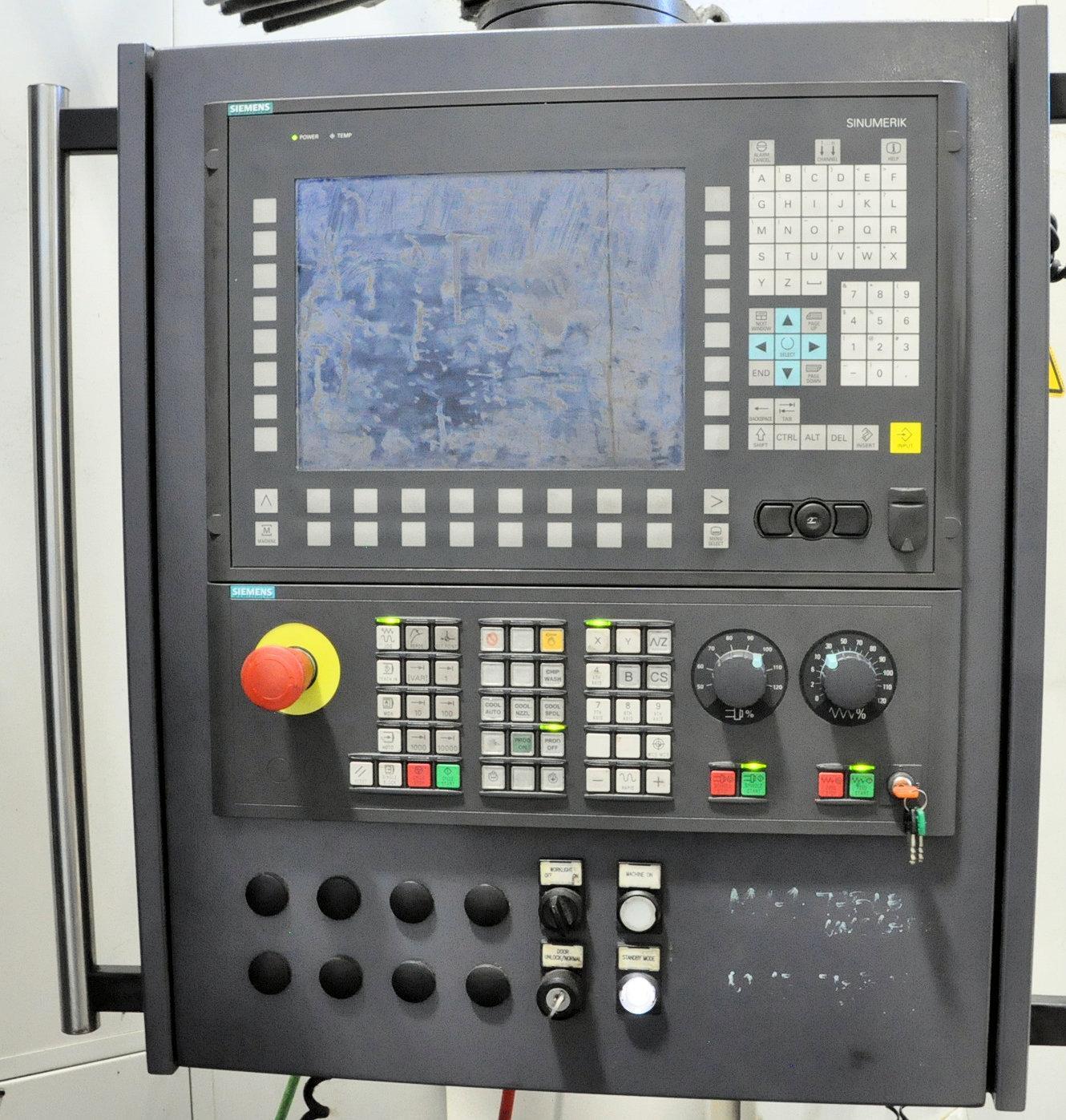

- Siemens 840D CNC Control

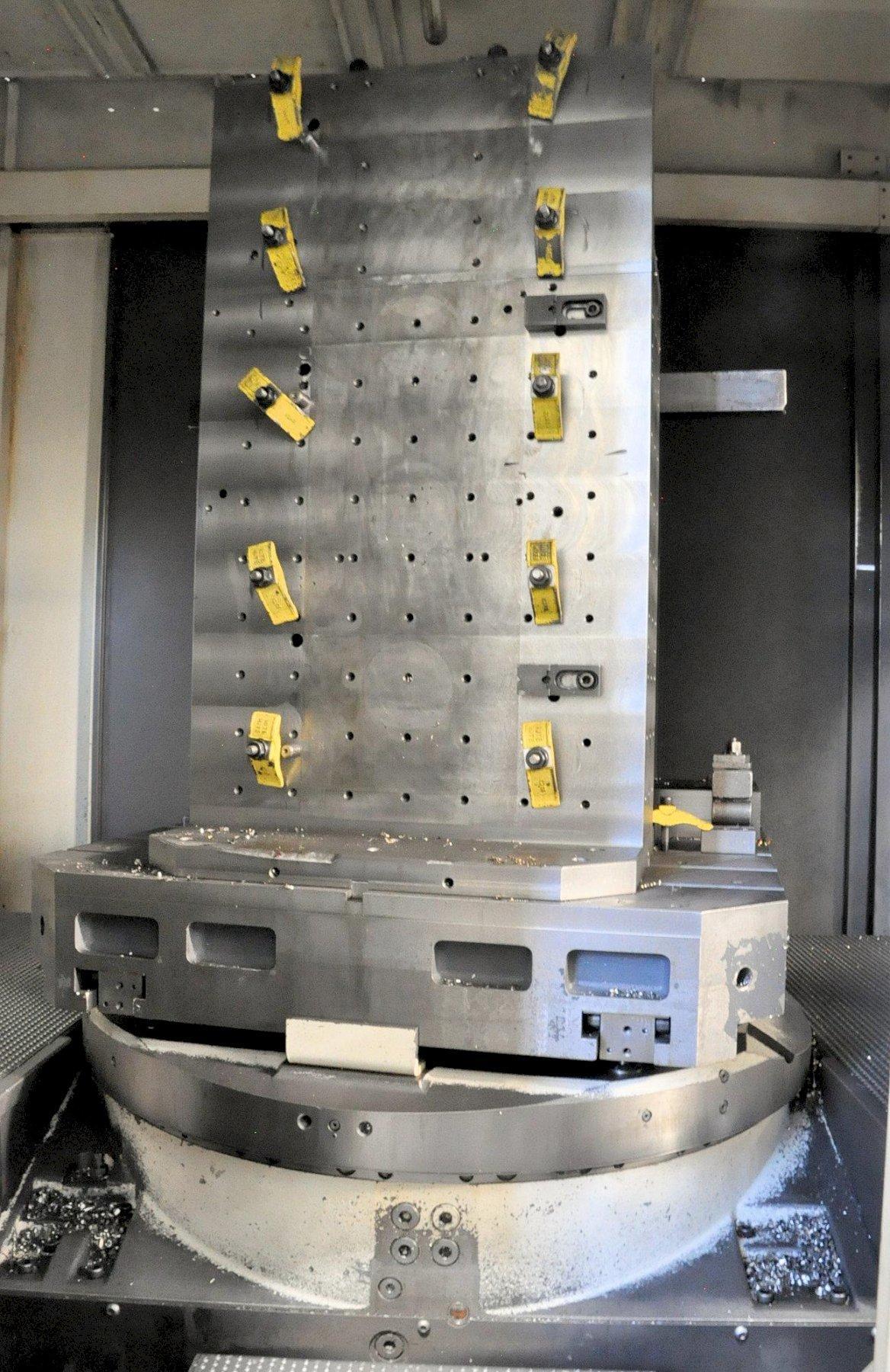

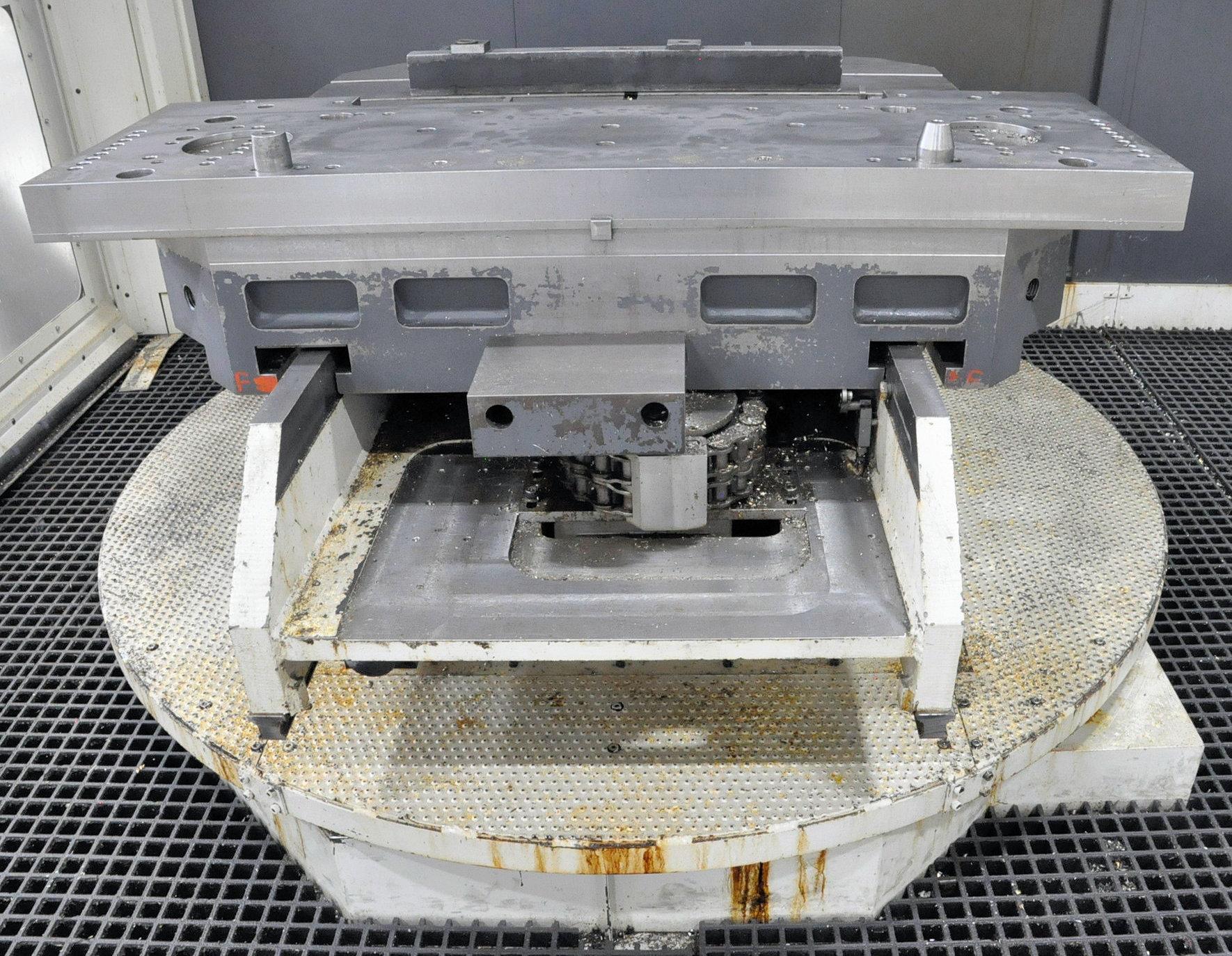

- (2) 49.21" X 49.21" Pallets
- Full B-axis Pallet Contouring/Rotation

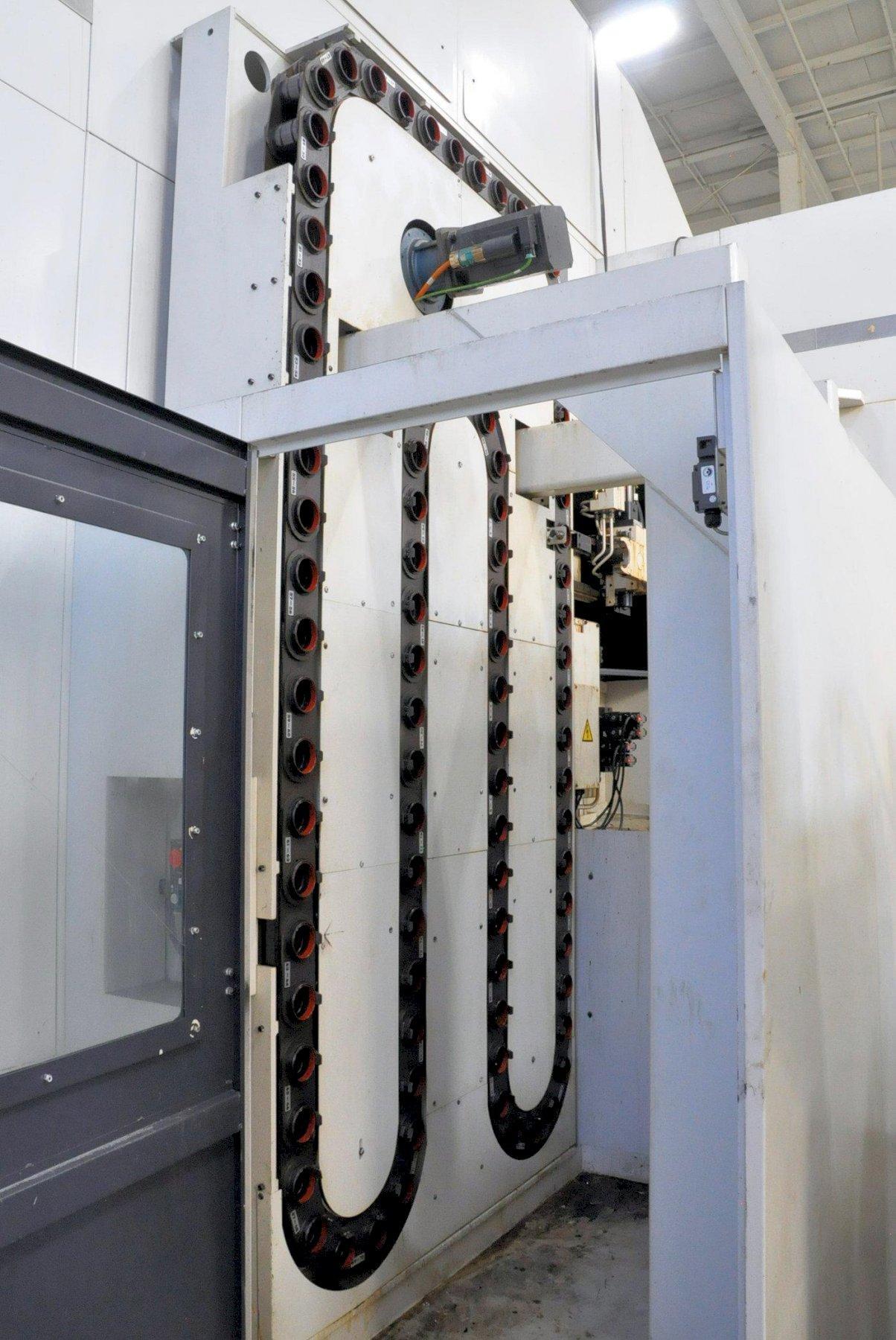

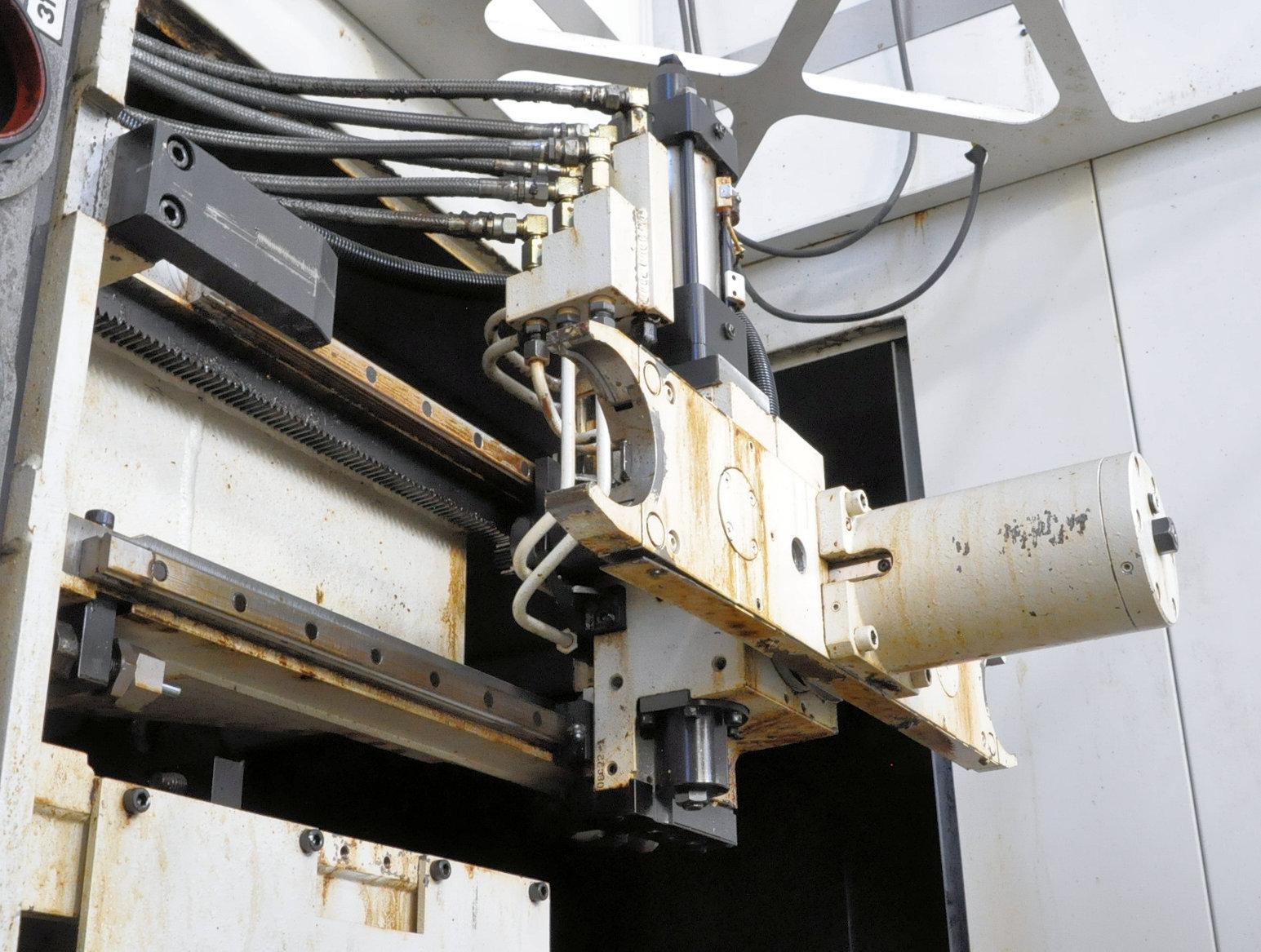

- 90-position Automatic Tool Changer
- Through Spindle Coolant (1015 Psi)
- Blum Laser & Tool Breakage Monitor
- Renishaw Touch Probe RMP60

The Giddings & Lewis HMC-1250 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
