Giddings & Lewis G50T - Horizontal Boring Mills (Table)

Request Quote
Specifications Print Specs
Model: G50T
Year: 1995
Stock #: 13417
Highlights:
- G&L 8,000M Control
- Telescoping Steel Way Covers on Table & Saddle
- Coolant System
- Table Size: 120" x 48"
- Travels (X/Y/Z/W): 120"/96"/36"/50"

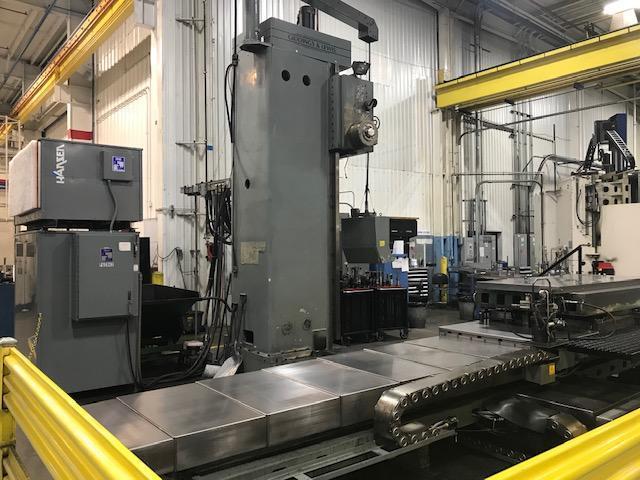

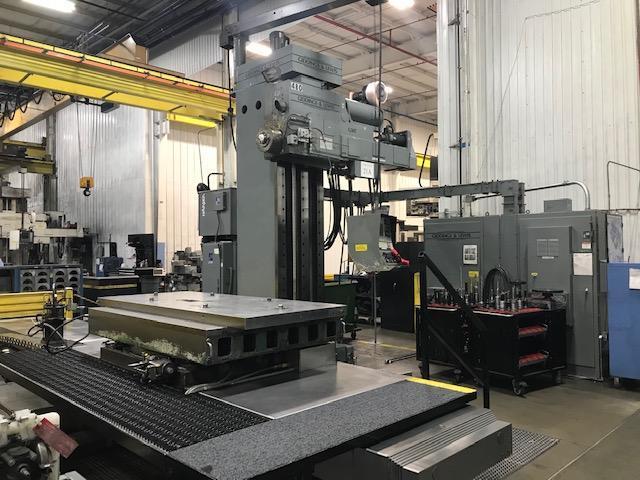

G&L G50T CNC Horizontal Boring Mill
Machine Videos
Machine Specifications
Year
1995
Control Type
G&L 8,000M
Spindle Size
5"
Table Size
120" x 48"
X-Horiz Tvl of Table
120"
Y-Vert Tvl of Head
96"
Z-Axis Travel
36"
W-Axis Travel (Quill)
50"
Rapid Traverse Rate (X/Y/Z)
450/450/300 ipm
Spindle Speed
3,000 rpm
Spindle Motor
40 hp
Spindle Taper
CAT 50
Coolant Thru Spindle
no

Equipped With:

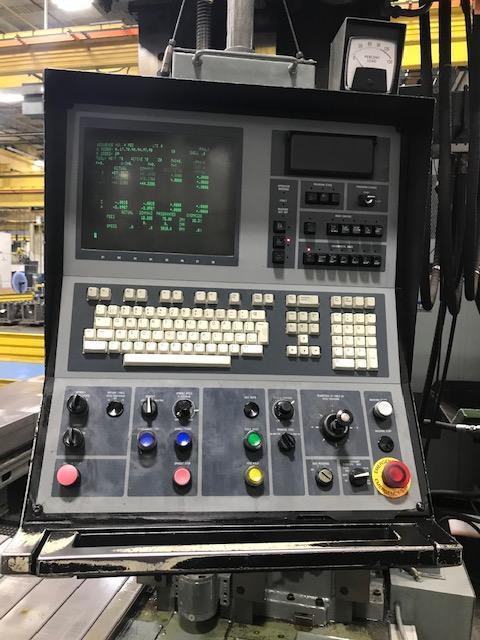

- G&L 8000-M Series CNC Control
- Telescoping Steel Way Covers on Table & Saddle Ways

** VIDEO - Click HERE **

*** G&L Hydrostatic Rotary Table *** | Available at Additional Cost $19,500
  • Table Size 	48" X 72"
  • Work Height 	15.5"
  • NUMBER OF T-SLOTS 	6
  • WIDTH OF T-SLOTS, TOP 	7/8"
  • WIDTH OF T-SLOTS, BOTTOM 	1 1/2"
  • DEPTH OF T-SLOTS, OVERALL 	1 1/2"
  • DISTANCE BETWEEN T-SLOT CENTERS 	7 1/2"
  • CENTER KEYWAY WIDTH 	7/8"
  • CROSS KEY SLOTS 	4
  • TABLE WEIGHT CAPACITY 	25,000 LBS
  • SHOT PIN LOCATIONS (DEGREES) 	90,180,270,360
  • TABLE BASE DIMENSIONS 	60" X 57"
  • APPROXIMATE SHIPPING WEIGHT 	5,750 LBS
EQUIPPED WITH:
- AIR CLAMP
- HYDROSTATIC LIFT
- 4-POSITION, POSITIVE STOP SHOT PIN
- 360 DEGREE SCALE WITH 1/2 DEGREE INCREMENTS
- FIXTURE LOCATING KEYWAY DEGREE INCREMENTS
- FIXTURE LOCATING KEYWAY
- CENTER BORE IN TABLE PLATEN






The Giddings & Lewis G50T is an exclusive part of our Horizontal Boring Mills (Table) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
