Gray VFR-42 - Vertical Lathes

Share Machine
Specifications Print Specs
Model: VFR-42
Year: 2007
Stock #: BR0100087 Sold
Type: Vertical Lathes
Manufacturer: Used Gray Machines
Highlights:
King Retrofitters done in 2,007

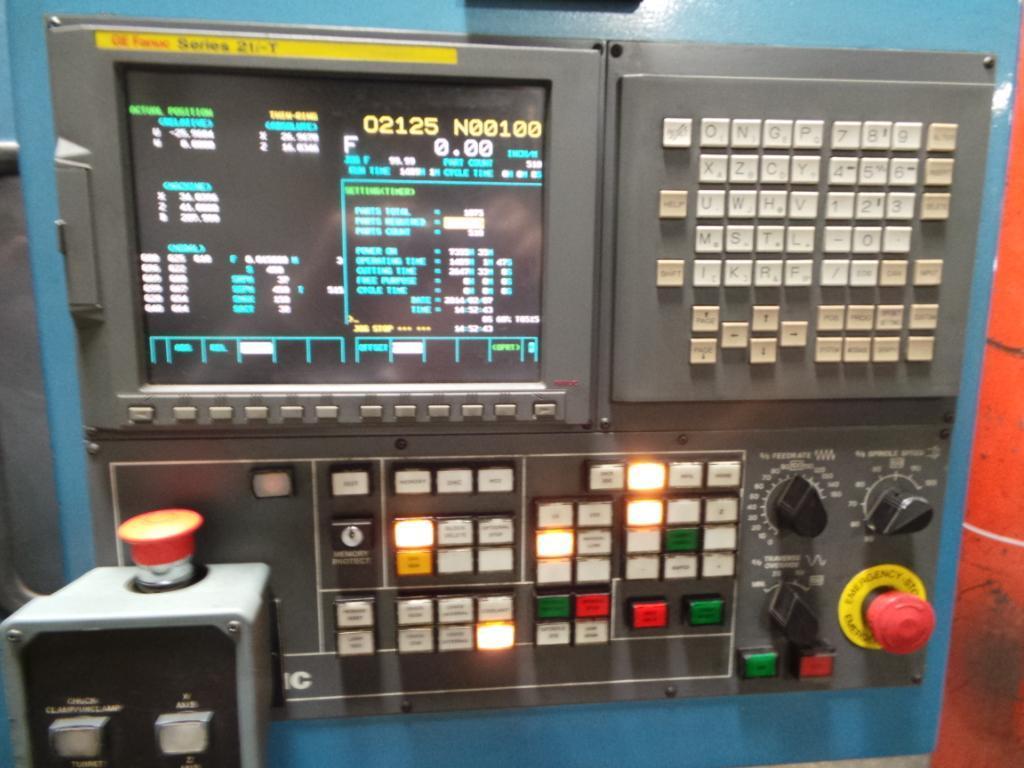

Fanuc 21iT CNC Control
Documentation Available

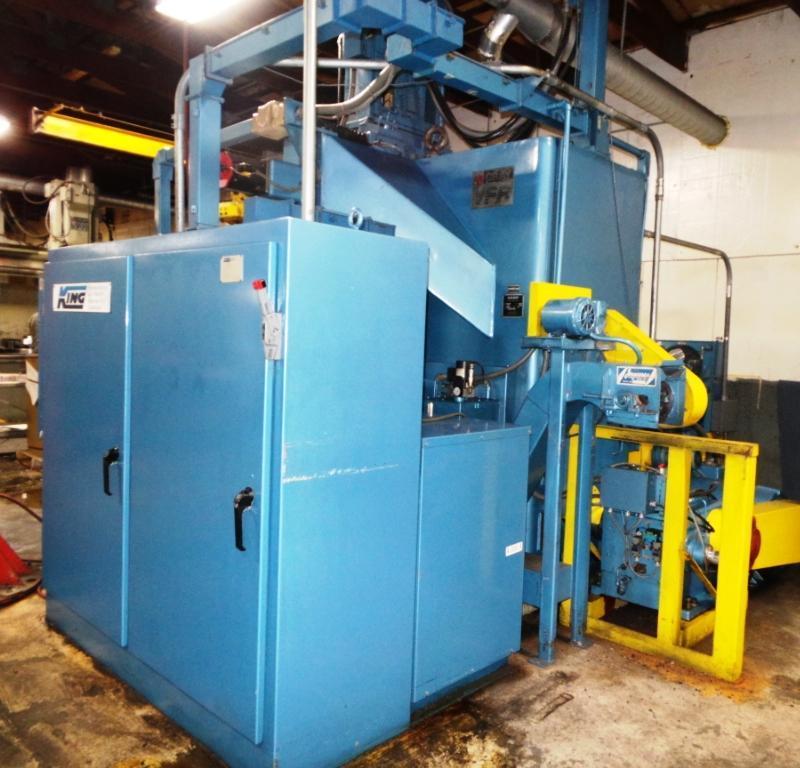

Gray VFR-42 Vertical Turret Lathe - Retrofit CNC in 2007
Machine Specifications
CNC Control
yes
Control Type
Fanuc 21i-T
Swing
52"
Table Diameter
42"
Chuck Size
42"
Spindle Speed
5-164 rpm Low Range | 164-488 rpm High Range
Spindle Motor
50 horsepower
Live Tooling
no
Turret Capacity
5

Equipped With:

- Machine Retrofit Done by King Retrofit in 2,007
- New Spindle Bearings (2,007)
- New Servo Driven Turret Indes Drive Unit
- 41" High Column Clearance from Table Top to Turret Face
- 31" Ram Travel
- 2-Speed Gear Box
- Fixed Rail Design
- Full Enclosure
- Low Hours Since Retrofit
- Rear Discharge Chip Conveyor

The Gray VFR-42 is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
