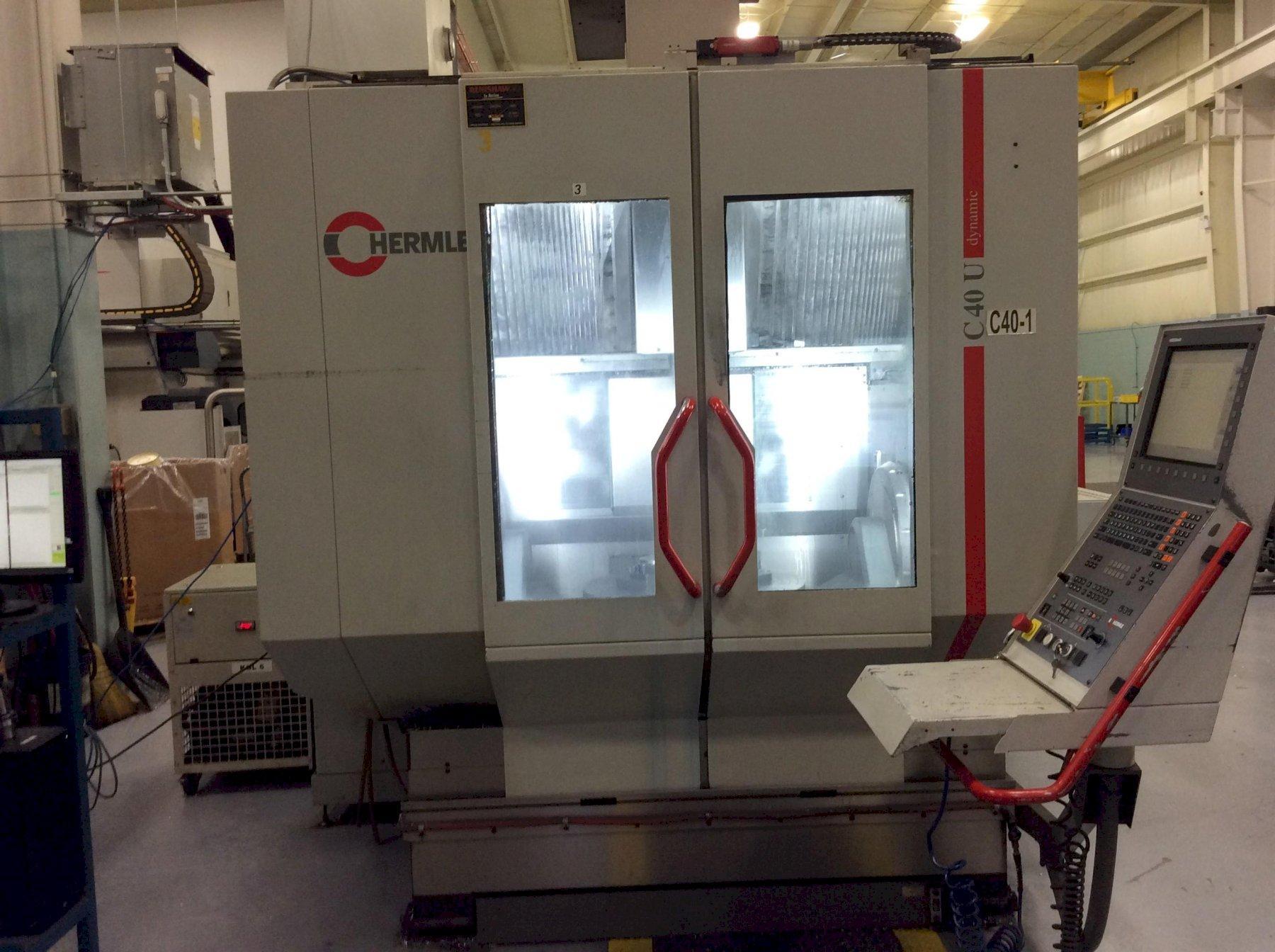

Hermle C40-U - Machining Centers, Vertical, (5-Axis or More)

Share Machine
Specifications Print Specs
Model: C40-U
Year: 2006
Stock #: BR15920 Sold
Highlights:

Hermle C-40U 5-Axis CNC Vertical Machining Center, Heidenhain, 29.5
Machine Specifications
# Axis
5
Control Type
Heidenhain
Table Working Surface (DIAMETER)
29.5"
Max Table Load
3,086 pounds
X
31.5"
Y
31.5"
Z
19.6"
A-Axis Trunnion Tilt Range
130 Deg
C-Axis Table Rotation Positioning Degrees
0.0001
Power
27 horsepower
RPM
18,000
# ATC
38
Taper
HSK-63
Positioning Tolerence (X/Y/Z)
0.008 mm
Positioning Resolution
0.0001

Equipped With:

  • Modified Gantry Design
  • 29.5" Dia Trunion Table
  • Reinishaw OMP 40-2 Probe
  • Blum NT Tool Breakage
  • Spindle Crash Cushions
  • Chiller
  • Chip Conveyor
  • Mist Collector

The Hermle C40-U is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
