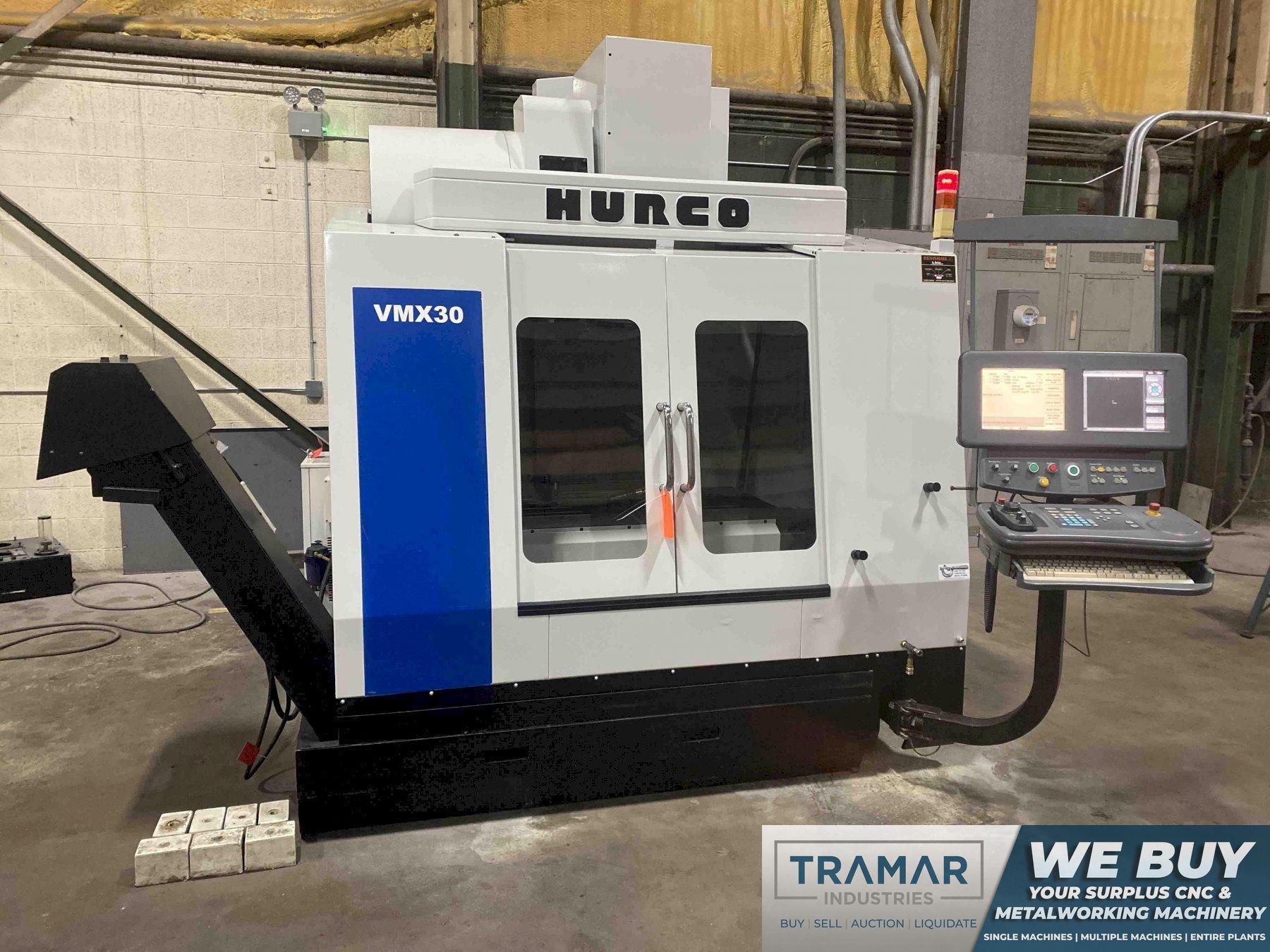

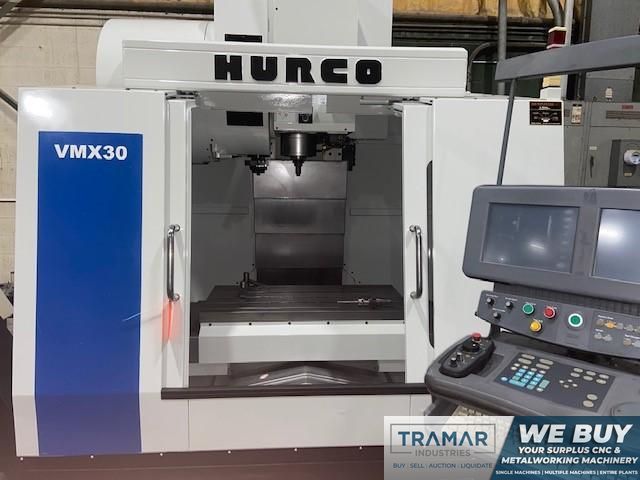

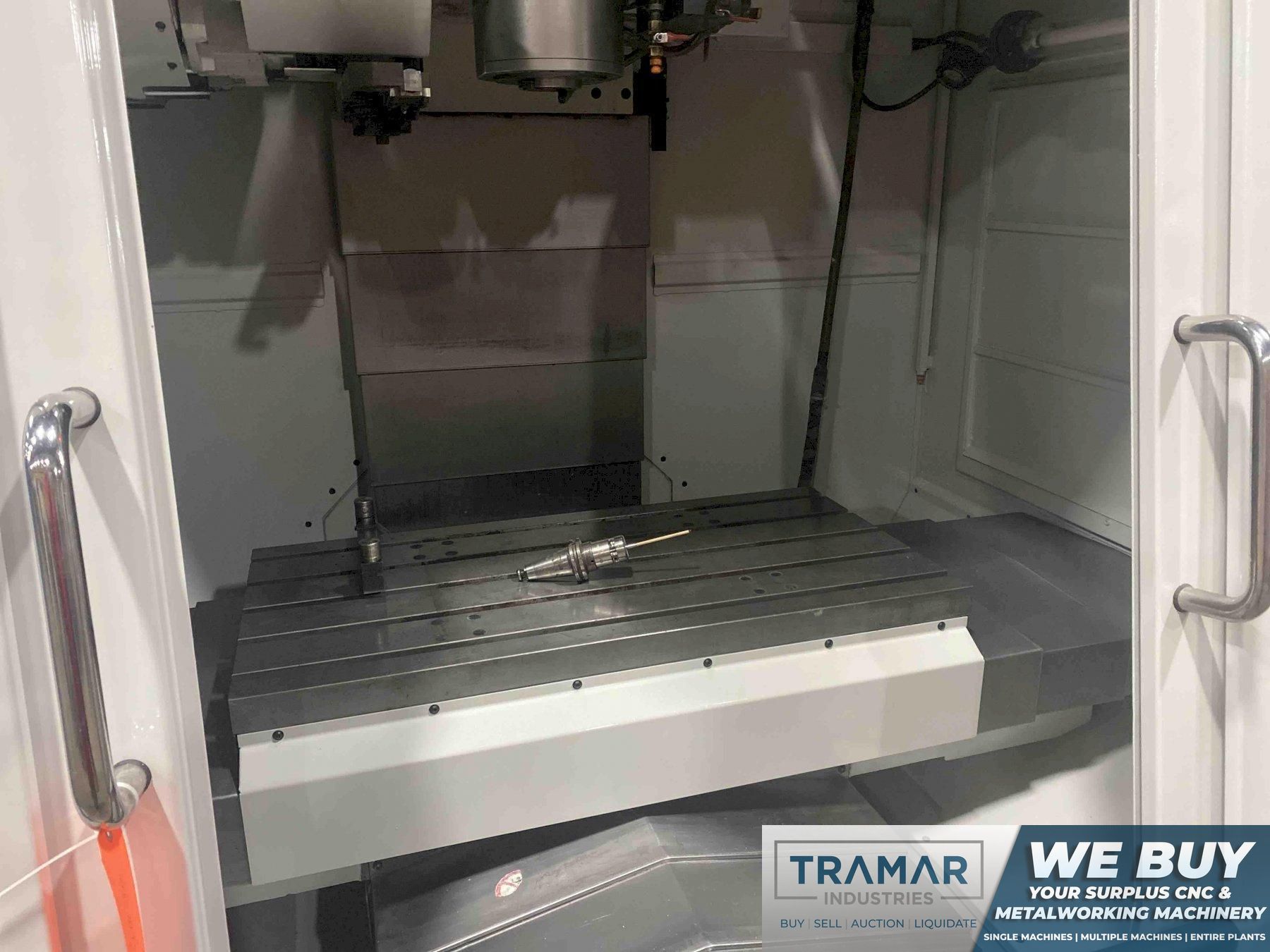

Hurco VMX-30 - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: VMX-30
Year: 2010
Stock #: 4013 Sold
Highlights:

Hurco VMX30 CNC Vertical Machining Center, Winmax (w/latest upgrade to CPU), 30
Machine Specifications
Control Type
Winmax
# Axis
3

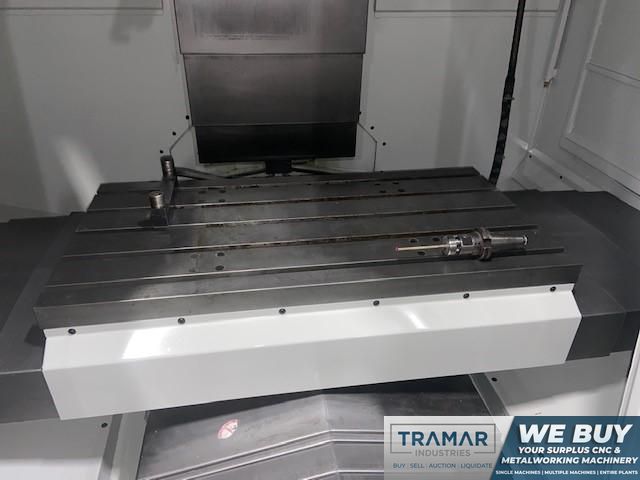

Table Size
20" x 40"
Table Capacity
1,360 pounds
X-Axis Travel
30"
Y-Axis Travel
20"
Z-Axis Travel
24"
Spindle Speed
12,000
Spindle Taper
Cat 40
Main Motor
18 HP
Tool Changer Capacity
24
X-Axis Rapid Traverse Rate
1,378 ipm
Y-Axis Rapid Traverse Rate
1,378 ipm
Z-Axis Rapid Traverse Rate
1,181 ipm
Weight
10,450 pounds

Equipped With:

DXF
Ultipockets
Rigid Tapping
Advanced Verification Graphics

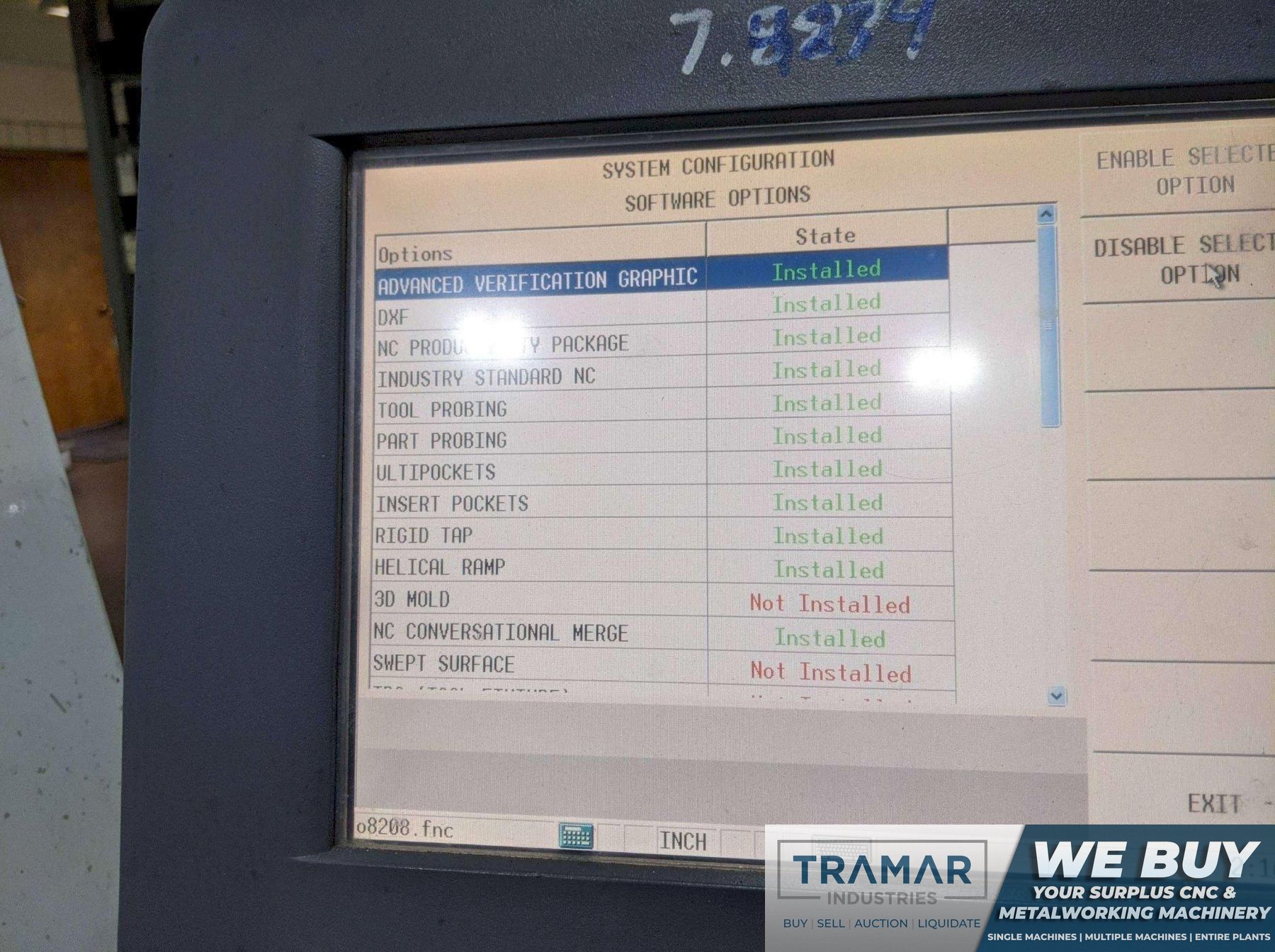

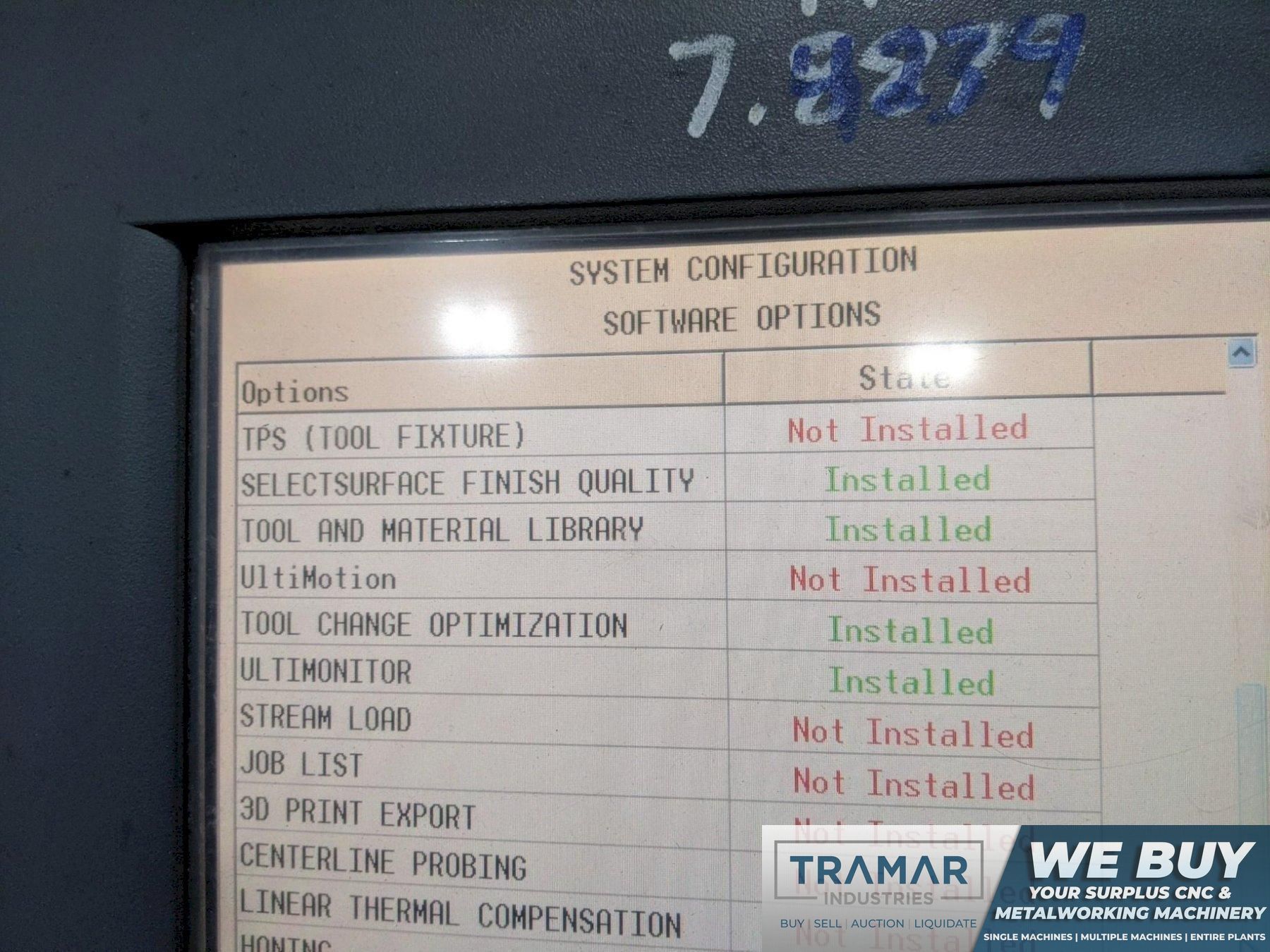

Many More Options (see pics)
Tool length Measurement  (needs service)
Reinishaw  Tool Probe
Chiller
Chip Conveyor
Ethernet Port
New Latest CPU Upgrade

The Hurco VMX-30 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
