Hwacheon T2 2TYSMC - Horizontal Lathes

Share Machine

Specifications Print Specs

Model: T2 2TYSMC

Year: 2014

Stock #: 16554 Sold

Type: Horizontal Lathes

Manufacturer: Used Hwacheon Machines

Highlights:

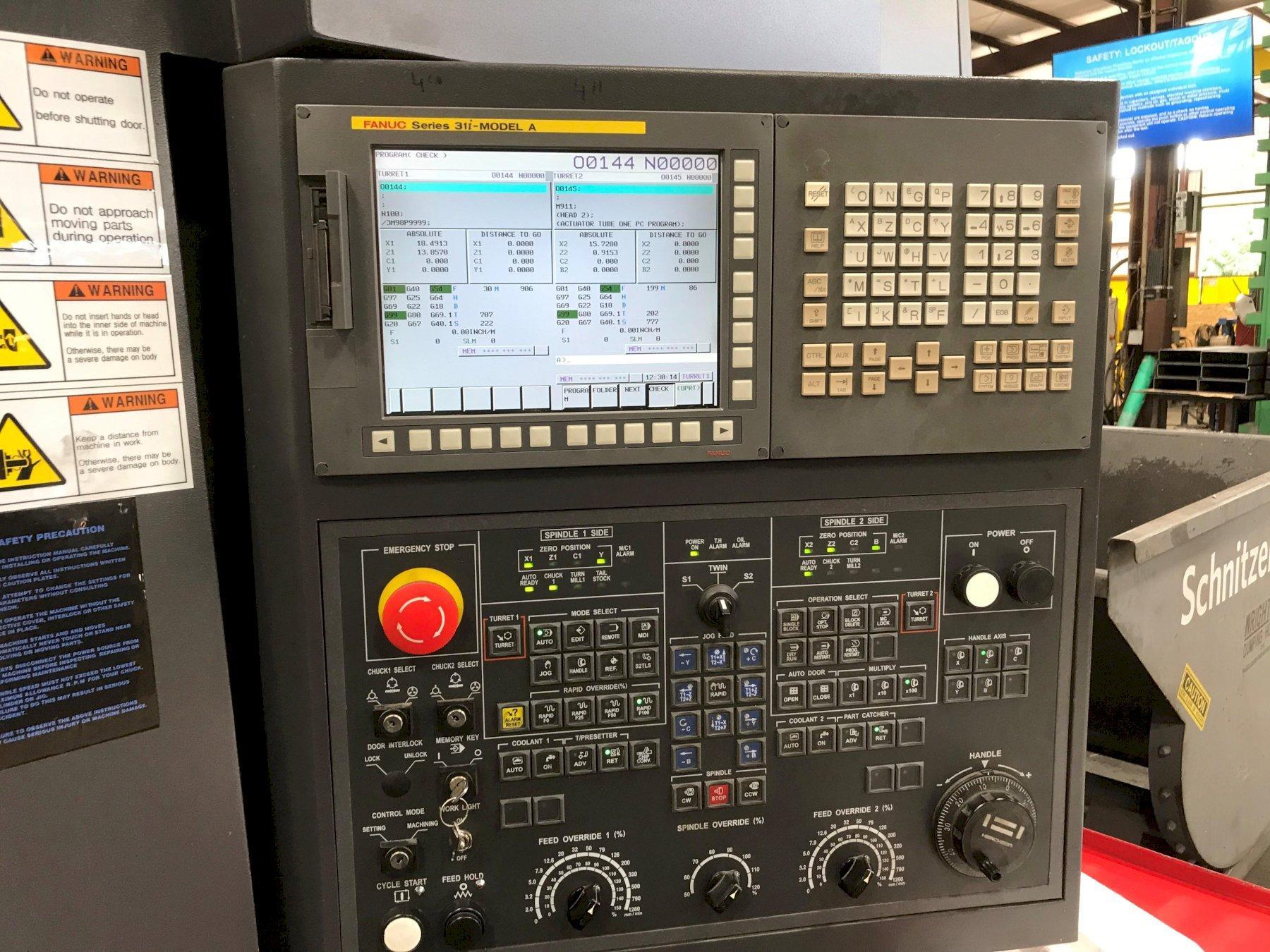

Fanuc 31i-Model A Control

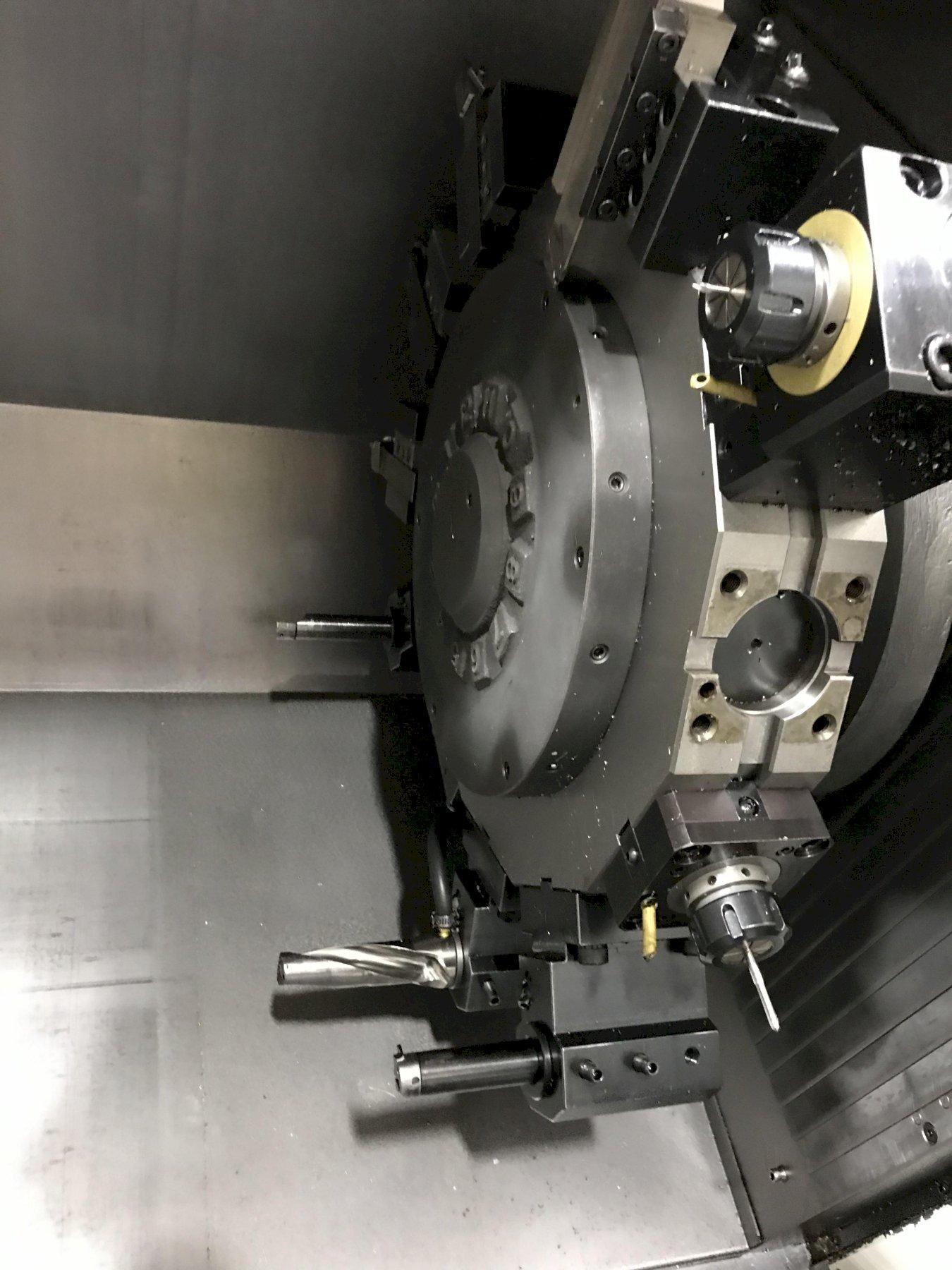

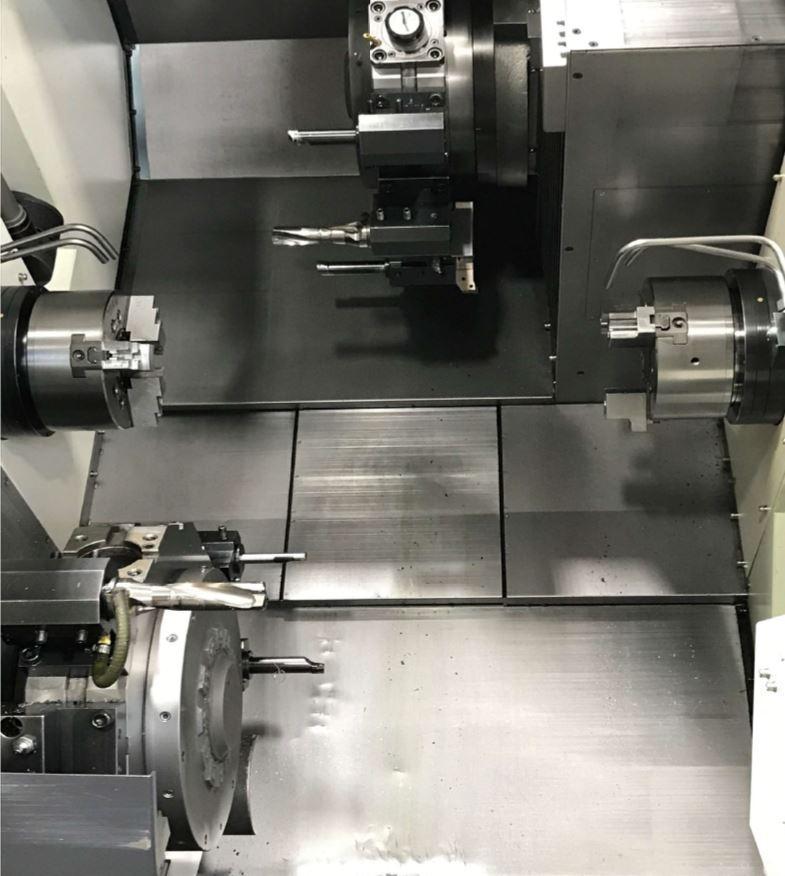

Twin Spindle | Twin Turret
Live Tooling | Y Axis | LNS Bar Feeder
Excellent Condition

Equipped With:

- Fanuc 31i-Model A Control

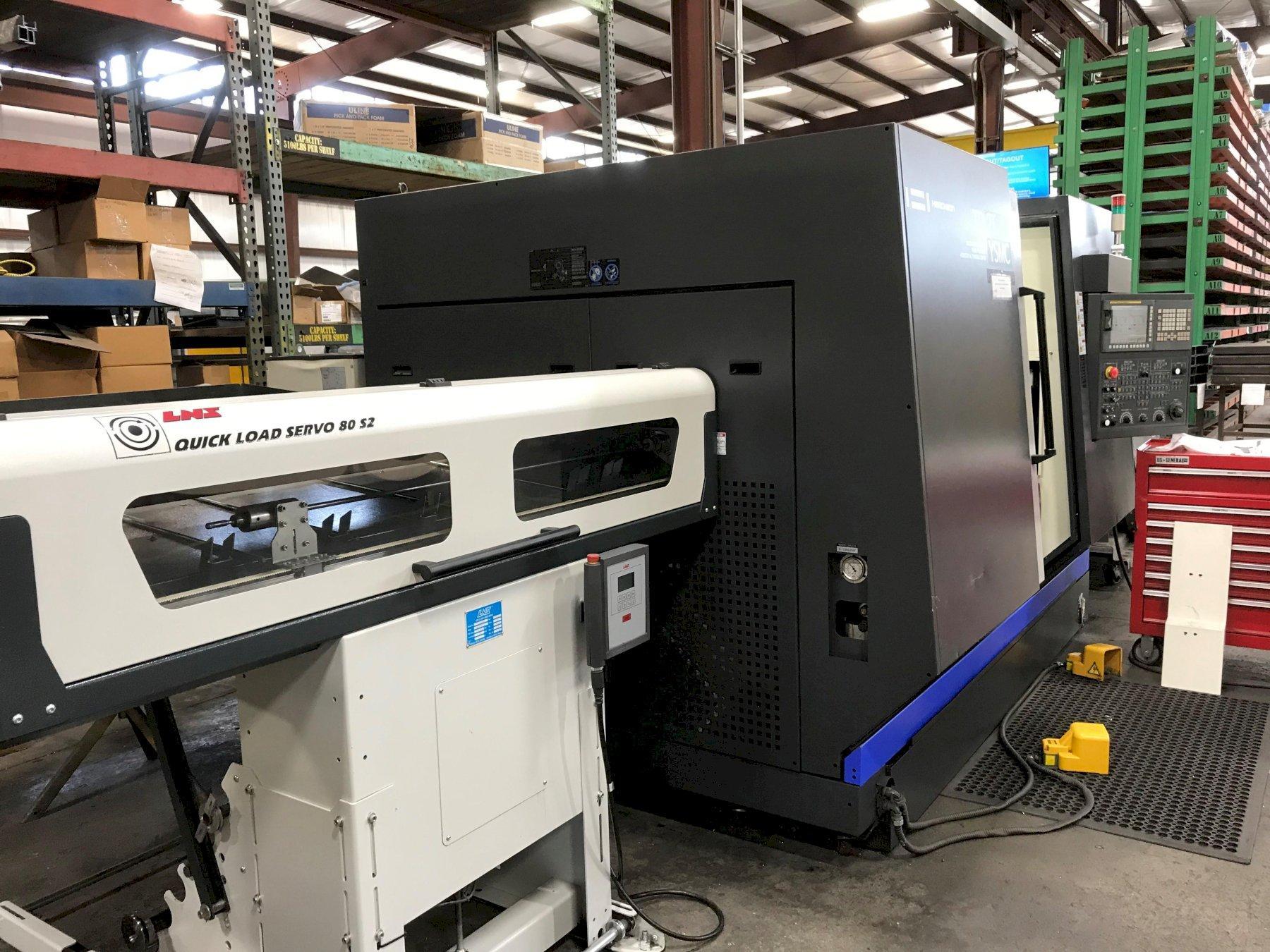

- LNS Quick Load Servo S80 Bar Feeder

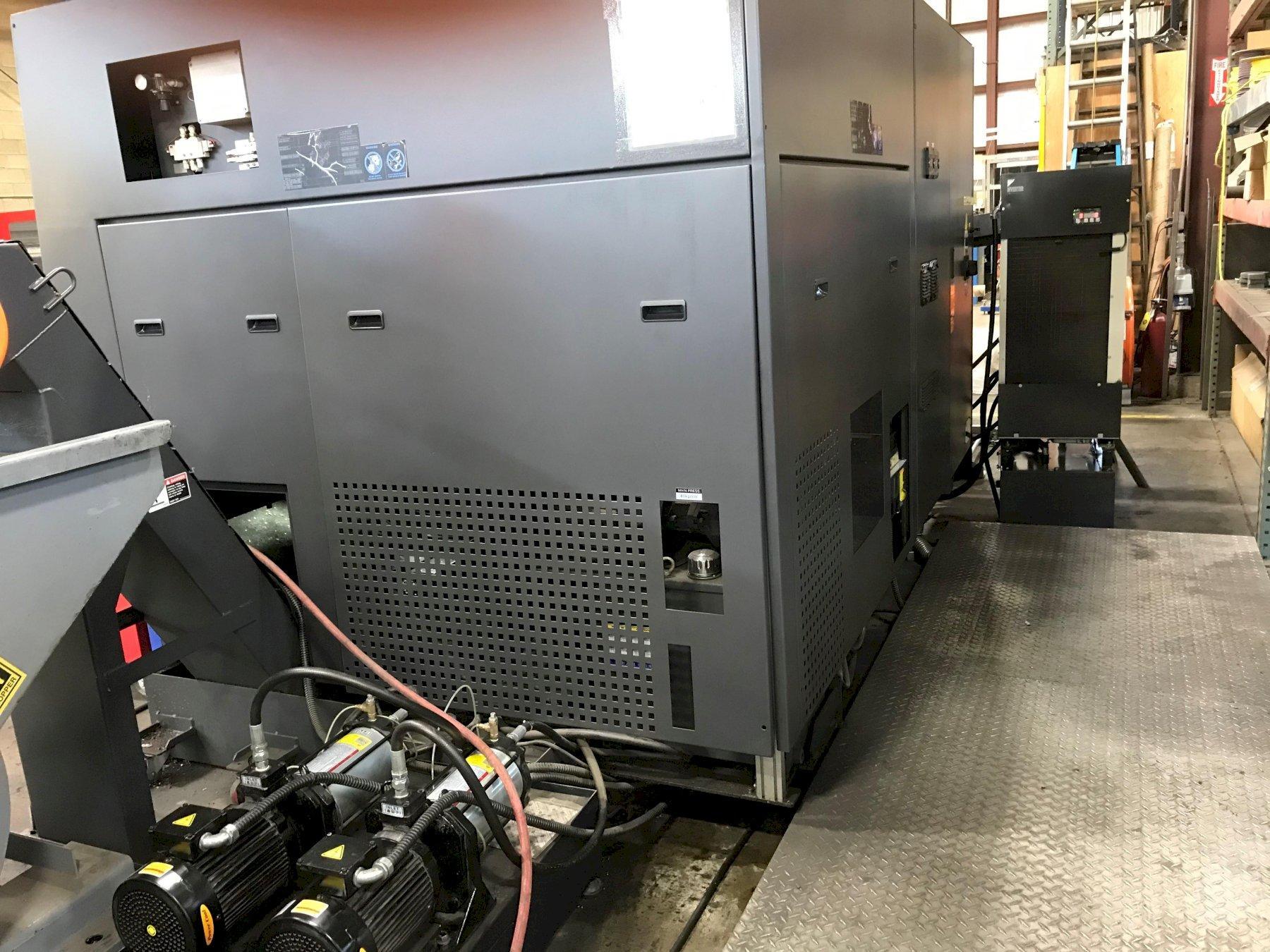

- Chip Conveyor
- Coolant Tank & Pump
- Chiller
- Parts Catcher & Conveyor Belt
- Misc. Tooling Available
* Static & Live Holders

** Video - Click Here **

Machine Videos

Files

T2-Series eng.pdf

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 31i-Model A

# Axis

Swing

34.6"

Turning Diameter

18.1"

Center Distance

17.4"

Chuck Size

Bar Capacity

2.56"

X Axis Travel

9.65"

X2 Travel

8.27"

Y Axis Travel

3.94"

Z Axis Travel

20.47"

Z2 Travel

20.47"

B Axis Travel (Sub Spindle)

21.62"

C Axis Index

0.001°

Spindle Nose

A2-6

Spindle Speed (RPM)

5,000

Main Motor

20 hp

Live Tooling

yes

Live Tooling Speed

6,000 rpm

Live Tooling Motor

10/7.5 hp

Sub Spindle

yes

Sub Spindle Chuck

Sub Spindle Bar Capacity

2.56"

Sub Spindle Nose

A2-6

Sub Spindle Speed

5,000 rpm

Sub Spindle Motor (HP)

20/15 hp

Turret Capacity

12 Upper | 12 Lower

Tailstock

Y Axis

yes

Dimensions

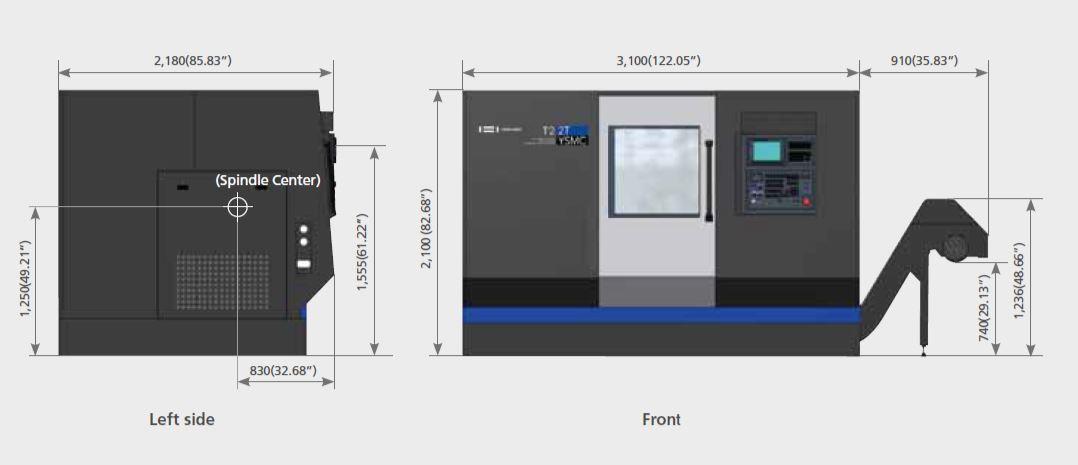

122" x 86" x 83" - Machine Only Dims | Chip Conveyor adds 36"

Weight

21,000 pounds

Equipped With:

The Hwacheon T2 2TYSMC is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
