Hyundai Kia SKT-21LMS - Horizontal Lathes

Request Quote
Specifications Print Specs
Model: SKT-21LMS
Year: 2007
Stock #: 13506
Highlights:
Fanuc 0i-TC Control
MTA Super 80 Bar Feeder
Live Tooling
Sub Spindle
Parts Catcher

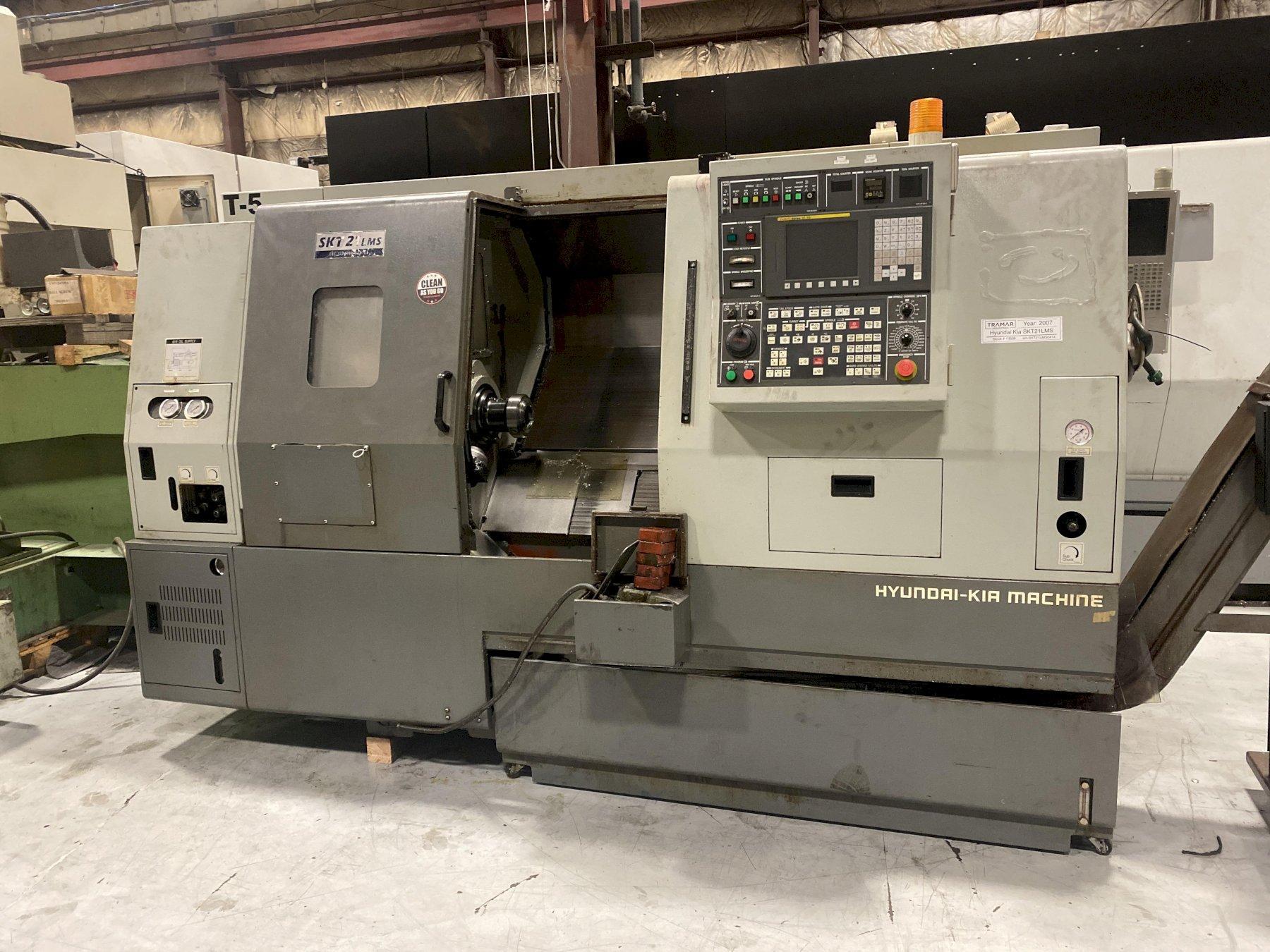

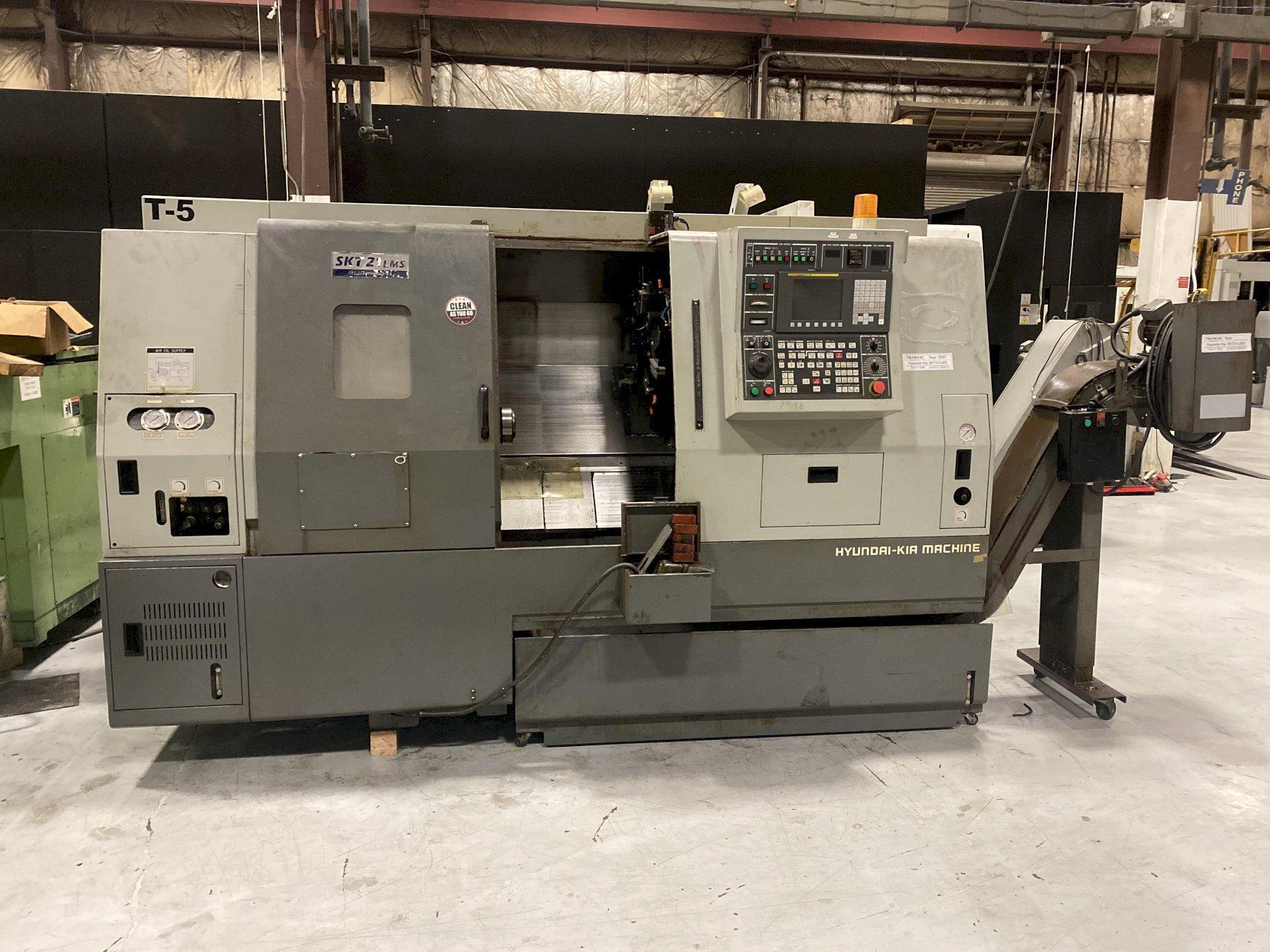

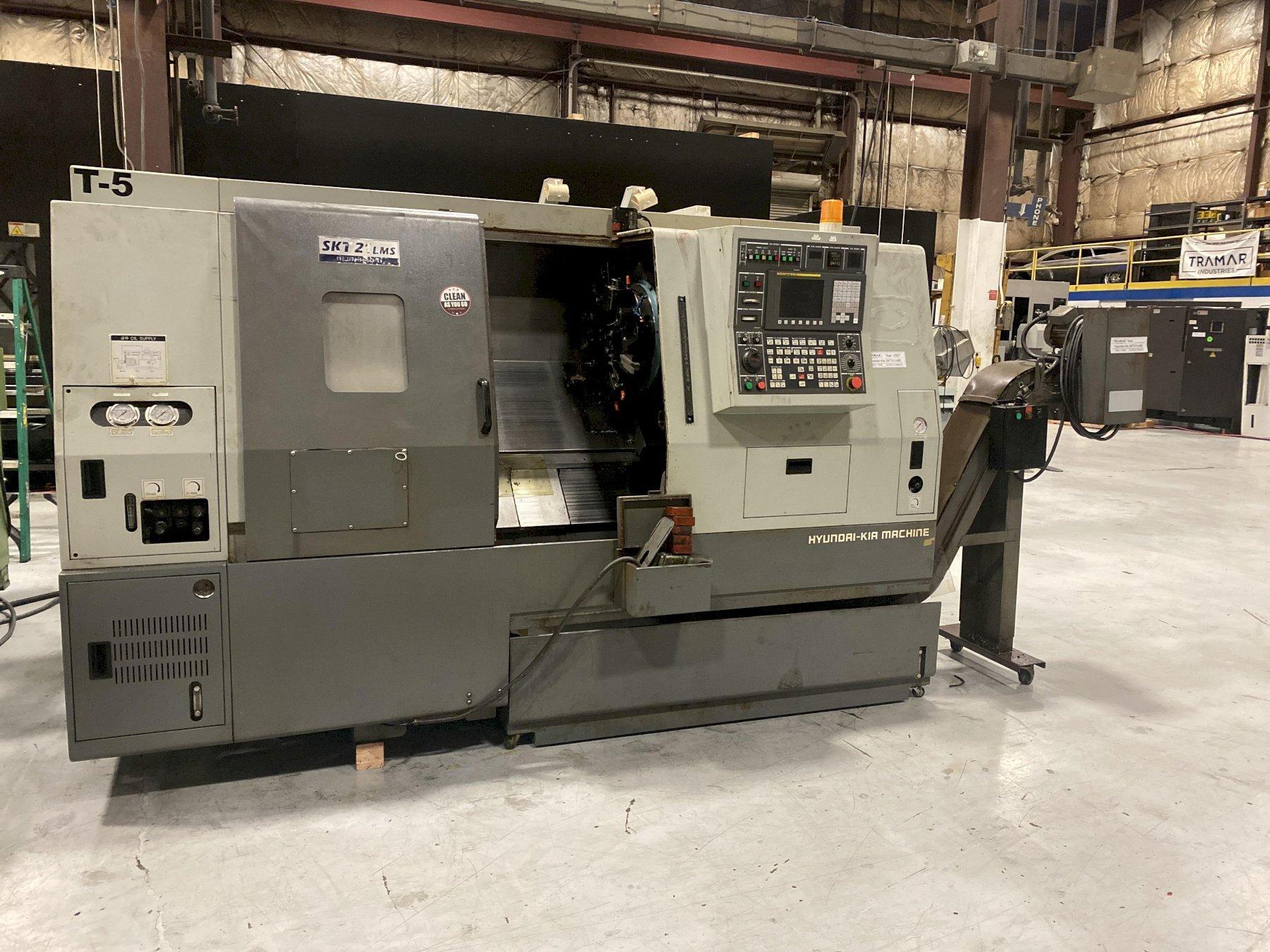

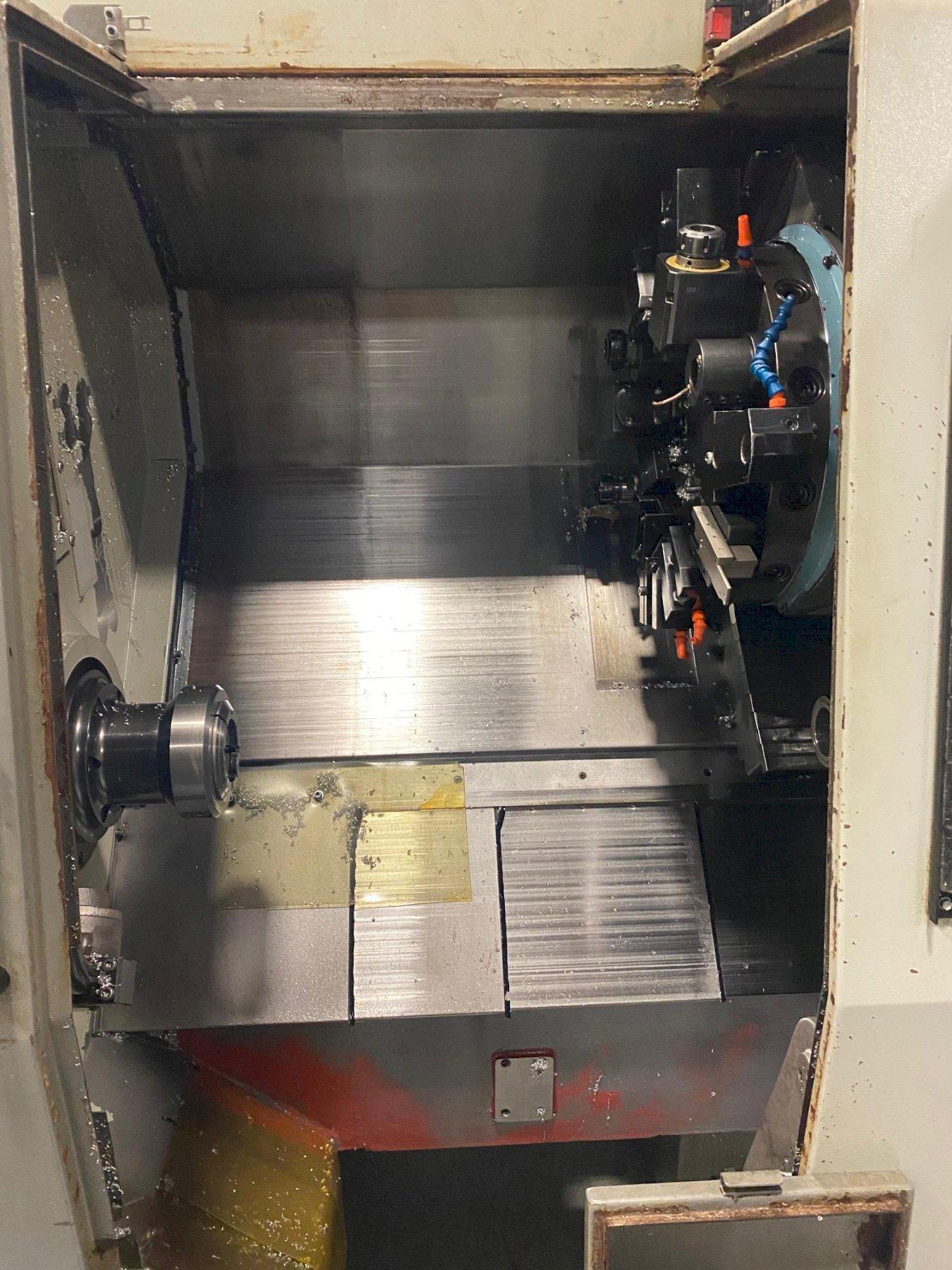

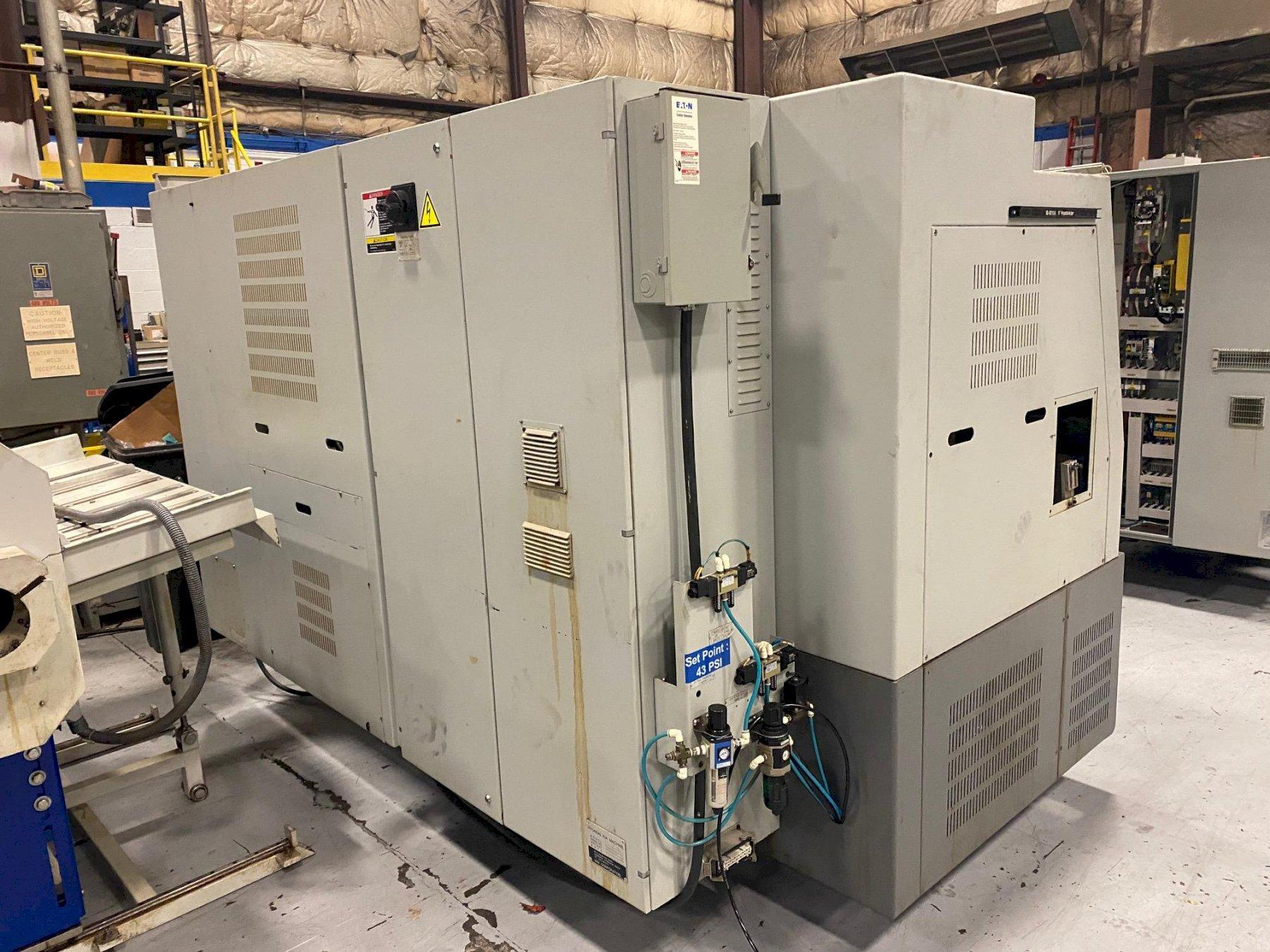

Hyundai Kia SKT-21LMS CNC Horizontal Lathe
Machine Specifications
Year
2007
# Axis
4
Swing
21.7"
Swing Over Cross Slide
13.8"
Turning Diameter
10"
Center Distance
20.87"
Chuck Size
8"
Bar Capacity
2.56"
X Axis Travel
8.3"
Z Axis Travel
21.65"
B Axis Travel (Sub Spindle)
29.5"
C Axis Index
0.001°
Rapid Traverse (X/Z)
1,417 ipm
Spindle Nose
A2-8
Spindle Speed
4,000 rpm
Main Motor
20 hp
Live Tooling
yes
Live Tooling Speed
4,000 rpm
Live Tooling Motor
5 hp
Tailstock
no
Y Axis
no

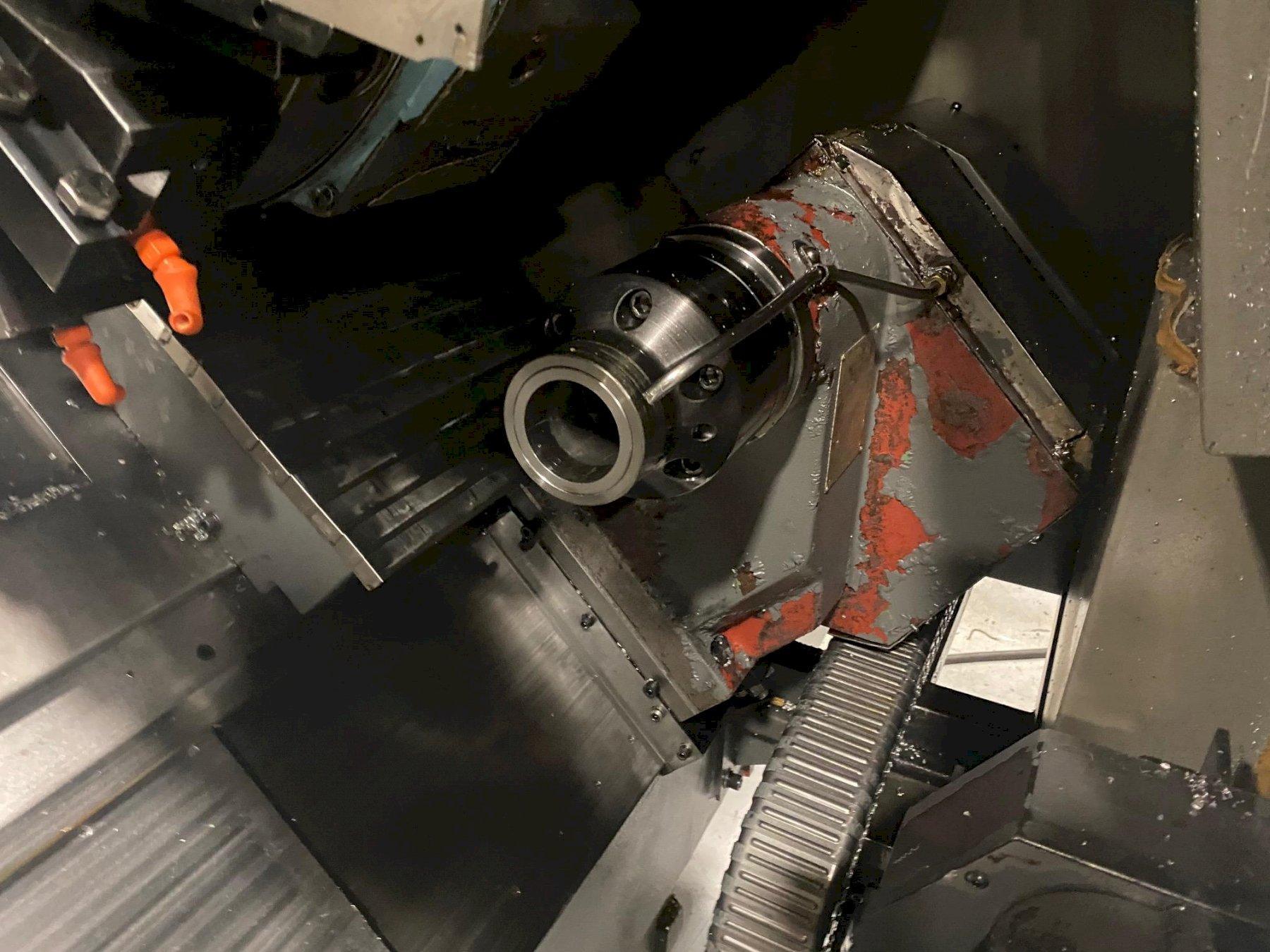

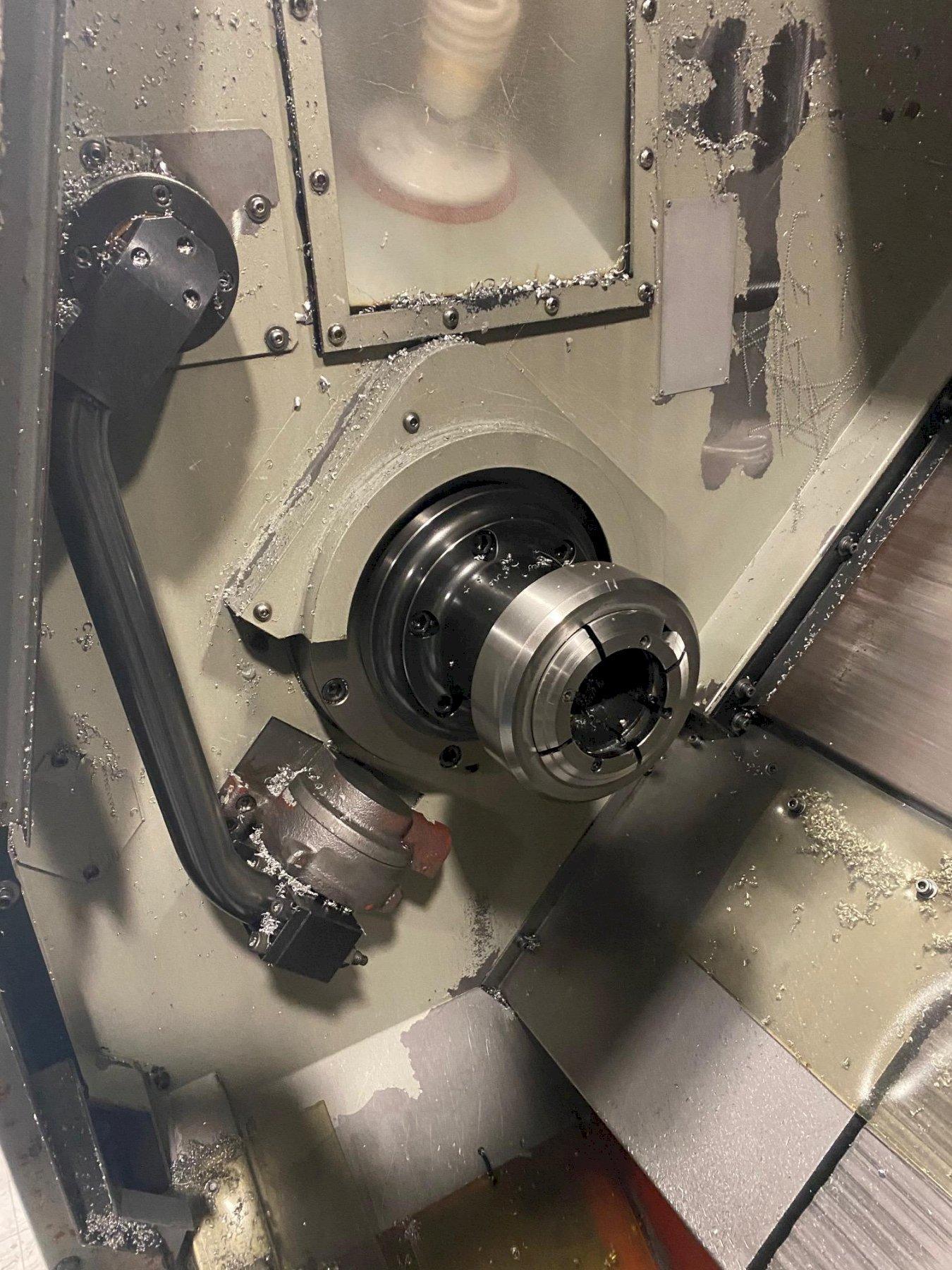

Sub Spindle
yes
Sub Spindle Chuck
6
Sub Spindle Speed
4,000 rpm
Sub Spindle Motor (HP)
5 hp

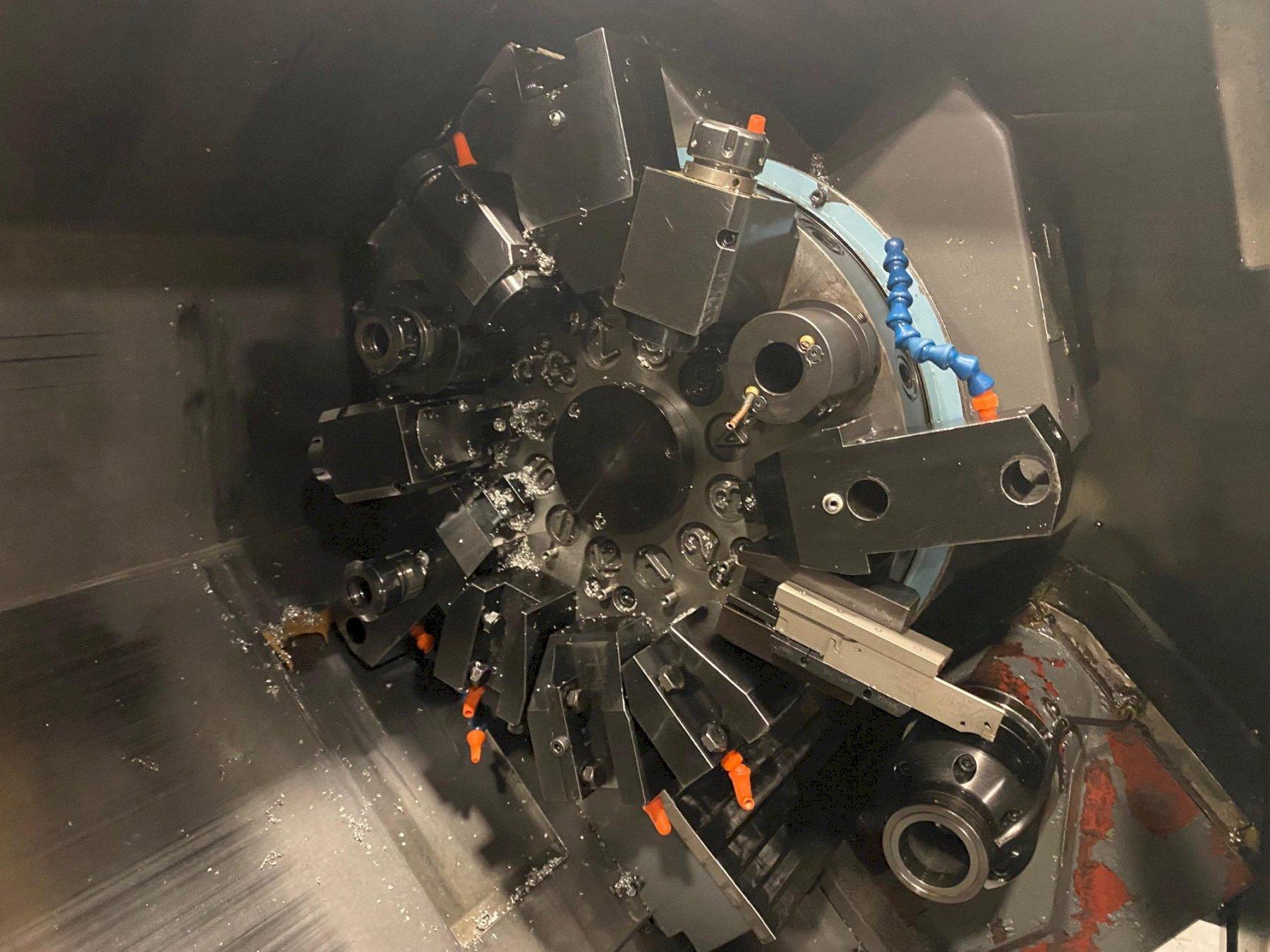

Turret Capacity
12 stations
Machine Dimensions
125" x 65" x 74"
Machine Weight
10,000 pounds

Equipped With:

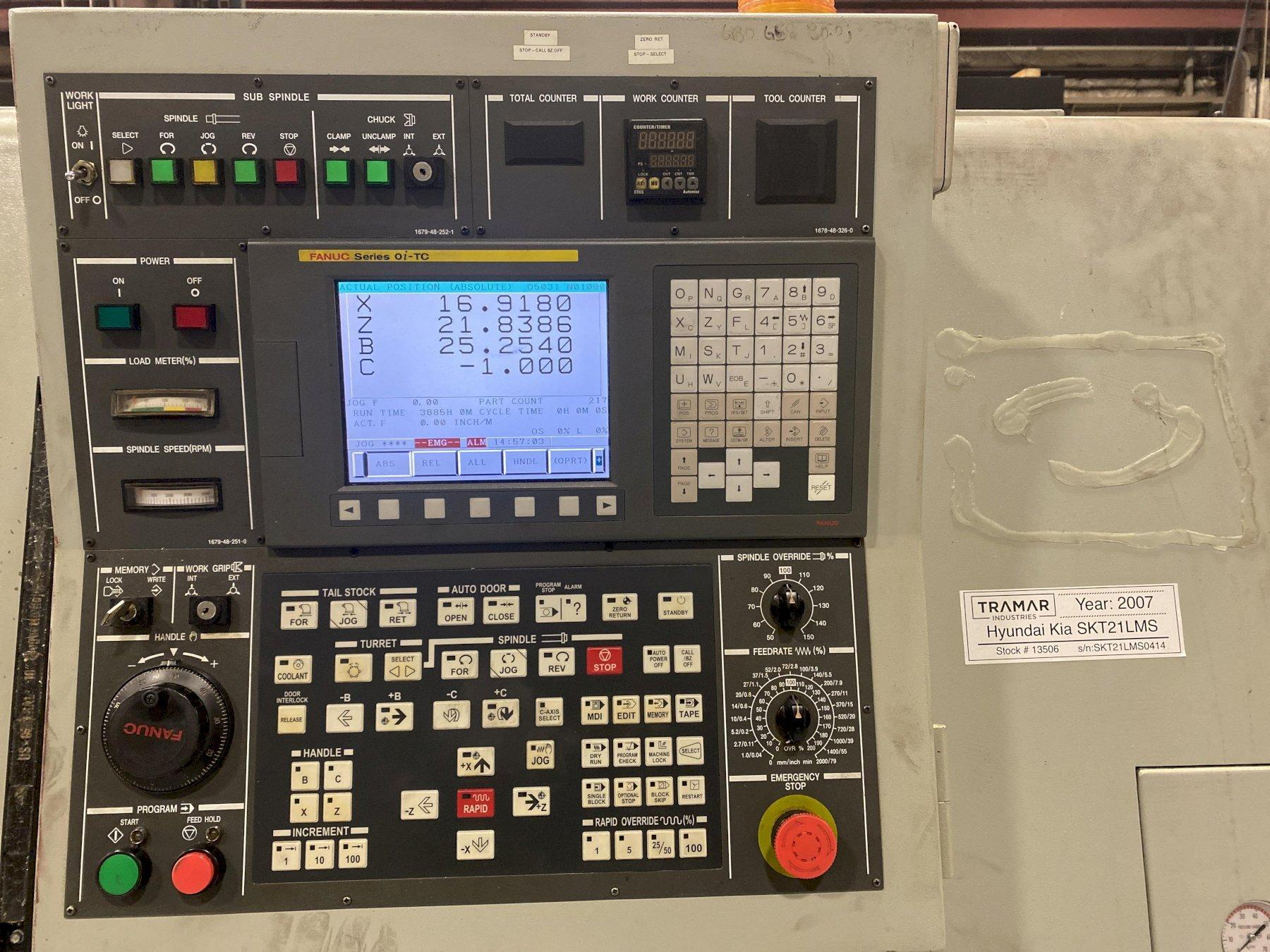

- Fanuc 0i-TC Control

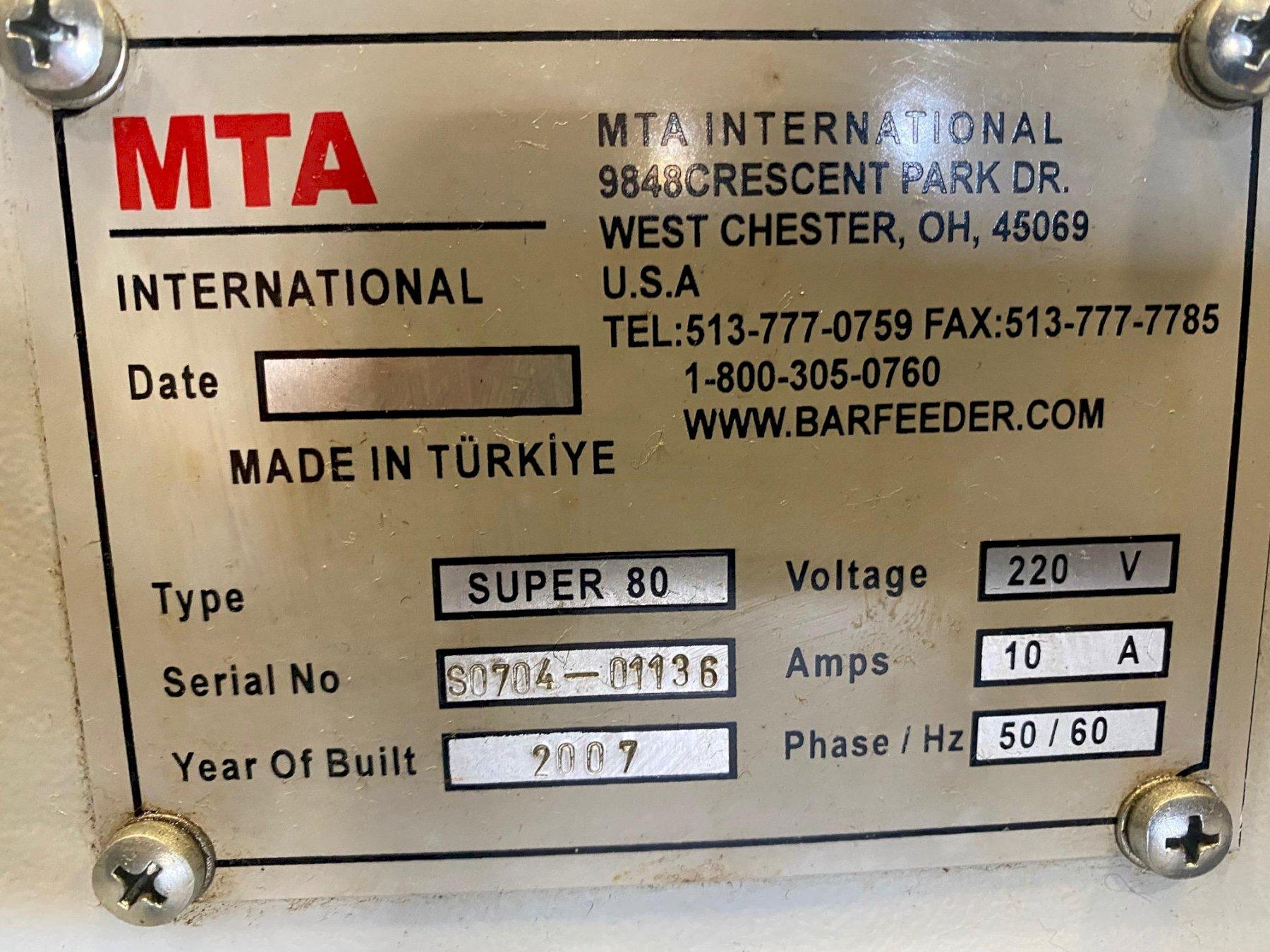

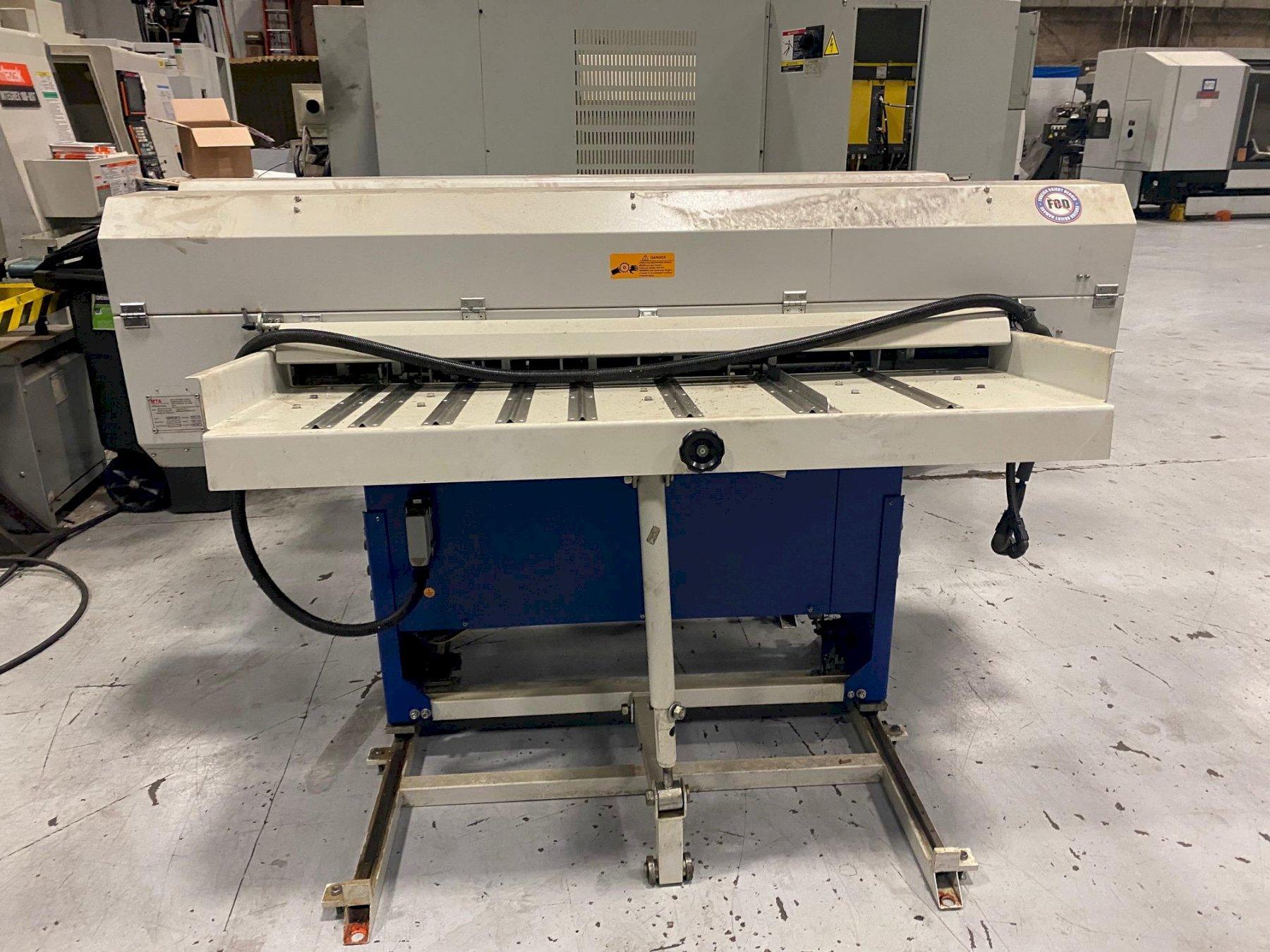

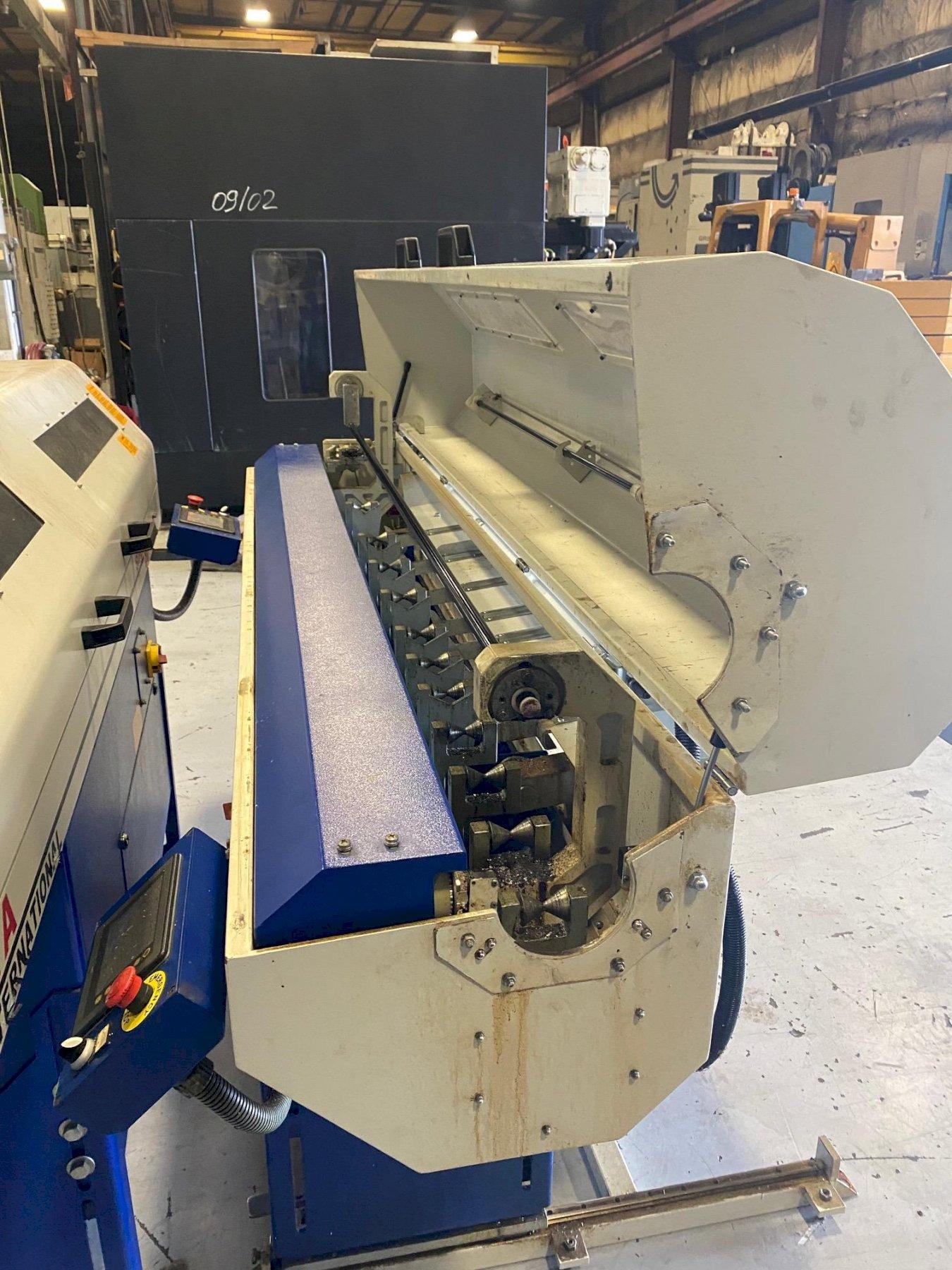

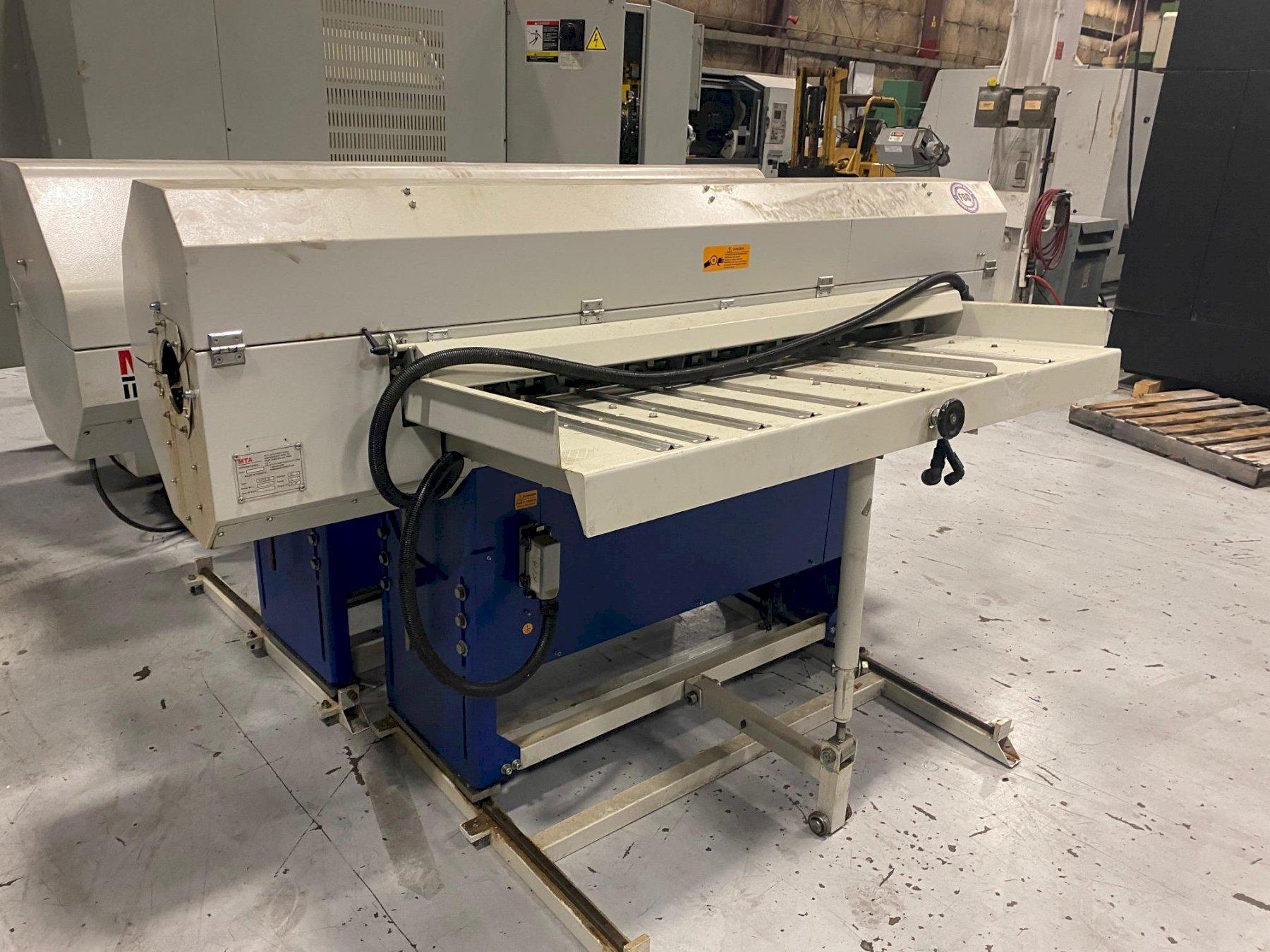

- MTA Super 80 6ft Bar Feeder
- Tool Presetter
- Live Tooling
- Sub Spindle
- Misc. Tooling
- Chip Conveyor
- Coolant Tank & Pump
- Available Manuals

The Hyundai Kia SKT-21LMS is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
