Inductoheat SS II UPI 16 50-50 - Heat Treating Units

Share Machine
Specifications Print Specs
Model: SS II UPI 16 50-50
Year: 2013
Stock #: BR16083 Sold
Highlights:

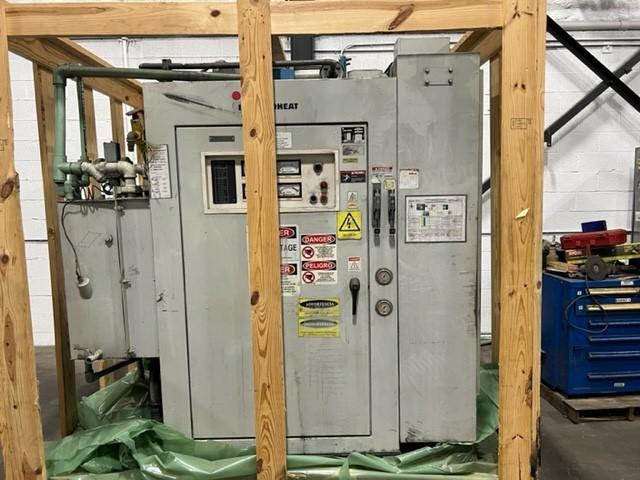

The Statiscan® II Induction Heat Treating Scanning System is a unitized vertical hardening system with two standard scanning spindles. This platform is designed for medium duty heat treating and tempering of various parts and applications. This flexible machine can be configured for multiple heat treating operations such as; scan, single-shot, lift/rotate and linear transfer.

Inductoheat Statiscan II Induction Heat Treating Scanning System.  2013 (2) Machines Available
Machine Specifications
CNC Control
no
Dimensions
84" x 74" x 98" H
Tower Span Length
26.5"
Max Part Length
30"
Scanning Speed (max)
8" / Sec
Workpiece Capacity/ spindle
22 Lbs
Spindle Center Spacing
8"
Height Tower Up
103"
Controls

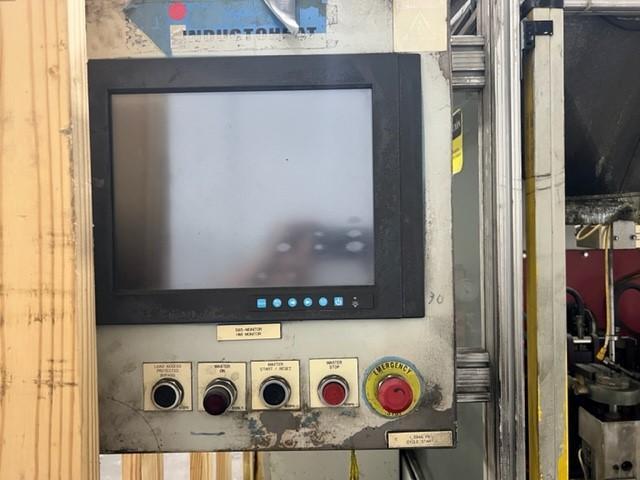

Standard PLC With HMI Interface
Standard Power Ratings
50 KW

Equipped With:

Two Standard Scanning Spindles

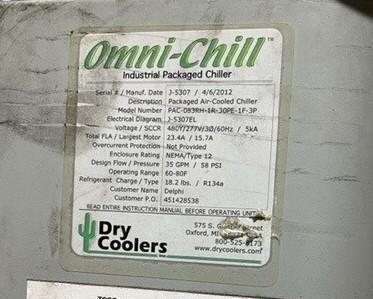

Omni Cool Chiller

The Inductoheat SS II UPI 16 50-50 is an exclusive part of our Heat Treating Units inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
