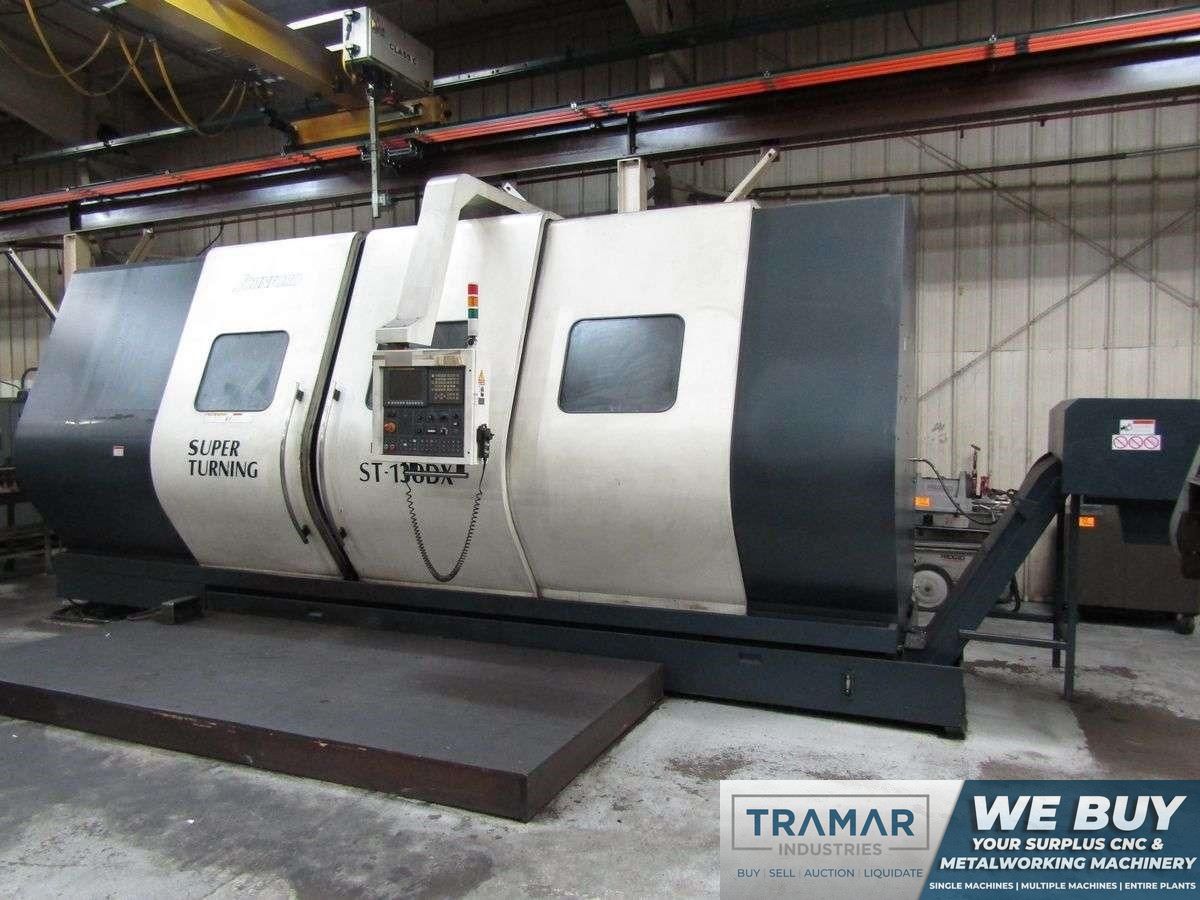

Johnford ST-130DX - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: ST-130DX
Year: 2008
Stock #: B1543 Sold
Highlights:
Fanuc 0iTC Control, 32" smw Autoblock Chuck, (2) Steady Rests

Johnford ST-130DX CNC Lathe, Fanuc 0iTD Control, 32
Machine Videos
Machine Specifications
CNC Control
yes

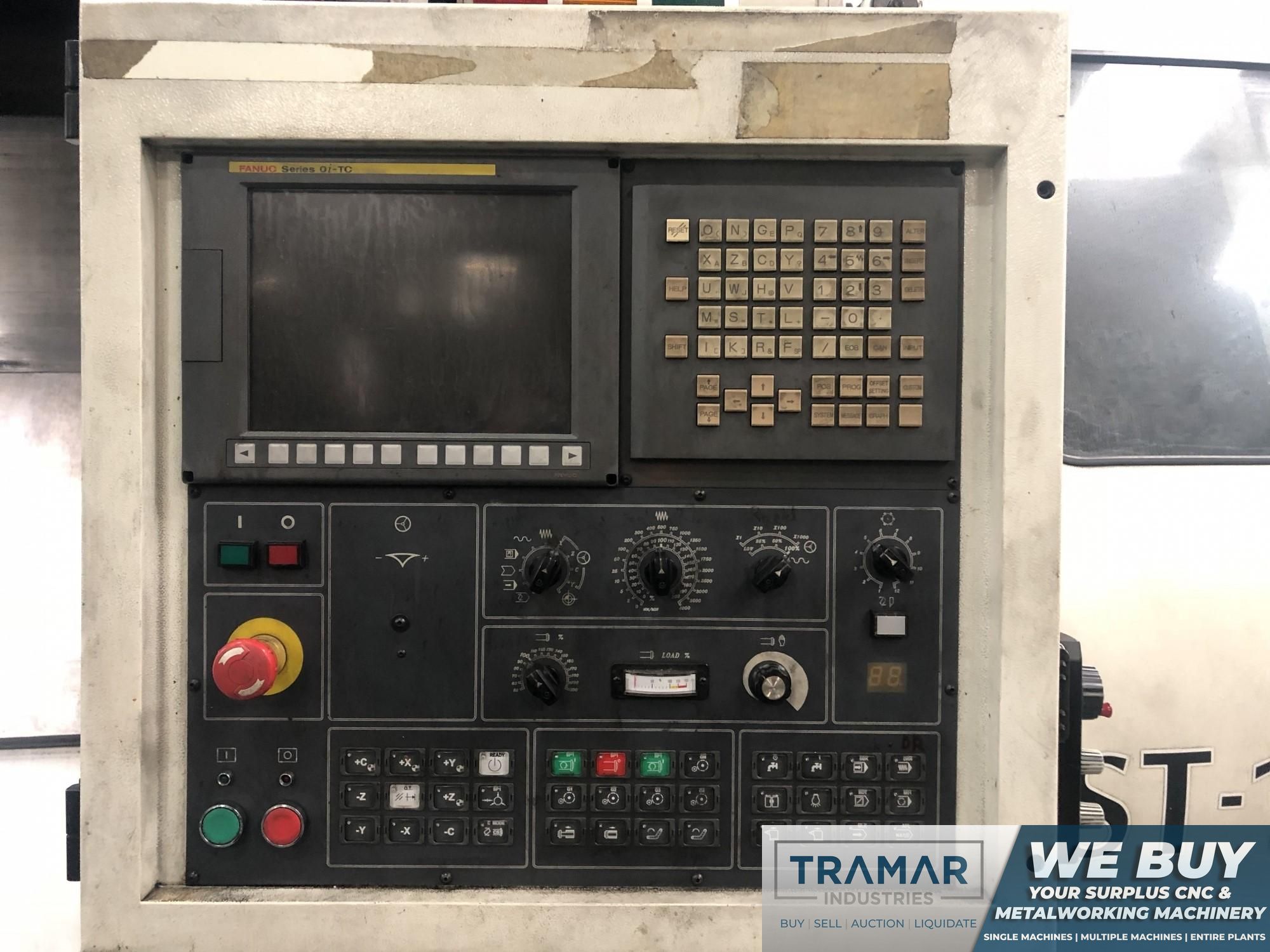

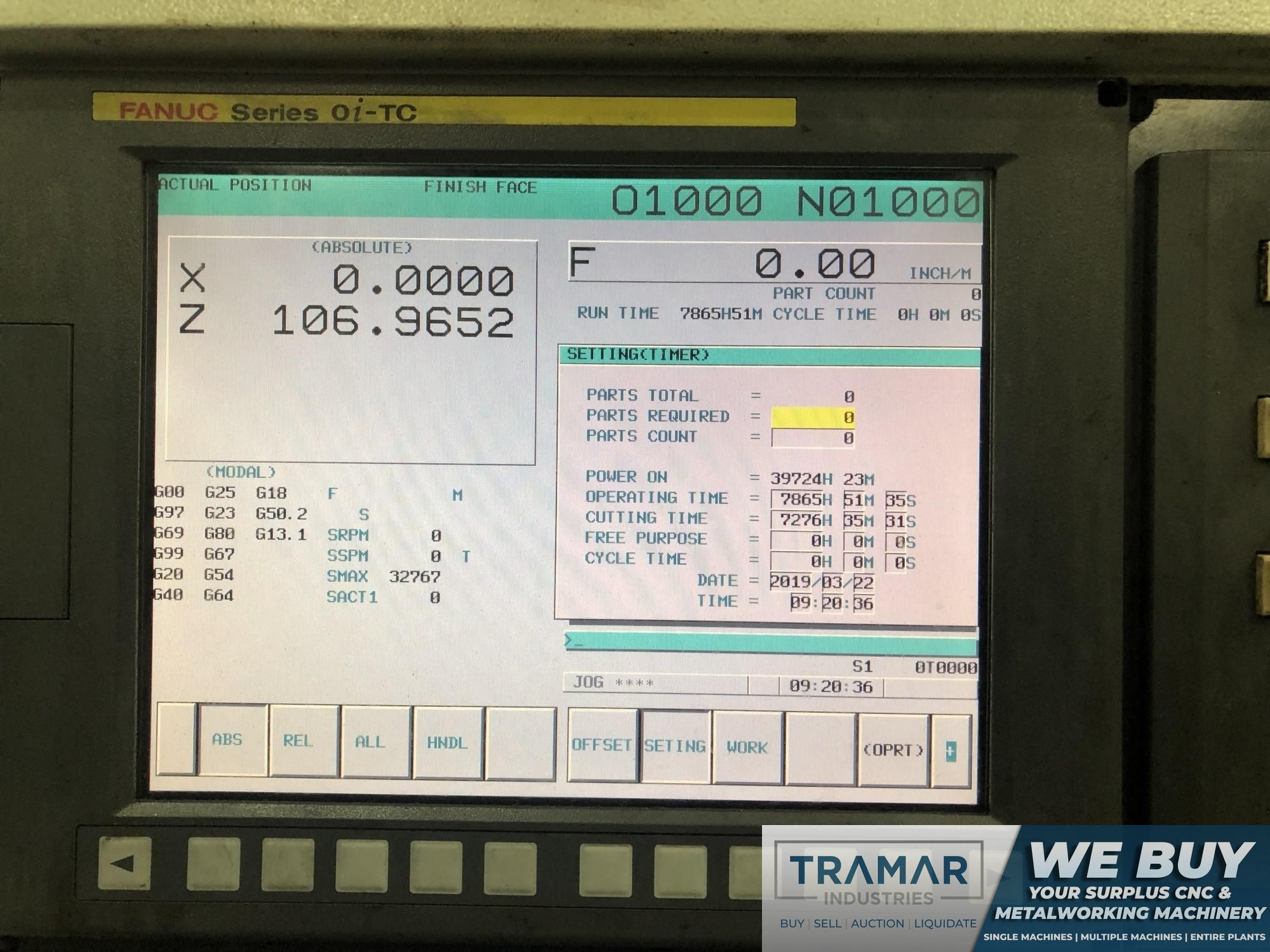

Control Type
Fanuc Oi-TC
Chuck Size
32"
Swing
47.2"
Turning Diameter
39.4"
Center Distance
130"
Bar Capacity
6.5"
X Axis Travel
20.5"
Z Axis Travel
120"
Rapid Traverse (X/Z)
393
Spindle Speed (RPM)
1,000
Main Motor
60 HP

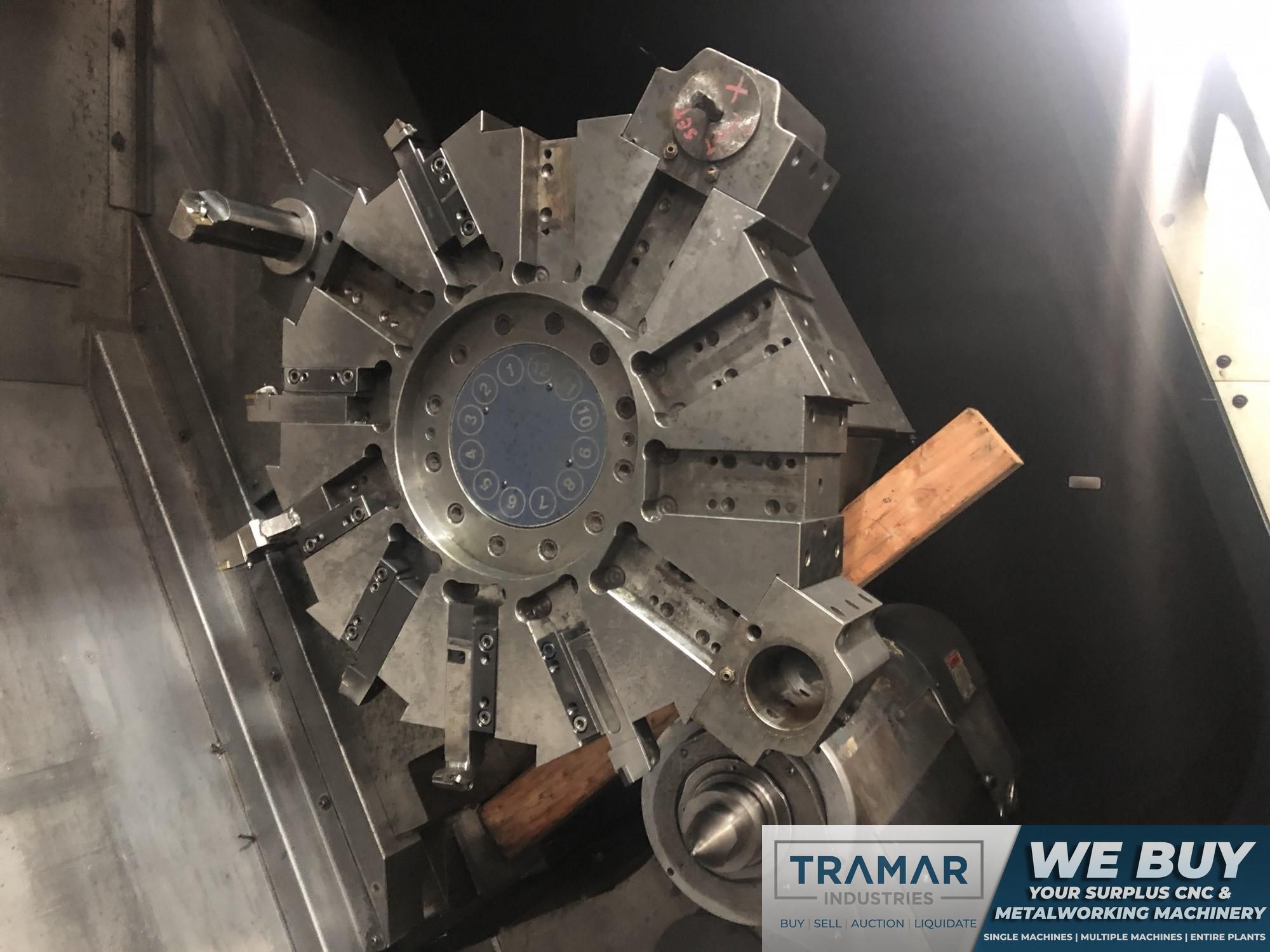

Turret Capacity
12
Tailstock
yes
Weight
46,000 pounds
# Axis
2

Equipped With:

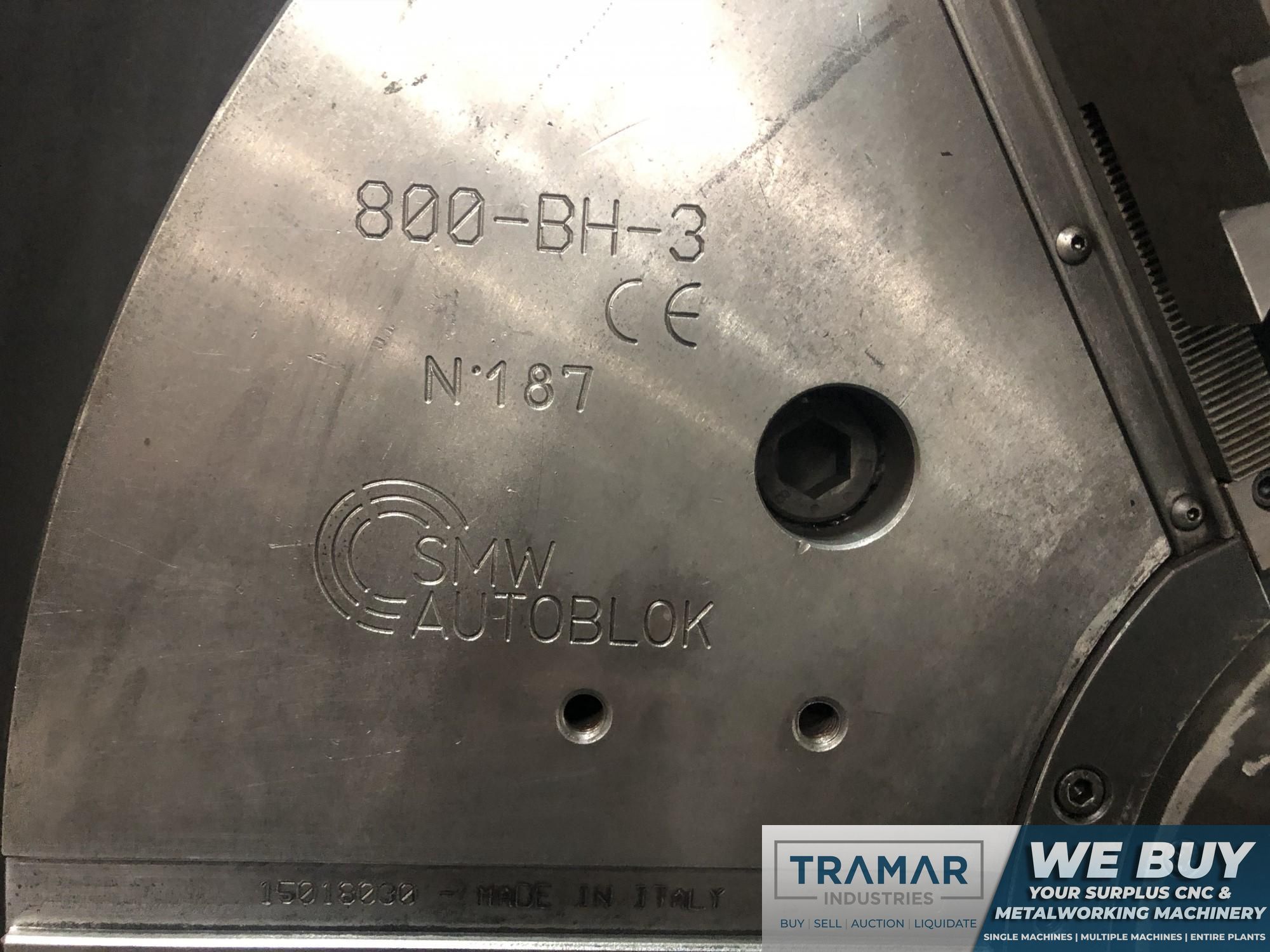

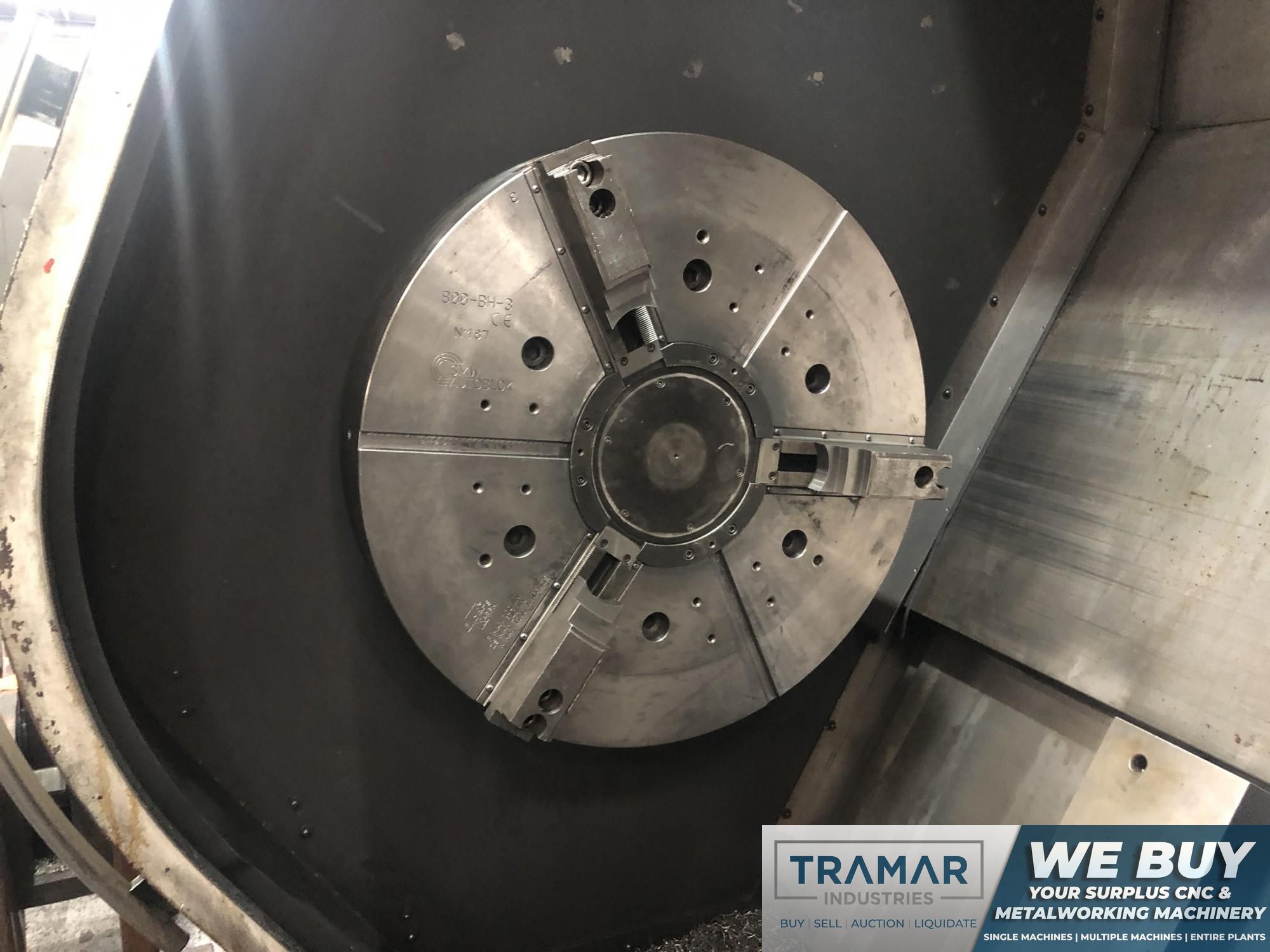

SMW Autoblock 3 JawChuck
Chip Conveyor
Coolant Tank

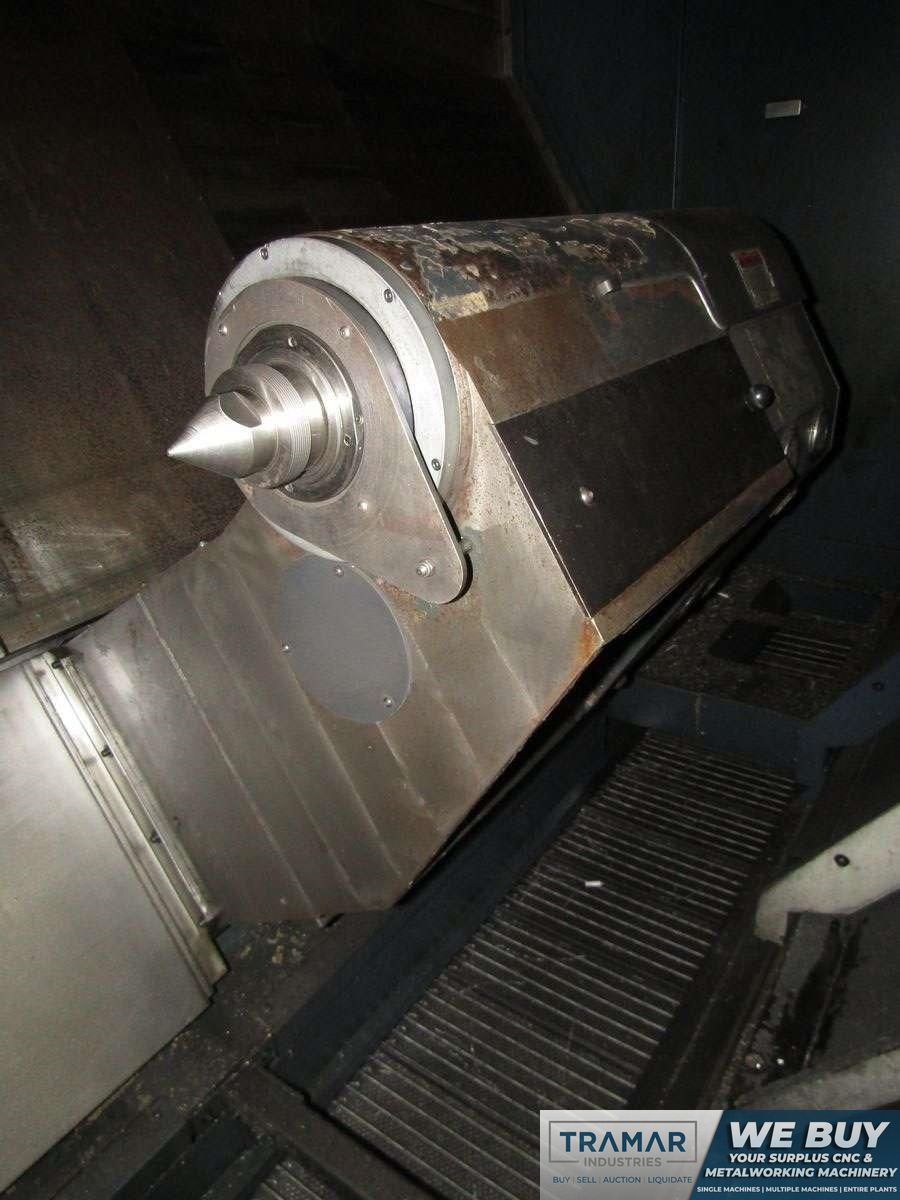

Tailstock

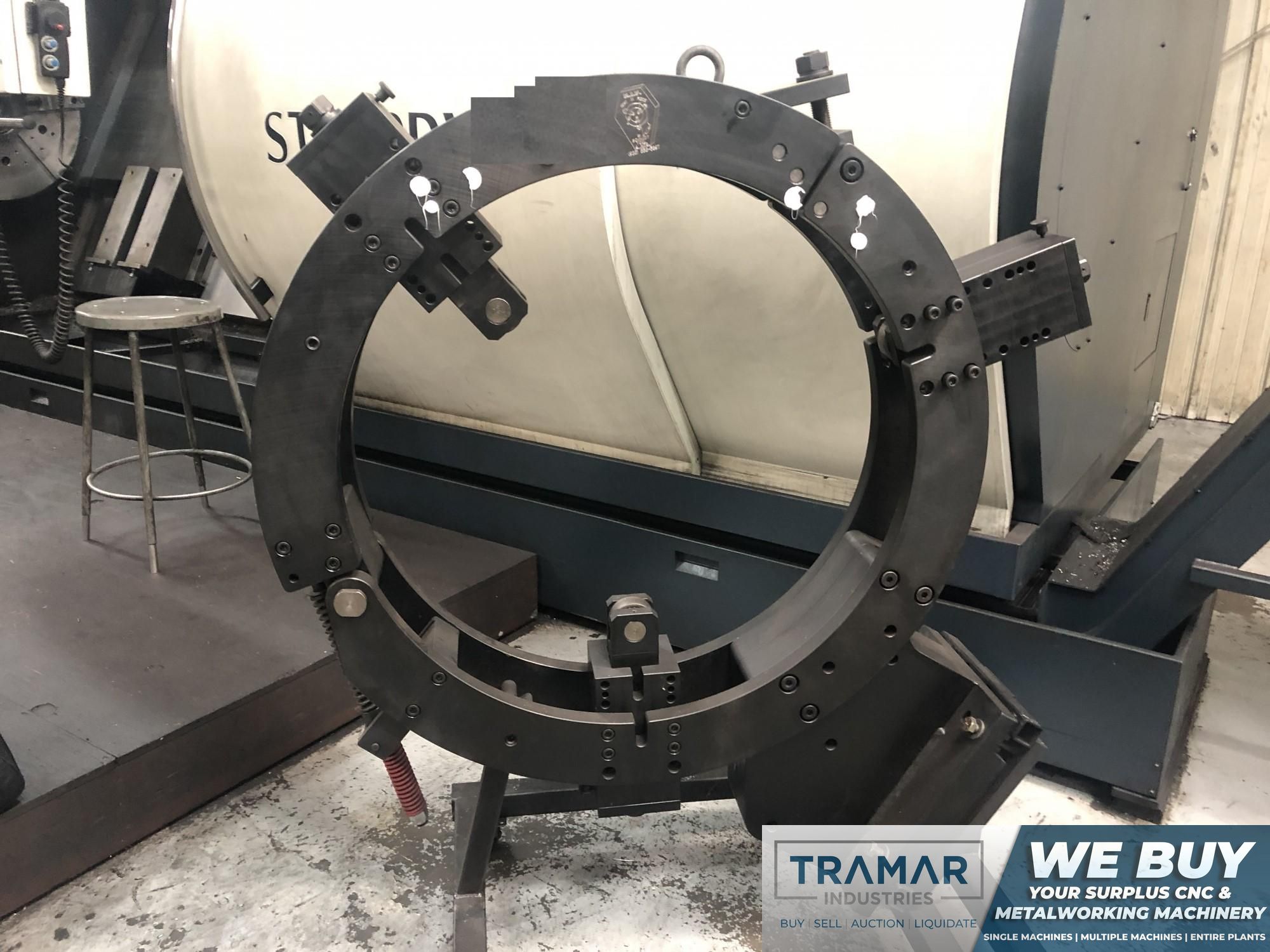

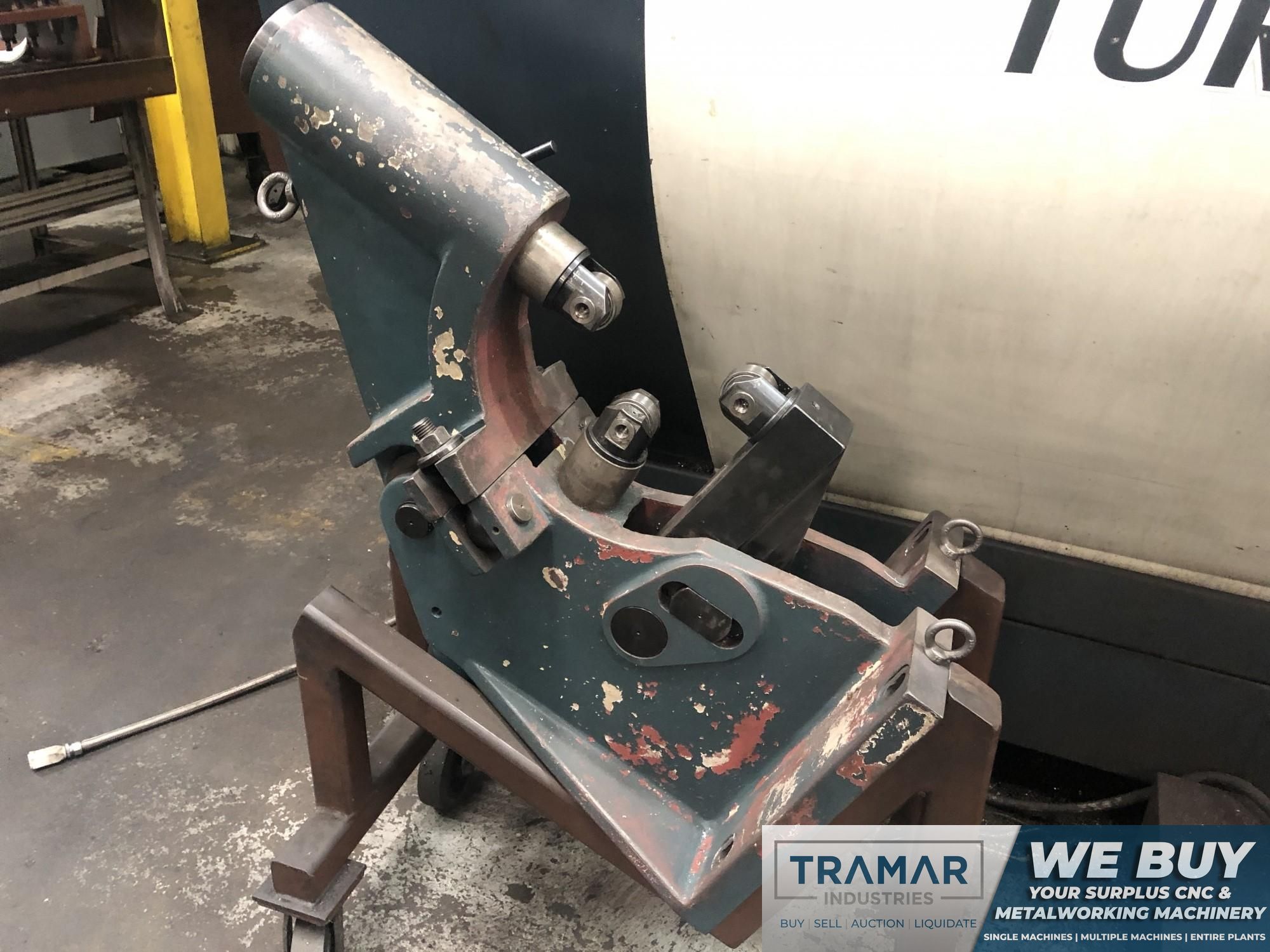

(2) Steady Rest
Gearbox (4 Speed)
Remote MPG
Misc Tool Holders
Manual Guide i Conversational Programming

The Johnford ST-130DX is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
