Kellenberger 10 - Cylindrical Grinders (Universal)

Share Machine

Specifications Print Specs

Model: 10

Year: 2020

Stock #: k32334 Sold

Type: Cylindrical Grinders (Universal)

Manufacturer: Used Kellenberger Machines

Highlights:

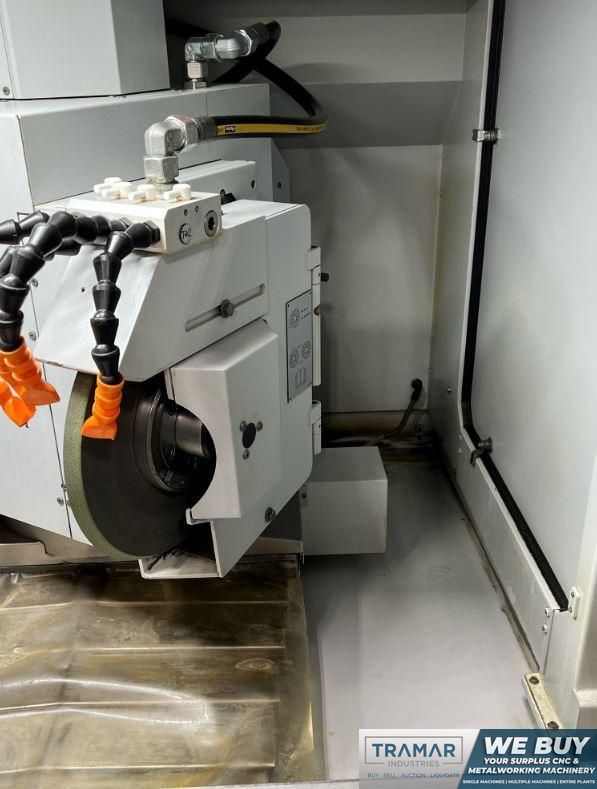

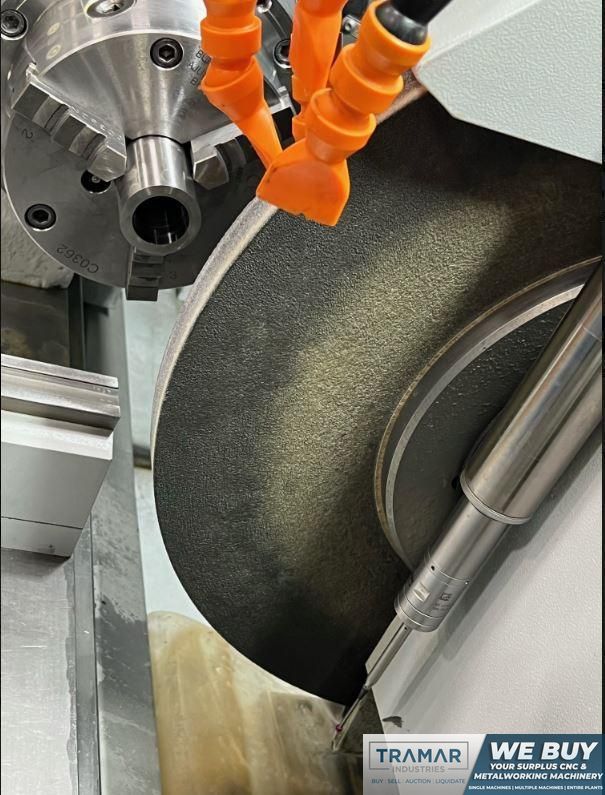

(2) OD Wheels | (1) ID Spindle
Fanuc 0i-TD CNC Control

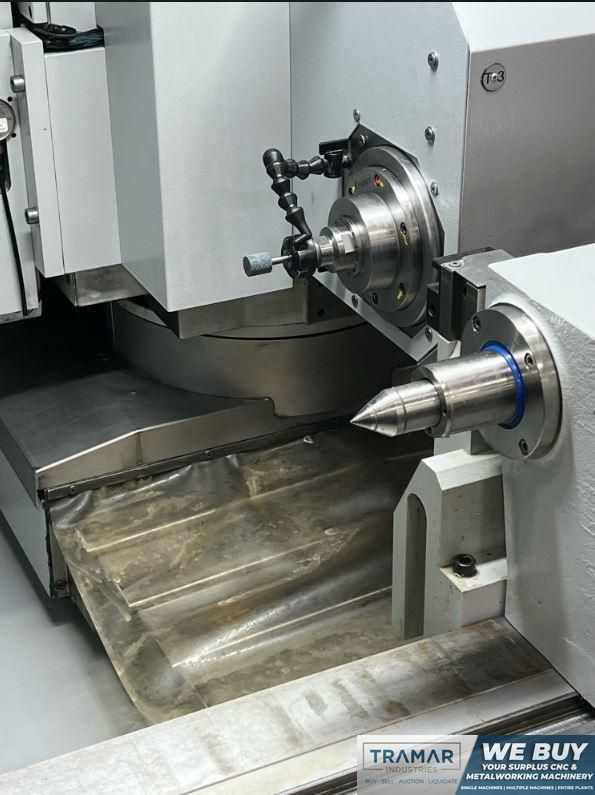

Tailstock

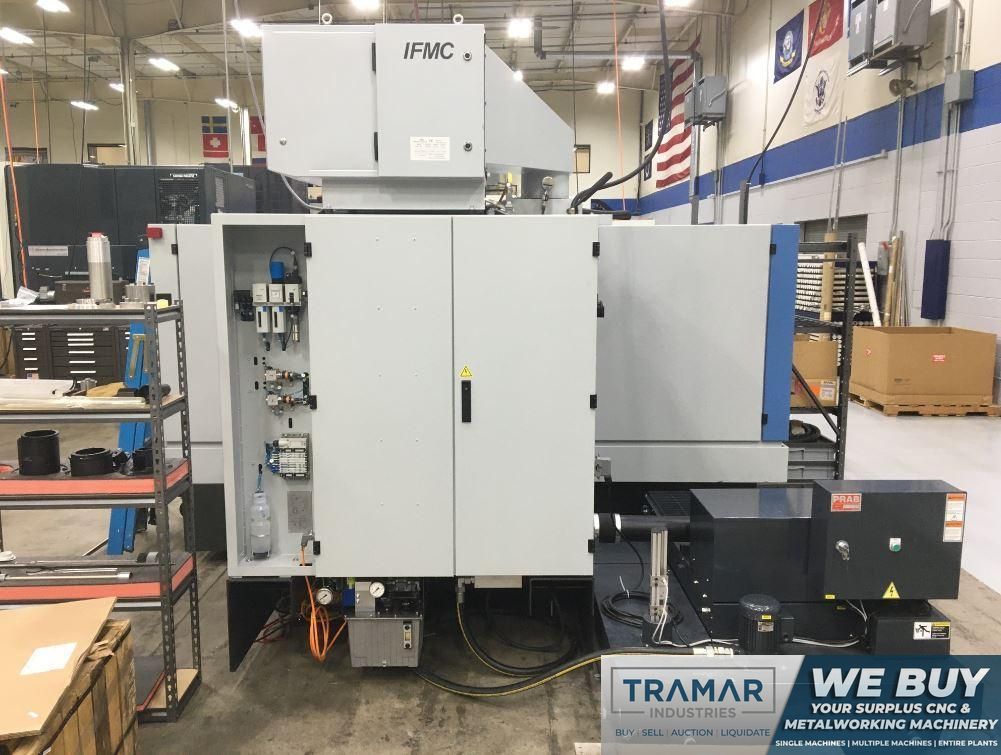

Coolant System w/Filtration System

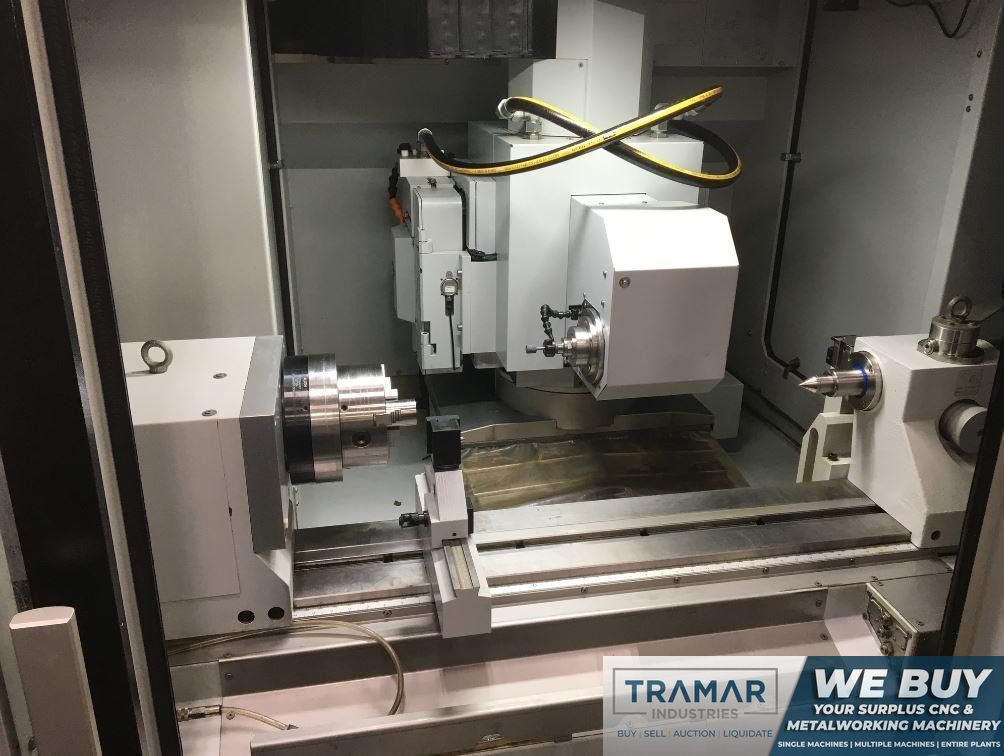

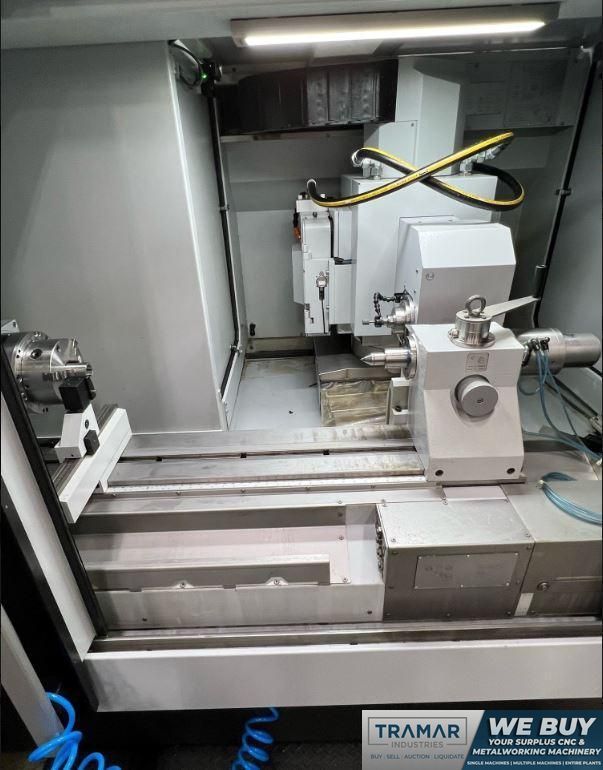

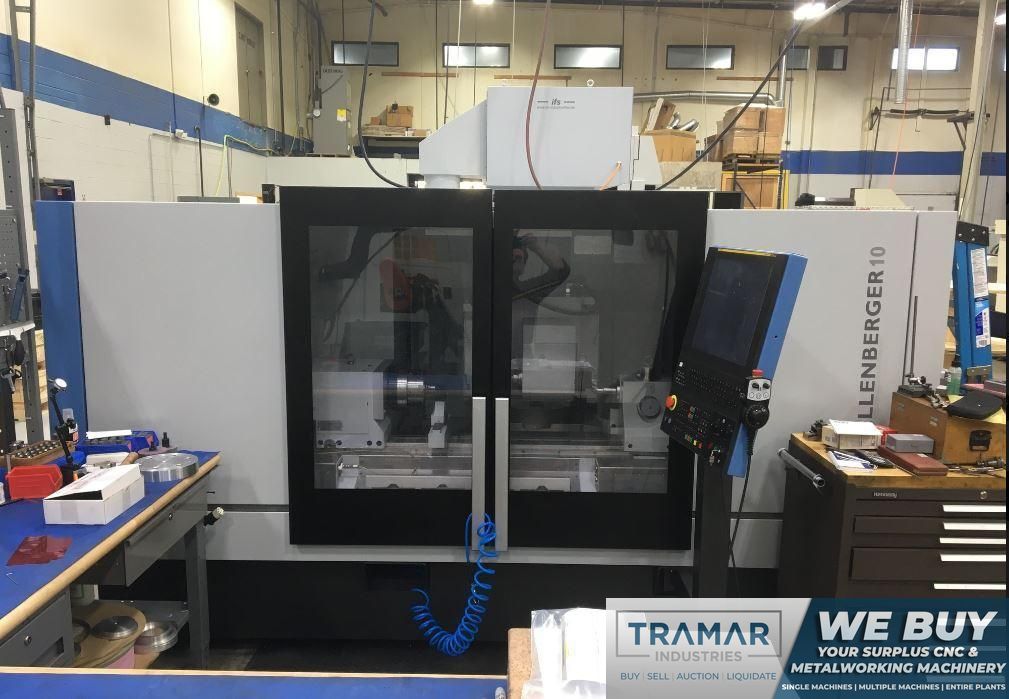

Kellenberger 10 Used CNC Universal Cylindrical OD/ID Grinder For Sale - 2020

Equipped With:

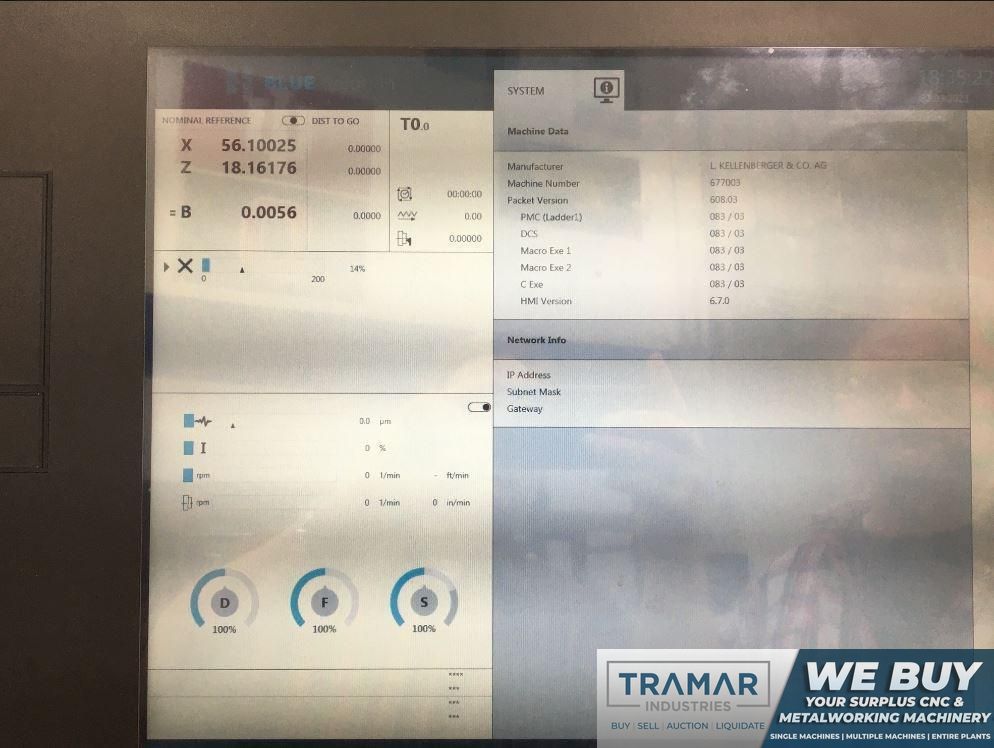

- Fanuc 0i-F Plus CNC Control

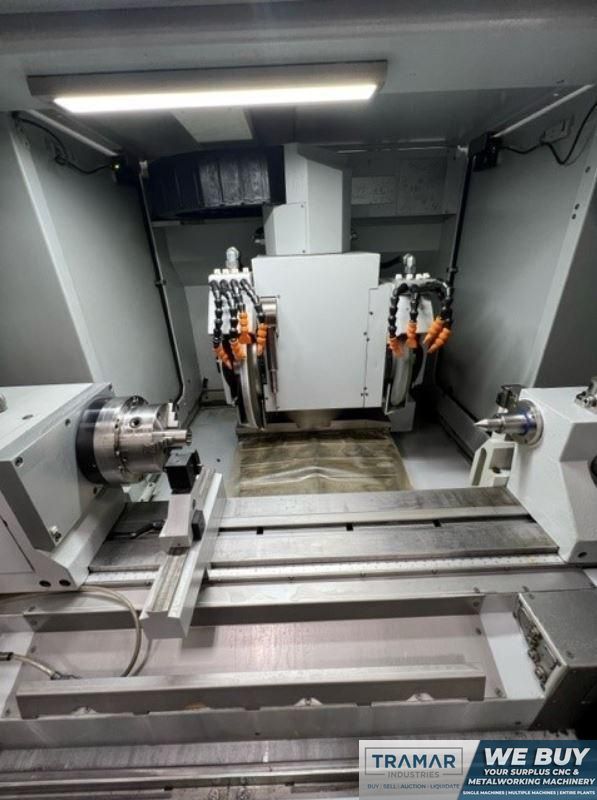

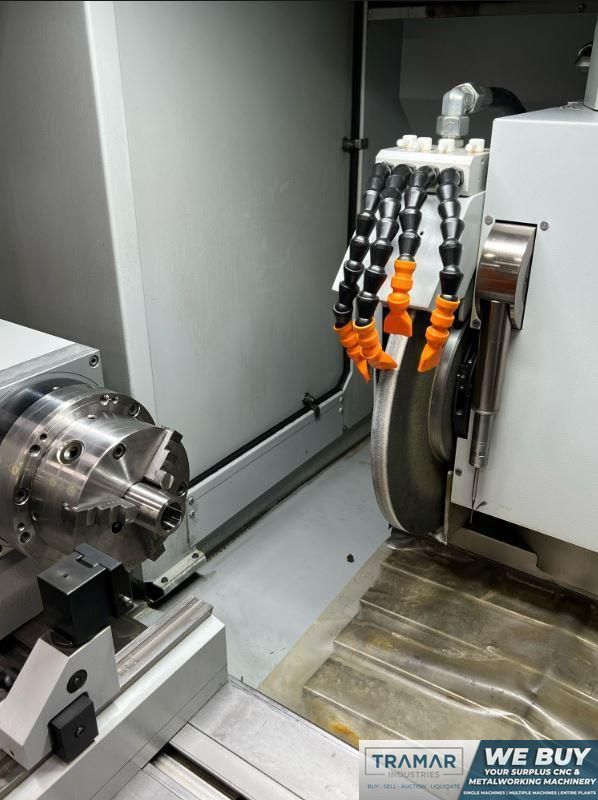

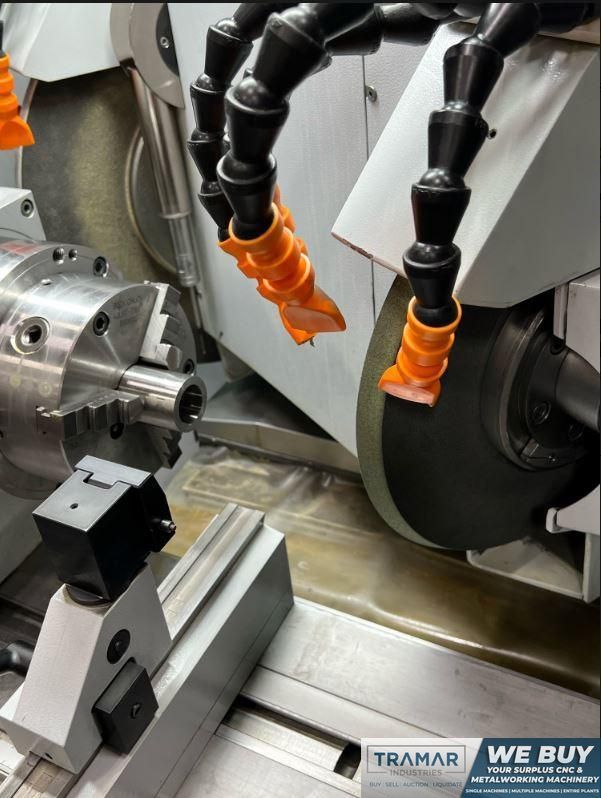

- (2) OD Wheels & (1) ID Spindle

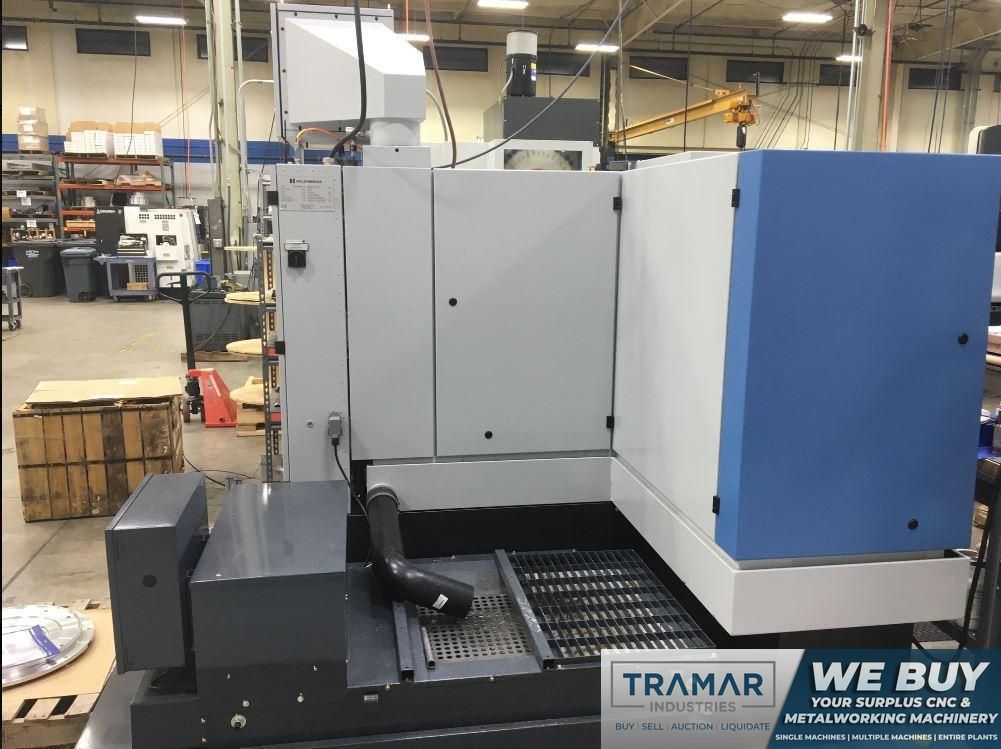

- Coolant Filtration System
- Wheel Dresser
- Excellent Condition
- Available Under Power for Inspection

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 0i-F Plus

Swing

15"

Center Distance

39.37"

Max Weight Between Centers

220 pounds

Grinding Wheel Dimensions

19.69" x 3.15"

Grinding Wheel Speed RPM

1,000 rpm

Grinding Wheel Spindle Motor

10 hp

Wheelhead (Angle / Straight / Universal)

Universal

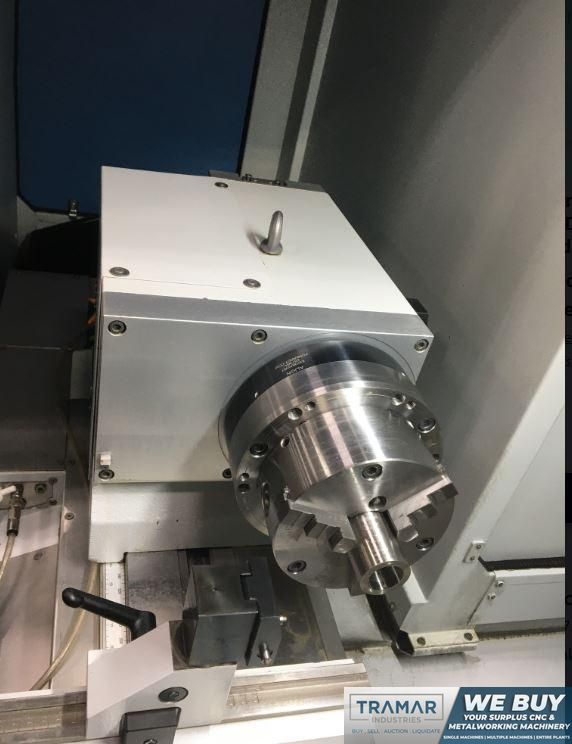

Workhead Taper

MT #5

Workhead Speed

1,000 rpm

X-Axis Travel

14.37"

Z-Axis Travel

45.28"

Internal Grinding Attachment

yes

I.D. Spindle Speed RPM

60,000 rpm

Tailstock

yes

Tailstock Taper

MT #4

Machine Dimensions

134" x 115" x 76"

Machine Weight

10,000 pounds

Equipped With:

- Fanuc 0i-F Plus CNC Control
- (2) OD Wheels & (1) ID Spindle
- Coolant Filtration System
- Wheel Dresser
- Excellent Condition
- Available Under Power for Inspection

The Kellenberger 10 is an exclusive part of our Cylindrical Grinders (Universal) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
