Kellenberger Kel-Vita UR 175/1000 - Cylindrical Grinders (Universal)

Share Machine
Specifications Print Specs
Model: Kel-Vita UR 175/1000
Year: 2015
Stock #: 14006 Sold
Highlights:

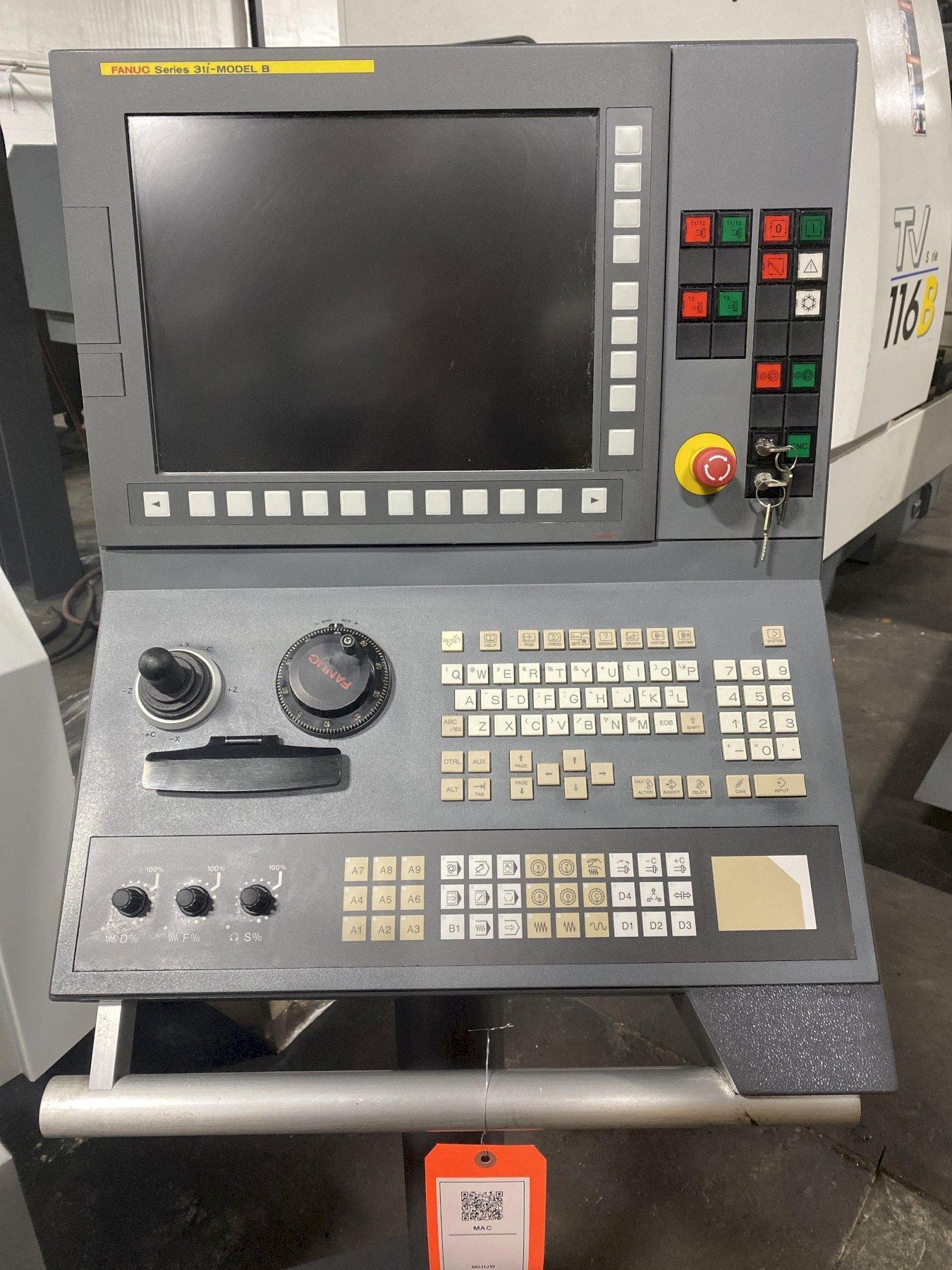

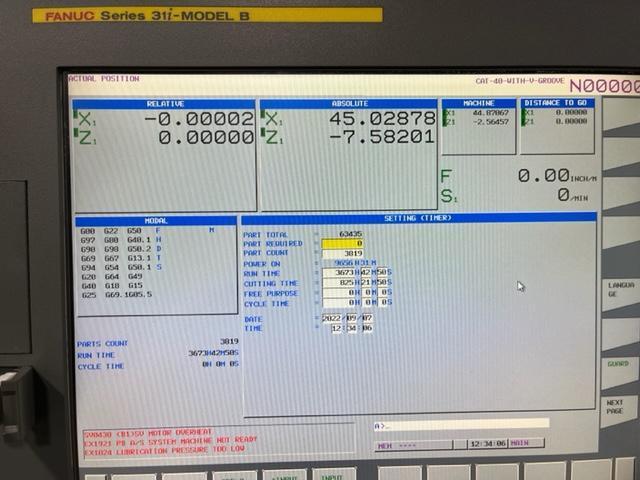

Fanuc 31i-Model B CNC Control
NC B-axis Wheelhead Swiveling
Coolant System with Paper Filtration
Rotary Dresser | Shoulder Gauge
(2) OD Spindles | (1) ID Spindle

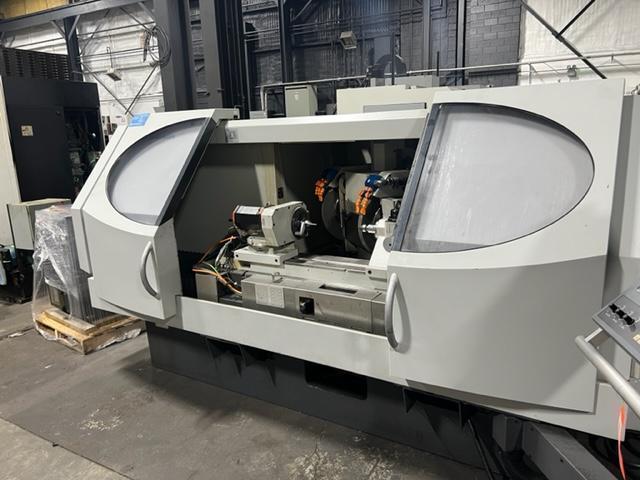

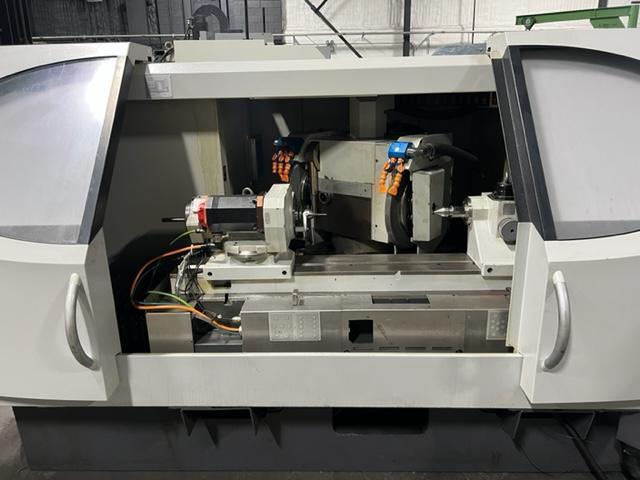

Kellenberger Kel-Vita UR175/1000 Used CNC OD/ID Cylindrical Grinder For Sale - 2015
Machine Specifications
CNC Control
yes
Control Type
Fanuc 31i-Model B
Swing
13.78"
Center Distance
40"
Max Weight Between Centers
220 pounds
Grinding Wheel Dimensions
18" x 2.5" x 5"
Grinding Wheel Speed RPM
1,880 rpm
Grinding Wheel Spindle Motor
10.2 hp
Wheelhead (Angle / Straight / Universal)
Universal
Wheelhead Swivel
+90° to -190° CNC Controlled
Workhead Taper
MK5
Workhead Speed
1,000 rpm
Workhead (Live / Dead)
Live
X-Axis Travel
13.77"
Z-Axis Travel
45"
Internal Grinding Attachment
yes
I.D. Spindle Speed RPM
40,000 rpm
Machine Dimensions
118" x 67"
Machine Weight
11,000 pounds

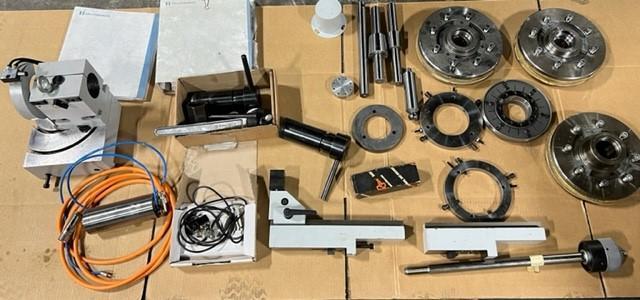

Equipped With:

- Fanuc 31i-Model B CNC Control
- NC B-axis Wheelhead Swivel
- C Axis Workhead
- Shoulder Gage
- (2) OD Spindles
- (1) ID Spindle
- Rotary form Dresser
- Tailstock
- Chiller
- Mist Collector
- Coolant System With Paper Filtration

The Kellenberger Kel-Vita UR 175/1000 is an exclusive part of our Cylindrical Grinders (Universal) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
