Makino A51NX - Horizontal Machining Centers

Share Machine

Specifications Print Specs

Model: A51NX

Year: 2014

Stock #: 13554 Sold

Type: Horizontal Machining Centers

Manufacturer: Used Makino Machines

Highlights:
Professional 5 Control (Fanuc 31i)
Pallet Size: 15.7" x 15.7" | Full B Axis 0.001°
Travel (X/Y/Z): 22" / 25.2" / 25.2"
CAT 40 | 14,000 rpm | 30 hp | 60 Station ATC
CPH Unit (Continuous Pressure Hydraulics)

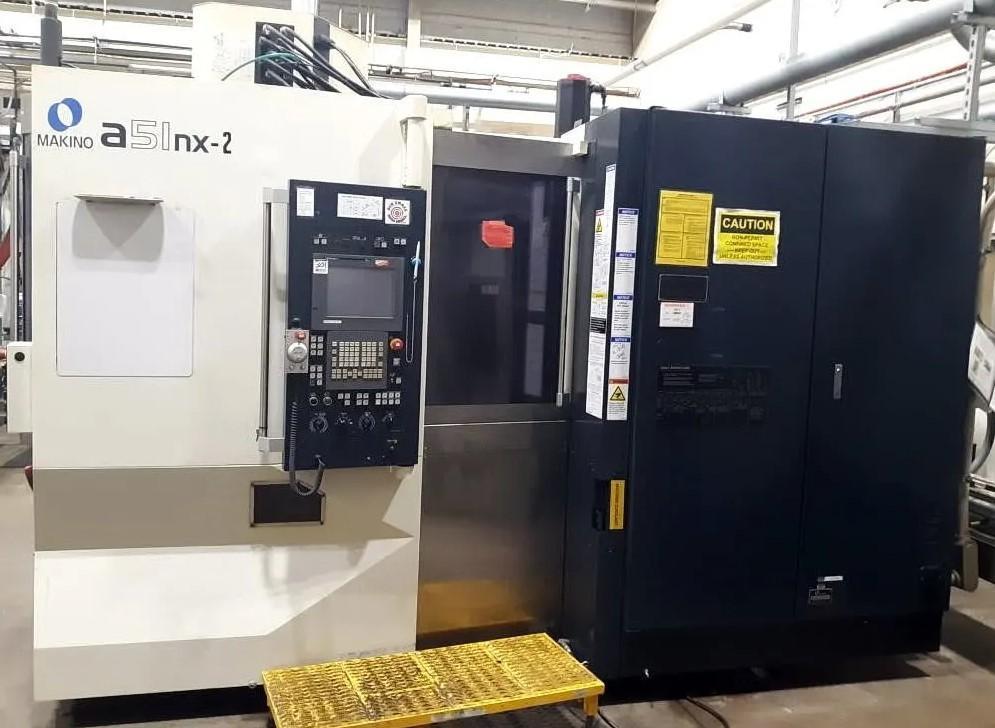

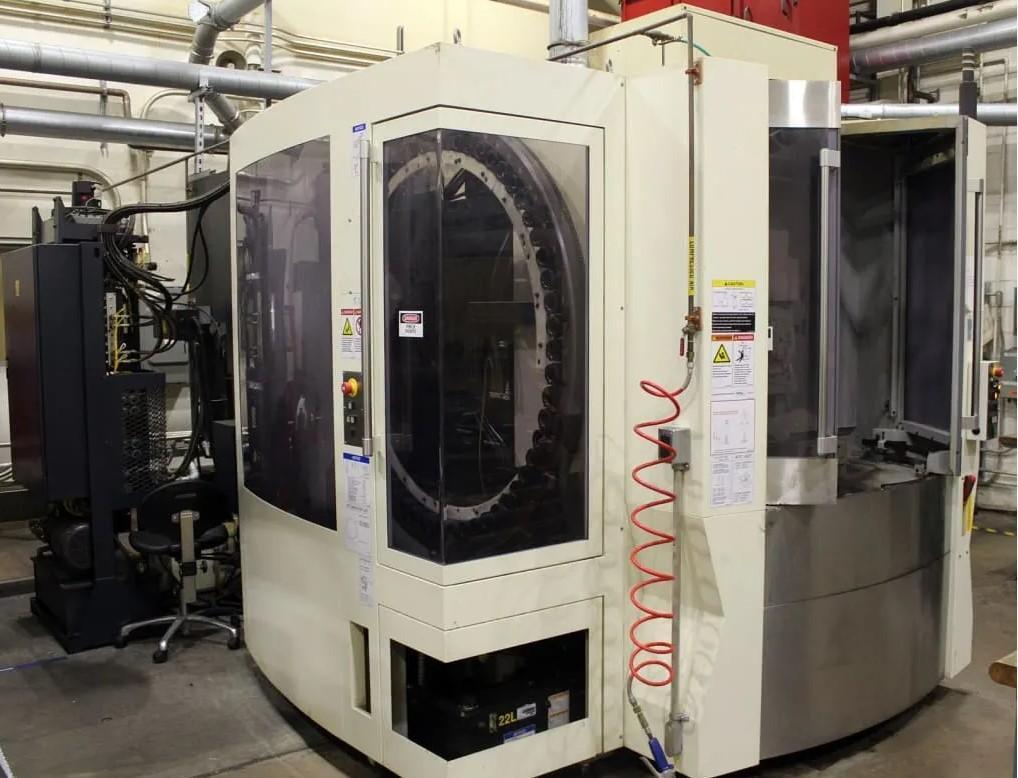

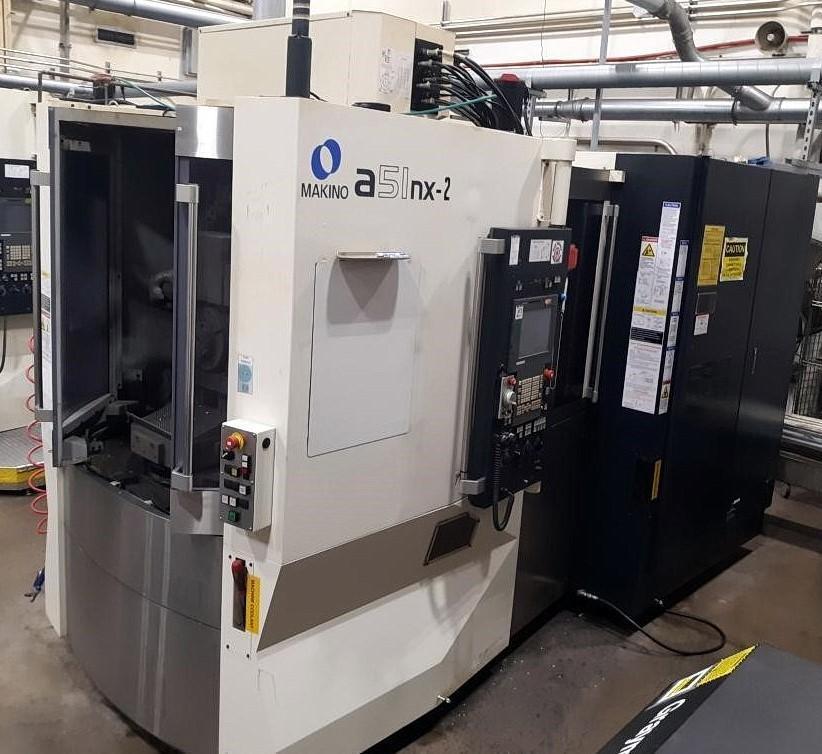

2014 Makino a51NX CNC Horizontal Machining Center

Equipped With:

- Professional 5 Control (Fanuc 31i)
- Chip Conveyor
- Coolant Tank & Pumps
- CPH Unit (Continuous Pressure Hydraulics)

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Professional 5

# Axis

Pallet Length

15.7"

Pallet Width

15.7"

Pallet Capacity

880 pounds

Pallet Indexing (B-Axis)

0.001°

X-Axis Travel

22"

Y-Axis Travel

25.2"

Z-Axis Travel

25.2"

Rapid Traverse Rate (X/Y/Z)

1,968 ipm

Spindle Taper

CAT 40

Spindle Speed

14,000 rpm

Spindle Motor (HP)

30 hp

Tool Changer Capacity

Coolant Through Spindle

yes

Machine Dimensions

167" x 107" x 107"

Machine Weight

20,000 pounds

Equipped With:

- Professional 5 Control (Fanuc 31i)
- Chip Conveyor
- Coolant Tank & Pumps
- CPH Unit (Continuous Pressure Hydraulics)

The Makino A51NX is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
