Makino A61 - Horizontal Machining Centers

Request Quote
Share Machine
Specifications Print Specs

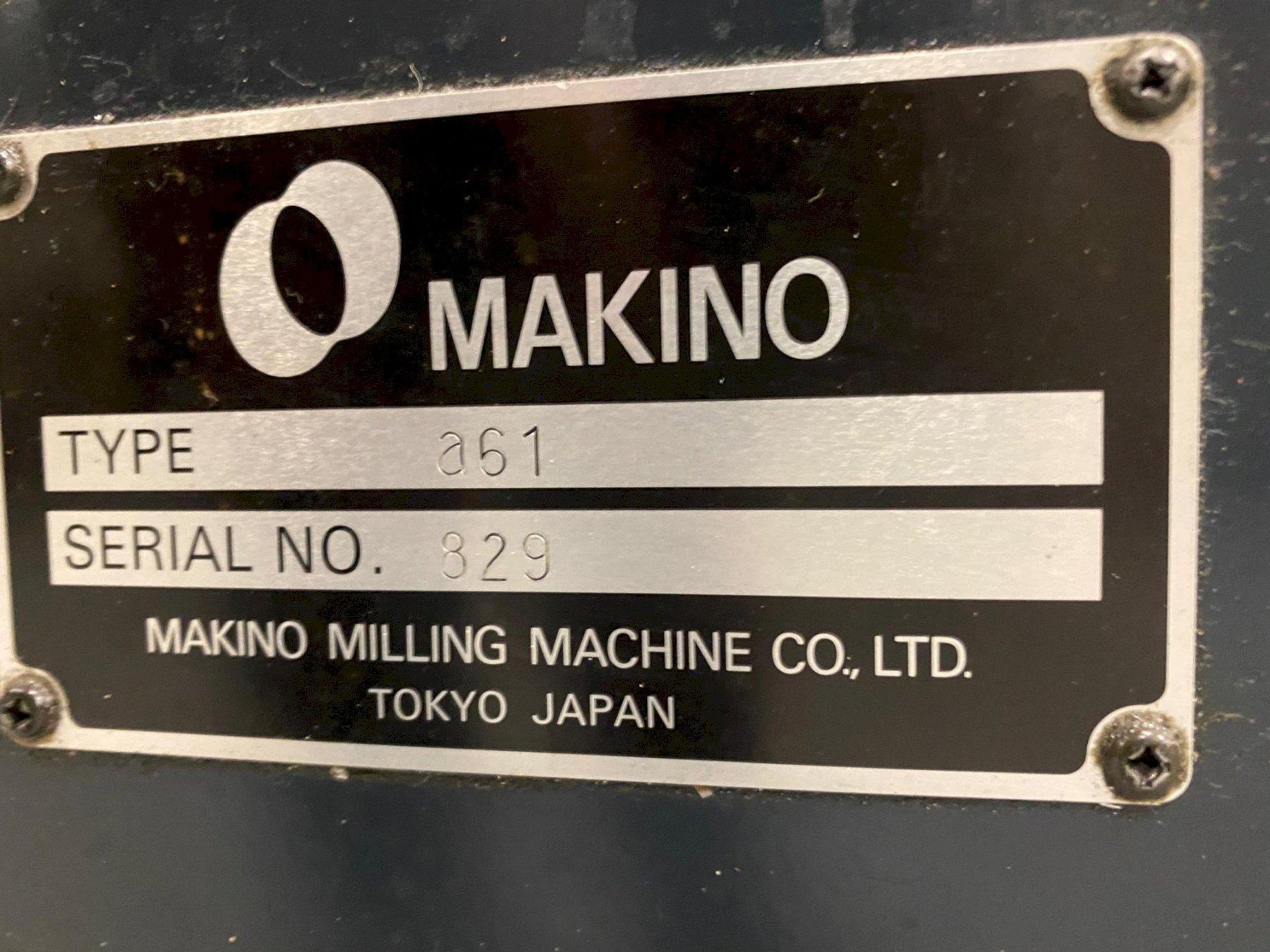

Model: A61
Year: 2010
Stock #: 13772
Highlights:

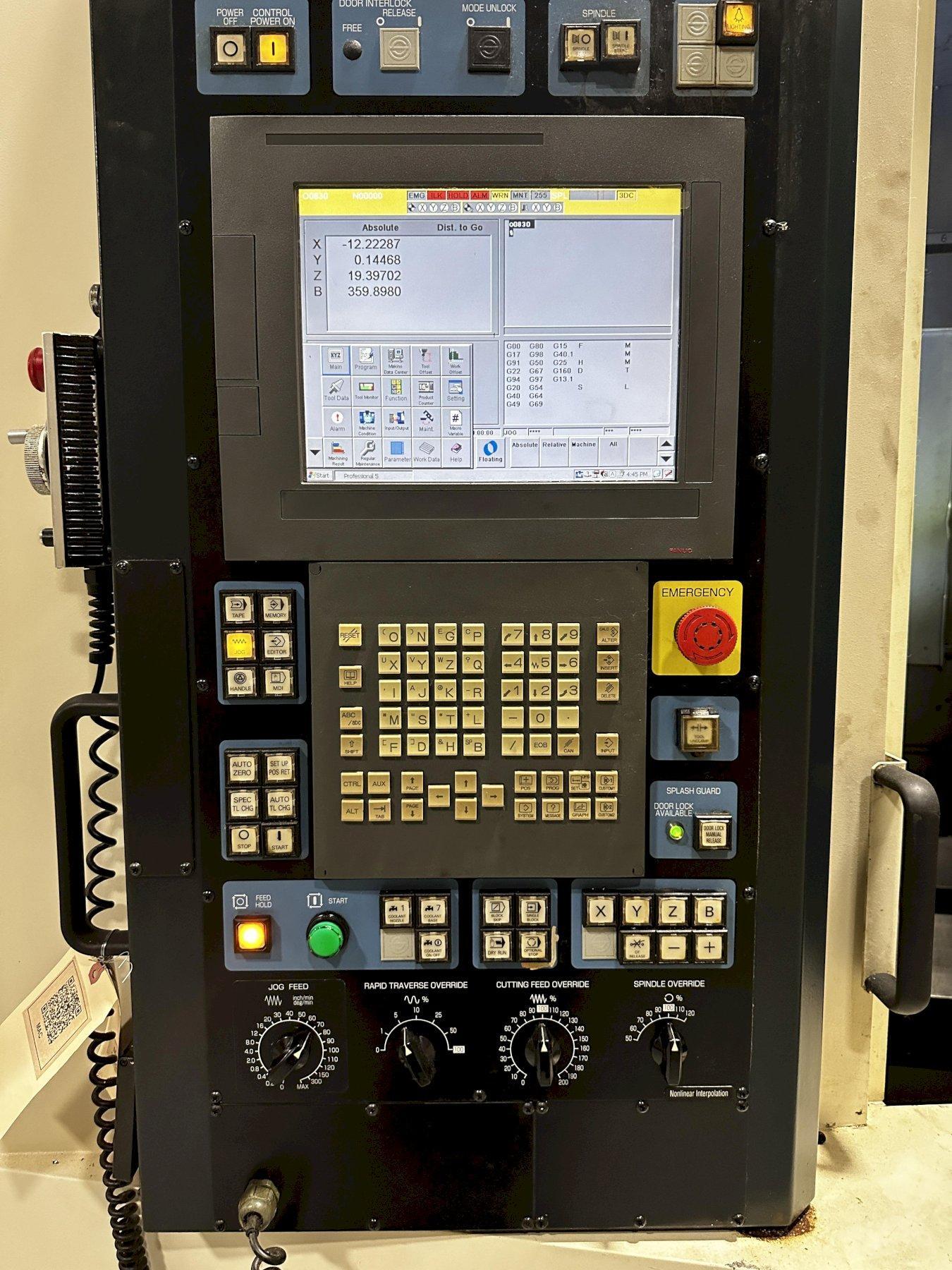

Pro 5 Control
Hydraulic Clamping

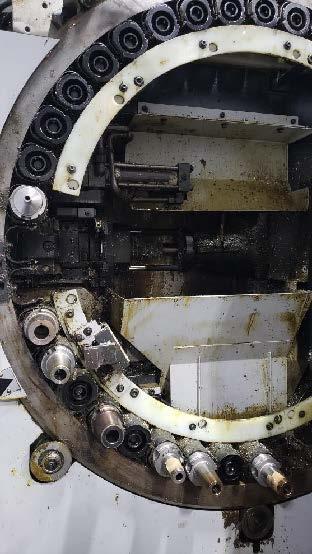

40 Station ATC

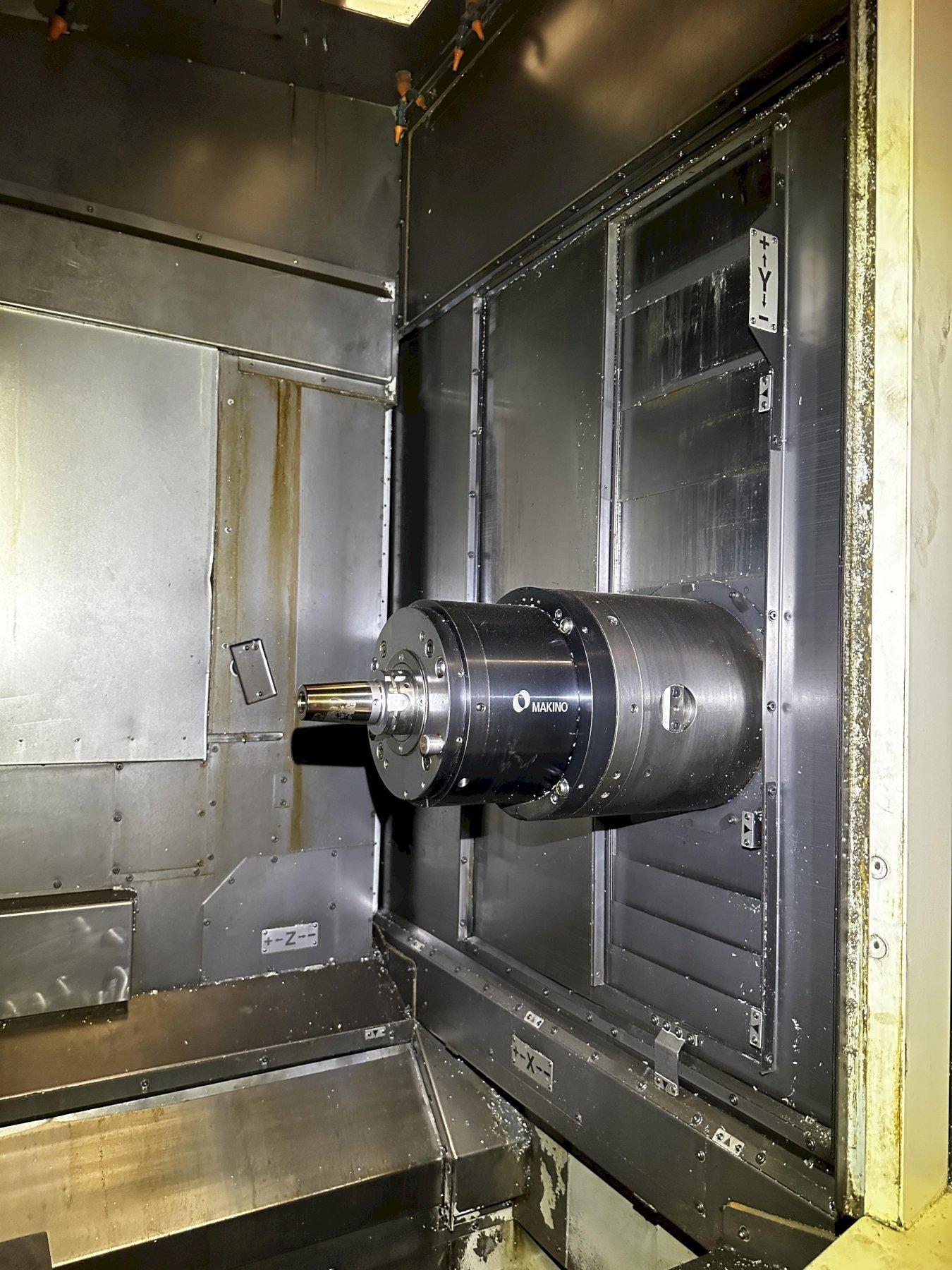

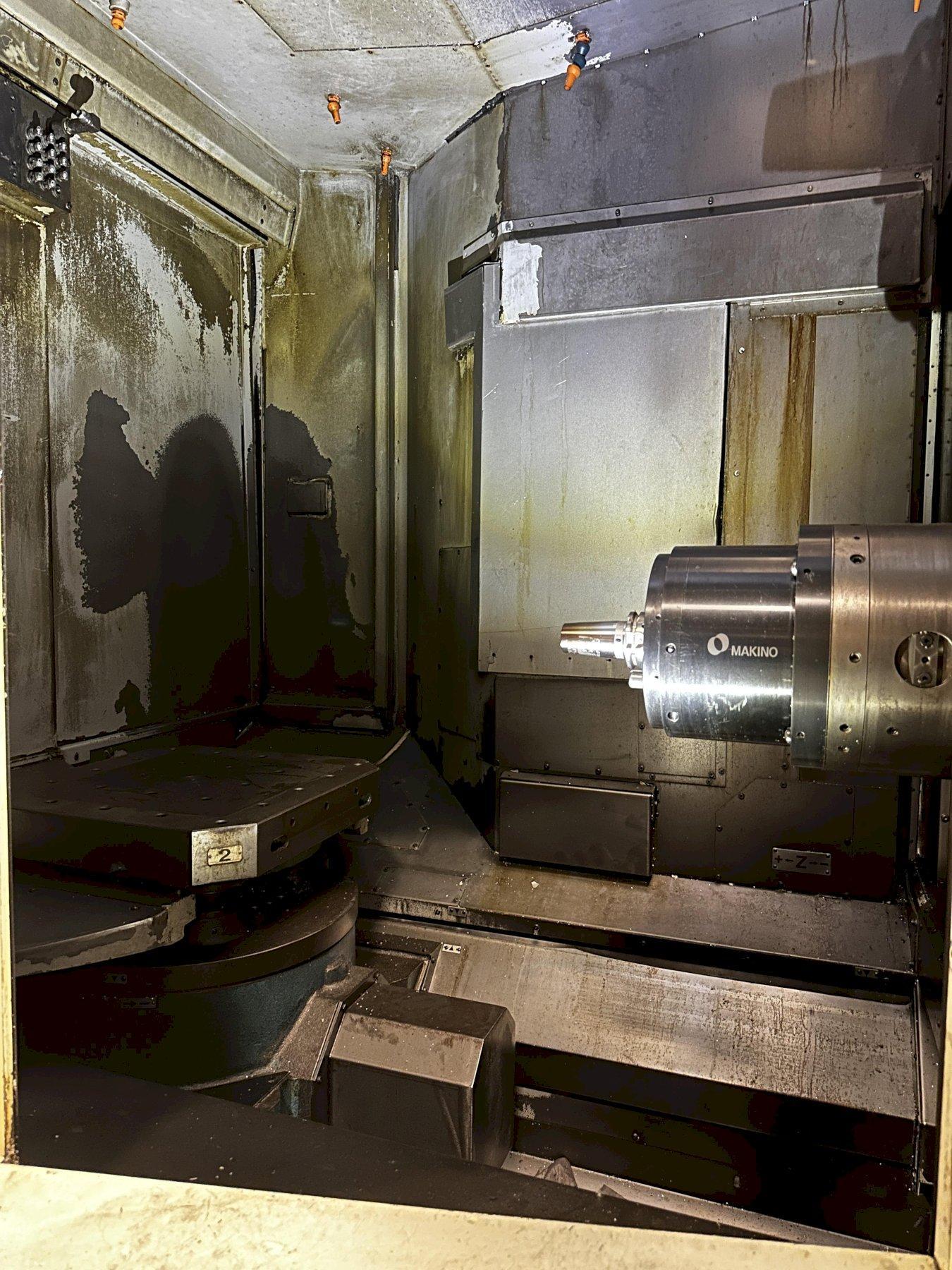

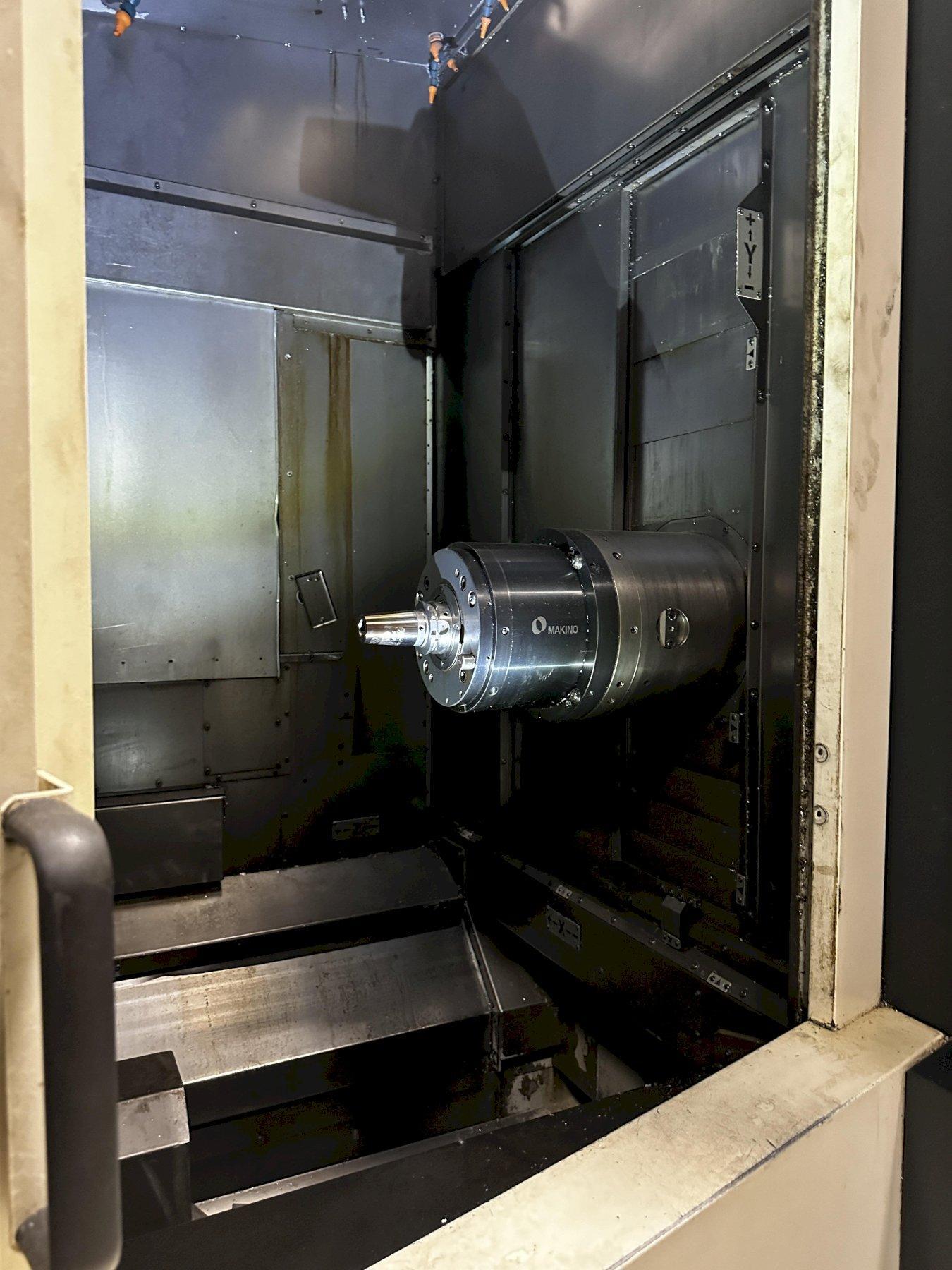

HSK-63 Spindle

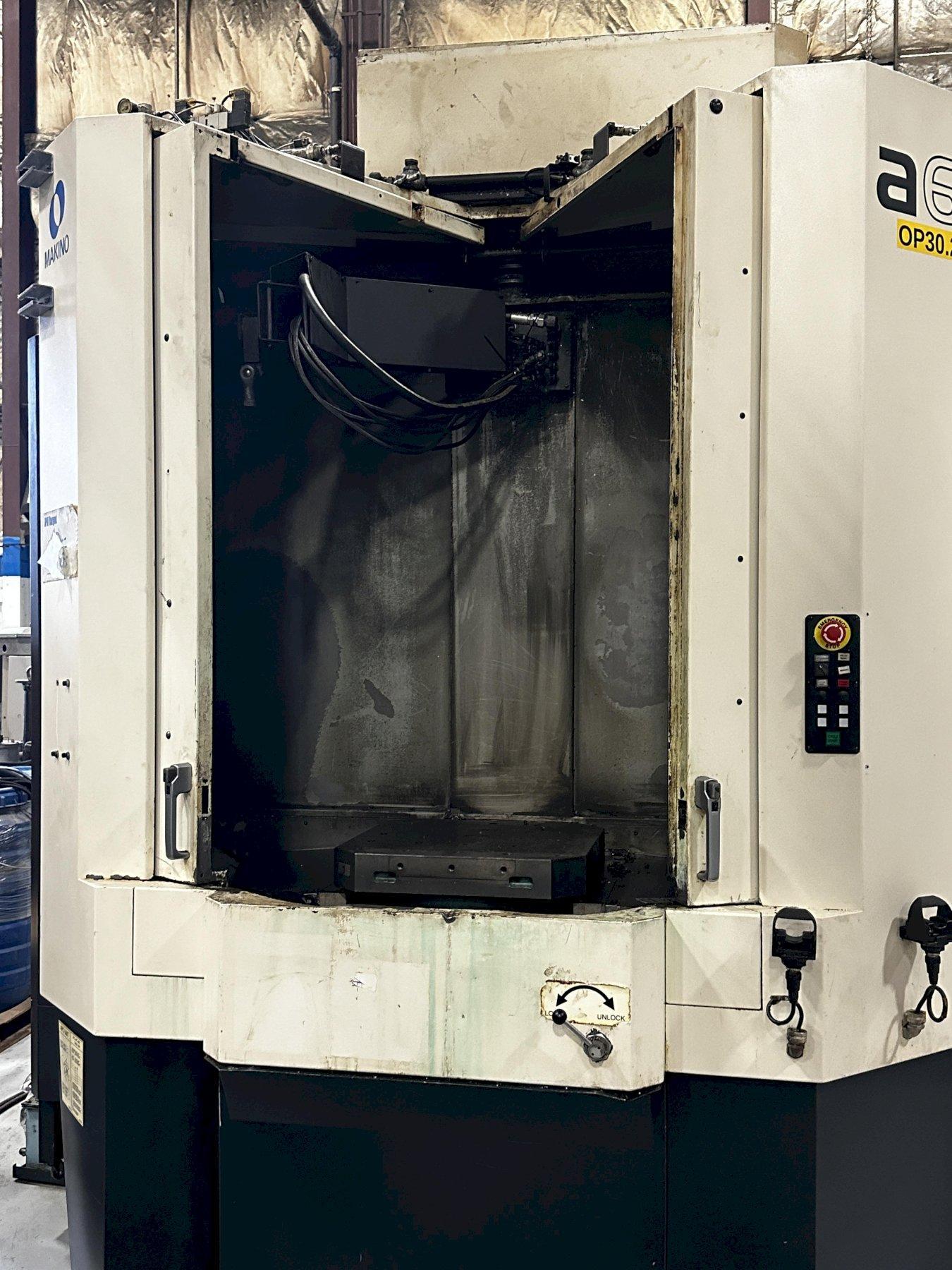

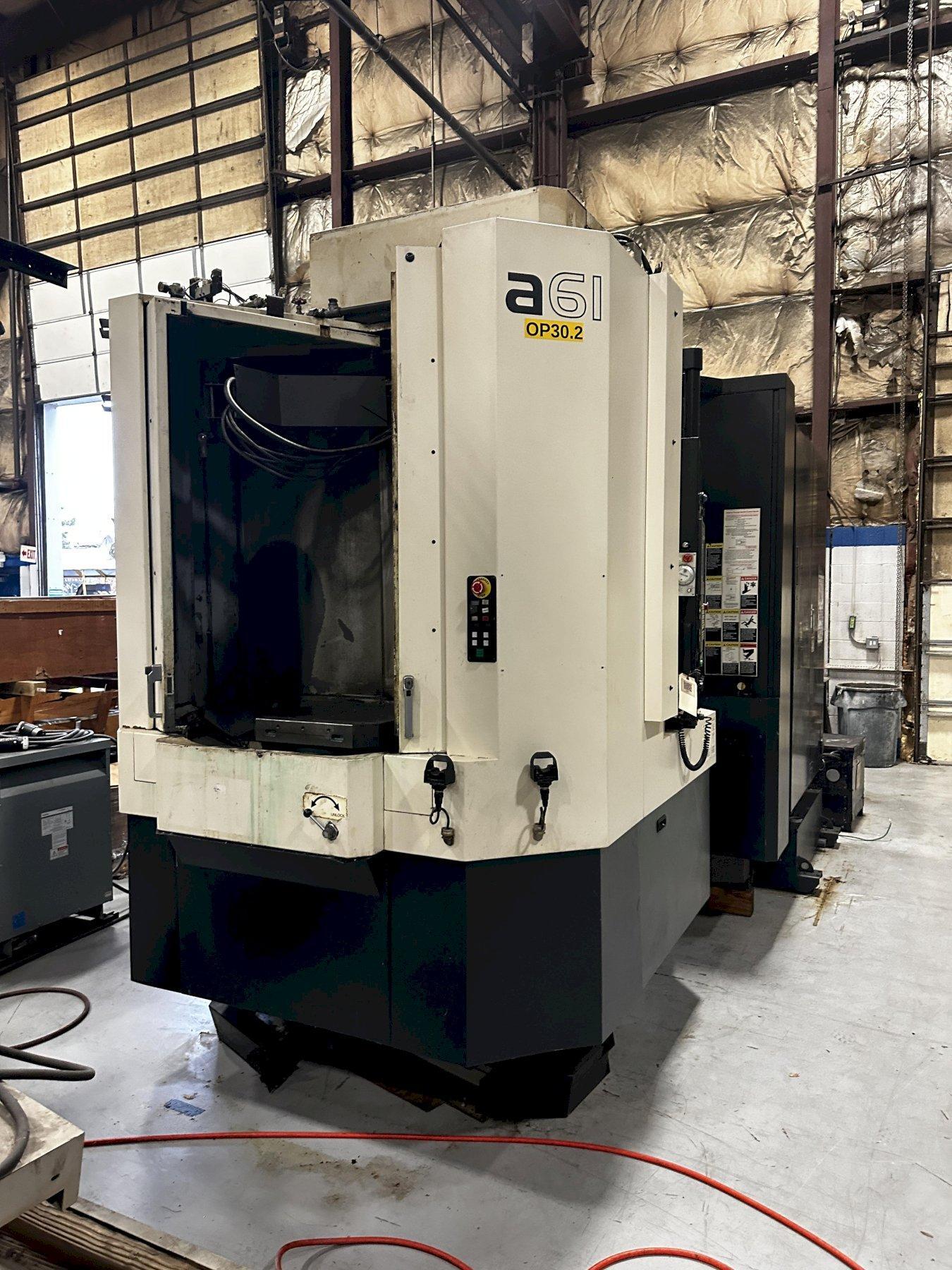

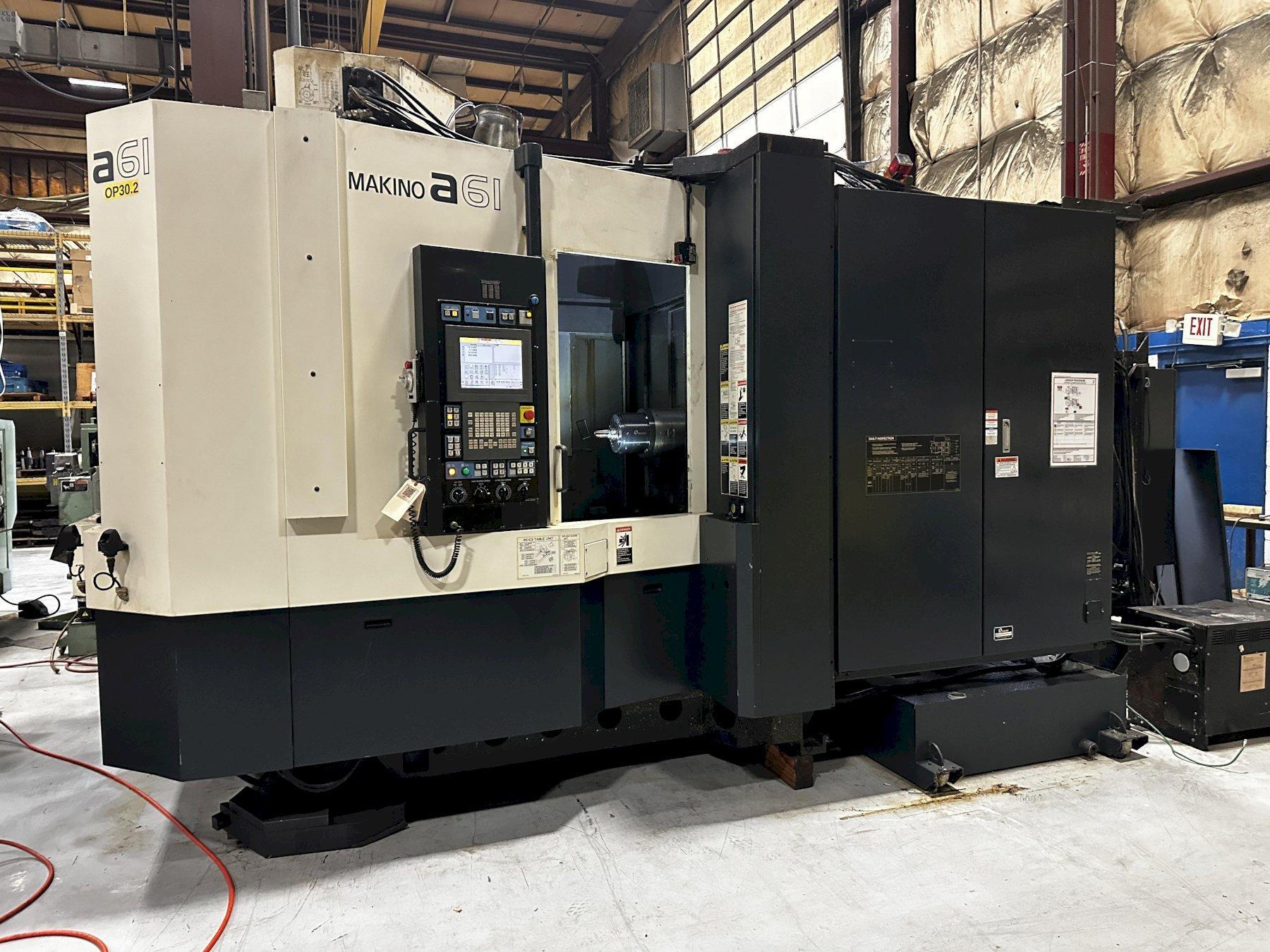

Makino a61 CNC Horizontal Machining Center 2010
Machine Specifications
CNC Control
yes
Control Type
Pro 5
# Axis
4

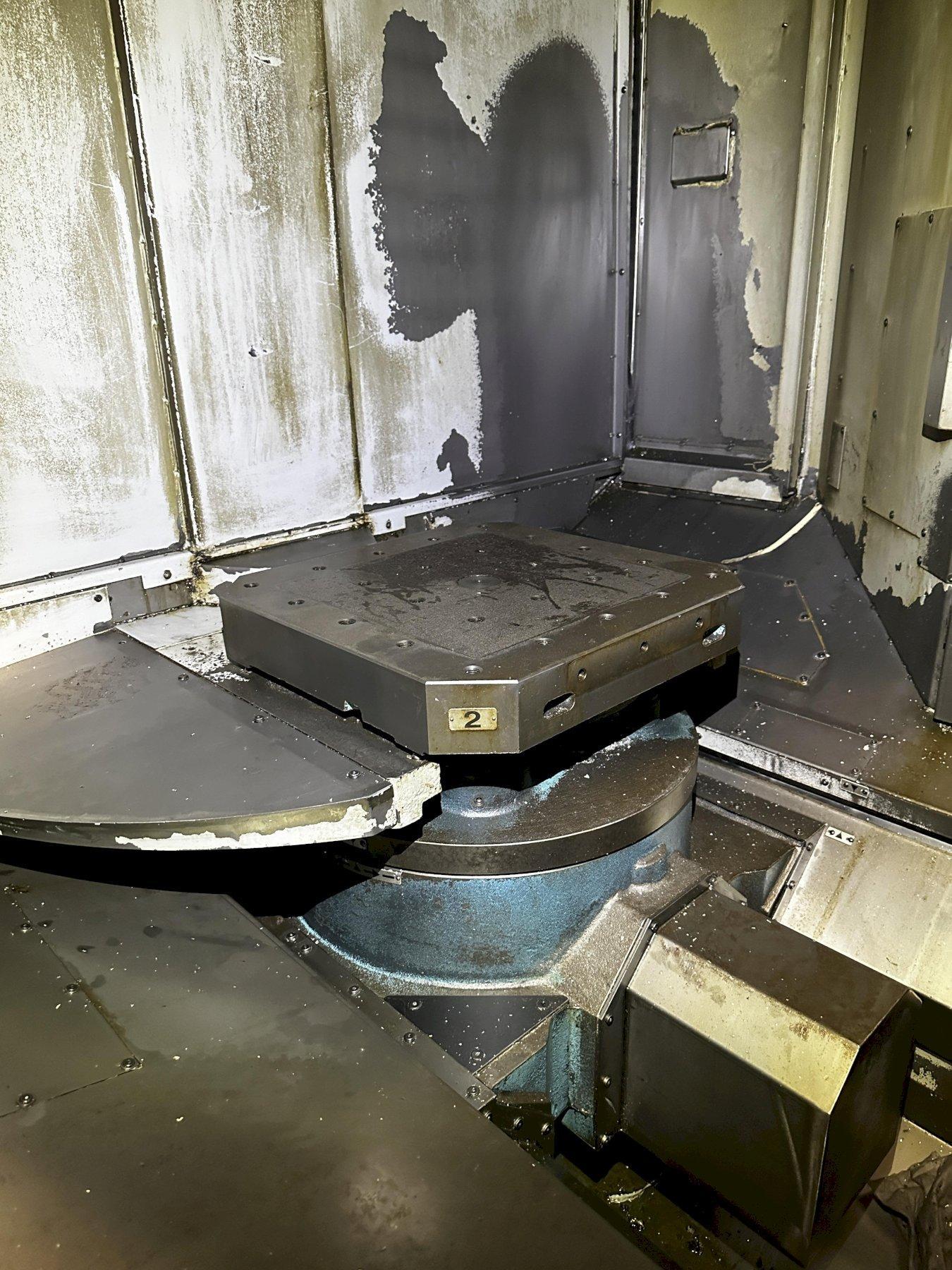

Pallet Length
19.7"
Pallet Width
19.7"
Pallet Load Capacity
1,100 pounds
Pallet Indexing (B-Axis)
X-Axis Travel
28.7"
Y-Axis Travel
25.6"
Z-Axis Travel
28.7"
Rapid Traverse Rate (X/Y/Z)
1,968 ipm
Spindle Taper
HSK-63
Spindle Speed
14,000 rpm
Spindle Motor (HP)
30 hp
Tool Changer Capacity
40
Hydraulic Clamping
yes
Machine Dimensions
182" x 102" x 112"
Machine Weight
26,000 pounds

Equipped With:

- Pro 5 Control
- Hydraulic Clamping
- Chip Conveyor
- Coolant Tank & Pump
- Spindle Chiller
- 1° B Axis Indexing
- Air Dryer

The Makino A61 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
