Makino A71 - Horizontal Machining Centers

Request Quote
Specifications Print Specs
Model: A71
Year: 2005
Stock #: 13373
Highlights:
Professional 5 Control
137 Station Tool Changer
CAT 50 | 10,000 RPM
Pallet Size: 19.7" x 19.7
Travels (X/Y/Z): 28.7"/28.7"/31.5"

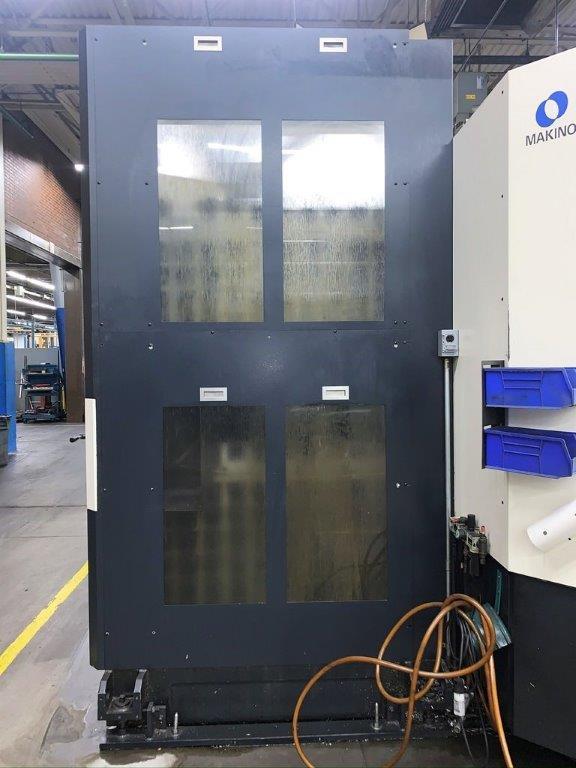

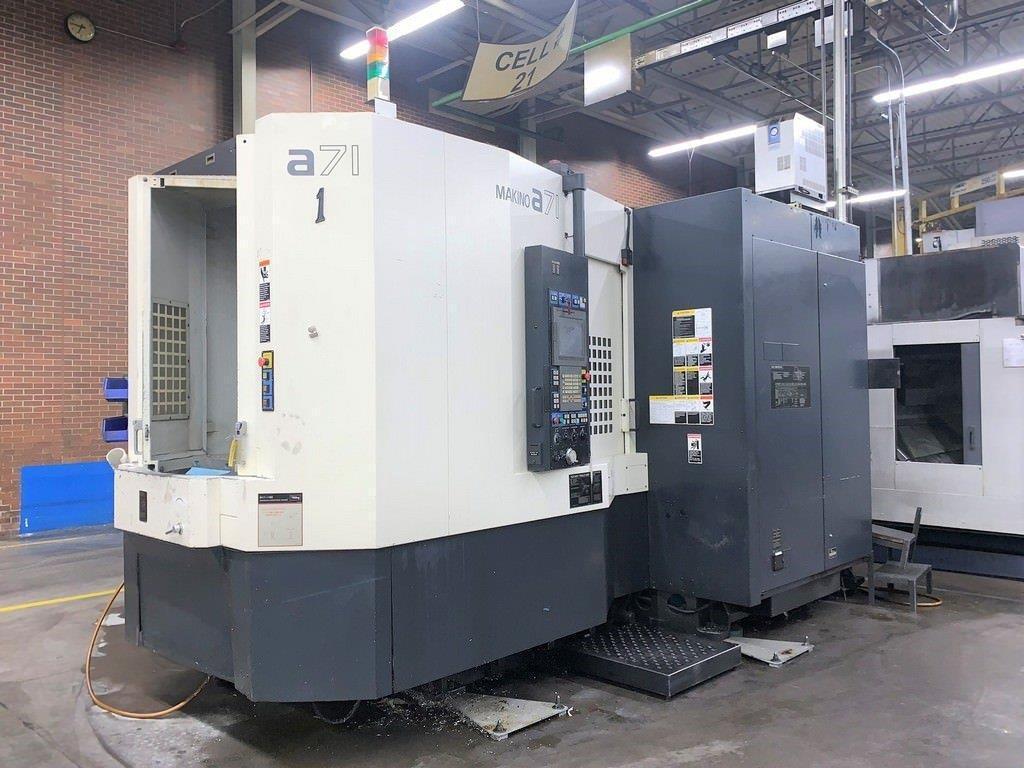

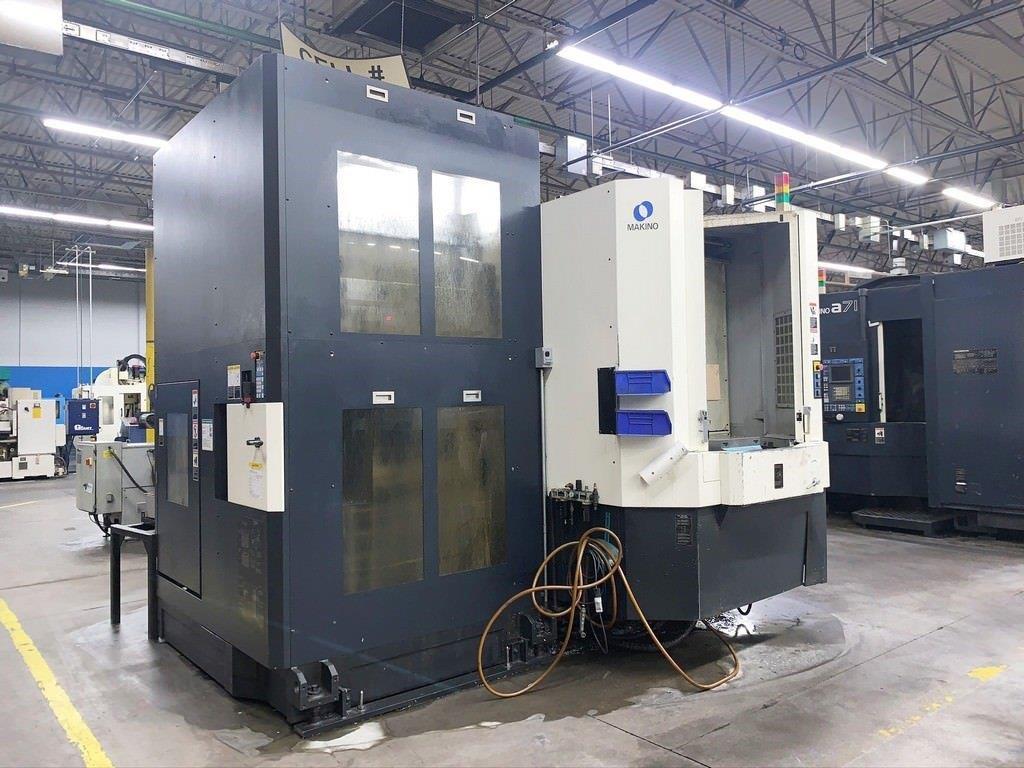

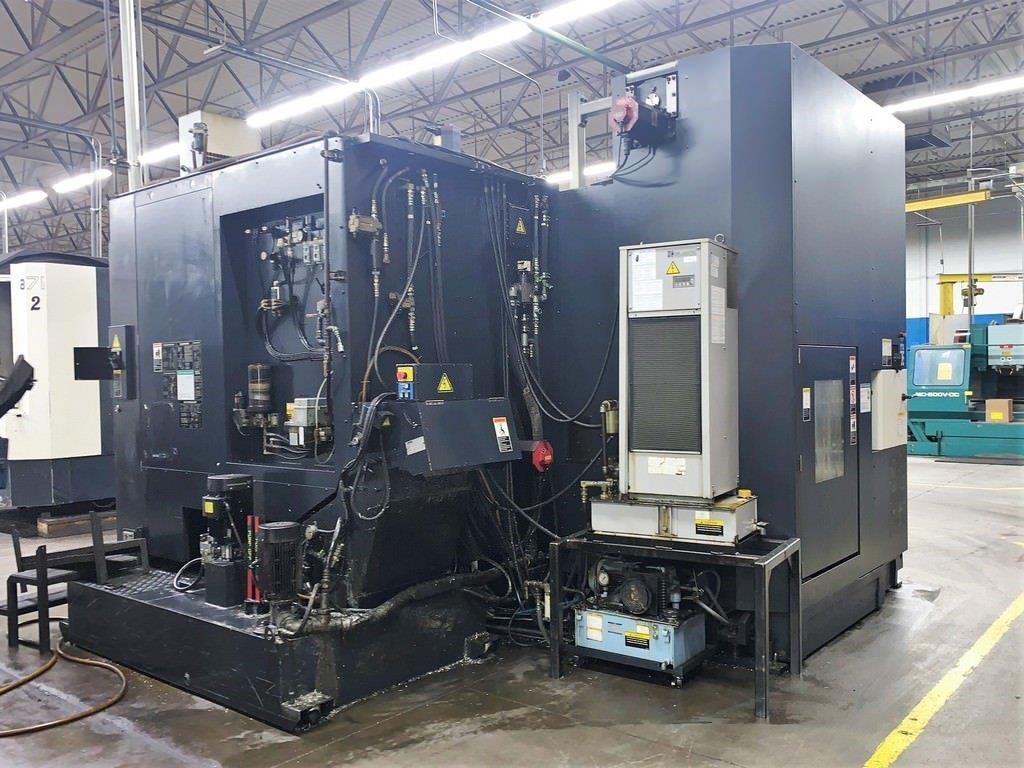

Makino a71 CNC Horizontal Machining Center - 2005
Machine Specifications
Year
2005

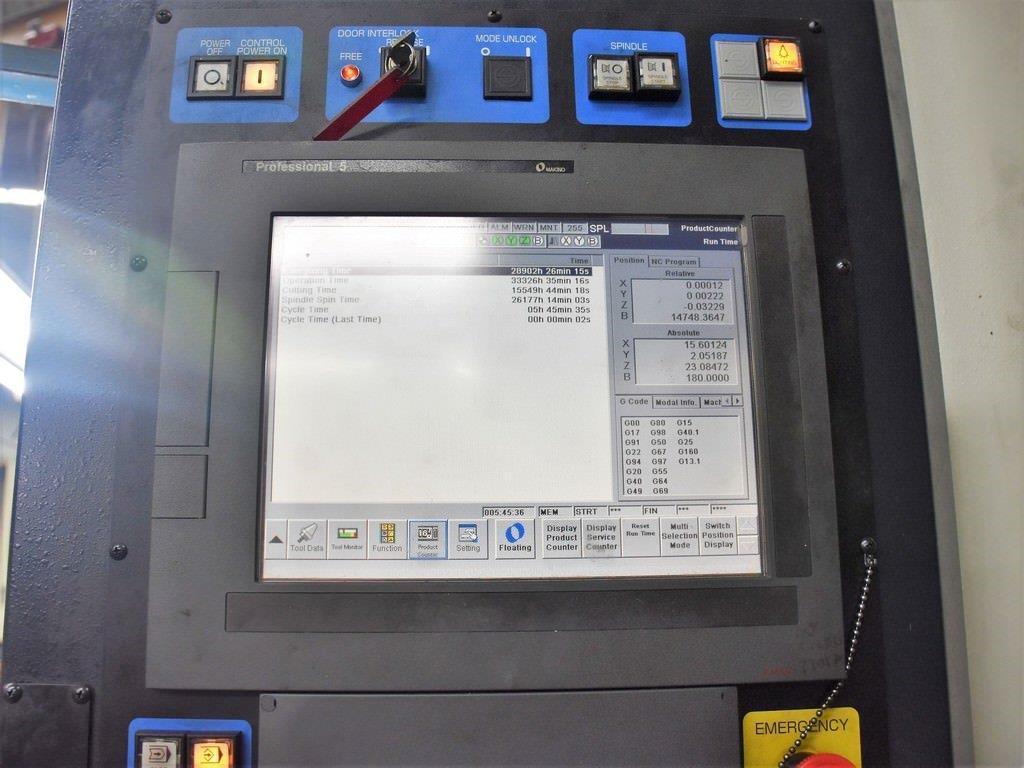

Control Type
Professional 5
# Axis
4

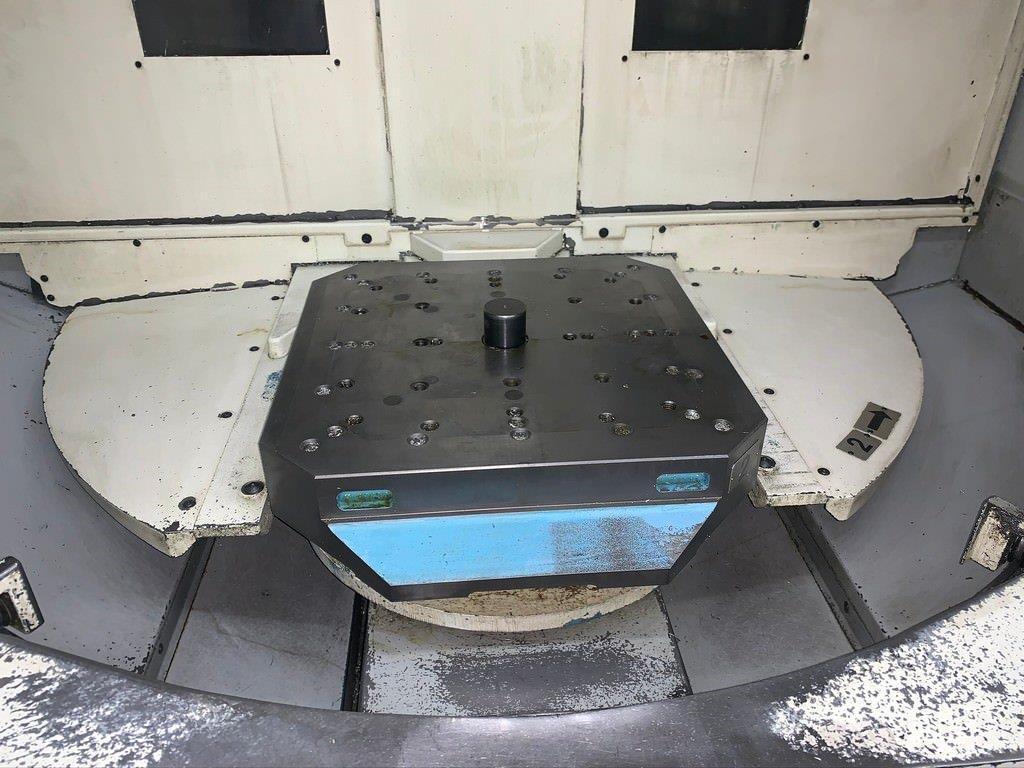

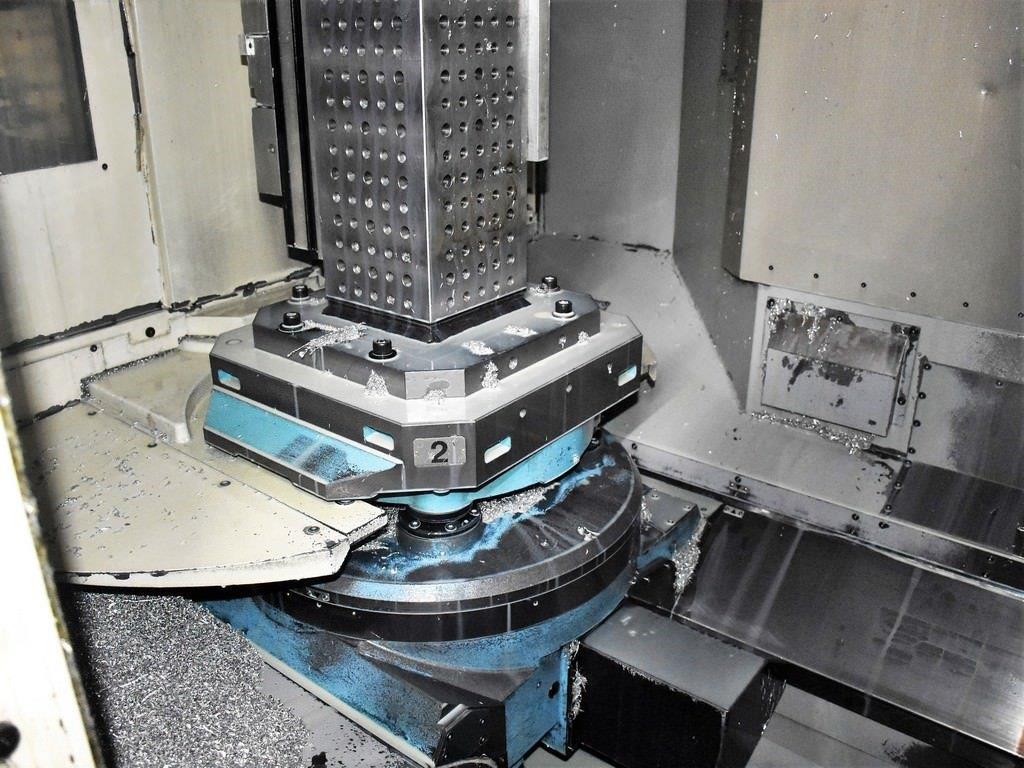

Pallet Length
19.7"
Pallet Width
19.7"
Pallet Capacity
1,540 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
28.74"
Y-Axis Travel
28.7"
Z-Axis Travel
31.5"
Rapid Traverse Rate (X/Y/Z)
1,968 ipm

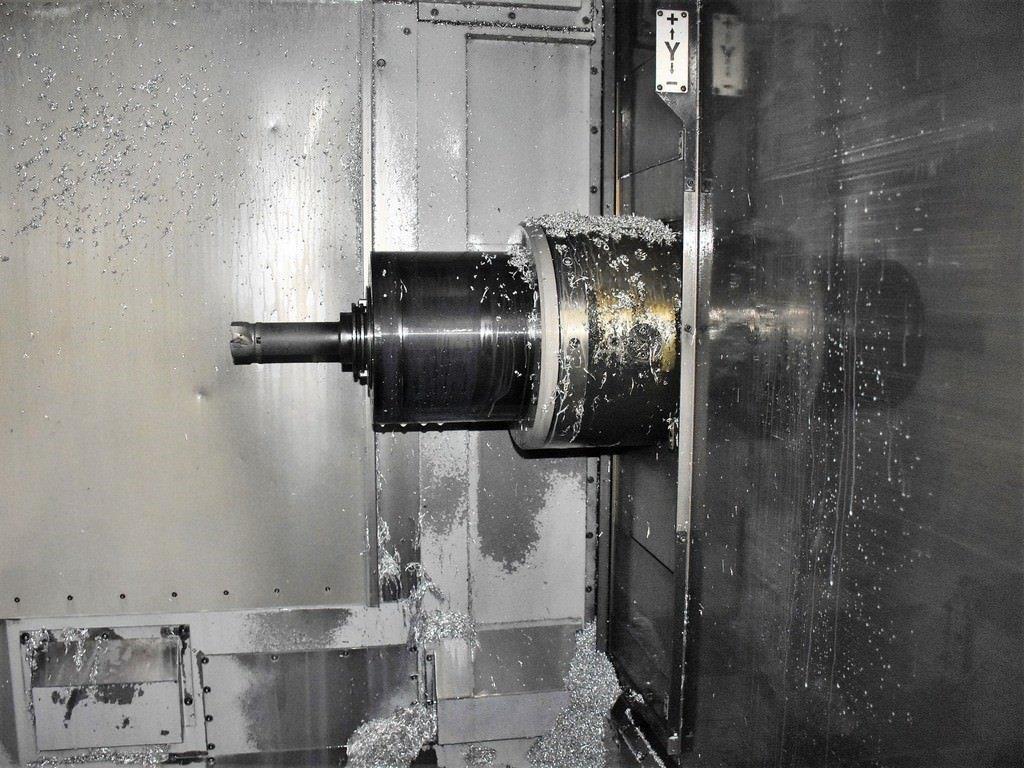

Spindle Taper
CAT 50
Spindle Speed
10,000 rpm
Spindle Motor (HP)
30 hp
Tool Changer Capacity
137
Coolant Through Spindle
yes
Machine Dimensions
125" x 191" x 122"
Machine Weight
32,000 pounds

Equipped With:

- Professional 5 Control
- 137 Station Tool Changer
- Chip Conveyor
- Coolant Tank & pump
- Spindle Chiller

The Makino A71 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
